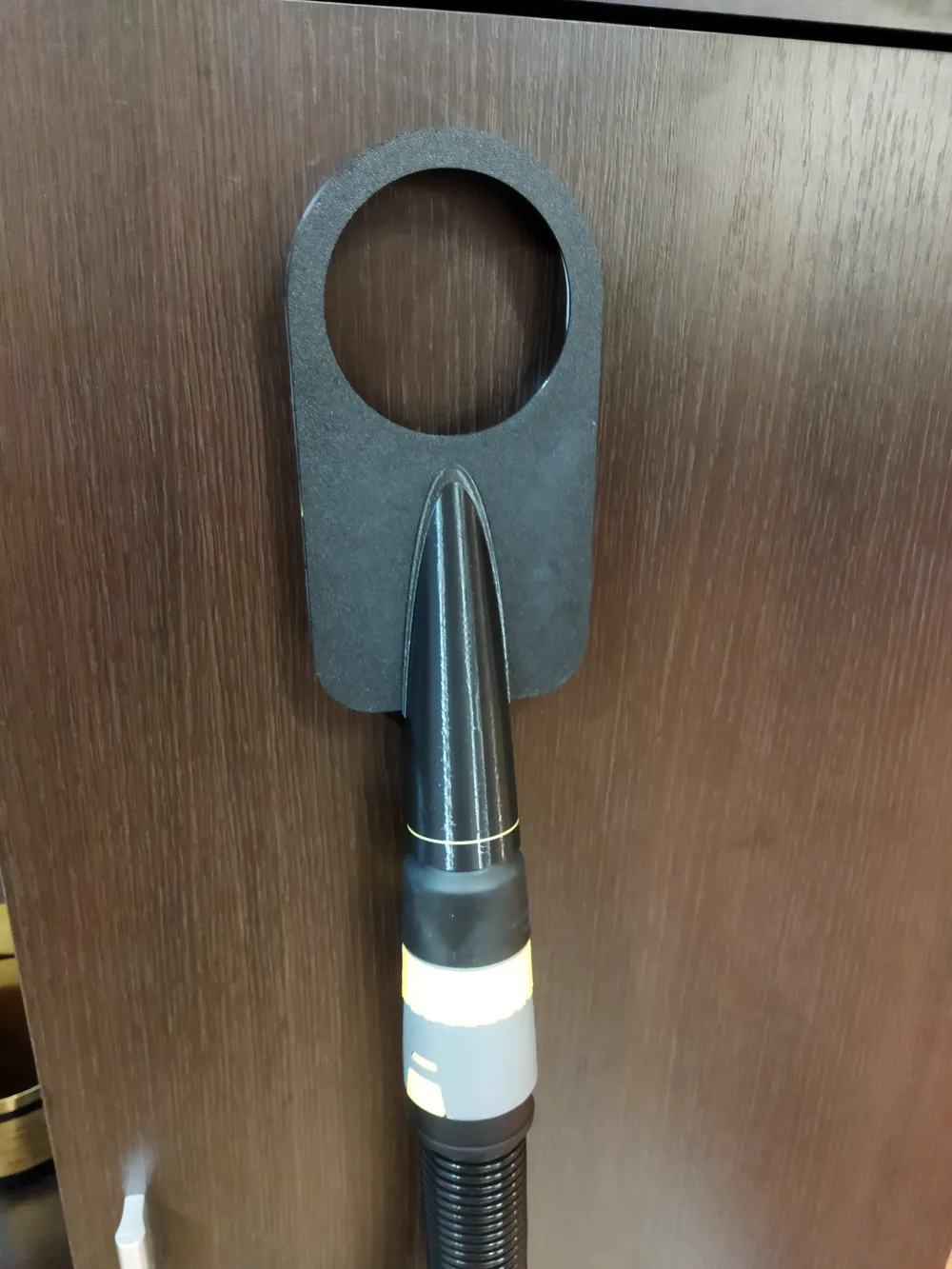

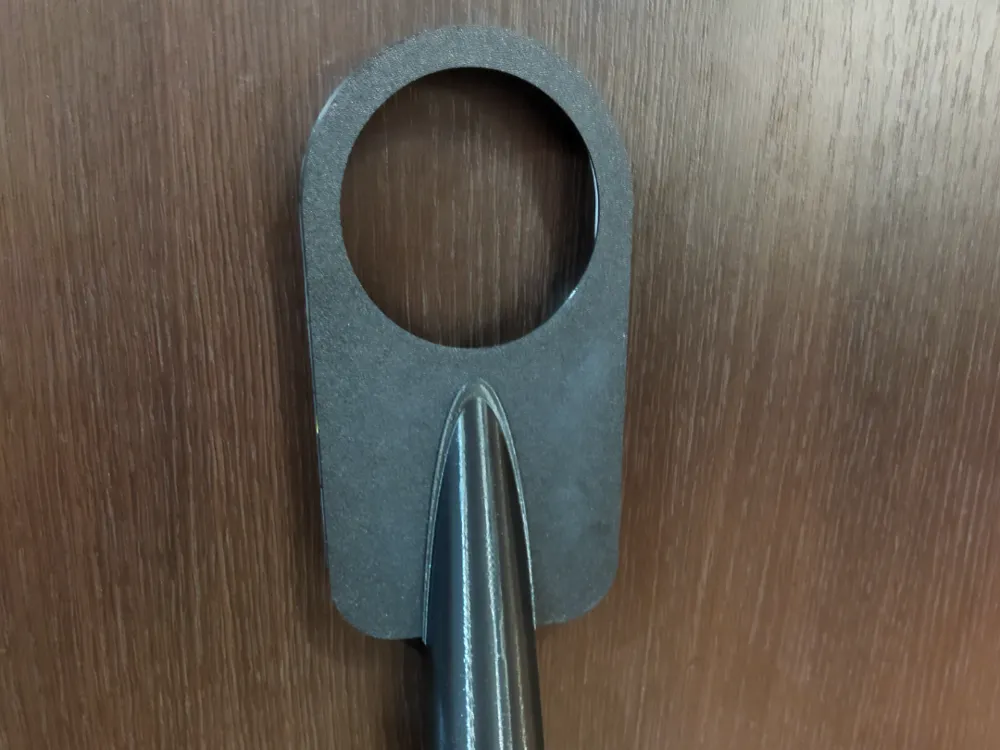

Drill dust collector vacuum cleaner

The model is analogue of Bosch GDE 68 for drilling large diameters of up to 76 mm
Dimensions:

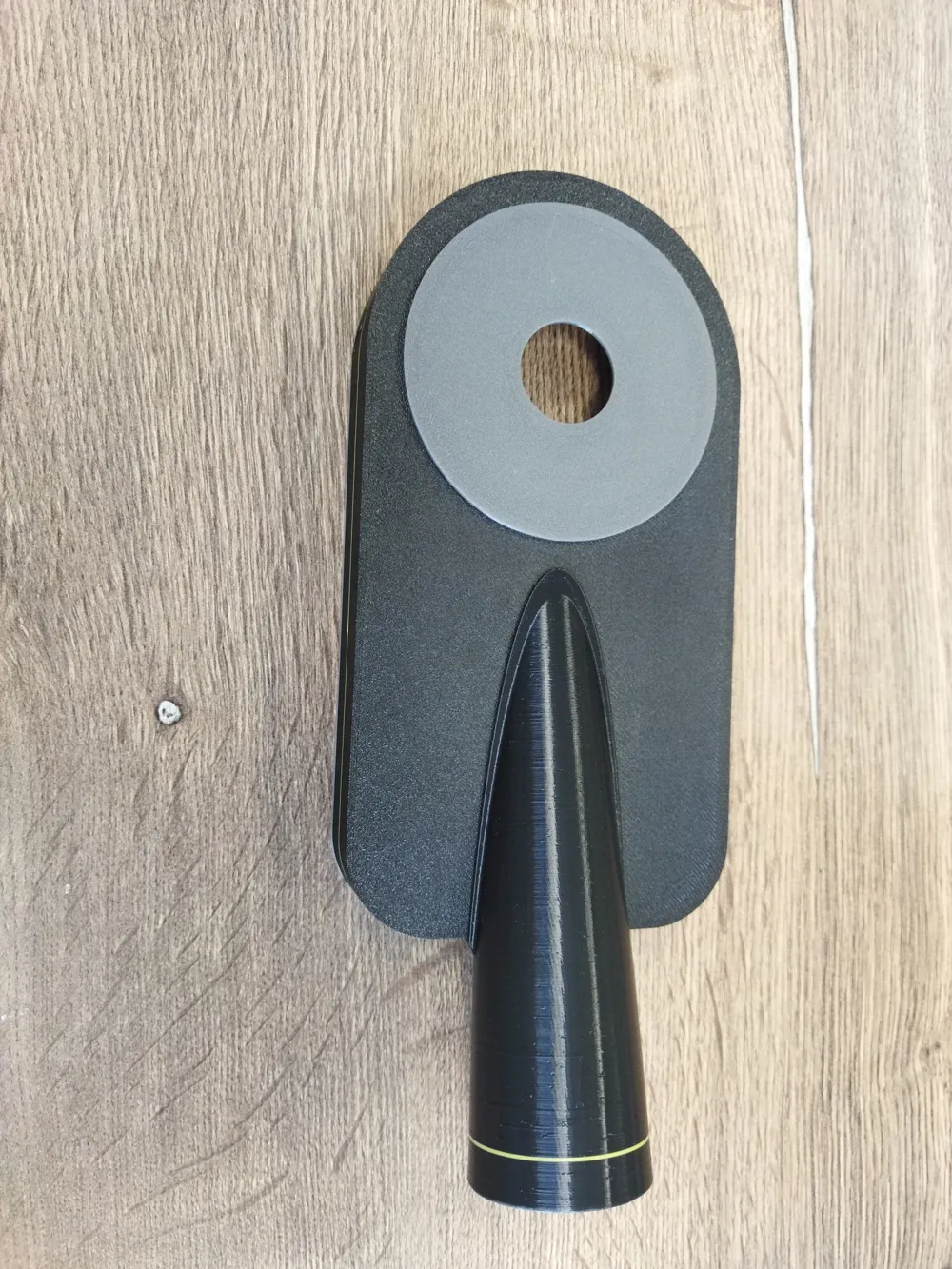

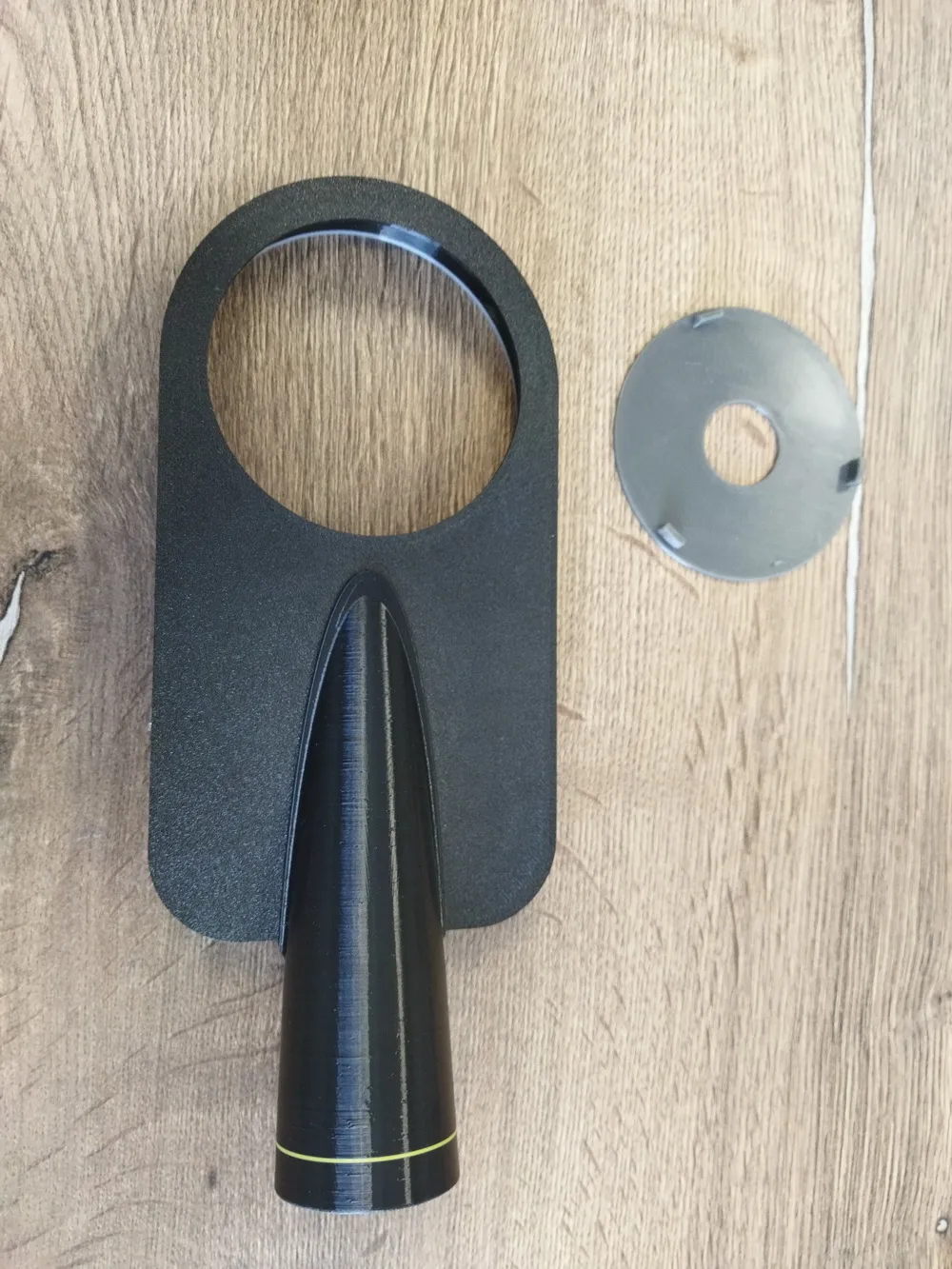

• Hole for drilling: 78mm, with reductor 25mm (you could adjust it in slicer)
• Wall thickness: 2mm
• Hose connector: internal 34..38mm (for 34..36 see other print-profiles), outernal 42mm - it fits well to my KarcherNT adapter and it should fit most of solutions. Otherwise you could modify reductor in slicer to fit
• Width x Length x Height : 100 x 240 x 20 mm (26 mm including connector & seal-ring)

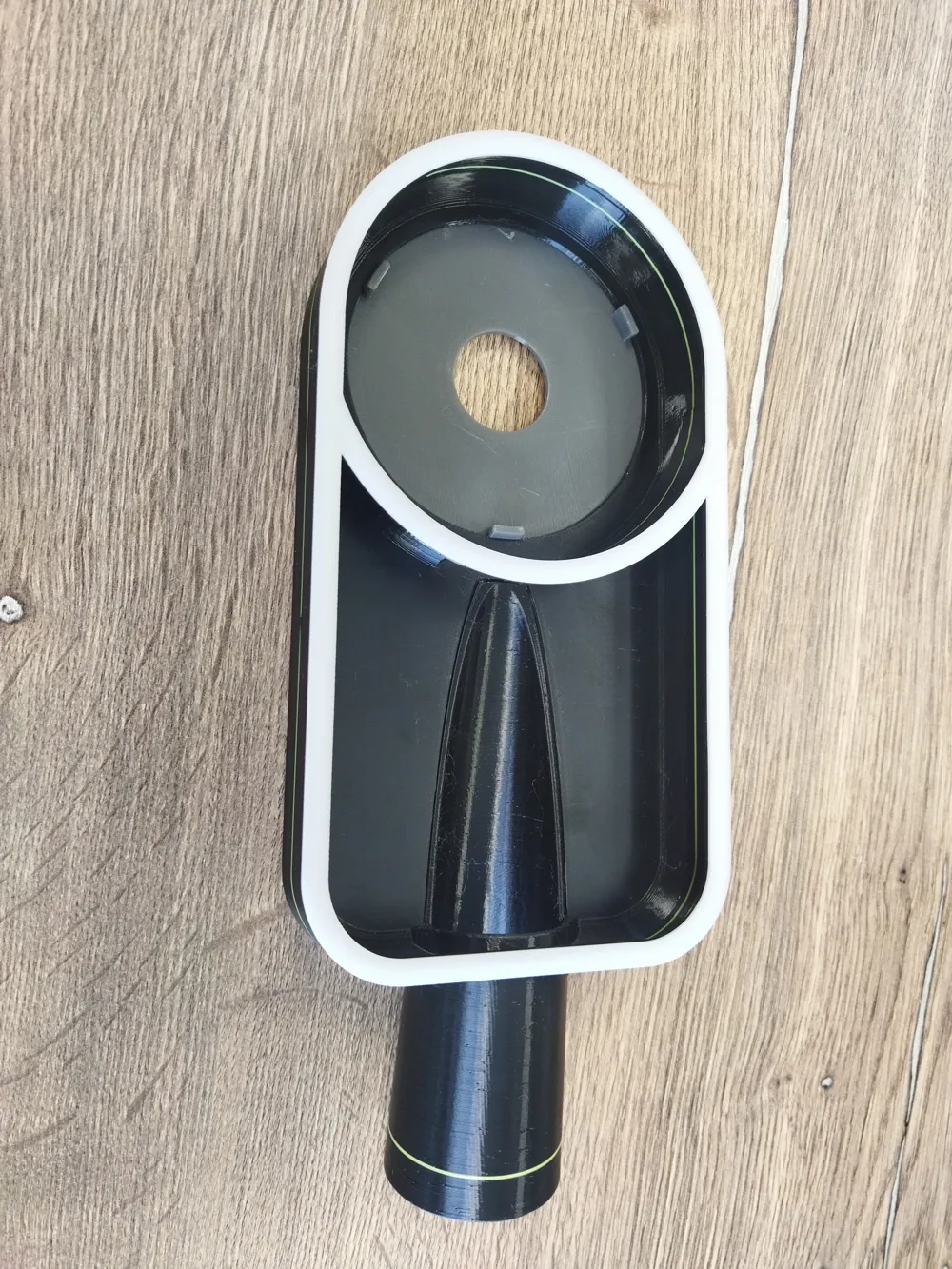

• Seal ring: thickness 1mm, width 5mm

There are 3 default profiles:

1. Recommended. Includes split connector & collector to achieve max strength, quality and less filament wasting on supports. Parts are fit very strong, so need to spend some time to assembly at 1st time, then you could disassembly + add glue + assembly again to achieve desired result
2. Same as above by with colored middle line if you prefer multicolor
3. Single part with a lot of supports, but you don't need to spend time on assembly


NOTE: there is TPU seal ring model but using some foam tape (width 5mm, thickness 2..5mm) will be much better
