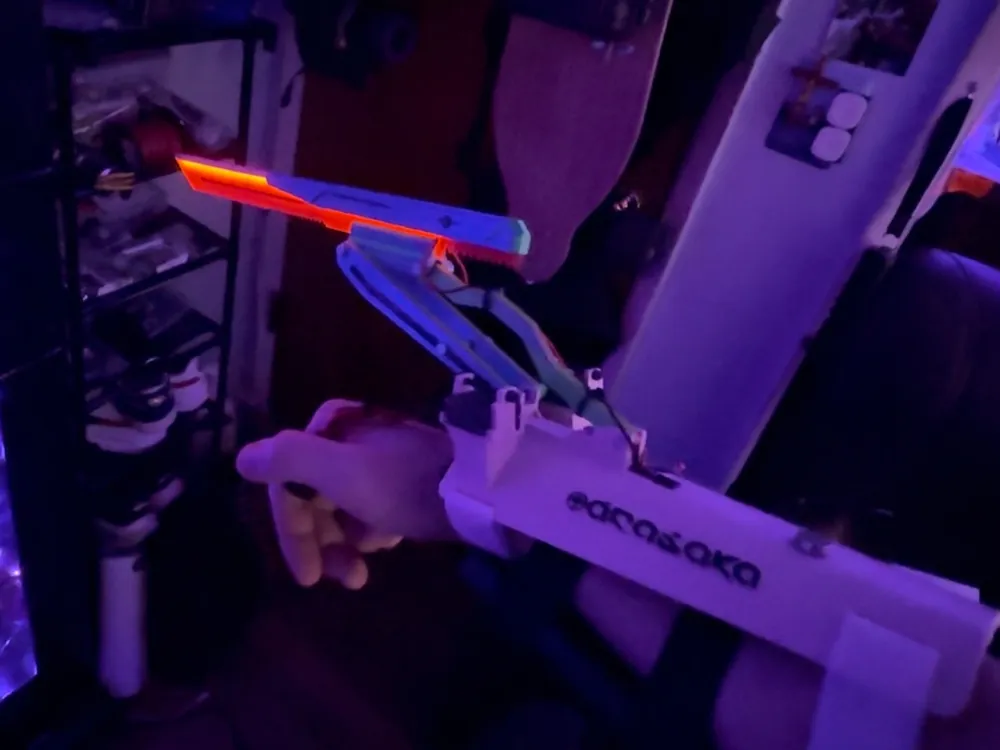

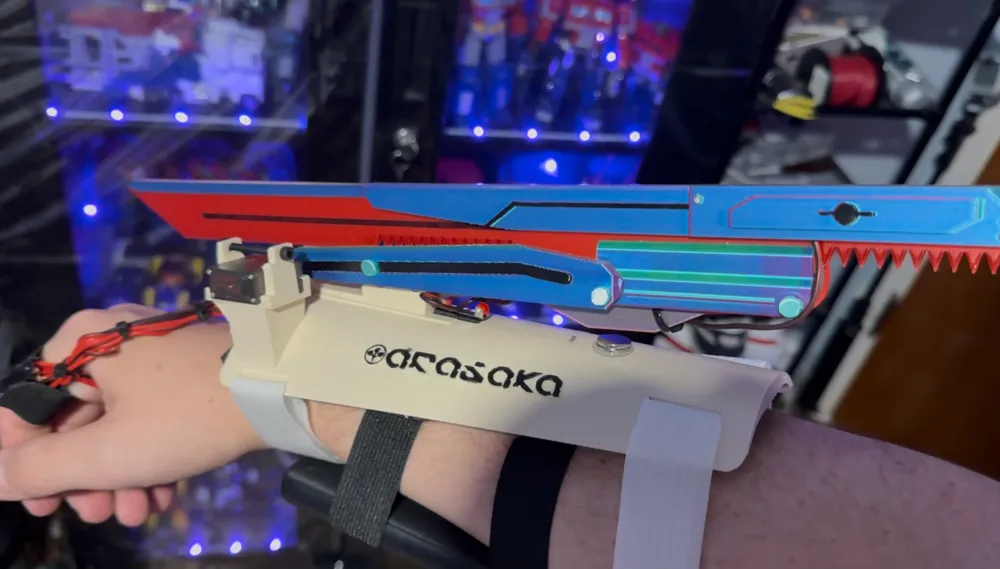

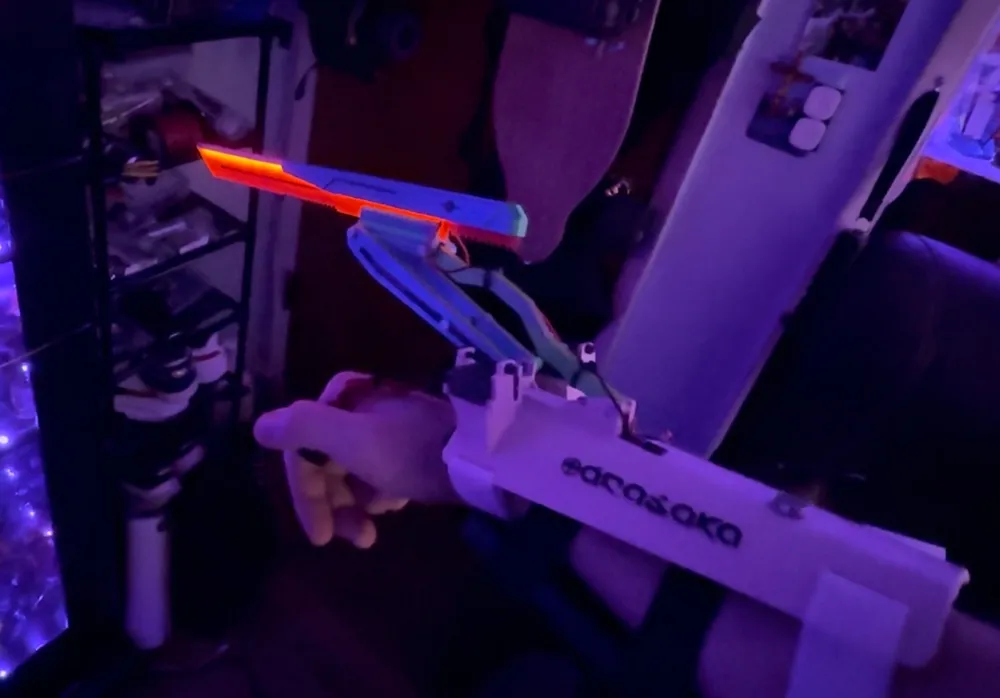

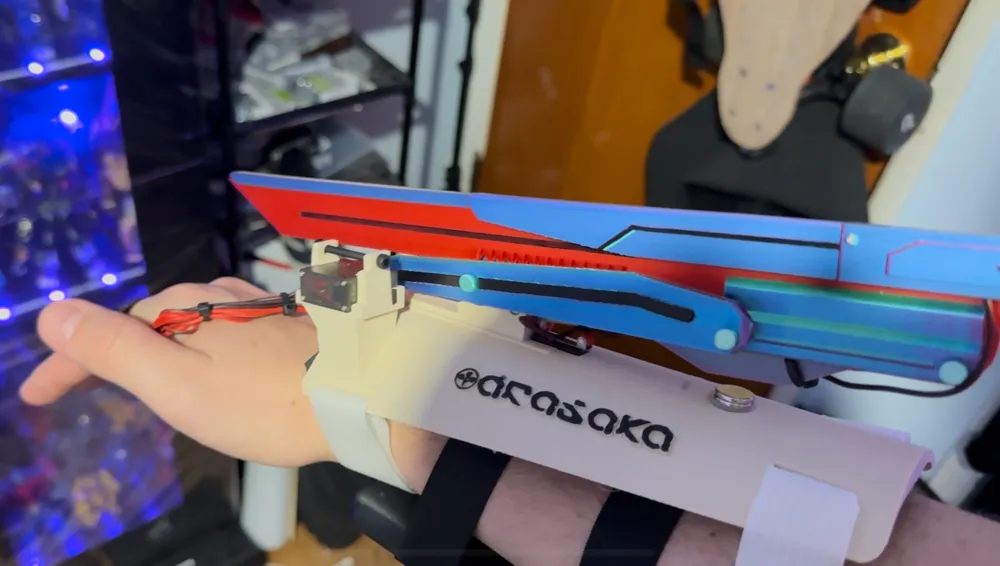

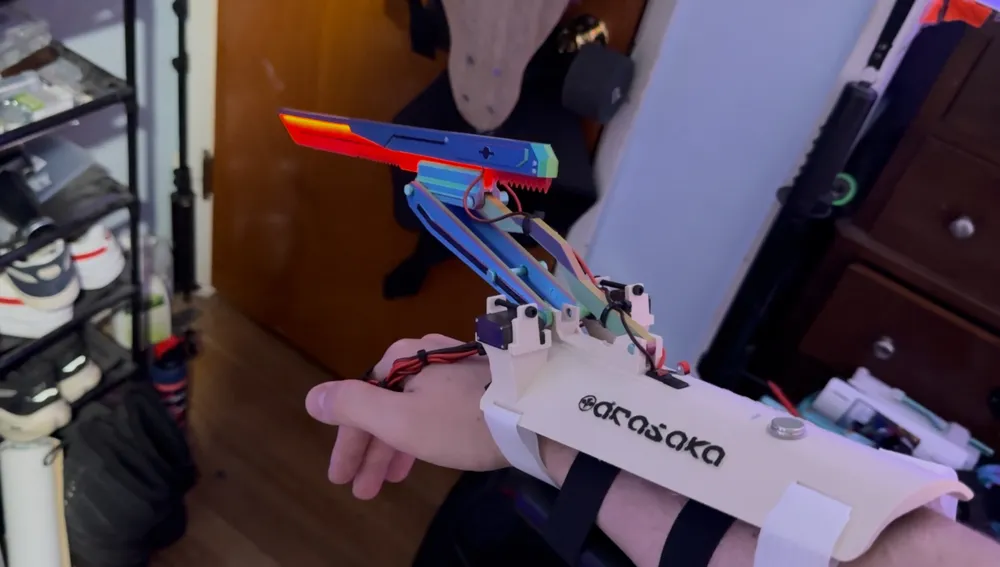

Arasaka Prototype Mantis Blade Mk 1
Print Profile(1)
Description
Arasaka Prototype Mantis Blade Mk 1
Link to assembly tutorial:
Tools needed:
3D Printer (I use Bambu A1)
Soldering Iron
Wire Strippers
Glue Gun
Super Glue
UV Resin + UV Light (to seal some connections for comfort)
Butane Torch
Screwdriver Set
Scissors
Parts Needed:
x2 MG90s Micro Servos (metal gears)
x2 M3x16mm Bolts (or longer)
x2 M3 Nuts
x1 SS22F25-G7 2-Position DPDT 2P2T Switch (6 pin)
x2 KW12-3 Normally Open Micro Switch w/ Roller Lever Arm (limit switches)
x1 Normally Open Reed Switch
x1 Flat Neodymium Magnet
x1 17.79 inch Flexible Filament LED 300mm (I use jojofunny brand)
x1 USB Male to Alligator Clip
x1 1 Inch Wide Elastic Band Roll
x1 Velcro Hook and Loop Straps, 1" x 16 feet
x1 Velcro Mounting Tape
x1 Thin Gauge Wire (I use 18awg)
x1 Sharpie Pro Black
x1 Silver Sharpie
x1 5v Output Powerbank (I use Anker Powercore 10K, 20$)
x1 Craft Foam roll
