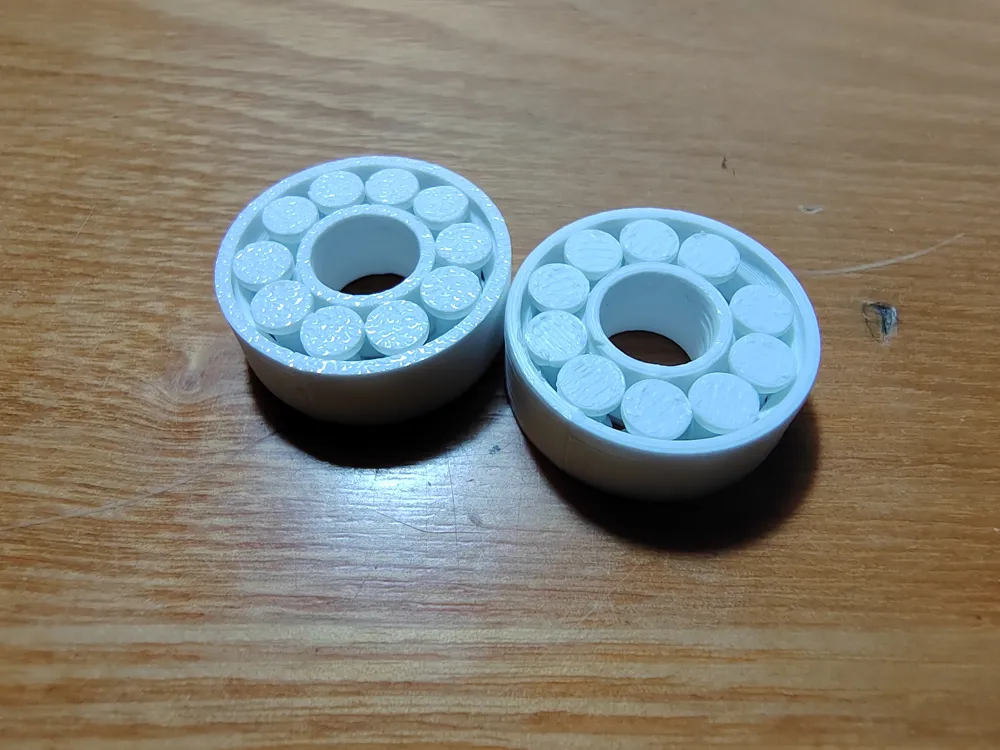

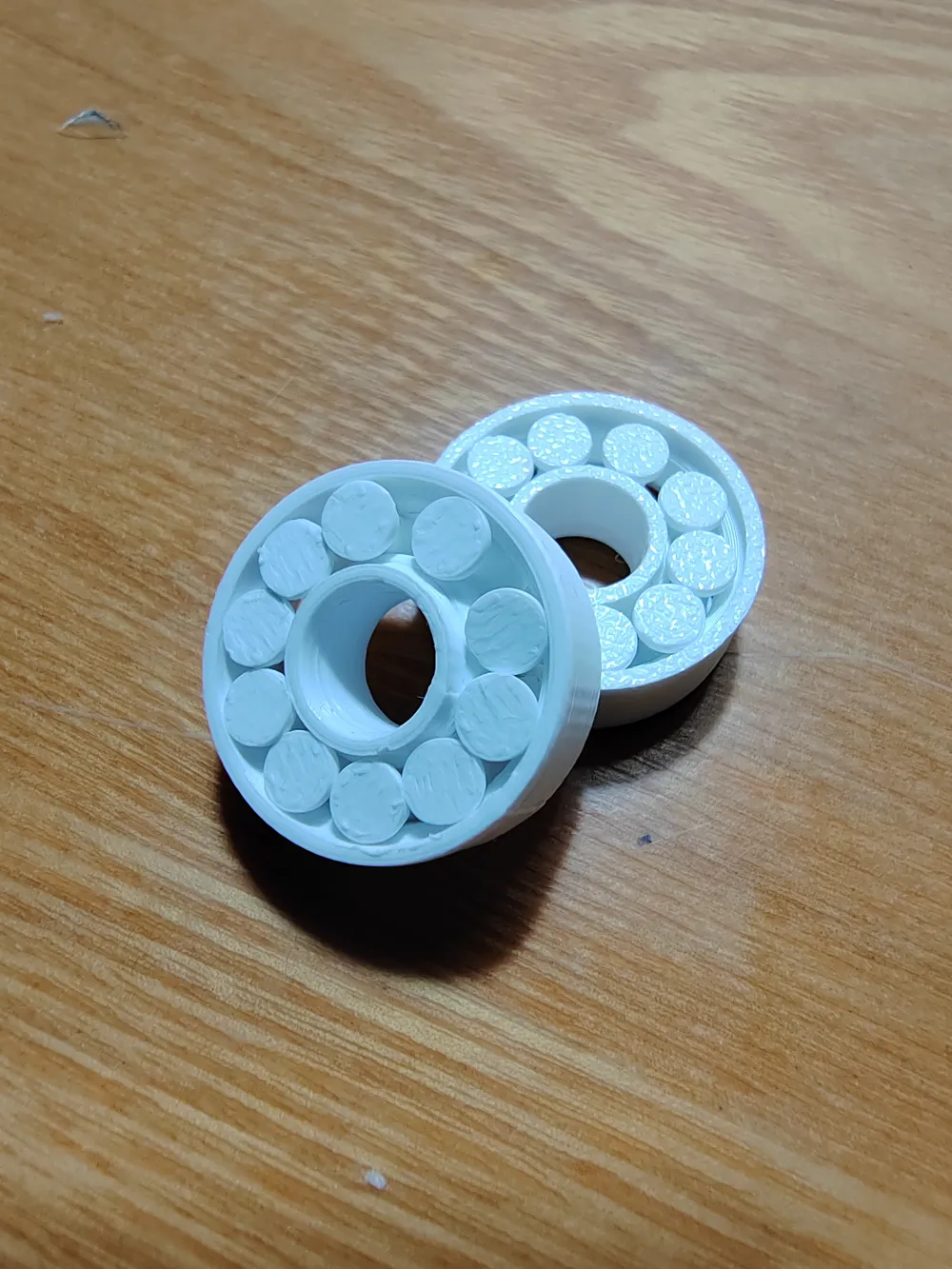

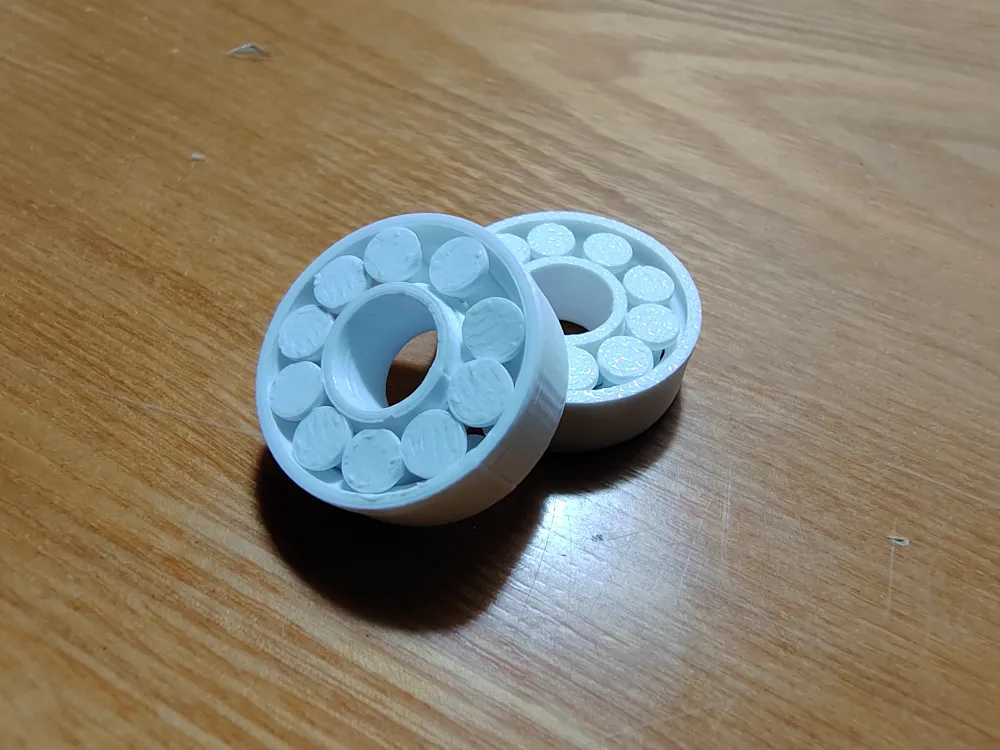

Print in Place 608zz Bearing (Super Smooth)
IP Report
GIF
Print Profile(3)
(0.15mm clearance) 0.12mm layer, 2 walls, 15% infill
Designer
22 min
1 plate
(0.2 gap) 0.12mm layer, 2 walls, 15% infill
Designer
21 min
1 plate
(0.25 clearance) 0.12mm layer, 2 walls, 15% infill
Designer
21 min
1 plate
Open in Bambu Studio
Boost
858
2555
262
29
3.9 k
3.1 k
Released
Description
Content has been automatically translated.
- Inner diameter 8, outer diameter 22, thickness 7

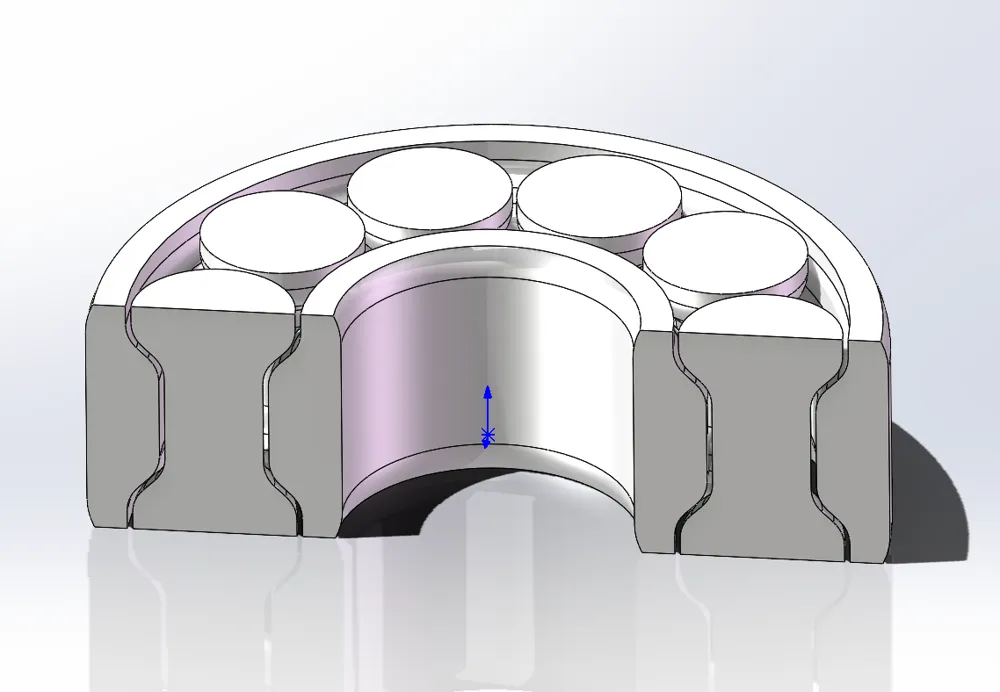

- Multiple print profiles are provided: the clearance between ball bearings and the main body ranges from small to large at 0.15, 0.20, 0.25 Choose independently based on your printer's performance
- Strongly recommend printing according to the uploaded print profile
- Given PLA filament's low sinkage rate and self-lubricating properties, it is recommended to print this model with PLA
- After printing, you may need to twist the ball bearings one by one to ensure each ball bearing rolls freely
- Lubricating oil can be added to enhance playability
