[Remote Control Aircraft] "Semi-Hollowed Out" Lightweight Stunt Aircraft
Print Profile(3)
Bill of Materials
Description
Boost Me (for free)
Reference configuration as follows
A Single-engine brushless power version:
Remote control and receiver with 4 channels or more x1
1202 6000KV brushless motor x1
10-20A brushless ESC x1
3s 180mah lithium battery x1
2 gram servo x4
3 inch propeller x1
0.6mm*1m carbon rod x3
1mm*1m carbon rod x1
quick-drying glue
0.8mm hard steel wire
2mm heat shrink tubing

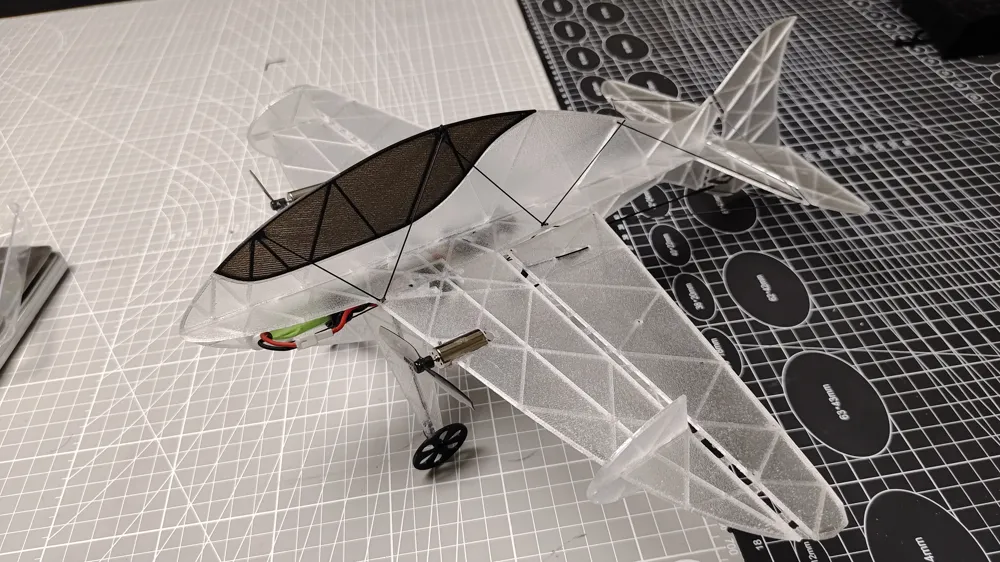

B Twin-engine brushed power version:
Remote control and receiver with 4 channels or more x1 (recommended micro board with receiver and built-in dual-channel brushed ESC)
8520 coreless motor x2
5A brushed ESC x2 (recommended type with integrated receiver, external ESC will add significant weight)
1s 200-300mah lithium battery x1
2 gram servo x4
65mm propeller x2
0.6mm*1m carbon rod x3
1mm*1m carbon rod x1
quick-drying glue
0.8mm hard steel wire
2mm heat shrink tubing
Carbon rod brace assembly diagram:
