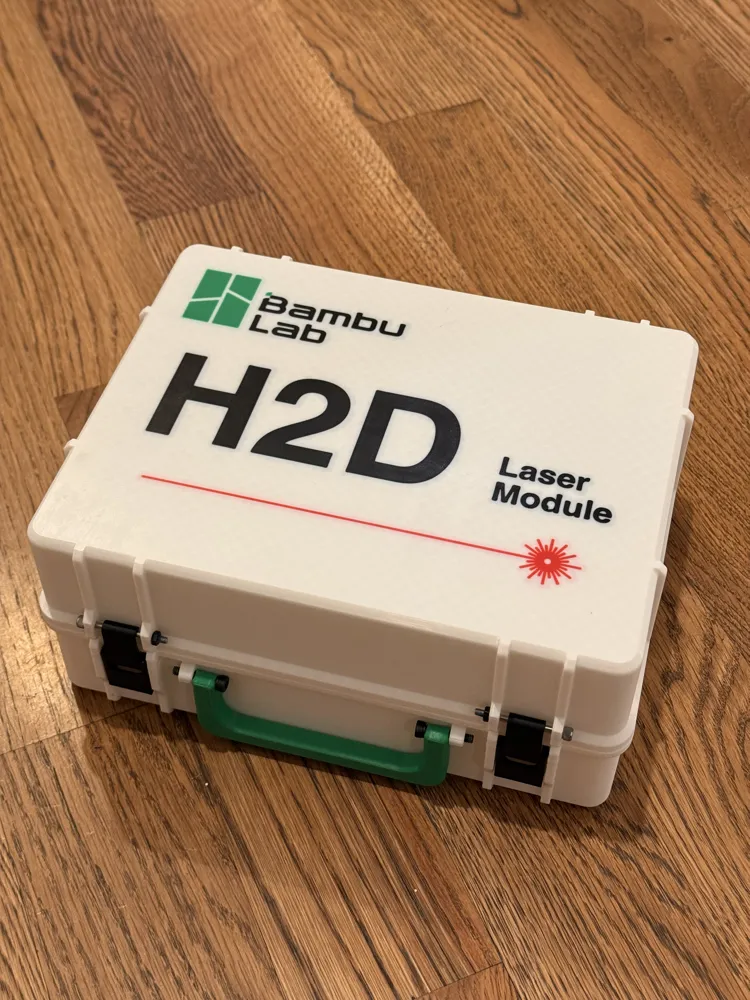

Remix of Remix of H2D 40W Laser Module Storage Box

Remixed by
IP Report

Print Profile(1)

All
H2D
H2D Pro

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
20.7 h
5 plates
5.0(6)

Open in Bambu Studio
Boost
24
70
10
12
121
56
Released

Bill of Materials

Maker's Supply Kits and Parts
Select all
M3x30 SHCS Machine Screw (5PCS) - AA042
M4x20 BHCS Machine Screw (5PCS) - AA068
M3 Carbon Steel Hex Nut (20PCS) - AB005
Bambu Filaments
Select all
Bambu Green (10501) / Refill / 1kg
Jade White (10100) / Refill / 1kg
Black (10101) / Refill / 1kg
Red (10200) / Refill / 1kg
Black (51100) / Filament with spool / 1 kg
Black (33102) / Refill / 1 kg
List other parts
  • UV Resin x 1: https://a.co/d/asjB6mY
  • UV Flashlight x 1: https://a.co/d/bbm81GC

Description

I was looking for a good 40 W laser module and this one seemed like the best out there. After several modifications, I think it is now perfectly functional and will last forever. Let me know if you have any issues, happy to help! Big props to UnbeatableYeti for Remixing the smaller box for the 40w laser module!


Changes:

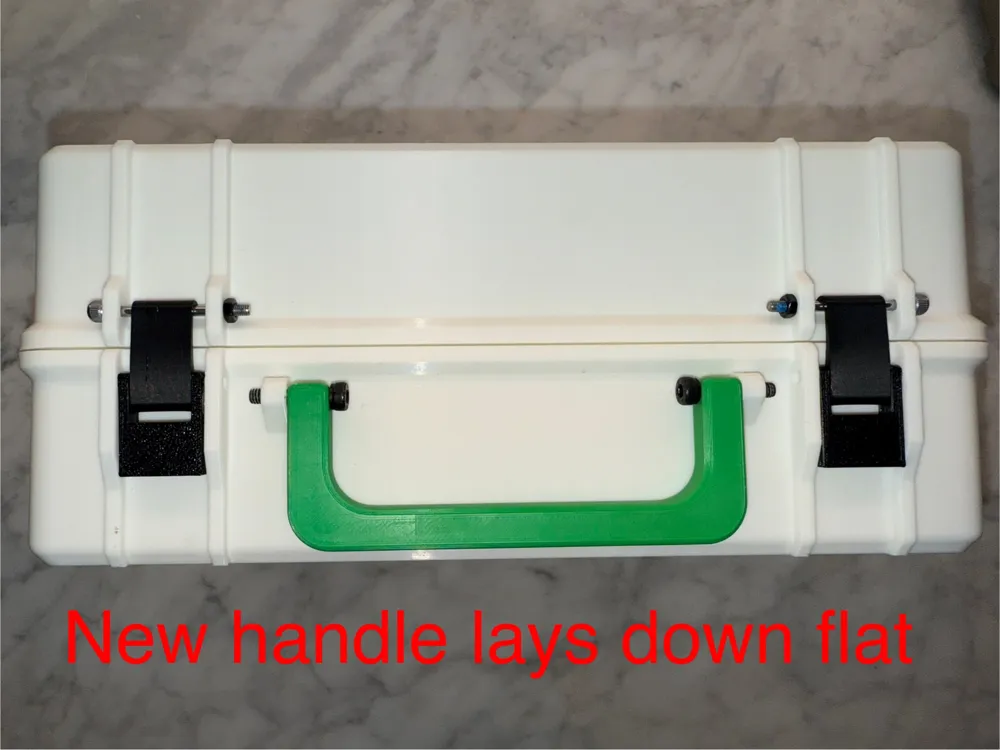

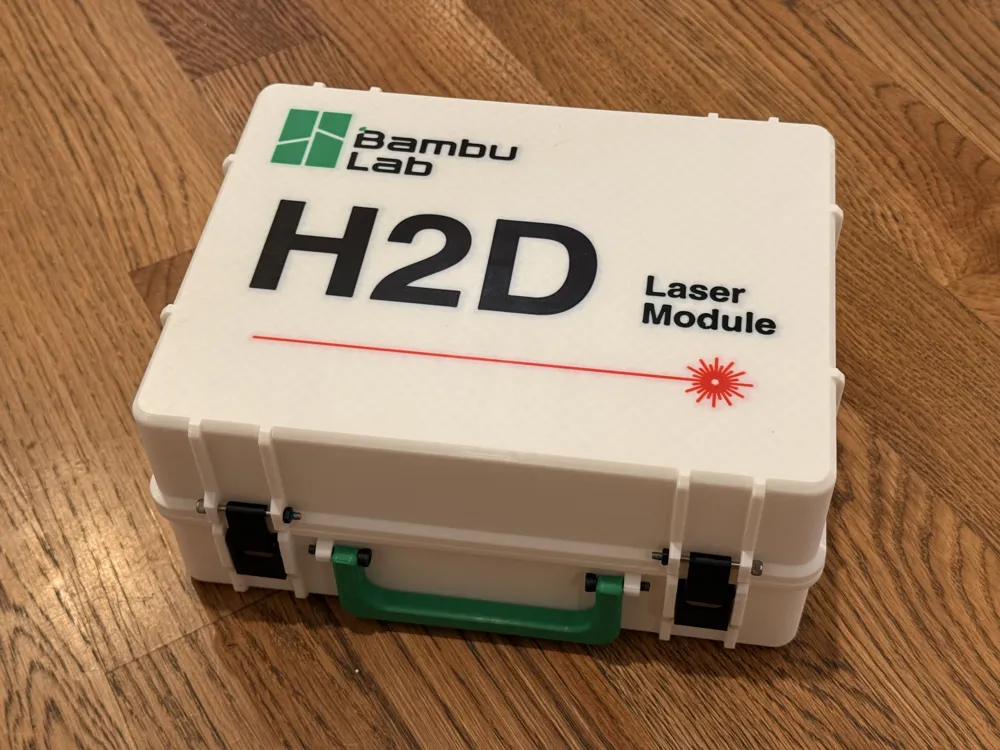

  • I fixed (made some “cuts” in the model) the handle so that it now lays flat.

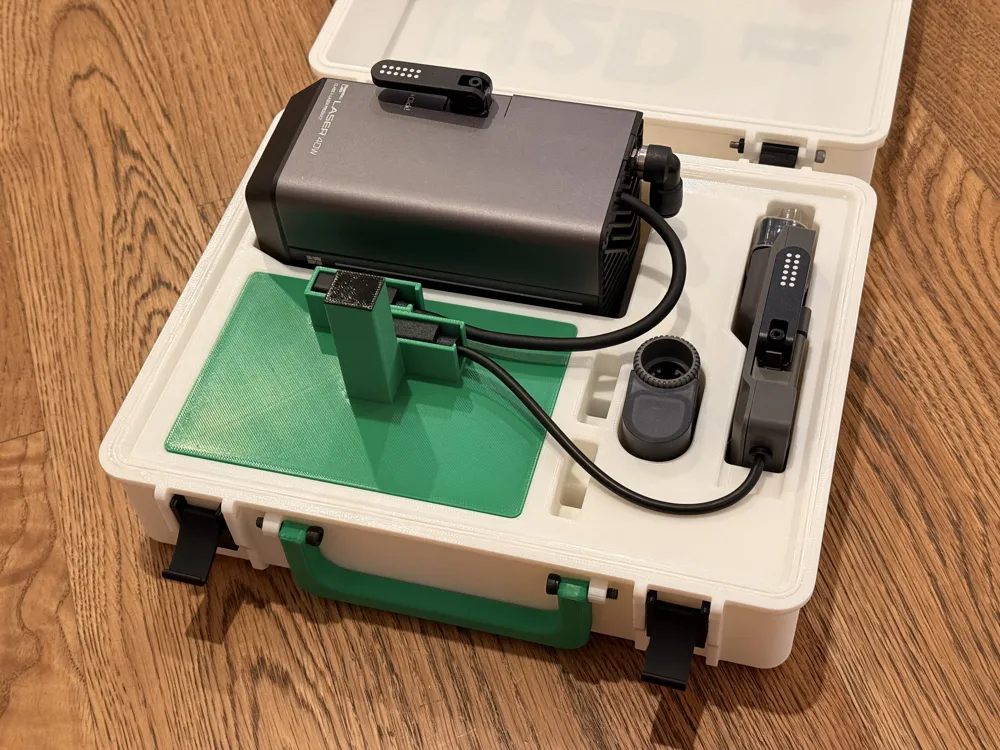

  • I used filament I had, listed below. If you don't have PETG for the hinges, I'm sure PLA would be just fine. TPU is necessary for the bumpers to hold your laser in and provide protection.

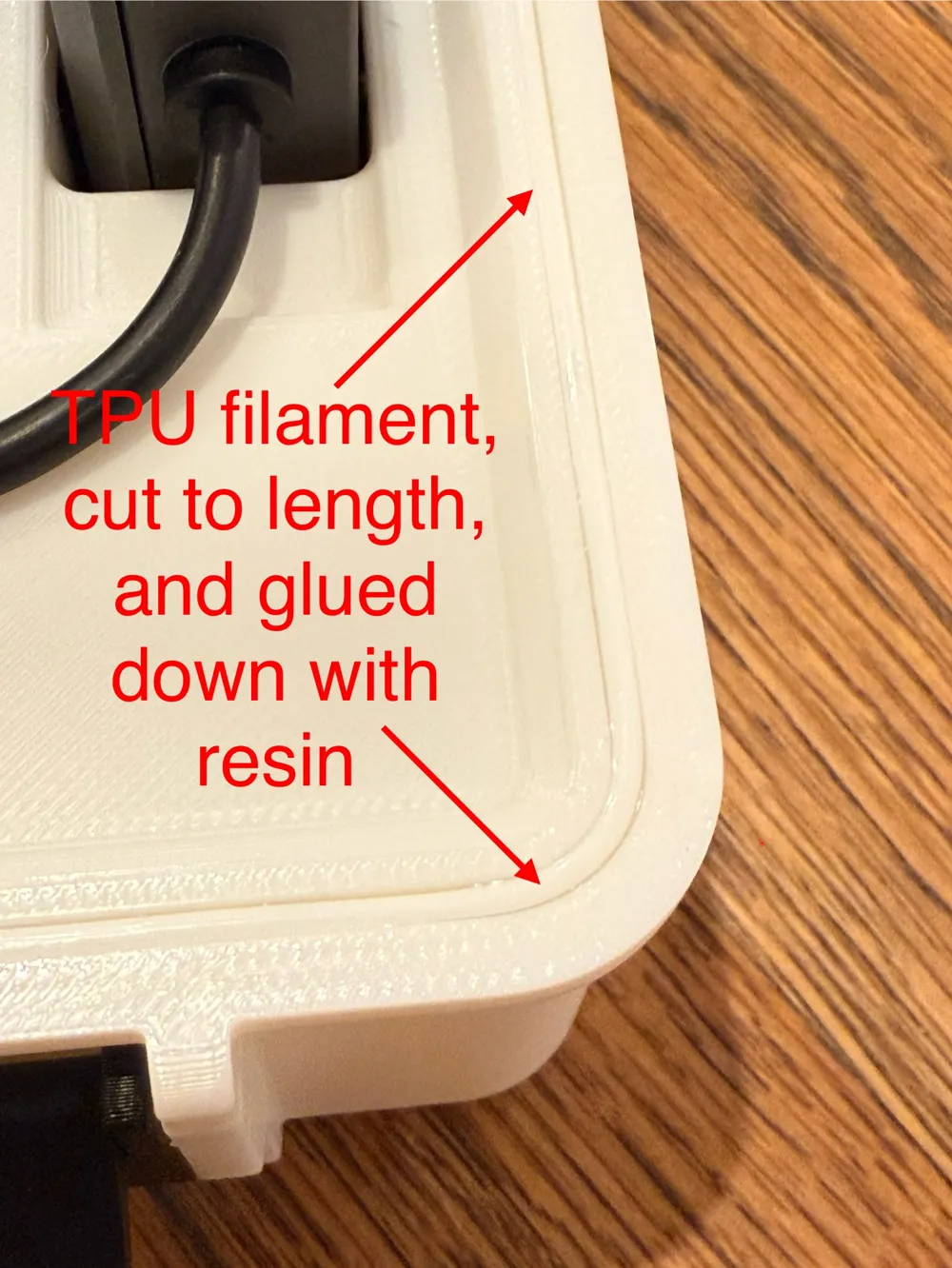

  • This model did not include a gasket, so I just used some TPU filament as the gasket (just cut the filament to length and put it in the crevice in the box and glue it down!) I used UV Resin to keep the filament/gasket in place (also listed below). Close up photo of gasket is just simply cut white TPU filament glued down.

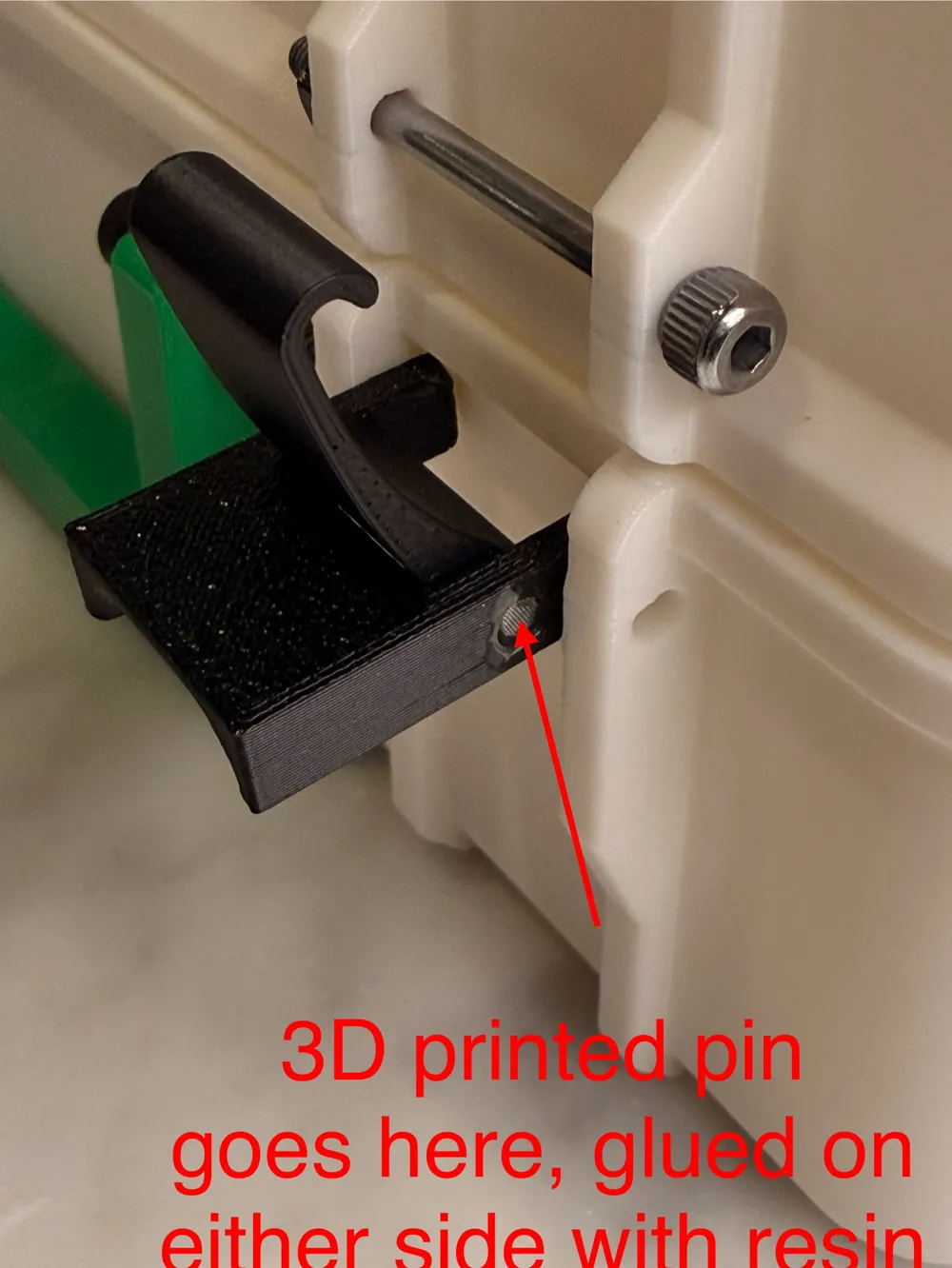

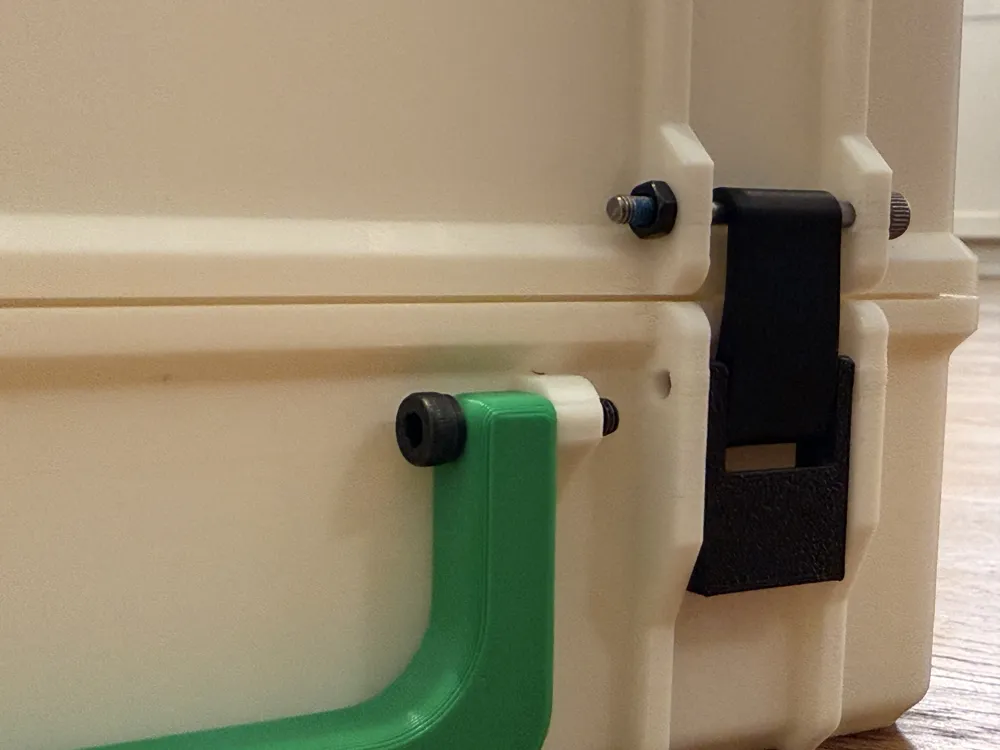

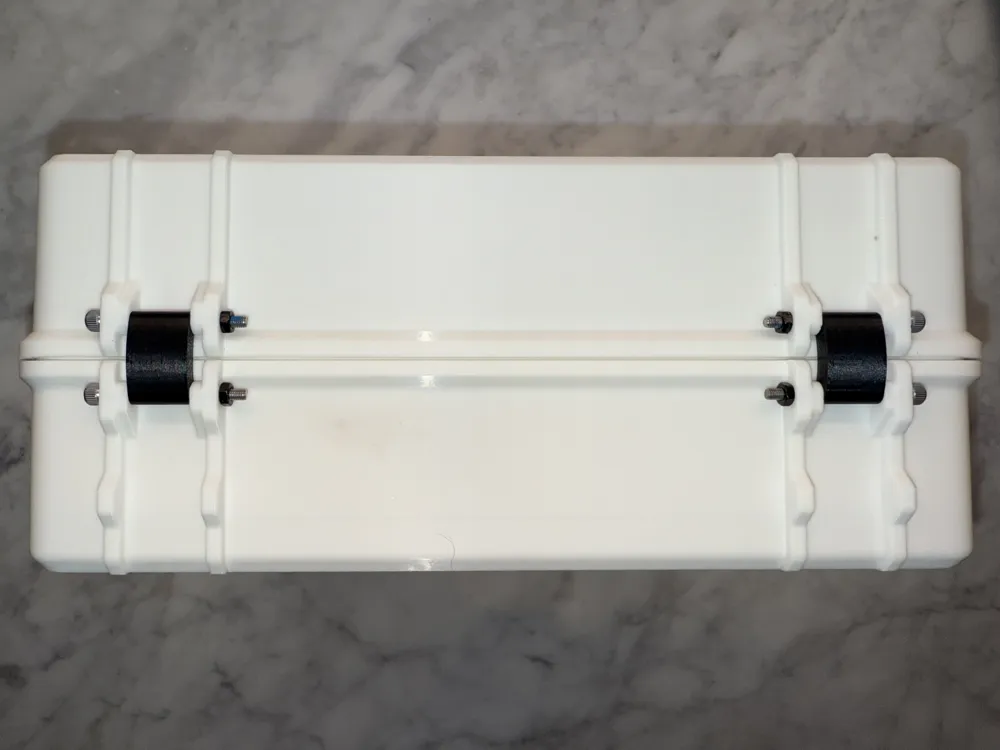

  • I removed some of the pins, and replaced them with machine bolts/nuts because the 3d printed pins did not fit and don't seem like a good long-term solution as they may break over time. Bolts and nuts are listed below.

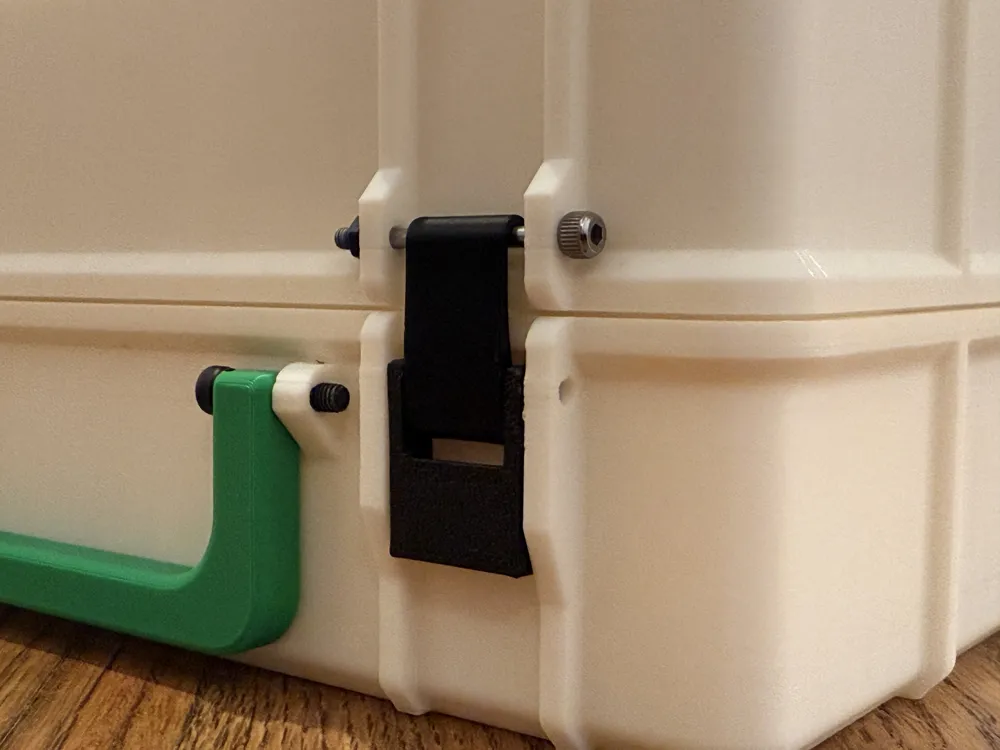

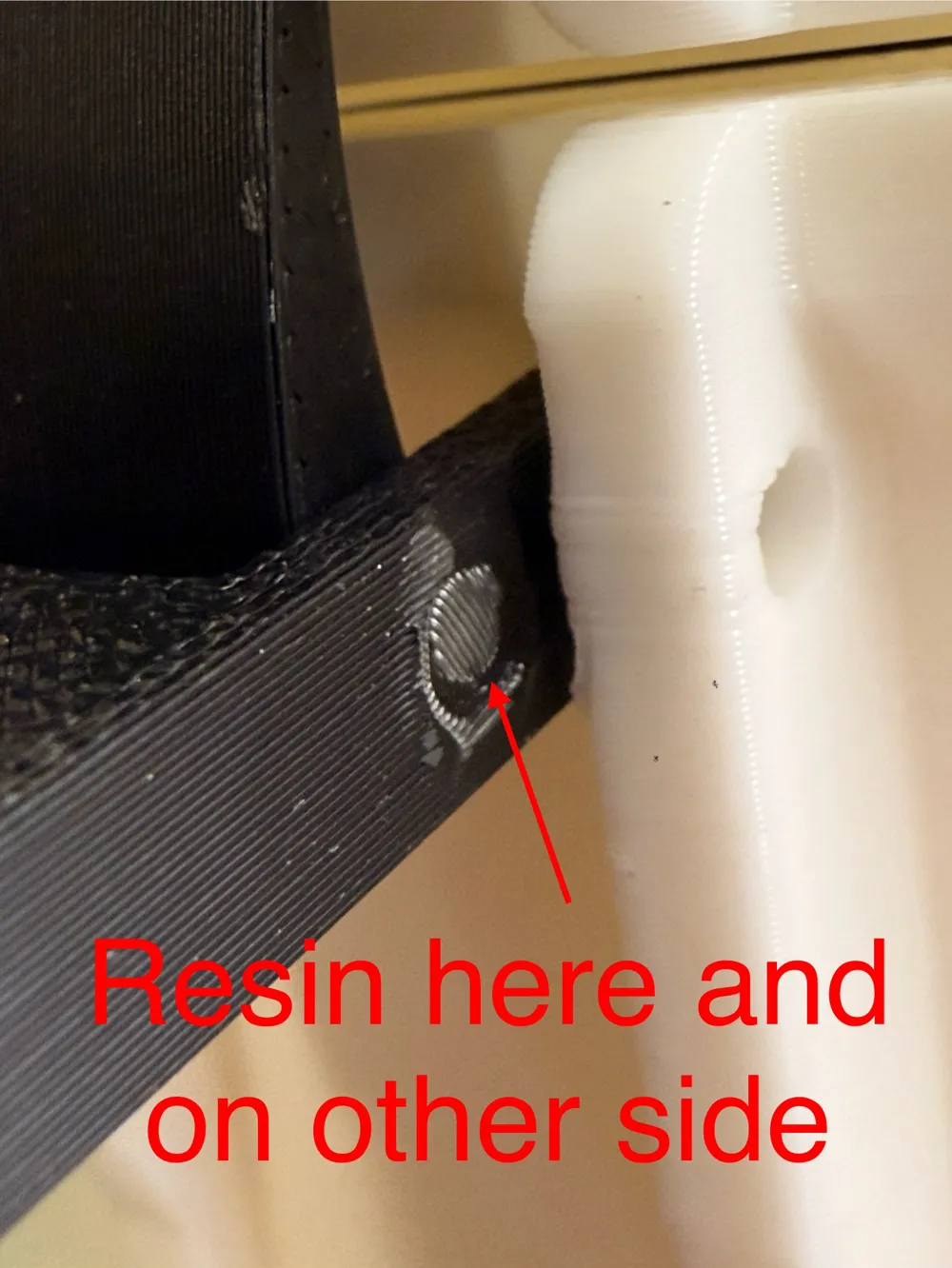

  • I reduced the size of the hook by 10% because it was too long, and did not hold the box tight/shut. The new one along with the gasket is a perfect fit that keeps it tight/shut. I also put a little resin on the ends of the pins/latch to hold them in place.
