Description

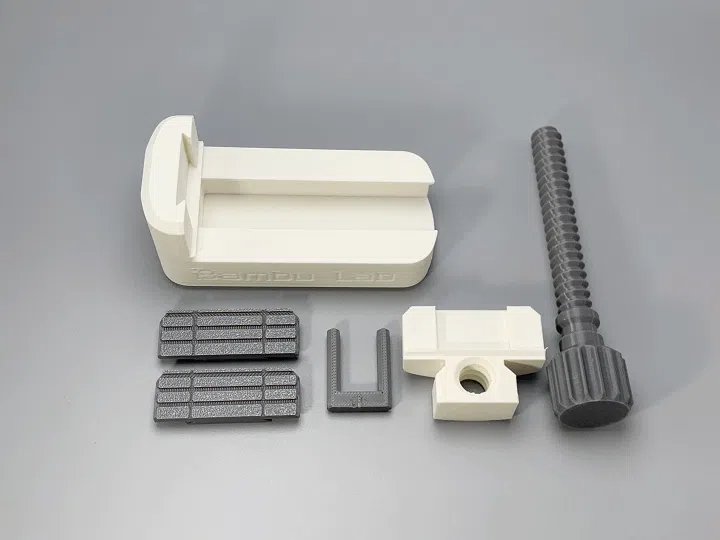

This is a convenient and compact mini vise, with a main body measuring 120*47*40mm, a clamping range of 0-60mm, and a clamping width of 46mm.
It features replaceable clamping jaws, a spindle with a limit stop, fast printing, and is compact, portable, sturdy, and practical.
Features:
- Entirely 3D Printed, compact size, fast printing, sturdy, and smooth.
- Non-slip grooves on the clamping jaws provide stable and secure clamping, with a replaceable design that can be printed with TPU.
- The bolts are printed vertically, allowing for extremely smooth rotation and sufficient strength.
- Simple assembly, no accessories required, ready to use in 5 seconds after assembly.
- Spindle limit buckle design for more convenient use.
- The clamping jaws are designed to be compact and not easily fall off when installed; if too tight, you can slightly sand the dovetail corners.

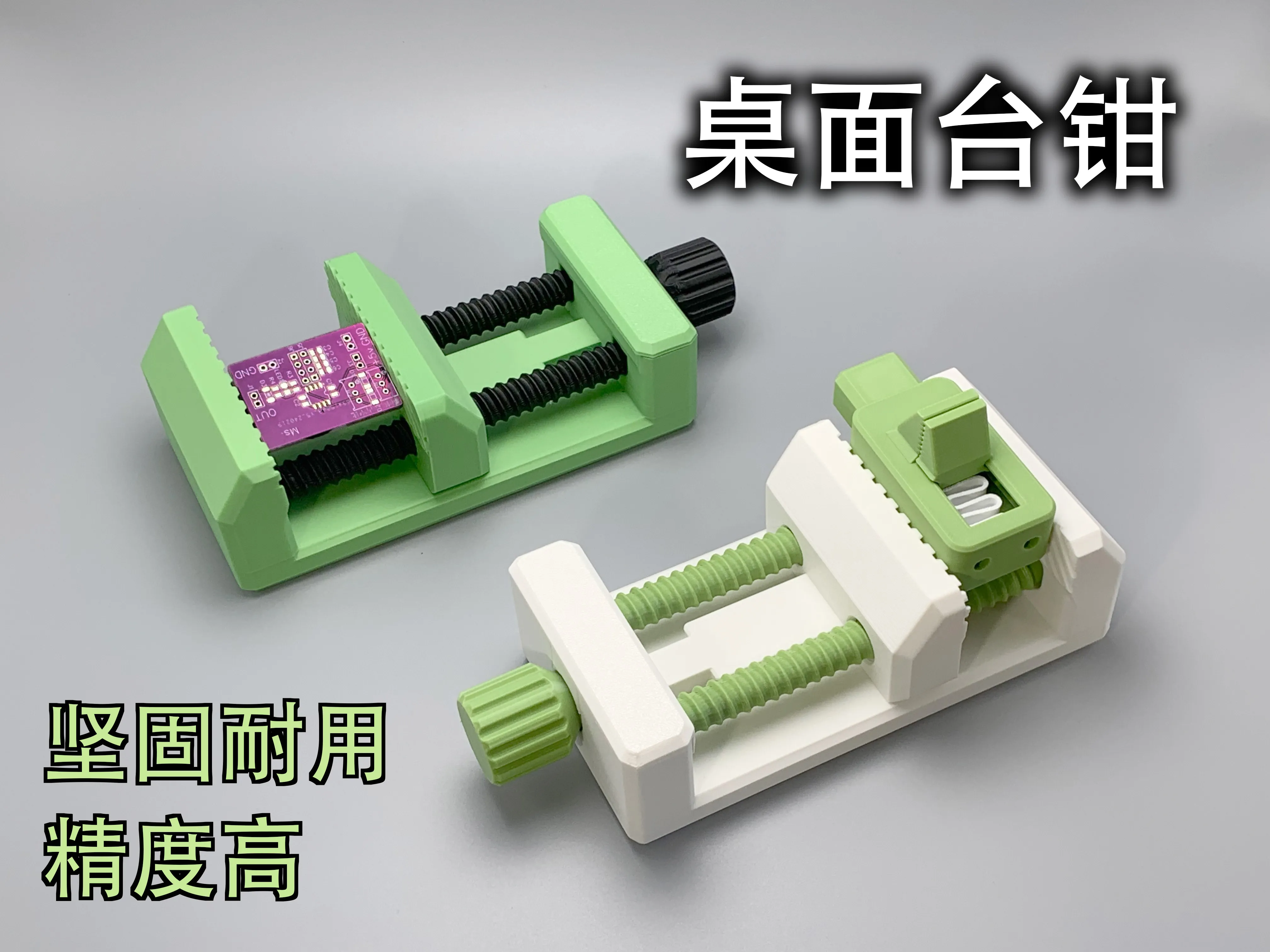

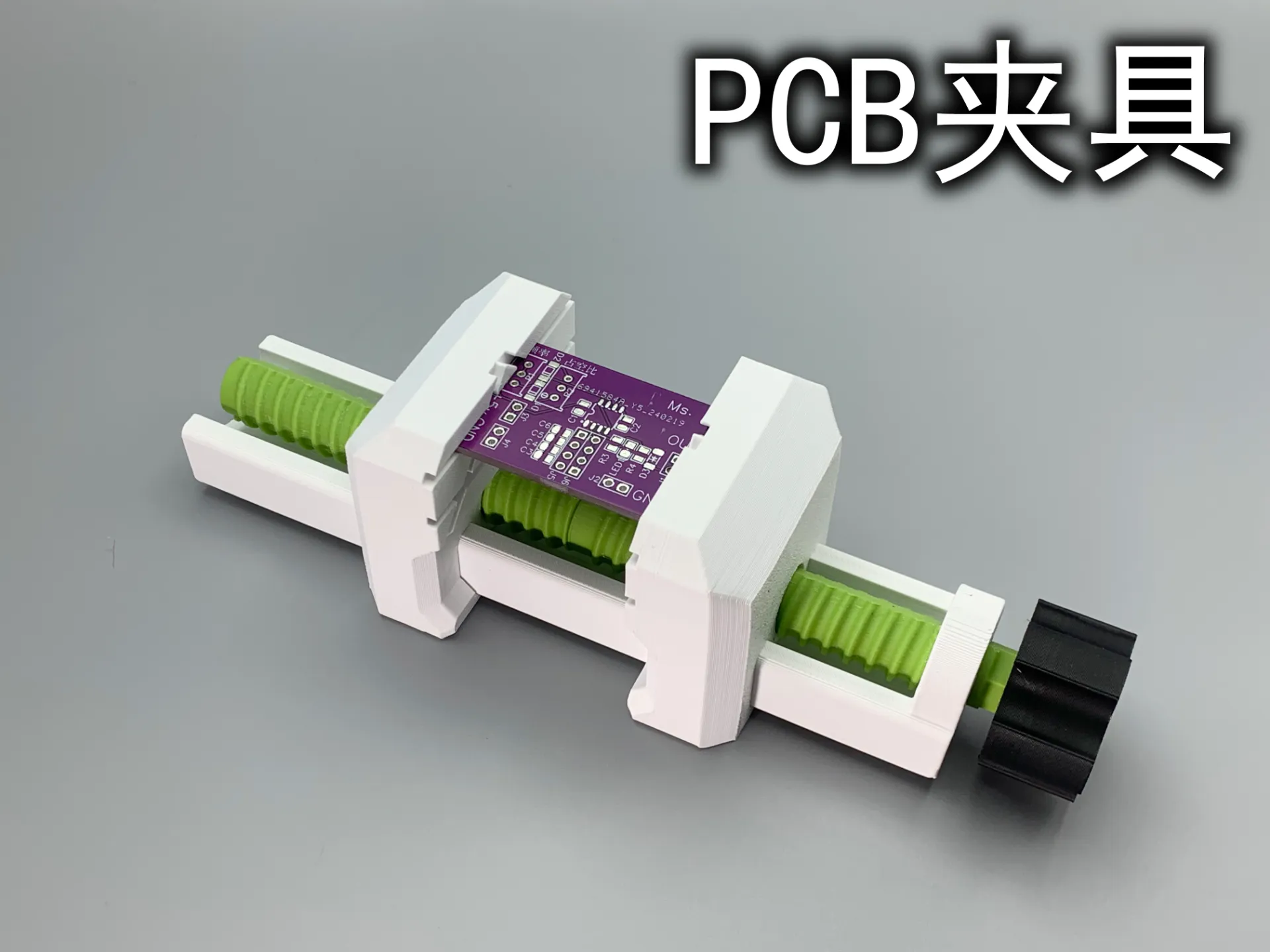

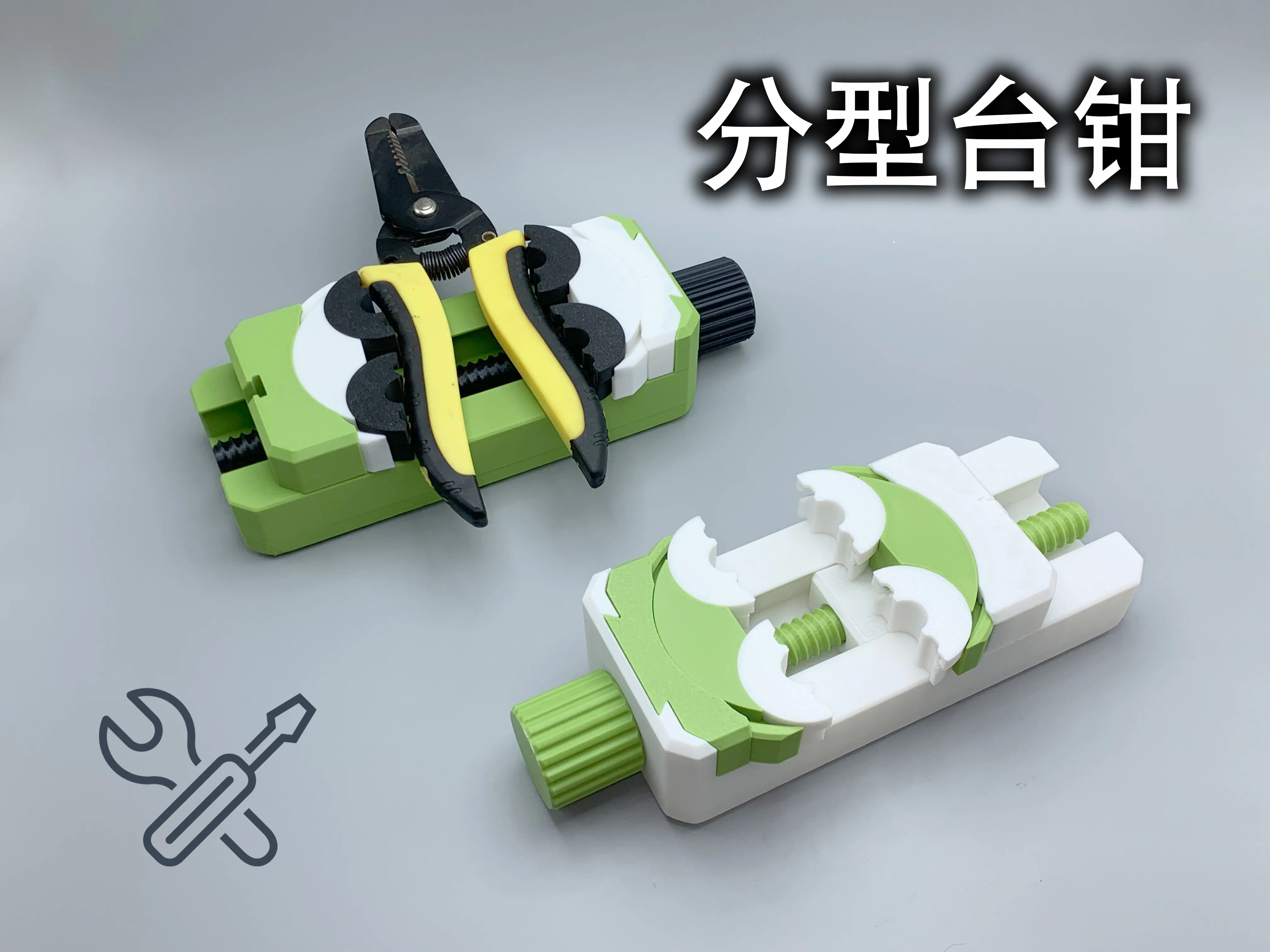

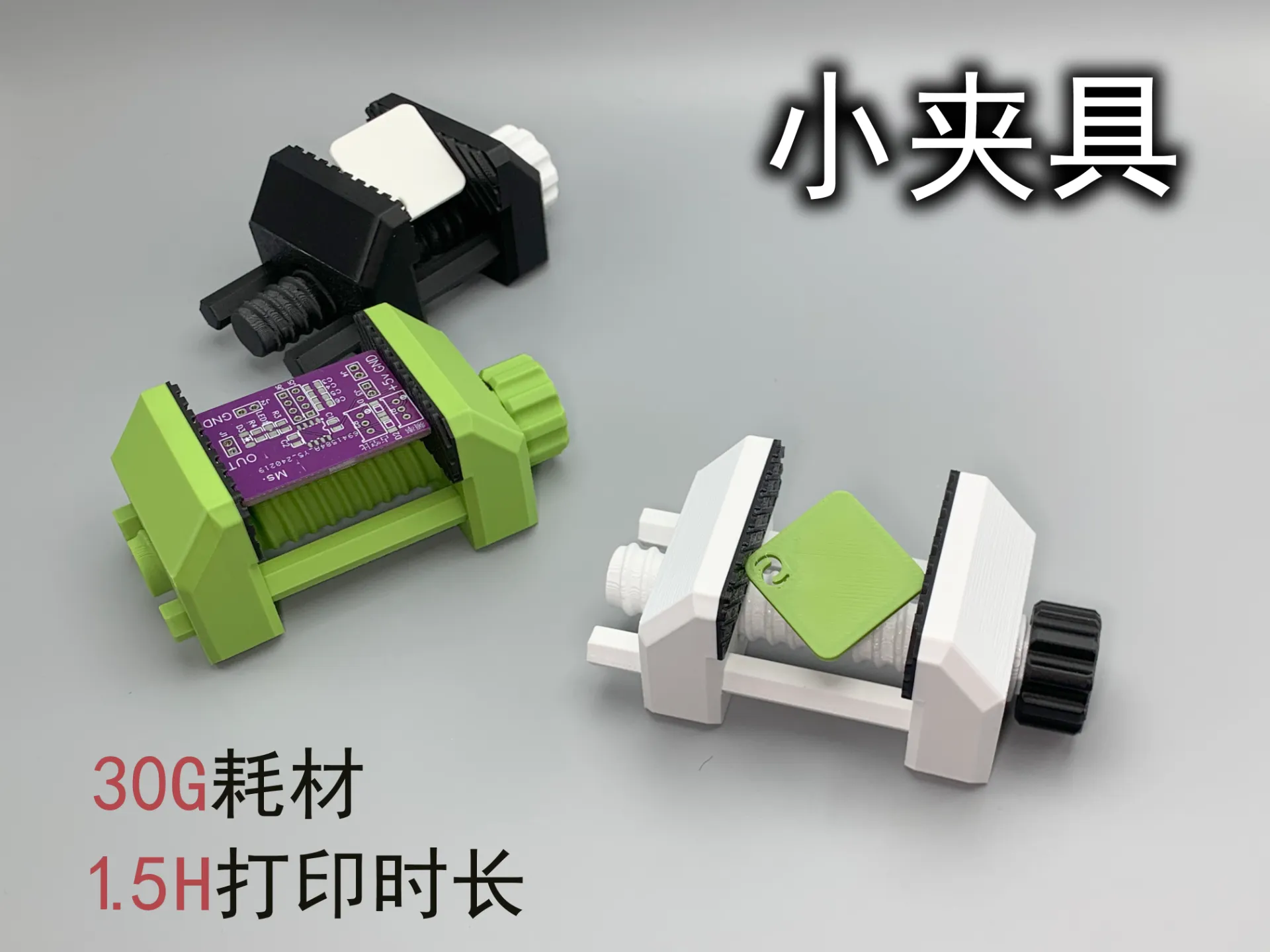

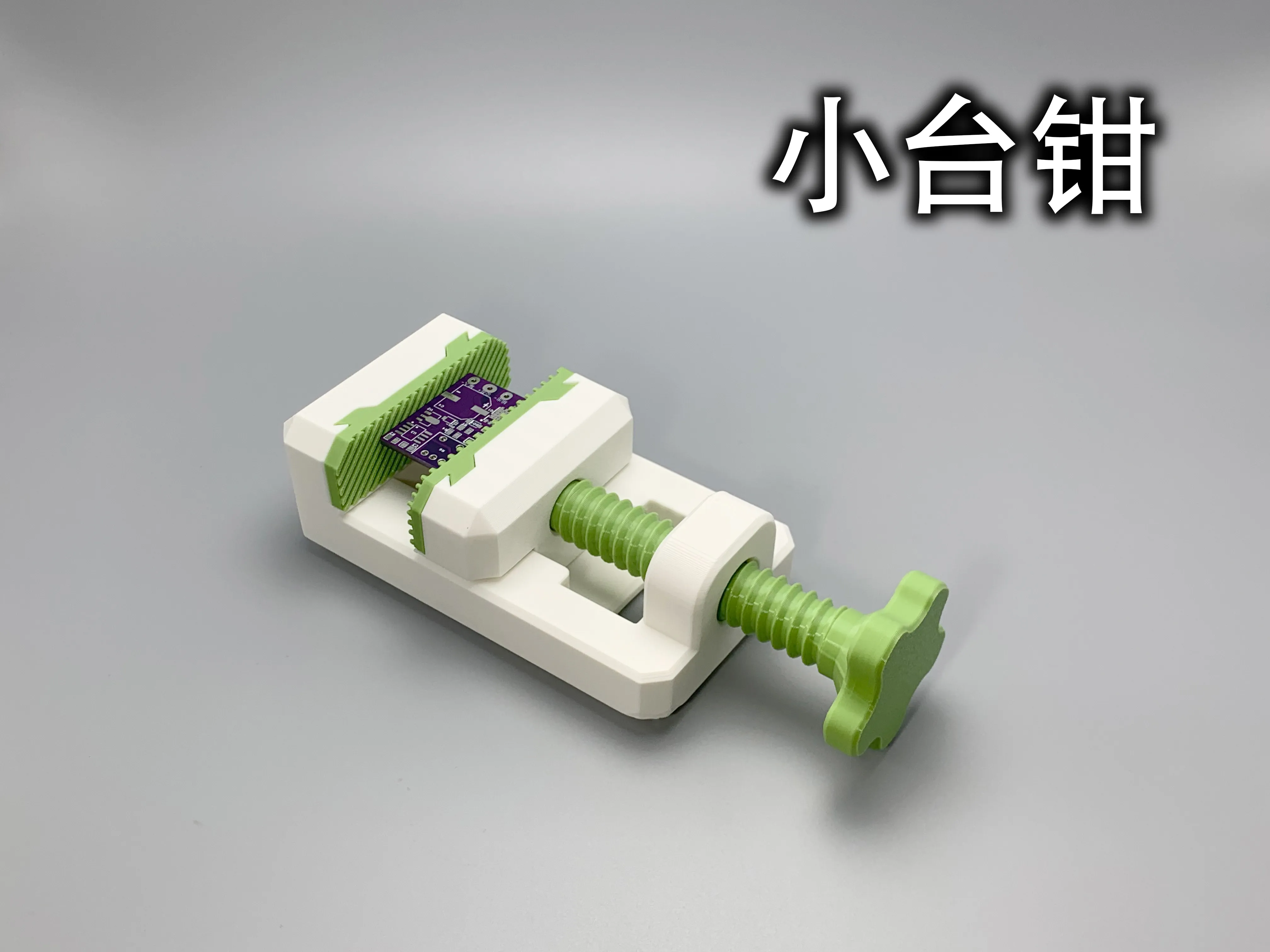

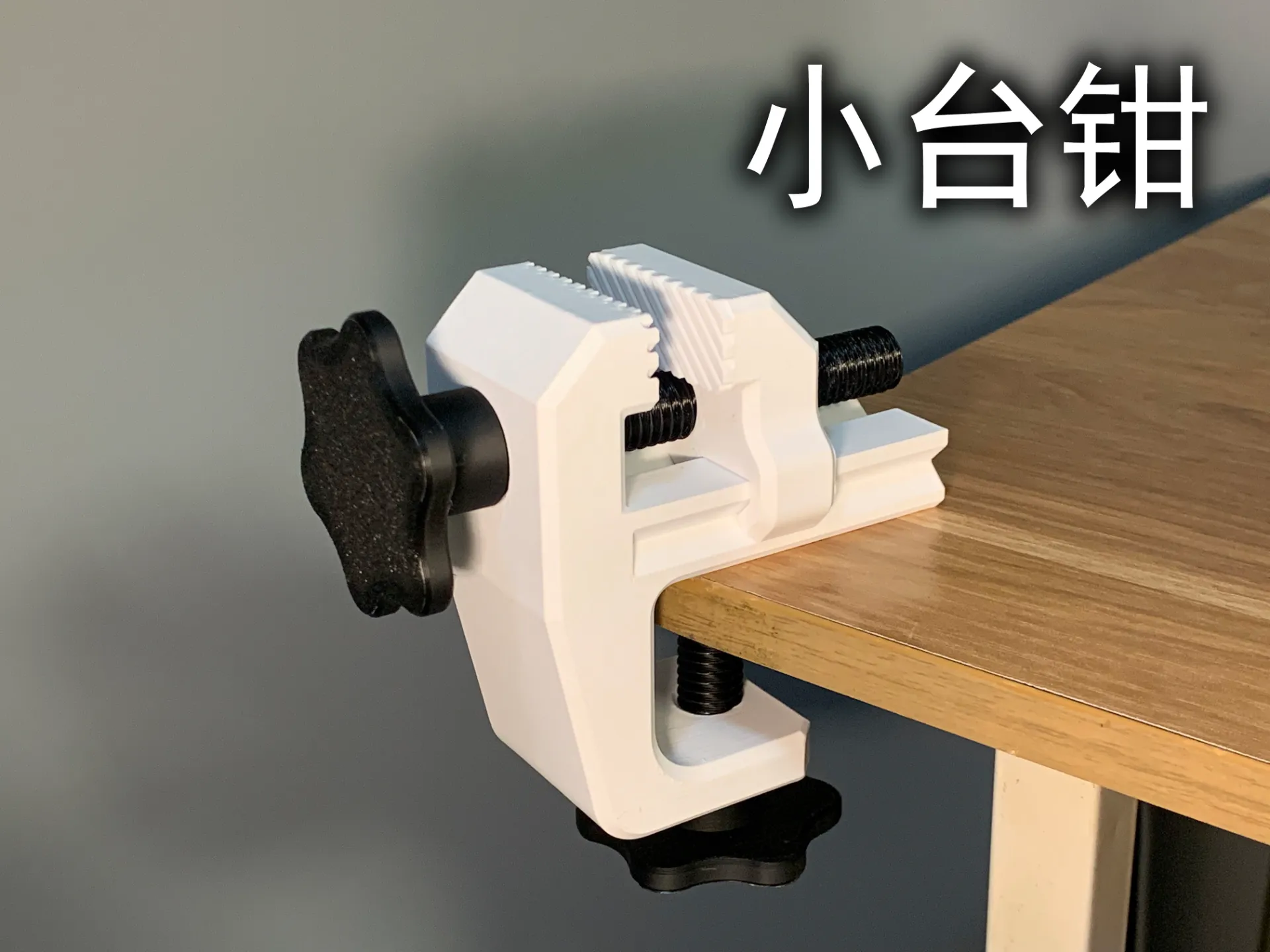

*If you need other types of vises, there should be one below that suits you. Visit my homepage or click on the images to jump. My homepage has more practical tools:
 |  |
 |  |
 |  |
