92mm CPU Fan Mod for HP Omen (30L)

Print Profile(1)

All
A1 mini
P1P
H2D
X1E
A1
X1
P1S
H2D Pro
X1 Carbon
H2S
P2S
H2C
X2D
A2L

High Strength 0.2mm layer, 4 walls, 100% infill
High Strength 0.2mm layer, 4 walls, 100% infill
Designer
1.4 h
1 plate

Open in Bambu Studio
Boost
5
3
0
0
3
1
Released

Bill of Materials

List other parts
  • M4 Screw x 4:

Description

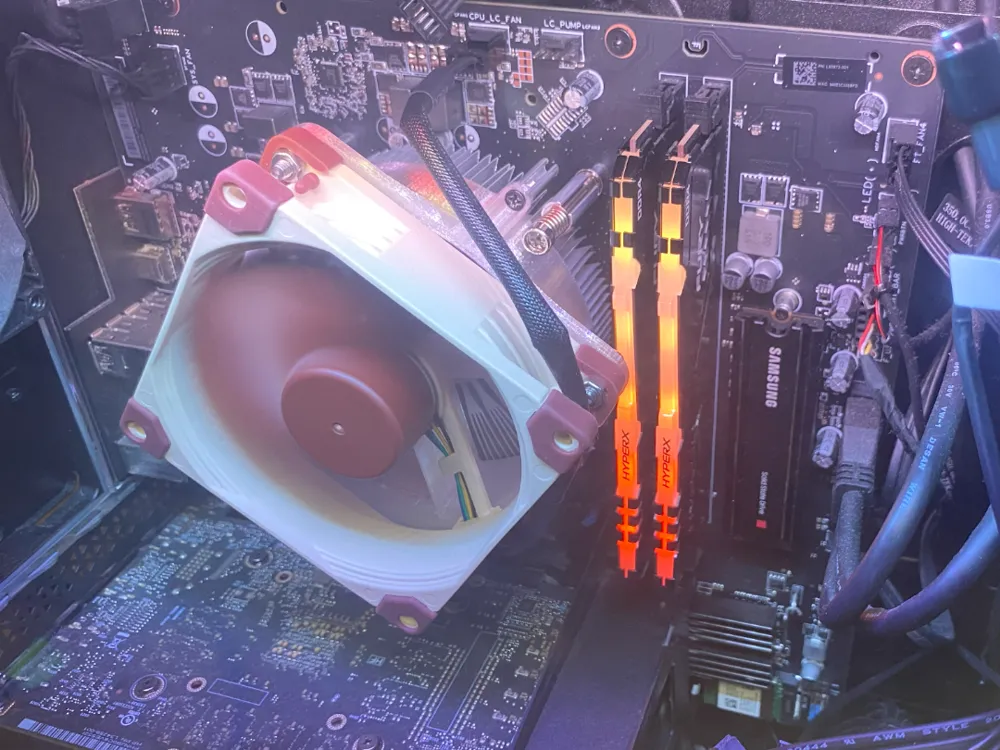

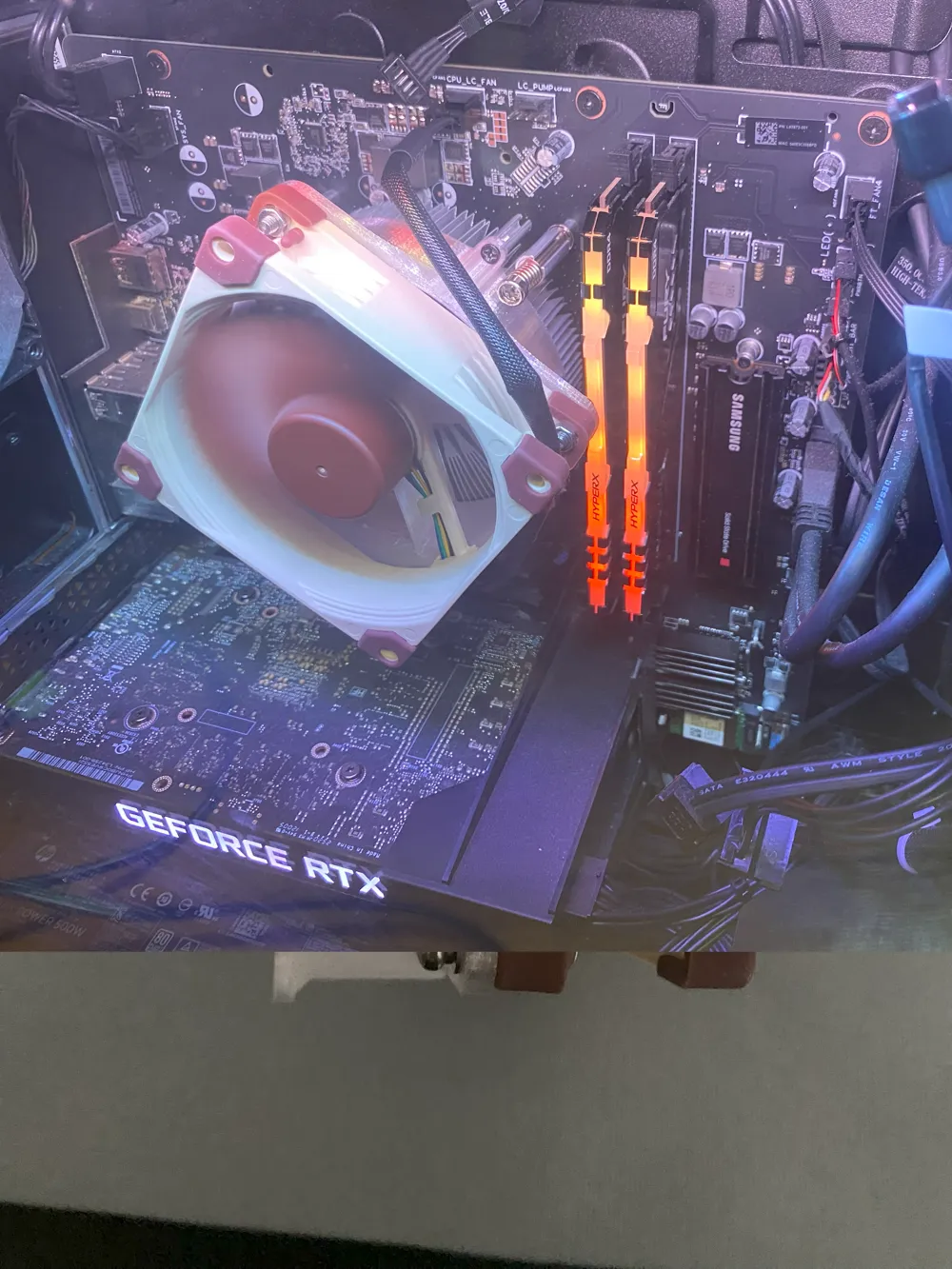

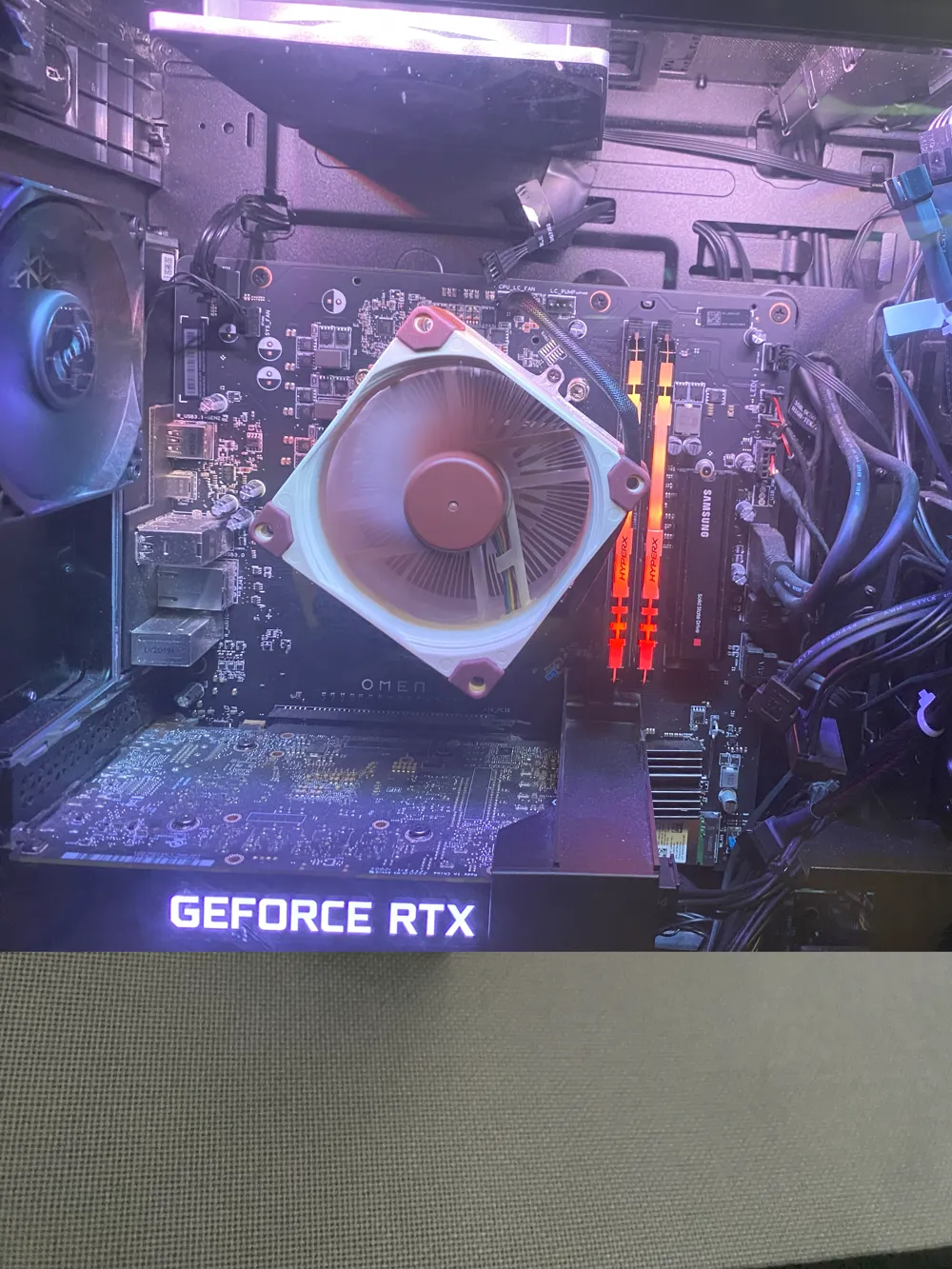

Fan adapter to use a 92mm fan on a 80mm fan's mounting standard. Designed to be used with the 30L HP Omen's CPU Heatsink as a replacement for the CPU Fan. Idle temps are a few degrees Celsius lower than stock and a lot quieter. Item should not be printed in PLA or other filaments susceptible to heat deformation. 4x M4 screws needed for attaching a fan to the adapter.

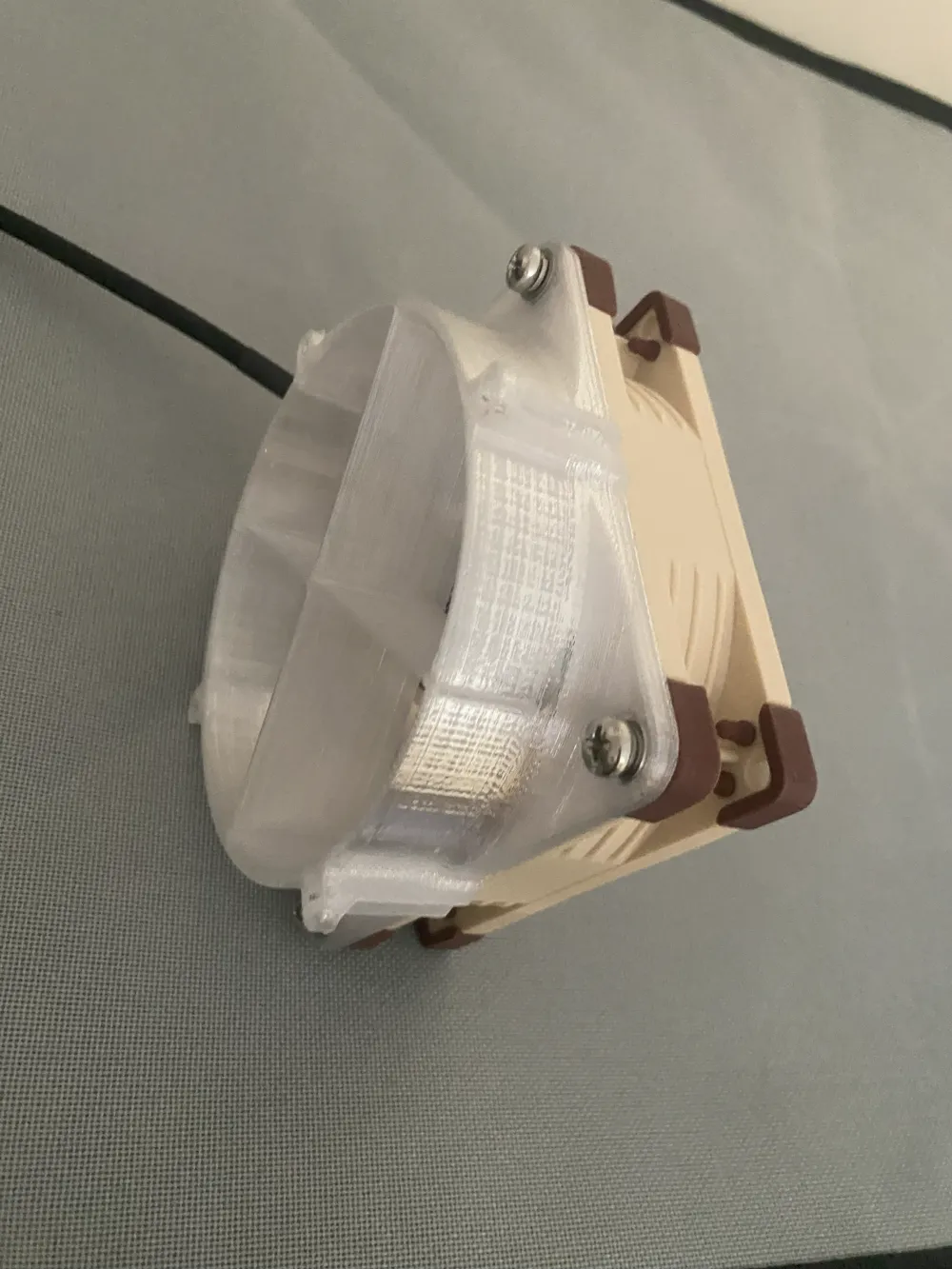

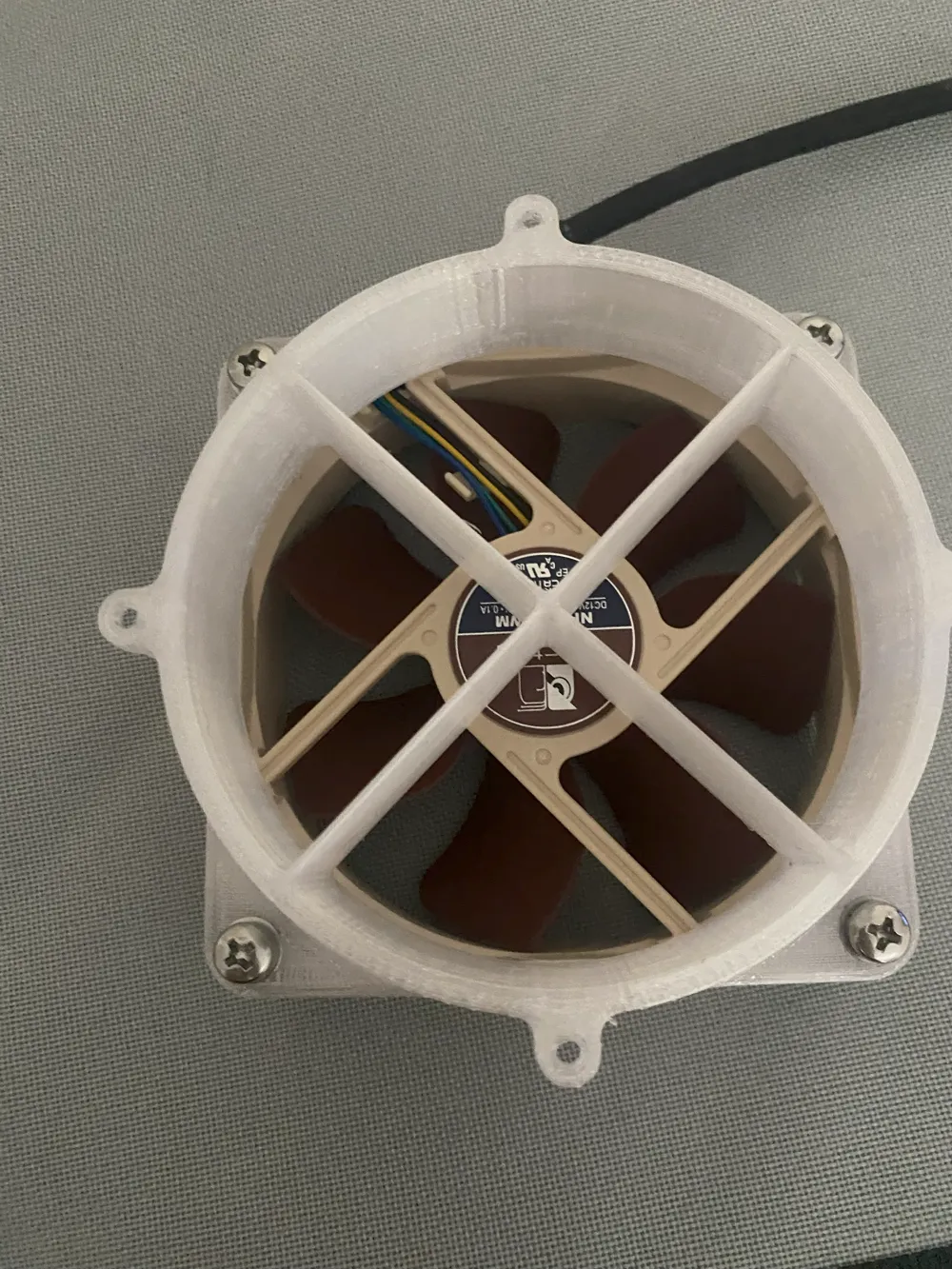

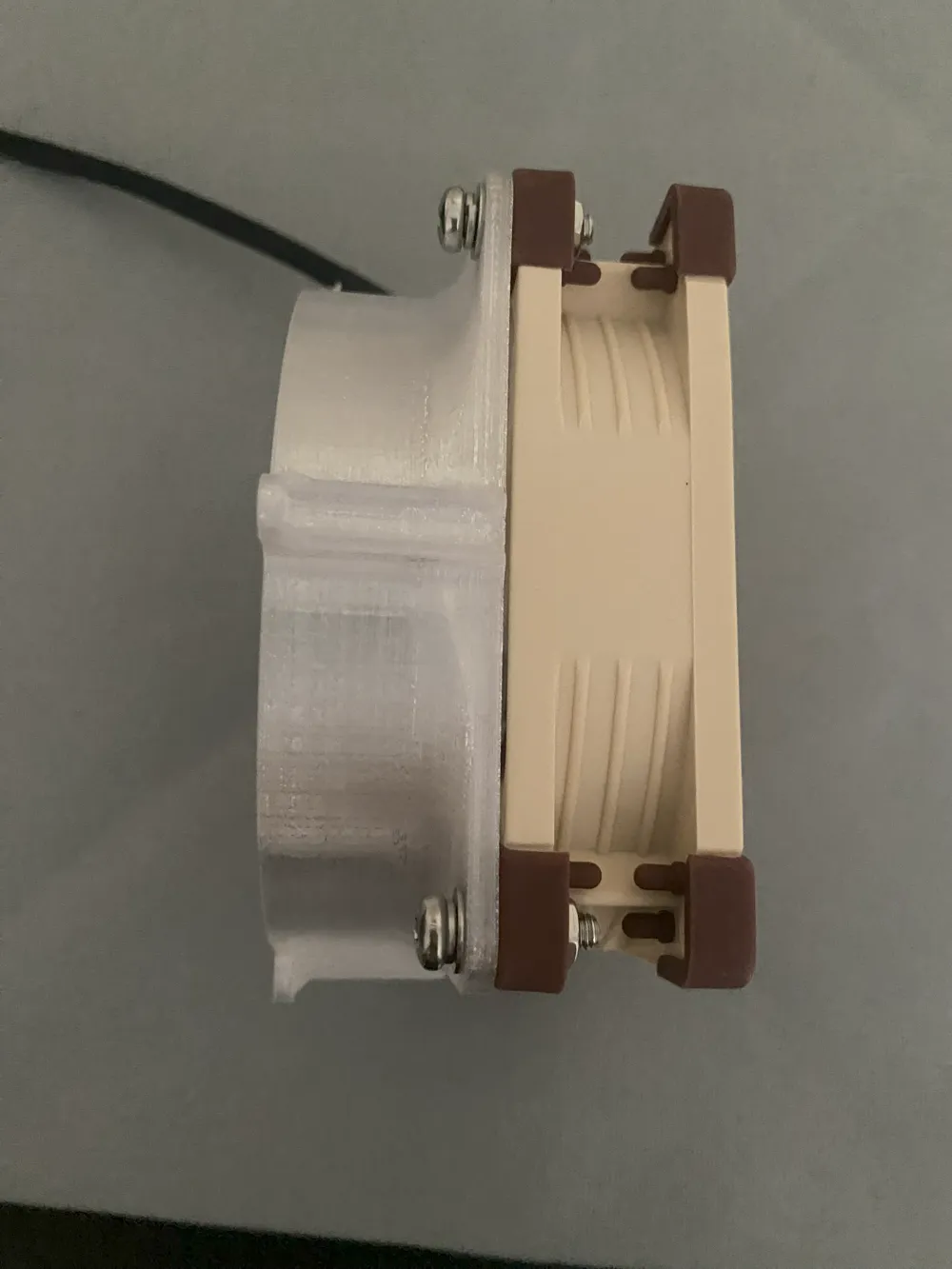

I made this in a couple hours because I bought the wrong fan type and needed a workaround since HP's default heatsink design sucks. I noticed no such adapters seem to exist online yet so boom, here you go. The version without the additional bracing is the one I provided the .3mf for since the 3mm walls are probably strong enough, but to be safe the version I printed (the one in the pictures) has the bracing. I used Bambu PETG Translucent for my model since its the best I had on hand.
