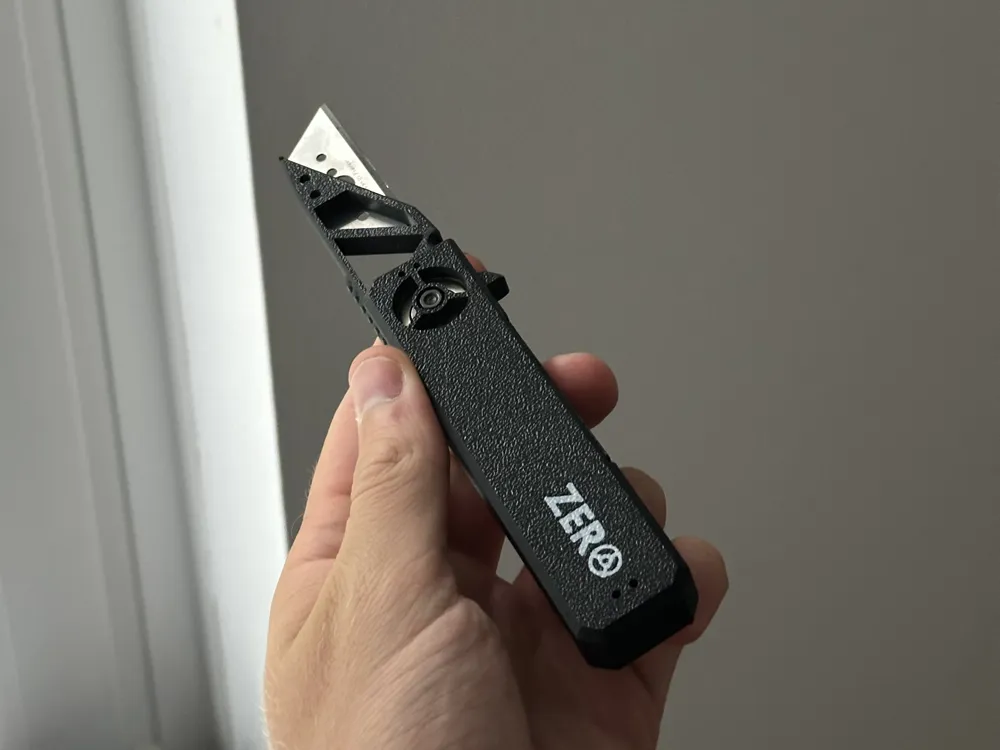

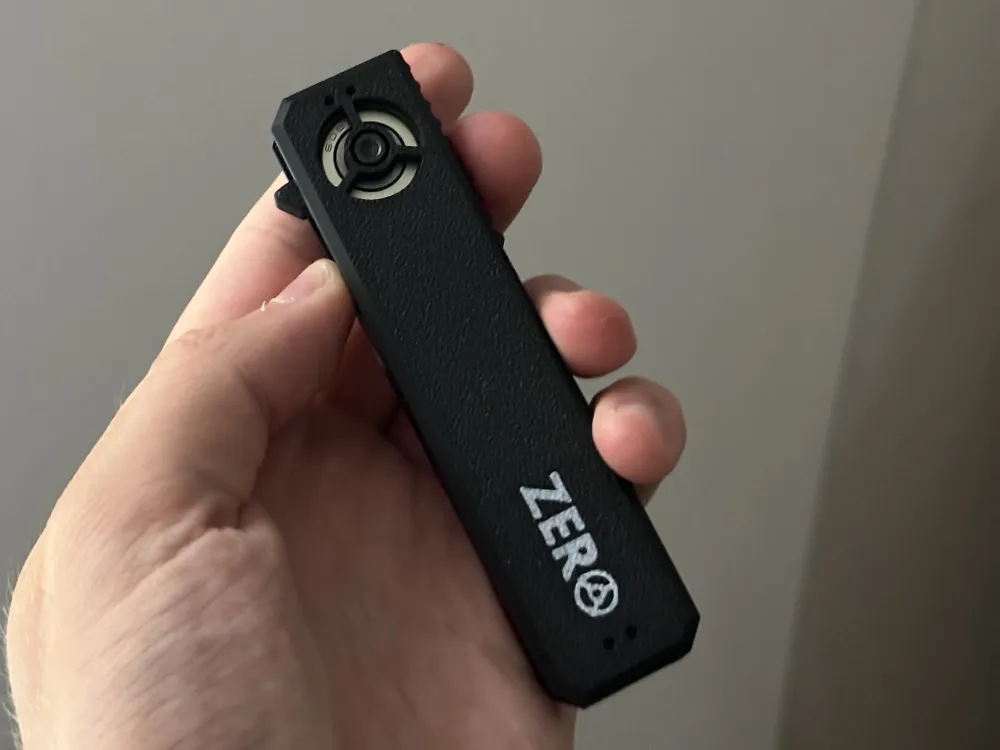

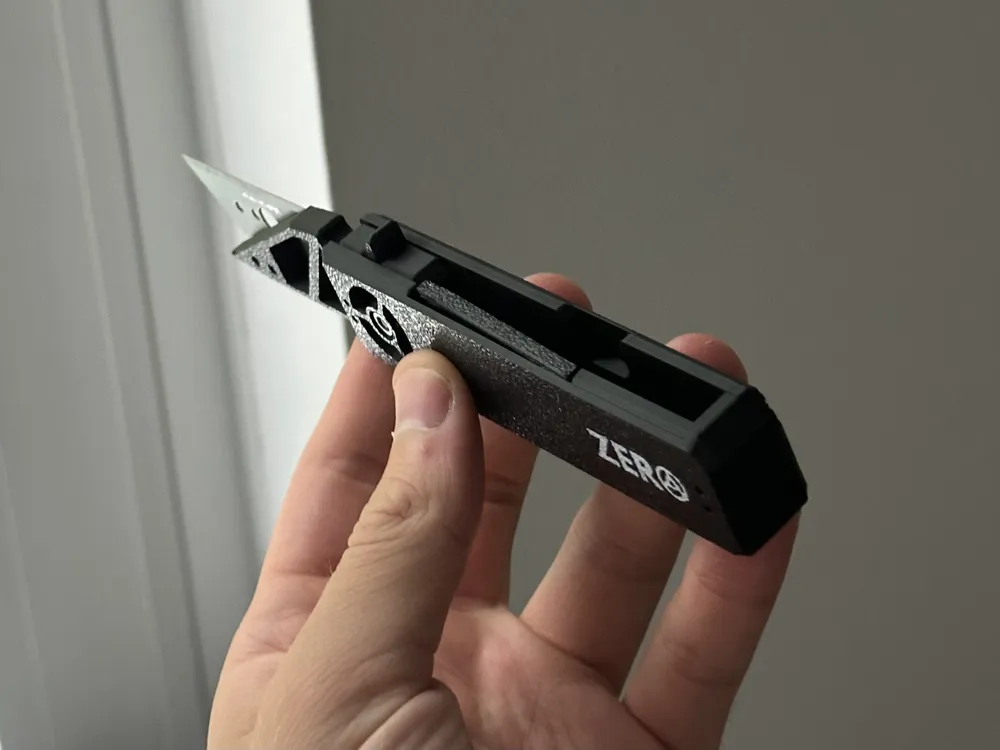

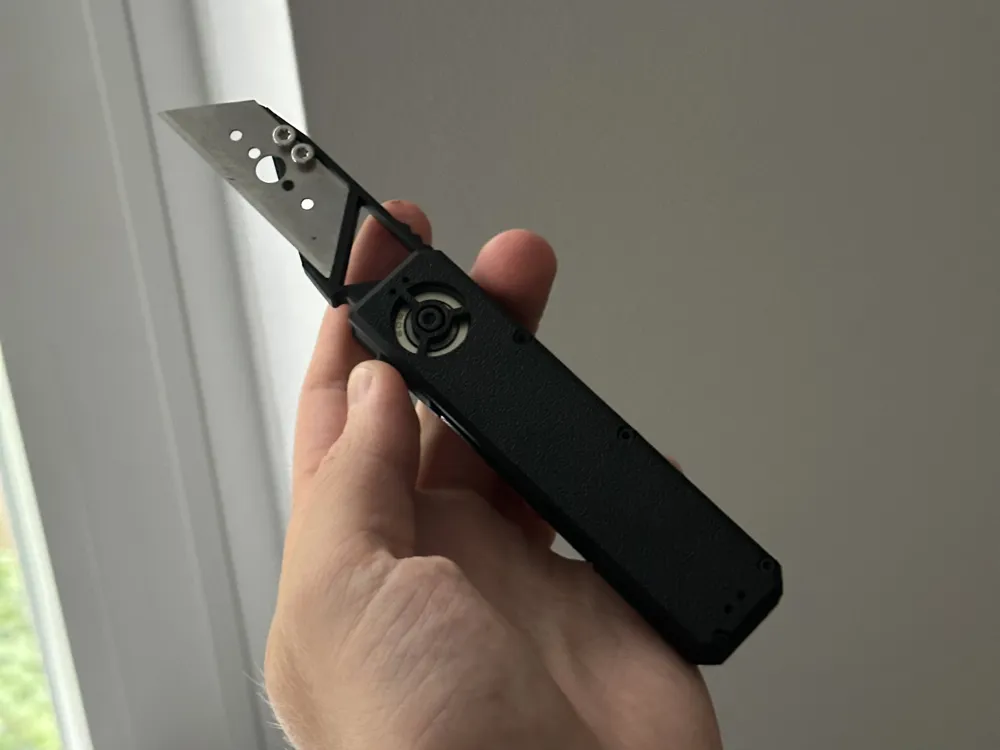

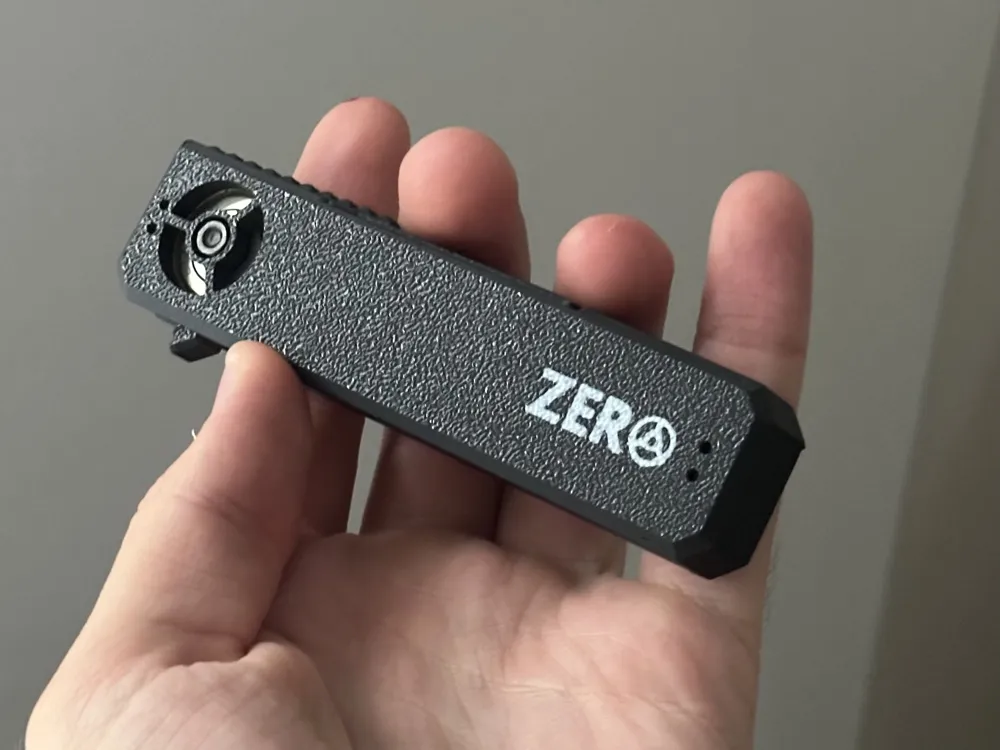

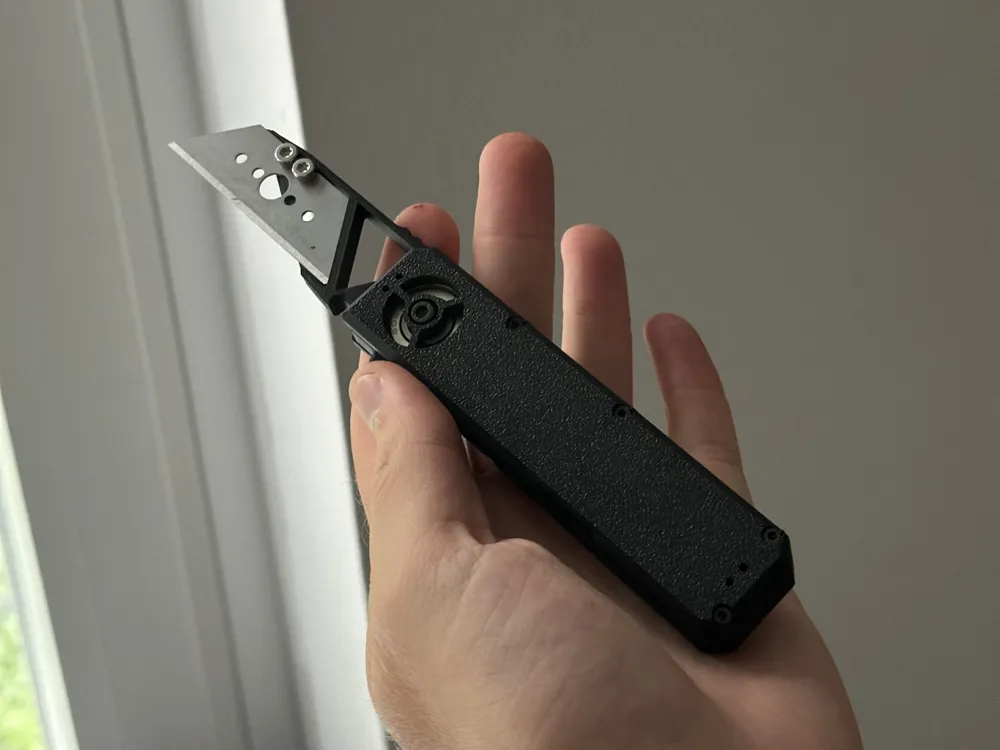

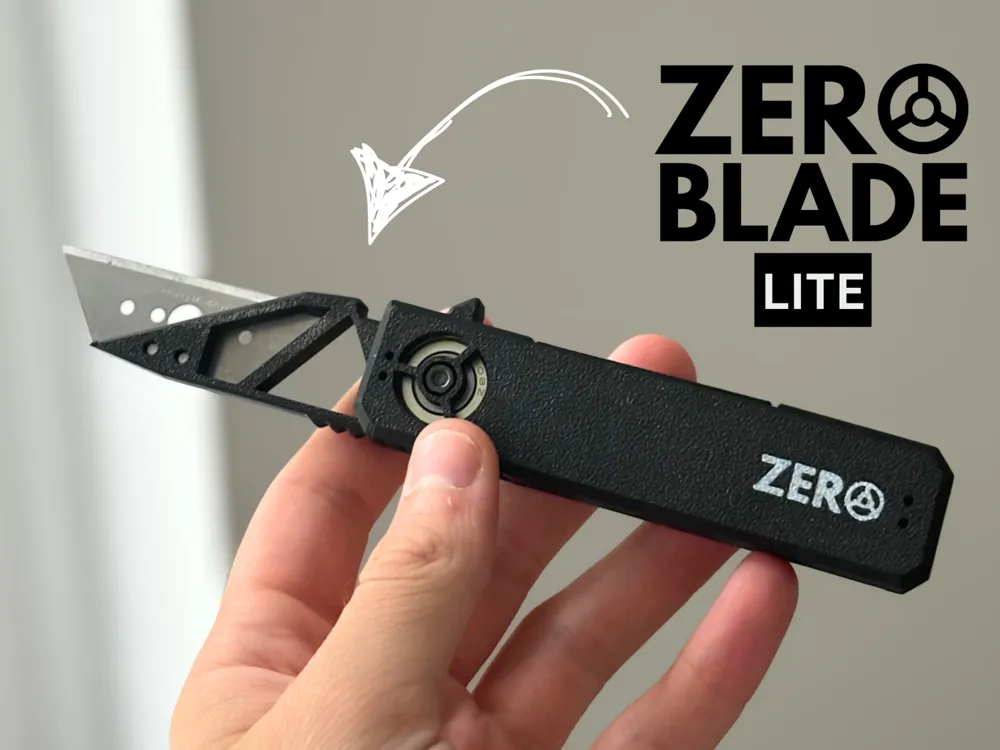

This is ZeroBlade LITE

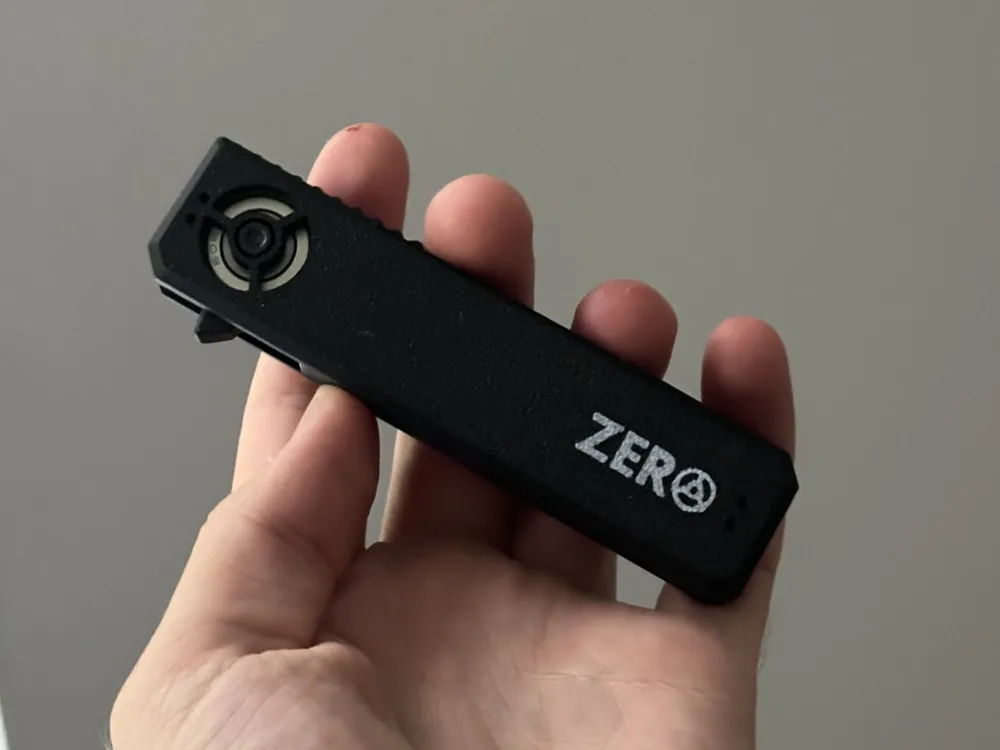

Flip Knife with integrated bearing and trapezoidal blade.
Designed to be compact, functional, and satisfying to use.
Boost Me (for free)
If you like ZeroBlade and want to see future versions, hit Boost Me – it helps a lot!
Features
Flip knife with a smooth, flickable action
Adjustable belt clip with 4 mounting positions
BIll of Materials:
| Trapezoidal Blade | 1 |
| M2x6mm Head Socket Screws | 6 |
| M3x6mm Head Socket Screws | 2 |
| M3x12mm Head Socket Screw | 1 |
| M3 Nut | 1 |
| 608 Bearing | 1 |

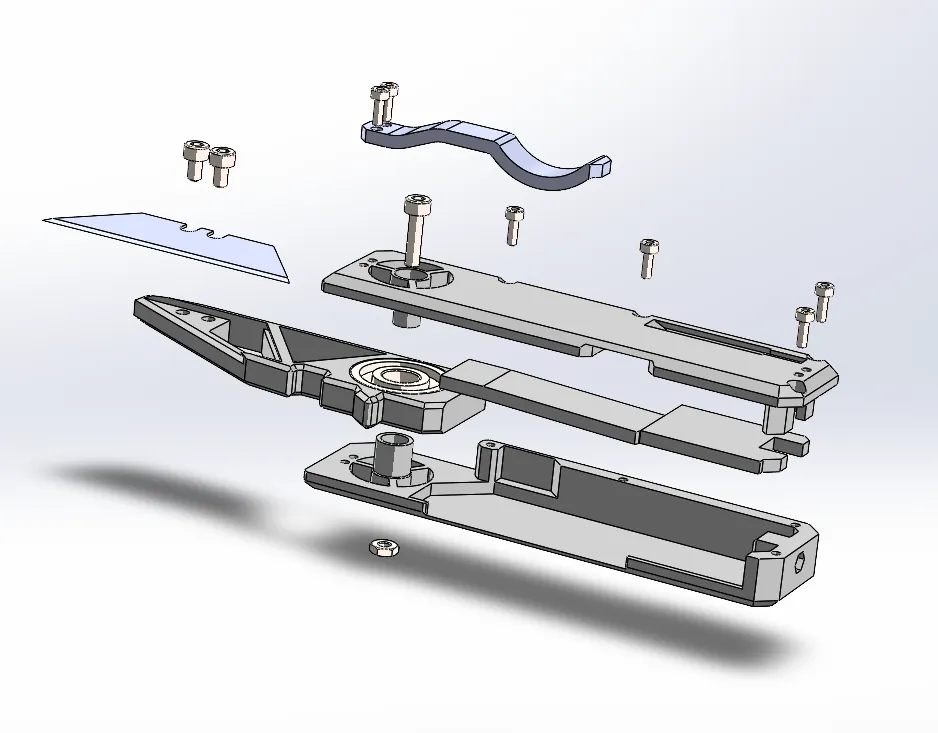

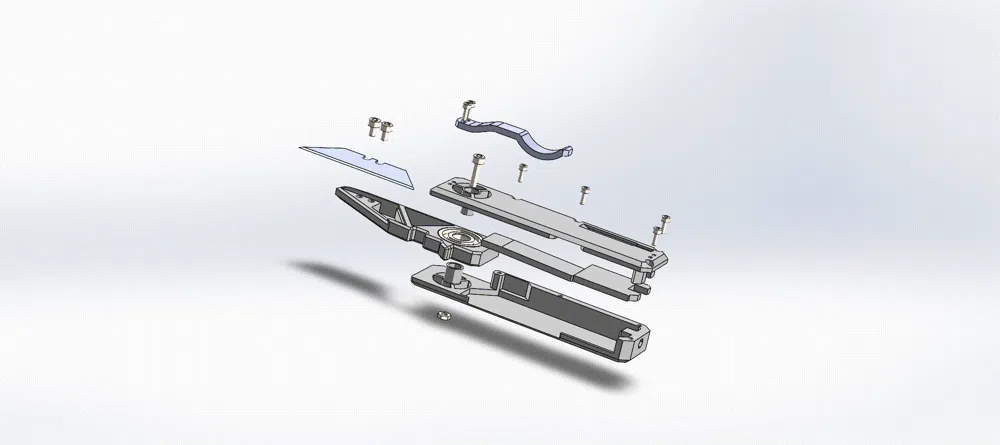

How to put it together:
Important:
Print the Lock in PETG for proper flexibility. All other parts can be printed in PLA.
DO NOT overtighten screws – stop once you feel initial resistance.
- Install the blade as far back as possible to prevent collisions inside the body.
If you would like to have more features check out ZeroBlade V1:
https://makerworld.com/en/models/1710280-zeroblade-the-ultimate-edc-utility-knife-v1#profileId-1818371
Have fun using ZeroBlade!
