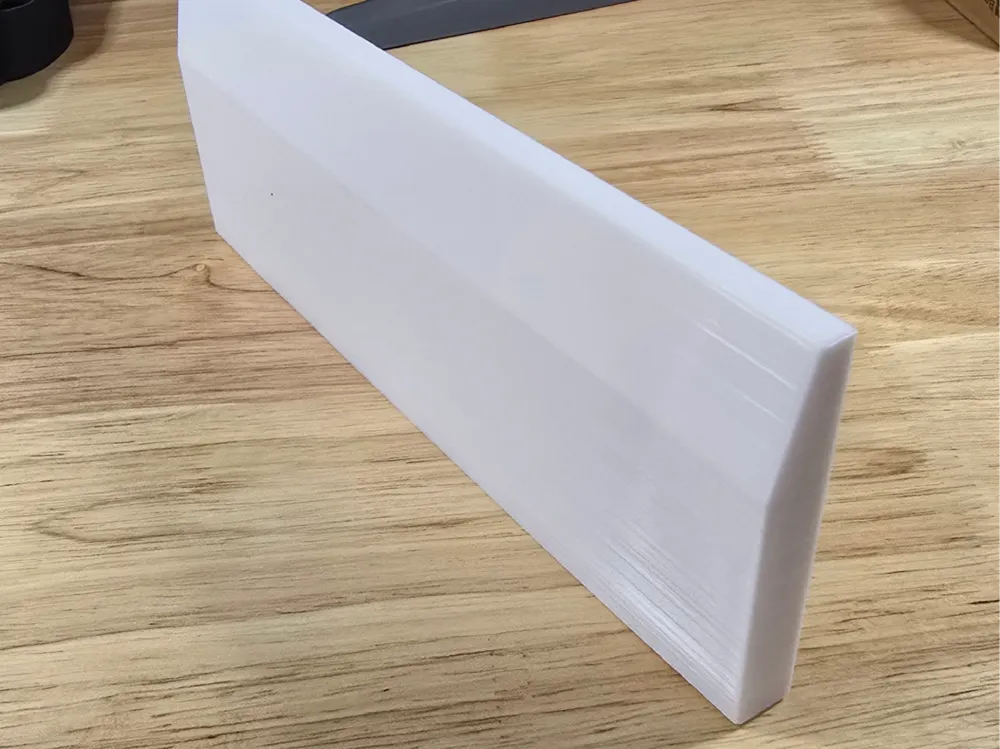

Modular Baseboard System
This project provides a complete set of modular baseboard segments designed to be mixed and matched to trim any room layout. Each segment includes the correct 45° miter geometry for inside corners, outside corners, and transitions between them. All pieces share the same profile and are available in multiple lengths.
Because each segment is printed as an individual board, the ends may be flat or cut depending on where the piece sits in the room. The library includes every cut combination needed to handle straight runs, inside corners, outside corners, and short wall sections between corners.
File Naming System
Each file name describes the left end, the right end, and the length of the board:
- LC / RC — which end is cut
- LC = Left end is cut
- RC = Right end is cut
- Inner / Outer — type of 45° miter
- Inner = Inside‑corner cut
- Outer = Outside‑corner cut
- Length — physical length of the segment
- Example: 200mm, 250mm, 300mm
Example filename:
LC_Outer_RC_Inner_200mm
Left end: outside‑corner cut
Right end: inside‑corner cut
Length: 200 mm
Included Variants
The library includes all combinations needed to build any wall layout:
Flat–Flat (no cuts)
- Flat_200mm
- Flat_240mm
- Flat_300mm
Single‑End Cut
- LC_Inner_XXXmm
- LC_Outer_XXXmm
- RC_Inner_XXXmm
- RC_Outer_XXXmm
Both‑Ends Cut
- LC_Inner_RC_Inner_XXXmm
- LC_Outer_RC_Outer_XXXmm
- LC_Inner_RC_Outer_XXXmm
- LC_Outer_RC_Inner_XXXmm
These four two‑ended variants cover every possible combination of inside and outside corners.
Supported Lengths
The cut variants are provided at 200mm length
The flat edge variants are provided in 3 lengths:
- 200 mm
- 240 mm (fits both X1C/A1 and larger)
- 300 mm (H2C/H2D/H2S)
Summary
This system gives you a complete, modular set of baseboard segments that can be arranged to match any room geometry. The naming convention makes it easy to identify exactly which piece you need, and the standardized lengths ensure compatibility across printers.
