6x6 Wheeled Mech Rocket Launcher (movable turret, no hardware required)

Print Profile(2)

All
P1S
X1 Carbon
H2D Pro
A1
X1
P1P
X1E
H2D
H2S
P2S
H2C
X2D
A2L
A1 mini

0.2mm layer, 2 walls, 15% infill
0.2mm layer, 2 walls, 15% infill
Designer
11.7 h
4 plates
5.0(4)

Only the support for the rocket pod
Only the support for the rocket pod
Designer
8 min
1 plate

Open in Bambu Studio
Boost
62
123
7
4
63
14
Released

Description

Content has been automatically translated.
Show original

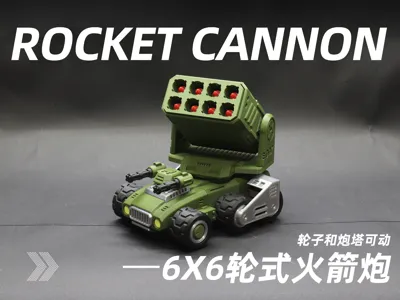

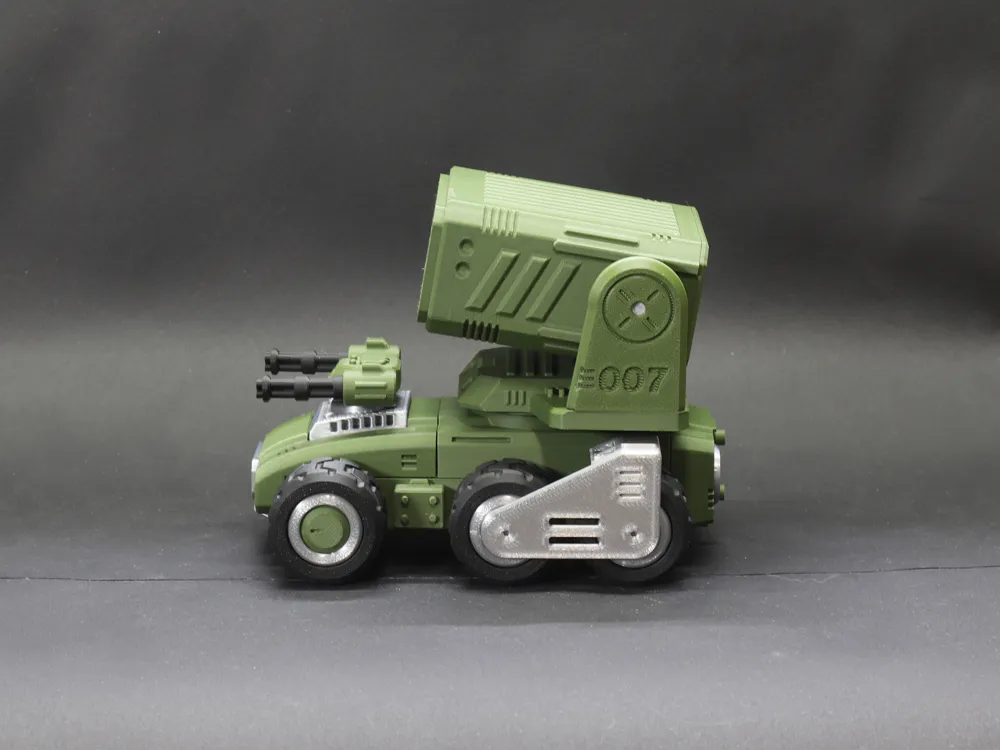

This tank is the second in my original 6x6 wheeled tank series, named the wheeled rocket launcher. It uses a 6x6 universal chassis, the original turret is replaced with an 8-round medium-range rocket launcher, allowing for quick replacement. The vehicle body comes standard with a self-defense turret composed of twin Gatling guns for self-protection, the rear 4 wheels are driven by high-power electricity, and the jet nozzle at the tail is changed to a heat dissipation vent, enabling silent movement..... (This is my fantasy about this vehicle, hahaha) Of course, you can also remove the rocket pod and use the model as a pen holder



Boost Me (for free)

If you like it, give me a free boost



Tools required:

  • super glue
  • needle-nose pliers

Notes:

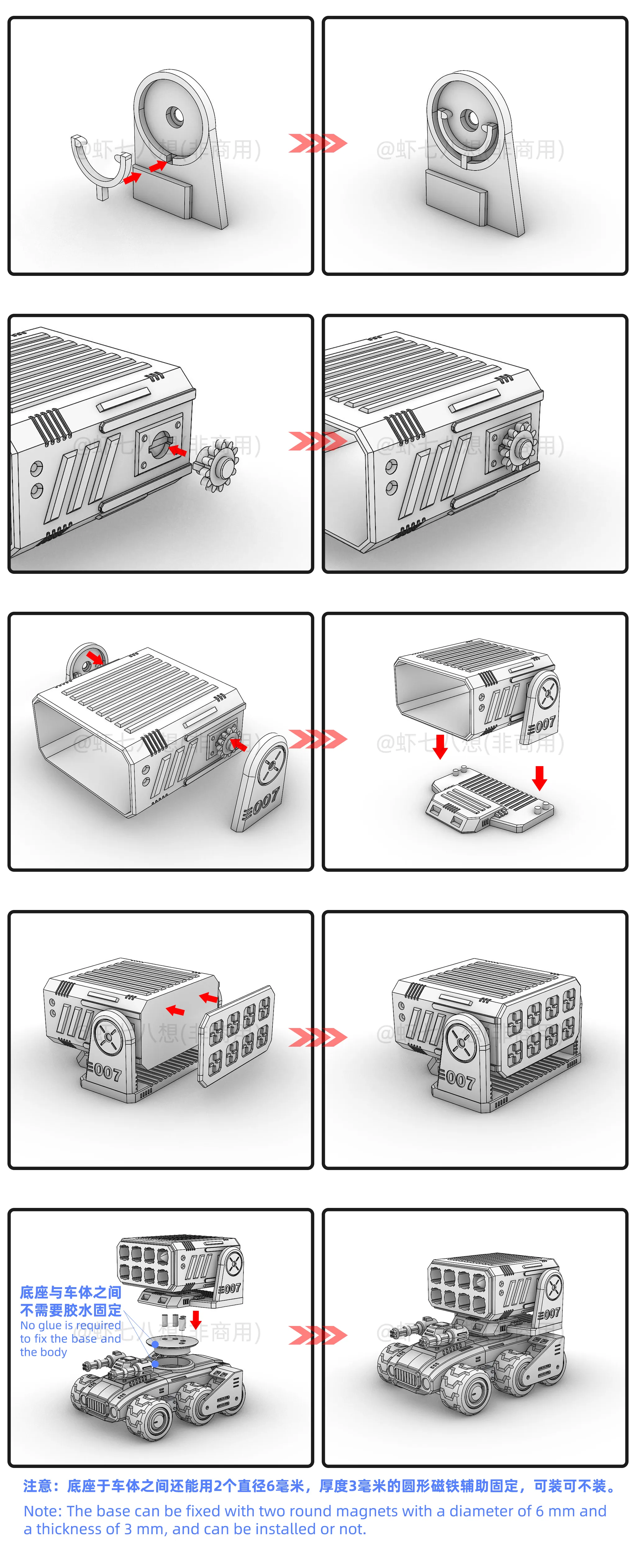

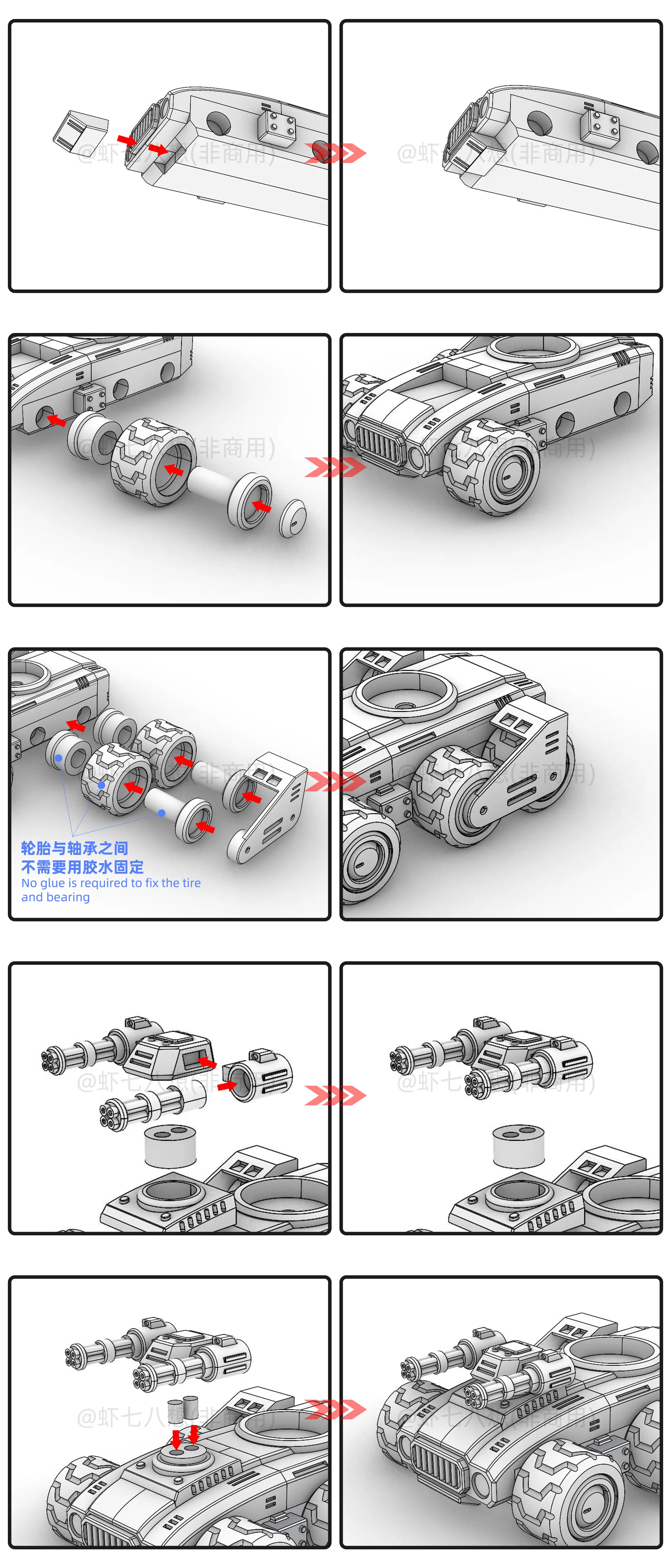

  • This model has many parts, please assemble according to the instructions

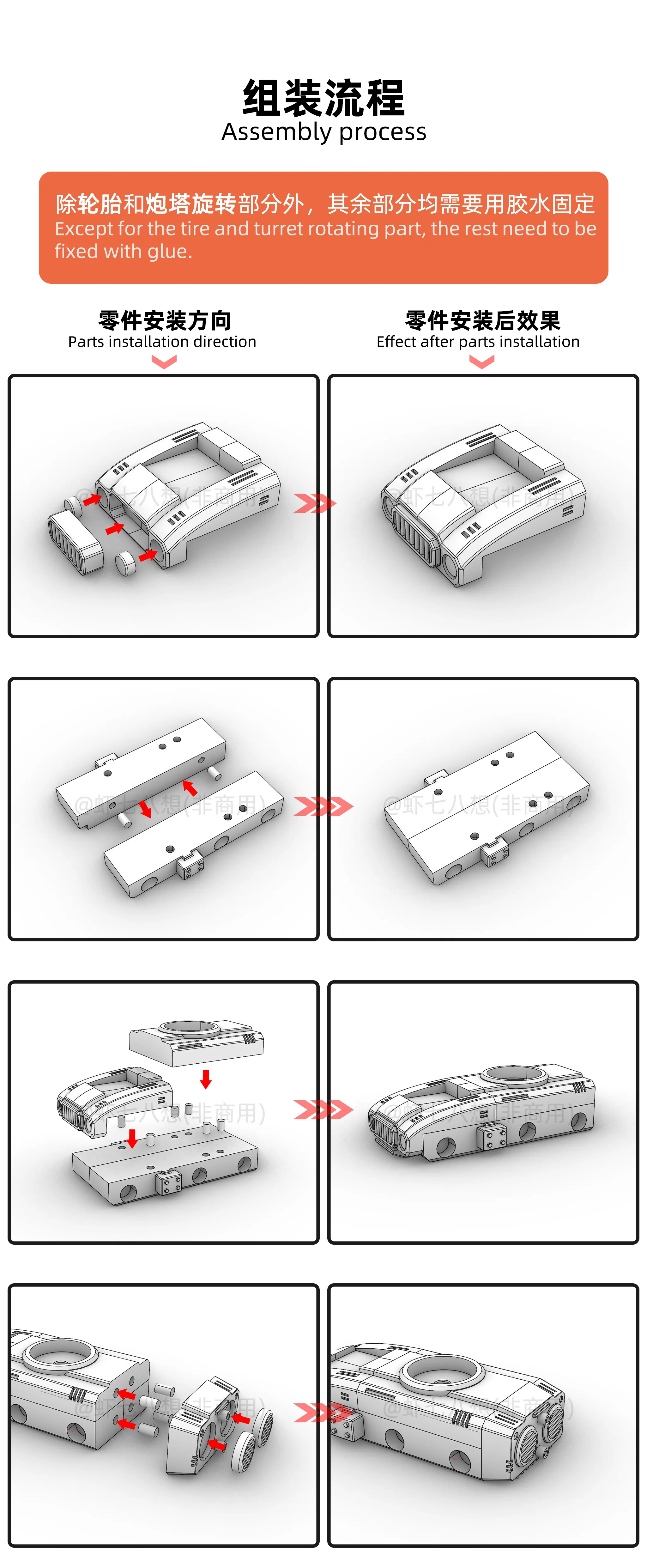

  • Except for the tires and the rotating part of the base, all other parts need to be fixed with super glue
  • Please install according to the instructions
  • The rotating part of the rocket launcher is fixed by a limiting snap. Frequent up and down rotation may cause it to loosen. PETG material can be used for printing, of course PLA can also be used
  • Before printing, please clean the build plate and dry the filament

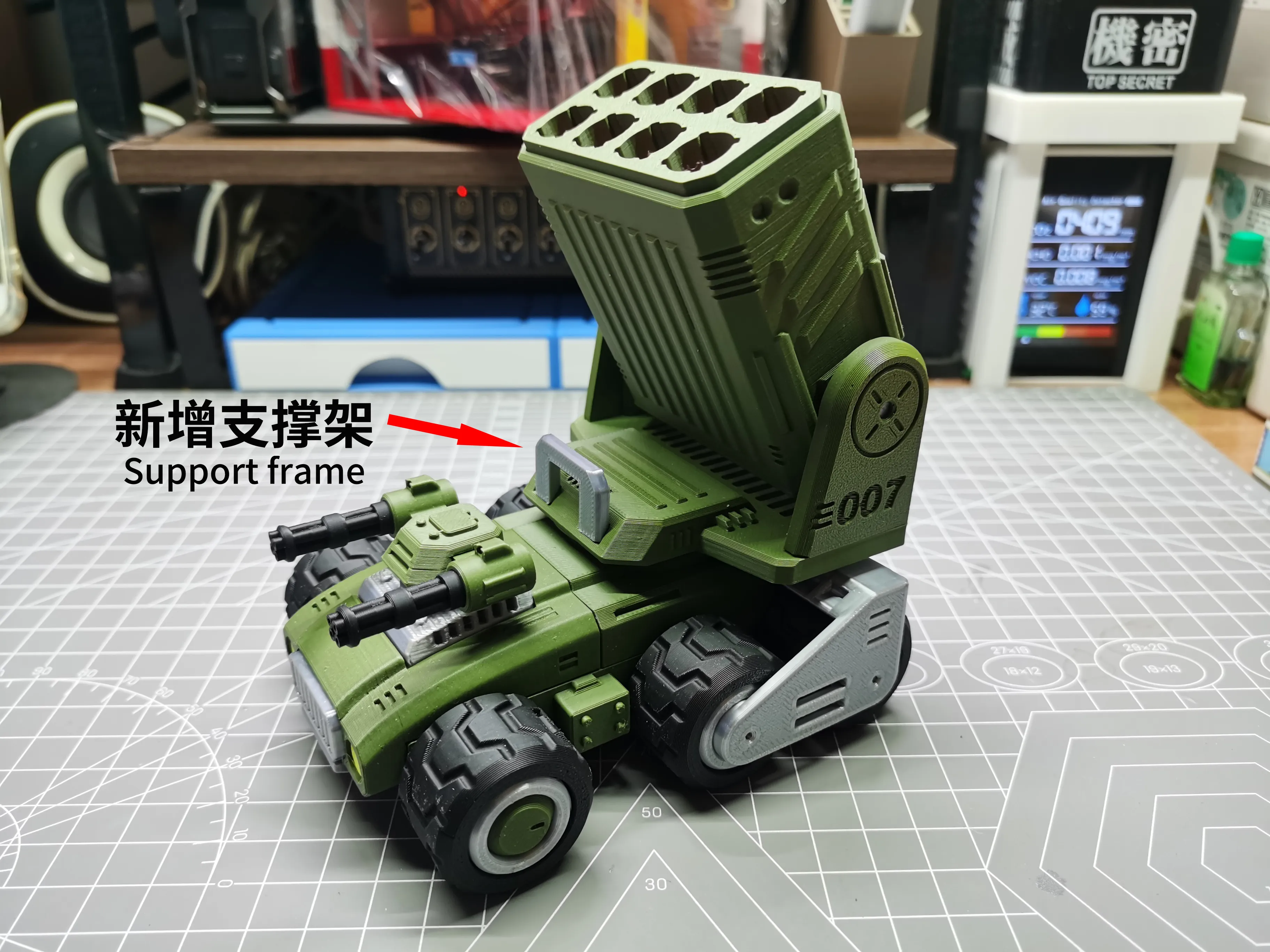

    A separate support for the rocket pod has been added to provide support for the heavy rocket pod. It has been uploaded and can be printed as needed
