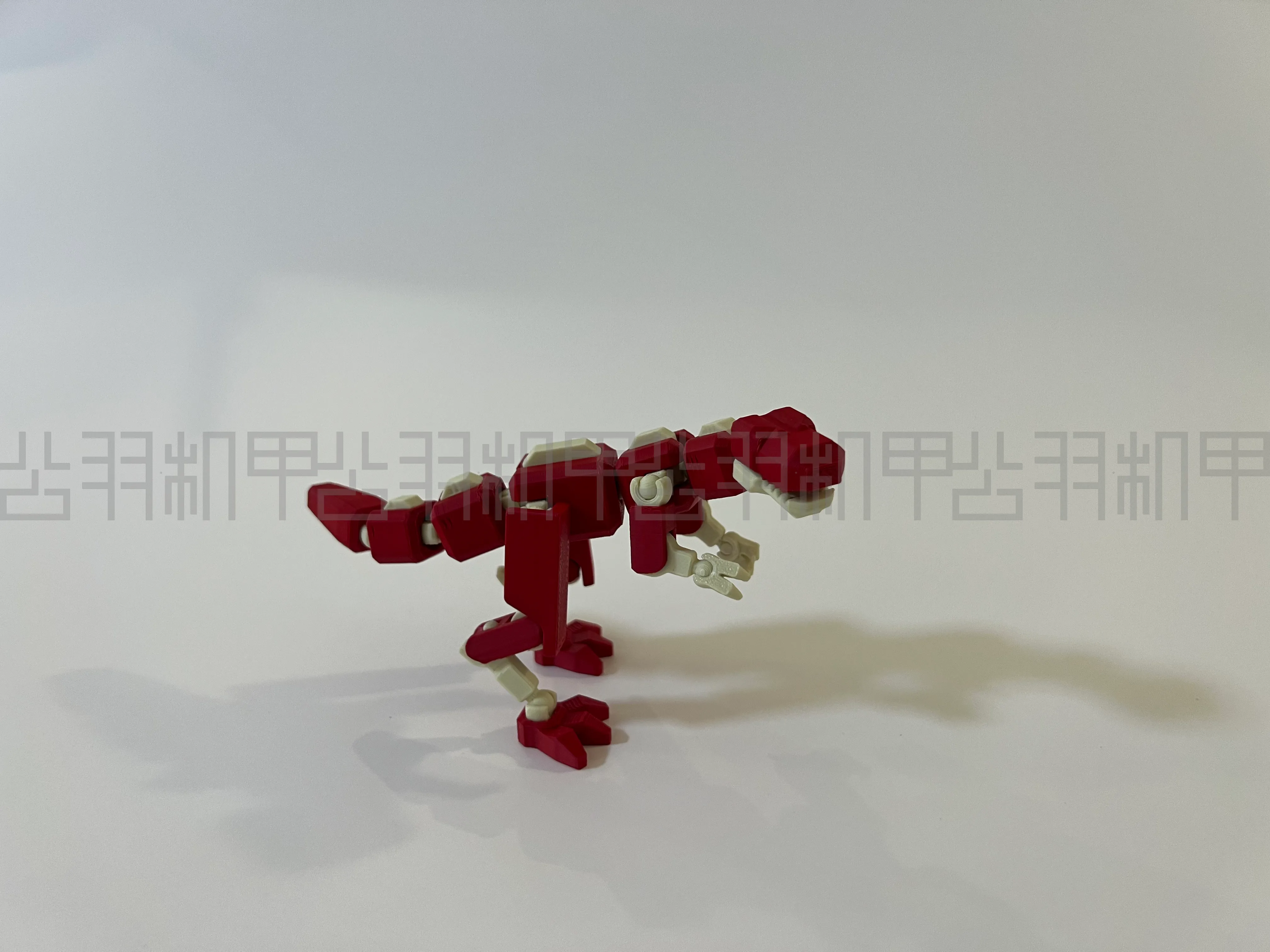

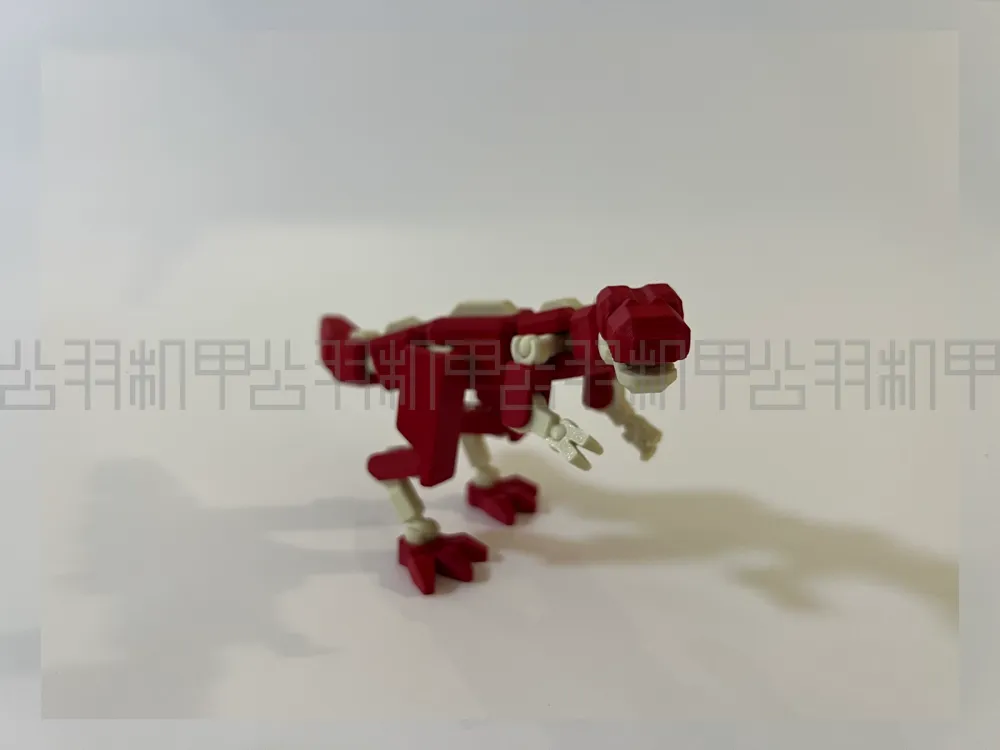

Mecha Dinosaur Series Four - Mecha T-Rex

Produced by Gongyu Mech

Mecha Dinosaur Series Four - Mecha T-Rex

Gongyu Mech Works:

Bagua Mechs (modeled after famous mountains and rivers in various provinces, such as Chaohu Lake, Lishan Mountain, Badaling, Namtso Lake, etc)

Mythical Mechs (modeled after mythical figures, such as Sun Wukong, Erlang Shen, Bull Demon King, etc)

Classic of Mountains and Seas Series (biological form series, mechanical form series, fighter series, aircraft series, battleship series, chariot series, tank series, multi-functional engineering vehicle series, rotating engineering armored vehicle series, engineering armored truck series, military armored train series, etc)

Chinese Weaponry Series (siege equipment, defense equipment, field equipment)

Mechanical Insect Armor Series (rhinoceros beetle (stag beetle) mechanical form and insect armor form, Hercules beetle mechanical form and insect armor form...)

Mecha Classic of Mountains and Seas Series (Xuan Gui Mech...)

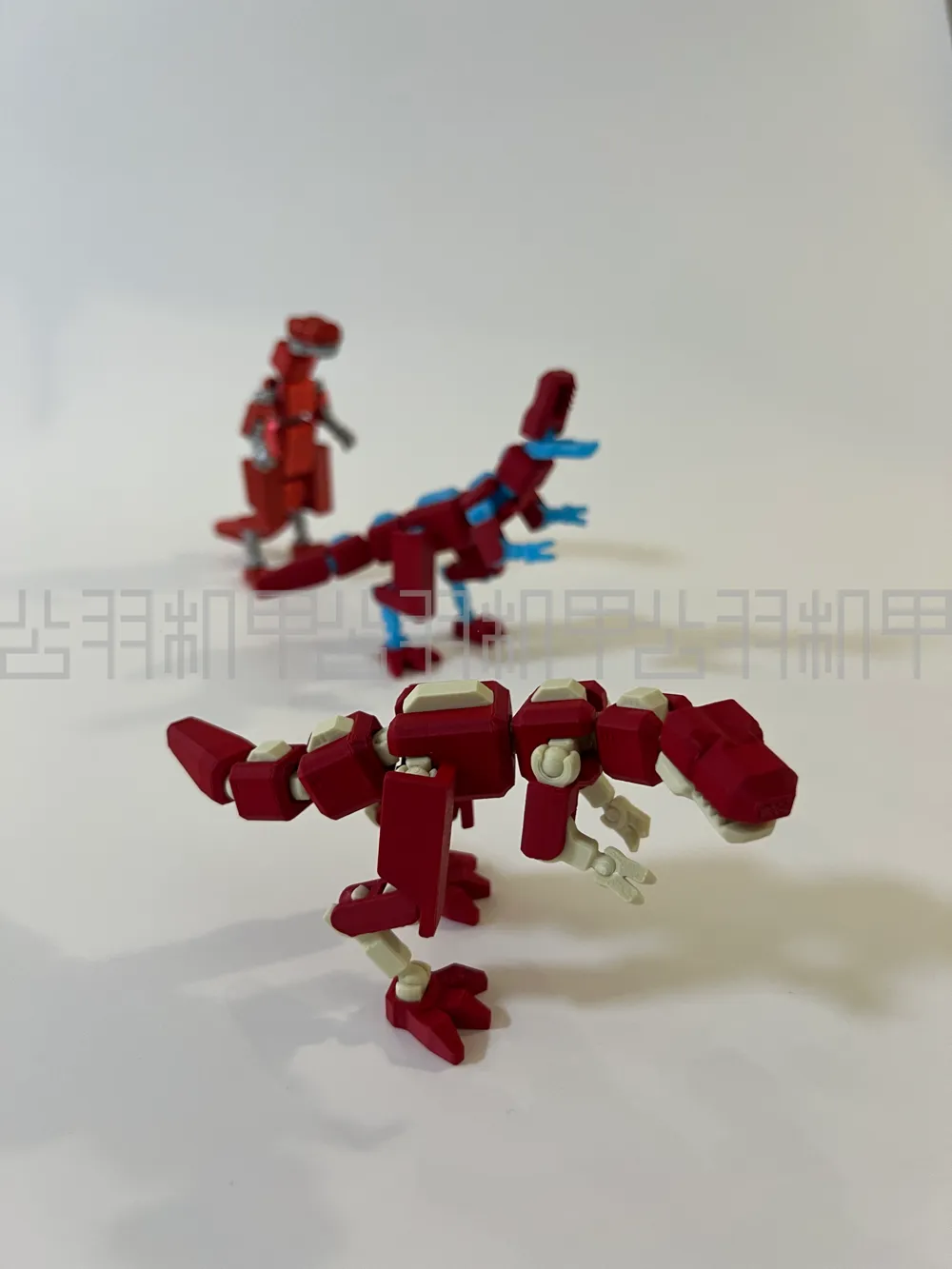

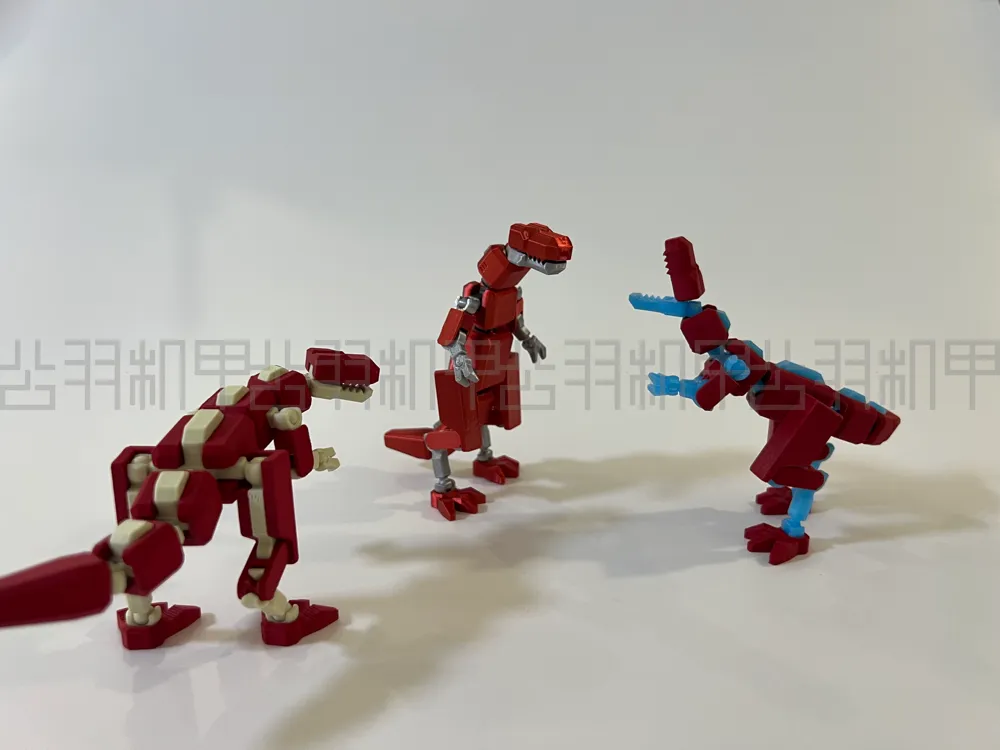

This is the fourth model in the Mecha Dinosaur series (the joints of the Stegosaurus and triceratops are still simplified versions, the new versions will be uploaded next week)

First model: JJKL1, Mecha Stegosaurus,https://makerworld.com.cn/zh/models/1300620-ji-jia-kong-long-xi-lie-yi-ji-jia-jian-long#profileId-1396178

Second model: JJKL2, Mecha Triceratops (can be used as a keychain),https://makerworld.com.cn/zh/models/1414738-ji-jia-kong-long-xi-lie-er-ji-jia-san-jiao-long#profileId-1535831

Third model: JJKL2, Mecha Spinosaurus,https://makerworld.com.cn/zh/models/1478664-ji-jia-kong-long-xi-lie-san-ji-jia-ji-long#profileId-1611978

Skeleton recommendation: ASA>ABS>PETG>PLA

Outer armor: Any will do

Simple, easy to print, material-saving, exquisite, easy to assemble, resistant to failure and breakage, no supports needed for printing, no glue needed for assembly

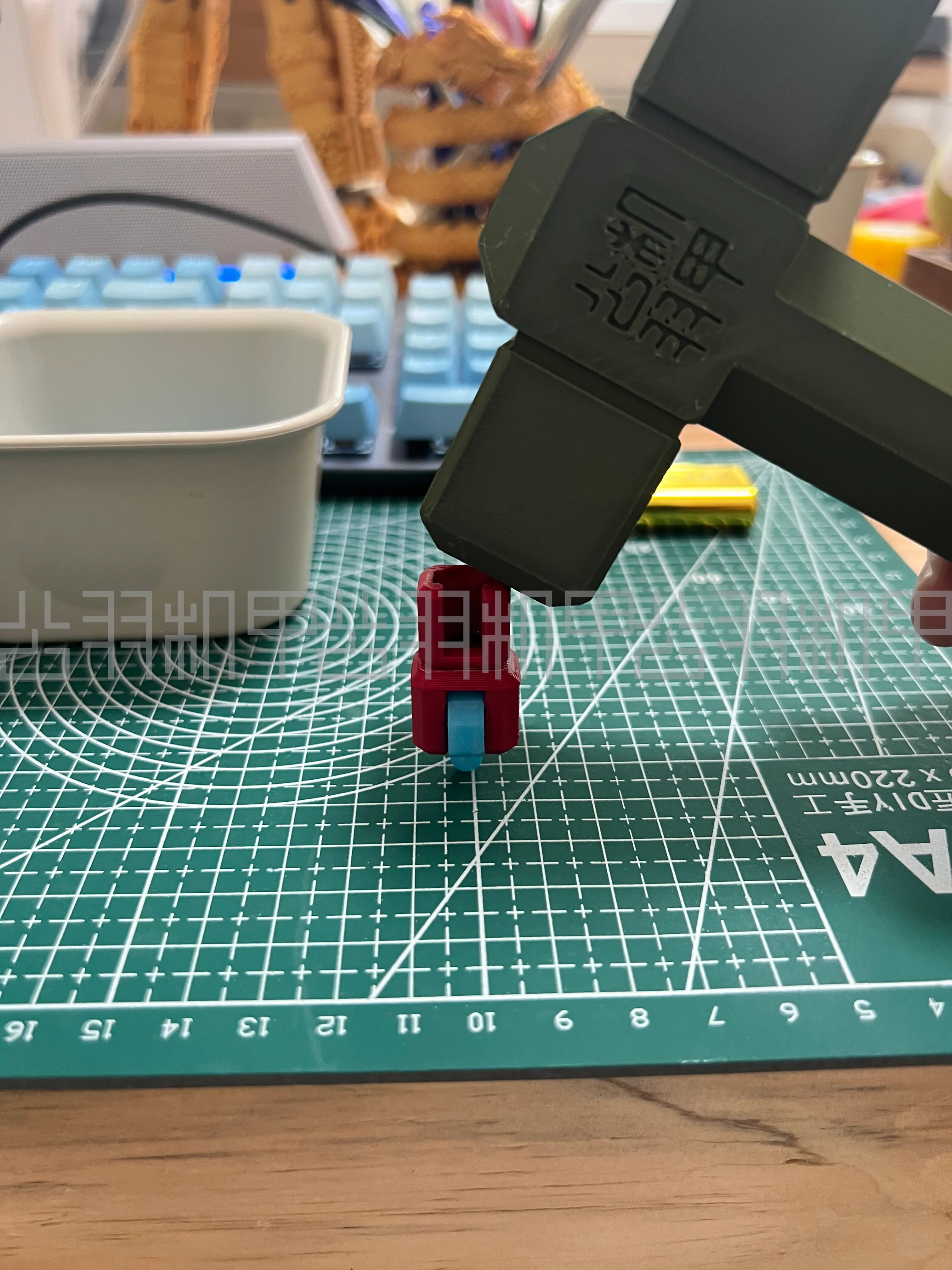

Note: 1. If you cannot press by hand, you can print the tool hammer from the homepage and gently tap the buckles into place

        2. It is best to apply glue or spray adhesive on the build plate to prevent printing failures, the main reason for spaghetti is that the build plate is too smooth

No supports needed for printing (if the base plate is not sticky, you can add a brim yourself), no glue or hardware needed for assembly (if it's too tight, press hard or gently tap with a small hammer), a very convenient Chinese-style assembly model

Assembly instructions:

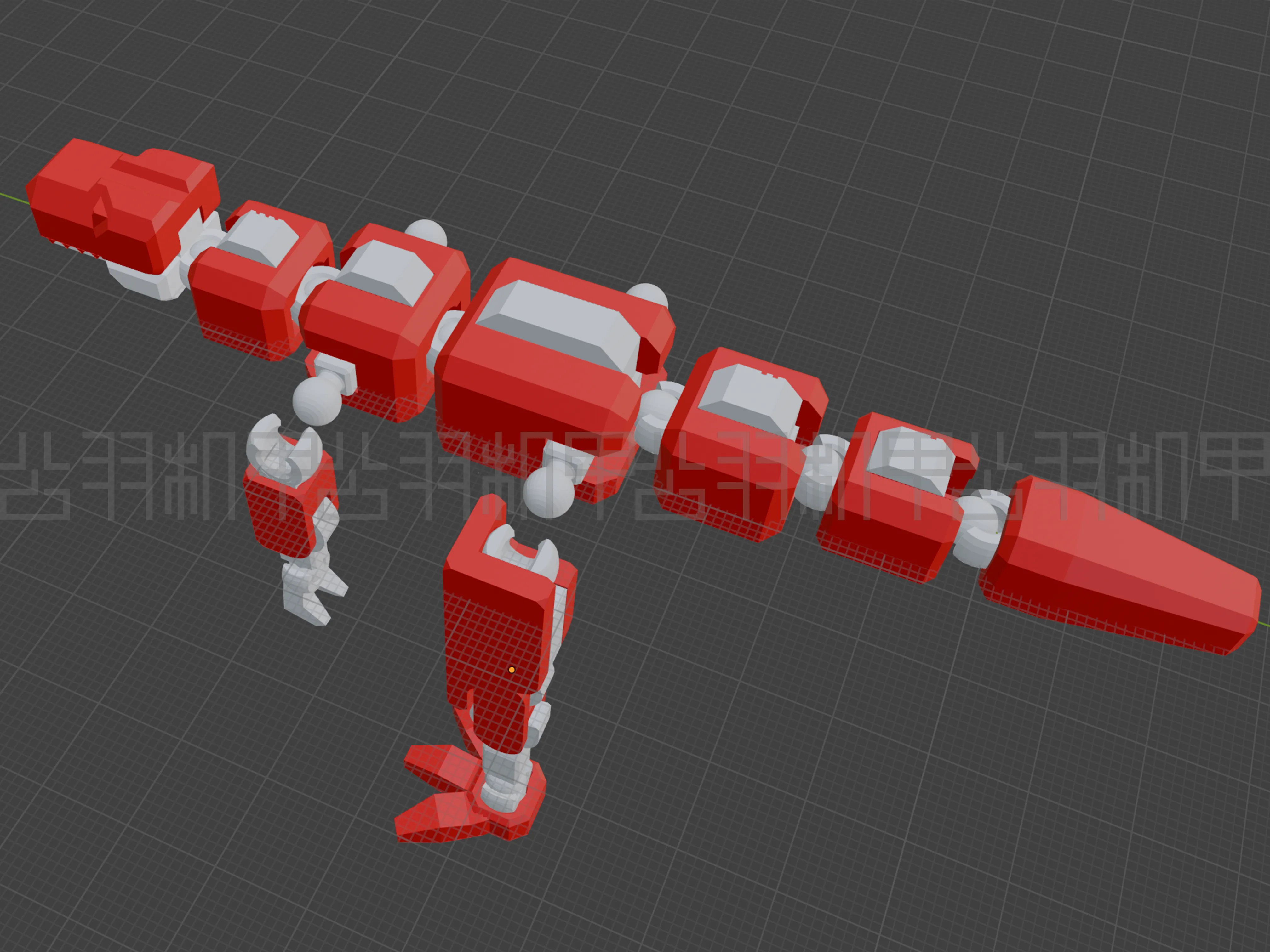

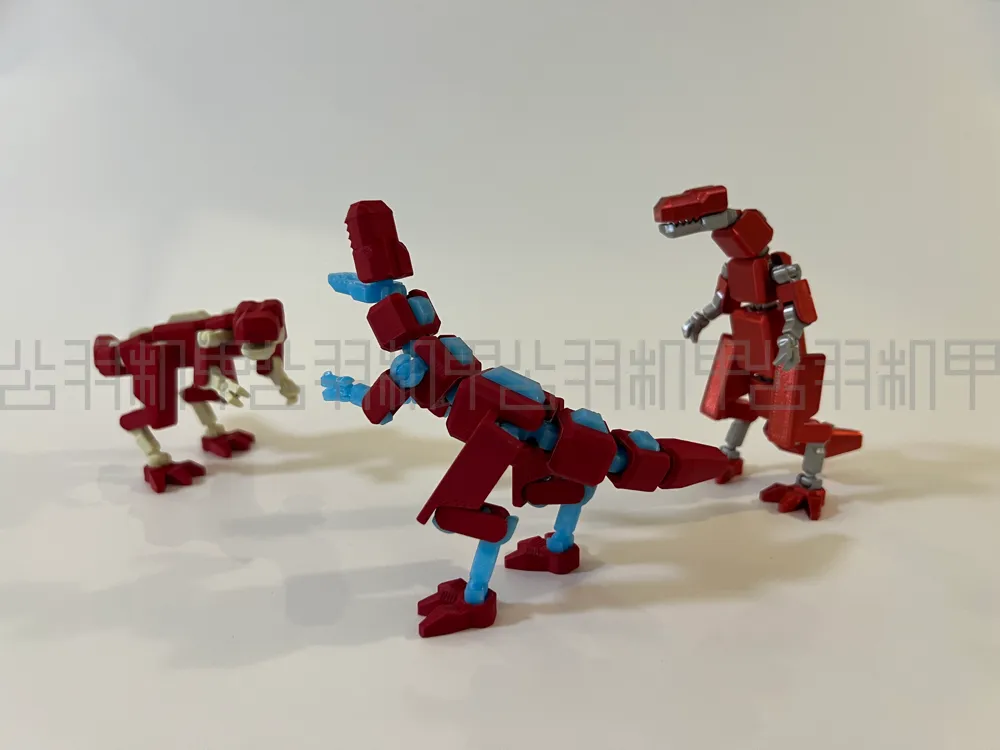

To ensure the mobility and tightness of the joints, the tolerances are set to be relatively small, making assembly a bit tedious, but there will be a surprise once assembled. The model is super articulated, capable of almost any pose you can imagine, and the joints are durable

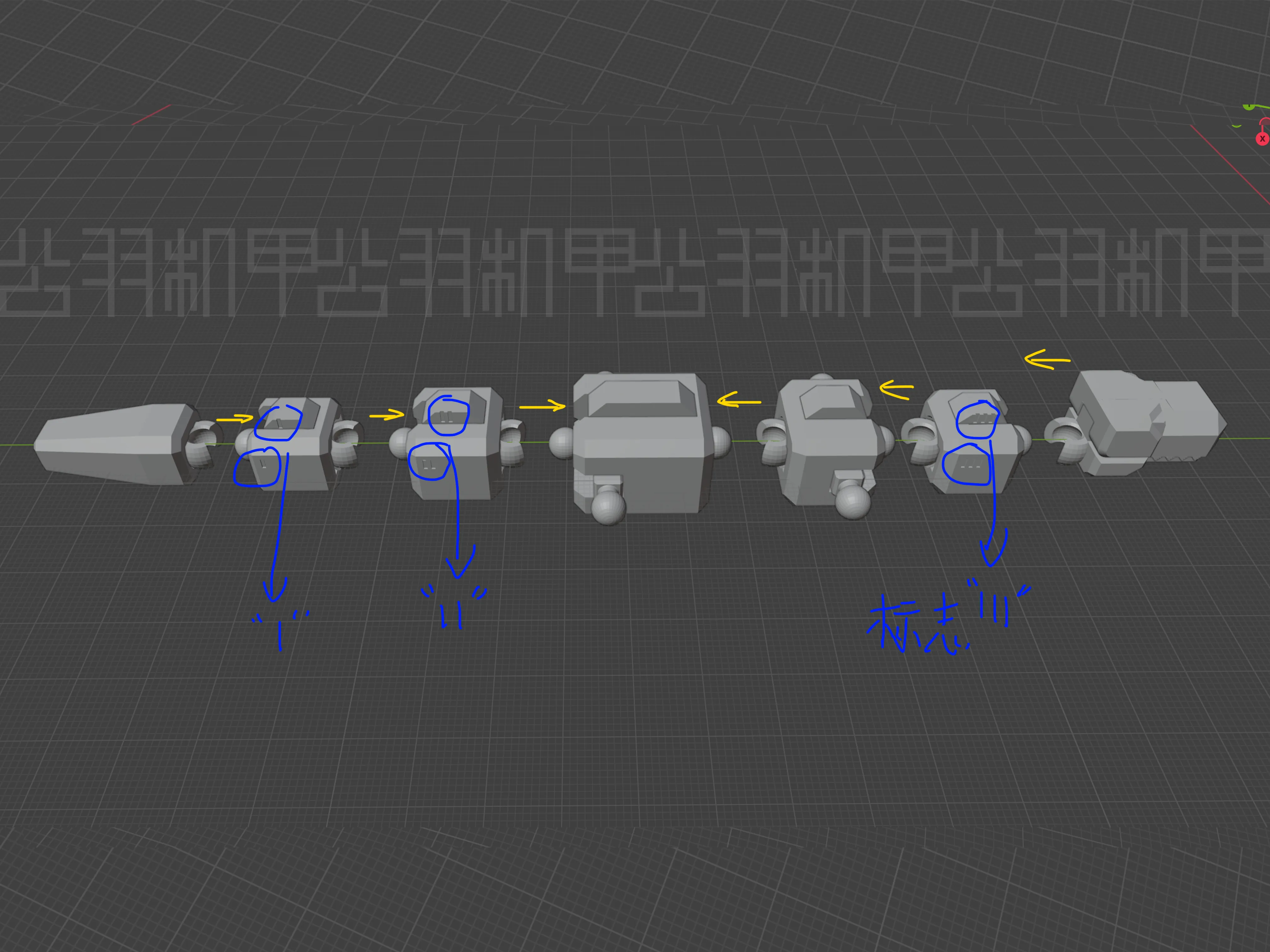

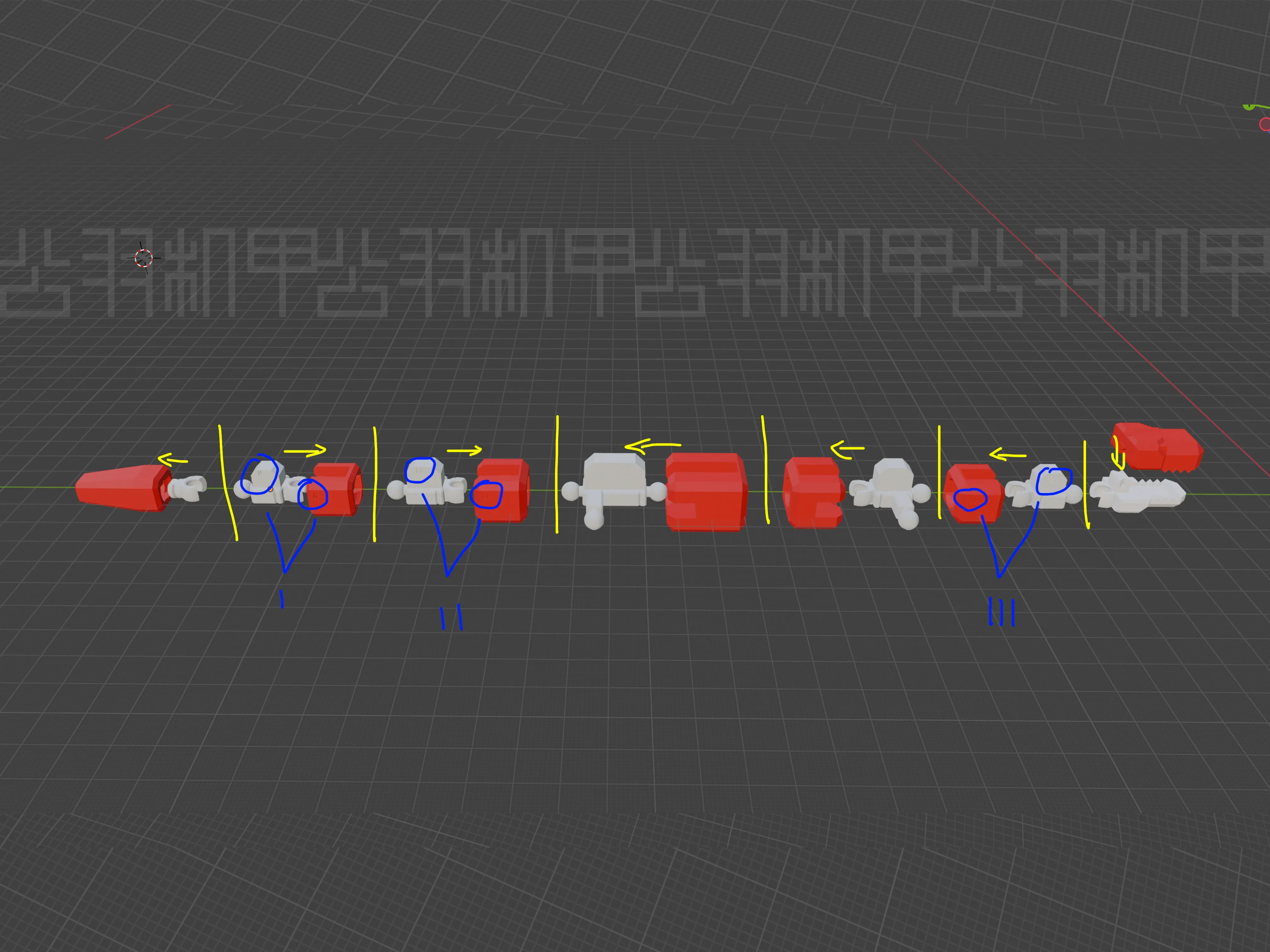

Note that the installation direction of each body segment of the T-Rex is opposite to that of the Spinosaurus, please install according to the yellow arrow direction in the image above, where 丨, 丨丨, 丨丨丨 are distinguishing marks

There will be a "click" sound when the torso is installed correctly. If it cannot be pressed into place, you can follow the diagram below and use another empty torso shell to align and tap it in

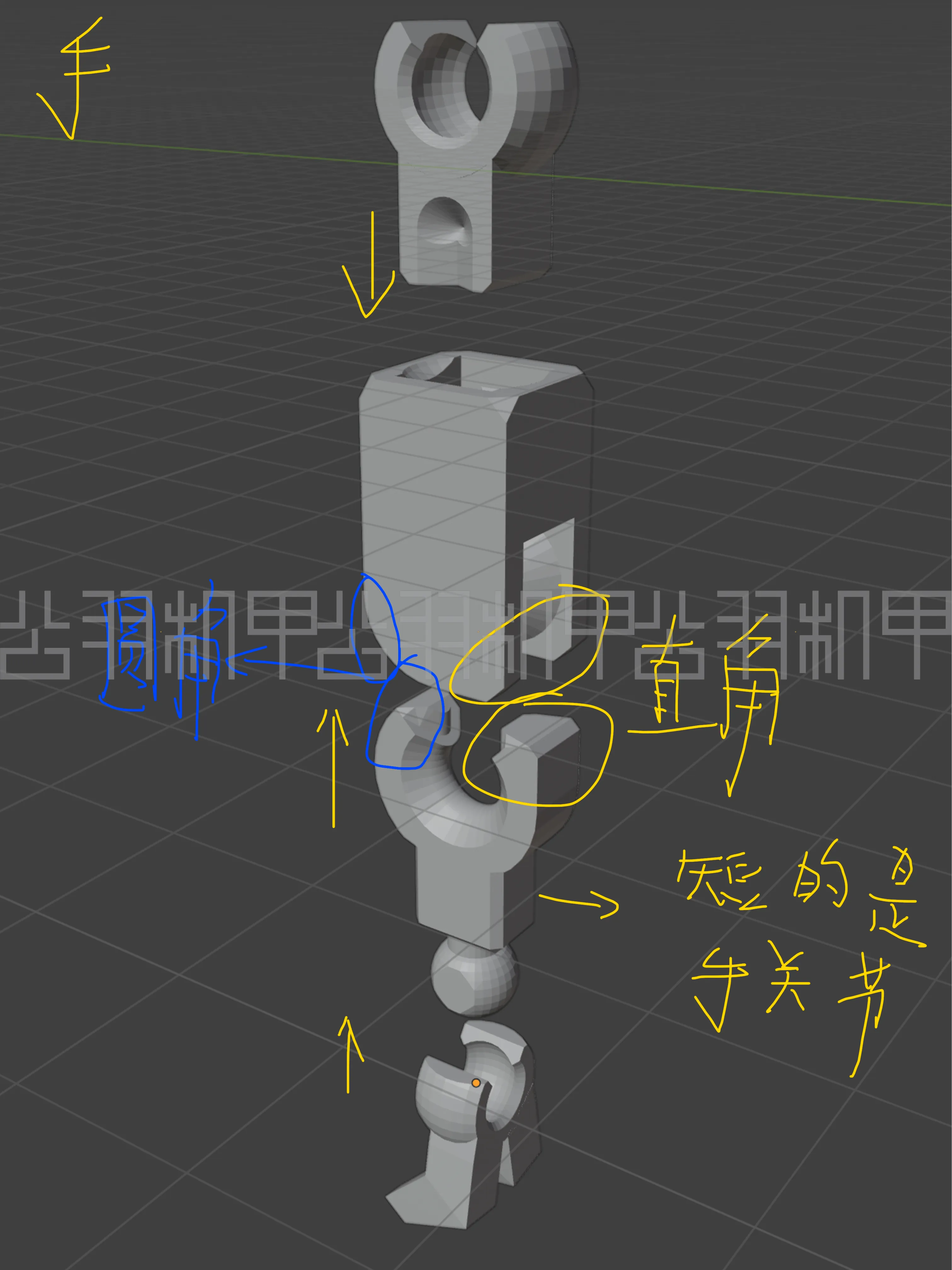

Hands

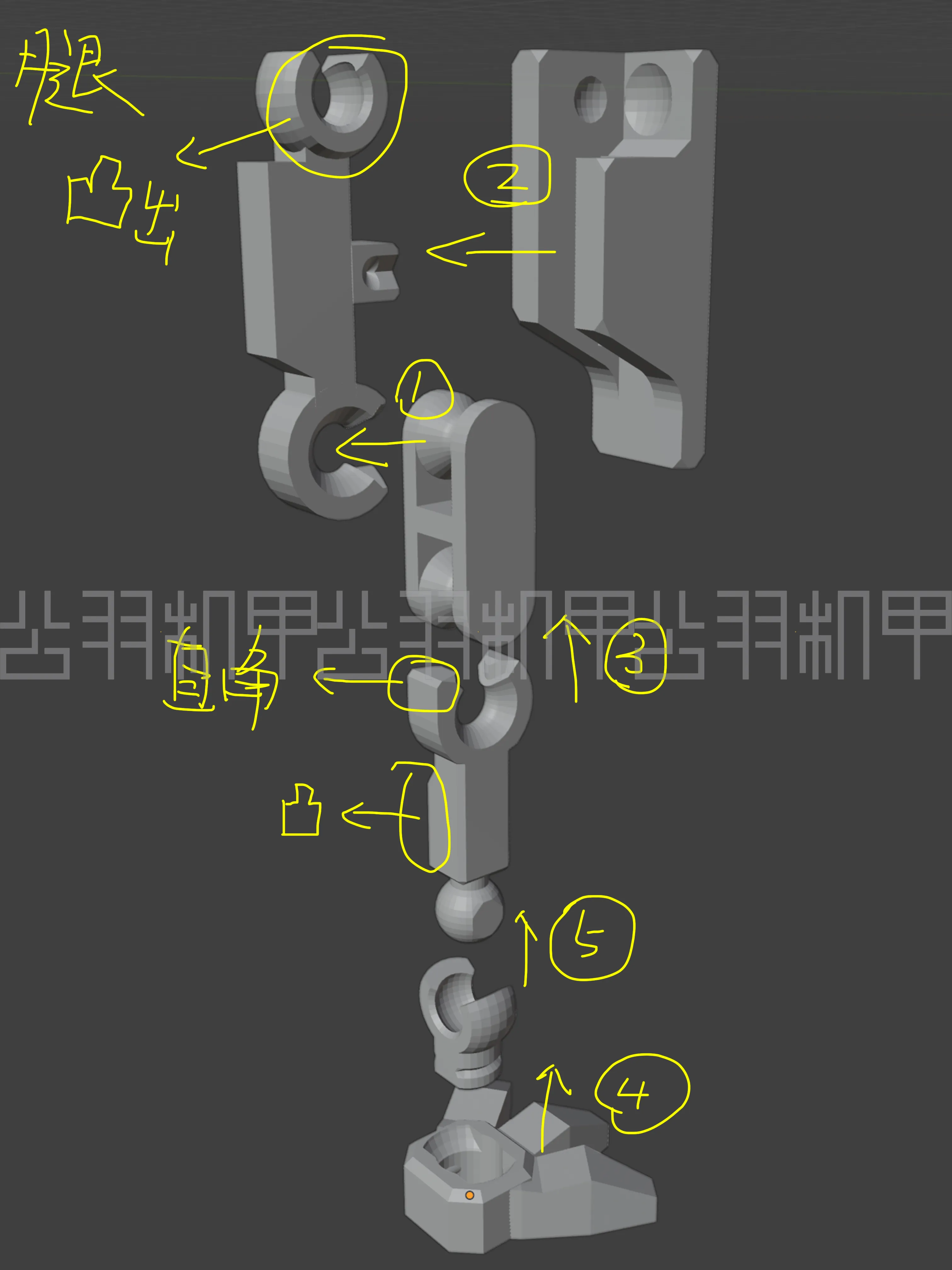

Legs: Special attention, install step ① first, then step ②
