Securing for Tabtime in the Tilter

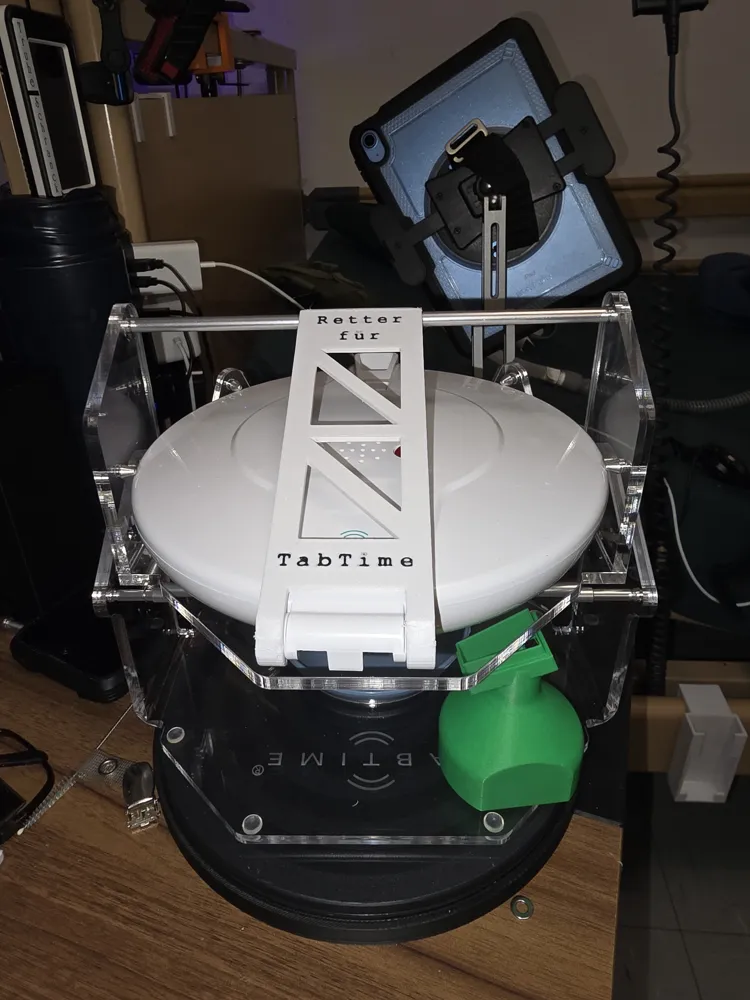

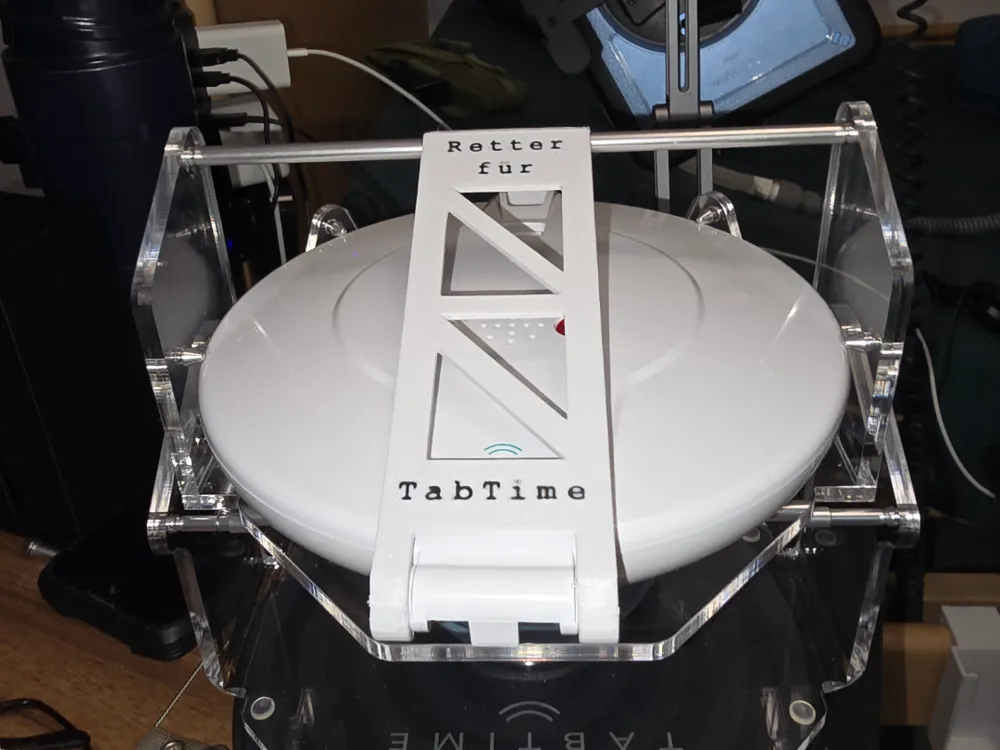

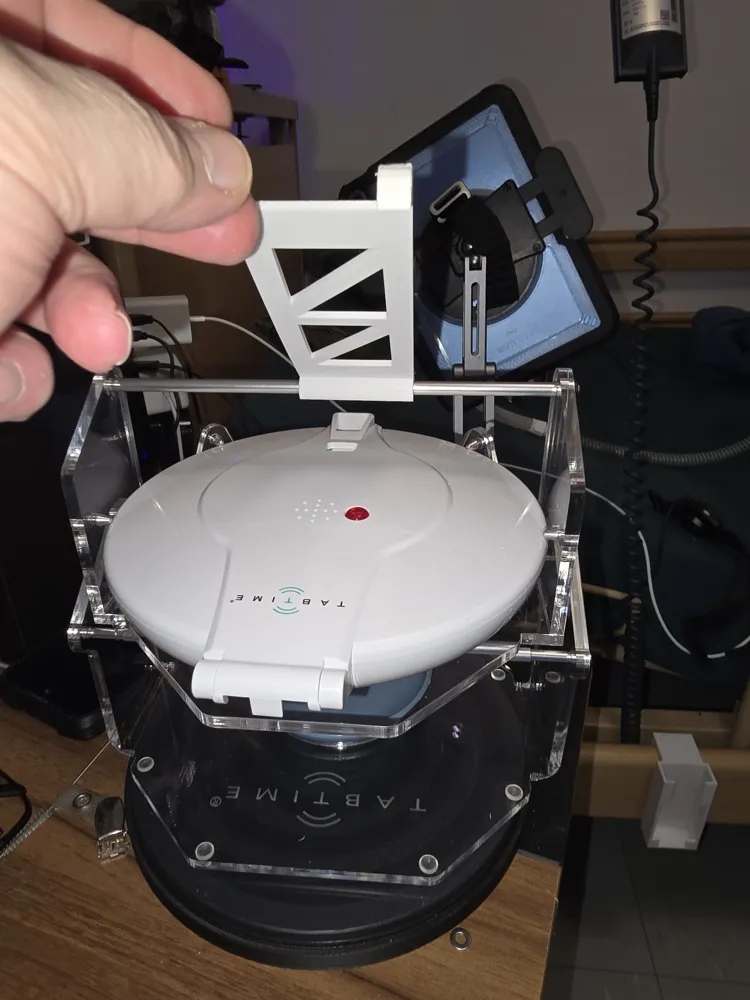

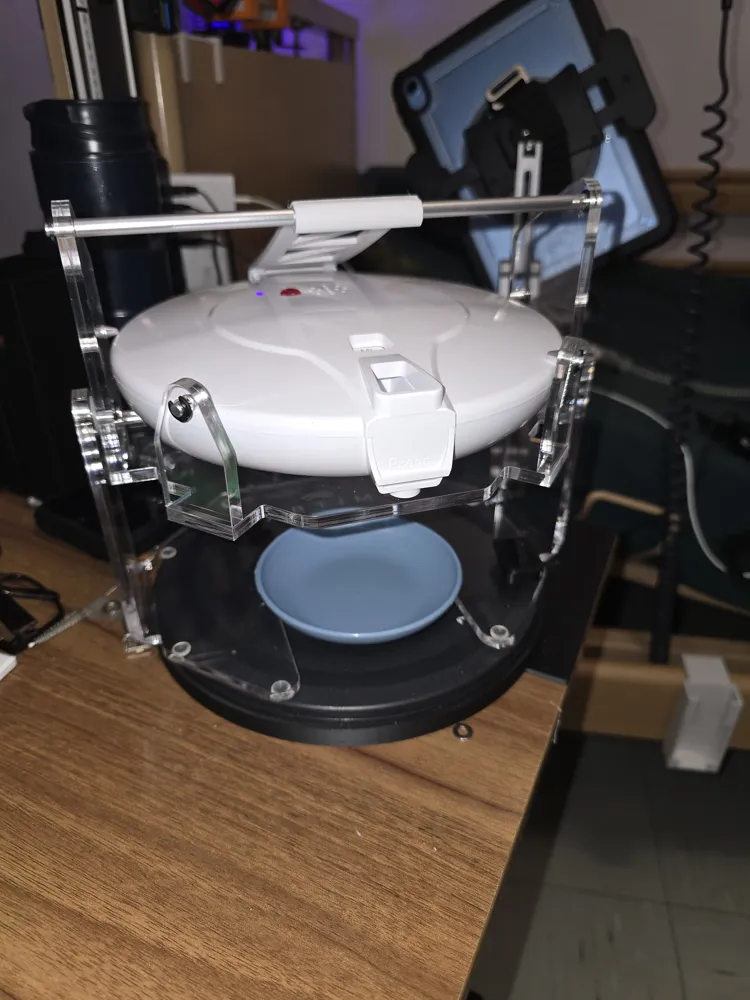

This retaining tab prevents the Tabtime pill dispenser from falling out of its holder. This can occur if the user carries the assembly, for example, into another room. For installation, you must remove the plastic snap ring from one side of the handle bar. This is best done with your fingers. Be careful that it doesn't spring away. Then, carefully bend the Plexiglas tab outwards until you can tilt the rod upwards, having pulled it out of its hole. The hole on the other side has sufficient clearance. Then, slide the tab onto the handle bar and reassemble everything in reverse order. If you are not confident doing this, you can slightly enlarge the hole in the .stl file that slides over the rod, allowing the tab to be clipped onto the handle bar instead. The other end simply clips over the dispenser's hinge, and the dispenser is then secured against transport damage within your home.
