Quickjack Wheel Mod Spacer - TL6000 30mm Rail
IP Report
Print Profile(1)

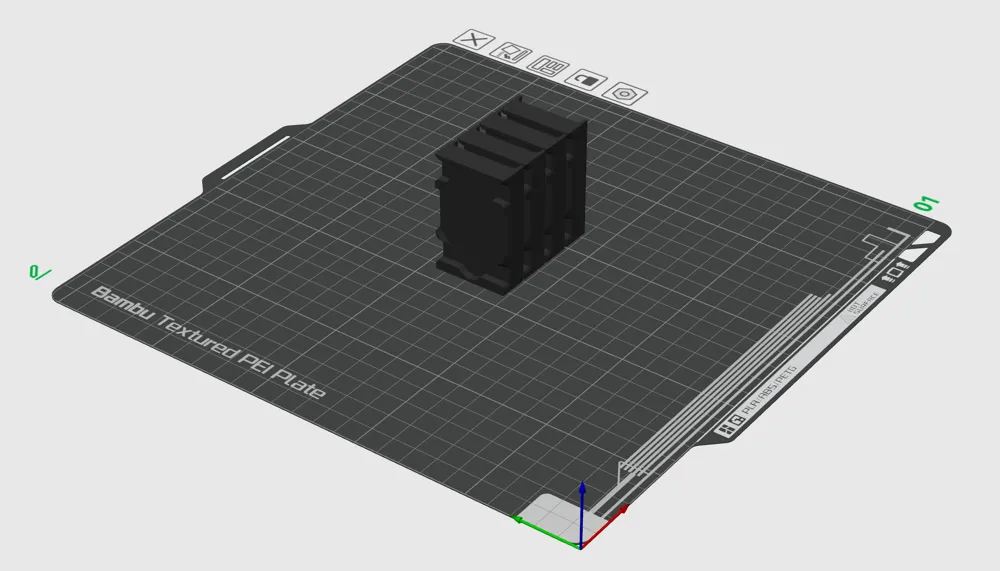

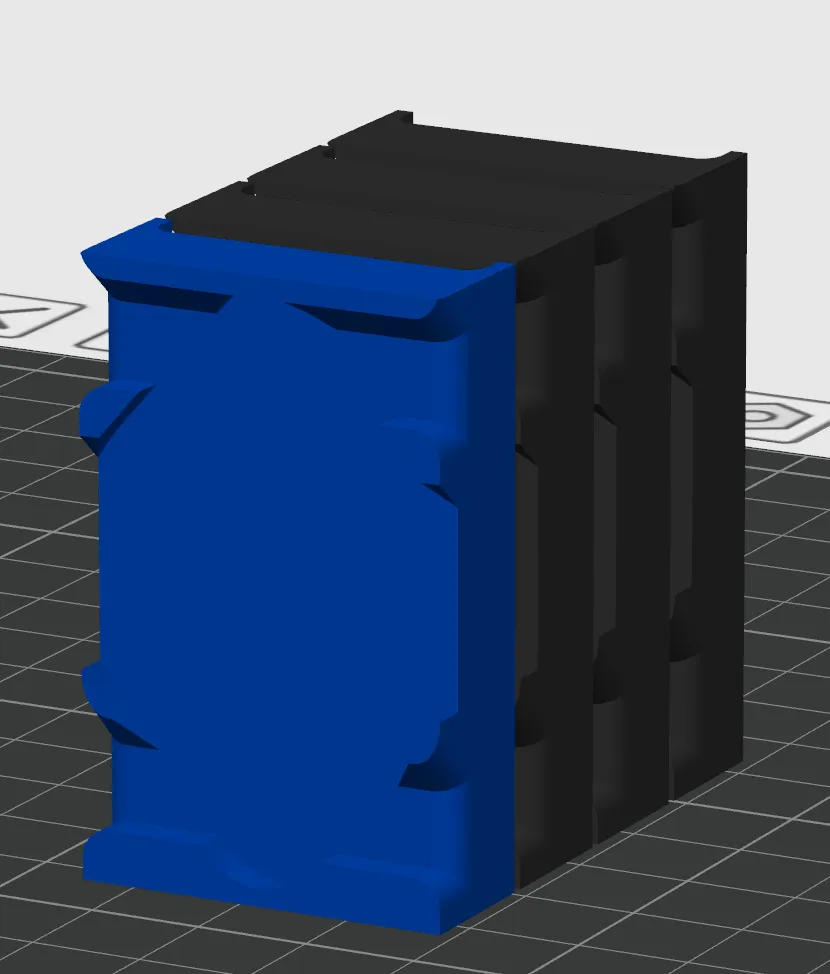

0.2mm layer, 2 walls, 95% infill, No Supports/Brim
Designer
1.7 h
1 plate
Open in Bambu Studio
Boost
9
12
4
1
38
29
Released
Description
Description

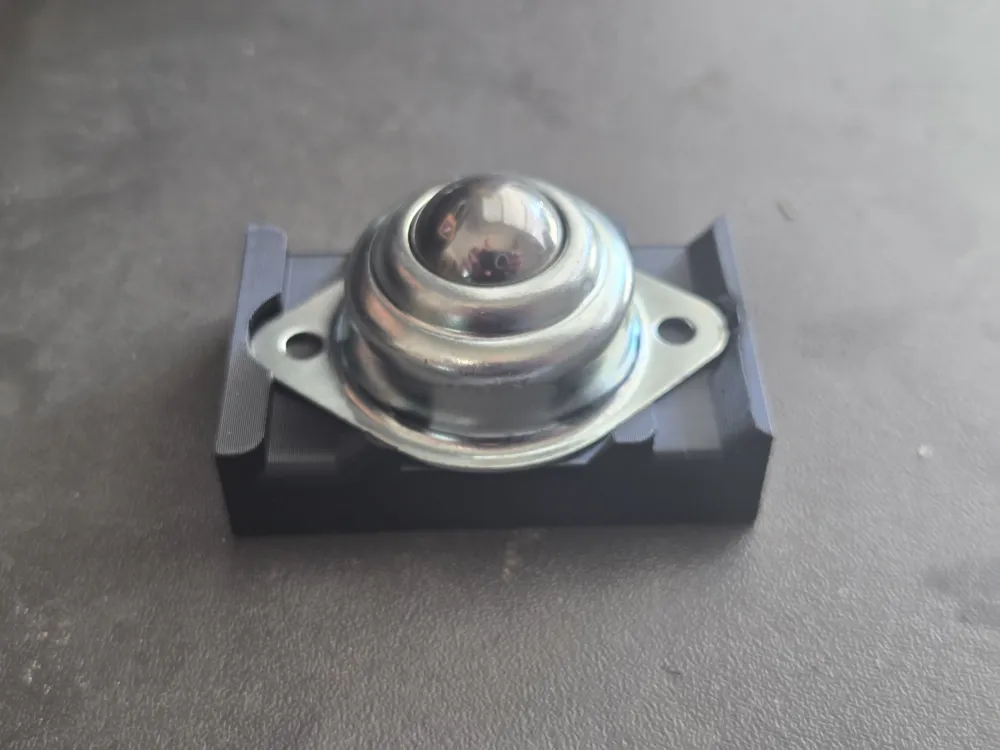

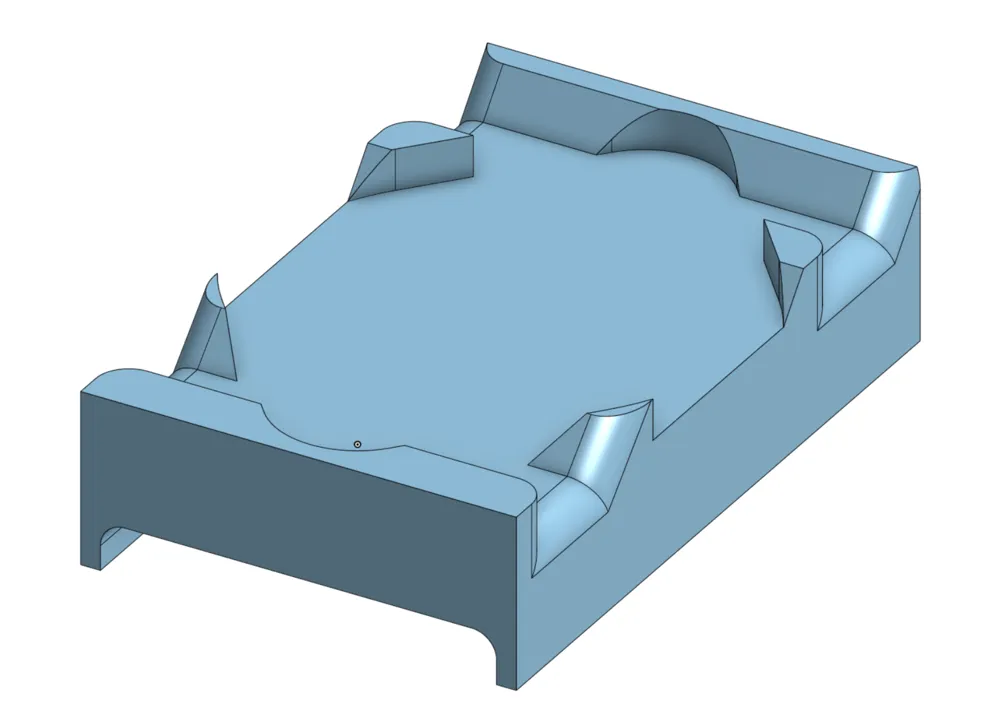

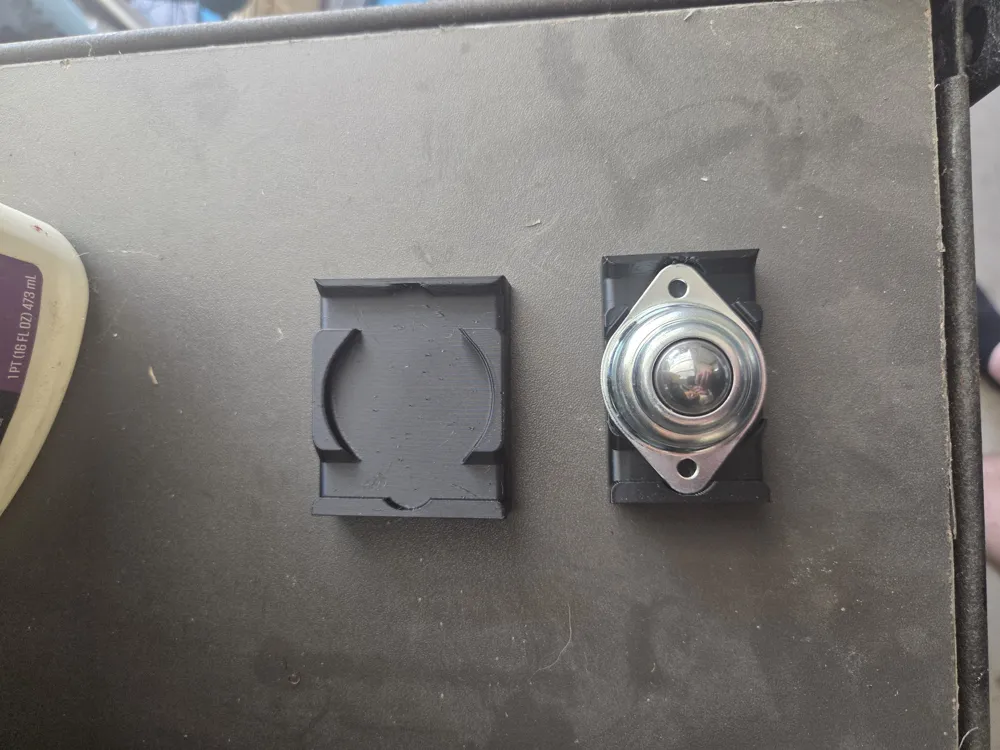

These are wheel spacers for quickjack wheel spacer mod for 5/8" Roller Ball wheels. Modified to fit on the 6000TL. These help space the roller bearings so that you can place them as rearward as possible while still getting a zip ties on them.
Notes/Risks:

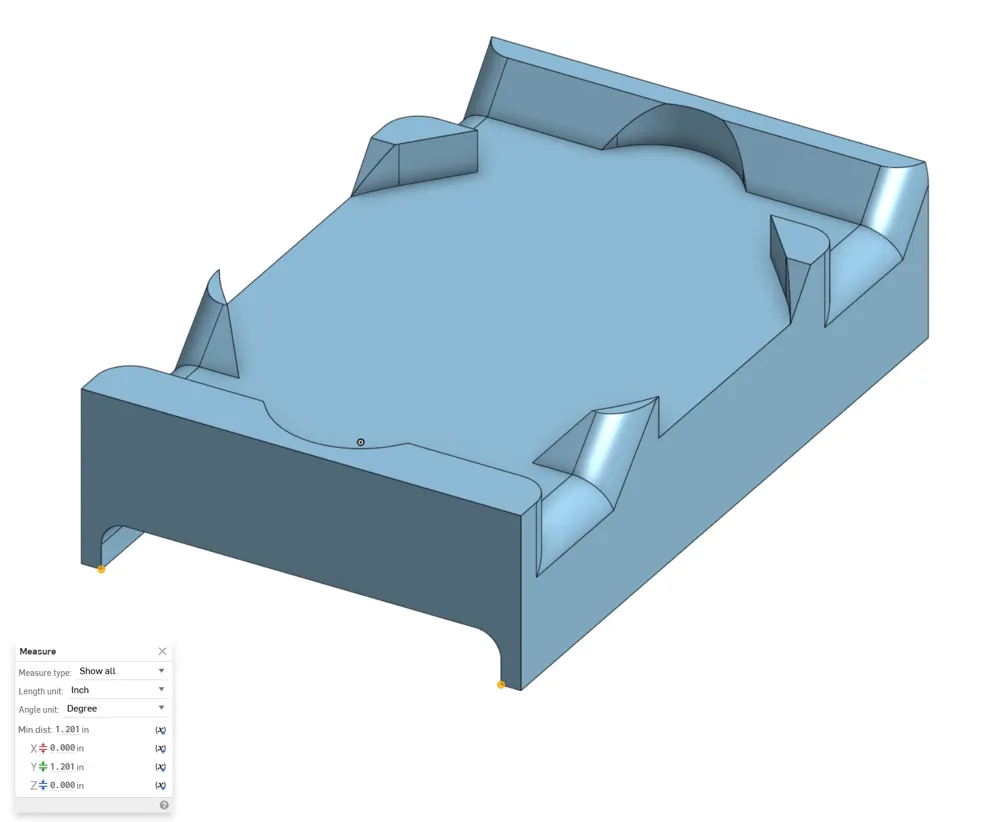

- I have a 7000TL with 40mm rails. The 6000TL has 30mm rails. This spacer prints at 30.5mm for 30mm rail clearance. I can't verify fitment.
- The Amazon vendor may not supply you consistent bearings depending on when you order. At least two types have been ID'ed for the 5/8 bearings. These should still work but you will have bigger gaps if you get the smaller bearings.

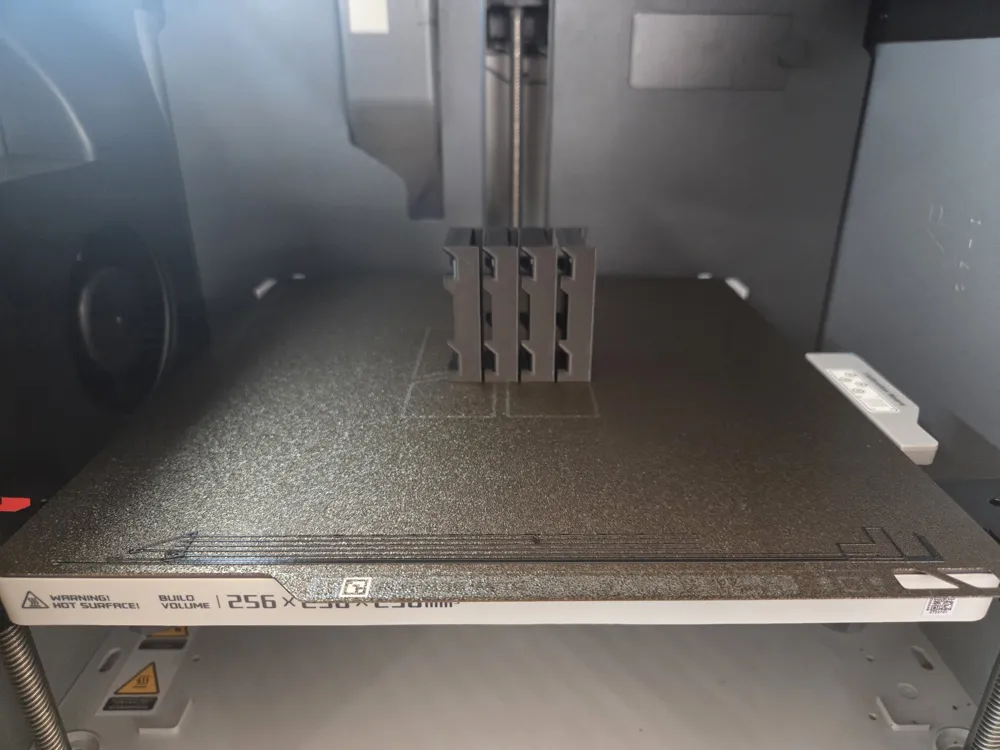

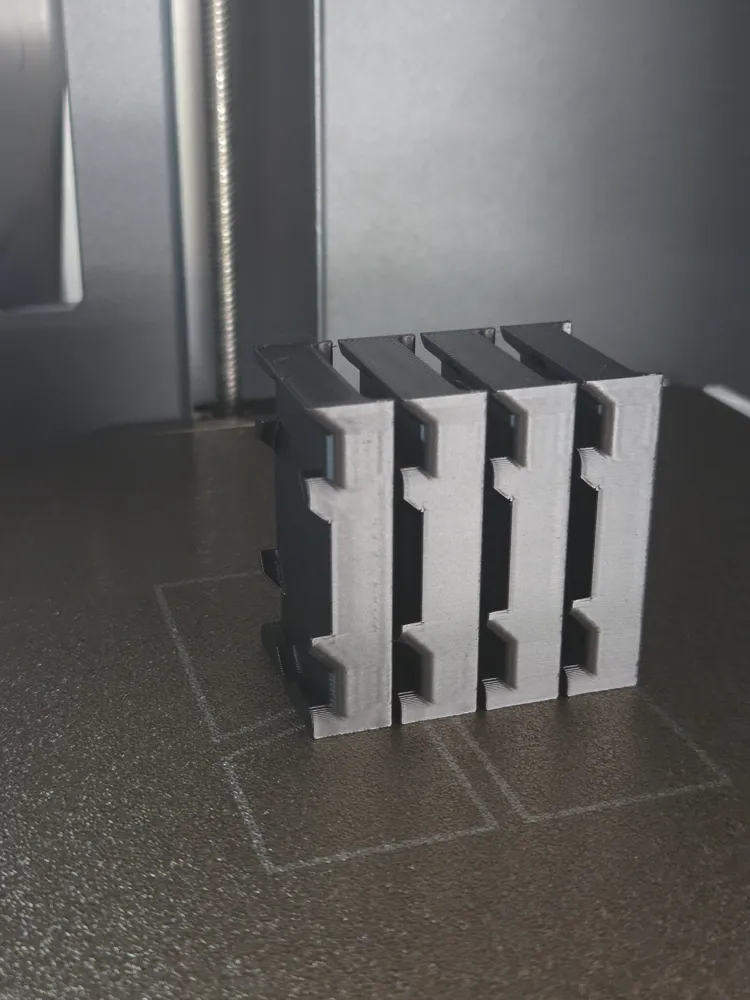

- As of 8/18/25 they are on the printer to validate the print. But should be good based on previous experience on the 7000TL version.

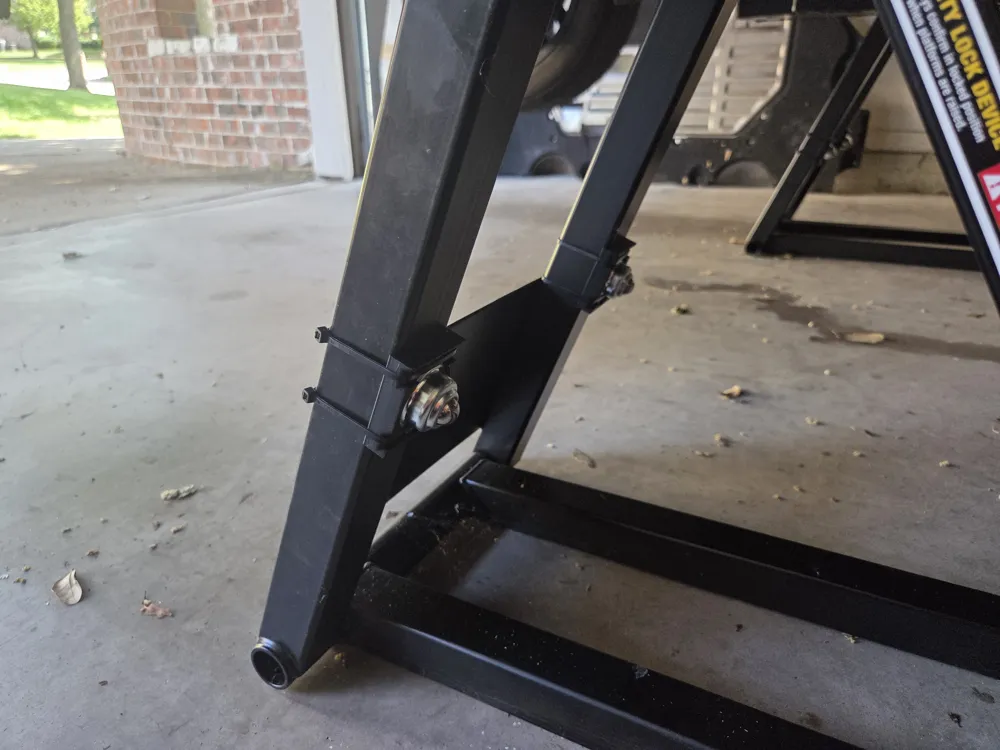

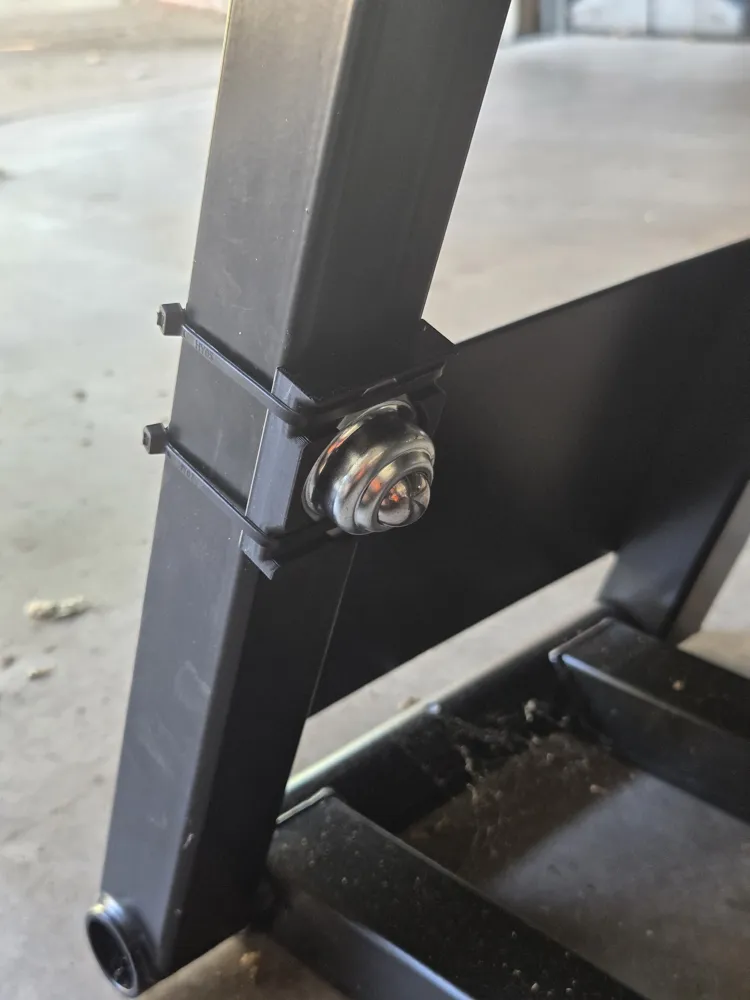

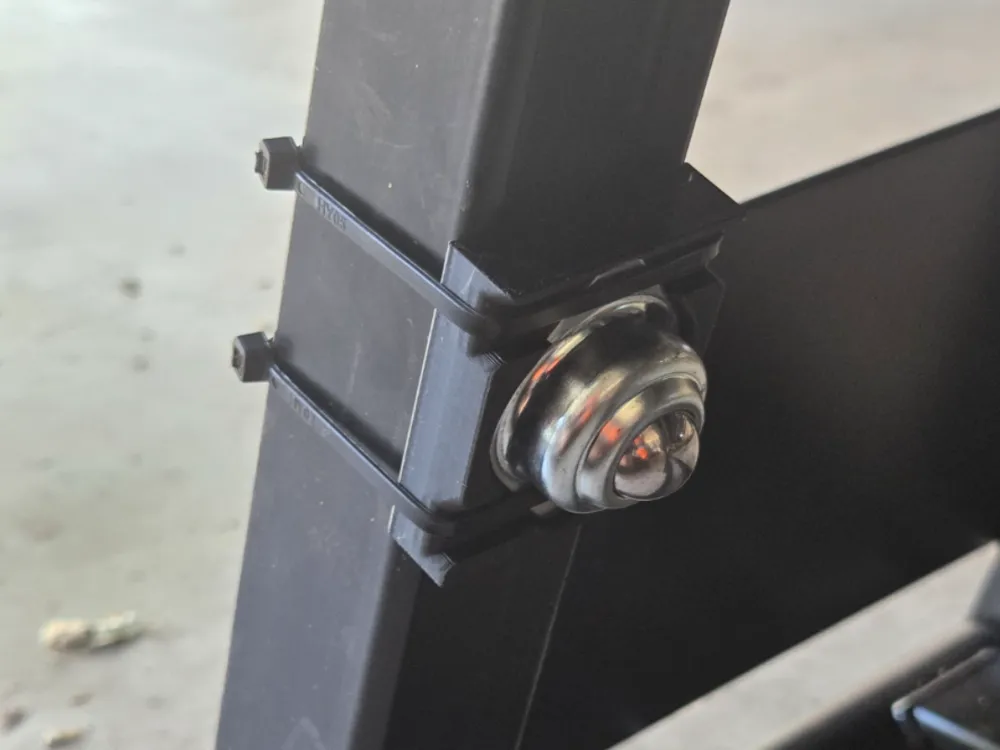

Installation notes: - You don't need them on the front wheels but they can be used there.

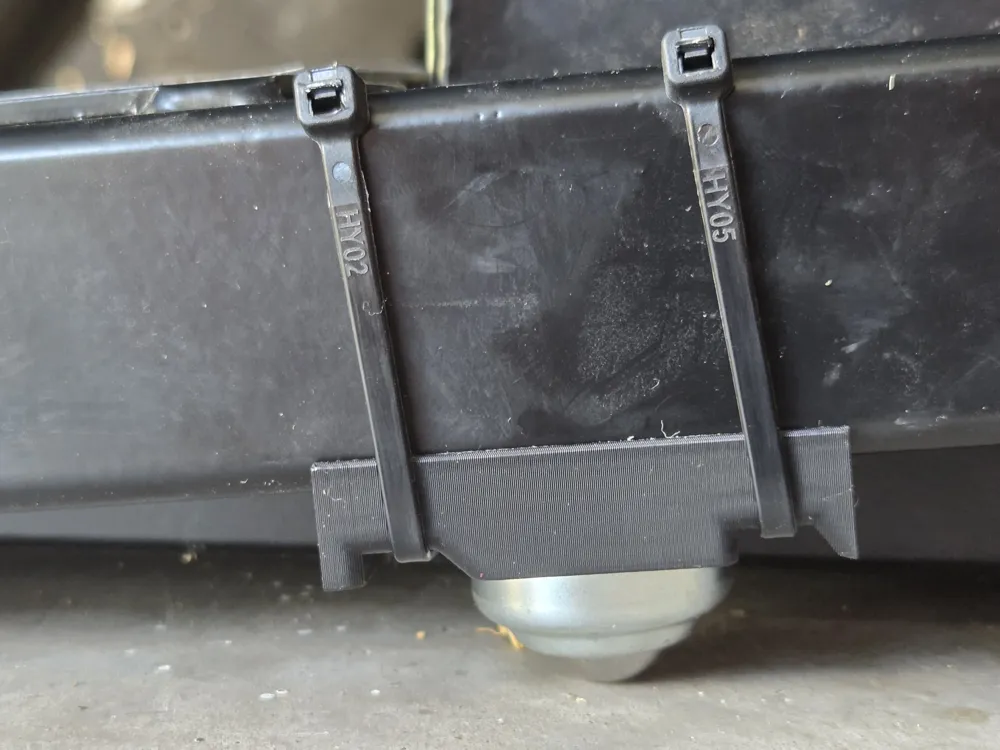

- I think 250mm/10in length zip ties were used
- 5/8 Inch Roller Ball Transfer Bearing: https://www.amazon.com/dp/B08MKRQQ8N?ref_=ppx_hzsearch_conn_dt_b_fed_asin_title_1&th=1
Inspired by:
