Mechanical Dimmer Base × Bambu LED LAMP 001 REMIX

Description

Pure mechanical satisfaction. No electronics, just gears.

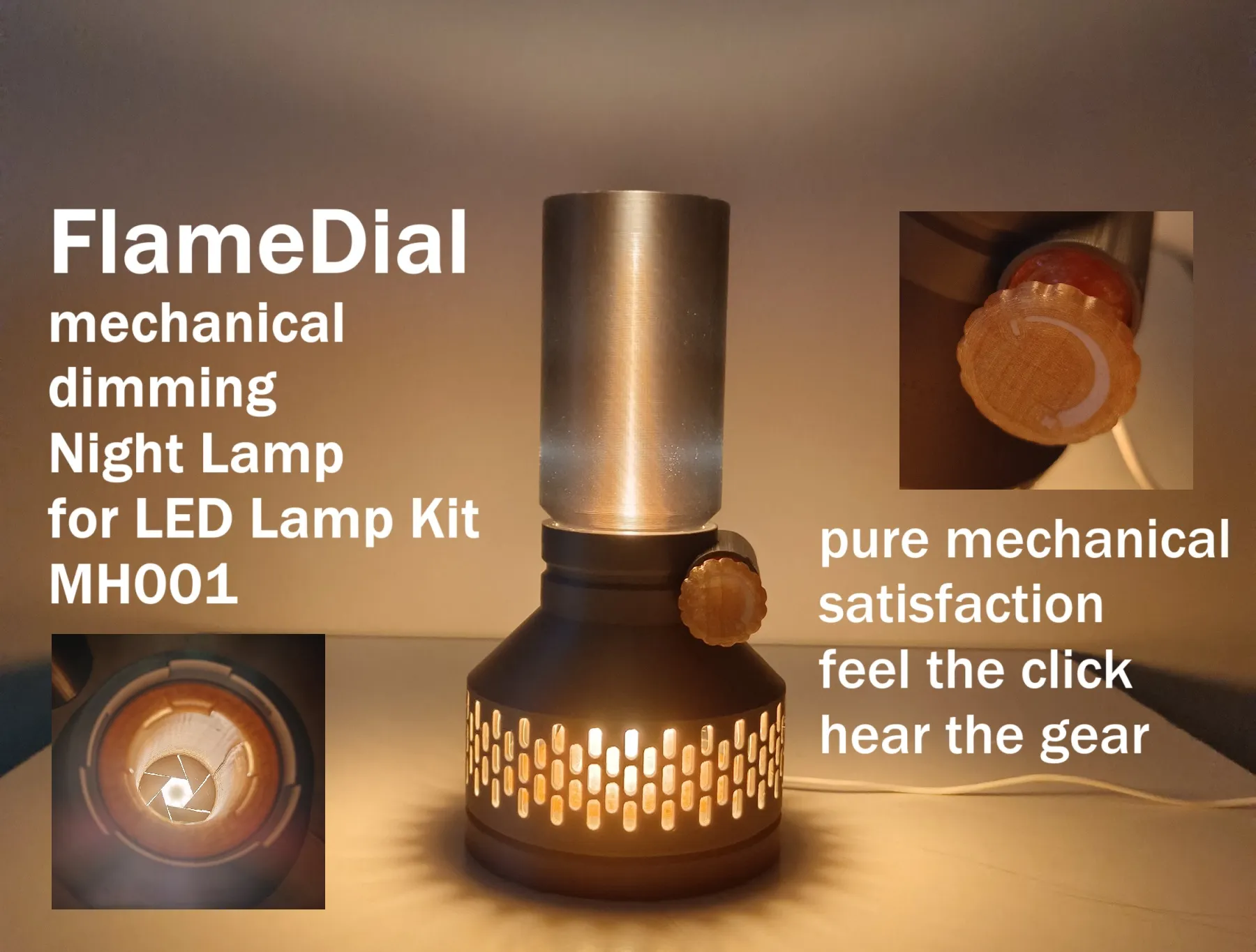

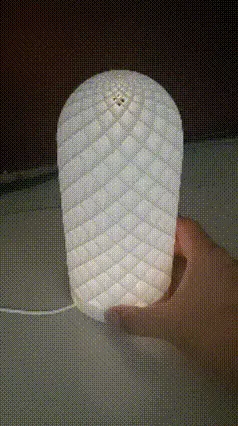

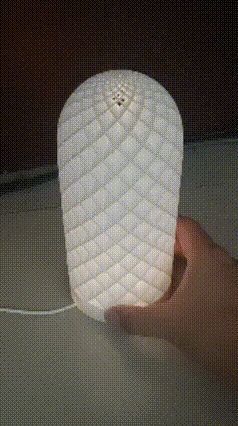

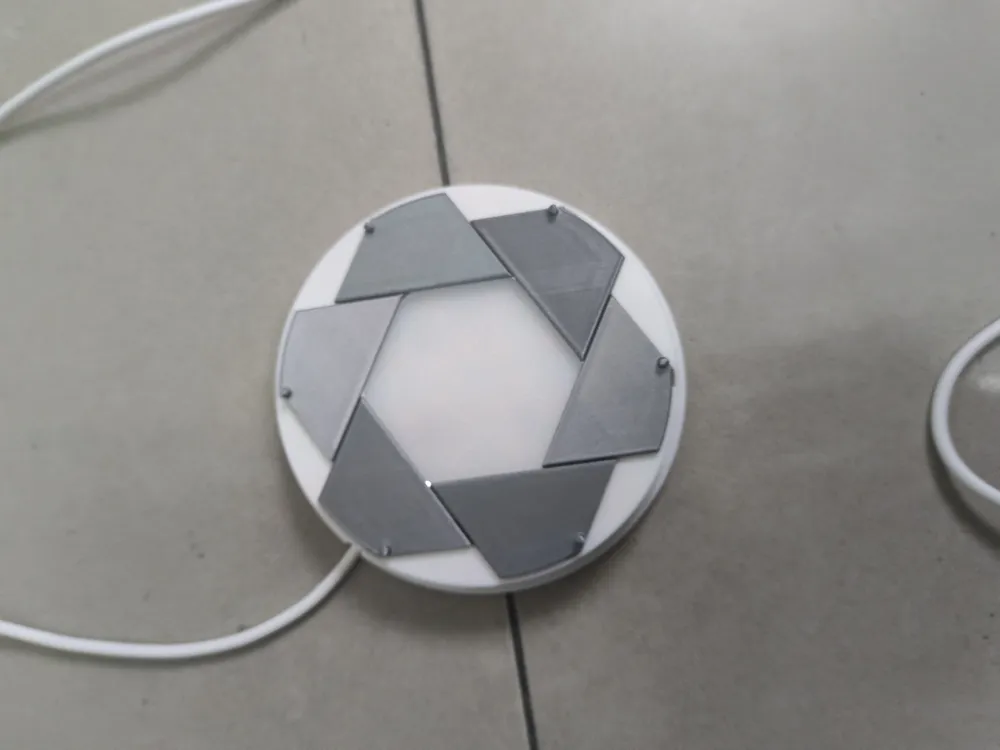

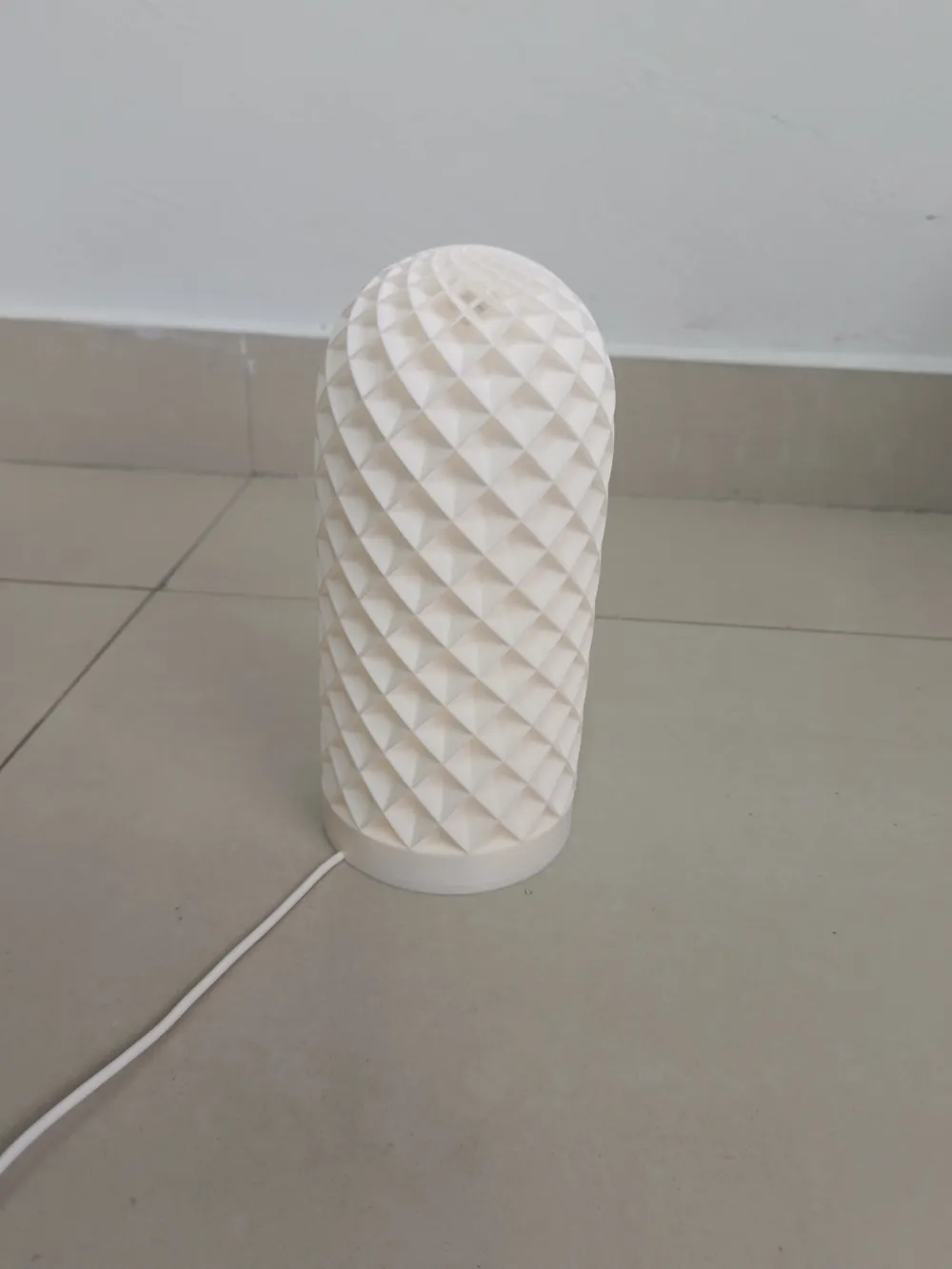

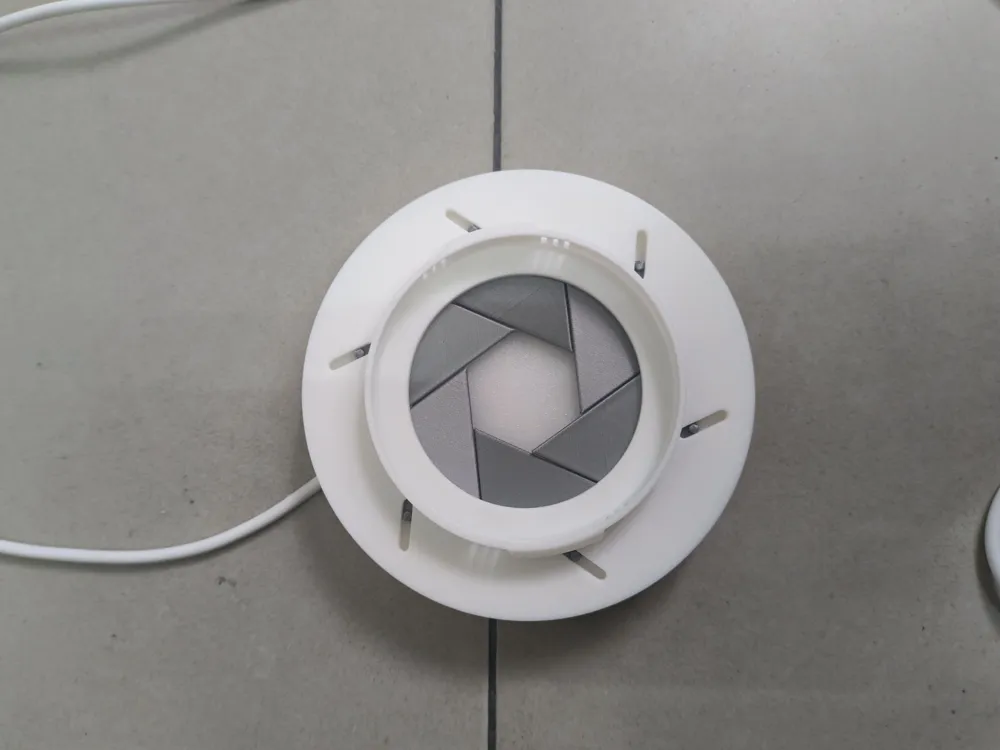

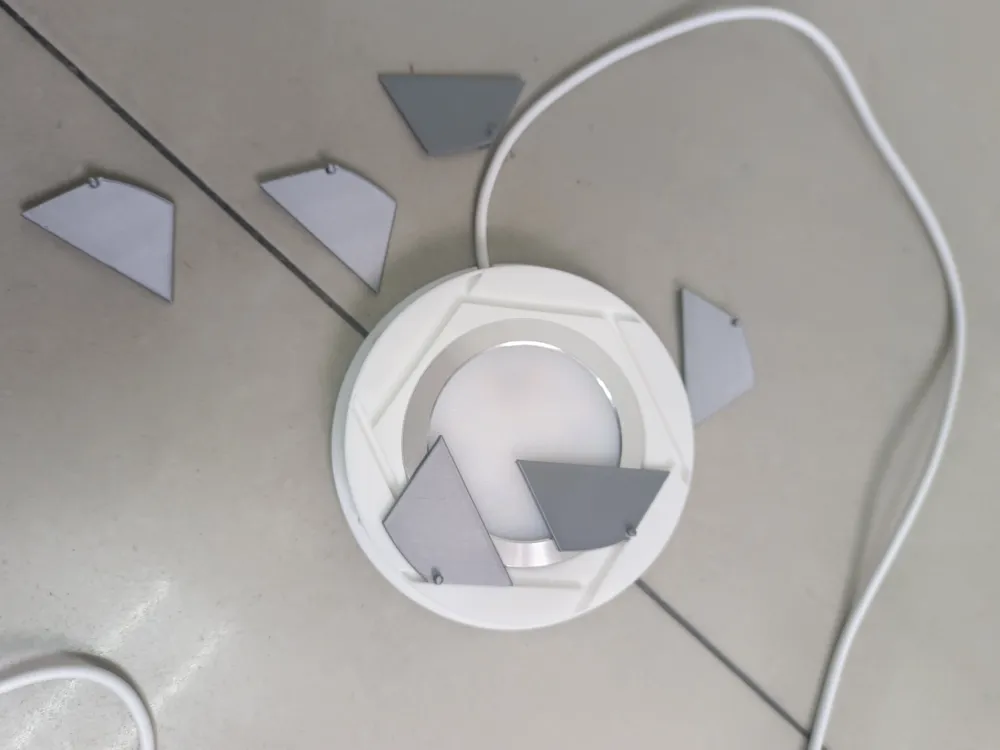

This remix integrates my WaveDial mechanical dimmer base with the official Bambu Lab LED LAMP 001. By rotating the dial, an iris-style aperture opens and closes, smoothly controlling the light output—silent, precise, and oddly addictive.

Original lamp body by Bambu Lab – LED LAMP 001. This remix provides only the base and mechanical dimmer parts. Please refer to the original model page for license and usage terms.

Print Profile Notes

• Nozzle: 0.4 mm Layer Height: 0.2 mm
• Materials:
  • PLA, to achieve better dimming effect use dark color for the slider
• Supports:
  • Required for inner base surfaces
  • Best with Bambu Support Filament for clean breakaway on sliding surfaces
  • Alternative: dual-material support (PLA body + PETG support, or vice versa)
• Brim: 10 mm for small slider and guide parts
• Speed: slower for gears (smoother finish), standard speed acceptable for shorter print times
• Tolerance: designed for standard printers; if too tight, lightly sand or use dry PTFE/silicone lubrication

Compatibility

• Specifically designed for Bambu LED LAMP 001

• Only modifies the base and dimmer mechanism, not the lamp body
