Sim Pedals – DIY Construction

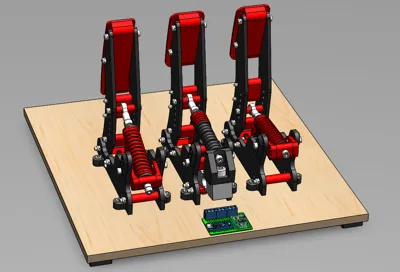

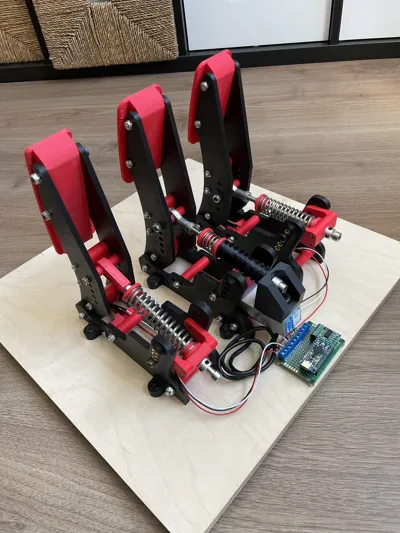

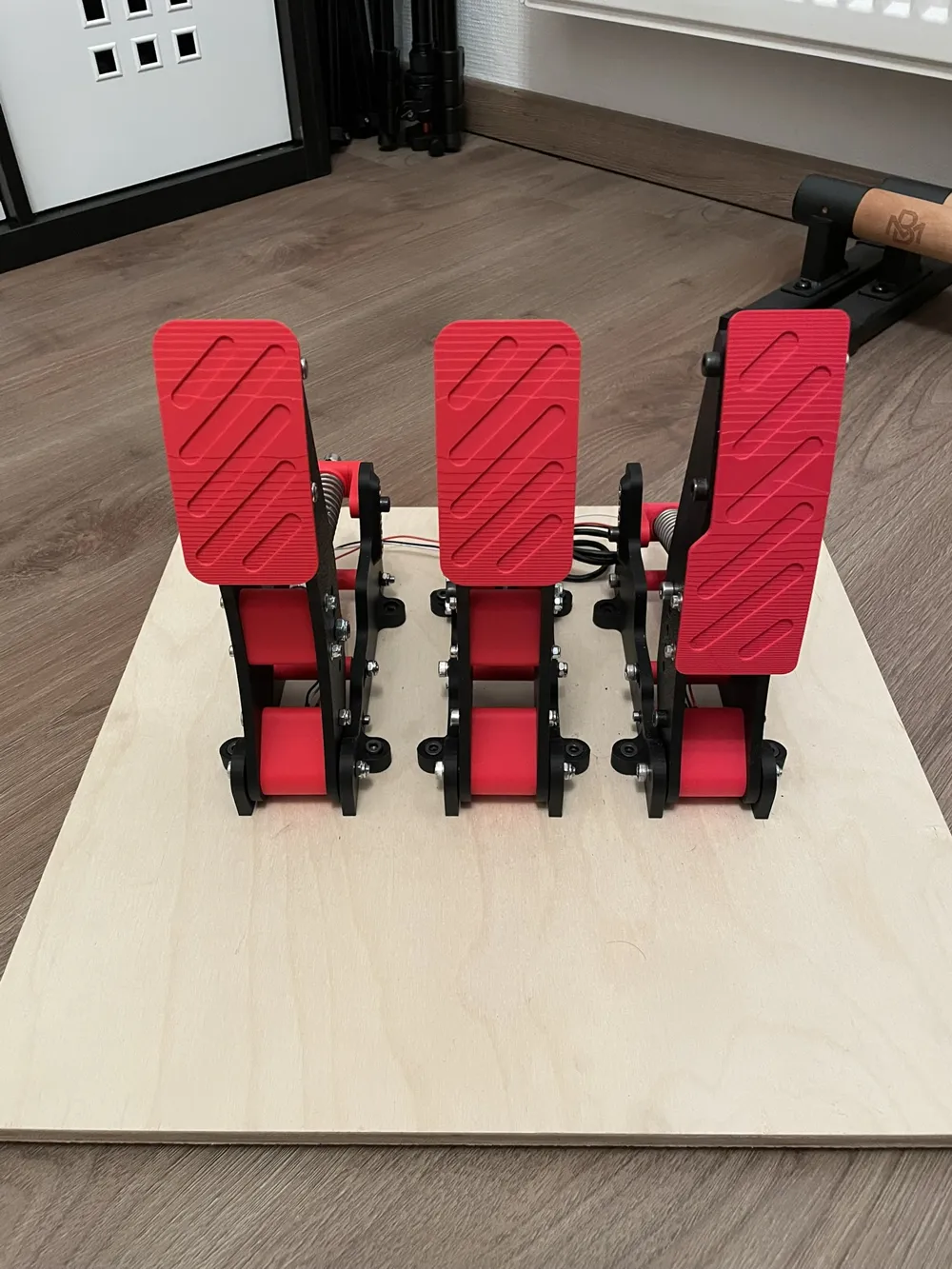

These self-built **Sim Pedals** are a robust and cost-effective solution for use in racing simulations. All parts are optimized for 3D printing and can be made with commercially available filaments.

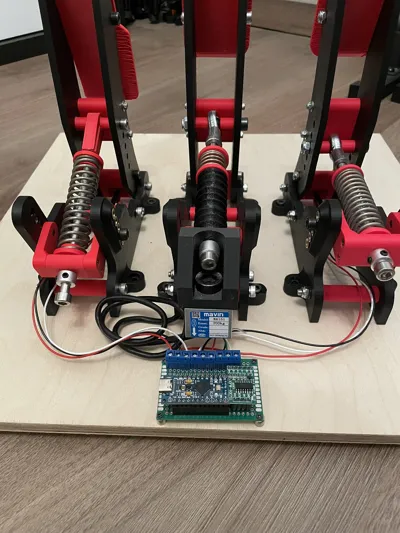

Throttle and Clutch use Hall sensors
Brake uses a 200kg Loadcell
Updates:
02.04.2026: Added Assembly Guide

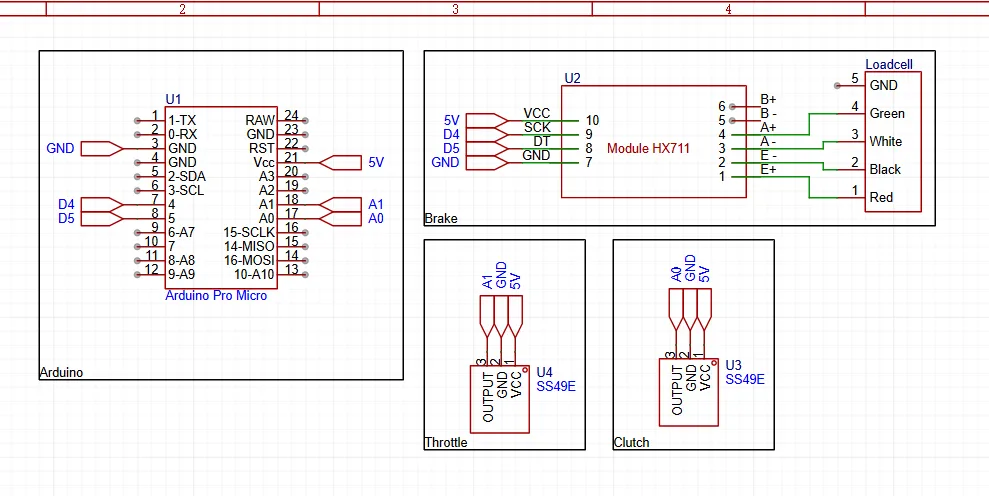

29.01.2026: Added electrical schema in the project files.

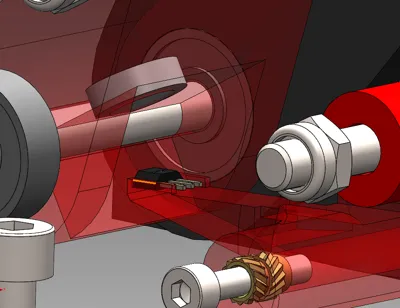

21.08.2025: Added the HallSensor Mount & Arduino Code.
29.08.2025: Added support for 40kg Loadcell CZL_882
30.08.2025: Added the Desktop App for easy calibration → Github
09.09.2025: After flashing the Arduino, make sure to Reset the EEPROM once to make sure the initial config is loaded
09.09.2025: The standard HX711 has a only a 10Hz refresh Rate, you can increase it to 80Hz with pulling the Rate Pin to VCC → See Datasheet HX711
Arduino
- Arduino code is in the src folder
- https://github.com/utnelson/SimPedals.git
Materials & Print Settings
- **PLA (Standard):** For less stressed parts
- **PLA+ (Sunlu):** For highly stressed components
- **TPU (Shore 95A):** For elastomers
- Recommendation: 15% infill, 2 walls
- **Print settings (all PLA/PLA+ parts):**
- 4 walls
- 20% infill

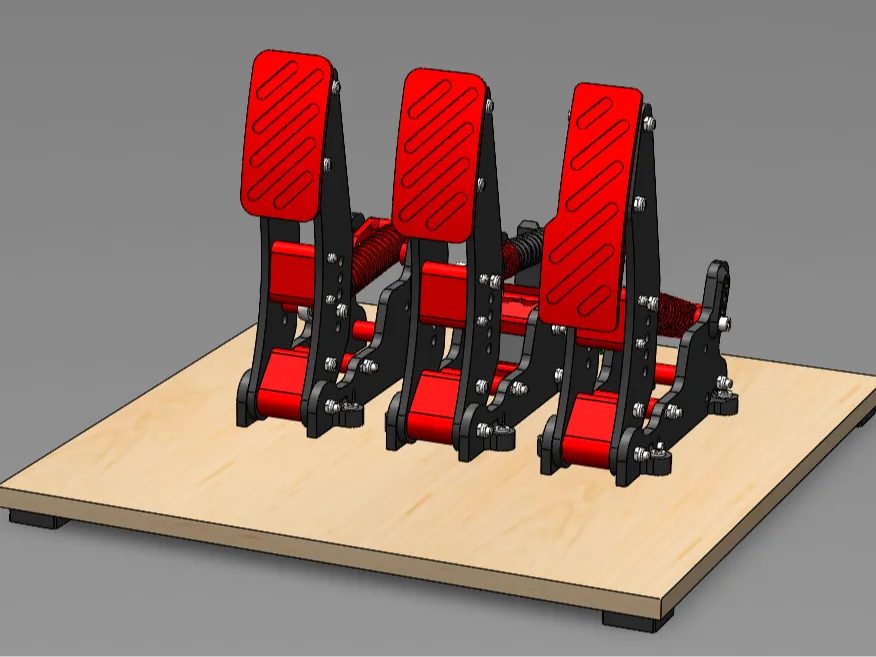

Base Plate
- Material: **12 mm plywood**
- Dimensions: **400 x 400 mm**
- Equipped with **TPU feet** for better grip and vibration damping

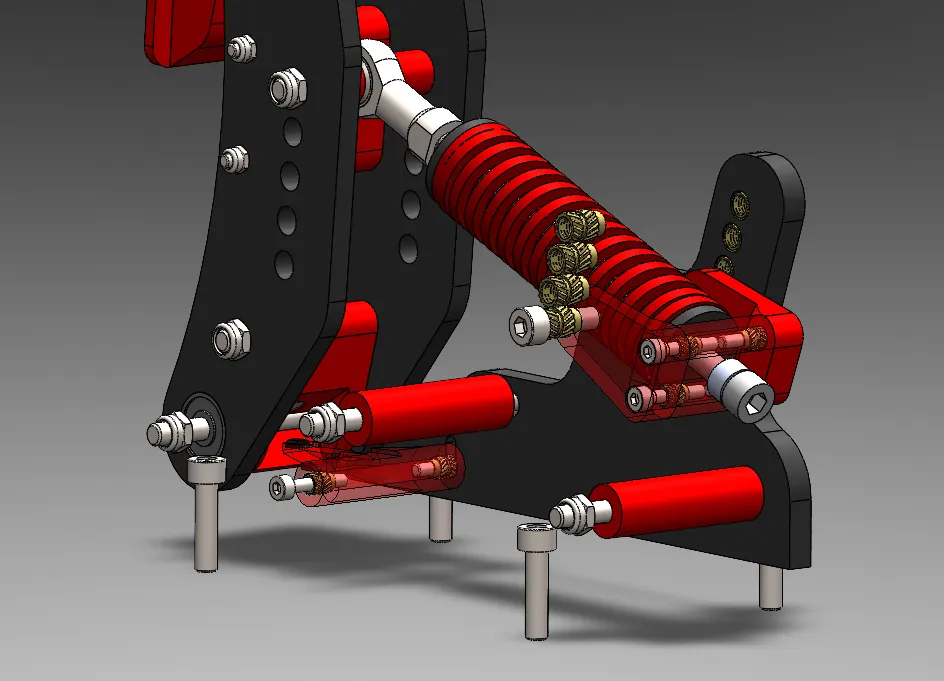

Hardware
All necessary standard parts are readily available (hardware store or online retail):
- **Screws & Nuts:** M3, M4, M5 (various lengths)
- **Washers:** M3, M4, M5
- **Springs:** Tension and compression springs suitable for pedal mechanics
- **Plain bearings/bushings:** 8 mm (for smooth pedal movement)
- **Axles/Rods:** 8 mm steel or threaded rods
- **Wood screws:** for attaching the pedal unit to the base plate
| Name | Throttle | Brake | Clutch | |
|---|---|---|---|---|
| M3x16 | 6 | 6 | ||
| M3x45 | 2 | 2 | 2 | |
| M5x16 | 2 | 2 | 2 | |
| M5x25 | 4 | 4 | 4 | |
| M5x45 | 3 | 3 | 3 | |
| M5x60 | 2 | 5 | 2 | |
| M6x20 | 4 | |||
| M6x45 | 1 | 1 | 1 | |
| M6x120 | 1 | 1 | 1 | |
| M10x25 | 1 | |||
| BallHead PSH6 | 1 | 1 | 1 | https://alishort.com/yYsR7 |
| Spacer Ring 6-12-8 | 1 | 1 | 1 | https://alishort.com/KzkjE |
| Bearing 625ZZ | 2 | 2 | 2 | https://alishort.com/P43sl |
| Heat Insert M3 | 6 | 0 | 6 | |
| Heat Insert M5 | 8 | 8 | 8 | |
| Spring 80mm | 1 | 1 | https://www.amazon.de/dp/B0DHCQ94L7?th=1 | |
| Spring 30mm | 1 | https://www.amazon.de/dp/B0DHCQ94L7?th=1 | ||
| Loadcell 200kg | 1 | https://alishort.com/7w14E | ||
| Hx711 | 1 | https://alishort.com/ifJL8 | ||
| S49e | 1 | 1 | https://alishort.com/96tV9 | |
| Magnet 6x2 | 1 | 1 | https://alishort.com/Ruyme | |
| Arduino Pro Micro | https://alishort.com/mJAZZ | |||
| Screw Terminals | ||||
| Washers 3.2 & 5.3 | ||||
| Nylon Nut M3, M5, M6 |
