SW-420 Vibration Sensor Magnetic Mount
IP Report
Print Profile(1)
0.2mm layer, 2 walls, 15% infill
Designer
21 min
1 plate
Open in Bambu Studio
Boost
2
7
0
0
18
8
Released
Bill of Materials
Maker's Supply Kits and Parts
Select all
List other parts
- SW-420 Vibration Sensor x 1:
Description

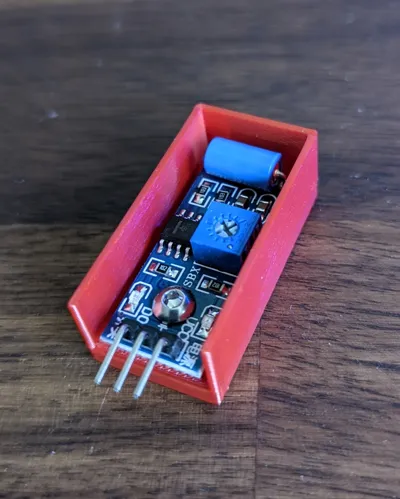

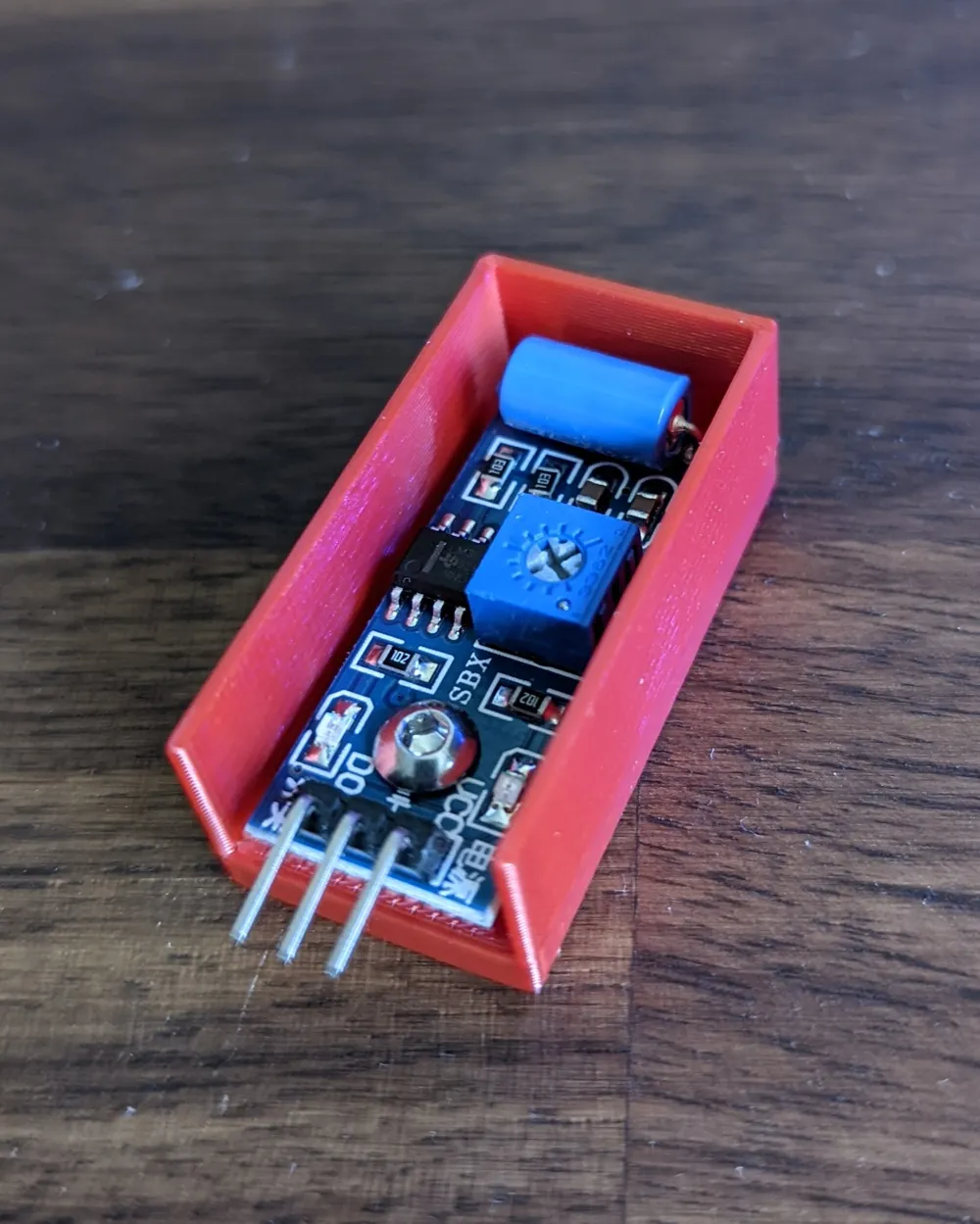

Mount for SW-420 vibration sensor for magnetic mounting.
Mount SW-420 with an M3x6mm screw and M3 bolt.

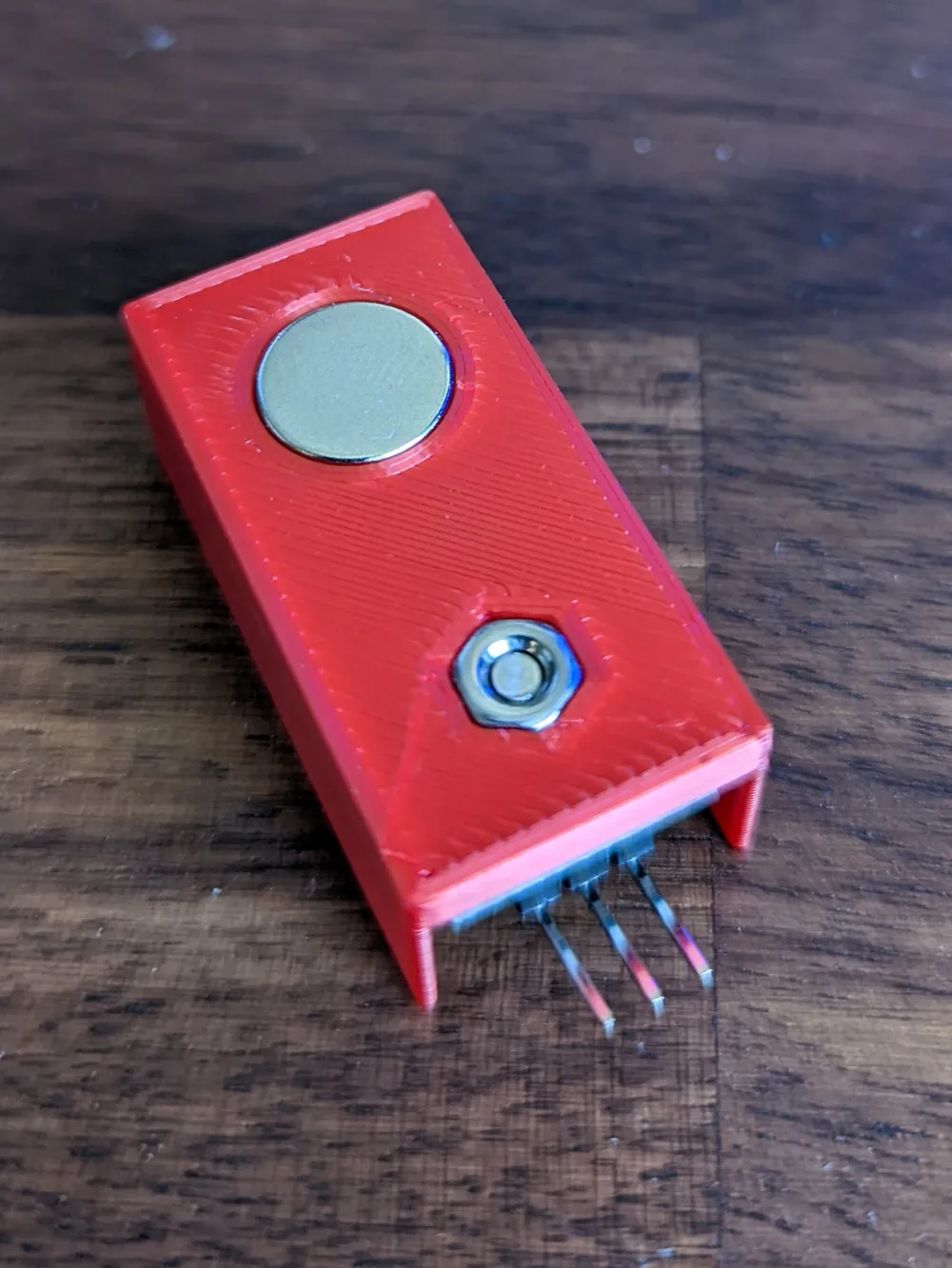

Friction fit magnet into slot. Models sized for either 10mm (10mm diameter, 3mm thickness) or 8mm (8mm diameter, 2.5mm thickness) magnets.
Print with base on build plate, with supports on build plate for magnet/nut insets.
