Bike Front Bag Mount – Handlebar Spacer Support

Title: Bike Front Bag Mount – Handlebar Spacer Support

Description:

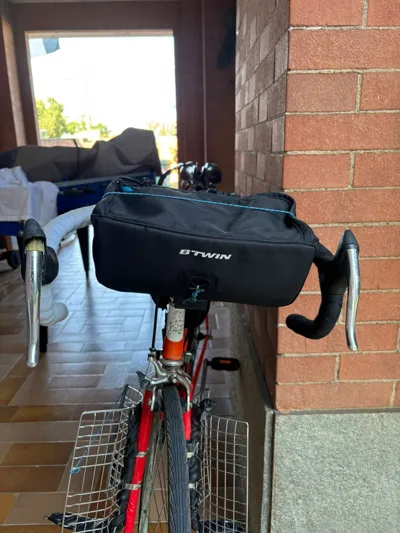

This 3D model is a bike front bag mount designed to hold a handlebar bag securely while keeping it spaced away from the handlebars. This prevents interference with your hands and brake levers, improving both safety and comfort during rides.

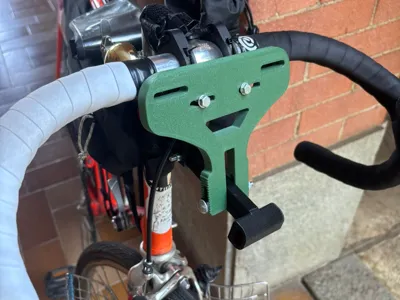

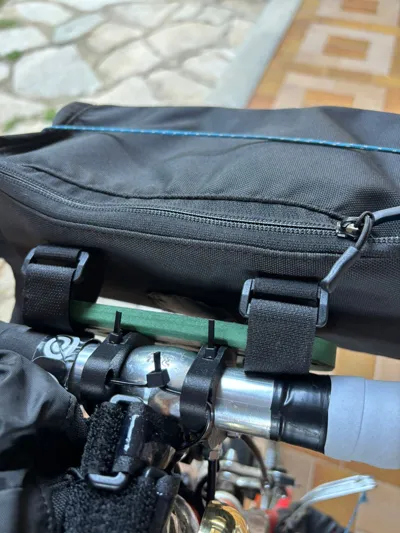

The mount attaches to the handlebar with bolts and nuts, and its geometry is optimized to withstand stress and higher temperatures, especially in the upper hook areas.

Recommended printing materials:

• PETG – good strength and easy to print
• ASA – strong, UV-resistant, ideal for outdoor use
• PET-CF – highly recommended for the upper hooks, provides better rigidity and heat resistance

Hardware required:

• Bolts and nuts: M5 (4.8 mm diameter)
• Recommended length: 60–70 mm

Notes:

• Print with solid settings (infill ≥ 40%) for reliable strength.
• Always check bolt tightness before riding.

👉 Assembly instructions and mounting guide are available at the provided link.
