6mm depth wall mount (no hex nut)

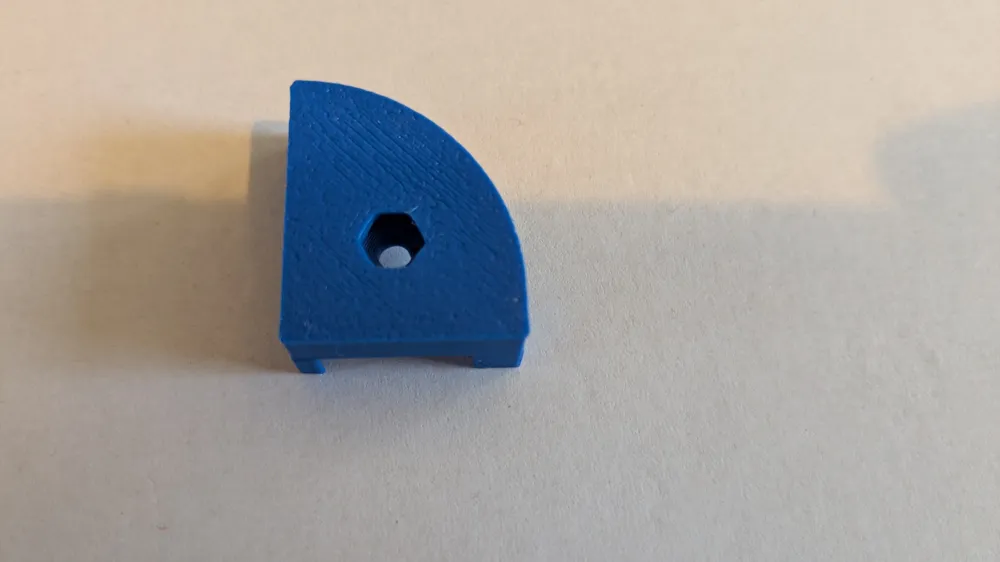

6mm depth M3 hex nut on backside


10mm depth wall mount (no hex nut)


10mm depth M3 hex nut on backside

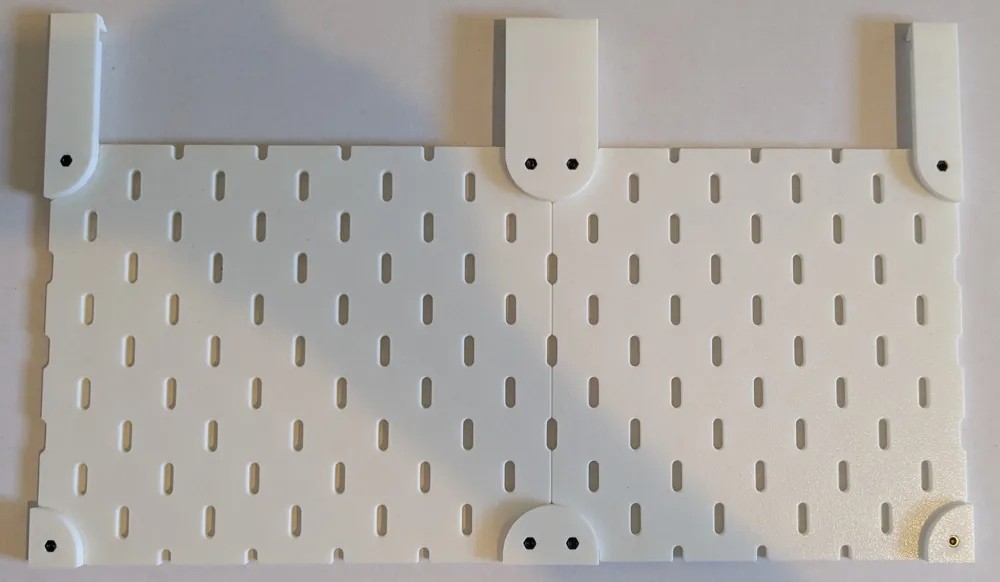

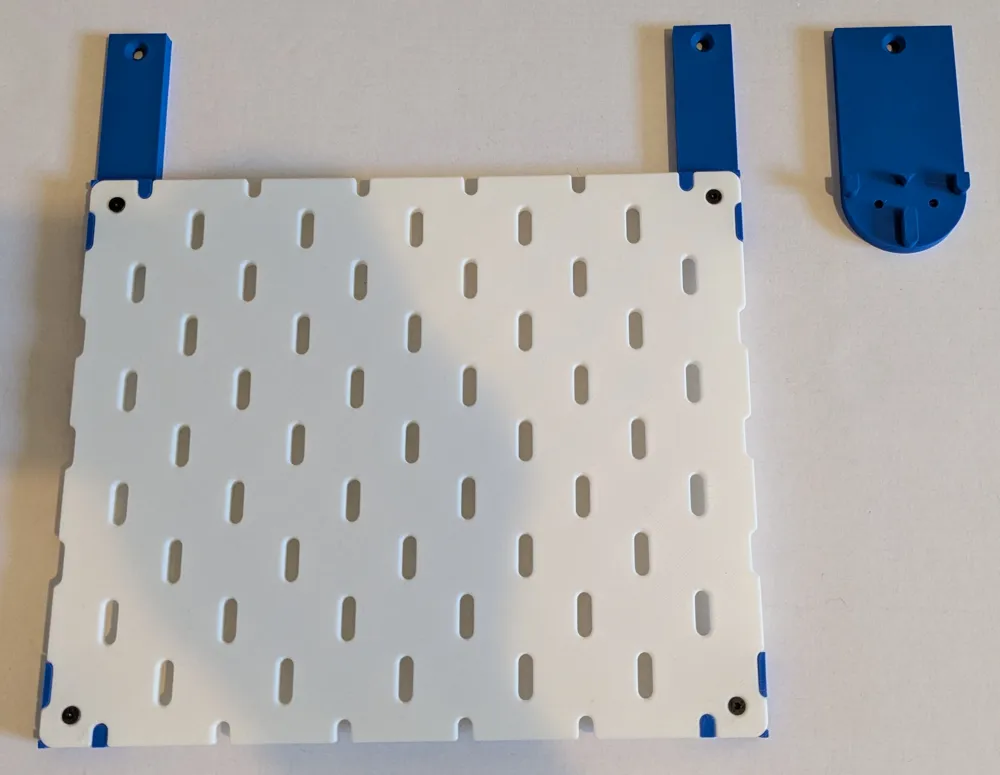

Connectors extended for wall mount


Connectors extended hanging mount

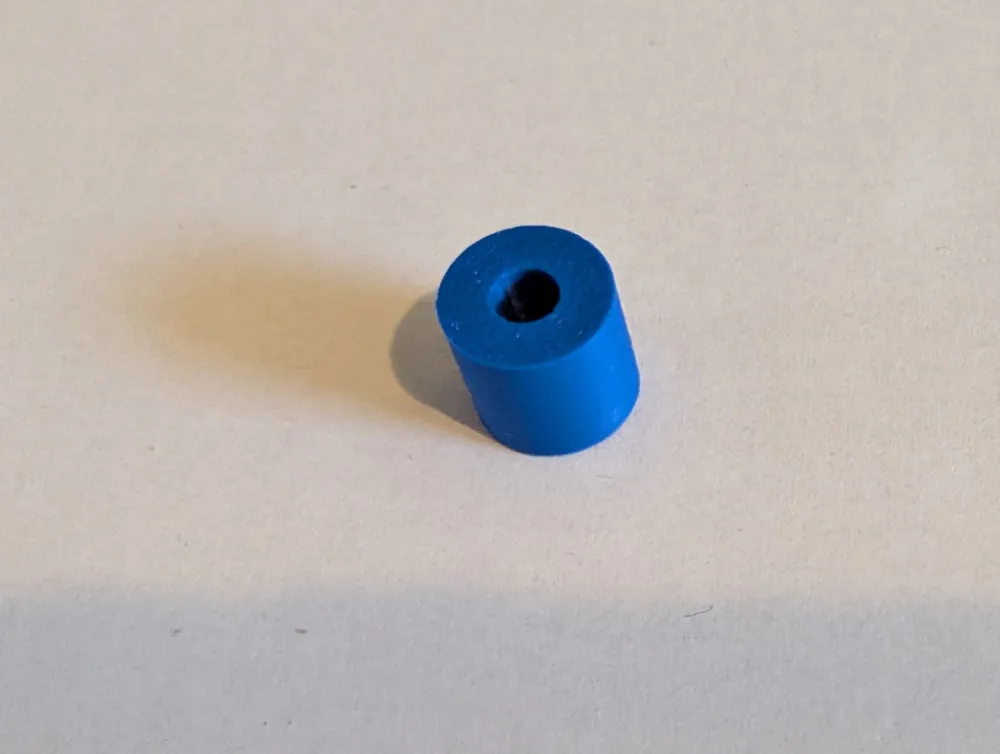

4 & 14 mm spacer

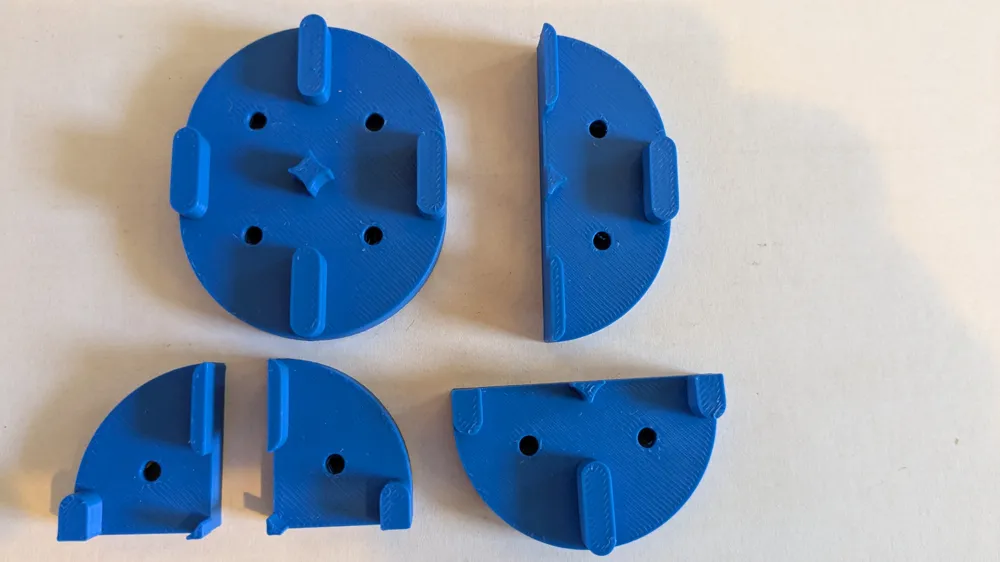

Contains various sets of connectors:<ul><li>6 mm depth with a round hole for wall mounting</li><li>6 mm depth with a M3 hex net hole for connecting boards to each other</li><li>10 mm depth with a round hole for wall mounting</li><li>10 mm depth with a M3 hex net hole for connecting boards to each other</li><li>6 mm depth with extension for wall mounting</li><li>6 mm depth with extension for hang mounting</li><li>2 spacers with 4 mm and 14 mm depth </li></ul>

Connectors

240 x 200 mm

240 x 160 mm

240 x 120 mm

240 x 80 mm

240 x 40 mm

Contains boards with 240 mm width and heights of 40, 80, 120, 160, 200 and 200 mm. Please note that there are end pieces without cutouts available in a separate profile.For the 240 x 240 mm board, see a separate profile.

240 mm wide boards

240 mm Height

200 mm Height

160 mm Height

120 mm Height

80 mm Height

40 mm Height

Contains boards with 200 mm width and heights of 40, 80, 120, 160, 200 and 240 mm. Please note that there are end pieces without cutouts available in a separate profile.

200 mm wide boards

Contains boards with 160 mm width and heights of 40, 80, 120, 160, 200 and 240 mm.

160 mm wide boards

Contains boards with 120 mm width and heights of 40, 80, 120, 160, 200 and 240 mm.

120 mm wide boards

Contains boards with 80 mm width and heights of 40, 80, 120, 160, 200 and 240 mm. Please note that there are end pieces without cutouts available in a separate profile.

80 mm wide boards

Contains boards with 40 mm width and heights of 40, 80, 120, 160, 200 and 240 mm.

40 mm wide boards

160 x 160 mm

120 x 120 mm

80 x 80 mm

Connectors for wall mount (no hex nut)

Connectors for M3 hex nut on backside

40 mm height


40 mm width


120 x 160 mm



Contains various small boards up to 160x160 mm including all connectors.

Small Boards for A1 mini

160 x 160 mm left

160 x 160 mm top

160 x 160 mm left & top

160 x 160 mm right & top

200 x 240 mm left

200 x 240 mm top

200 x 240 mm left & top

200 x 240 mm right & top

80 x 240 mm

Contains pieces without cutouts for these sizes:<ul><li>160 x 160 mm</li><li>80 x 240 mm</li><li>200 x 240 mm&nbsp;For 240 x 240 mm boards without cutouts, see the 240 x 240 mm profile.</li></ul>

End pieces without cutouts for a pleasing finish

without cutouts on left side

without cutouts on top side

without cutouts on left and top side

Skadis 320x240 04.jpg

320 x 320 mm boards for H2 printers

240 x 240 mm standard

without cutouts on right and top side



contains 240 x 240 mm boardsadded versions without cutouts on the sides

240 x 240 mm boards

moje


I think the finish the textured plate leaves on the parts matches more with the original boards, so I rotated every piece 180 degress.

Textureplate Side up

user_1428091703



Ich habe diesen kleinen Abstandshalter konstruiert, da bei den 40 mm breiten Brettern nur von einer Seite die originalen Steckverbinder angebracht werden können (erkennbar in Bild 2) und dadurch die andere Seite des Bretts in der Luft schwebt und nicht gut festgeschraubt werden kann.Er ist 6mm hoch und hat eine Einlassung für eine M3 Sechskantmutter auf der Rückseite.

I designed this small spacer because with the 40 mm wide boards, the original connectors can only be attached from one side (visible in picture 2), which causes the other side of the board to float in the air and not be able to be screwed down properly.It is 6mm high and has a recess for an M3 hex nut on the back.

Spacer, 6mm height, 0.2mm layer, 2 walls, 15% infill

Suporte para Lupa

Cilindro 39 mm Interno

Suporte Cola TekBond 100g

Suporte Limas Vonder

Suporte Vidro Agulhas Limpeza Bico

Cilindro 46 mm interno

Cilindro 43 mm Interno

Cilindro, 54 mm Interno

Argeu






Alguns suportes desenvolvidos com encaixe ajustado para essas placas. Espero que colabore com o perfil. Diversos diâmetros para objetos cilíndricos, lupa e limas da vonder

Some holders designed with a snug fit for these boards. I hope it contributes to the profile. Various diameters for cylindrical objects, magnifying glass, and Vonder files

0.2mm layer, 2 walls, 15% infill

40 mm

80 mm

120 mm

160 mm

200 mm

240 mm

Senator


0.8 nozzle 0.32mm layer, 2 walls, 10% infill 40% wall overlap to avoid little holes on infill/wall intersection increased extrusion temperature by 20C for PLA, may not be needed front facing plate for texture

200mm wide boards 0.8mm nozzle

You shall not share, sub-license, sell, rent, host, transfer, or distribute in any way the digital or 3D printed versions of this object, nor any other derivative work of this object in its digital or physical format (including - but not limited to - remixes of this object, and hosting on other digital platforms). The objects may not be used without permission in any way whatsoever in which you charge money, or collect fees.

This user content is licensed under a Standard Digital File License.

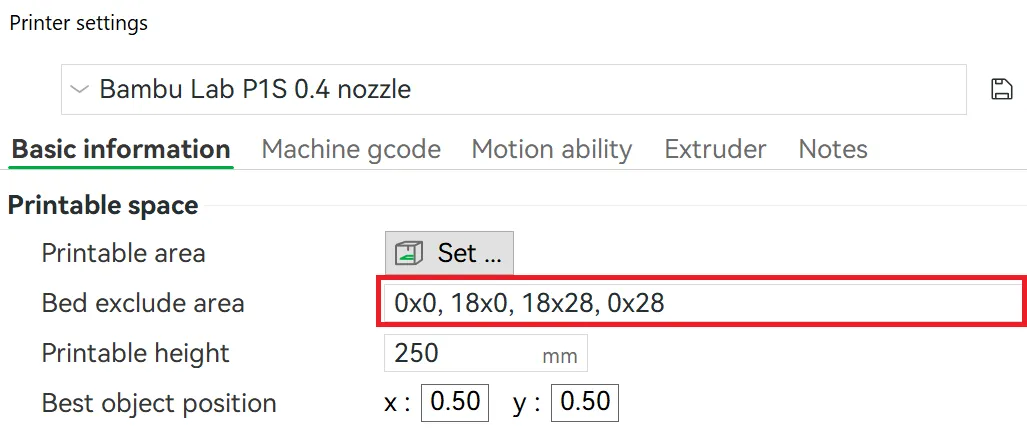

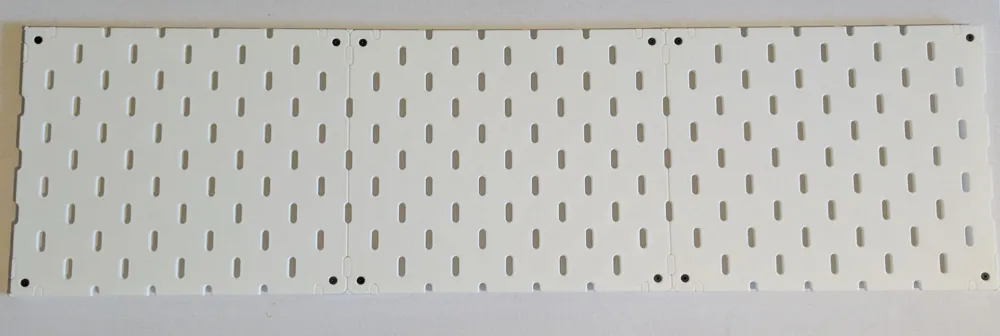

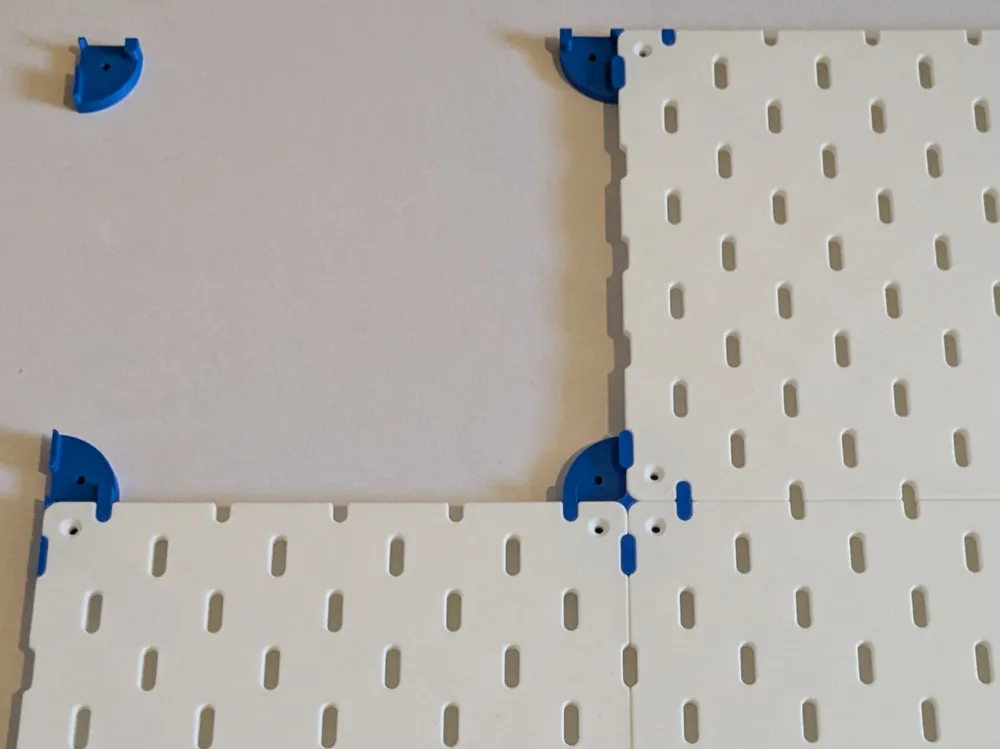

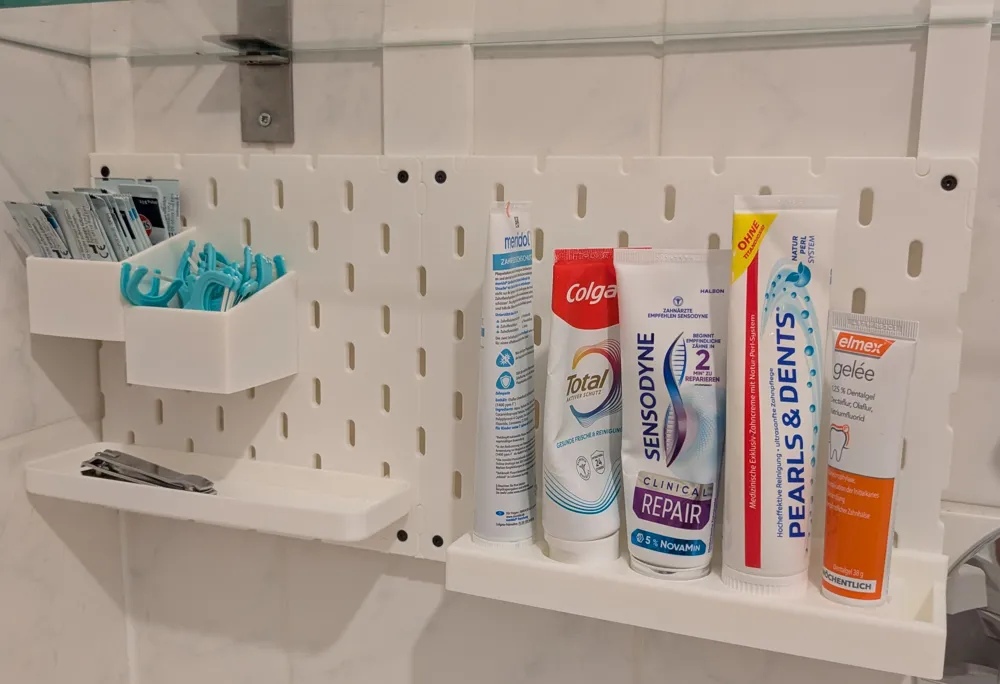

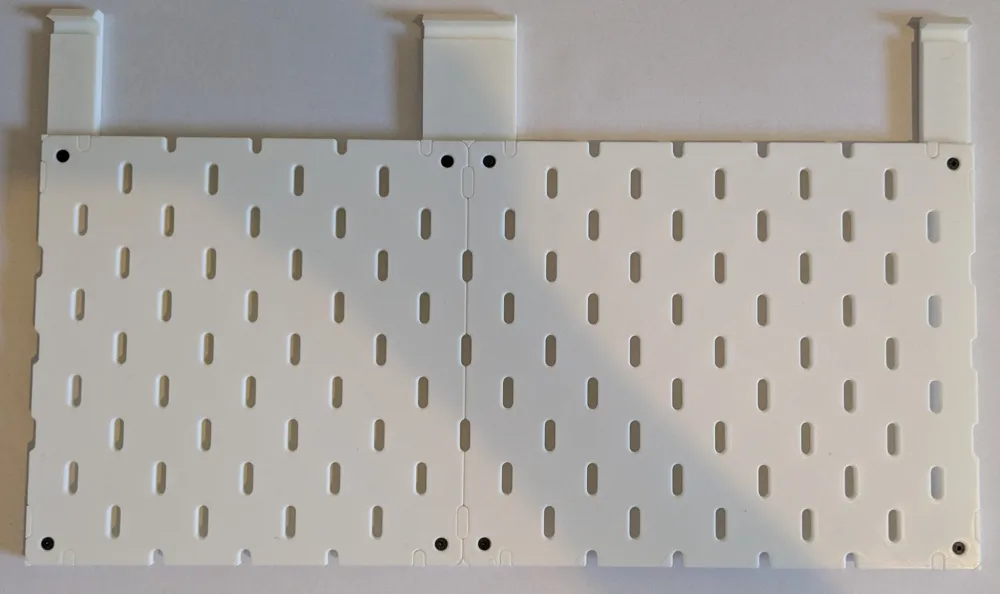

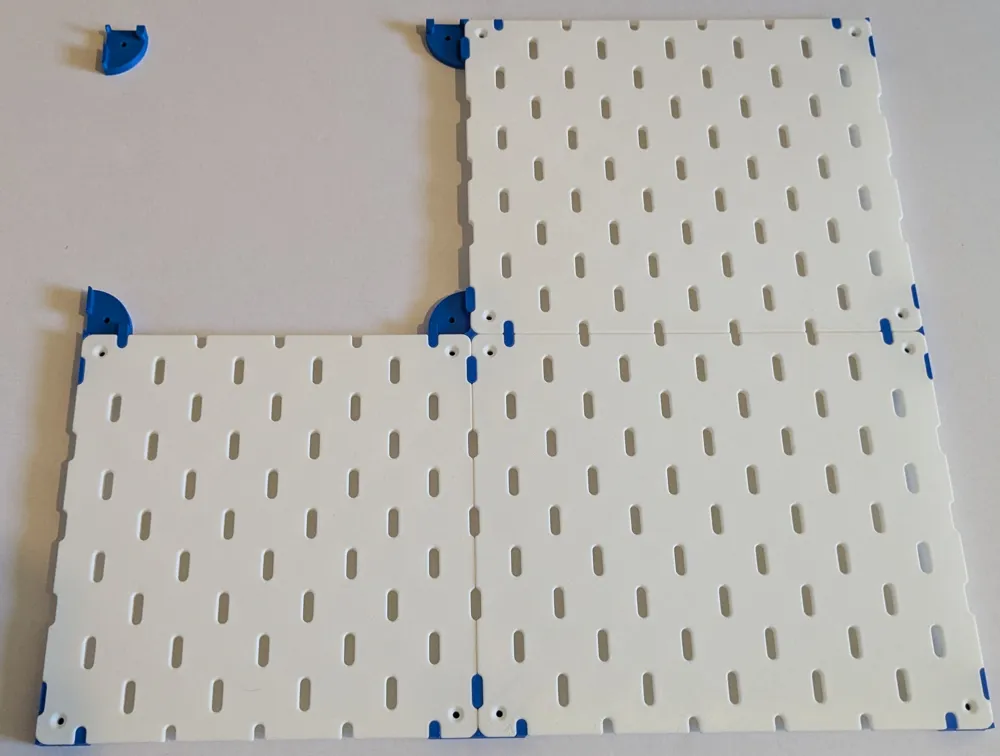

<boostme><boosttitle>Boost Me</boosttitle><boostcontent>Boost me, if you like the Skadis modular board design.</boostcontent></boostme>Pegboards compatible with the Ikea Skadis system. These boards can be linked seamlessly. No space is wasted between the separate boards.&nbsp;There are different types of connectors: <ul><li>One set for connecting boards using M3x10 screws. These have notches on the backside for M3 hex nuts.</li><li>One set for direct wall mount. The holes have a diameter of 5 mm and no notch for M3 hex nuts. Comes with a 14 mm spacer.</li><li>One extended set for connecting boards using M3x10 screws and for wall mount using a different hole above.</li><li>One extended set for connecting boards using M3x10 screws and a small hook to attach it to a bathroom shelf (or similar).</li></ul>There are boards with 40, 80, 120, 160, 200 and 240 mm width and various heights. Be aware that not all combinations/directions can be connected. &nbsp;If you want to print the 240 x 240 mm boards with a P1/X1 printer, you need to change the stock settings of the printer. First, you need to click on your printer model “Click to edit preset”:<figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001708043/design/58c65638b071af19.png"></figure>This will open the “Printer settings”. You need to delete the default values for “Bed exclude area”. Just delete the values in the red box in the picture below. Then save the profile under a new name by clicking on the small disk icon. To print the 240x240 mm boards, you have to use the printer profile you just saved.<figure class="image"><img src="https://makerworld.bblmw.com/makerworld/model/DSM00000001708043/design/b3223e9d581c849f.png"></figure>&nbsp;For better appearance there are also end pieces with a straight edge without cutouts, which you can find in a separate profile.&nbsp;If you are looking for additional models, please leave a comment and I will look into it.&nbsp;If you have a P1/P2/X1 printer, check out my model for a huge Skadis 320x240 mm board:<a target="_blank" rel="noopener noreferrer ugc" href="https://makerworld.com/en/models/2607084-infinite-skadis-pegboard-320-x-240-mm-for-p1-p2-x1#profileId-2877210">https://makerworld.com/en/models/2607084-infinite-skadis-pegboard-320-x-240-mm-for-p1-p2-x1#profileId-2877210</a>

Infinite seamless modular skadis boards
