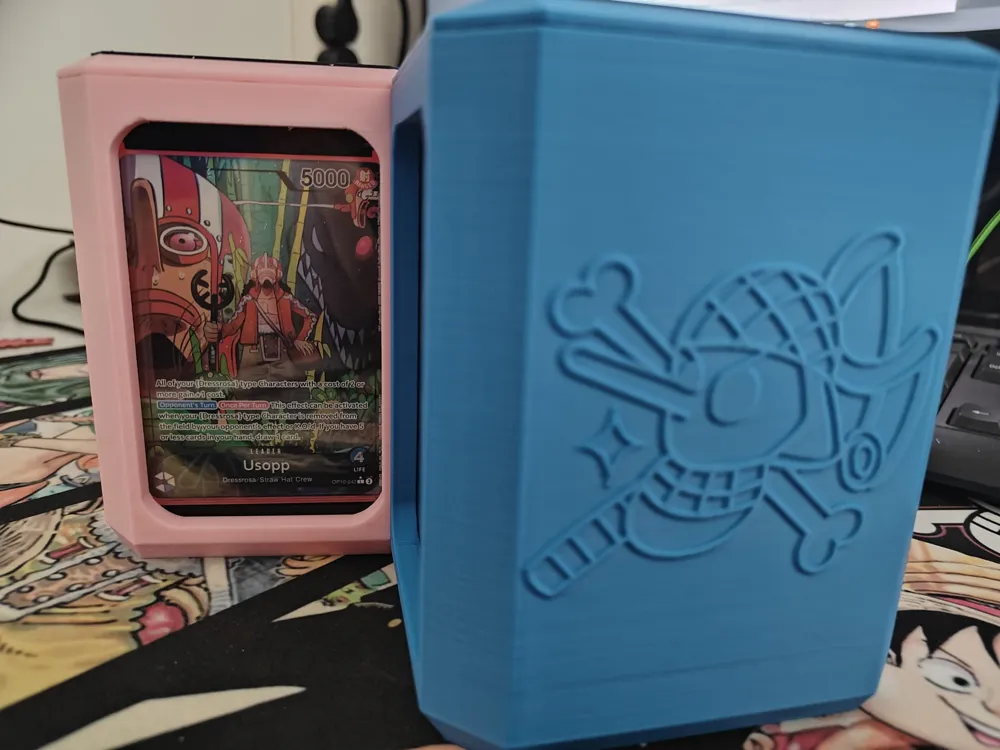

Usopp One Piece TCG Deckbox
Print Profile(1)
Description
“There are times when a man must not run from a fight, no matter what. Like when his friend's dream is laughed at!!" - (God) Usopp
The bravest warrior of the sea is making his appearance! Behold, God Usopp!
I had the deckbox design done quite a while back, but didn't had any blue so I had to wait on that. Usopp is such a fun leader to play, even though I really want him to have an AA manga leader card rather than the current AA he has (not counting the special extra product with Usopp his broken face). I did check his post timeskip jolly roger, but the older one just looks far better, in my opinion!
These deckboxes are made for:

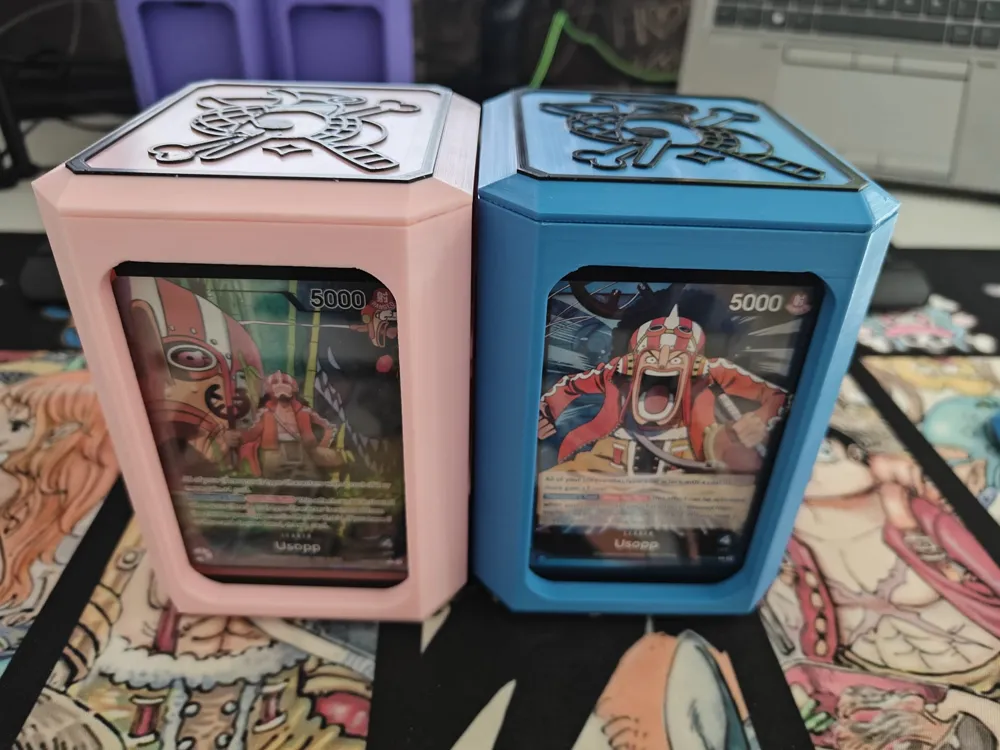

-UltraPro magnetic 23pt or 35pt hard card case in front (I'd advice using a black border if you copy the use of colors I did)
- Use of full One Piece deck + DON!! cards, both double sleeved, whether it's with inner or outer sleeves.
- An extra hole for smaller dice or tokens in the main deck area on the bottom.
- STL file added for spacers
So, I included both the STL of the lid and the deckbox with their respective user presets saved in the .3mf file.
Those user presets worked the best result for me, especially with S- PLA material, but if you have the bambulab support material or use PETG for support top interface it'll work far better with less of a hassle to clear the support away from the lid.
Settings:
On the deckbox preset there is topmost surface ironing, with the preset added to it, whereas the lid preset has different settings turned on for all surfaces.
KEEP IN MIND that those presets are with S- PLA+, they might differ for Bambulab or other materials, so you might have to adjust those accordingly!
I used S- PLA+ Sakura Pink, PLA+ Black and a generic blue from an unknown company (not to excited about this material itself and how it came out even after drying, so not worth mentioning)
Keep in mind that the tolerances are pretty spot-on, so you might have to slide it a few times before it slides smoothly!
Printed with 0.2 layer height for the deckbox.
3 walls, 10% gyroid infill.

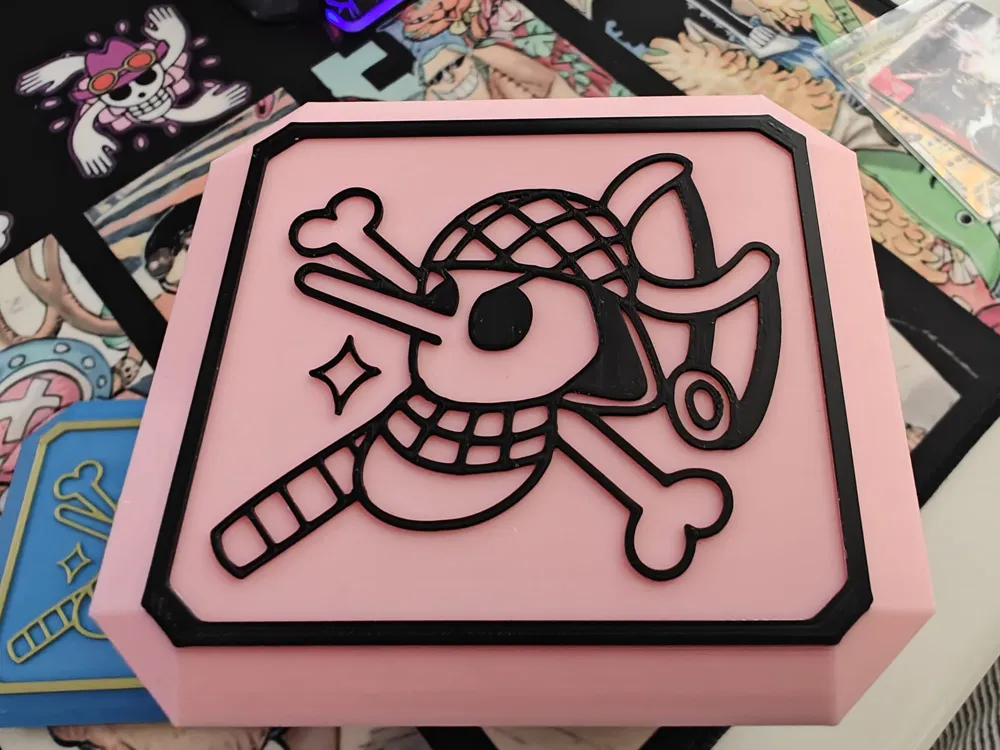

Printed with 0.12 layer height for the sliding lid.
Again, 3 walls and 10% gyroid infill.
Deckbox has a bit more top layers for a better looking top.
Ironing settings that I used for PLA+ from S-:
Ironing speed 60mms
Ironing flow 38%
Ironing line spacing 0.11mm
Ironing inset on 0.21mm
