Jinx Minigun (Arcane)

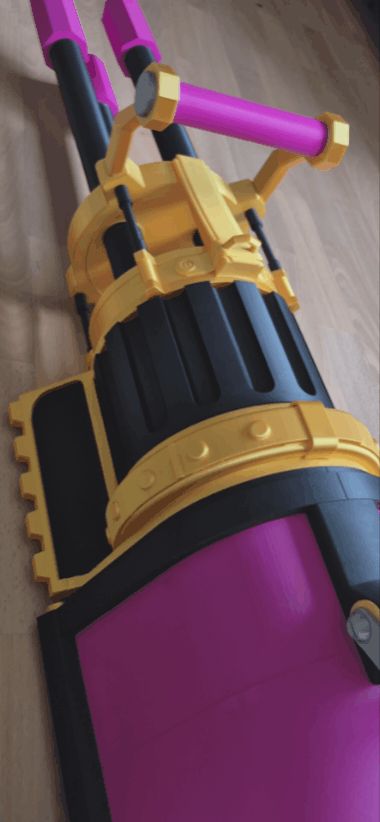

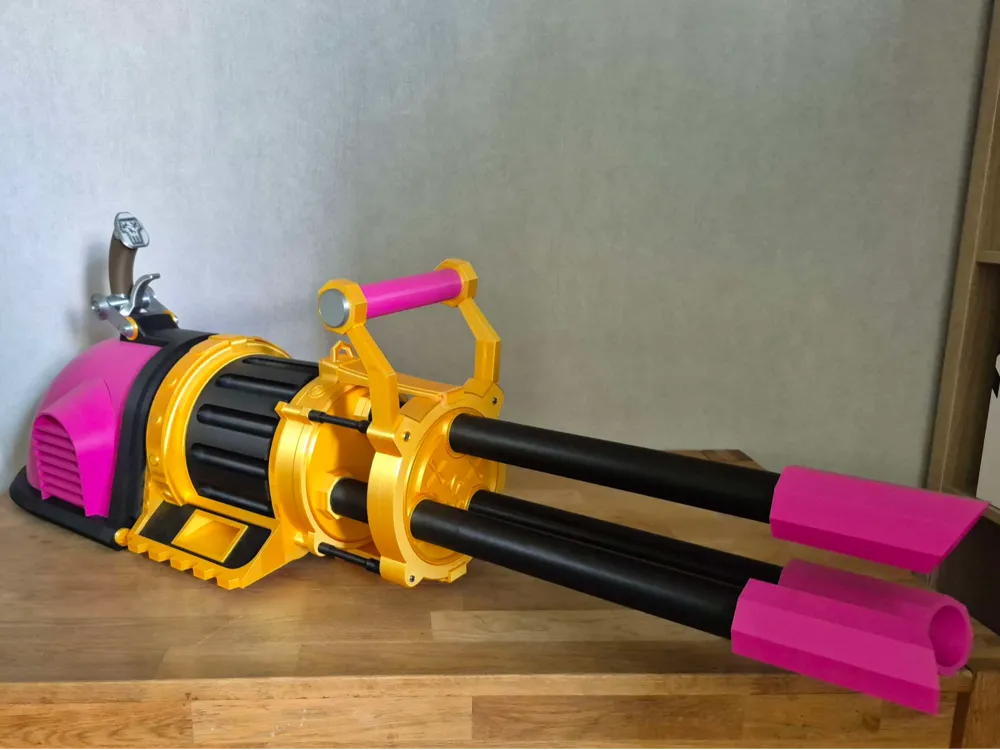

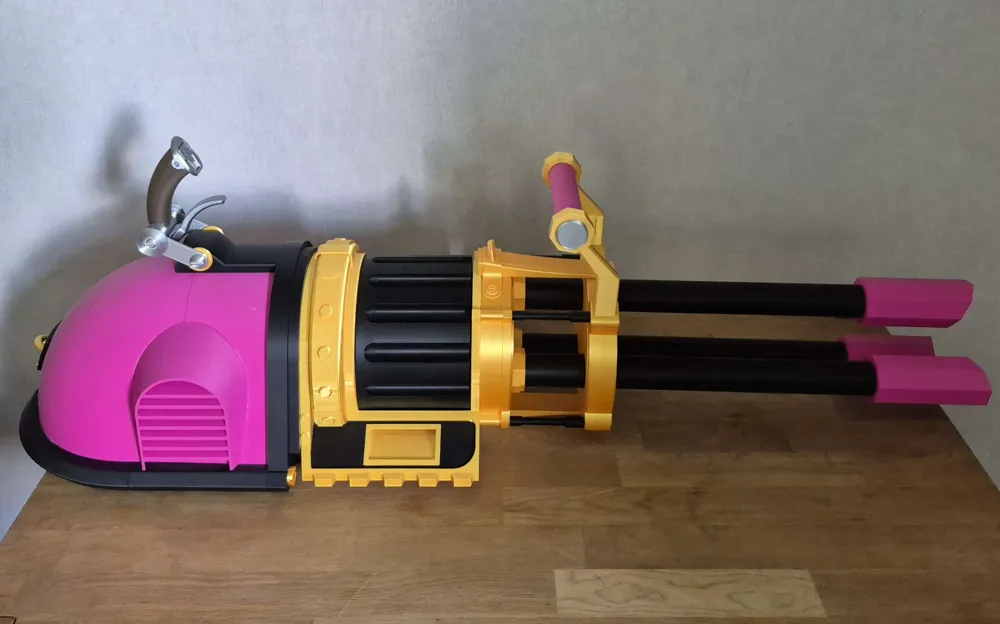

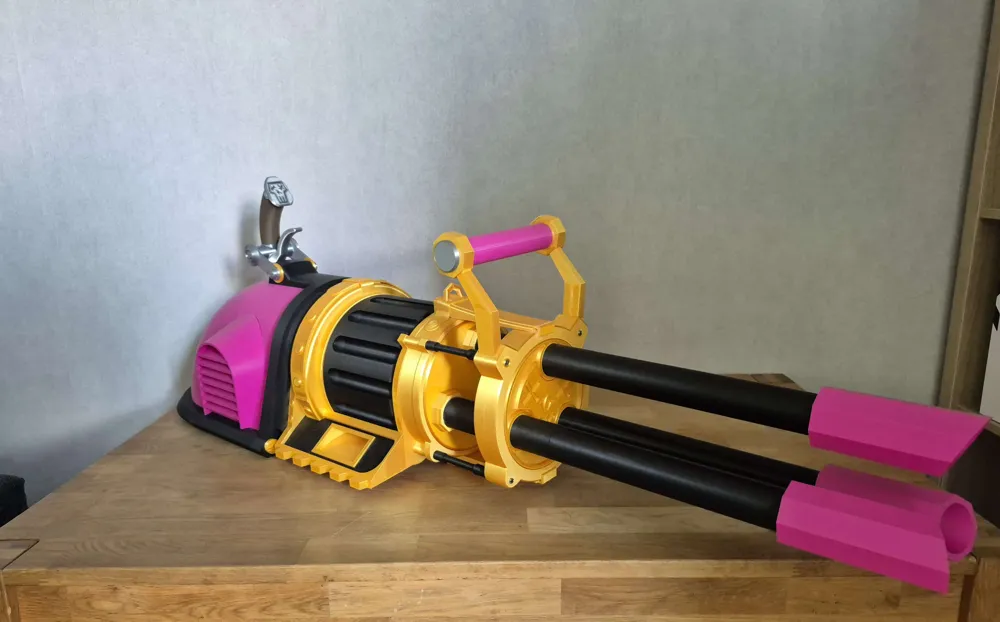

Here I present my PowPow, which I designed, printed, and assembled as a cosplay item You can also assemble this model as a motorized version with sound, or you can skip the extensive internal components and build it as a decorative object I actually recommend the latter, as the PowPow is quite heavy when fully equipped Accordingly, for the motorized version, pay attention to the infill amount In my case, for large but not heavily stressed parts, I always used 4 wall lines and 15 percent infill For load-bearing or smaller parts, I went with 100 percent Additionally, ensure a 4x 72 mm dowel pin is inserted into the handle axle so it can reliably support the PowPow's weight

For the motorized version, some parts from Amazon are naturally required These include
- https://www.amazon.de/dp/B00H8UEN8K
- https://www.amazon.de/dp/B0BX95RGBC
- https://www.amazon.de/dp/B08D3SSG55
- https://www.amazon.de/dp/B0C6D2YS1V
- https://www.amazon.de/dp/B0C6D9MRVB
- https://www.amazon.de/dp/B08FY515D3
- https://www.amazon.de/dp/B07NKCWBST
- https://www.amazon.de/dp/B07MQF1KNW adapt 4x so that both shells are pressed tightly together
- https://www.amazon.de/dp/B0CF9BBZ6Q
- https://www.amazon.de/dp/B0894M97CJ
- https://www.amazon.de/dp/B09Q2VCD7W
- https://www.amazon.de/dp/B0CJY27YM4
- https://www.123kugellager.de/zubehor/kugeln-nadeln/nadeln/nrb-8x8 20 pieces of these rollers are needed It's best to see if you can find something else that might fit, or check old cylindrical roller bearings
- https://www.amazon.de/dp/B0BGJGSMLM in 4x 116mm parts Additionally, one part must be bent to the radius of the rear hook and inserted between its two halves to allow it to be screwed into the main housing For this, a 20 mm overhang must also be left at both exits
- https://www.amazon.de/dp/B0BGK6RNDQ in 4x 171mm parts
- https://www.amazon.de/dp/B0BGJC1HF6 in 2x 90 mm parts and screw into the front handles, then saw flush
- https://www.amazon.de/dp/B0BVSF1XW3 4x
- https://www.amazon.de/dp/B0BZB2K9Z8 4x
- https://www.amazon.de/QUARKZMAN-Zylinderstifte-Regalst%C3%BCtzstift-Befestigungselemente-Metallregalstifte/dp/B0DX18X69X/ref=sr_1_5 30 pieces needed
- https://www.amazon.de/meinschraubenversand-Zylinderschrauben-Zylinderkopfschrauben-Inbusschrauben-Innensechskant/dp/B0BQCH3QCG/ref=sr_1_8 4 pieces needed
- https://www.amazon.de/meinschraubenversand-Zylinderschrauben-Zylinderkopfschrauben-Inbusschrauben-Innensechskant/dp/B0BQC8YSB6/ref=sr_1_9 4 pieces needed
- https://www.amazon.de/dp/B0DW8YBNNQ/ref=twister_B0DW8HV6PN 1 needed and the head must be filed down to 1.5 mm thickness
- https://www.amazon.de/sourcing-map-Passstifte-Edelstahl-Flachbefestigungselemente/dp/B0BHP1QWQC/ref=sr_1_6 2 are needed to pull the lever on the rear handle back
- https://www.amazon.de/sourcing-map-Doppelhaken-Spannfeder-Ersatzteil/dp/B07PFV8818/ref=sr_1_7 here the quantity can be decided as desired and according to available space
- https://www.balluff.com/de-de/products/BES00H3 Here, 3 are needed, or comparable ones with a normally open function One in the lever axle, the second in the switch box, and the third on the drum
- https://www.amazon.de/St%C3%BCck-Federstahlfedern-Druckfedern-schwarz-1x9x20mm/dp/B0DNS1R4T3/ref=sr_1_4_mod_primary_new one is needed
- https://www.amazon.de/XiKe-6014-2RS-70x110x20mm-Landwirtschaft-Gartenmaschinen/dp/B0BGP62ZMH/ref=sr_1_6 2 pieces of these bearings are needed

For the display function, all screws, threaded rods and their mating nuts, as well as all bearings, are required

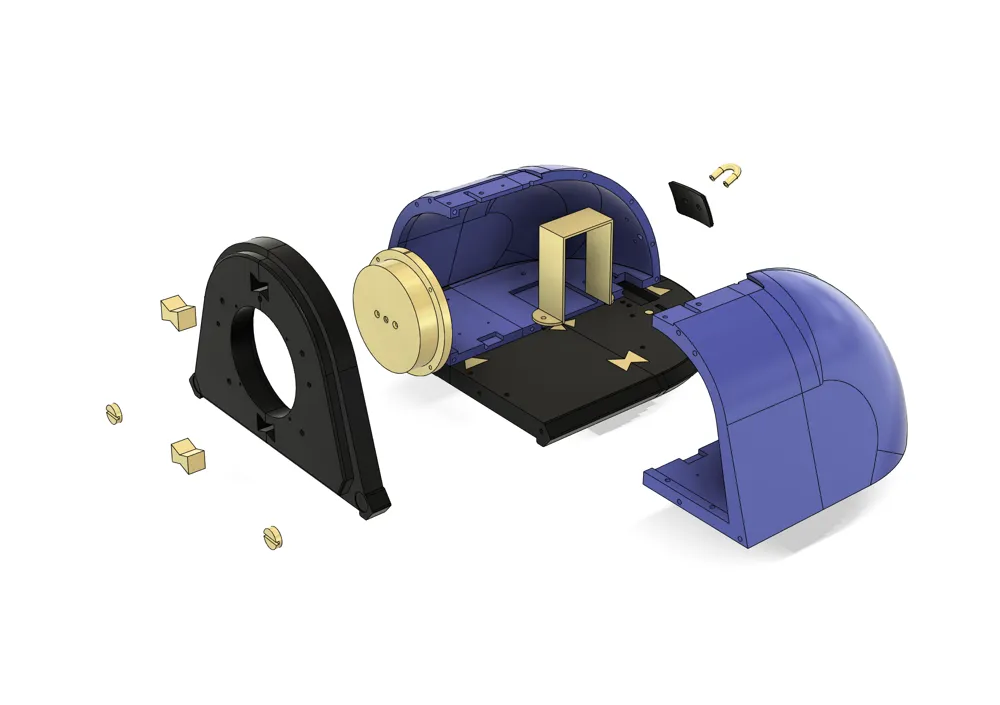

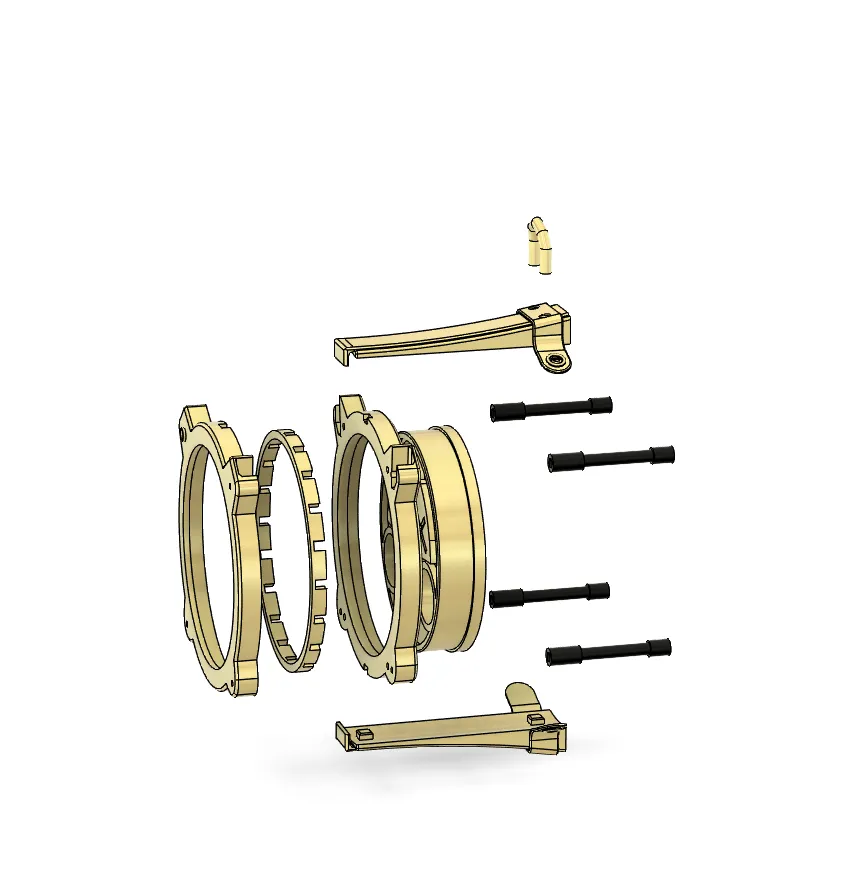

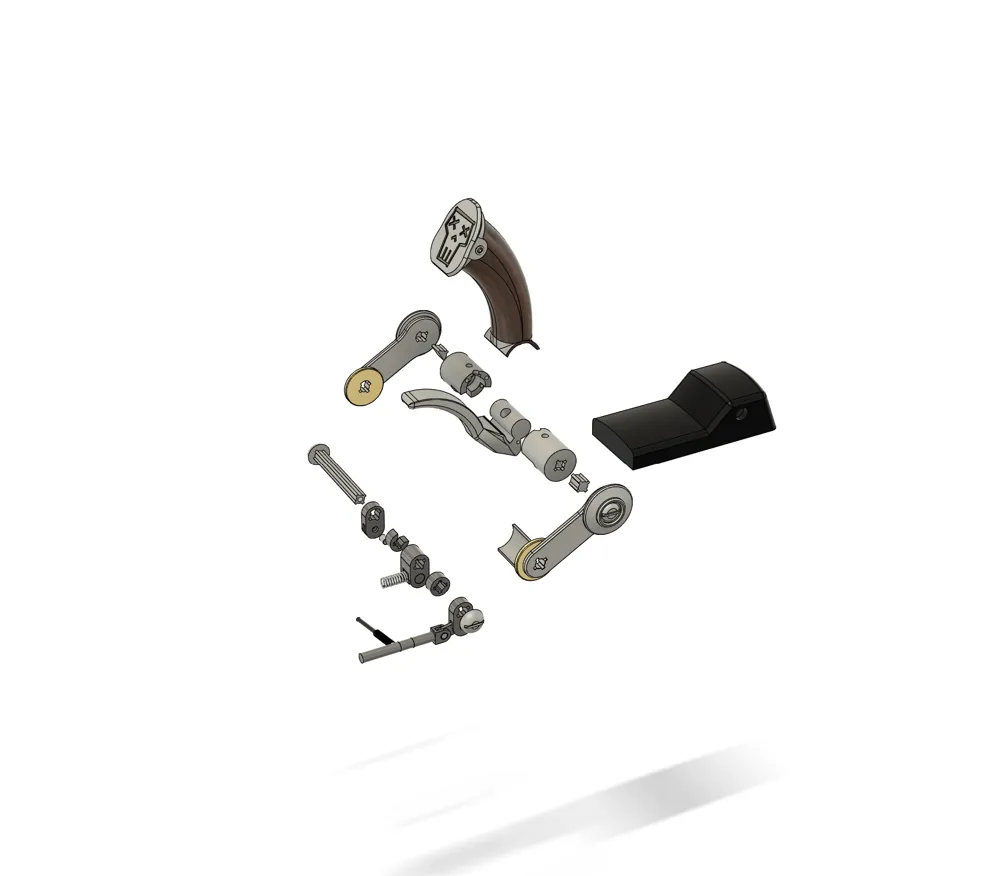

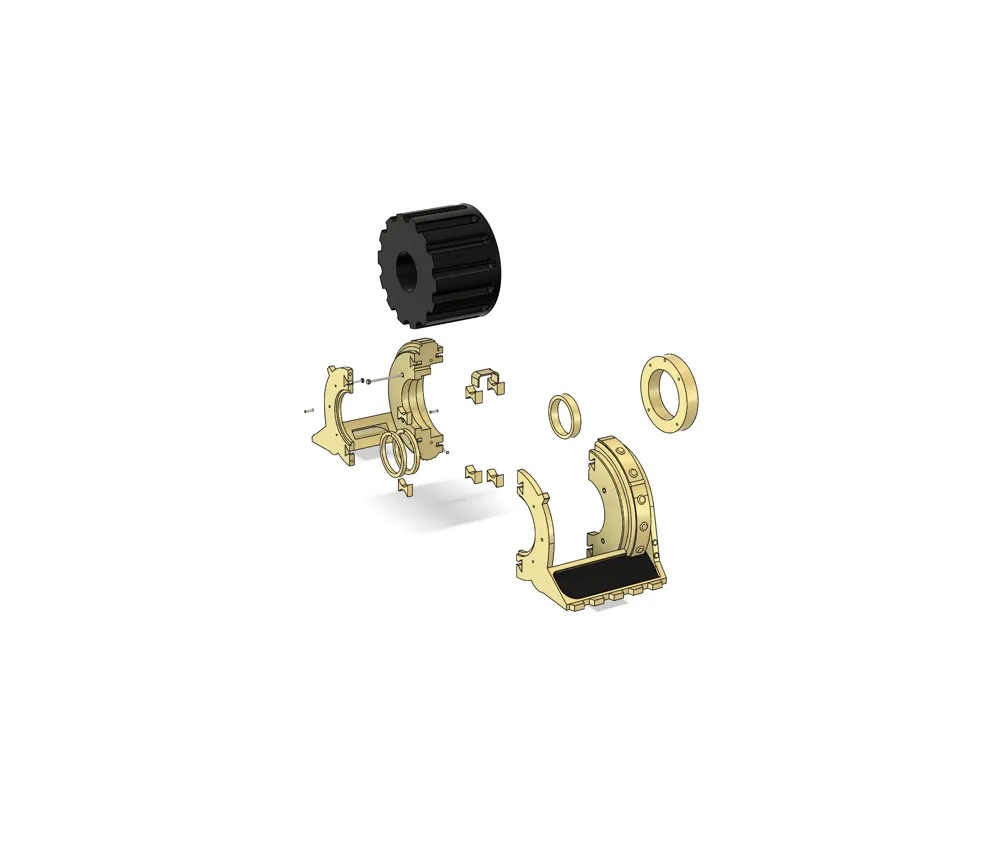

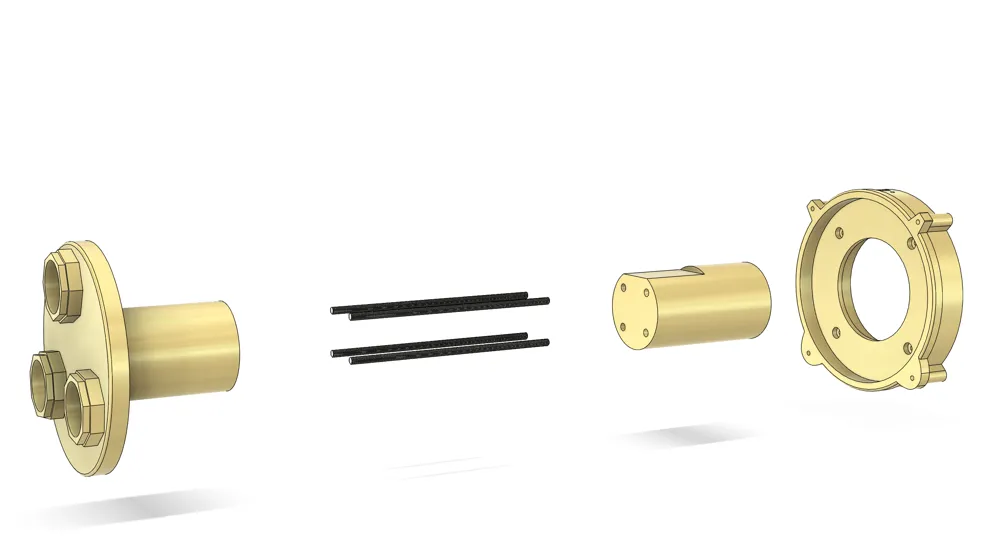

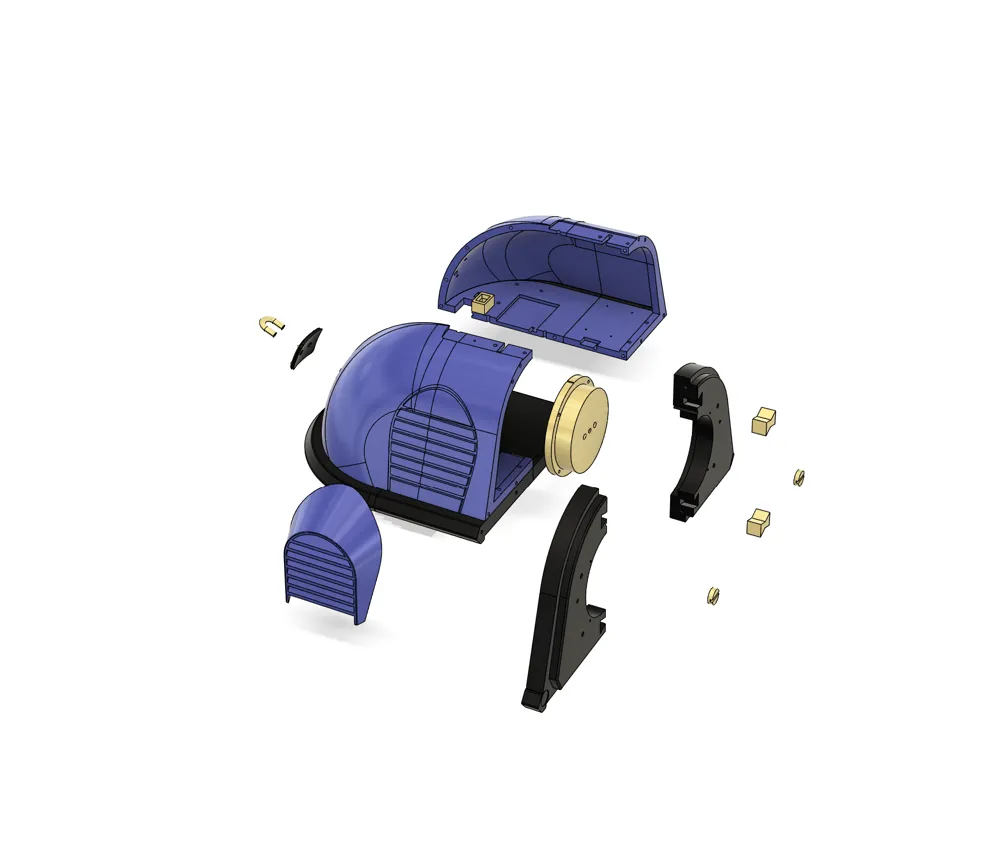

I hope that you can easily figure out how to build the minigun using the exploded drawings of the individual components However, if you still have questions, feel free to ask in the comments
