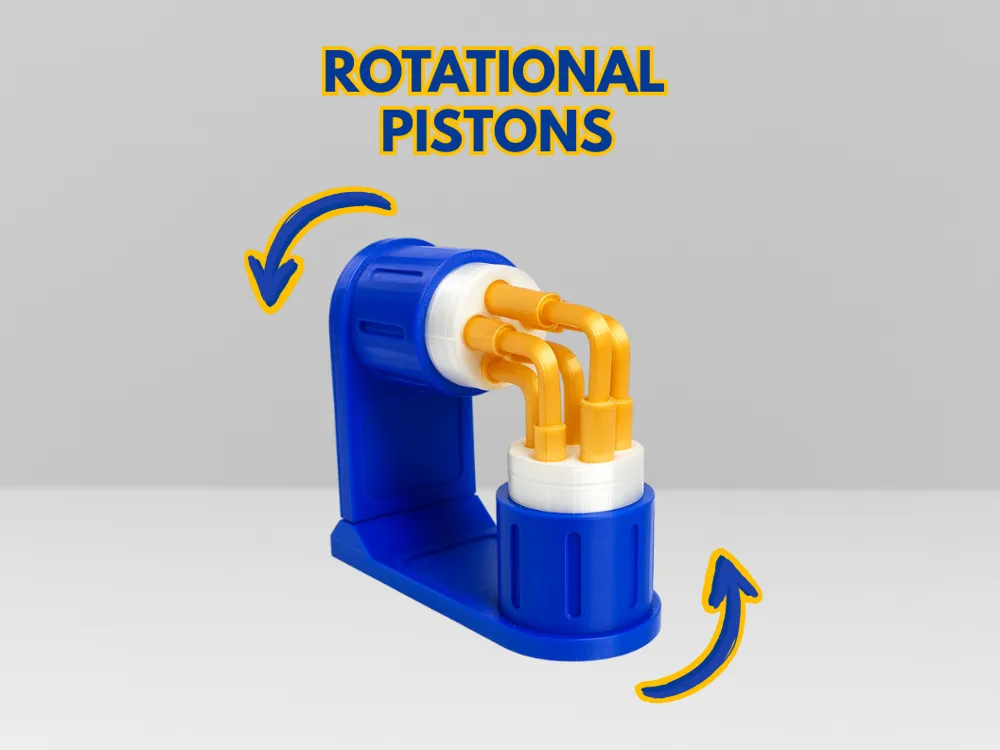

ROTATIONAL PISTON - ENGINE MECHANISM KINEMATICS
Print Profile(1)
Description
Boost Me (for free)
Ciao, sono un ingegnere meccanico appassionato di Stampa 3D. Negli anni ho creato diversi modelli e accessori per casa. Se ti piacciono le mie creazioni, supporta il canale!
DESCRIPTION

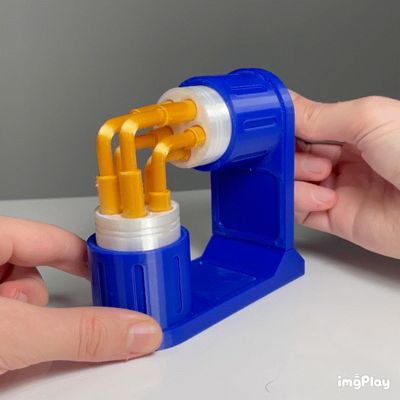

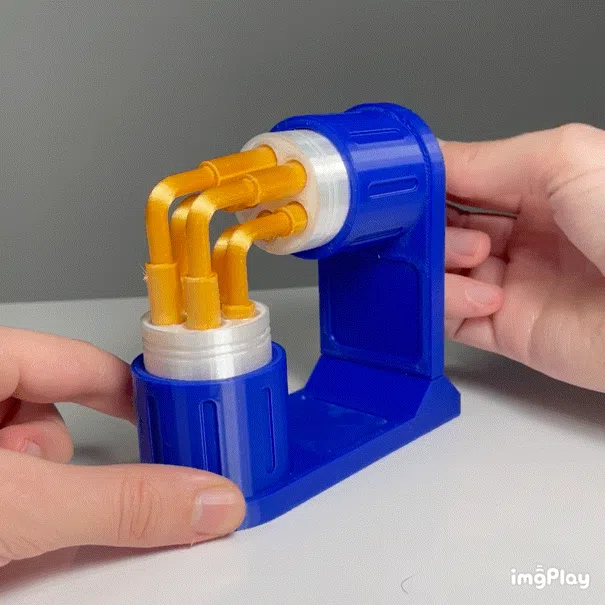

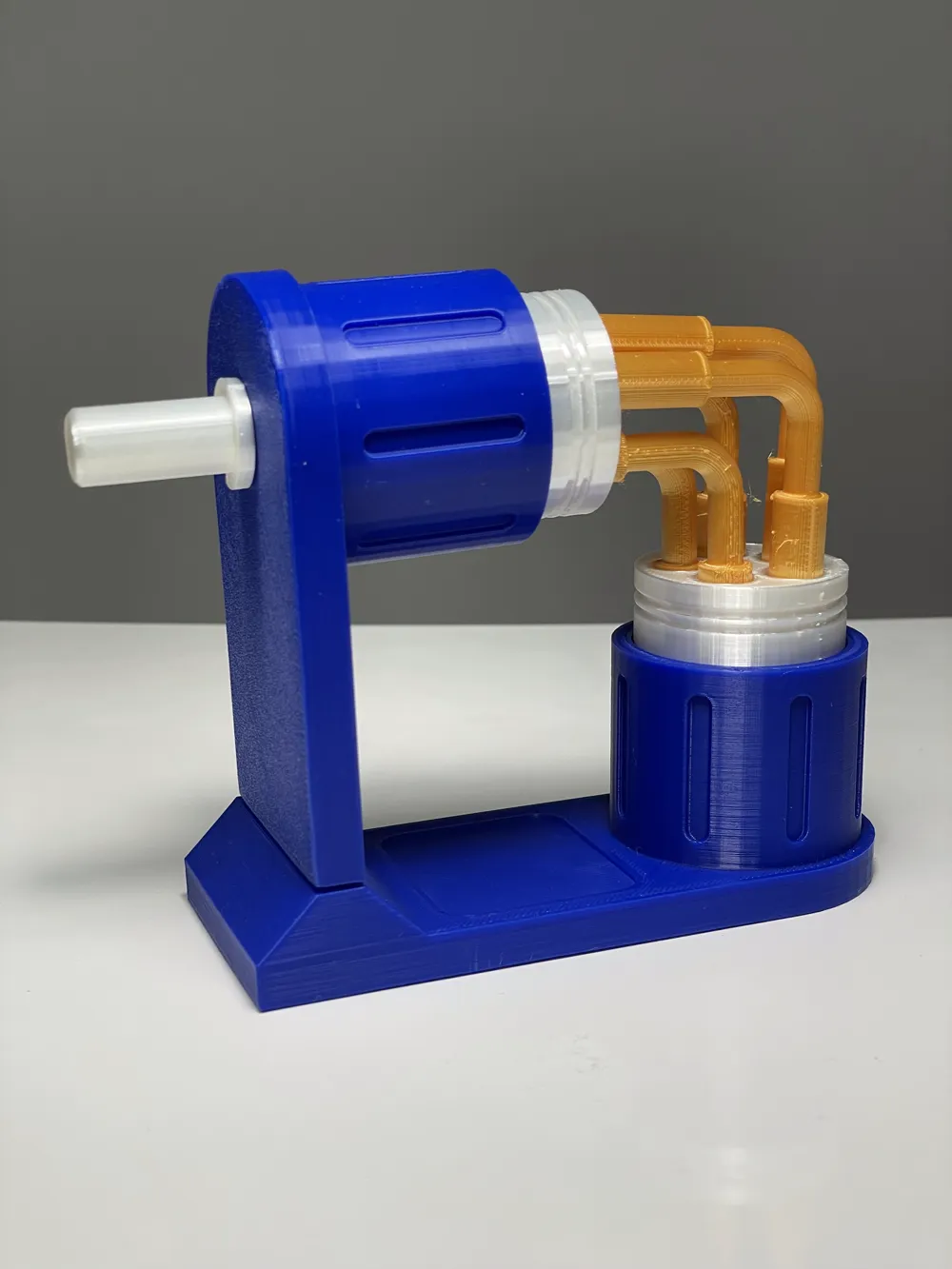

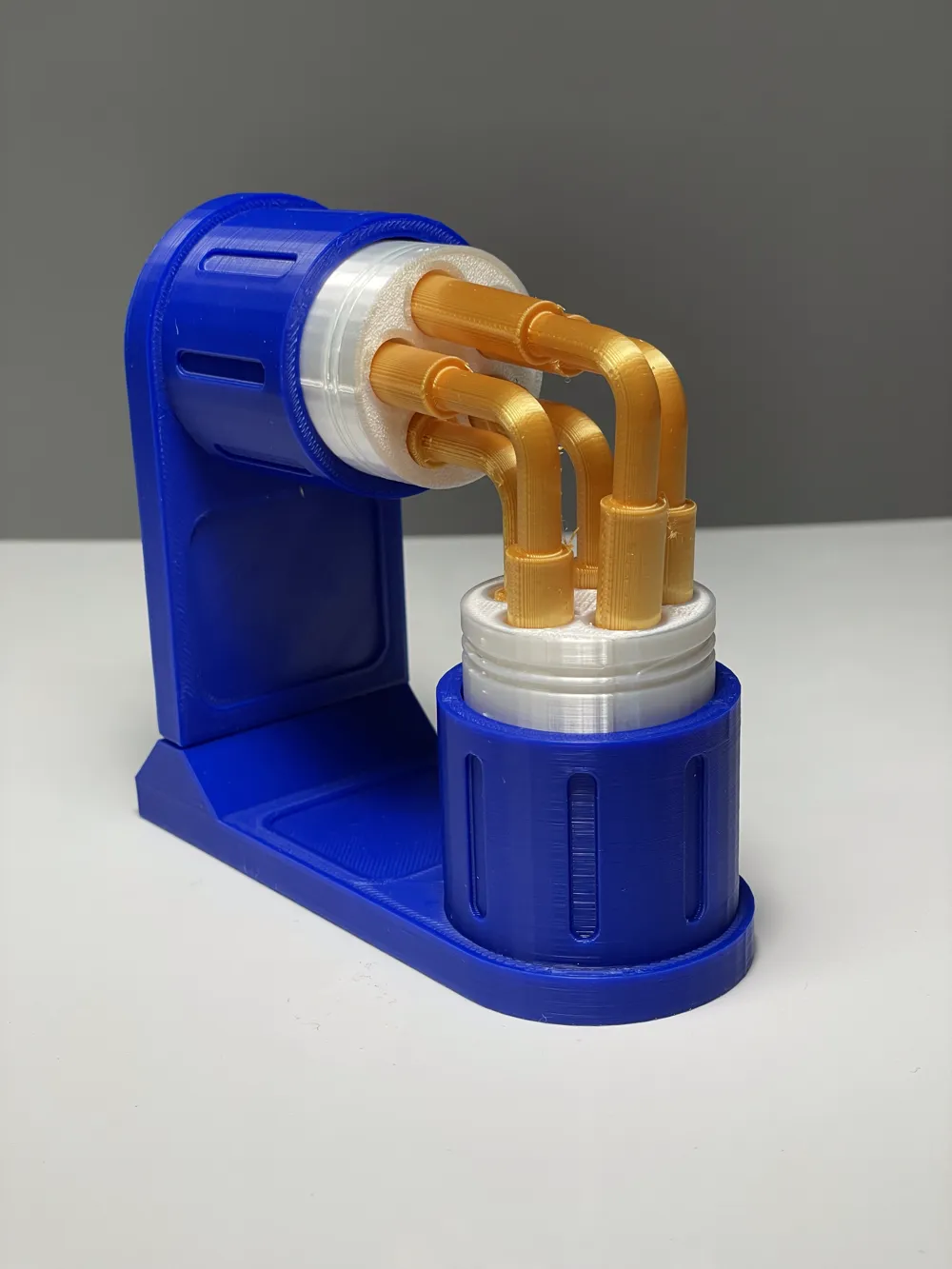

The rotational piston mechanism can be exploited in some applications to transmit the kinetic energy of 90 degrees. It is made with multiple parts to enjoy the assembly end to have the possibility to combine different colors.
ADDITIONAL INFORMATION

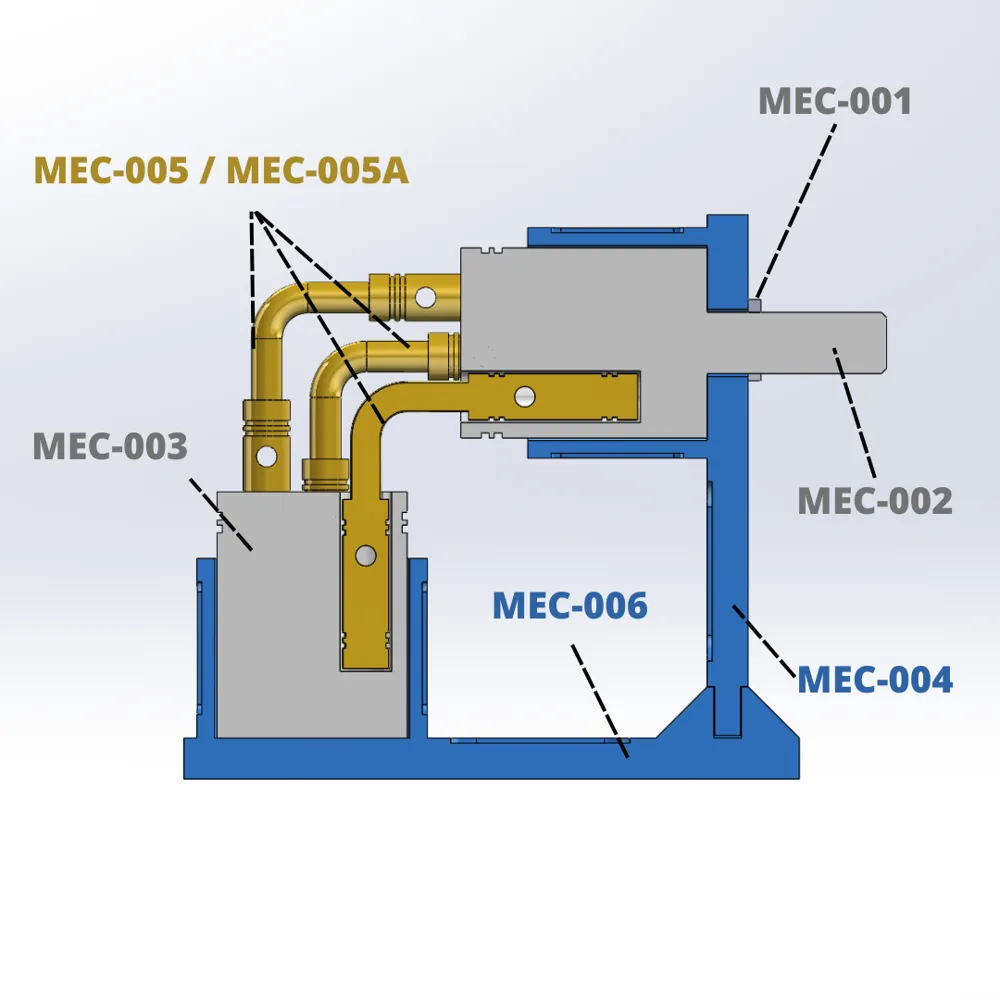

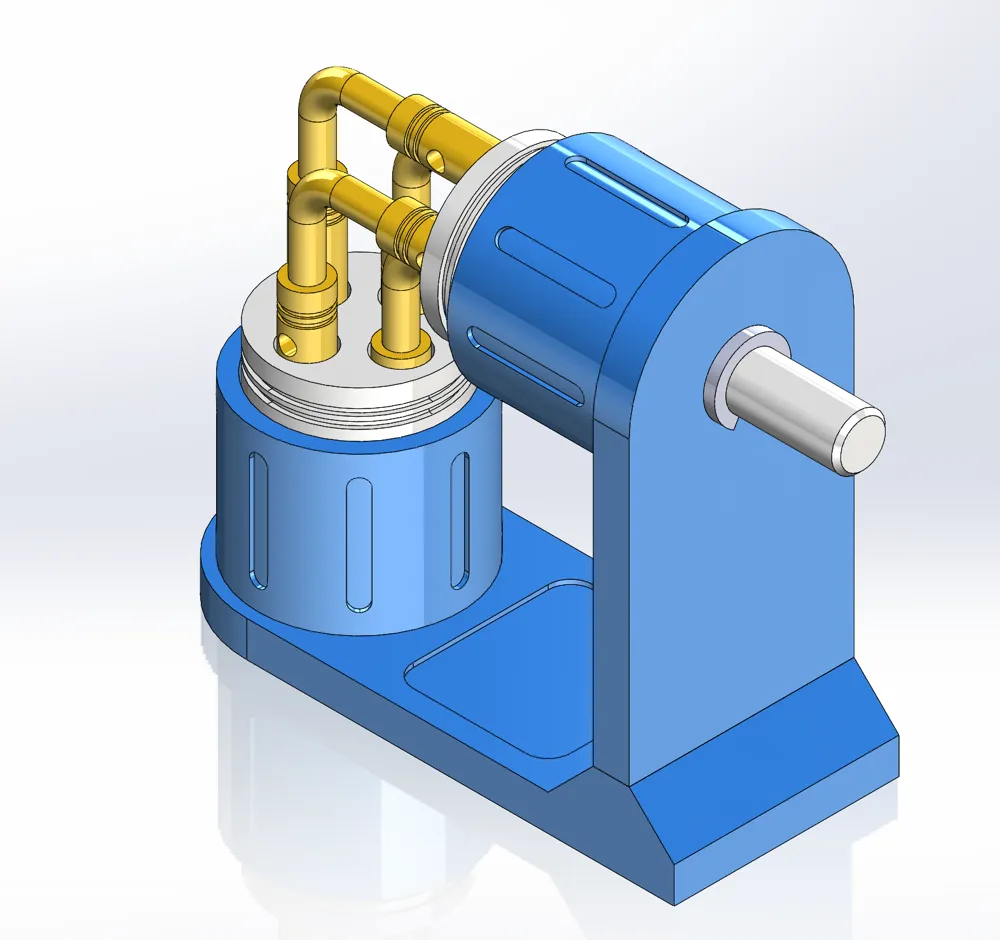

- To assemble the first thing you need is to do is putting the four pistons inside the cilinders and after you can insert them inside the part MEC-004 and MEC-006 that can be linked together with the socket and the bottom.
- Use the part MEC-001 to block the sliding between MEC-002 and MEC-004
- If you have troubles with MEC-005, you can substitute it with MEC-005A
YOU NEED TO PRINT
- 4x -> MEC-005, and MEC-005A
- 1x -> All the others
