Wall Mount Air Conditioning Exhaust 100 mm
Print Profile(1)
Bill of Materials
Description

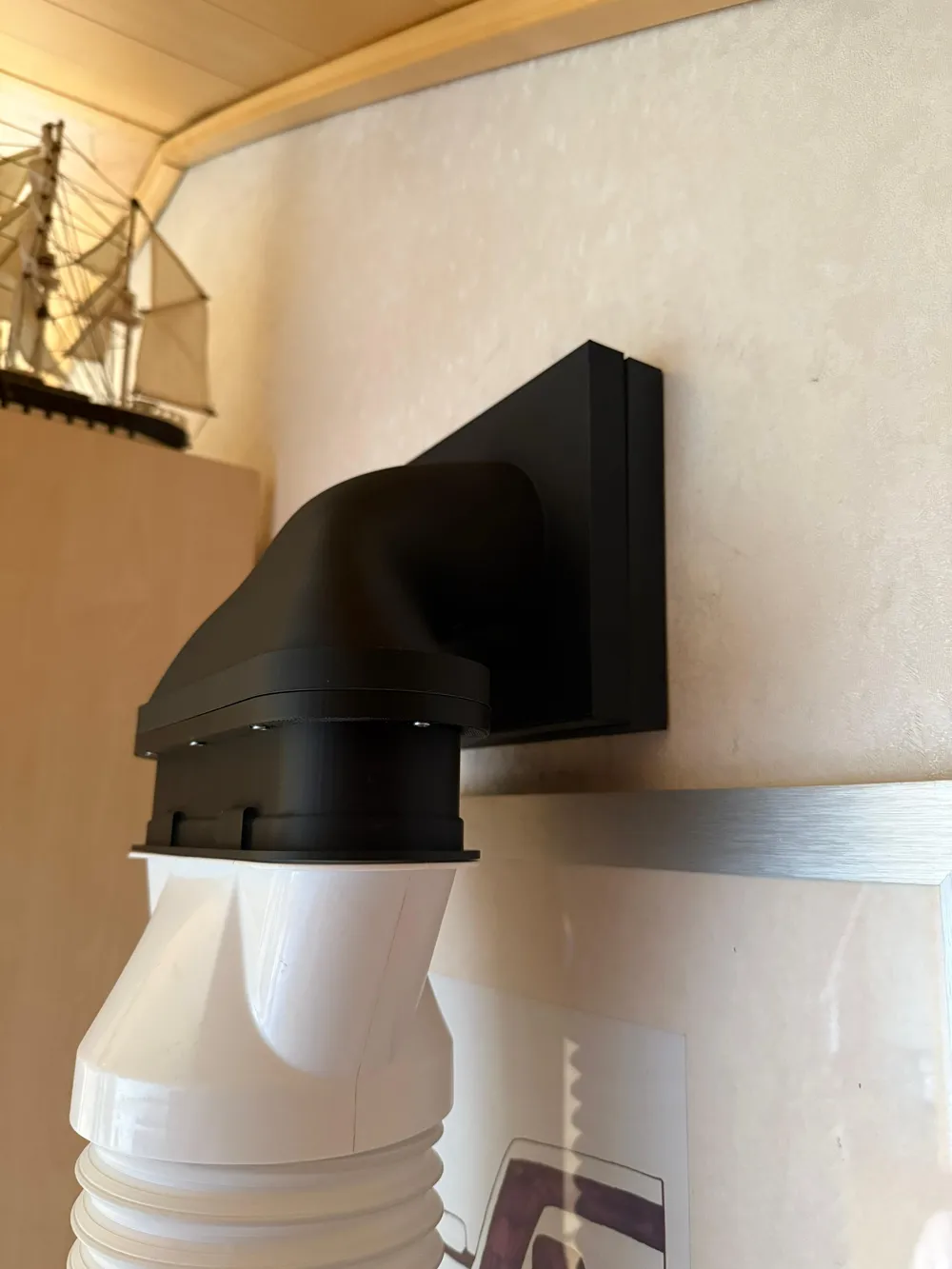

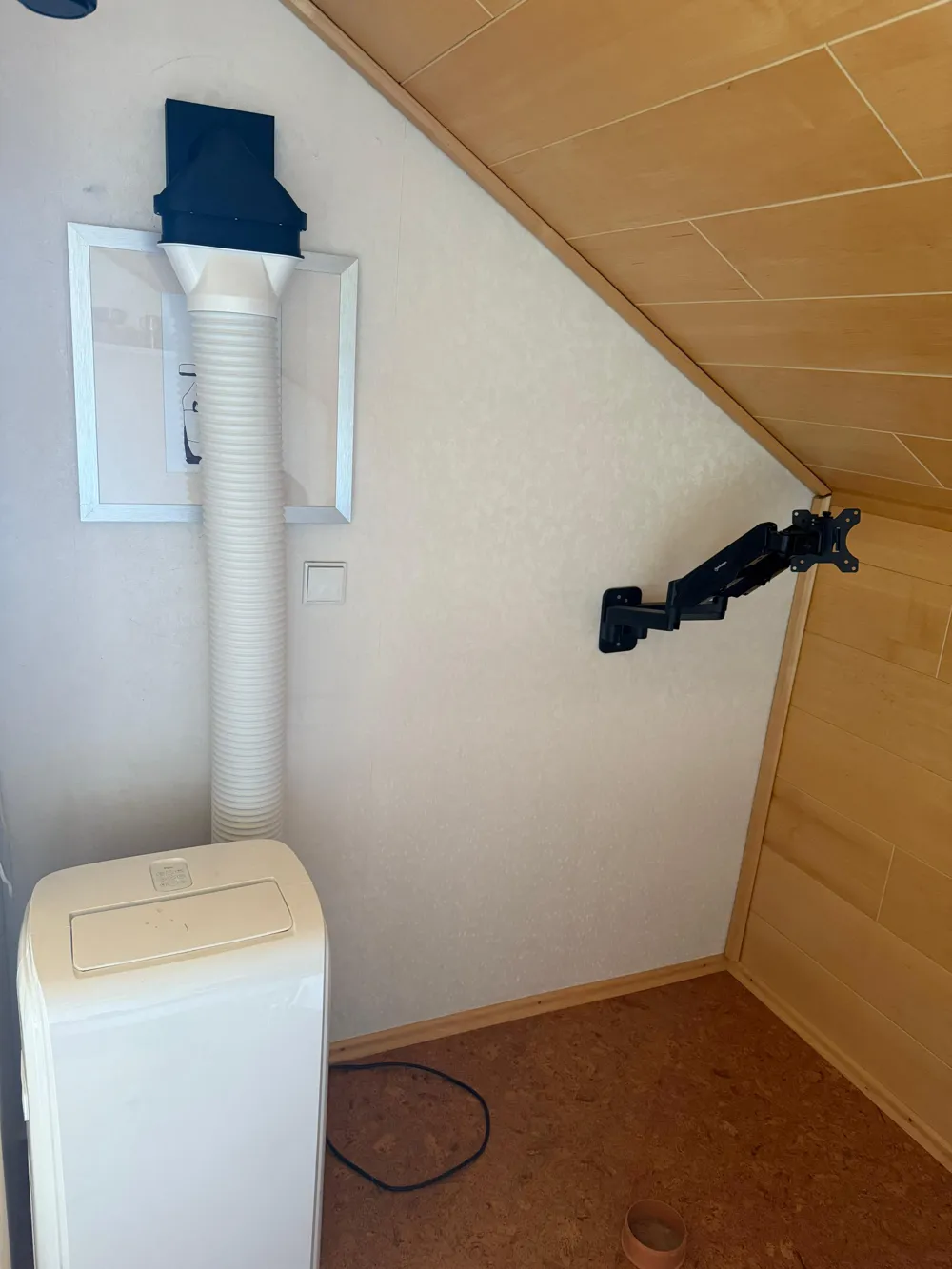

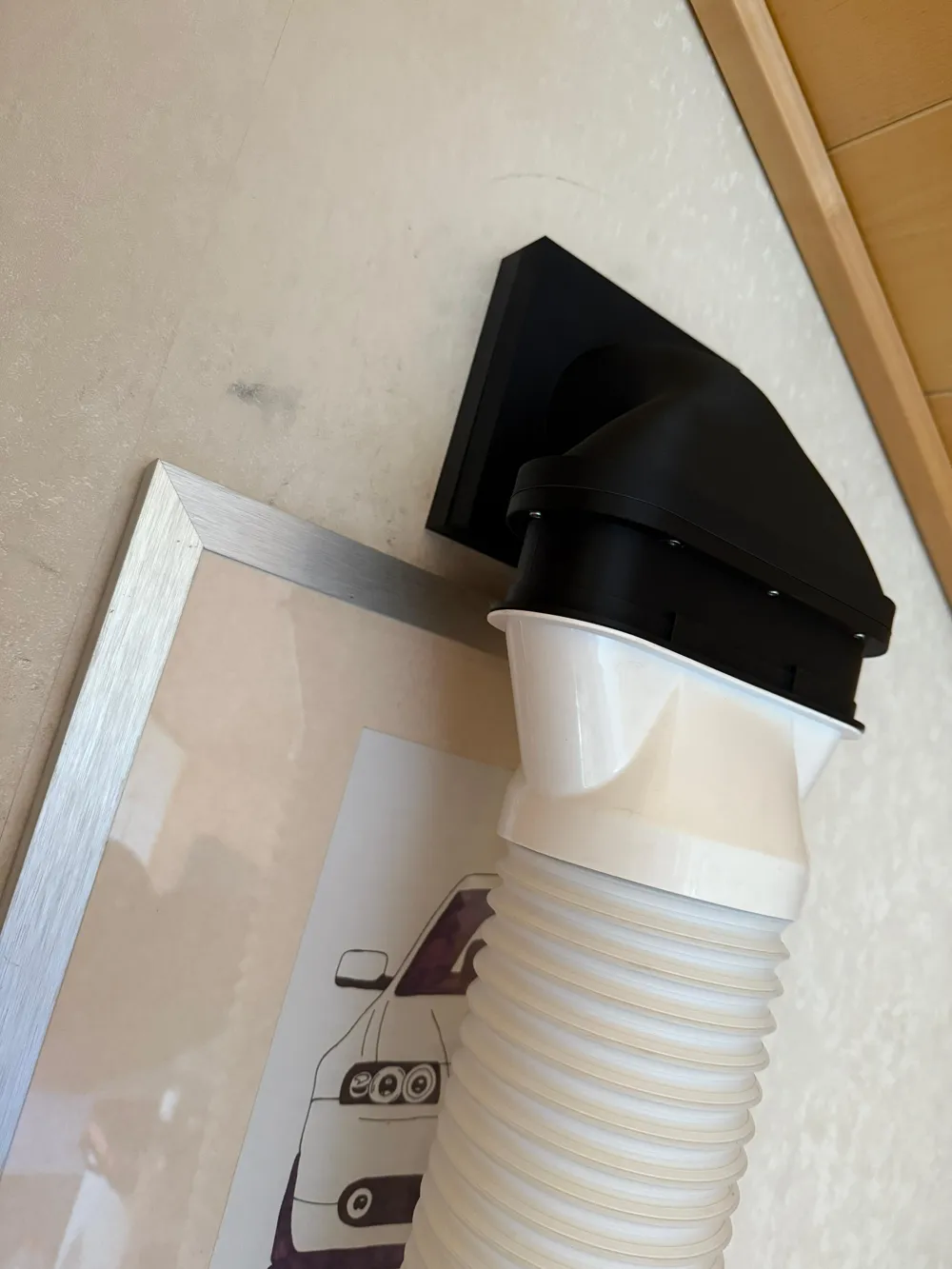

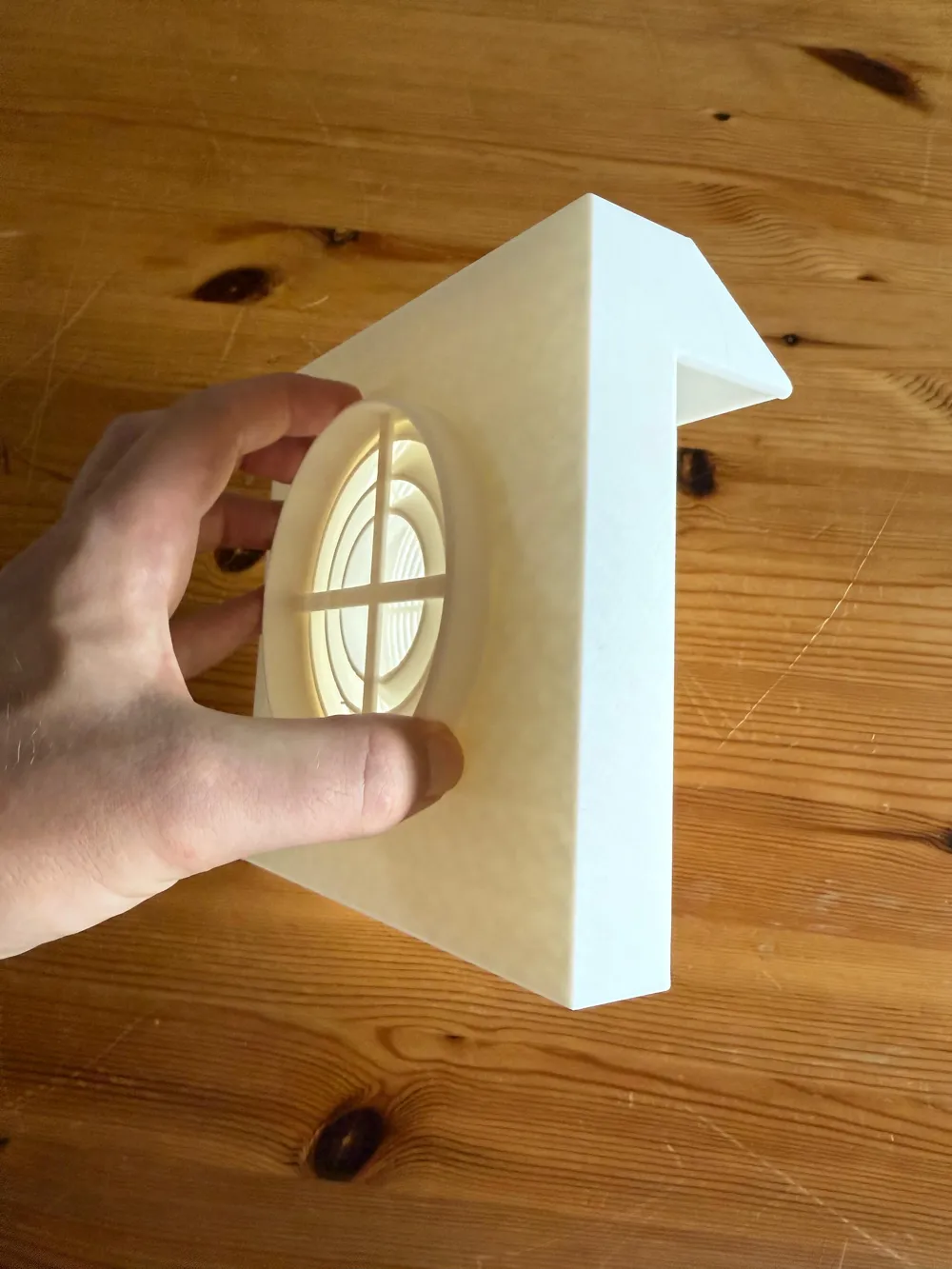

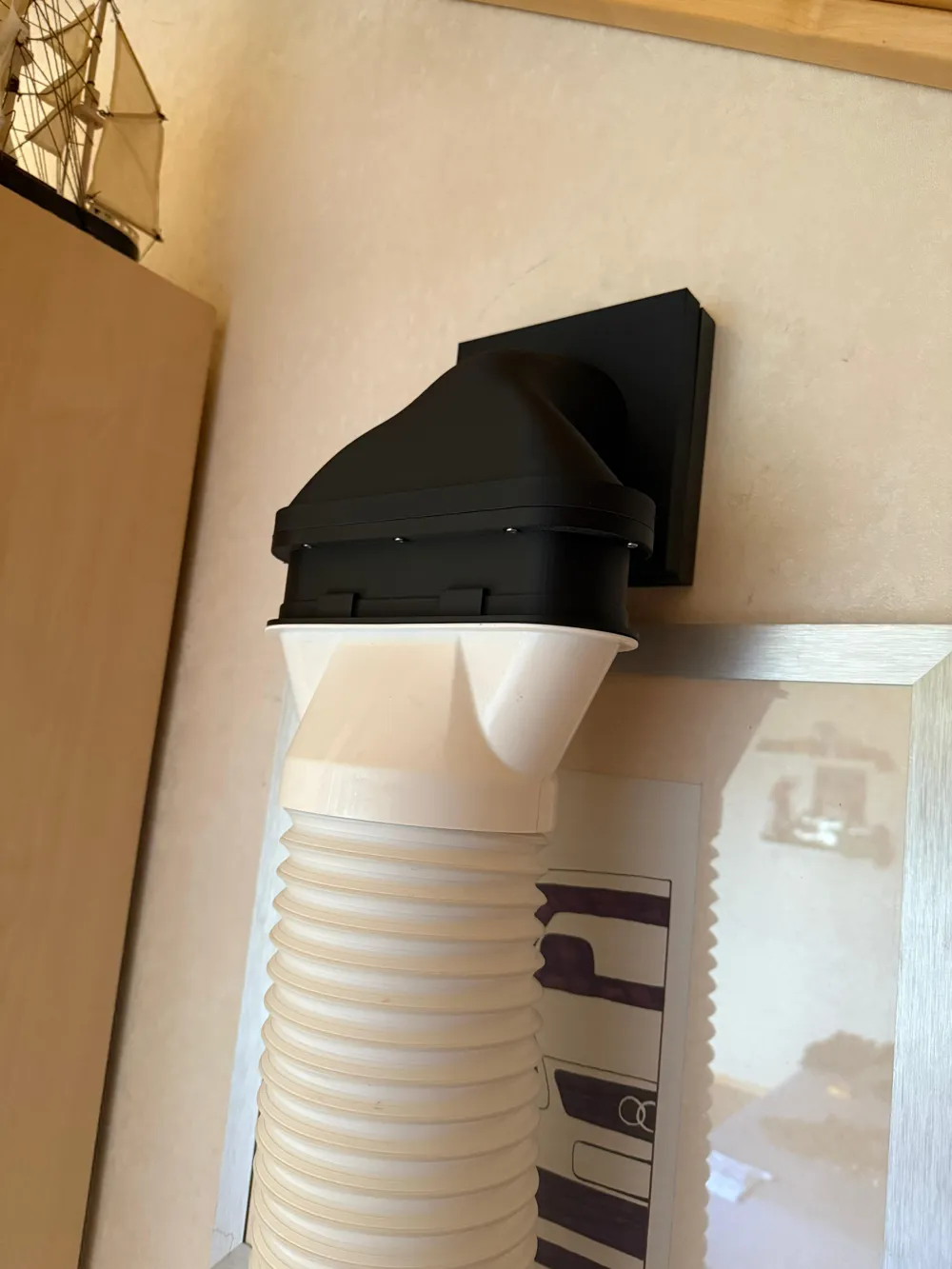

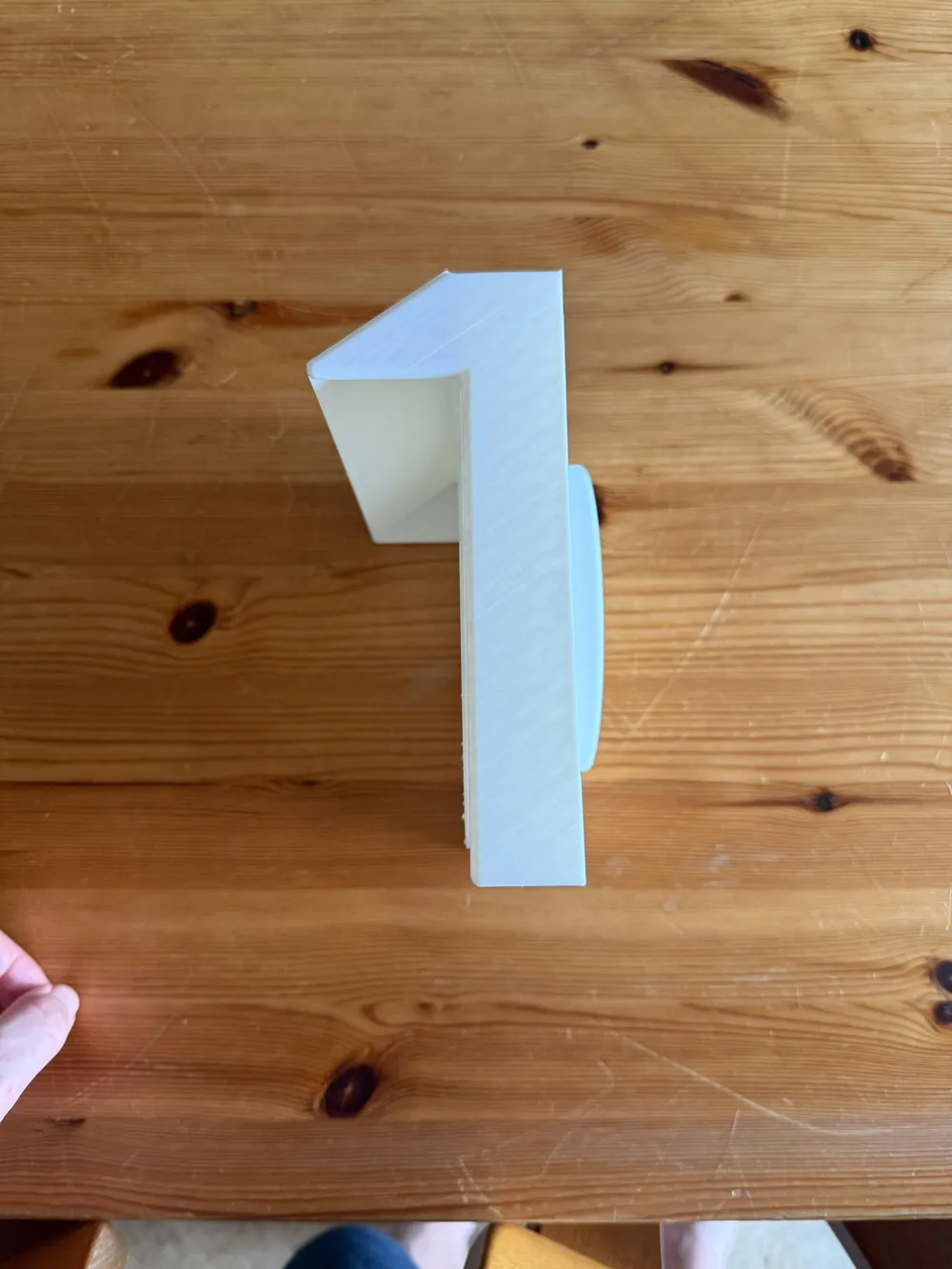

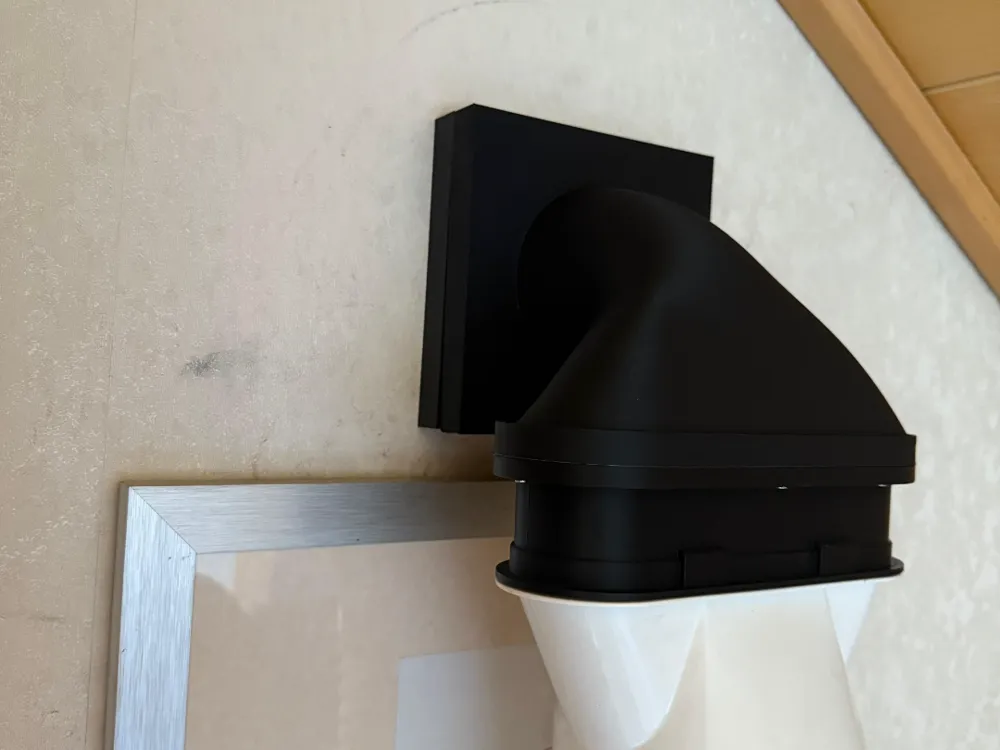

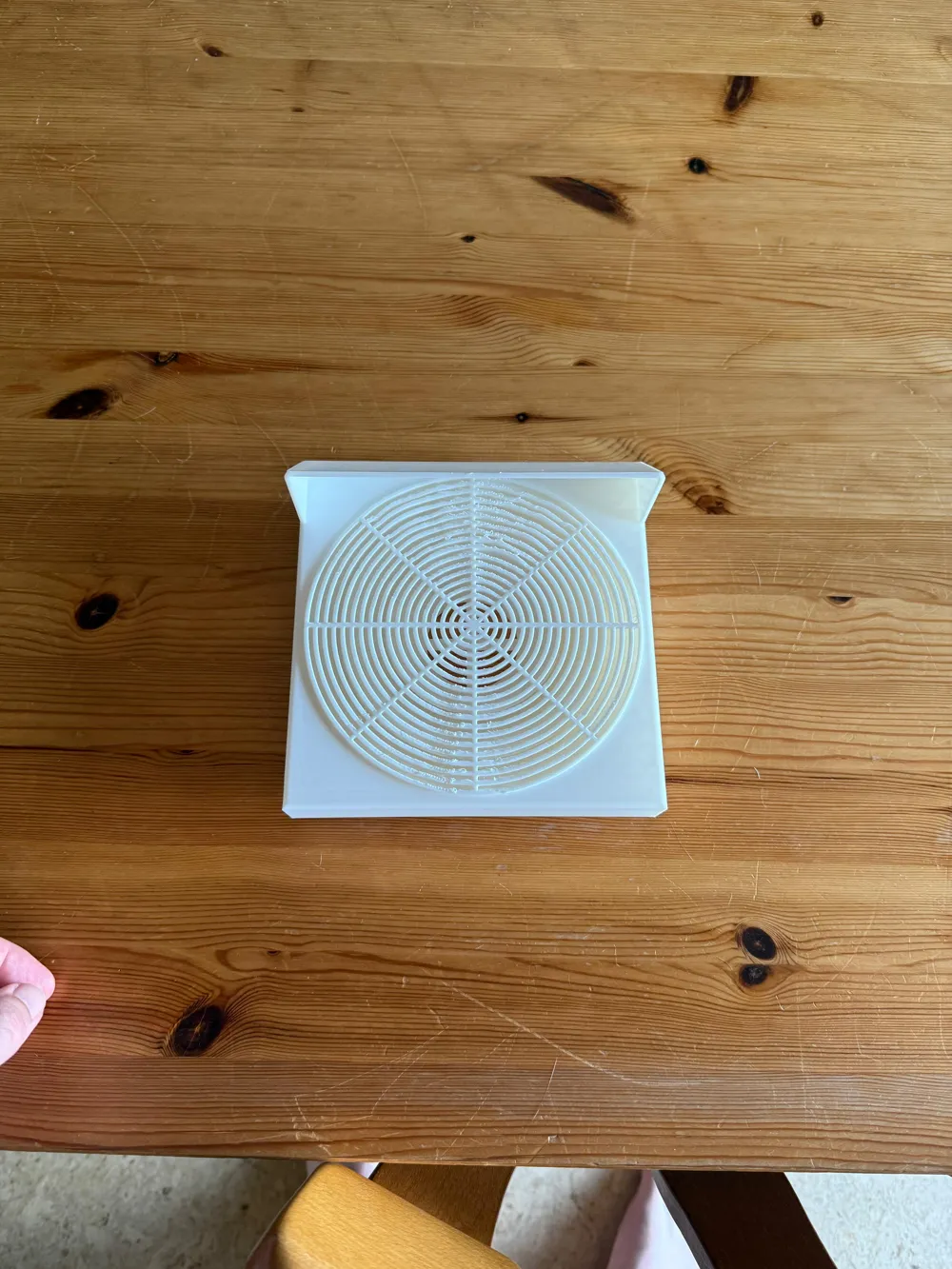

Wall-Mounted Air Exhaust Adapter with Magnetic and Adapter System
The air exhaust adapter is a high-quality solution for the safe and efficient extraction of exhaust air from air conditioners or ventilation systems through the wall. The wall connection is made via eight strong 4×2 mm neodymium magnets, which allow for quick and tool-free installation. The adapter is securely screwed to the flange with eight M3×16 screws and is compatible with the Amazon model I linked
Technical Data:
- Outer Diameter: 104 mm
- Inner Diameter: 102 mm
- Material: UV-resistant plastic (PETG or PLA for shaded installation)
- Color: freely selectable
- Mounting Type: Magnetic wall connection + screw system
- Compatibility: Exhaust hoses Ø 102 mm or adapter Ø 150 mm
Special Features:
- Robust, weather-resistant construction
- Corrosion-resistant for indoor and outdoor use
- Quick assembly/disassembly via magnetic connection
- Secure hold with 8-fold screw fastening

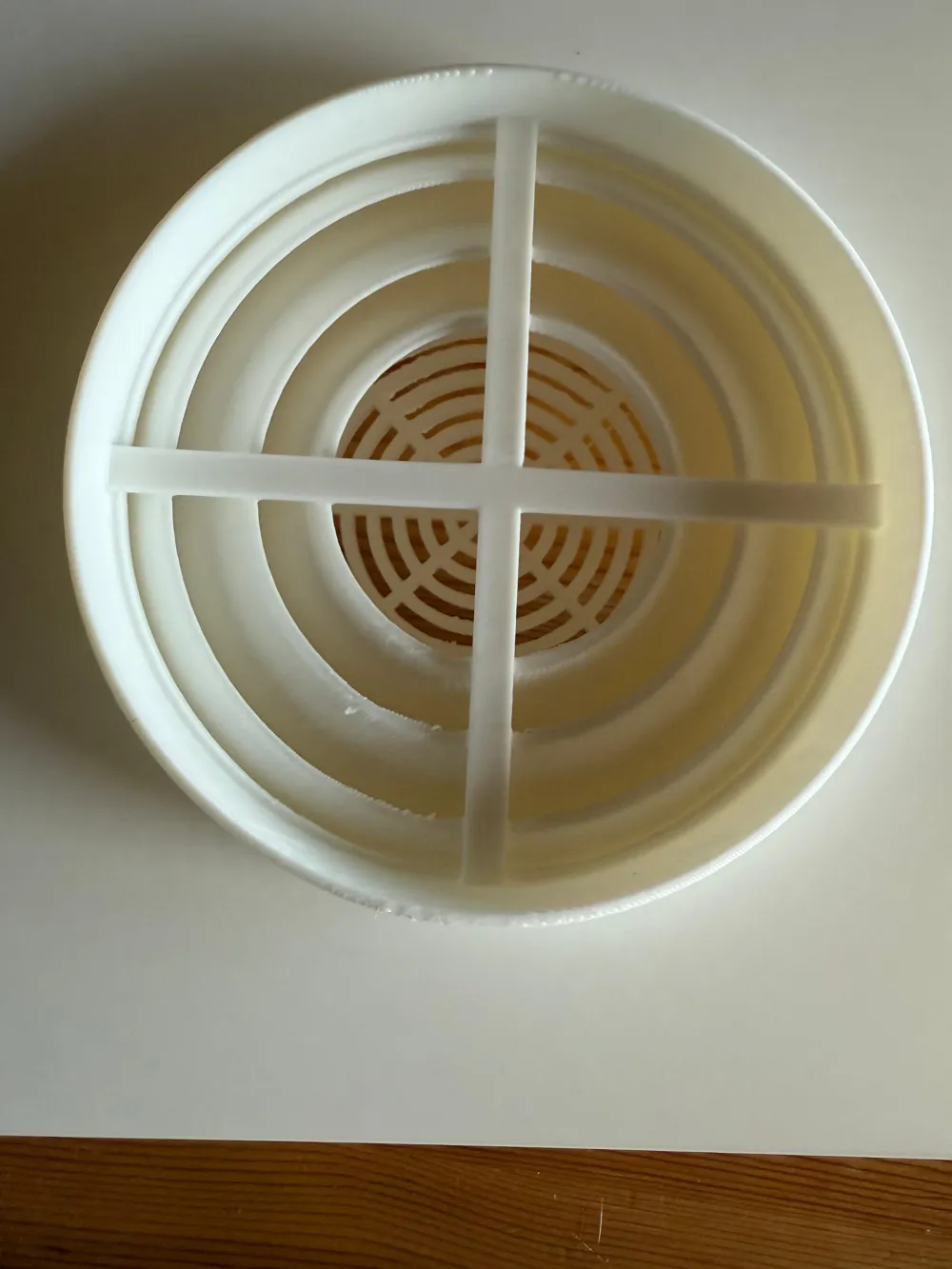

- Optional with backflow damper or insect screen
Areas of Application:
- Mobile air conditioners
- Ventilation systems
- Kitchen, bathroom, and workshop exhaust systems
- RVs and Tiny Houses
Links:
🔗 Adapter on Amazon ~ 10 €
🔗 Exhaust hose on Amazon ~ 40 € (can be cheaper)
