Locomotive Kit Ver 01

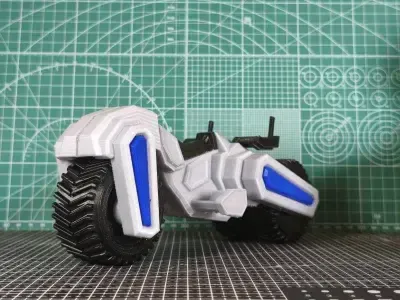

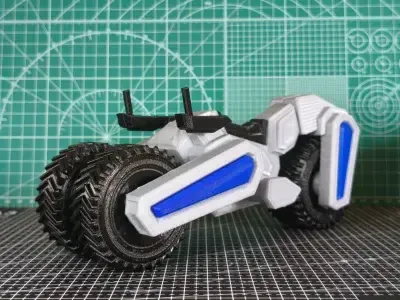

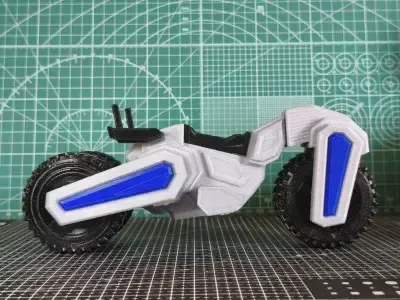

1. A three-wheeler, with two wheels in front and one wheel in back

2. The name was randomly chosen, and the tire treads in the pictures seem to be reversed, but you can assemble them however you like

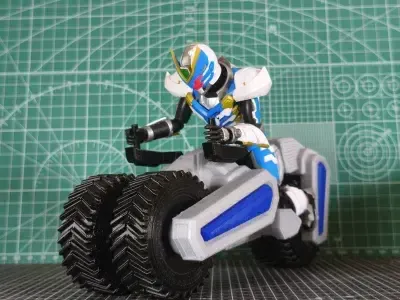

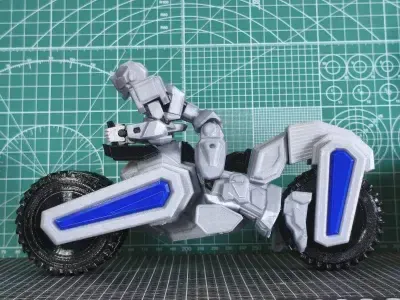

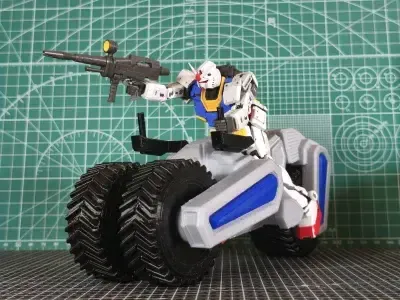

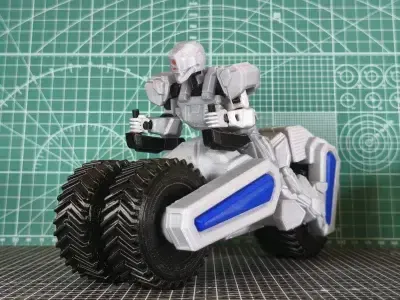

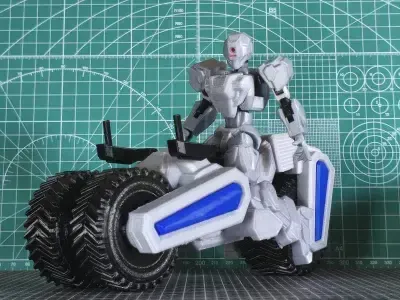

3. It fits dummy13 figures, like the two I just made on my homepage. It also fits 1/144 Strike Gundam models and other similar-sized action figures or robot models

4. The A1 mini can print this, it takes 10 hours and 200 grams of filament. Plate one is for the tires, seat, and handlebars, plate two is for the main body, plate three is for the front, rear, and the two fixing parts for the front wheels. The decorative parts on the fourth plate are optional; if you print them, just glue them on according to their shape

4. Assembly Instructions:

(1.) The two narrower tires are the front wheels; mount them on the two axles at the front and secure them with the two round parts

(2.) The wider tire is the rear wheel; use the two halves of the rear section to clamp the rear wheel

(3.) The handlebars and seat must be installed on the main body, and the wages of working people must also be paid on time

(4.) Install both the left and right front and rear sections onto the main body

(5.) Remove supports from the parts as cleanly as possible

(6.) However, since there isn't much movement besides the tires rotating, if the assembly feels too tight, trim it with a knife; if it's loose, just use super glue

(7.) The parts on the fourth plate are optional; if you print them, just glue them on according to their shape

5. A three-wheeler is coming, witness its arrival

6. That's all
