HDZero VTX V2 Adapter for 70mm drone
Print Profile(1)
Description

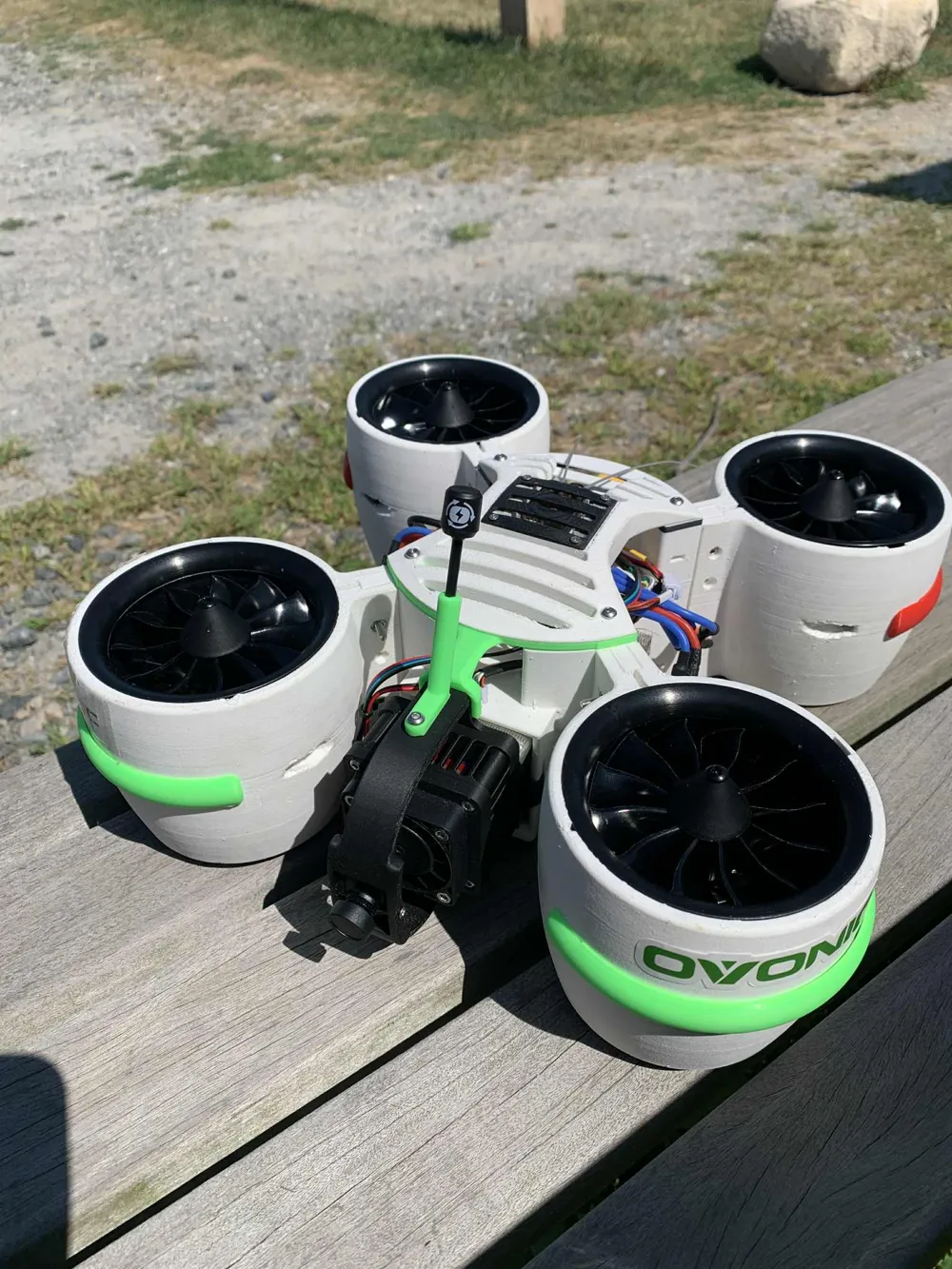

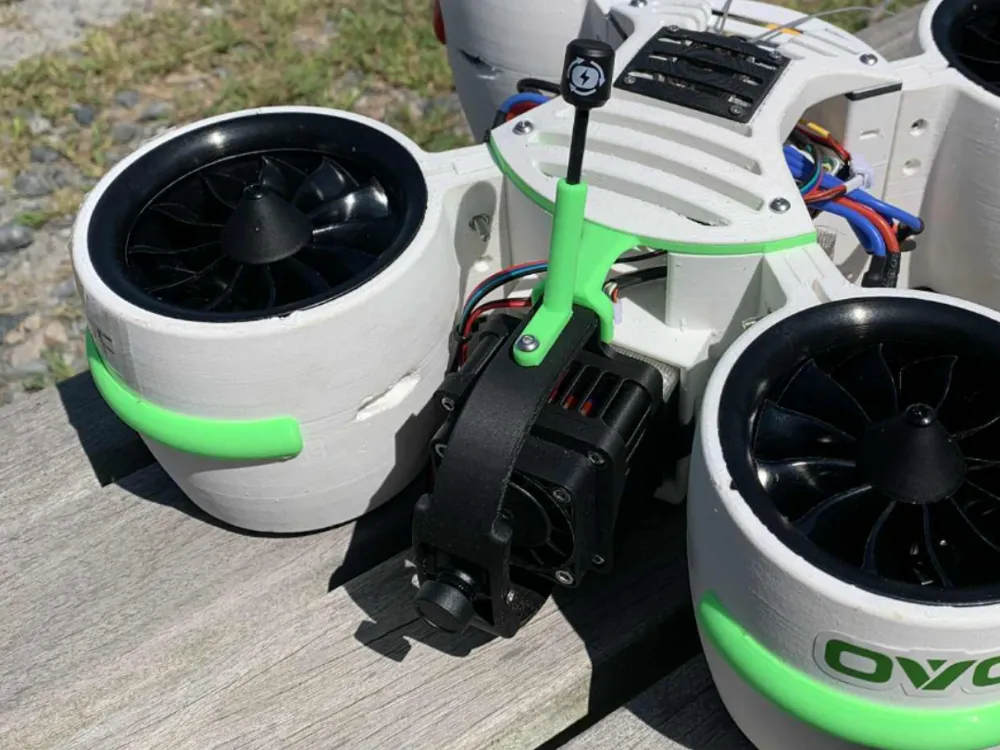

This is a HDZero VTX V2 mount for the 70mm drone.

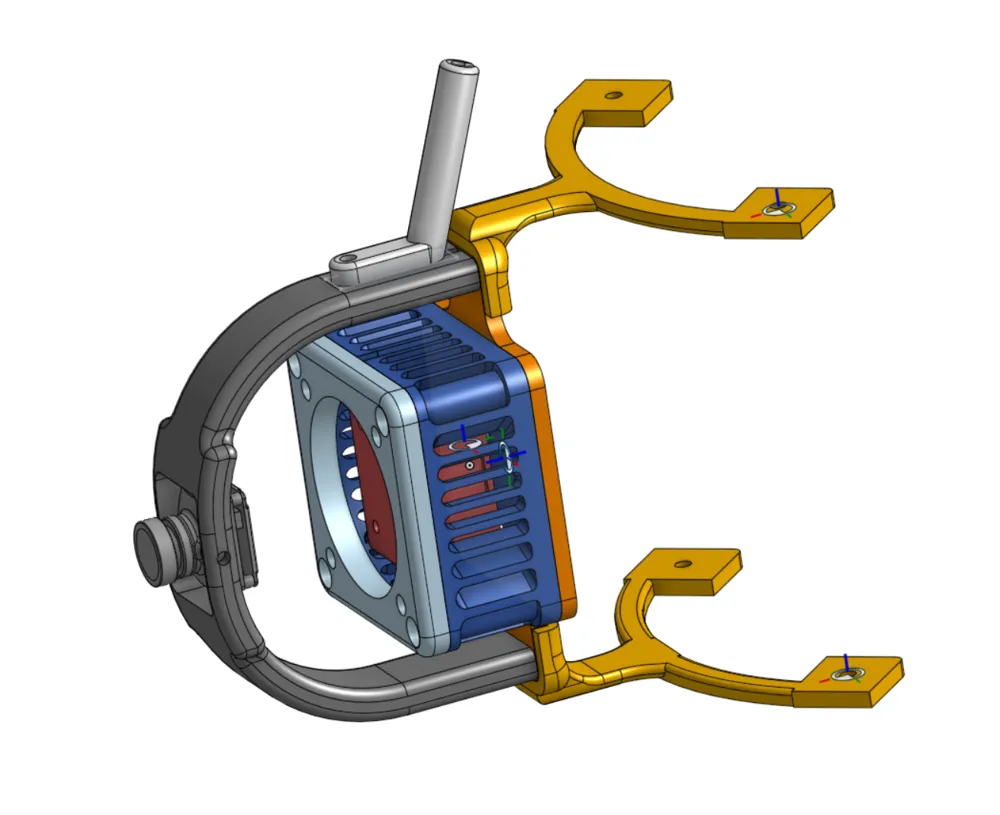

Designed in Onshape, printed on Bambulab X1C.

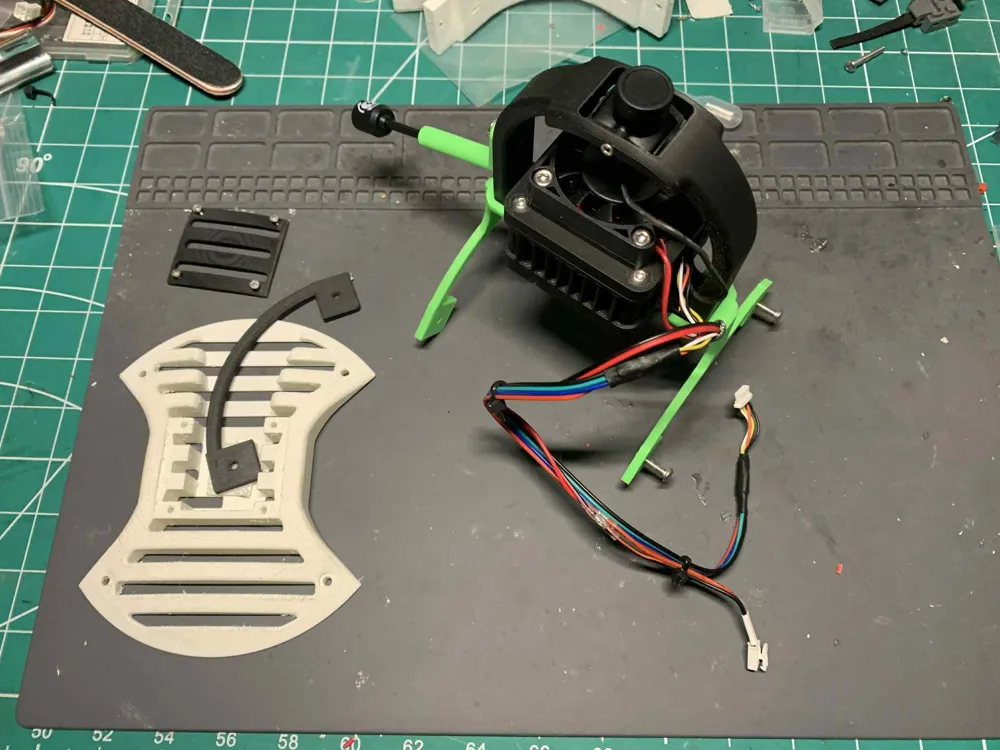

I used a HDZero Freestyle V2 Kit that after testing is going very hot, I had to create a case with a fan to cool the system.
Hardware needed:
- M3 bolts to do the assembly mostly 15mm, 20mm
- M2 bolts 3mm for the receiver cover
- M2 bolts 15-20mm with M2 nuts to fix the VTX module
- M3x6.6mm Shock Absorption Balls
- Creality Original Ender 3 Nozzle Fan DC BRUSHLESS PD04010MS4 DC 24V (3d printer fan)
- HDZero Freestyle V2 Kit
