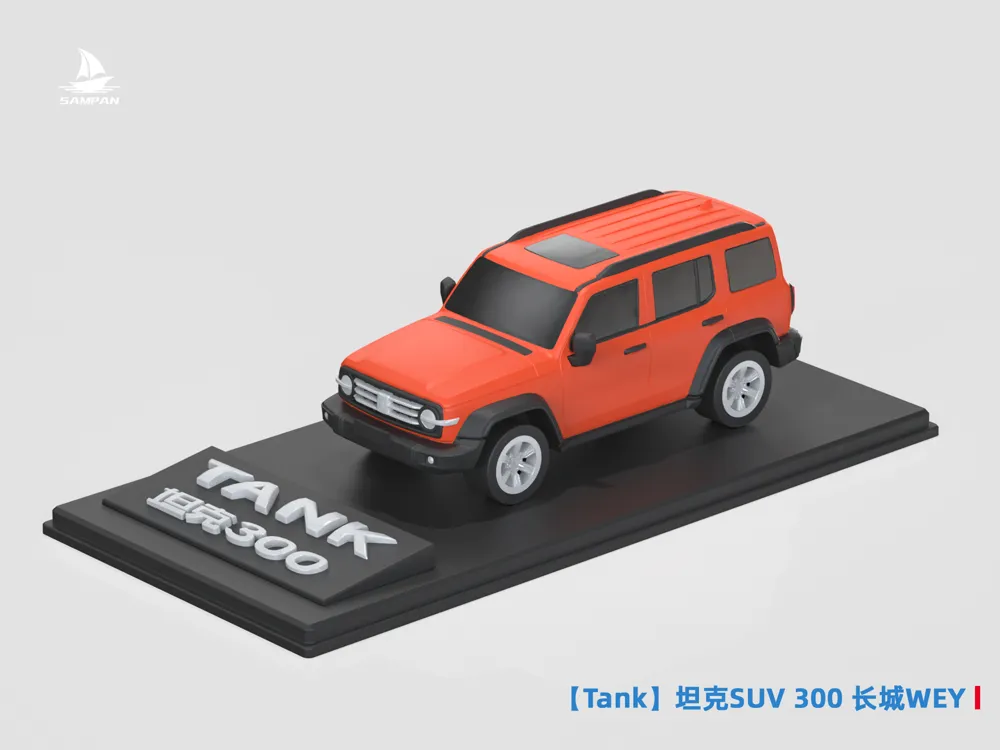

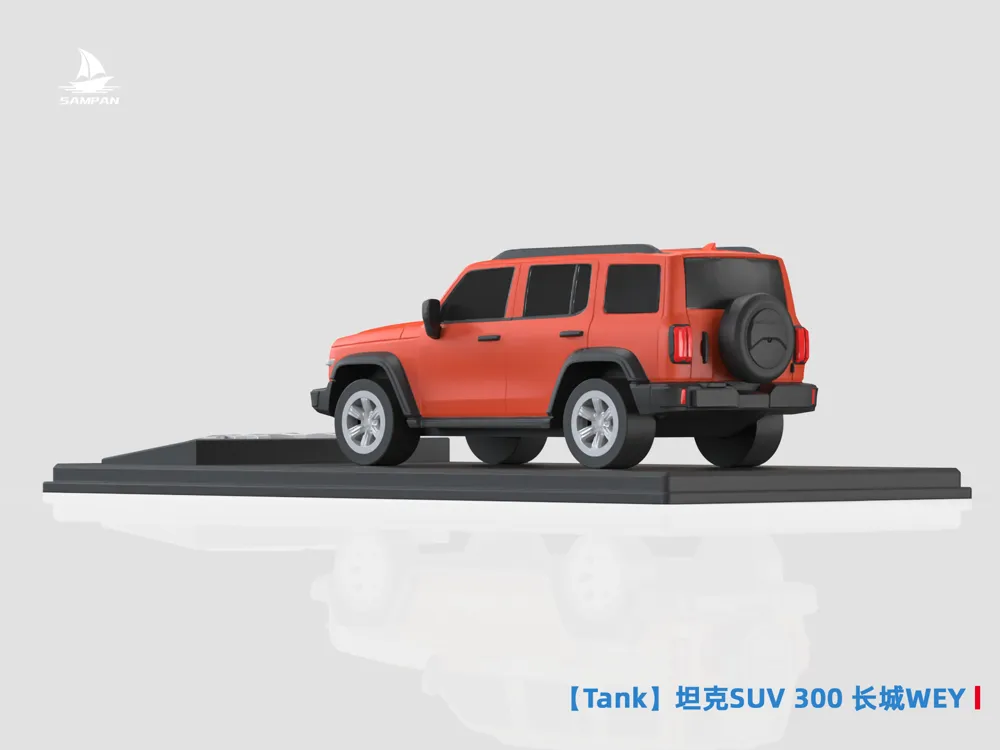

[Tank] Tank 300 & Great Wall WEY rugged off-road vehicle SUV Jeep Assembly/Movable Wheels

【Special Notes for F1 Models】

1. The author has conducted structural printing tests on all models before release. However, the F1 model has a complex structure and requires high printing precision. Newcomers are advised to use the parameters in the slicer directly for printing and not to adjust them arbitrarily to avoid printing failures; experienced players may ignore this reminder.
2. The printing effect of the model is affected by various objective factors such as equipment, filament, and environment. If you encounter problems during printing, you are welcome to contact me through comments or private messages, and I will assist in troubleshooting. Creating is not easy. Please communicate before evaluating and do not give low scores at will; malicious negative reviews will result in being blocked. Thank you for your understanding!
3. All models from the author are tested based on Bambu Lab printers, and the configuration files use Bambu Lab's official slicing software. If you are using other brands of printers, it is recommended to adjust the parameters according to your own equipment's slicing software and preview before printing. Thank you for your cooperation!

4. As multi-color printing becomes the trend, the model is sliced with the H2C multi-nozzle printer by default. For other models, please refer to your own model for slicing preview to check the time and filament consumption.
5. Thank you again for the recognition and support from fellow enthusiasts. I hope to receive your likes and boosts. In 2026, let's unlock more F1 models together!

【Read Before Printing!!! Warm Tips】

It is strongly recommended to print the single-color configuration first before printing the multi-color configuration to test the model structure and slicing effect (Cost of single-color model printing: 64 scale 15g filament, 2 hours. 43 scale 50g filament, 3 hours). After being satisfied with the model's appearance, articulated structure, and slicing effect, then print the multi-color version. Thank you.

Note: Before printing the multi-color configuration file, you can enlarge it according to the complexity of the paint scheme. Preview in the slicing software to check the details and ensure printability.

---------⇪3D Printing Instructions-----------⇩ Product Introduction--------------

The Tank 300 and WEY brand together form an important part of Great Wall Motors' high-end strategy.

The Tank 300 focuses on rugged off-road performance, satisfying consumers' pursuit of off-road passion;

The WEY brand, on the other hand, focuses on luxury comfort and intelligent technology, meeting the needs of high-end urban users.

Both the Tank 300's off-road capability and the WEY Lanshan's luxury comfort demonstrate the tremendous progress of Chinese independent brands in automotive technology.

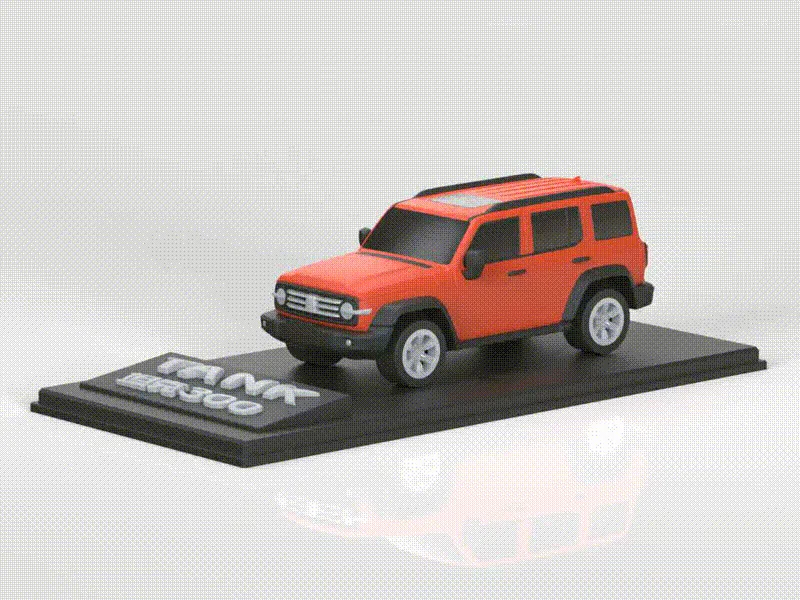

Model Description

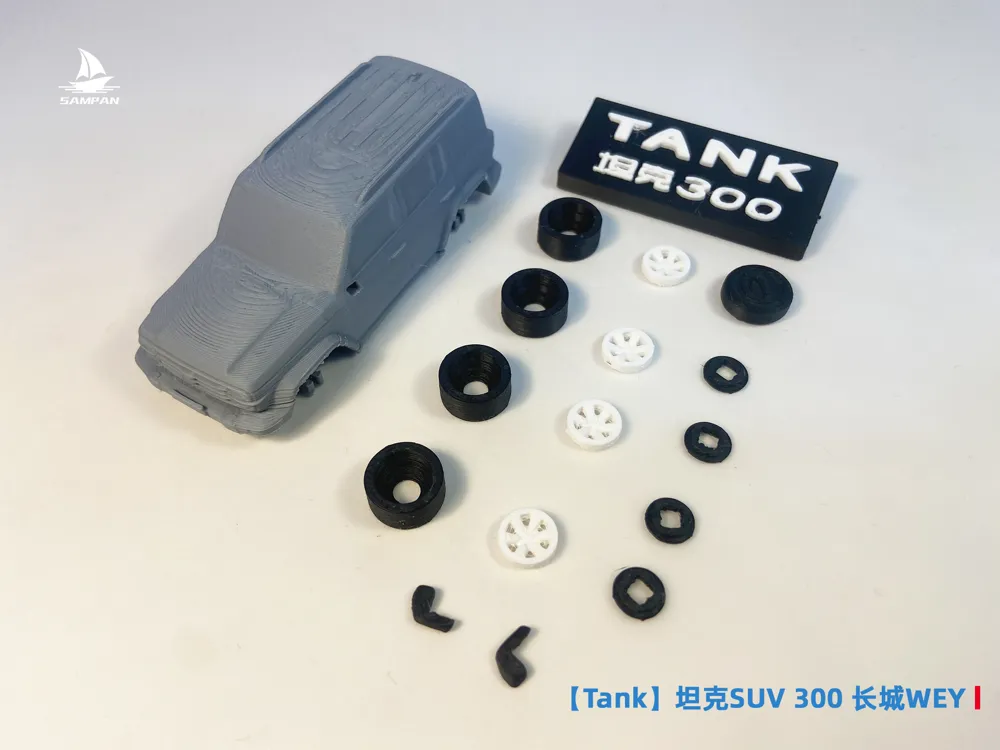

- Movable wheels, assembly without glue. Front and rear tires are different sizes

- All wheel hubs for 1/64 scale cars under this account can be replaced. Browse the homepage and download your favorite wheel hub styles

Size
- 1/64 scale

- 1/43 scale: Simply enlarge by 150%, print with 0.16mm layer height
- Slice file, use minimum printer size settings. You can adjust the number of models printed at once based on your printer size to save time and filament

FDM Printing Settings

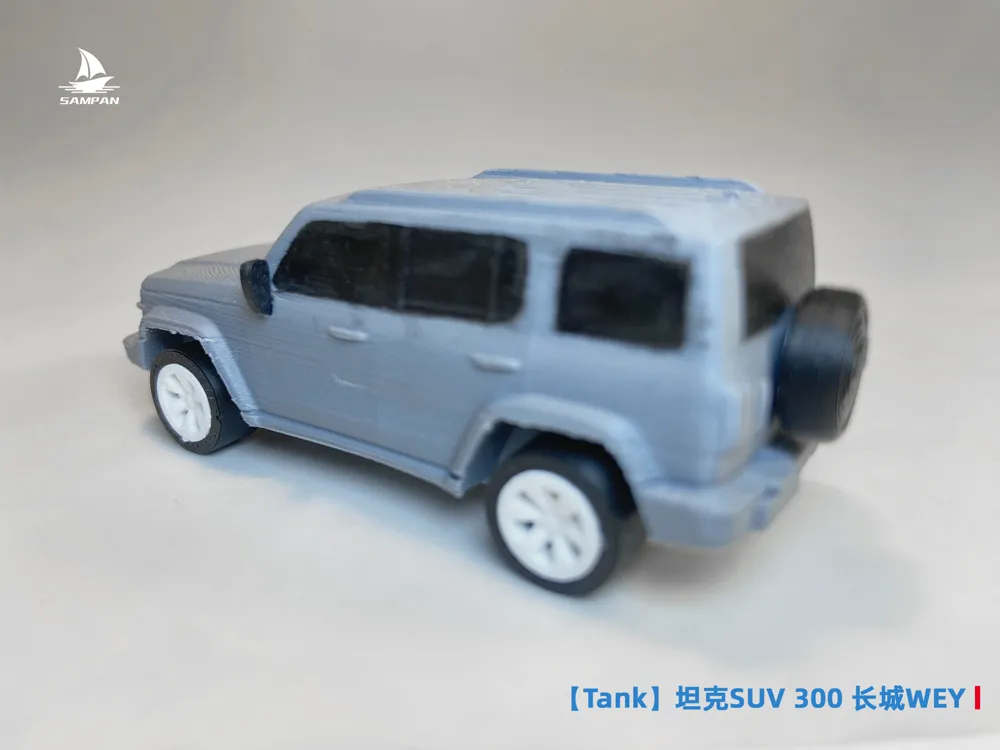

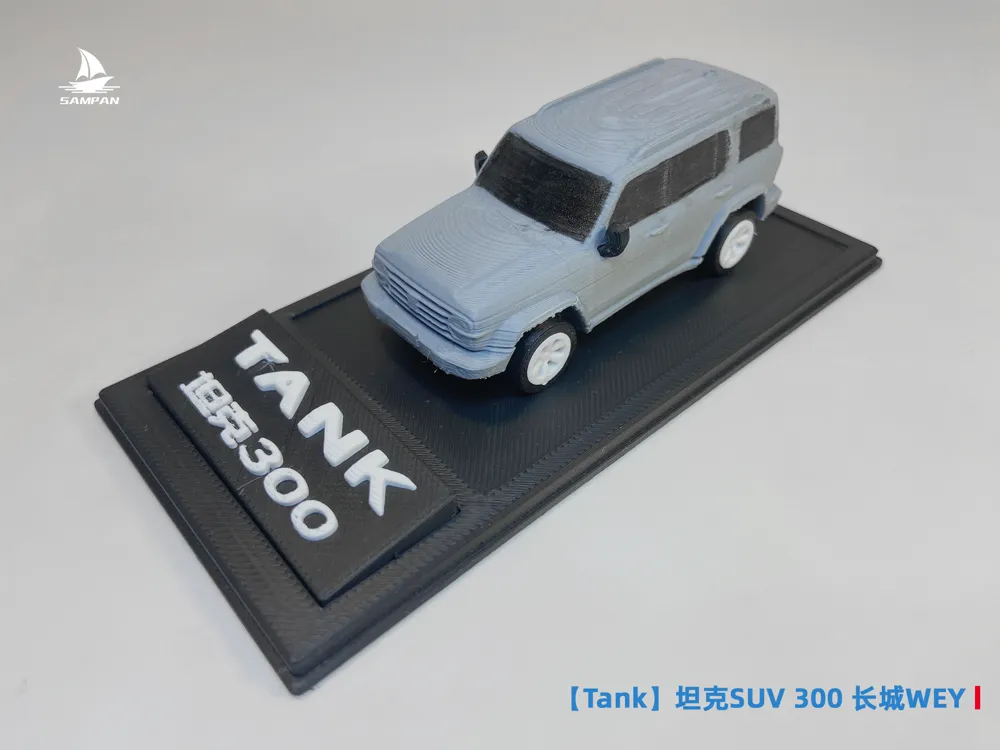

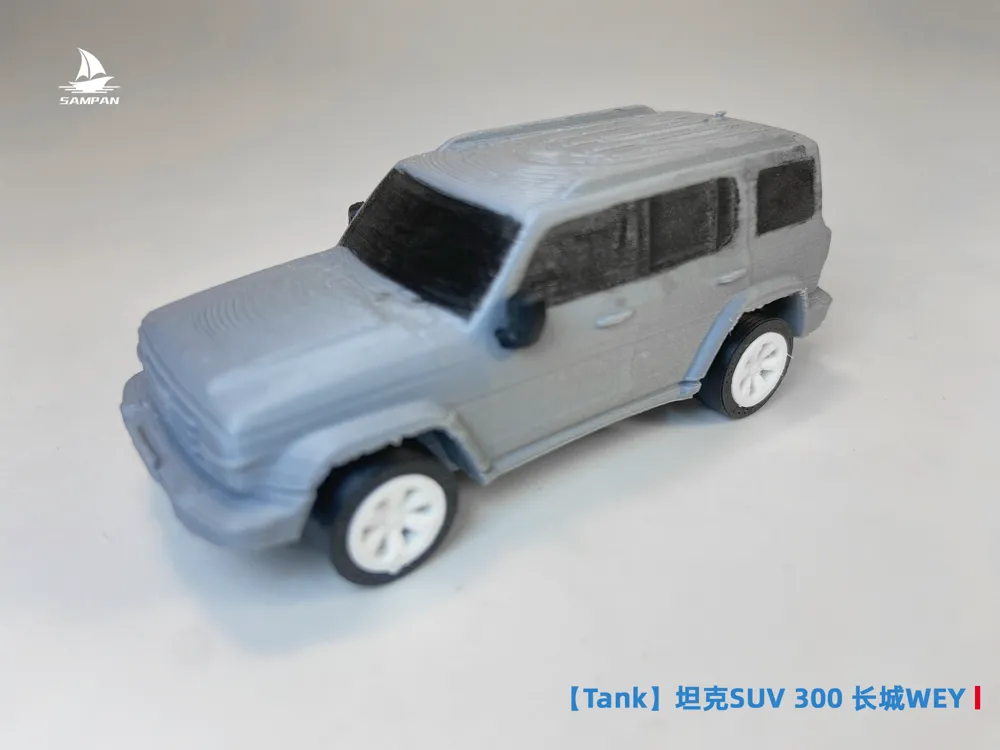

- The physical model was printed using an A1 mini with a 0.4mm nozzle, 0.12mm layer height, and official PLA. Using equipment, parameters, and filament with higher specifications will result in better effects (assembly might be too tight or too loose, which can be compensated by adjusting the XY outer contour dimensions of the assembly, or by using sanding tools and super glue for processing and connection)
- Infill density: 15%. To increase the model's weighty feel, the infill density can be adjusted to 100%
- Supports: a combination of normal and tree supports was used

- Various painted versions will be released later. Follow the account to stay updated.

- You can also adjust parameters based on your printing experience

Support Removal Instructions

- The model is small, so supports have been added in key positions. Removing supports requires using sprue pliers and tweezers. Breaking them by hand will likely lead to structural breakage, especially the rearview mirrors and rear wing parts

- Tip: To ensure successful removal of supports for multi-color models and avoid breakage, you can first print a single-color model for removal to understand the model and support structure, then remove the supports for the multi-color model (if broken, super glue can be used for connection)

Monochromatic Painting Reference (printed with white filament)

- Sanding: (Optional) Sand in the order of 400-600-800 grit

- Coloring: Paint with acrylic brushes (for edge layer texture bleed issues, apply the main color over a large area first, then draw the edges)

- Polishing: Polish with a flannel cloth to make the acrylic paint glossy

Assembly Instructions

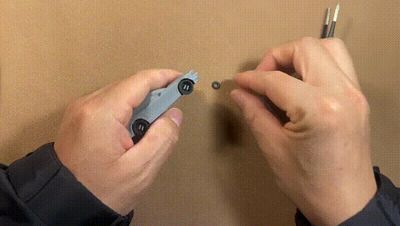

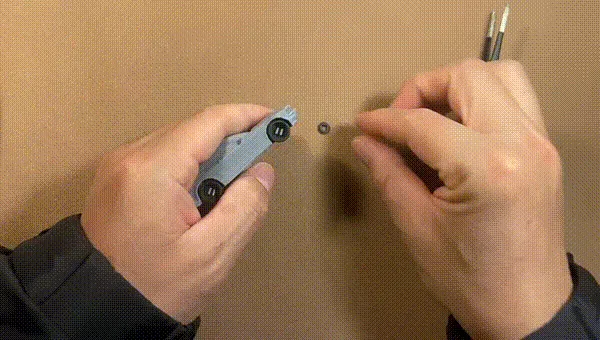

- For long-term stability of the wheels, moderate force is required for installation, and initial rotation will be quite tight. It will become more flexible after a few uses. See gif demonstration for wheel installation

- To facilitate the installation of wheel calipers, a dedicated wheel caliper installation tool has been designed and produced. Link: 1/64 Scale Wheel Caliper Installation Tool from SAMPAN Replica - MakerWorld

Visit the author's homepage to see all vehicle models, welcome to like and follow!

Hope to see more friends share your printing photos, I'm curious what kind of works you will print!

We will continue to release various high-precision 3D printed vehicles, thank you for your attention and support!
