Double-Bit Axe

🛠️ 3D Modeling and Printing Process of a Custom Axe

Creating a 3D-printable axe involves thoughtful design choices, material selection, and post-processing techniques to achieve both aesthetic appeal and functional strength.

1. Design Overview

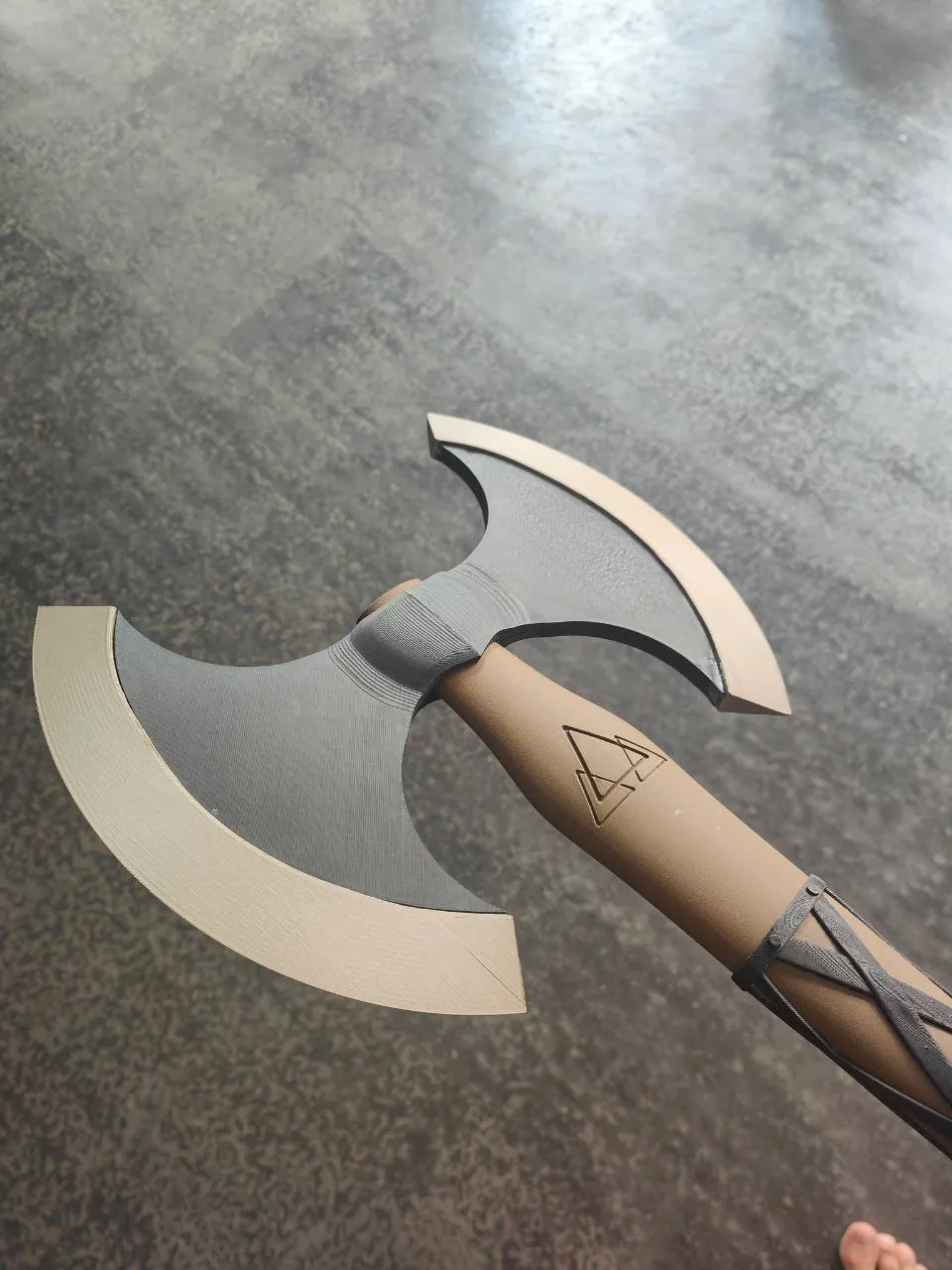

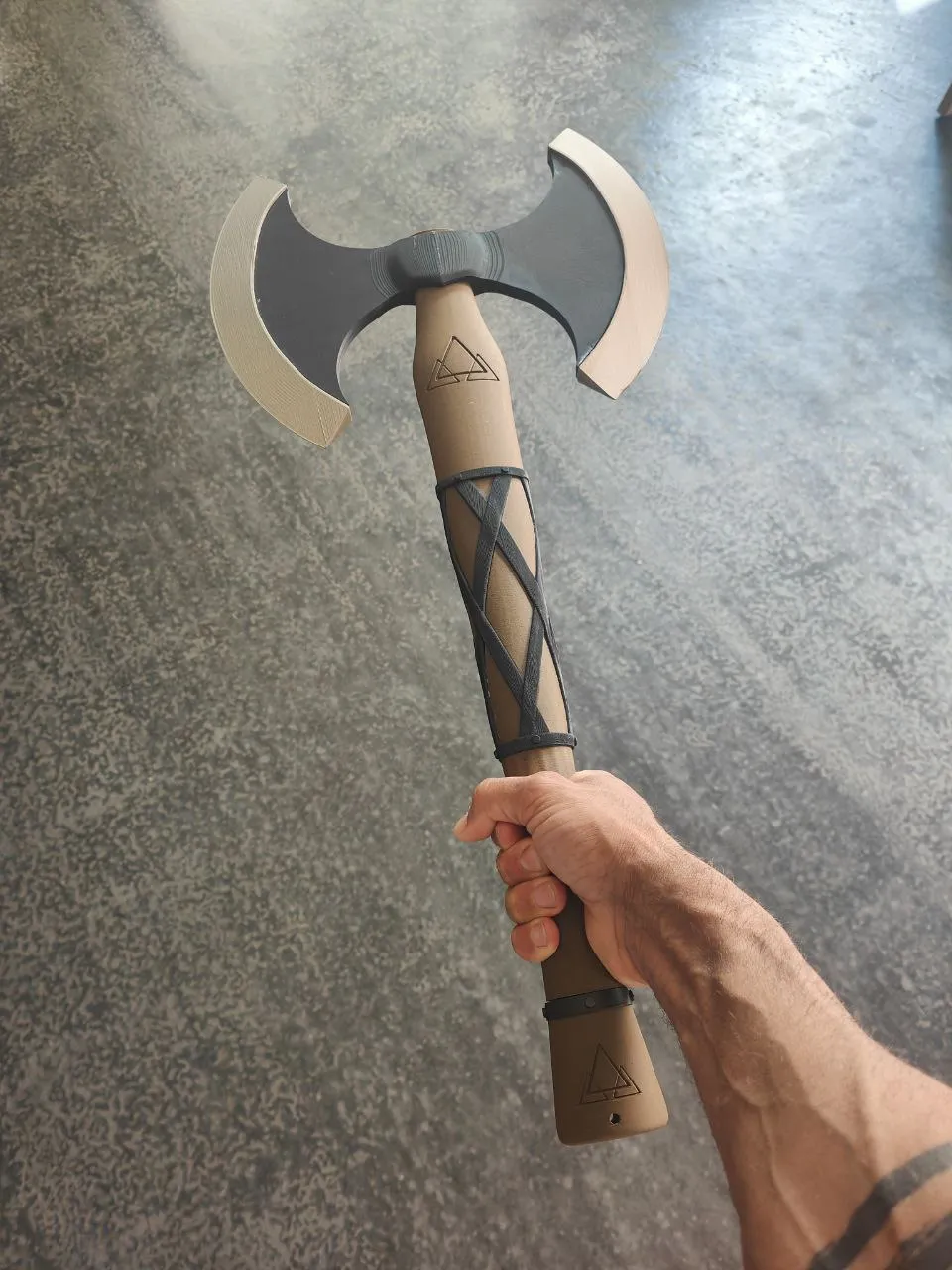

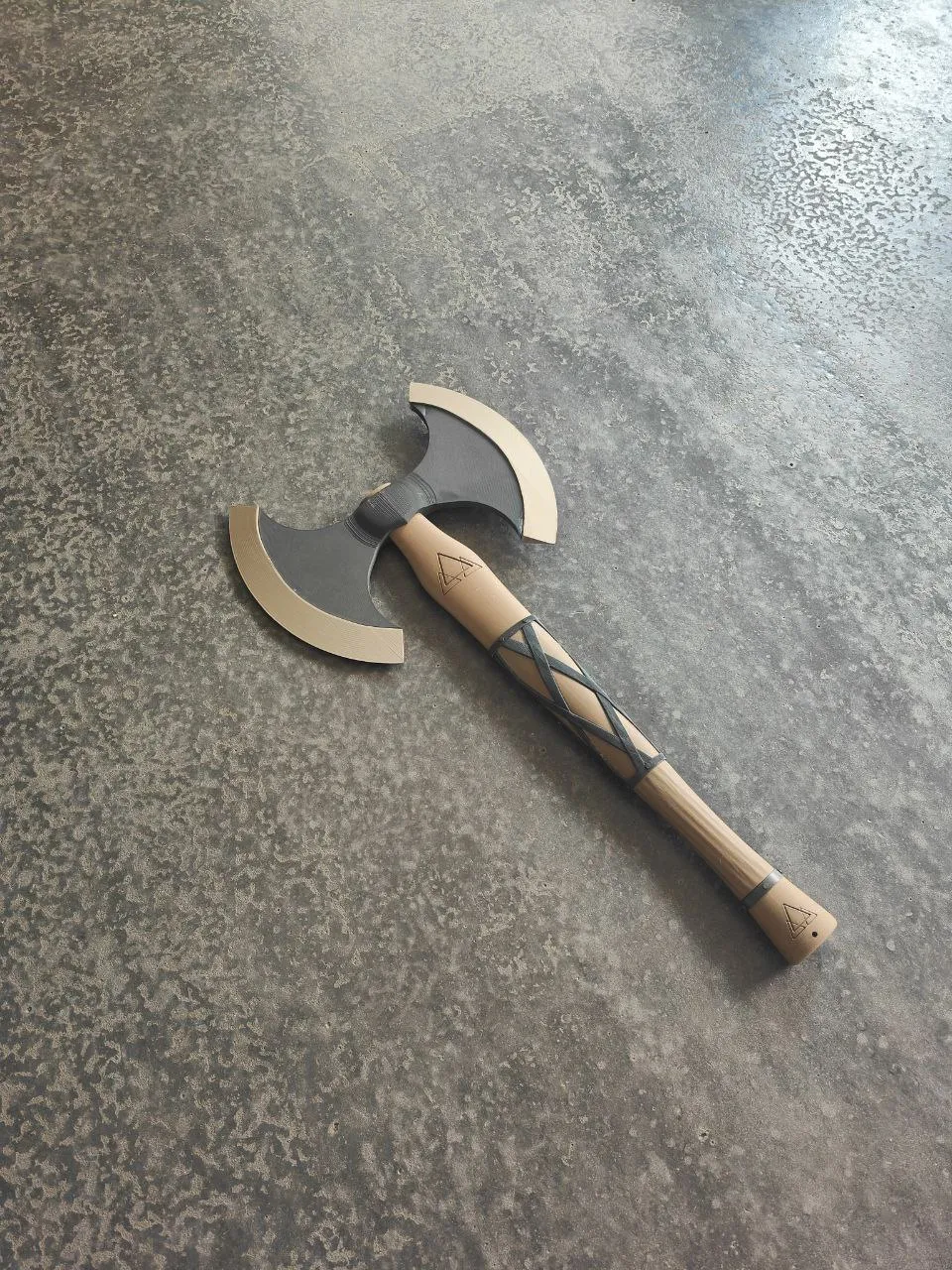

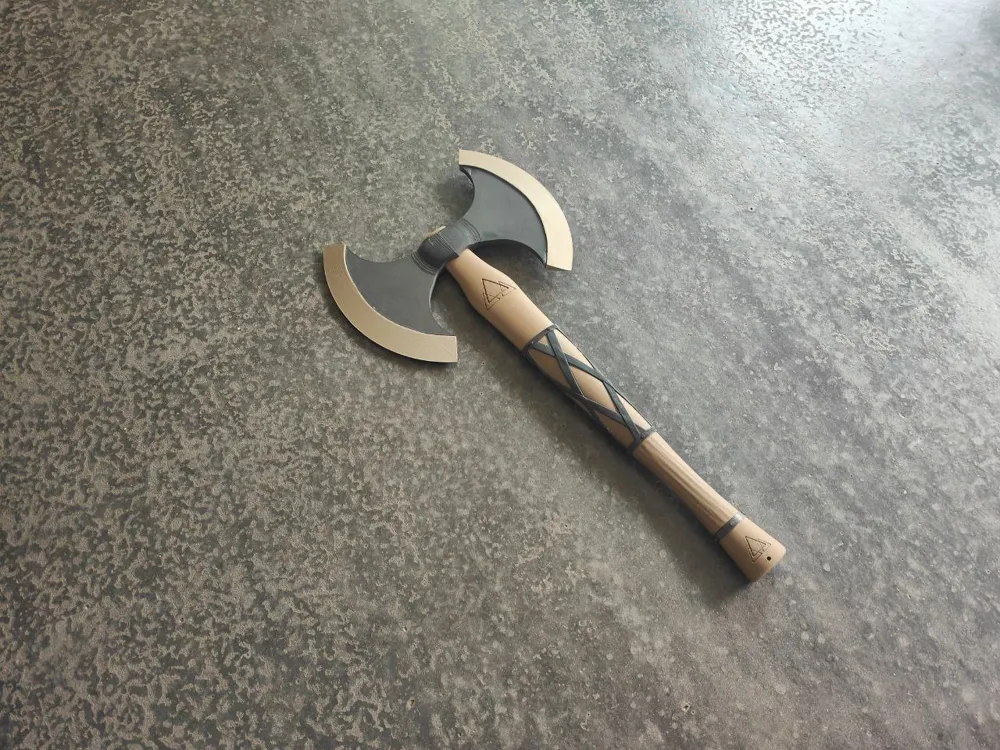

The axe consists of three main parts:

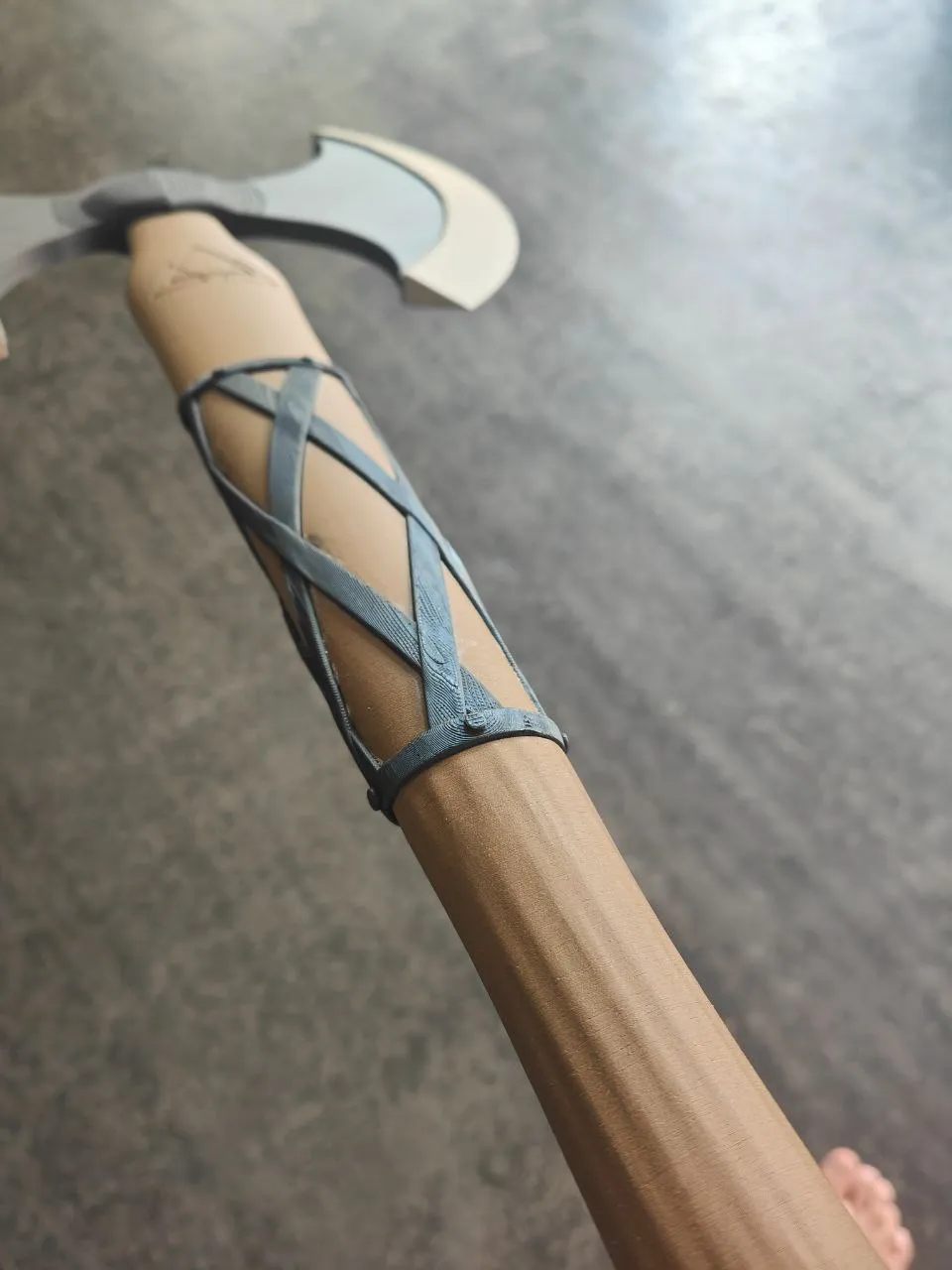

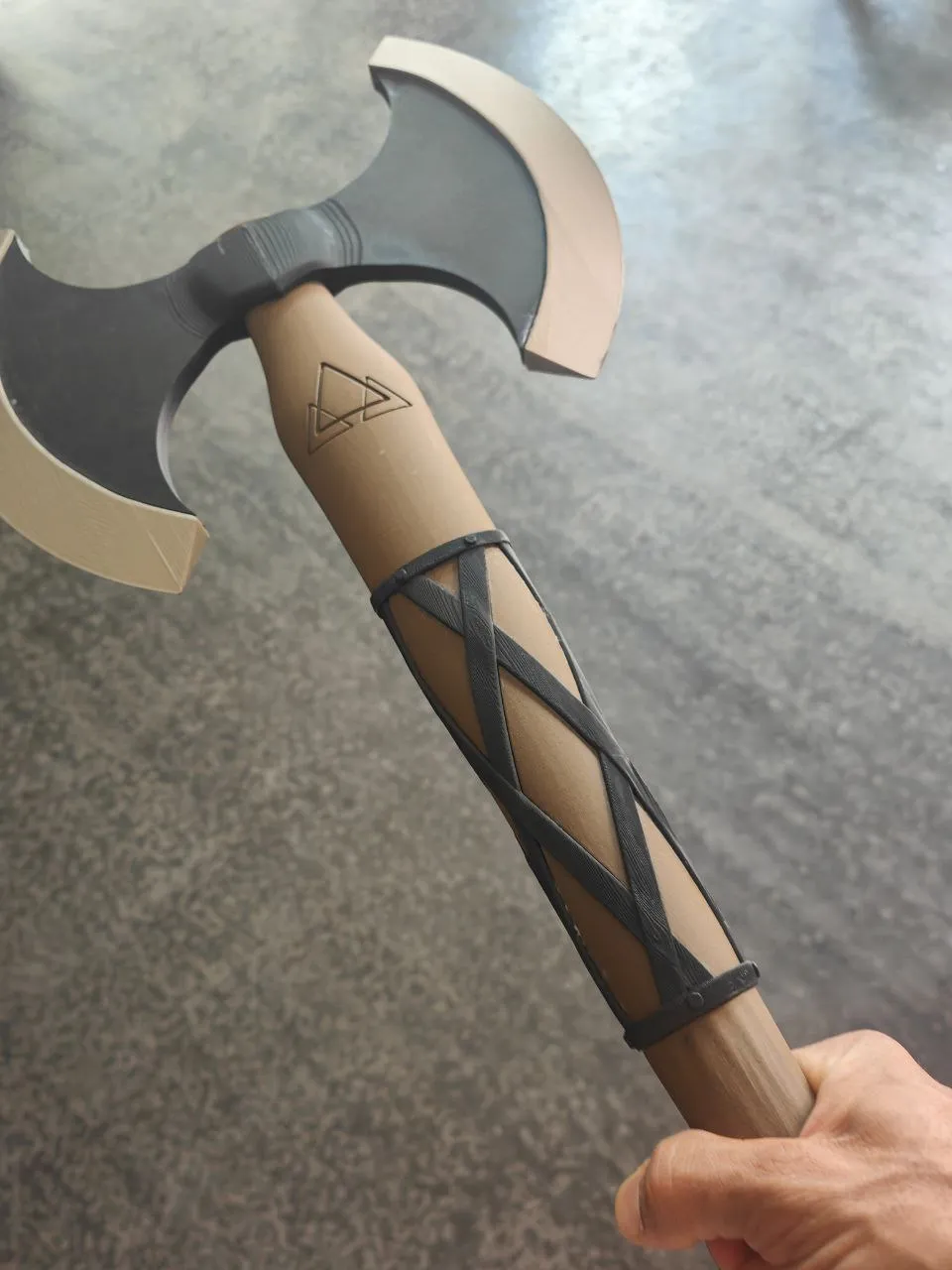

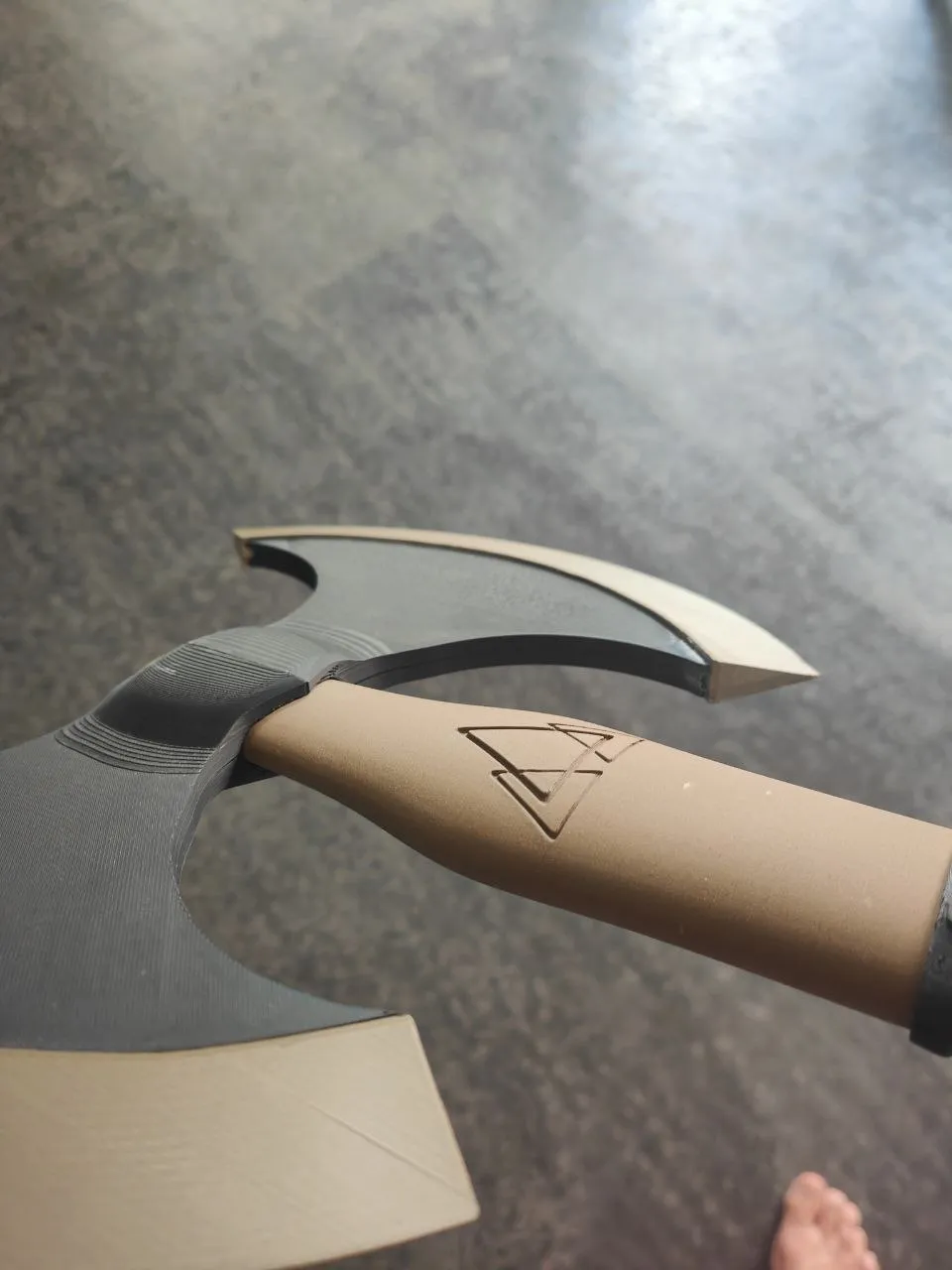

• Handle: Designed with a textured surface for enhanced grip.
• Middle Band Section: A decorative or structural element that can be printed in multicolor or single color.
• Cutting Edge: The blade portion, printed to resemble metal.

2. Modeling Tips

• The model was created with modularity in mind, allowing separate printing of the handle, band, and blade.
• While the middle band was intended to be printed separately for multicolor effects, this approach proved challenging. Recommendation: Print it as part of the main body and paint it afterward for better results and cleaner assembly.

3. Material Selection

• Handle: Printed using Bambu PLA Wood, which gives a realistic wooden texture and feel. The added grip texture improves handling and ergonomics.

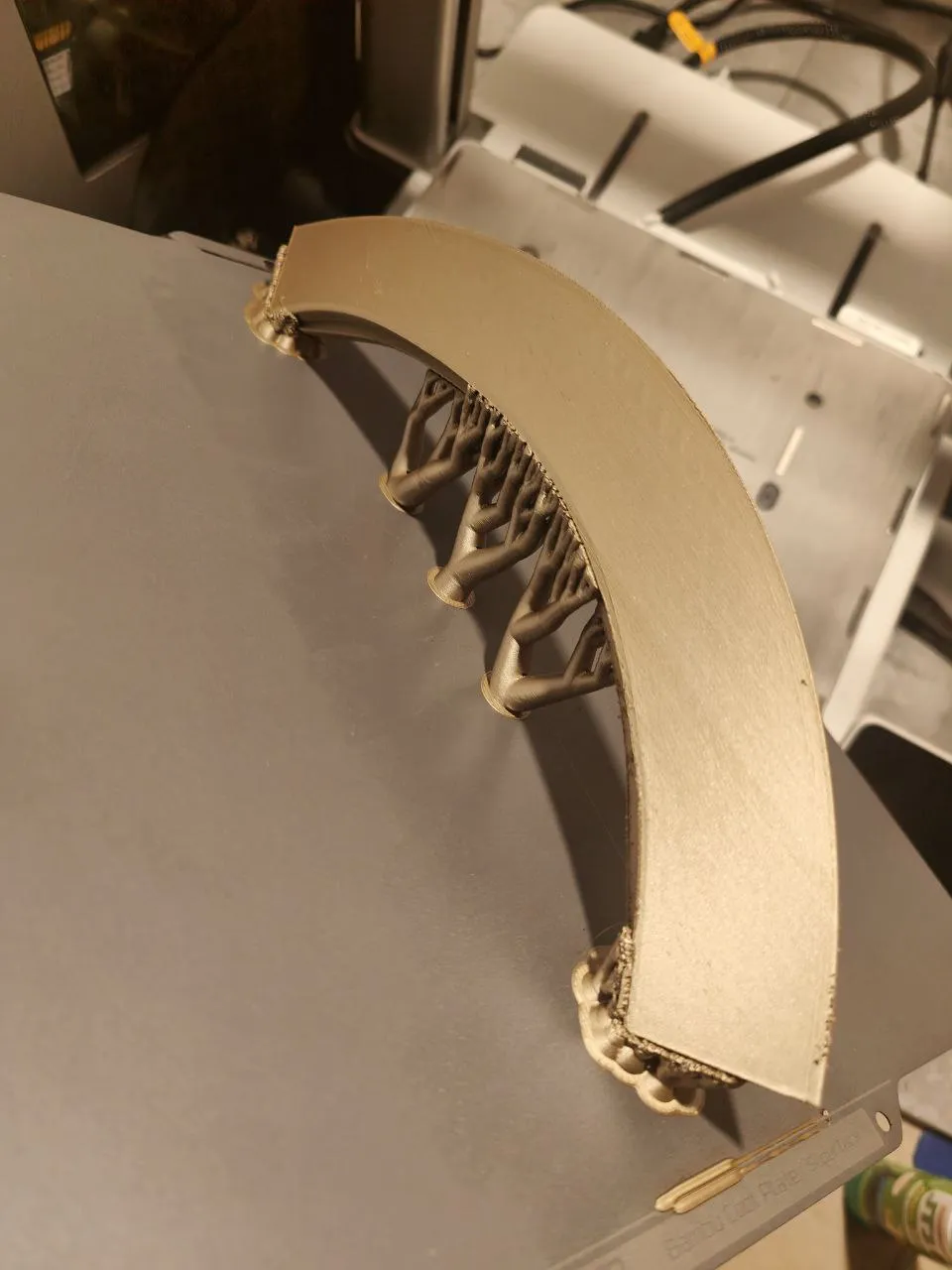

• Cutting Edge: Printed with PLA Metal, providing a metallic look.
• Middle Band: Can be printed in standard PLA and painted post-printing for color customization.

4. Assembly Options

• The parts are designed to fit together using a provided connector, which is suitable for most uses.

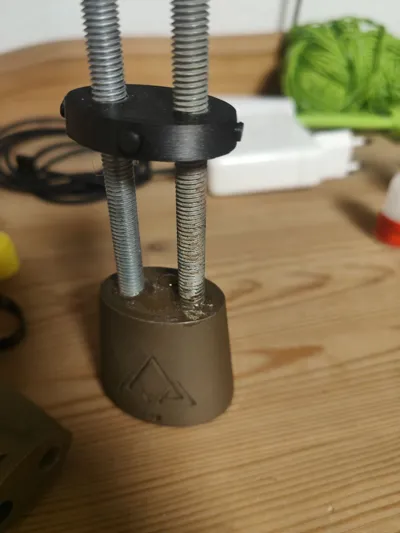

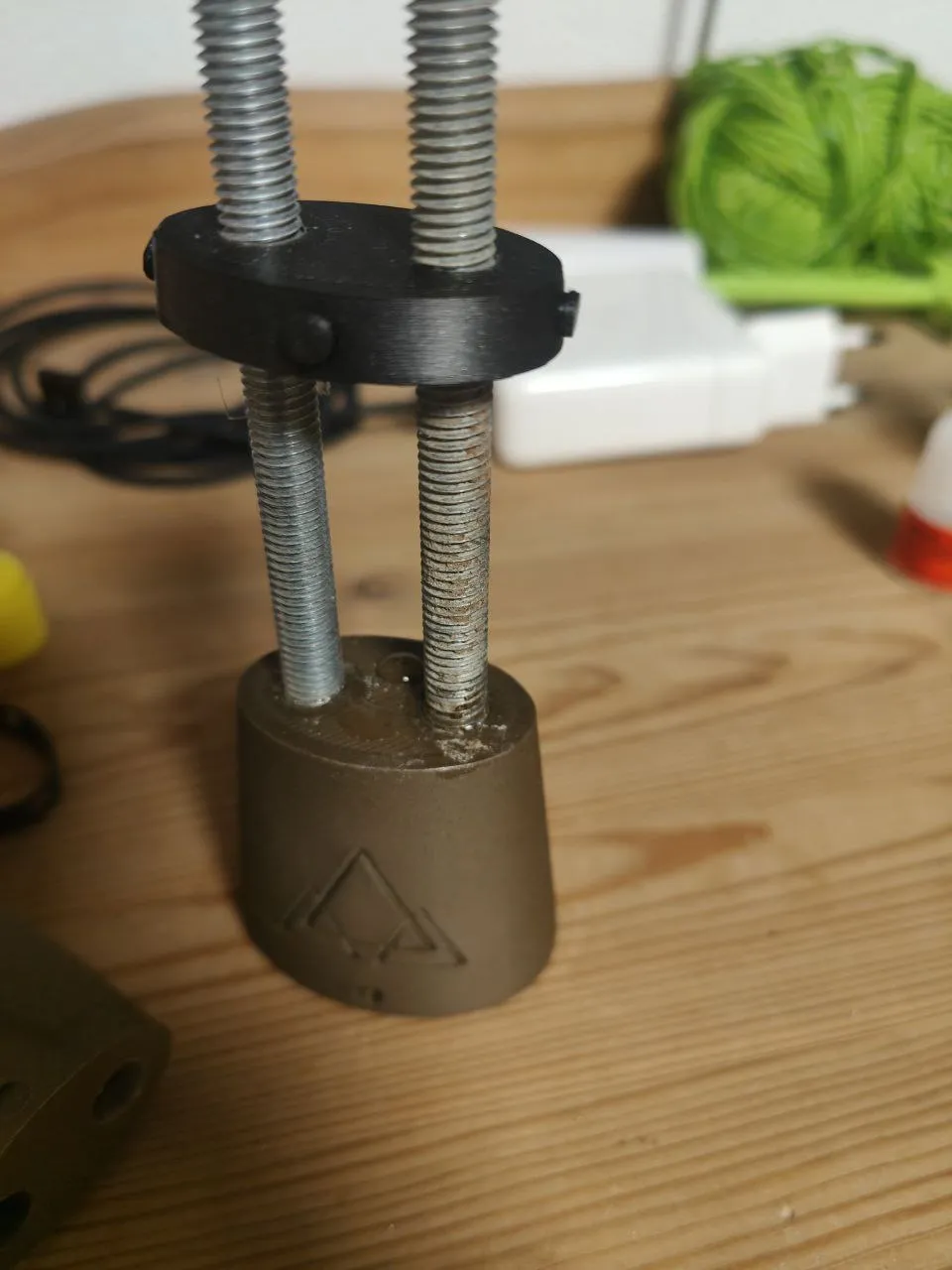

• For added realism and weight, a metal thread was used in one version instead of the connector. This not only increases the heft of the axe but also enhances its durability and tactile feedback.

5. Post-Processing

• Painting: Especially recommended for the middle band to achieve a clean multicolor effect.

6. Final Thoughts

This axe model is a great example of combining aesthetic design with functional 3D printing. The use of different filaments adds realism, and the modular design allows for customization. While some parts may require manual finishing, the overall result is a visually striking and tactilely satisfying piece.
