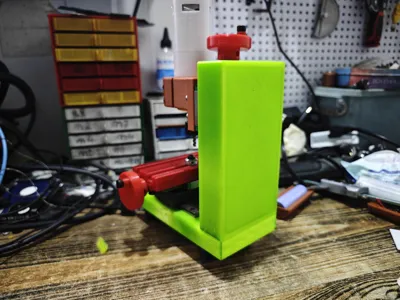

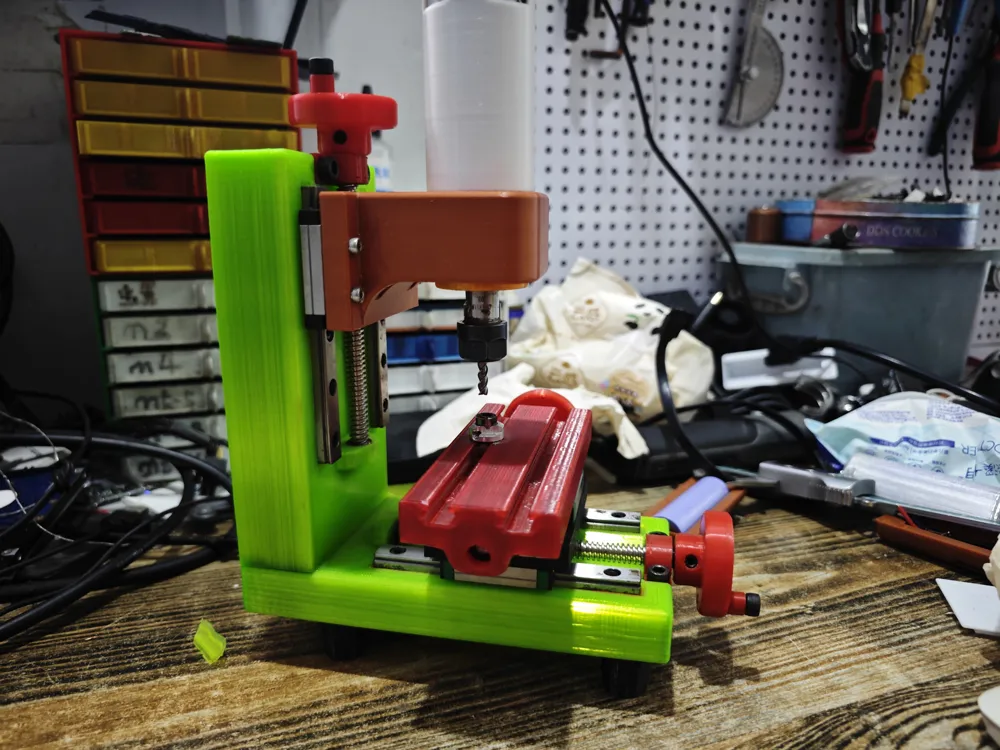

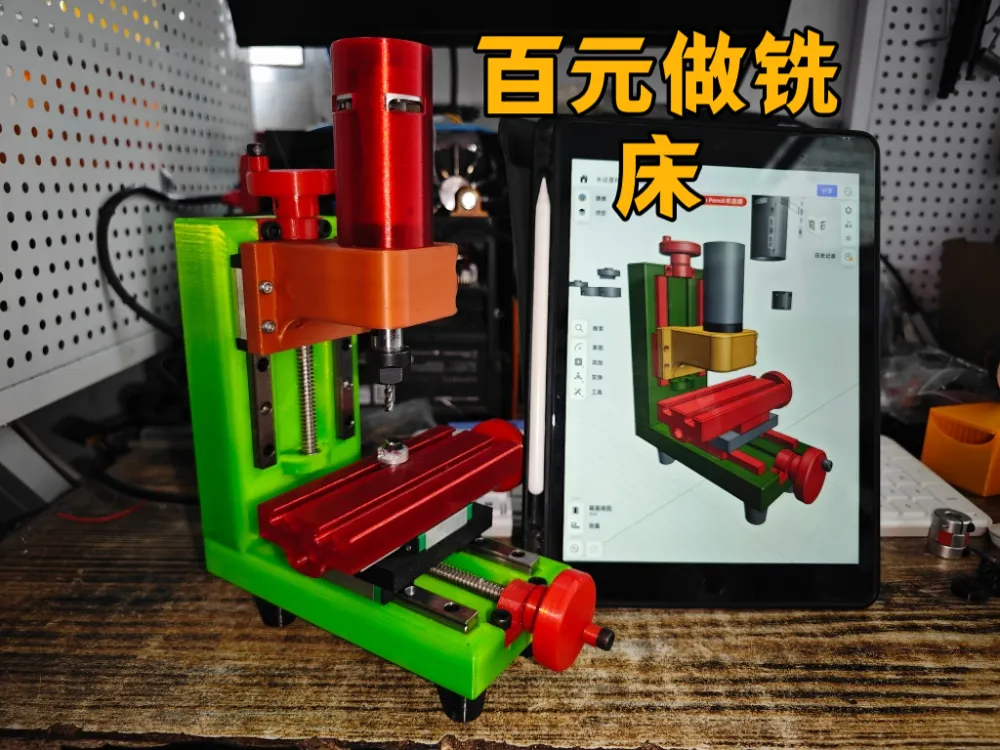

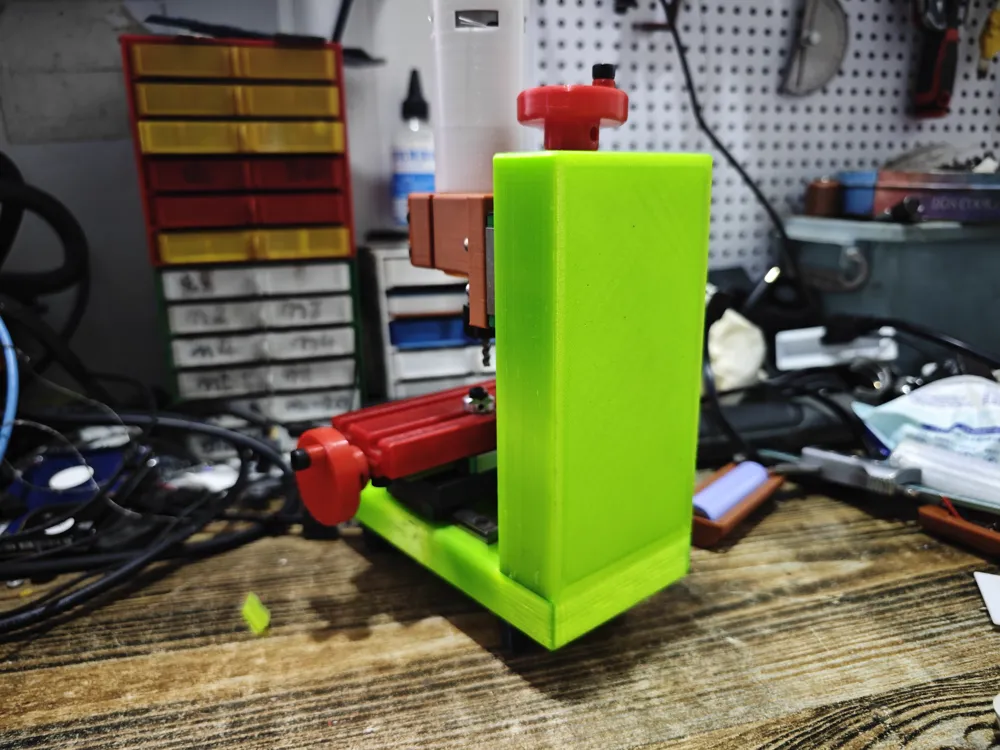

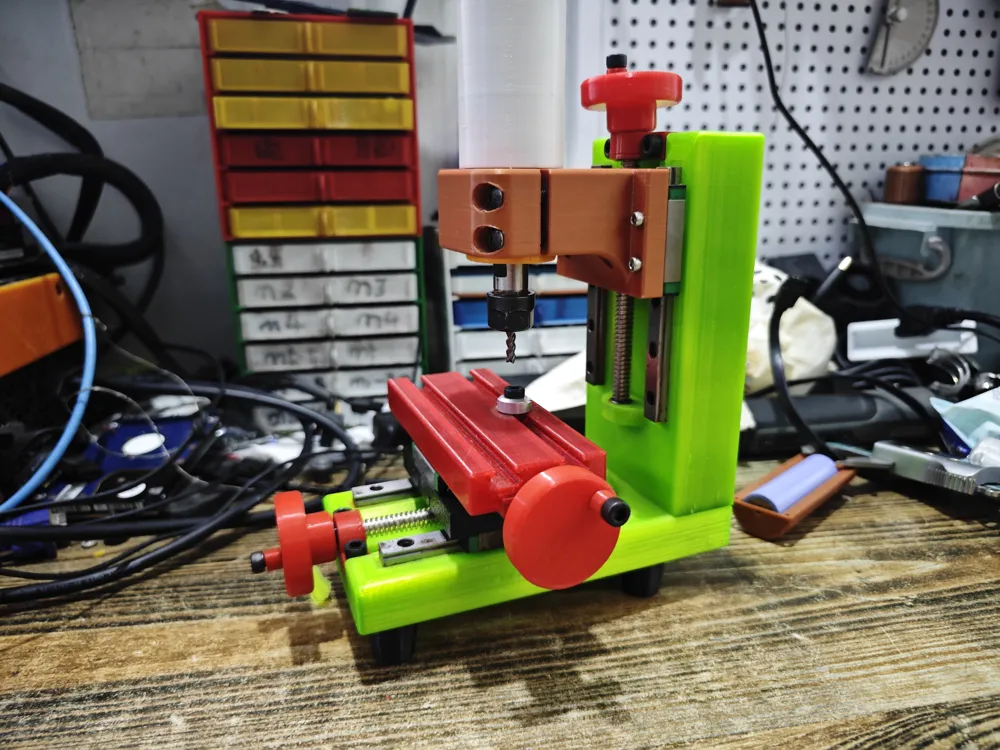

Desktop vertical milling machine
Print Profile(1)
Description
Screws
m3-6 50 pieces
m3-10 50 pieces
m5-12 20 pieces
m5-25-28 either is fine 2 pieces
m8-18 3 pieces
m4-6 grub screws 4 pieces
m5-5 grub screws 6 pieces
Linear rails 9mm rail with 40mm extended blocks 6 pieces
Bearings
mr106 bearings 6 pieces (inner diameter 6mm outer diameter 10mm) for lead screw
698z bearings 3 pieces (inner diameter 8mm outer diameter 19mm thickness 6mm) for spindle
t8 split nuts 3 pieces lead 2 (one needs to be ground down a bit on both ends, otherwise it won't fit)
t8 lead screw half meter lead 2
Cut the lead screw into three 125mm pieces
All three pieces need to be processed to have
one end with an outer diameter of 6mm and length of 2mm, and the other end with an outer diameter of 6mm and length of 22mm
One 550 DC brushed motor, with a bearing on the front end
er11 spindle, 8mm diameter, needs to be cut to 26mm in length
One plum coupling required outer diameter 14mm length 22mm, one end 8mm the other end 3mm, this 3mm end needs to be drilled with a 3.2mm drill bit because the motor shaft is 3.175mm

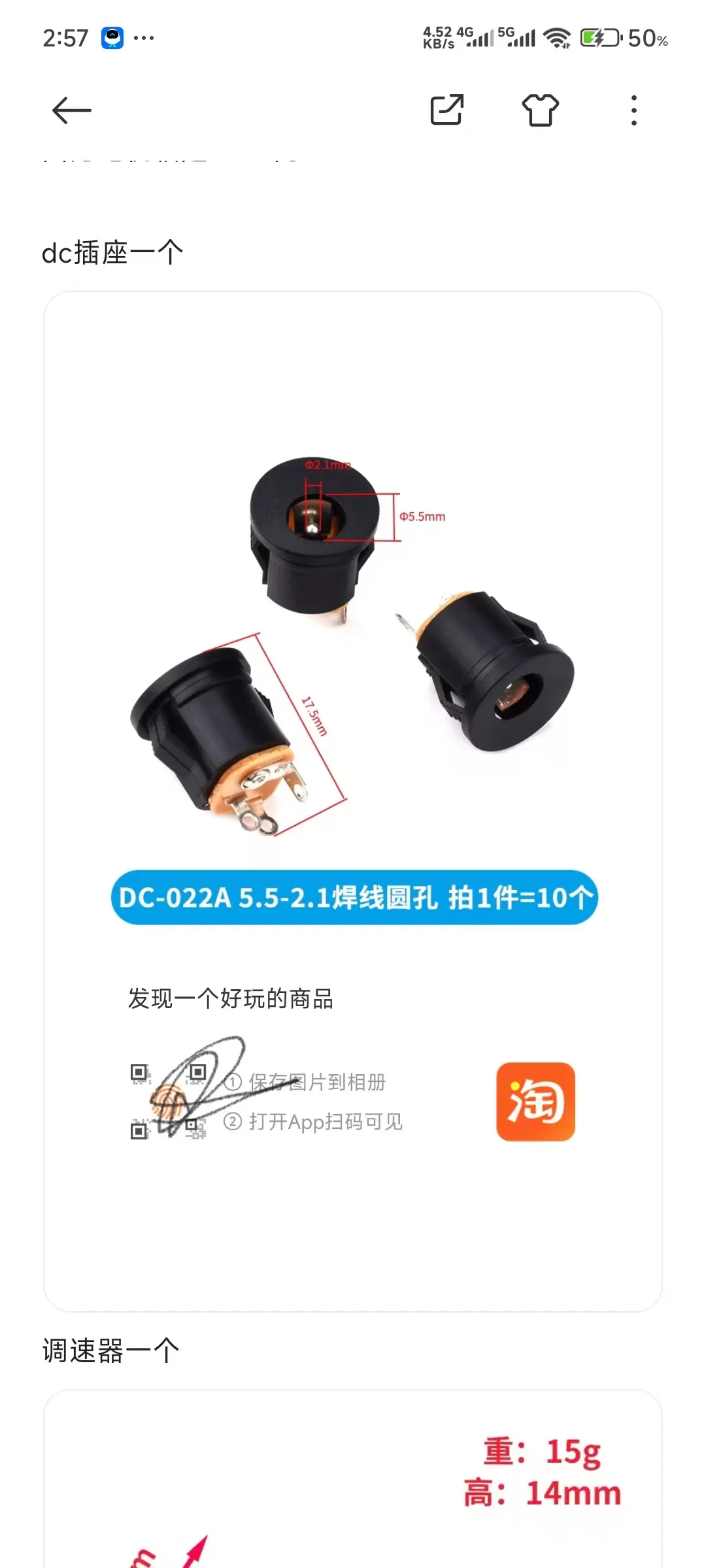

One DC socket

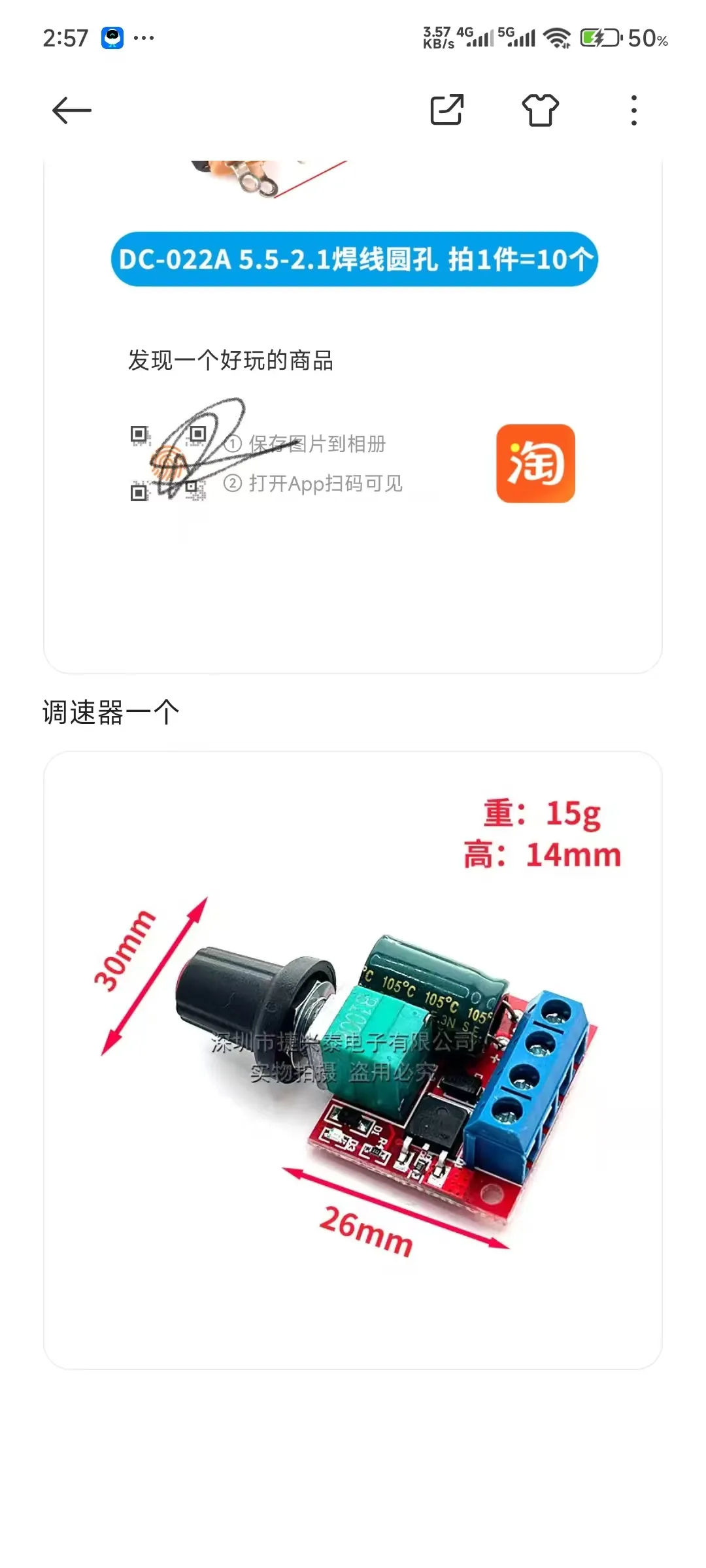

One speed controller
Bilibili Kid who loves DIY https://b23.tv/kthUS5a
