Small Project Box 100mm x 55mm x 30mm

Print Profile(1)

All
P1S
P1P
X1
X1E
H2D Pro
H2D
A1
X1 Carbon
A1 mini
H2S
P2S
H2C
X2D
A2L

0.2mm layer, 4 walls, 15% infill
0.2mm layer, 4 walls, 15% infill
Designer
1.4 h
1 plate
4.9(8)

Open in Bambu Studio
Boost
58
138
8
2
382
232
Released

Description

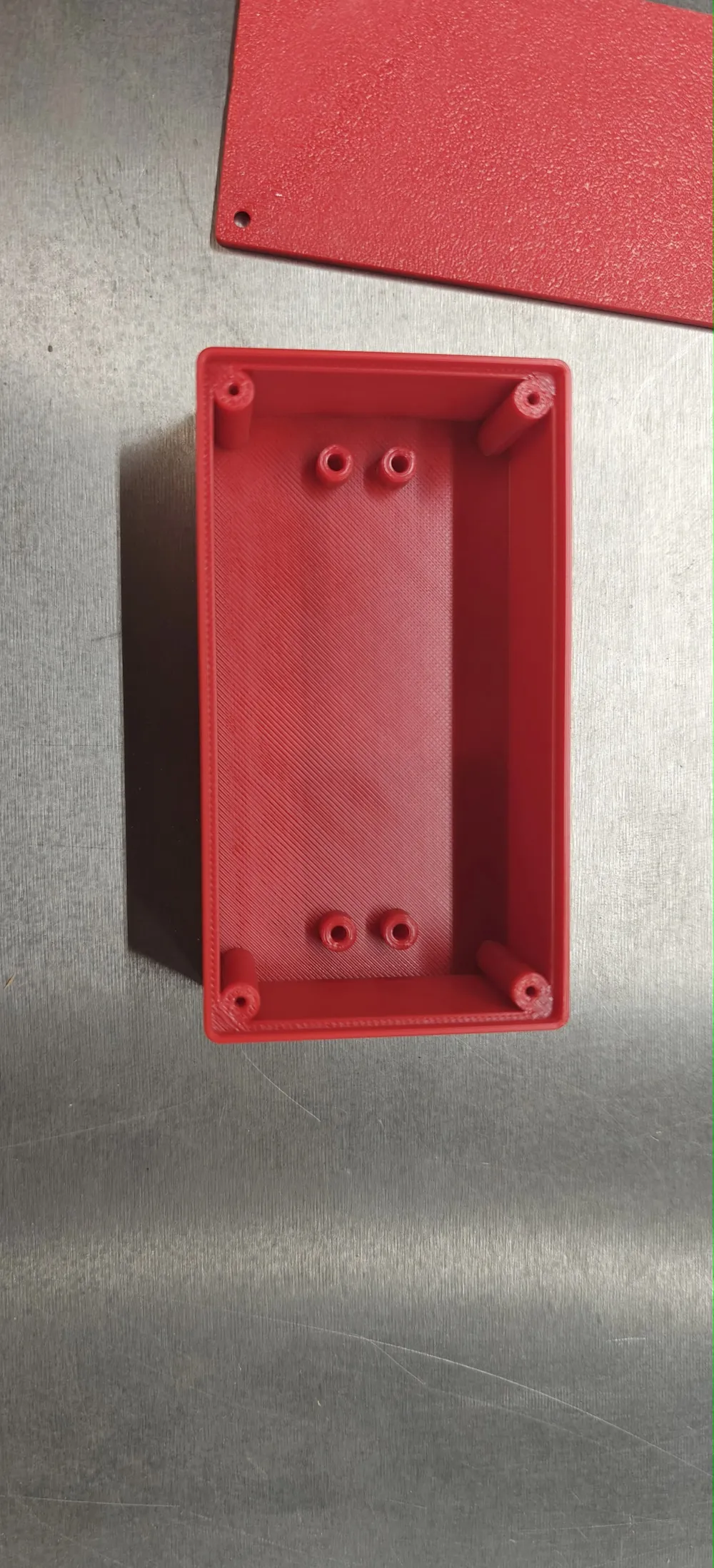

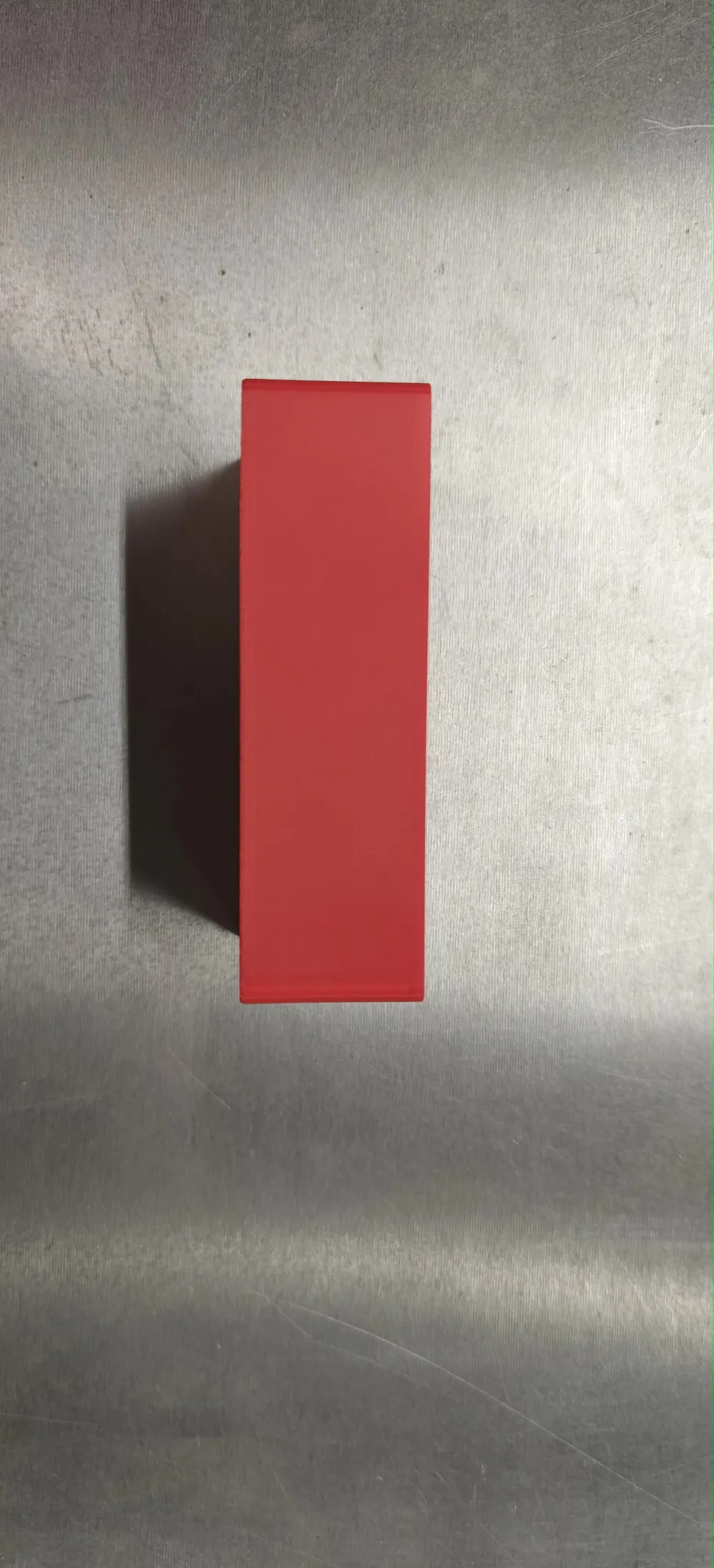

Here is a small project box for yours project needs, with external measurements of 100mm long, 55mm wide and 30mm deep (3 15/16" x 2 3/16" x 1 3/16") and 95mm x 50mm x 25mm (3 ¾" x 2" x1") internally. There are 4 mounting standoffs approximately 75mm  (3") x 10mm (3/8") and 6mm (¼") high.

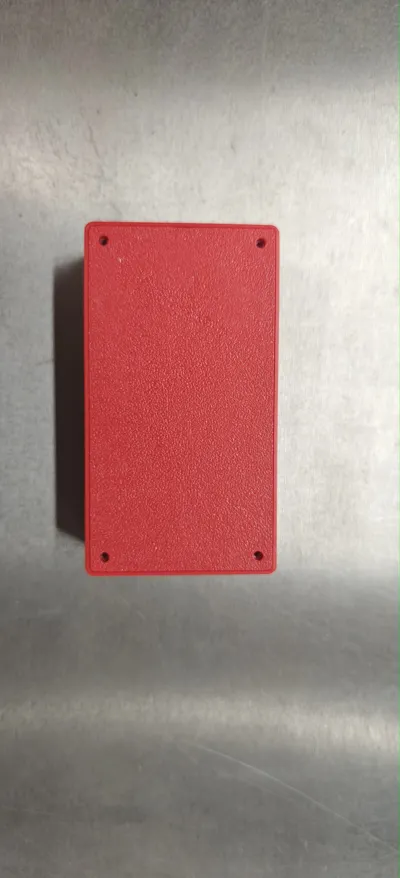

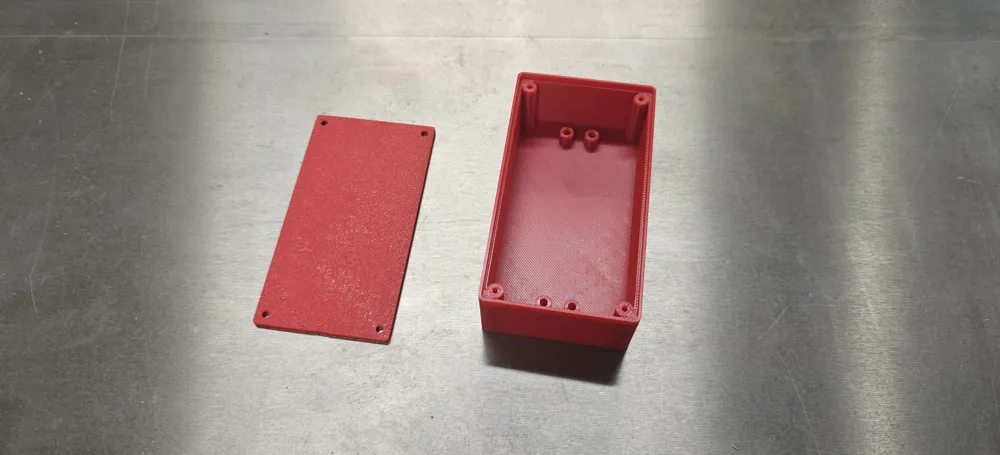

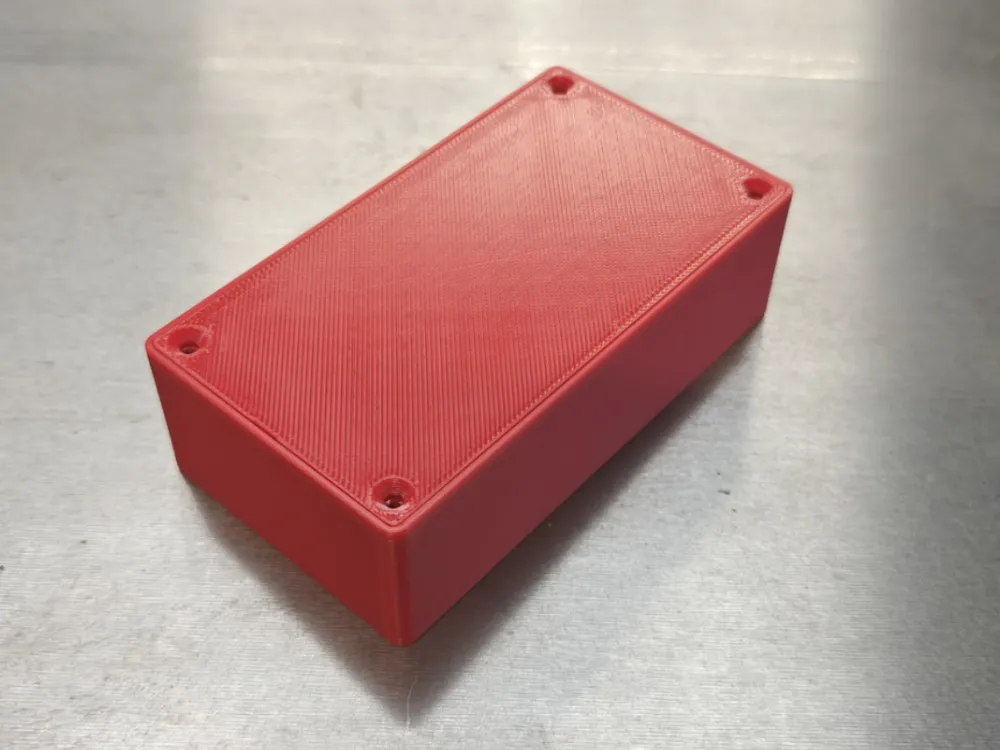

The model prints solid and has a lid with chamfered mounting holes.



You can drill holes where needed or add them in CAD.
