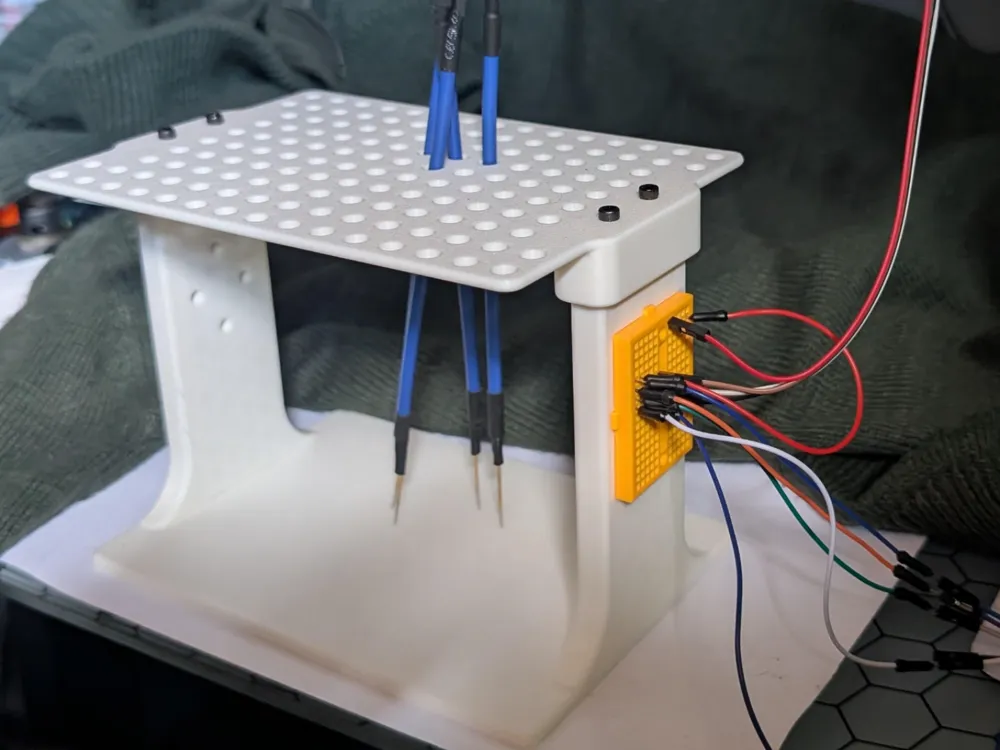

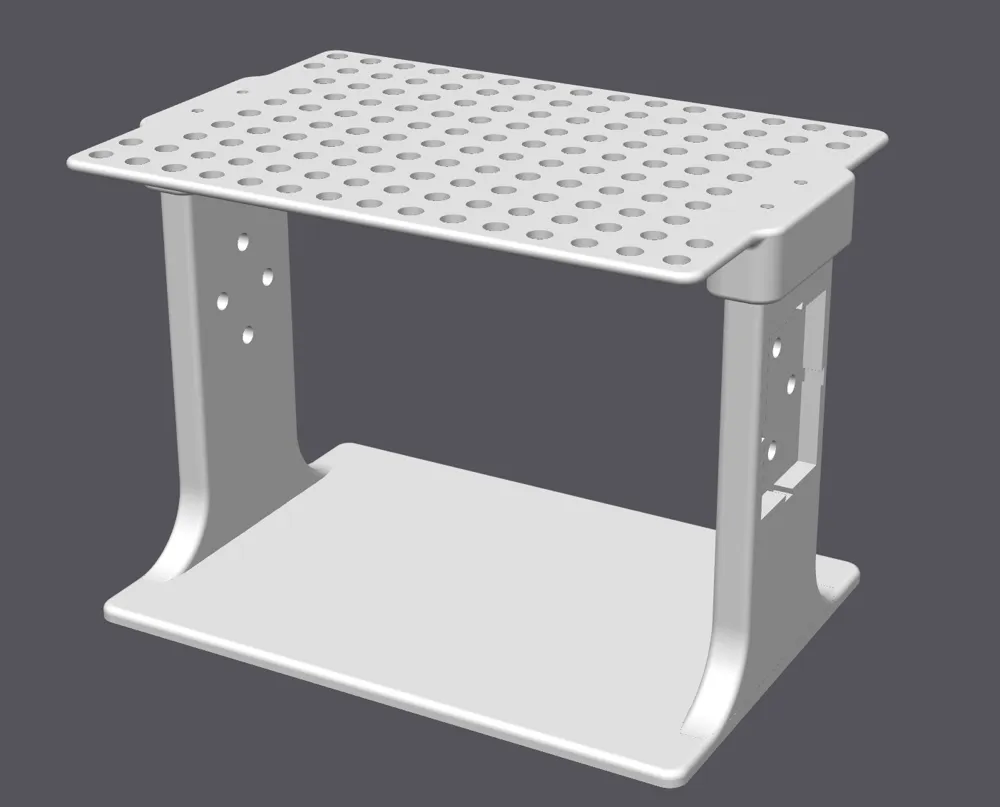

BDM Frame with Small Breadboard Integration
Print Profile(1)
Description
I needed a BDM frame to use to reprogram a circuit board but the existing models I found were really unstable and fiddly and didn't stay together, so I created my own!

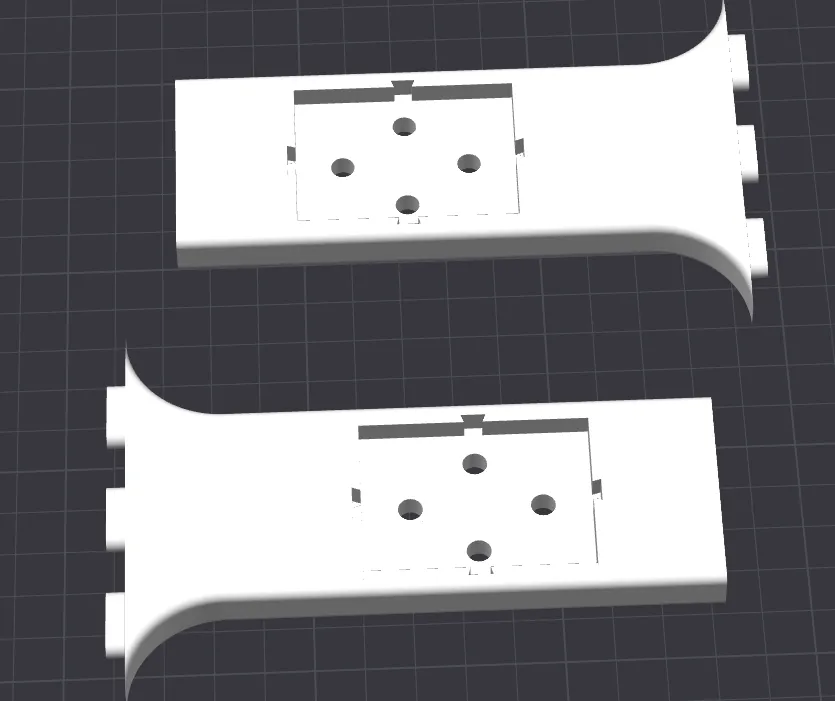

While I was at it I added a couple of spots for the standard little breadboards that I usually need to use with the hardware probes.

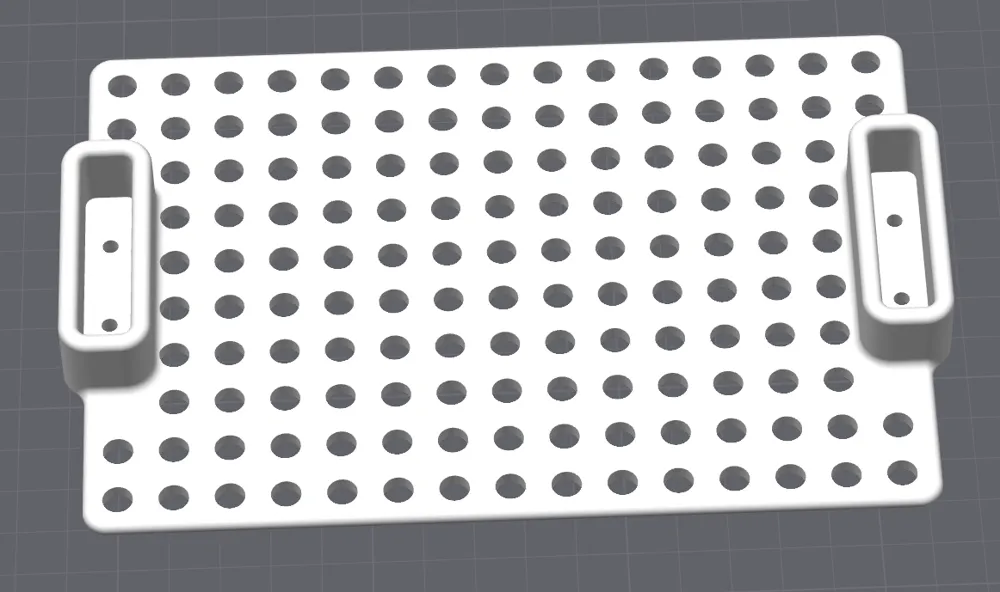

The probe holes are standard 6mm, so should work with standard off-the-shelf probes.
The top can be secured with M3 x 10 screws and you may consider gluing some sheet silicon on the bottom tray to prevent the circuit board you're working on from sliding as well as rubber feet or more sheet silicon on the bottom to keep the frame from sliding on your work surface.
