compact air conditioner 150mm hose feed-through
Print Profile(0)
Description

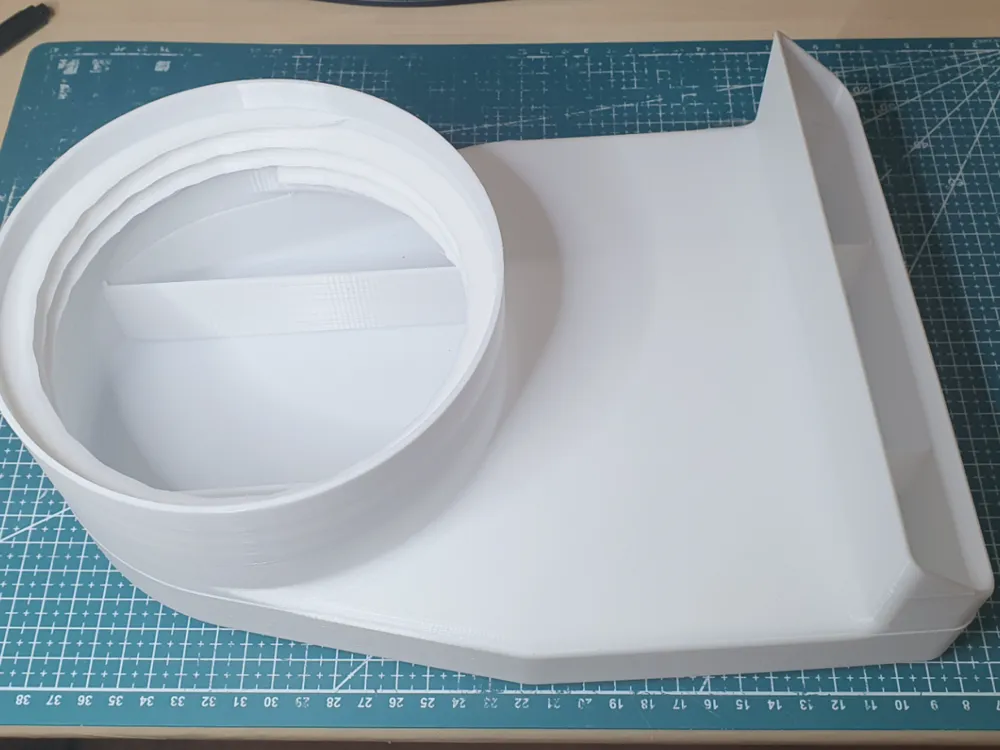

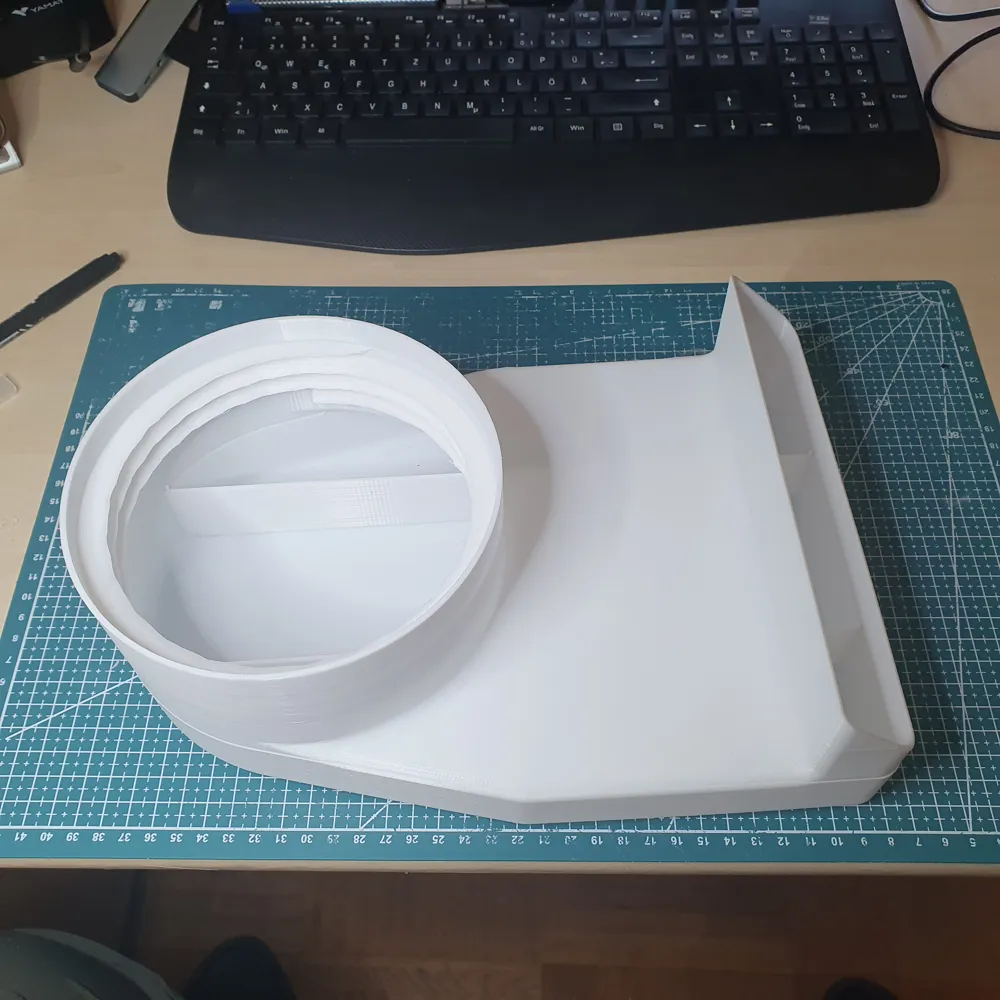

Since the first design was a bit 'clunky', here is the successor
With a height of approx 30mm, this fits well through the top of the tilted window

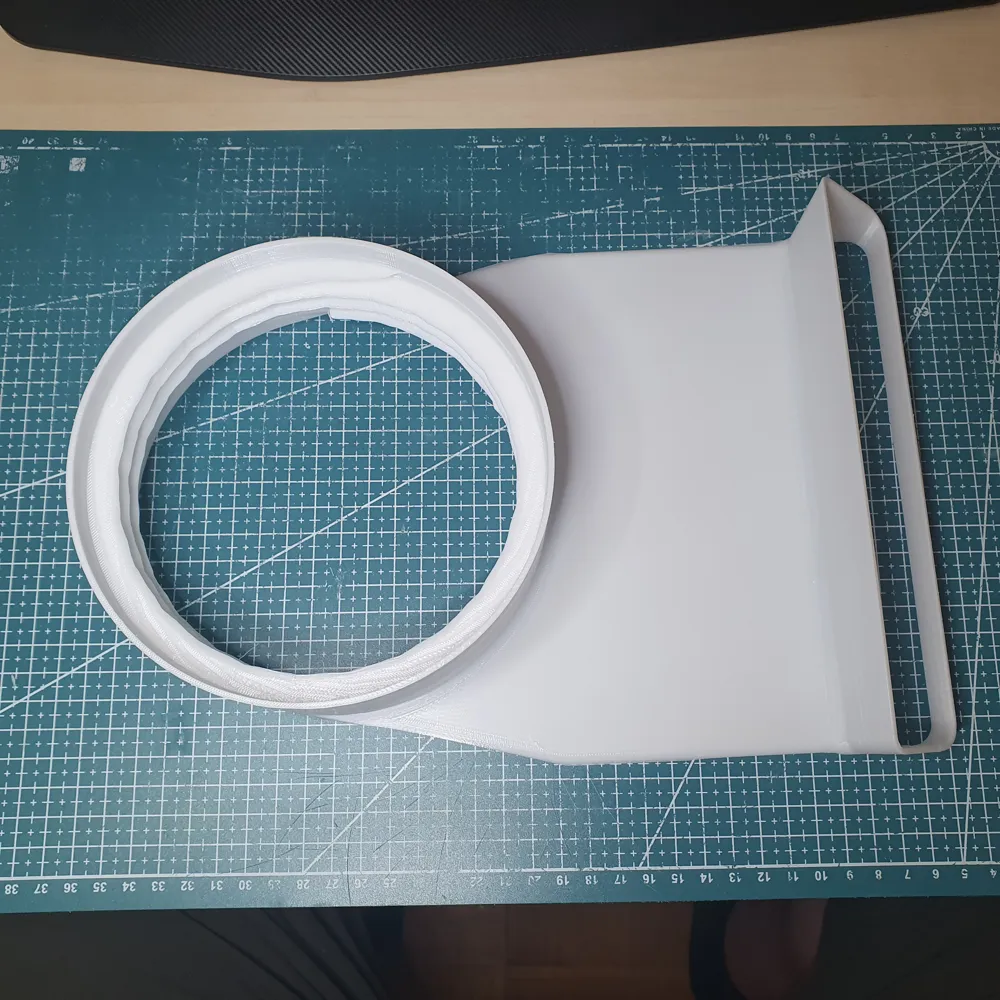

The width is slightly over 150mm and a 150mm exhaust hose fits on it
(Note: for hose with 'left-hand spiral winding", thus left-hand thread)

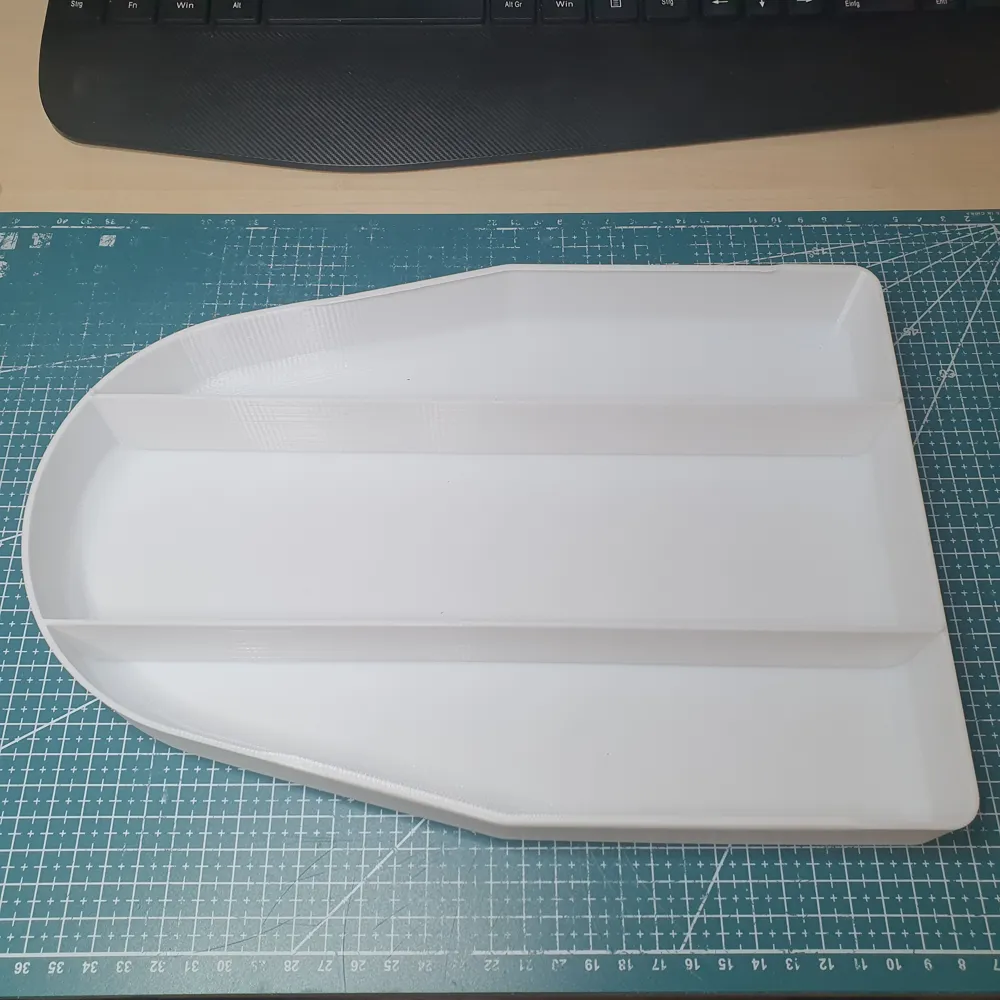

In the photos, the model is split, thus printable without supports
As desired, when cutting, connectors can also be added to the cut contour

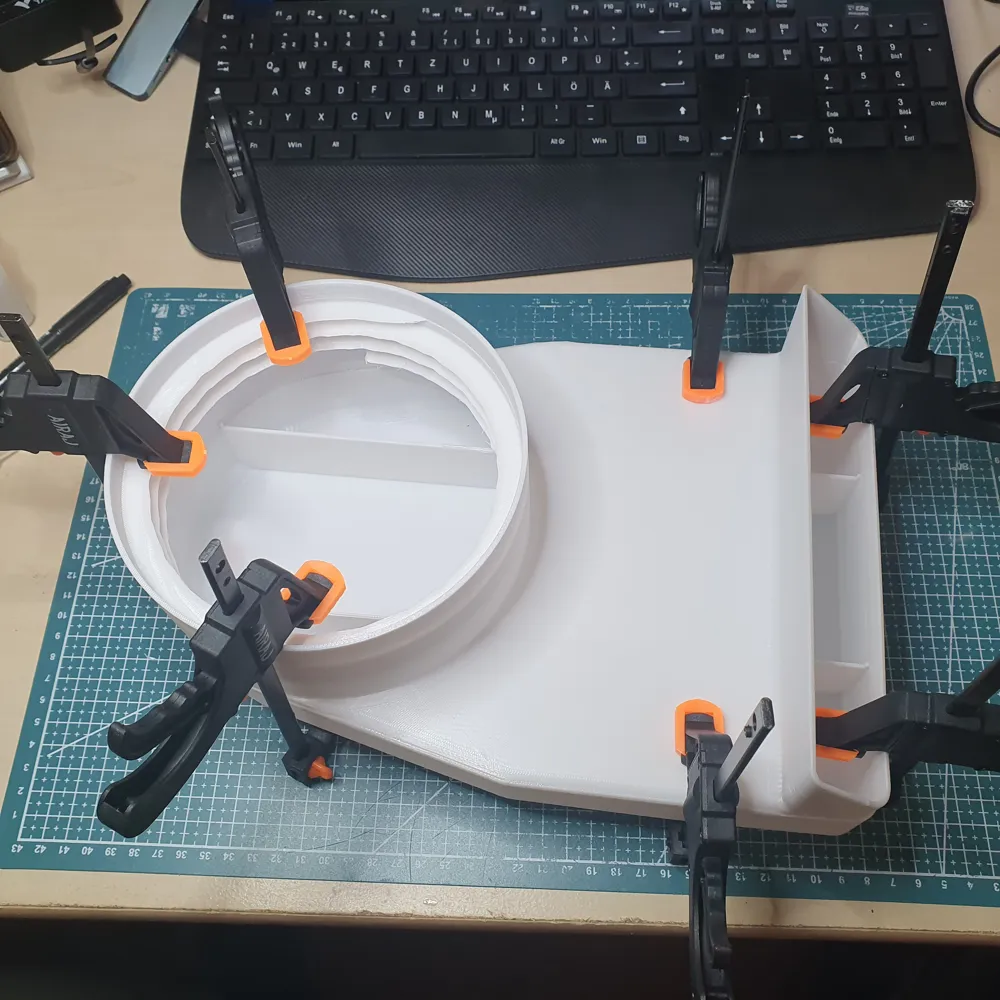

(Apply glue also on the two webs in the middle third for better stability)
I used PETG as material because the exhaust air from the mobile air conditioner is already quite warm
