Rod Holder / Rest

Technical Description: V-shaped Rod Holders (Rests)

Purpose

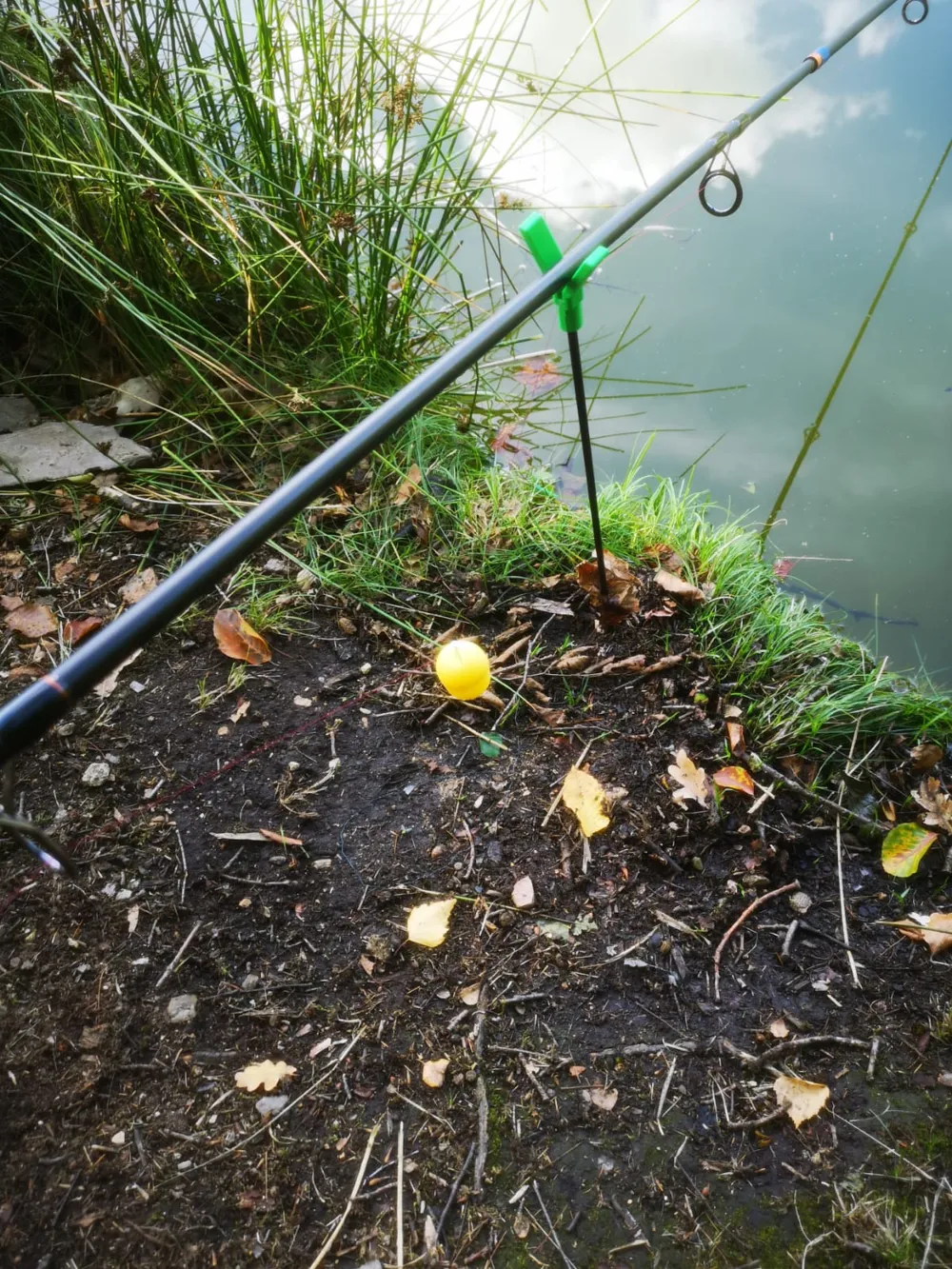

• Spare parts for rod holders in fishing

Design Features

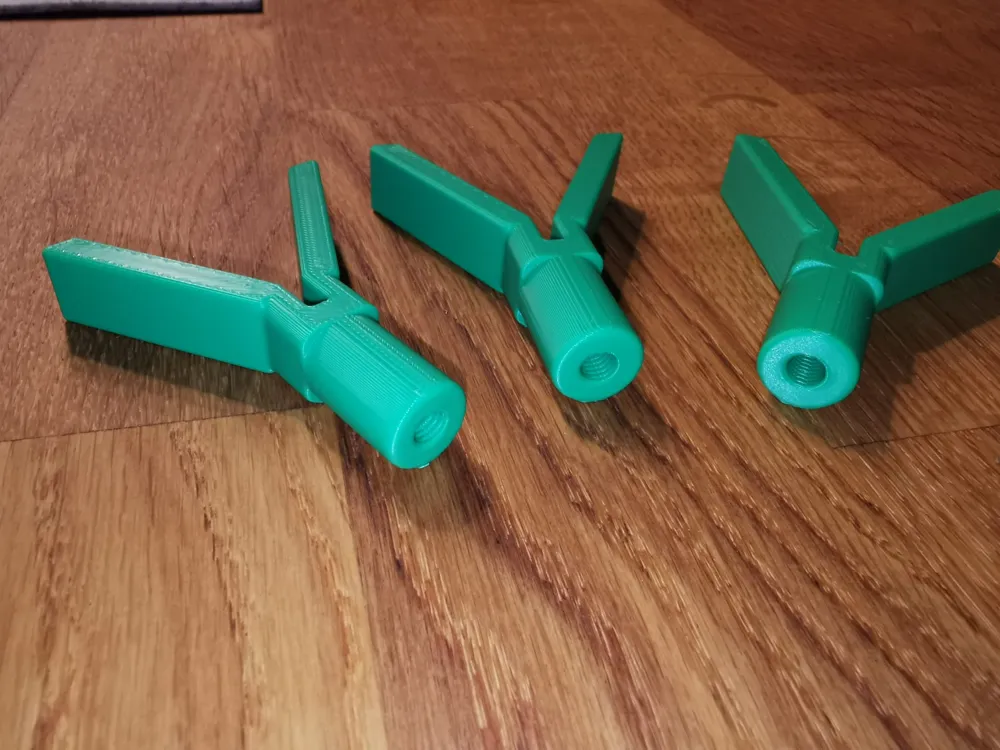

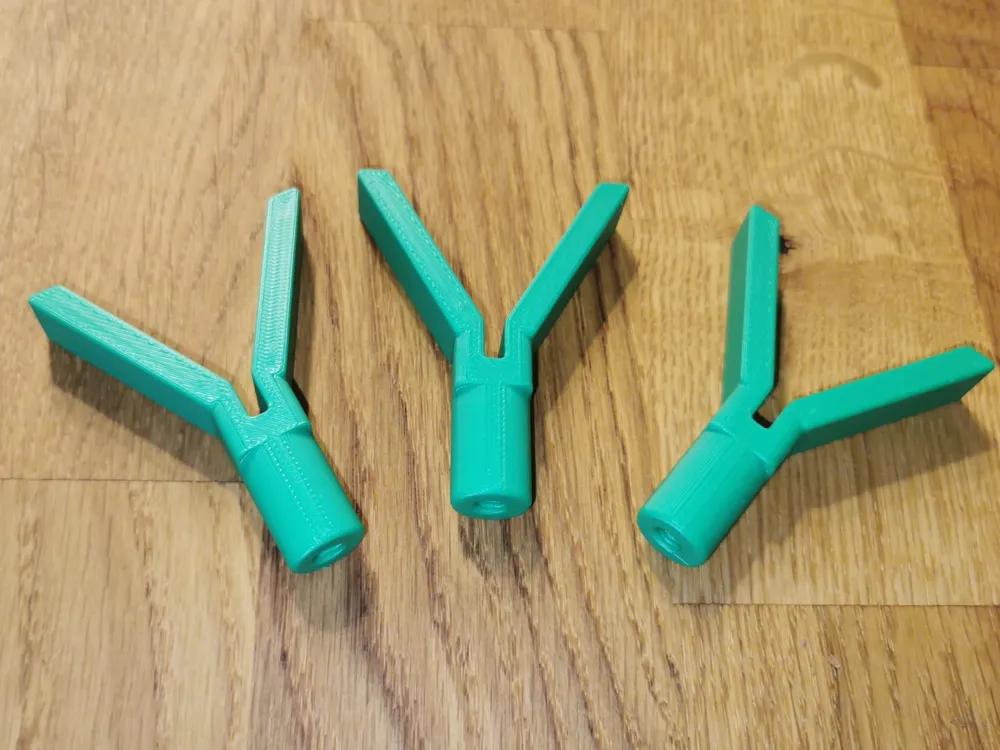

• Geometry: V-shaped holder with two guiding surfaces for holding the rod
• Internal Thread: M6x1 (ISO thread) for attachment to compatible holders or mounting systems
• Line Guide: Integrated slot for guiding the fishing line
• Material Recommendation: Suitable for 3D printing (PLA, PETG, ABS or similar depending on operating conditions)
• Surfaces: Smooth interior surfaces for gentle guiding of the rod tip; rounded edges to prevent damage

Dimensions (Example, depending on variant)

• Can be adjusted in the slicer using the Scale function.

Manufacturing and Quality Features

• Print Resolution: 0.2 mm recommended
• Infill: 20–40% (depending on load)
• Wall Thickness: 6 wall lines
• Post-processing: Removal of support structures if necessary; edge sanding optional

Functions and Advantages

• Spare Part: Replacement for defective or lost rod holders
• Standardized Attachment: M6x1 internal thread allows easy mounting on compatible spars, rails or holders
• Line Guide: Slot reduces line wear and prevents slipping
• Lightweight: Advantageous for carrying capacity and handling when fishing

Operating and Maintenance Instructions

• Regularly check the attachment and internal thread for wear
• If worn, re-cut the thread or use a tap

Notes

• Dimensions, material, filament requirements may vary depending on the raw part variant
• Adjust the design if necessary to existing holders and thread tolerances

Note: If you provide me with the specific dimensions of your mounting situation, I will adjust the model accordingly.
