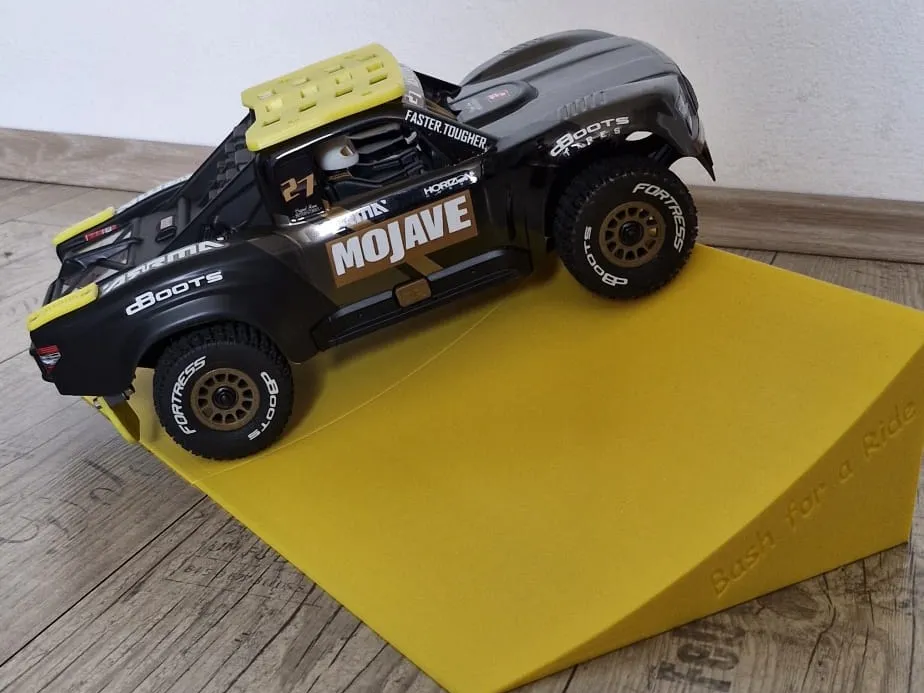

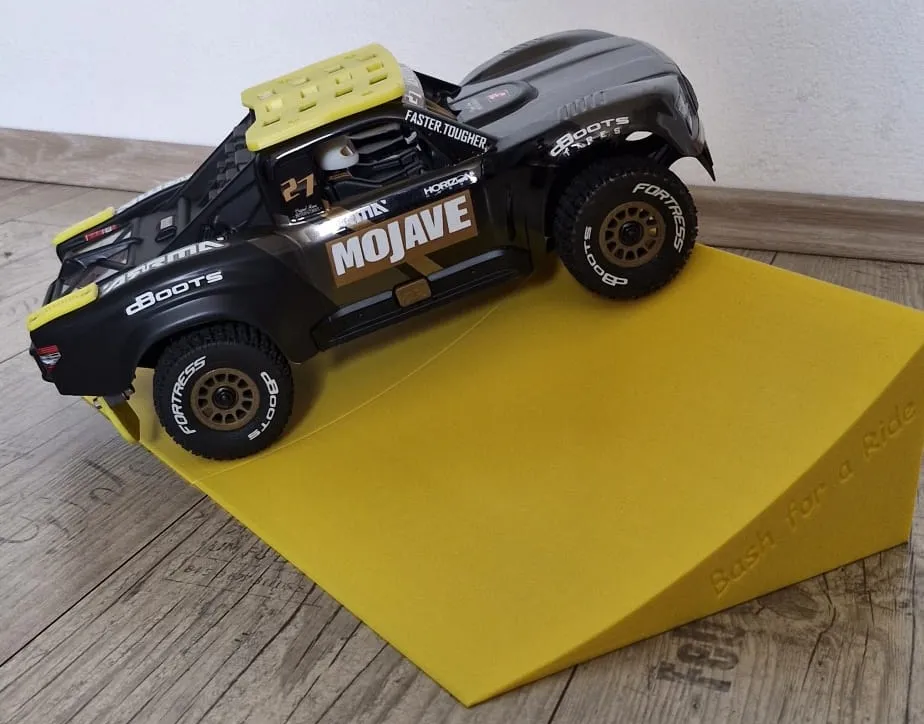

RC Ramp for small Cars

Hello fellow makers

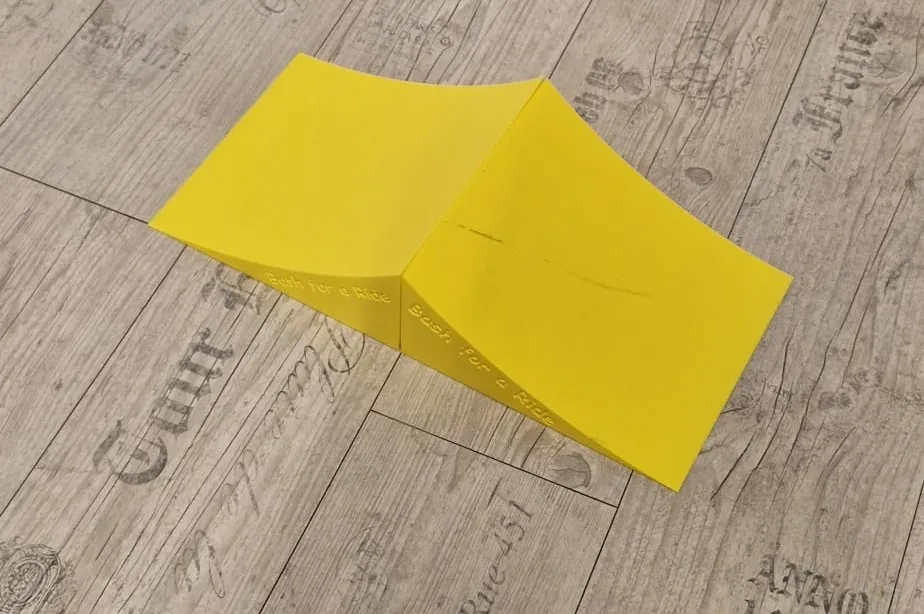

Based on an idea from SnipinSnit, I've created a way to make a Duopipe or Quadpipe

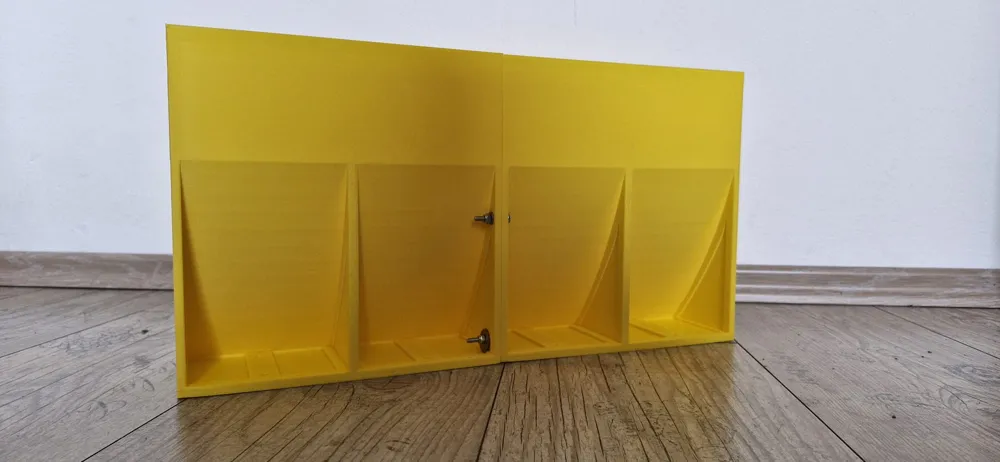

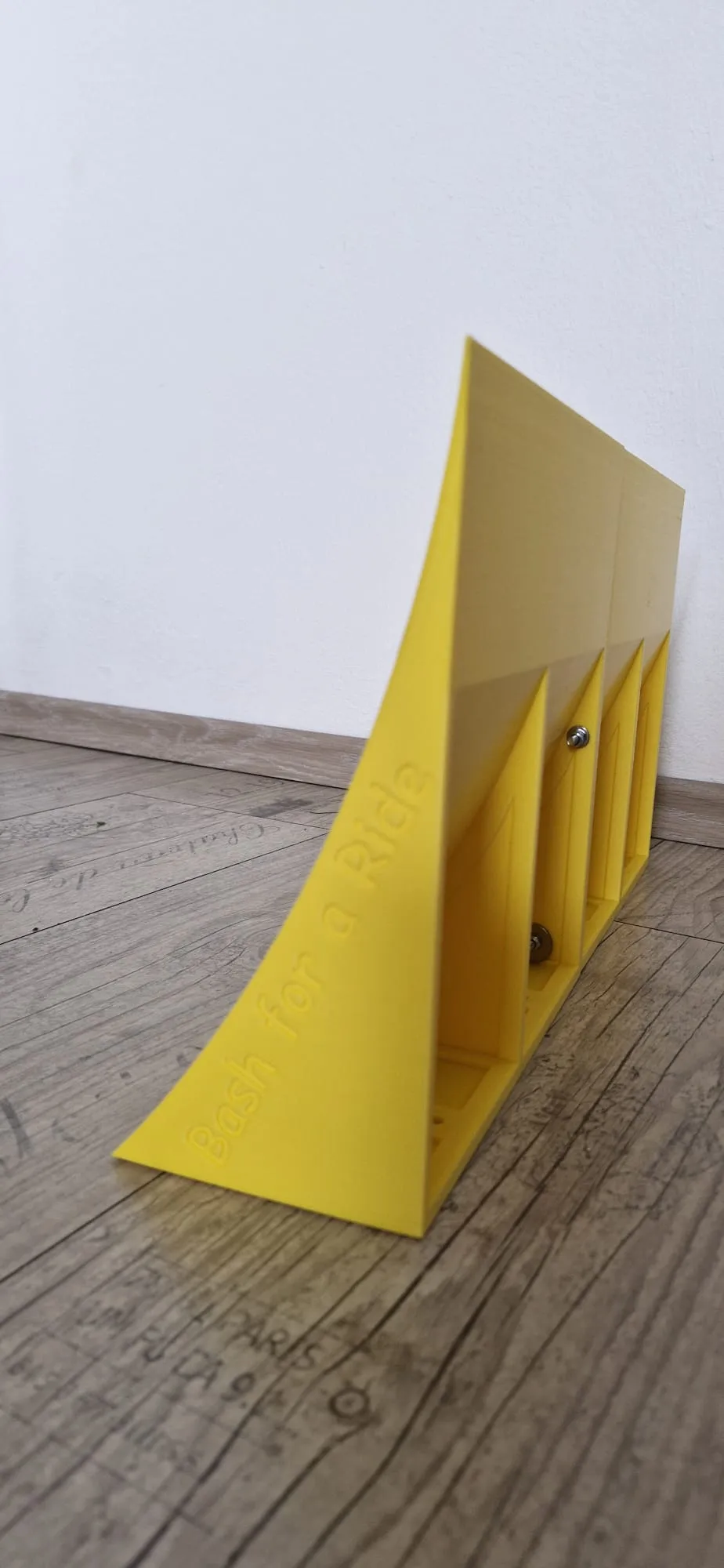

The pipes consist of 1 to a maximum of 4 parts that can be extended to create a wide or double pipe

Fully screwable with minimum M5x16 screws, preferably with an Allen head

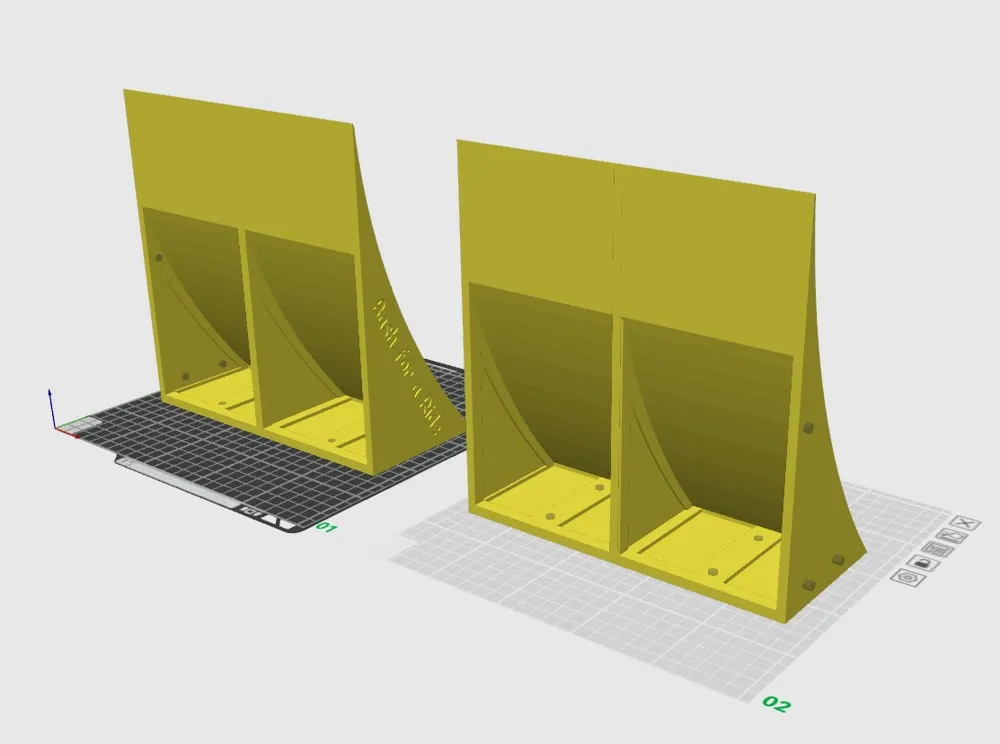

The model requires no supports

I printed it with a layer height of 0.28 using a 0.4mm nozzle, consumption was about 345g and it took about 6.5 hours per pipe

The material doesn't matter here, whether it's PLA, PLA+ or PETG for example

So, finally... out into the green and let's go bashing

Regards Labelius
