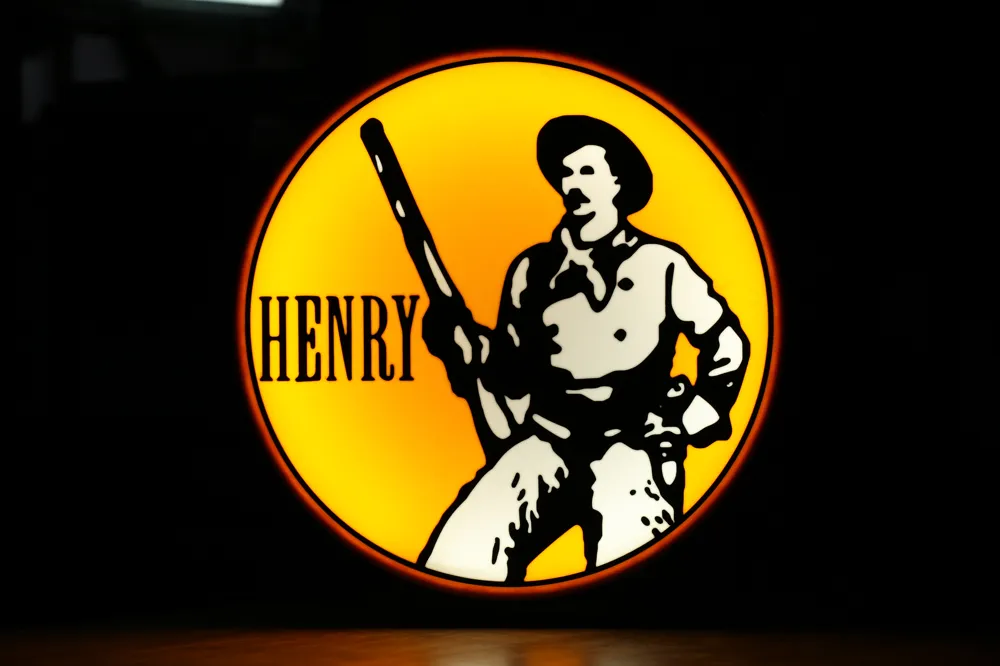

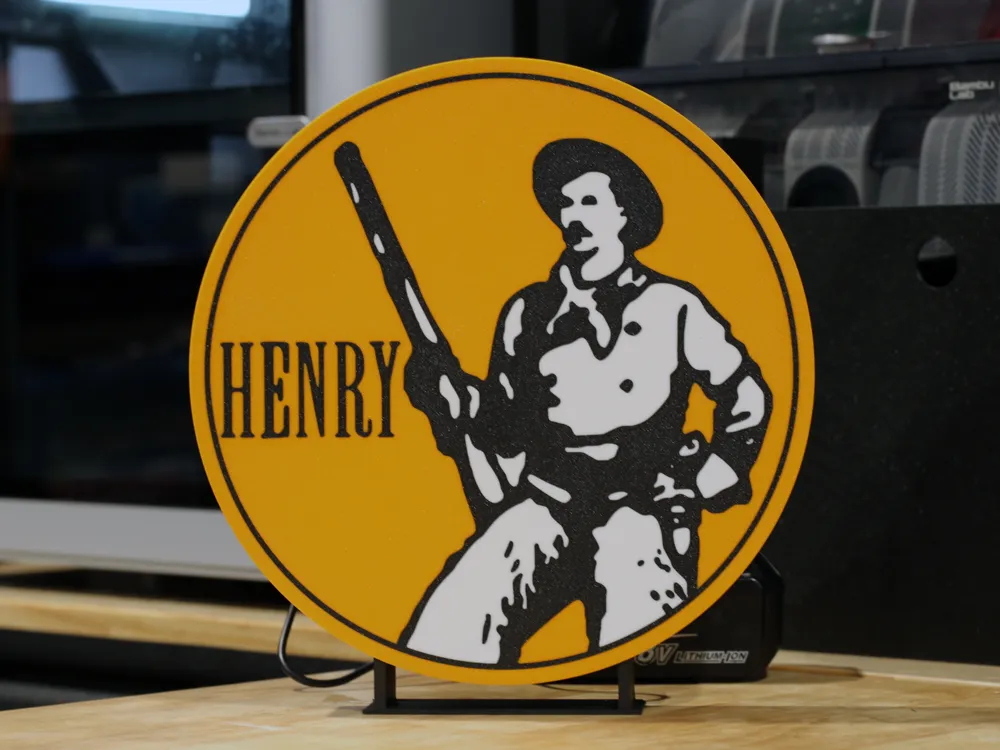

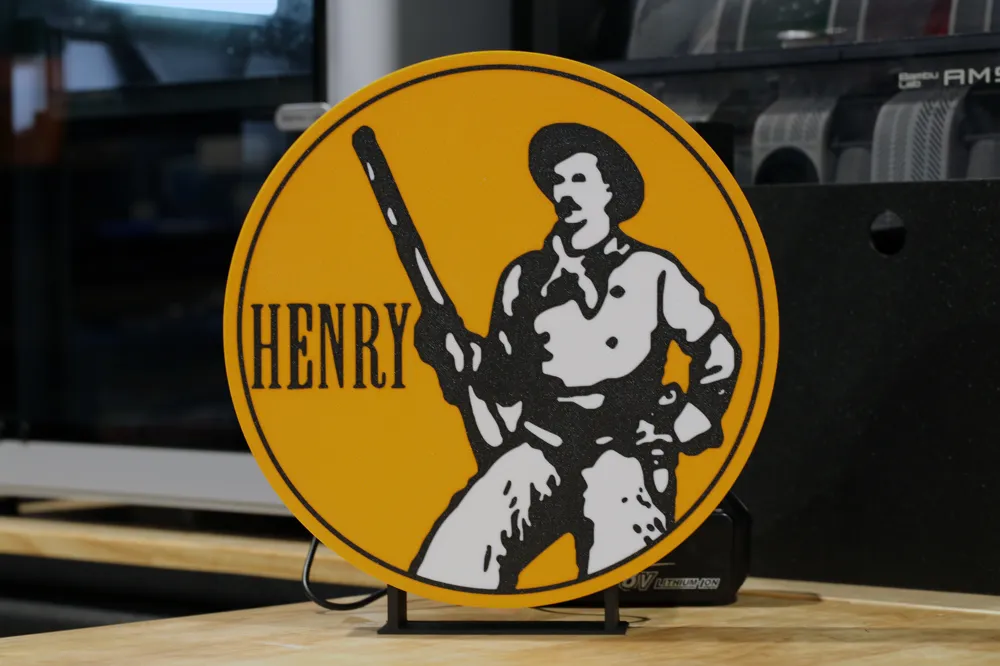

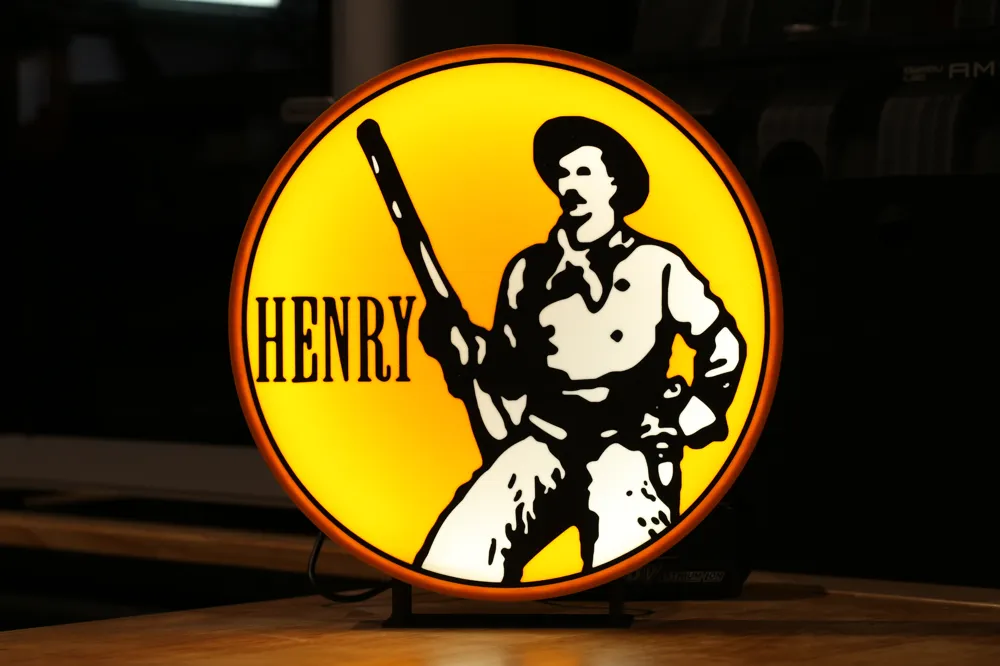

Modelled after the Henry Repeating Arms logo, this LED light box is a bold tribute to the legendary American firearms manufacturer. Known for their lever-action rifles and classic designs, Henry is a favourite among hunters, sport shooters, and collectors—this light box captures that heritage with a clean, illuminated display.
The faceplate and back plate joiners are optimised for a clean glue-in fit—no sanding or forcing required. Inside, the layout is designed for easy LED strip wiring and smooth, even backlighting.
The rear plate is 2mm thick for added durability, and the interior surface is white to improve light reflection. If you'd prefer not to use multi-colour printing for the backplate, highlight it in Bambu Studio, press “N” to enter painting mode, and select ‘Erase All Painting’.
Details:
- Modelled after the Henry Repeating Arms logo
- Negative channel for LED light strip
- Internal structure optimised for easy wiring
- Stronger 2mm rear backplate
- White internal surface for better light diffusion
- Optimised X1C profile with minimal pinholes between filament joins
October 2025 Update

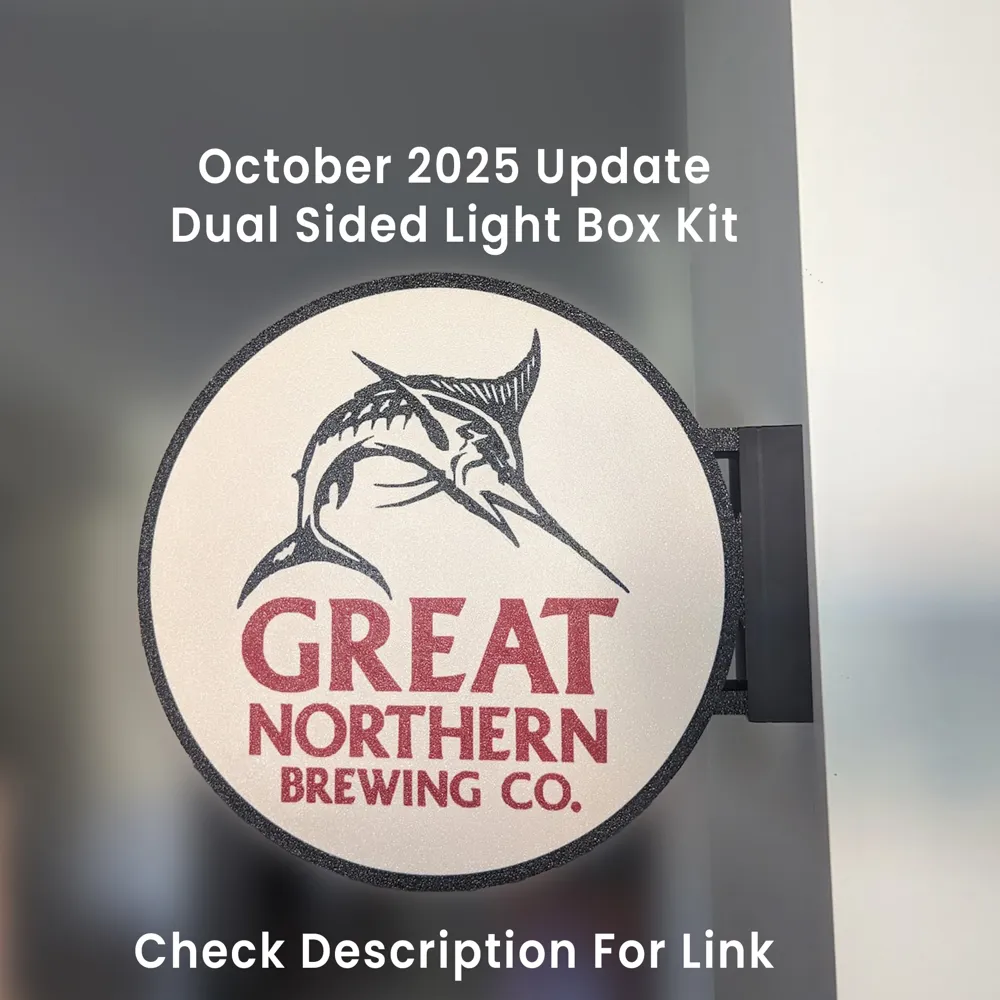

• A new Dual-Sided Light Box Bracket & Holder is now available!
• Mount your round light boxes to the wall and swap designs in seconds.
• Check it out here: https://makerworld.com/en/models/1936933-dual-double-sided-light-box-bracket-holder
Design Notes
All files are uploaded exactly as printed unless specified otherwise in project description (normally under a bold, red IMPORTANT). Some designs use different scaling (e.g. drinks lightbox series: front plate 90%, back plate 100%). If resizing, double-check your scale before printing.
All designs are created in Autodesk Fusion. Colours are separated in the Objects tab of Bambu Studio, so you can easily recolour if needed (e.g. single AMS setups).
