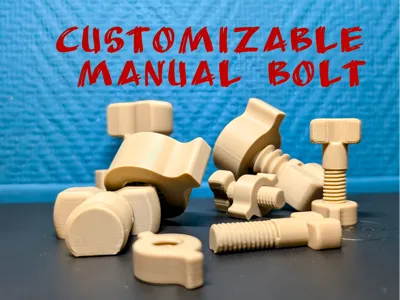

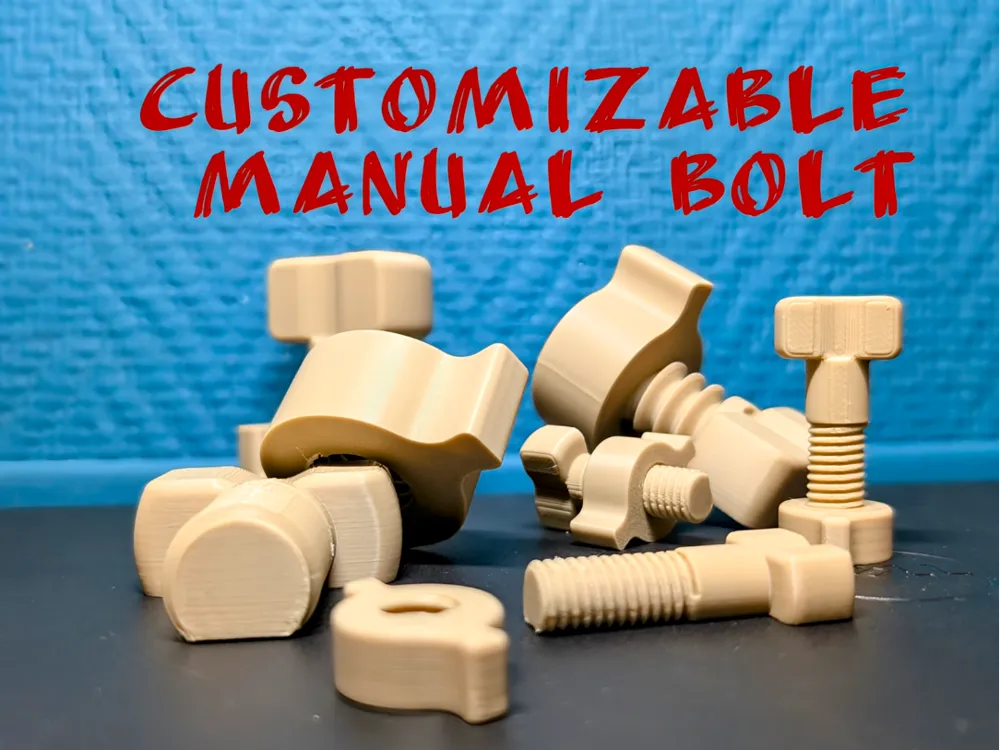

Customizable manual screws and nuts

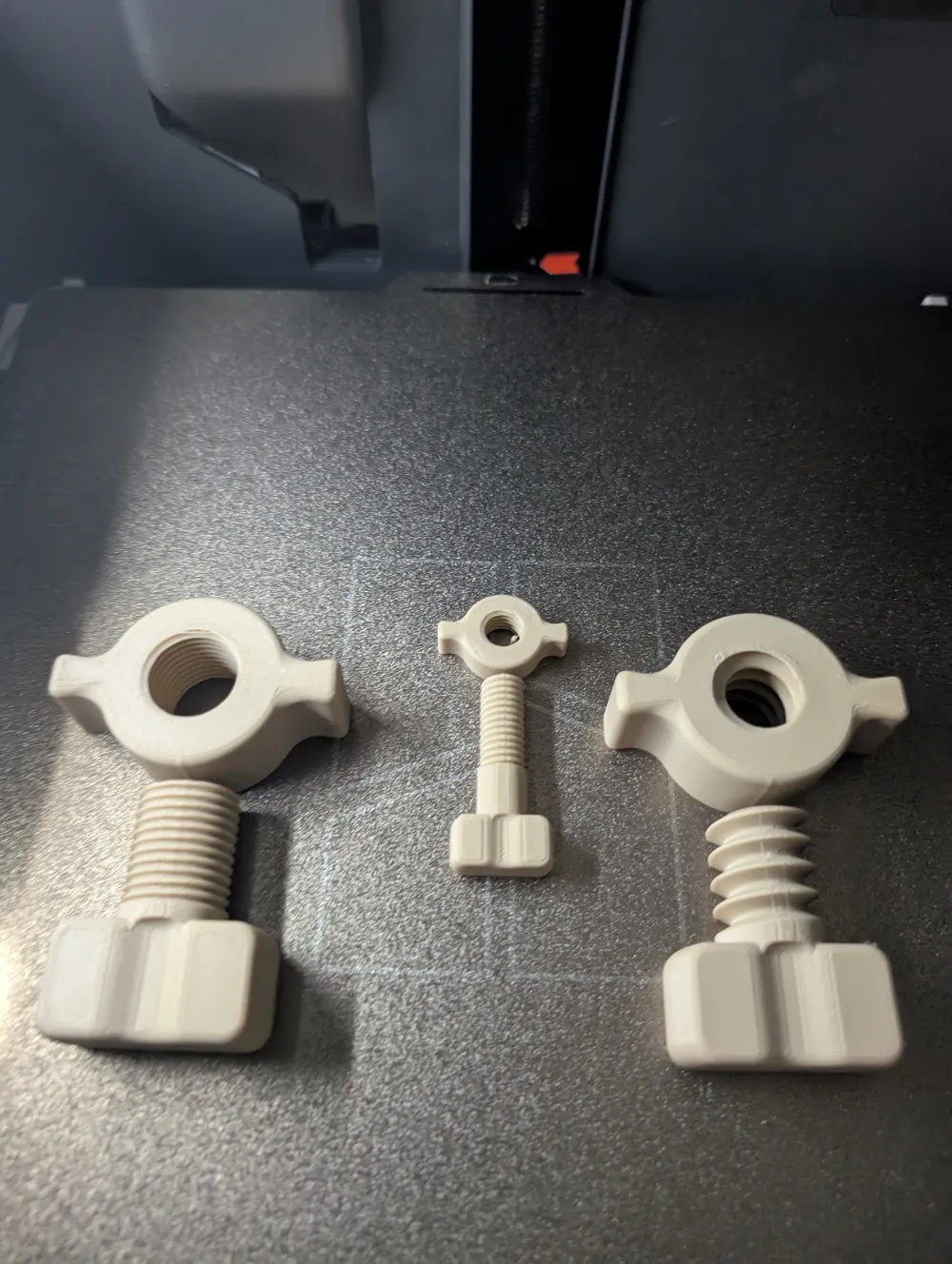

Here is customizable manual bolt for your projects that need fixing elements.

These screw are strong and well adjusted.

Customization as per following settings :

• Diameter of the screw and nut

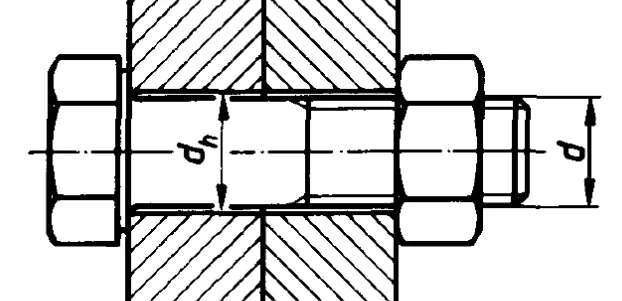

  The diameter you want, be careful, your passage hole must be slightly larger.

  For exemple : diameter of screw 10 mm, your passage hole must be 10.1 mm





• Pitch of the screw and nut

  Pitch is the distance between a screw's threads. The pitch should not be too much in relation to the diameter.

  For exemple : Don't do a screw diameter 5 mm with pitch of 20 !

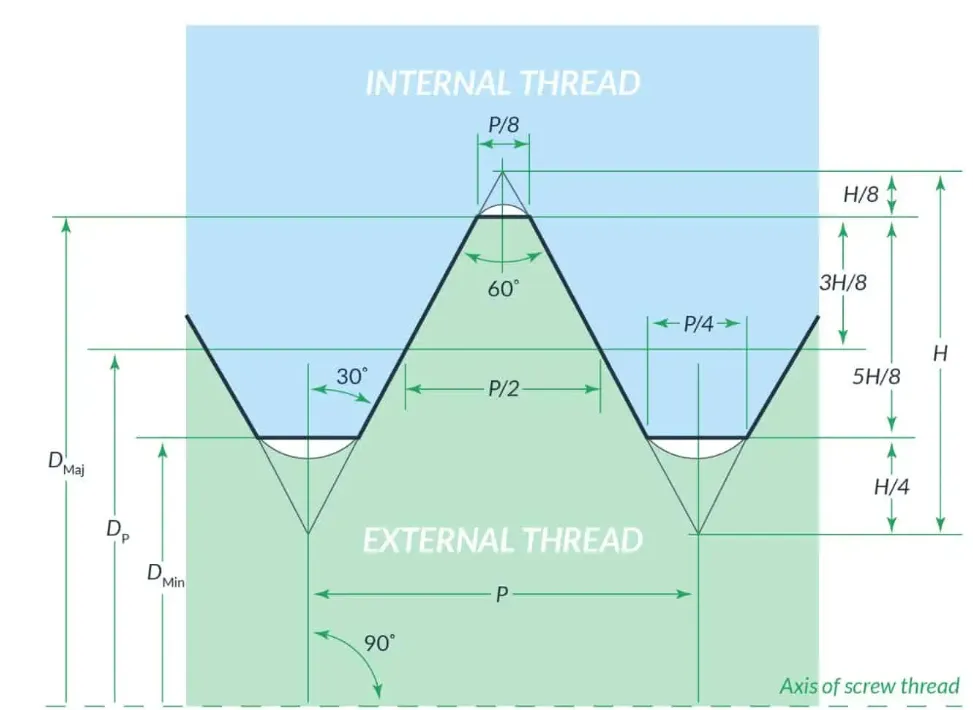

  Dimensions are in accordance of following picture :





• Total screw lenght

  The lenght of the screw under the head.



• Thread lenght of the screw

  The lenght of the screw thread, this lenght must be smaller than total lenght



• Nut lenght

  The lenght of the nut, totally threaded, you can put what you want, I recommend at least 0.8 times the diameter.

•

Star knob version here :

https://makerworld.com/en/models/1838550-customizable-star-knob#profileId-1965215
