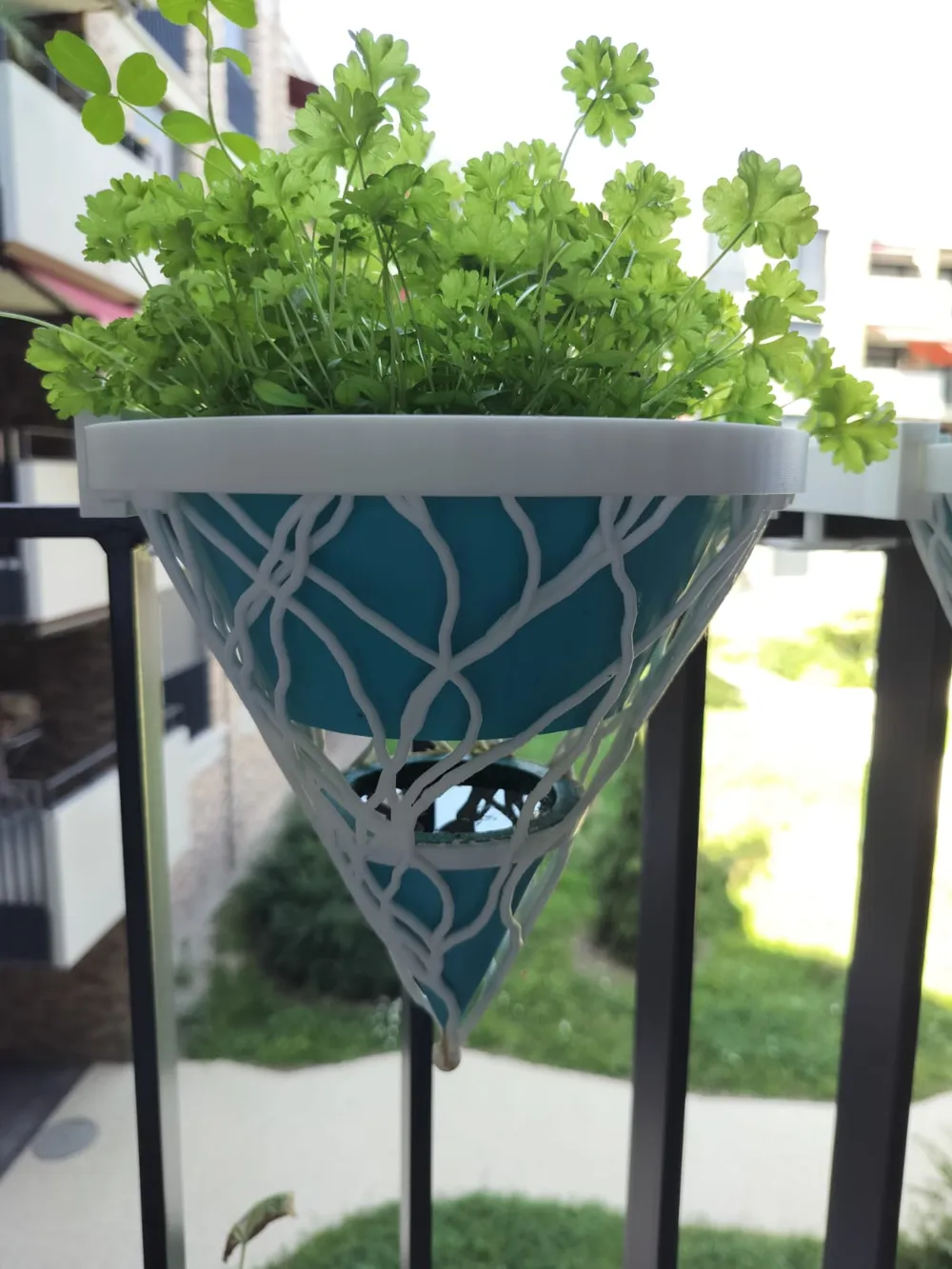

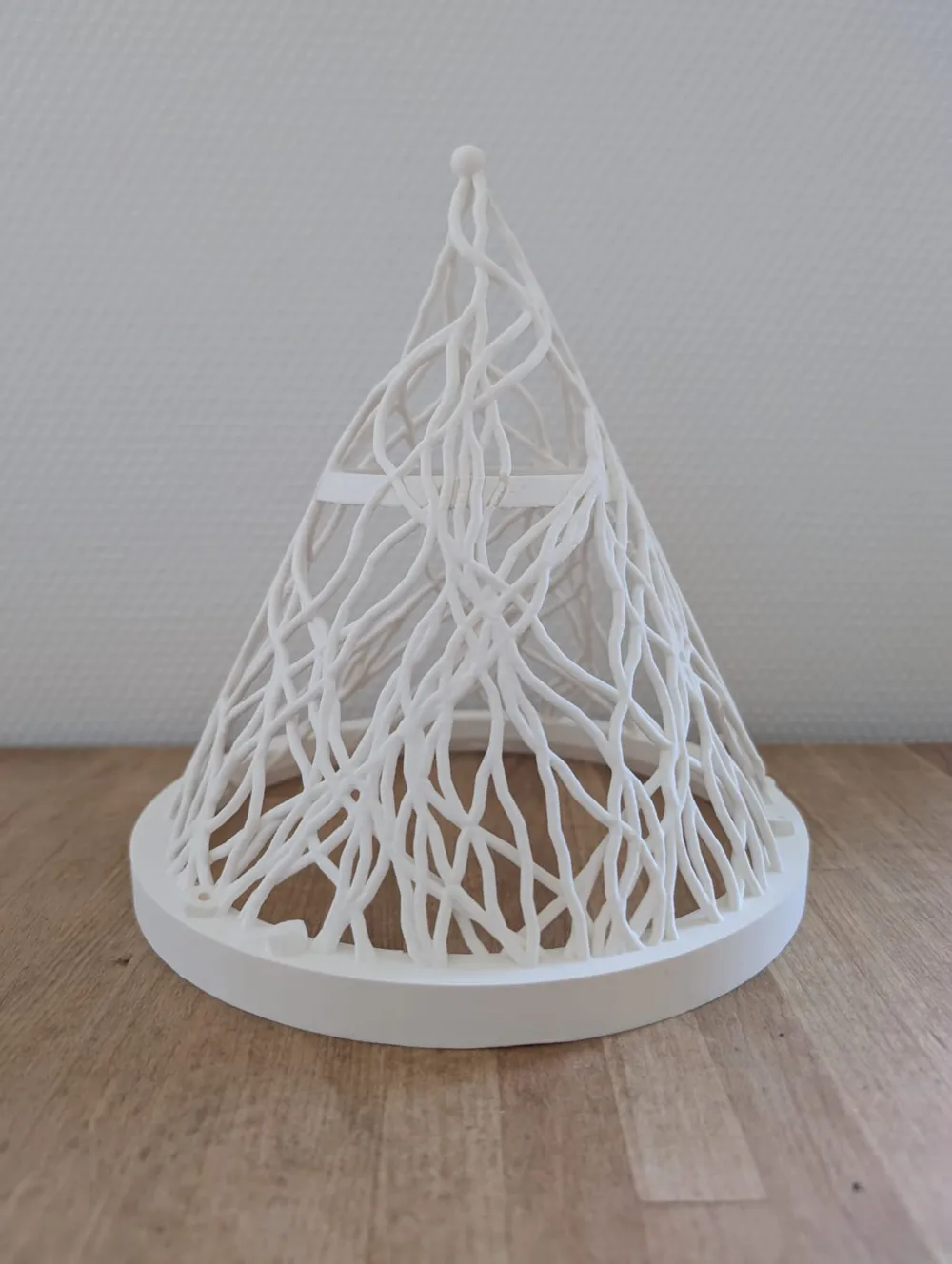

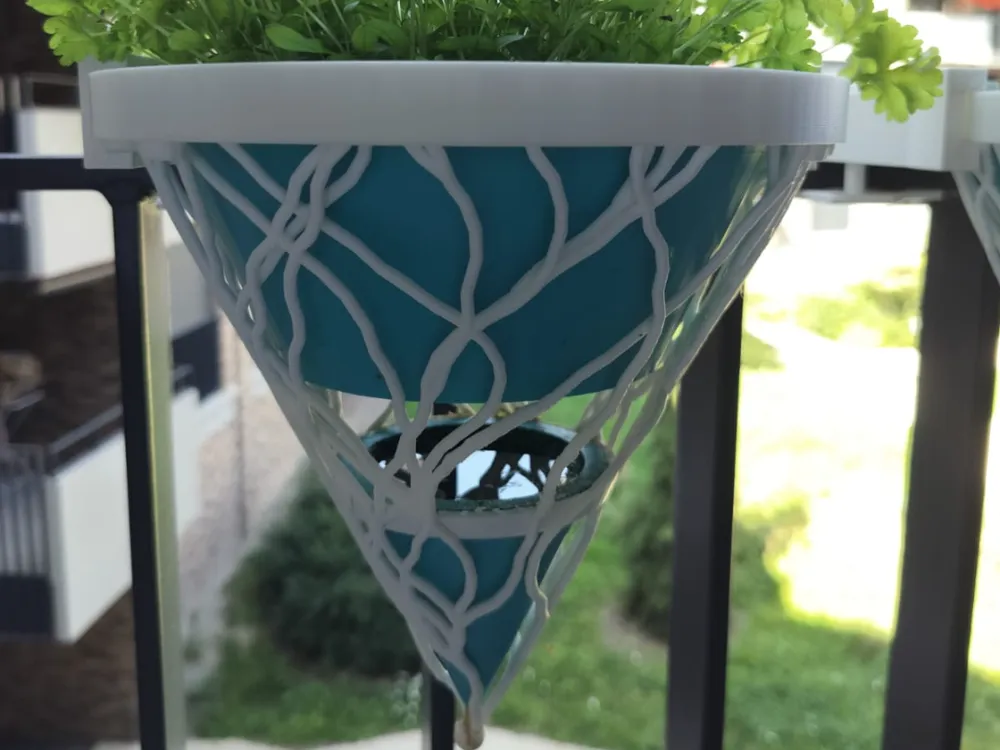

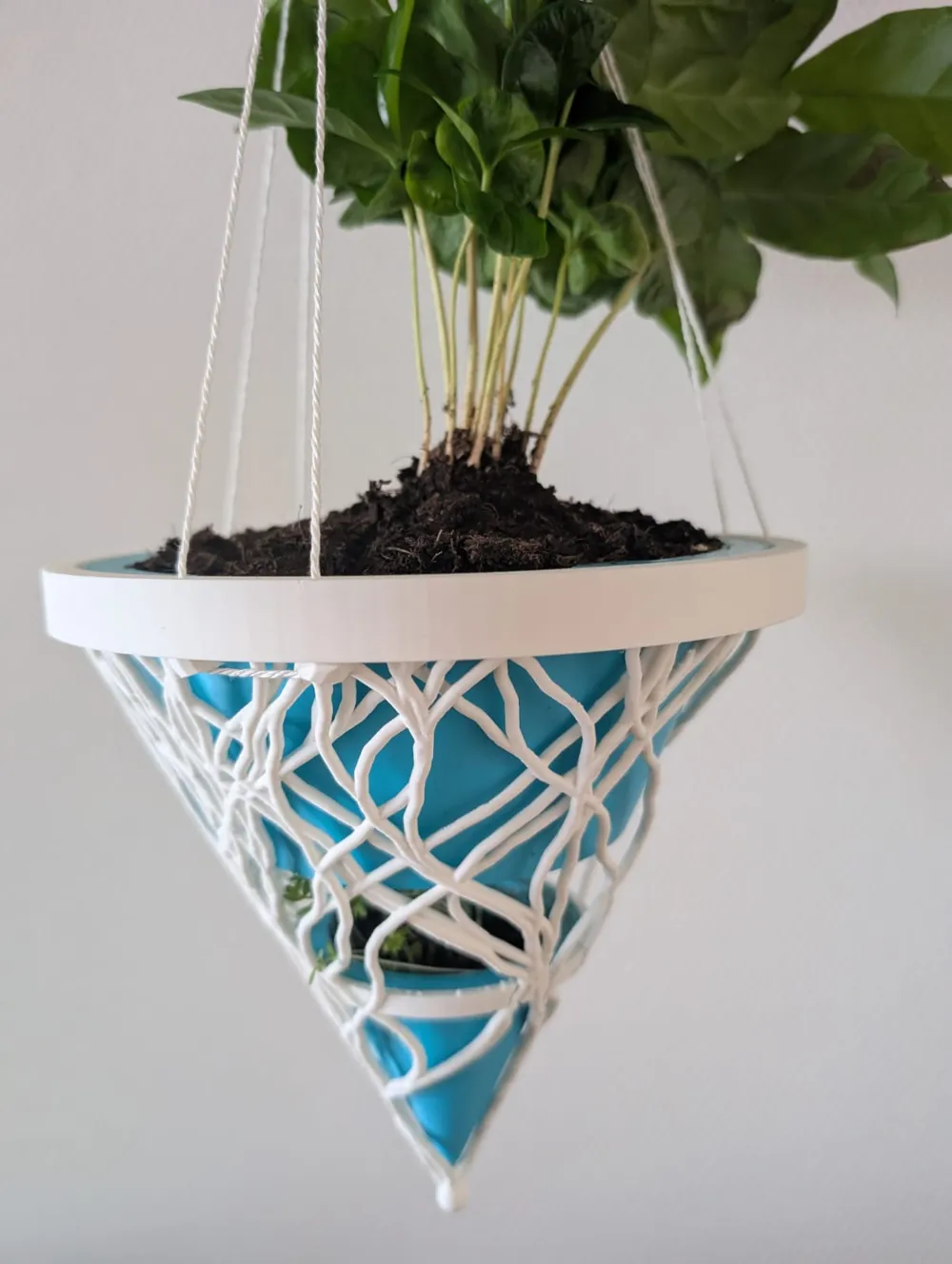

This is a plant pot that is created via a recursive growth algorithm run via a python script in blender. The structure of the outer element can be modified via different parameters and is guaranteed to be unique, i.e., no two generated frames are the same.

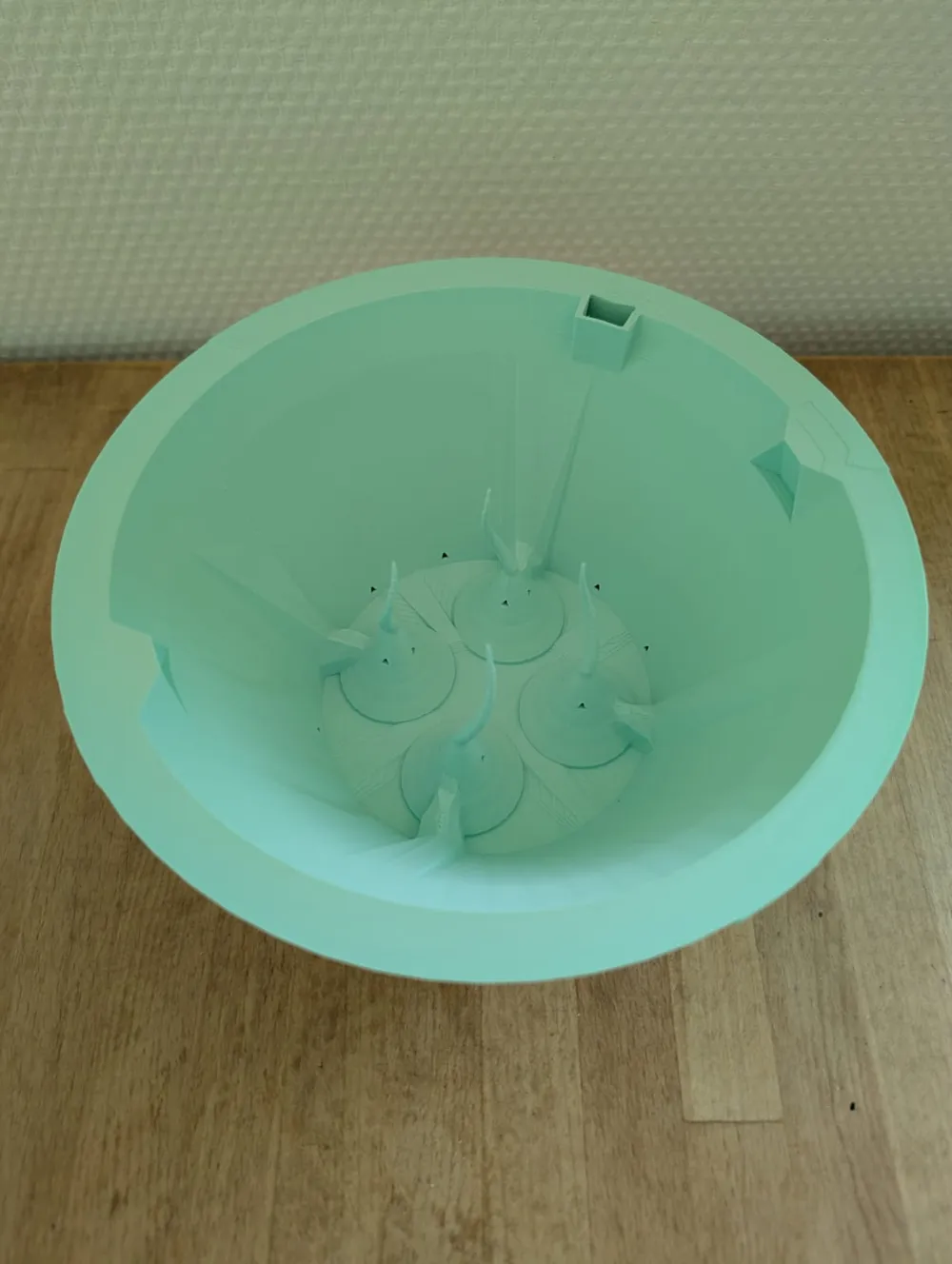

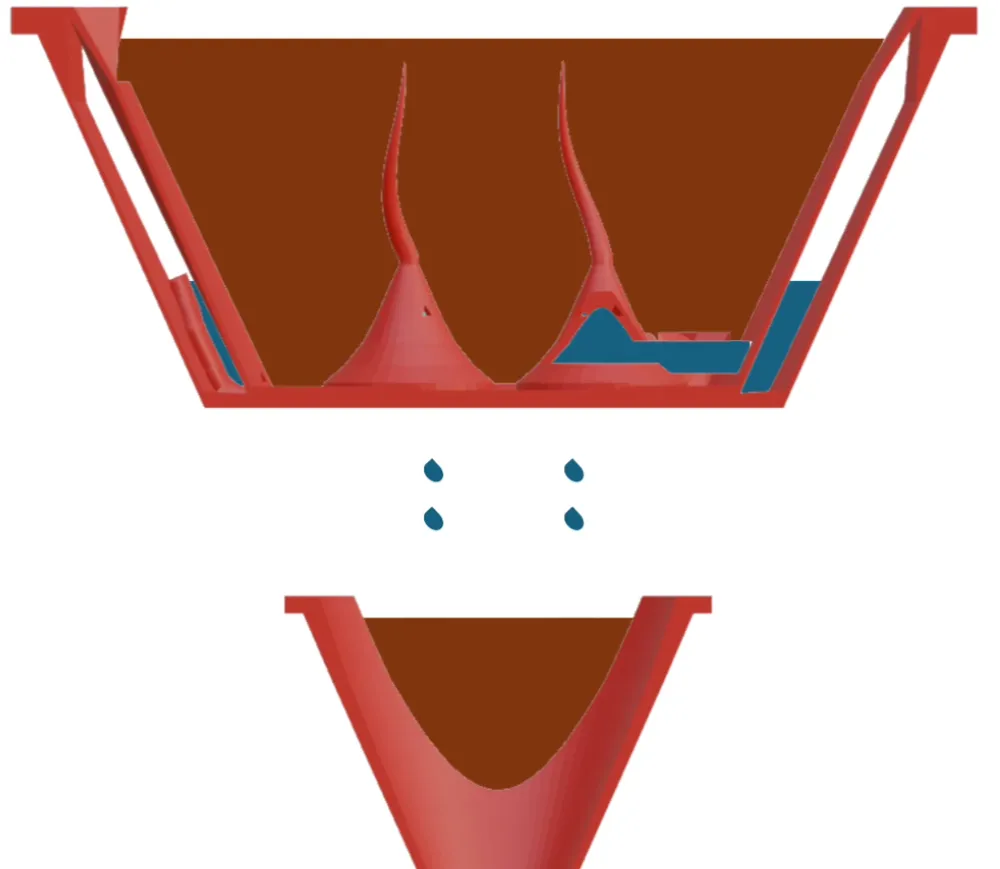

The inner pot is self watering, with the reservoir in the wall of the upper pot. Once it reaches a certain water level, it will start to slowly drop into the lower pot. I therefore recommend a plant in the lower pot that only needs occasional watering.



The blender file is attached, the script and instructions can be found on my github:

https://github.com/Romu-Qua/haenge_topf



Feel free to reach out & to give feedback.
