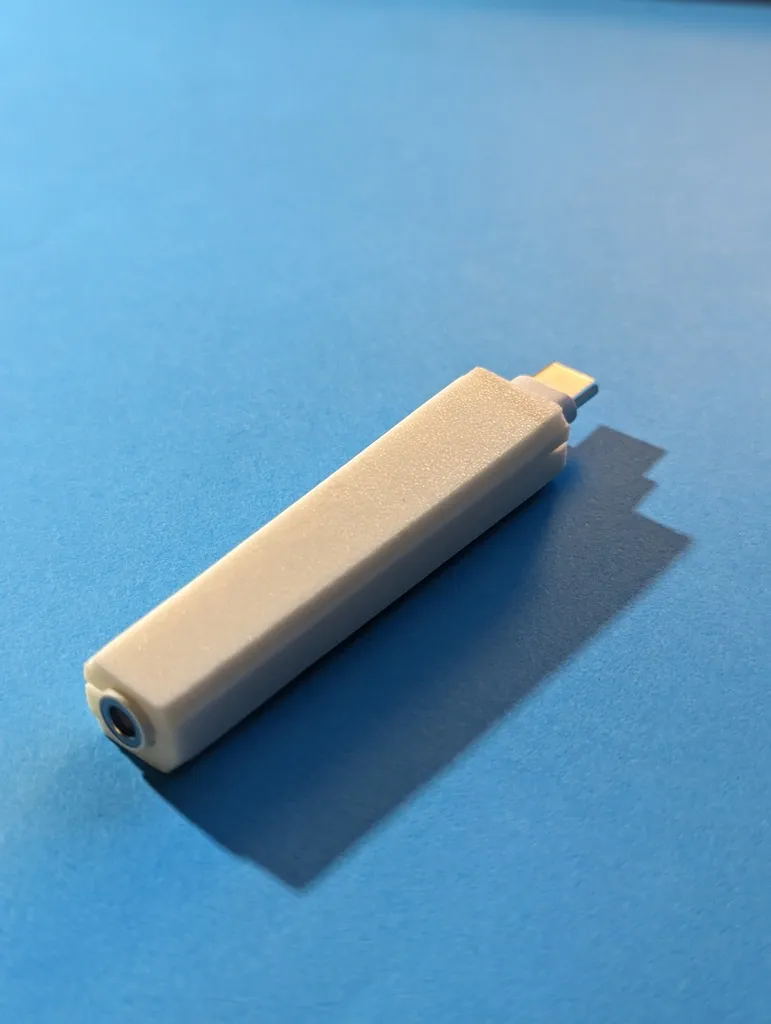

Apple Dongle Strain Relief

I keep breaking the apple 3.5mm to usb c dongle so I designed a strain relief for it.

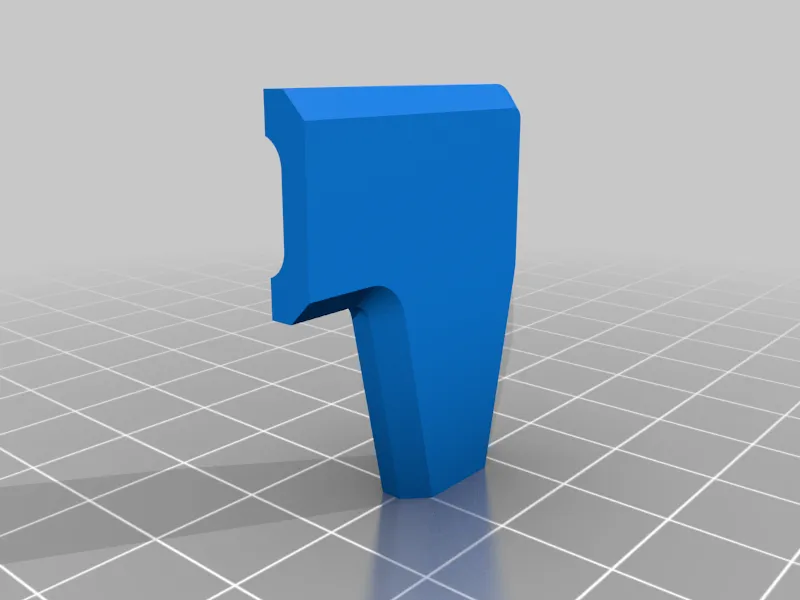

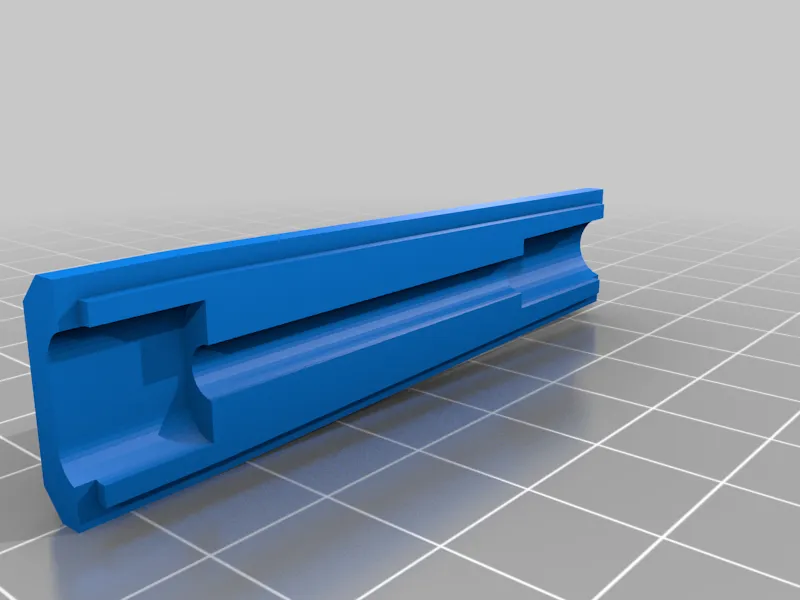

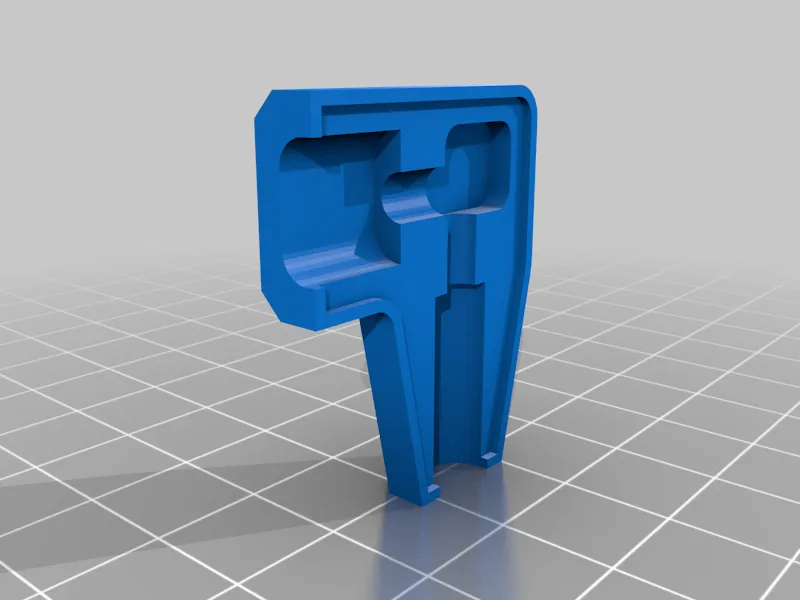

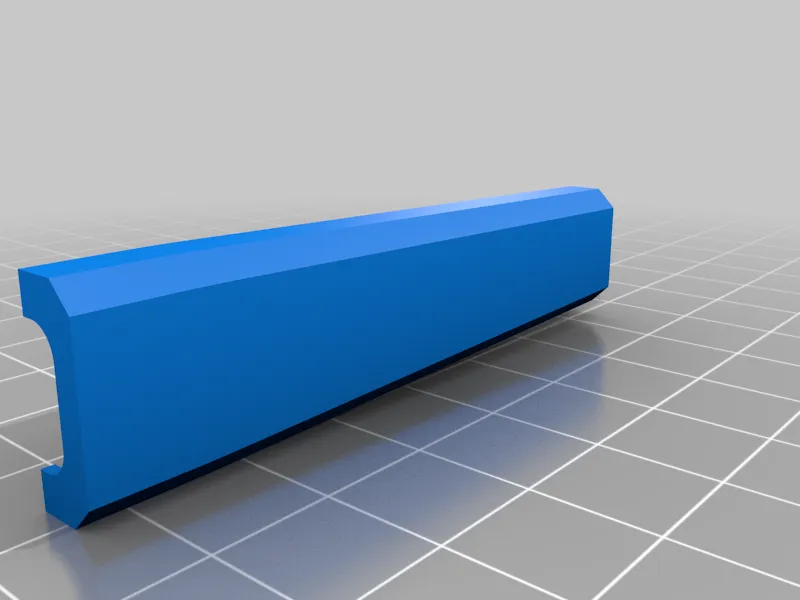

There is a straight version and angled version. For the angled version make a loop with the cable when assembling. Make sure to download part 1 and part 2 for the respective models.

Assembly:

Embrace the true apple way and douse all parts in superglue or epoxy and clamp shut.

Print Settings

Supports:

No

Resolution:

0.2mm

Infill:

20%

Filament: Generic ABS


Notes:

Designed with 0.1mm tolerances so either scale the print accordingly or modify the geometry (STEP files included). I printed with ABS at 100.6% percent scale to account for material shrinkage.

Category: Audio
