ELRS 2.4 GHz Diversity Antenna Mount
IP Report
Print Profile(1)
0.08mm layer, 2 walls, 15% infill
Designer
35 min
1 plate
Open in Bambu Studio
Boost
7
8
0
0
9
7
Released
Description

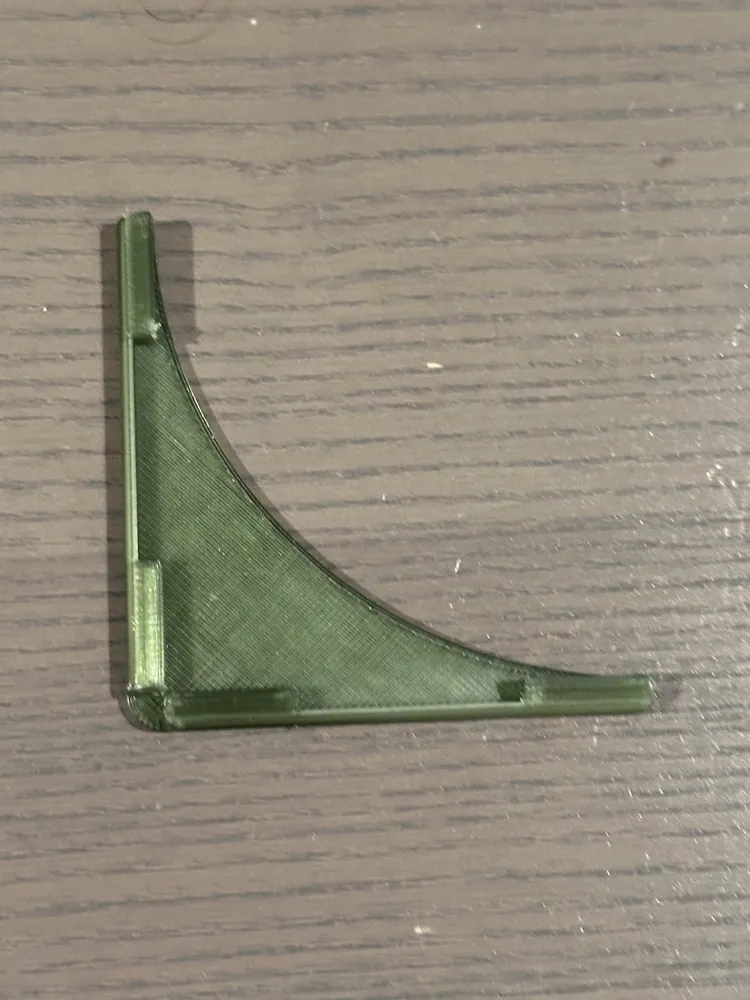

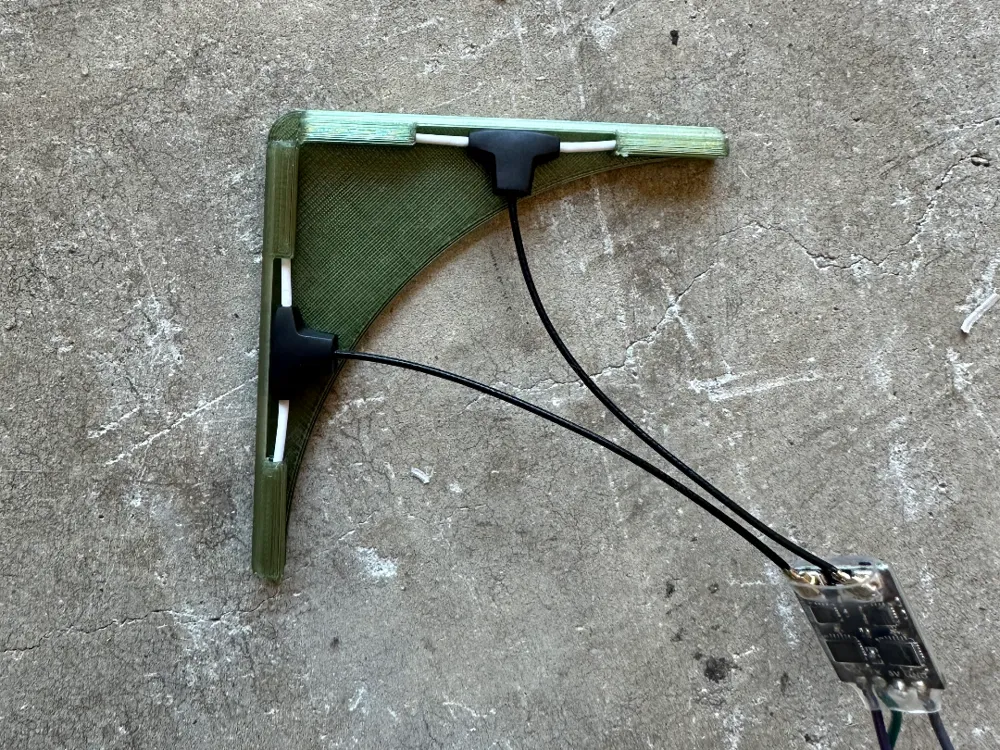

Antenna mount for ELRS 2.4 GHz diversity antennas. This should be mounted vertically, with one antenna perpendicular to the ground and the other parallel, to maximize coverage for a ground vehicle. The perpendicular orientation of the antennas relative to each other optimizes the radiation pattern.
License
This user content is licensed under a
Creative Commons Attribution-Noncommercial-Share Alike
