Dual XT90 Underside Mount for AOS UL10 Cine V5

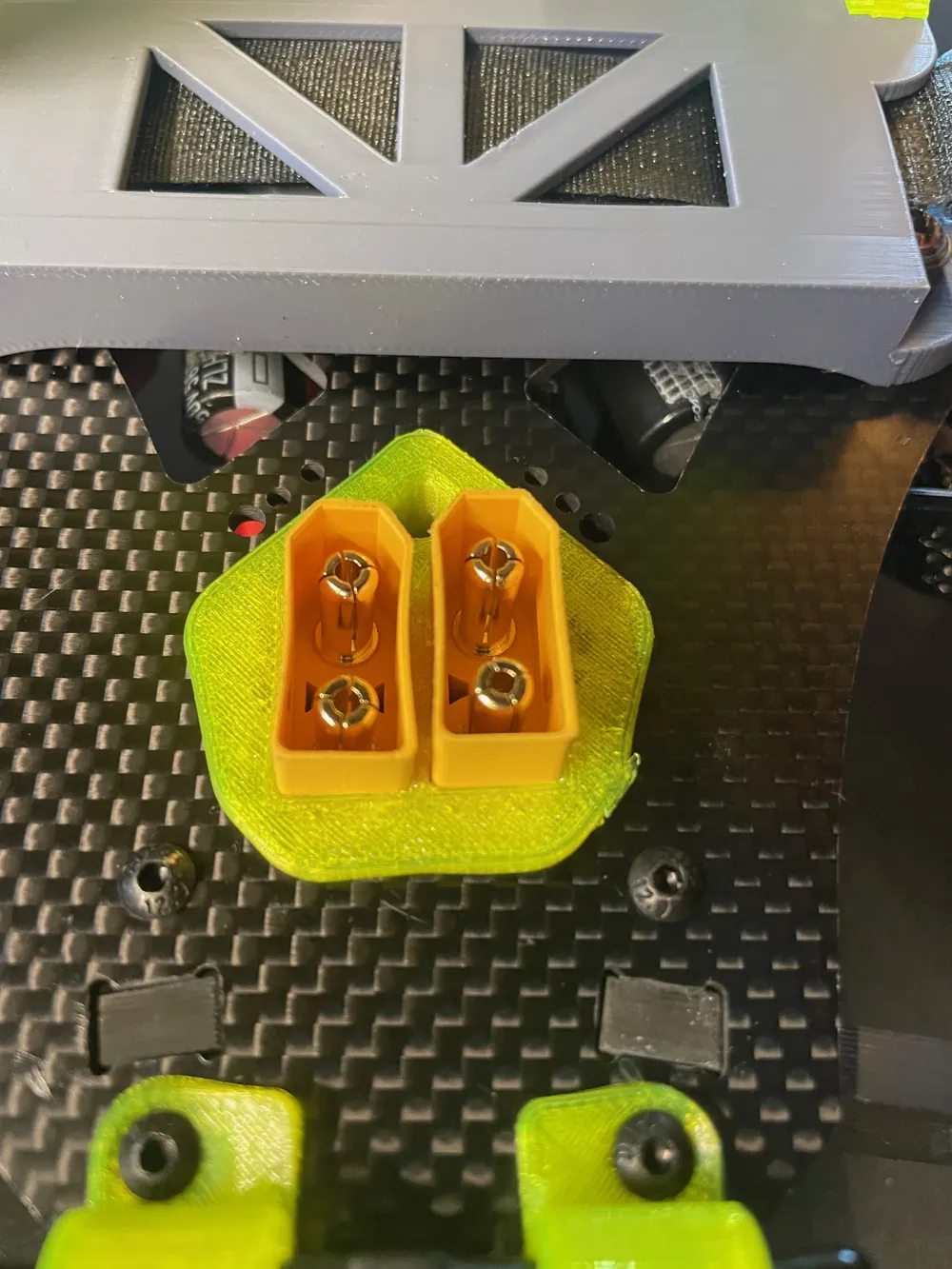

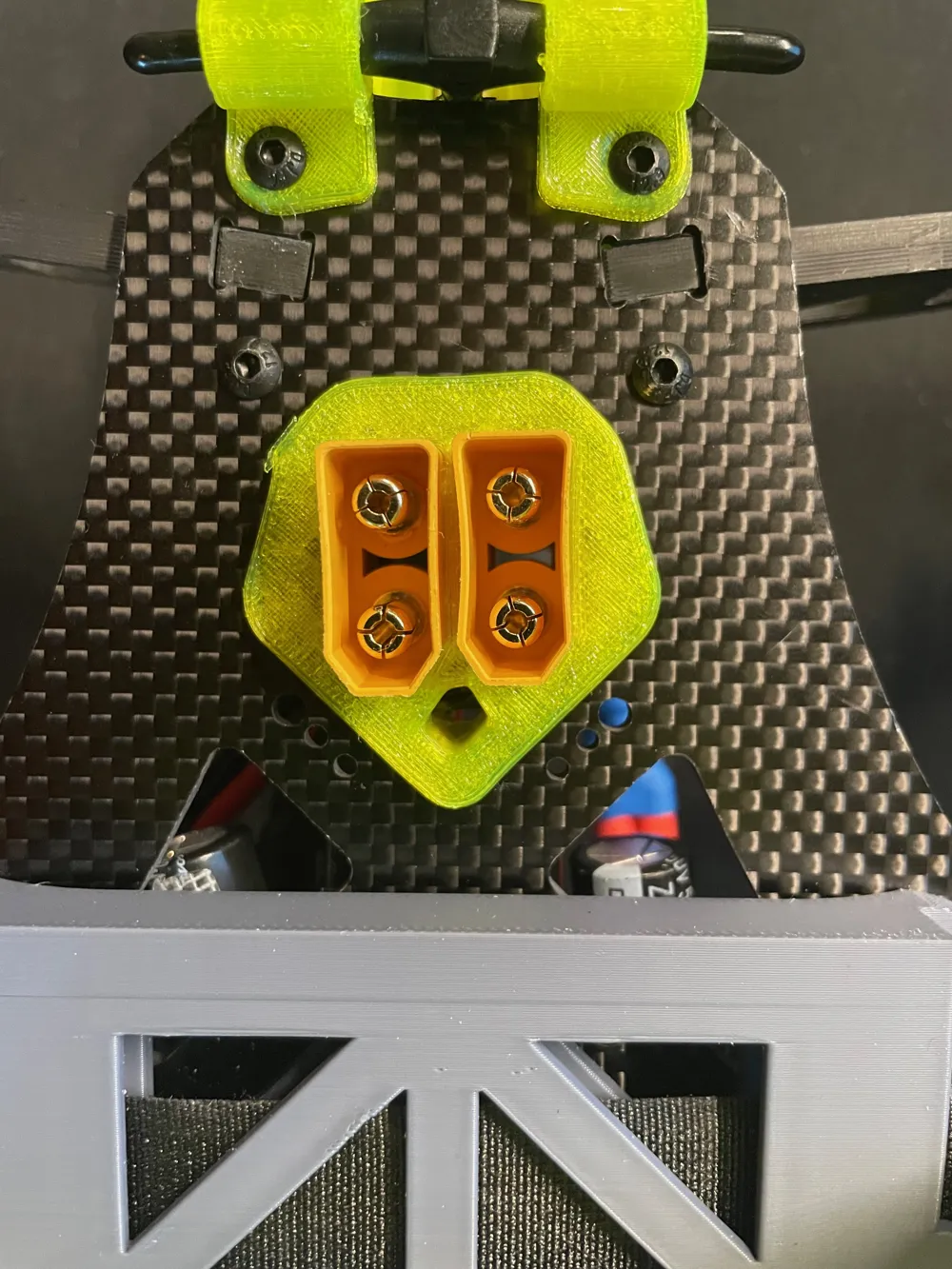

This is a custom-designed TPU mount for securely attaching two XT90 connectors underneath the AOS UL10 Cine V5 cinelifter frame.
It is intended for setups using two 4S LiPo batteries in series to create an 8S power system, with a focus on keeping cable runs short, tidy, and vibration-resistant.
Key features:
- Flexible TPU construction absorbs vibrations and provides a secure, non-slip fit for XT90 connectors.

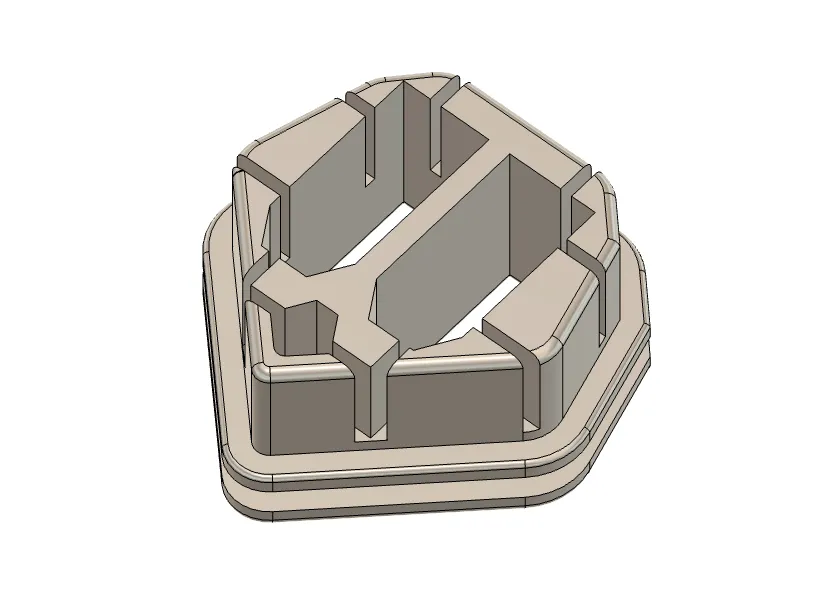

- Dual XT90 slots sized for a snug, precise fit to prevent connector movement during flight.

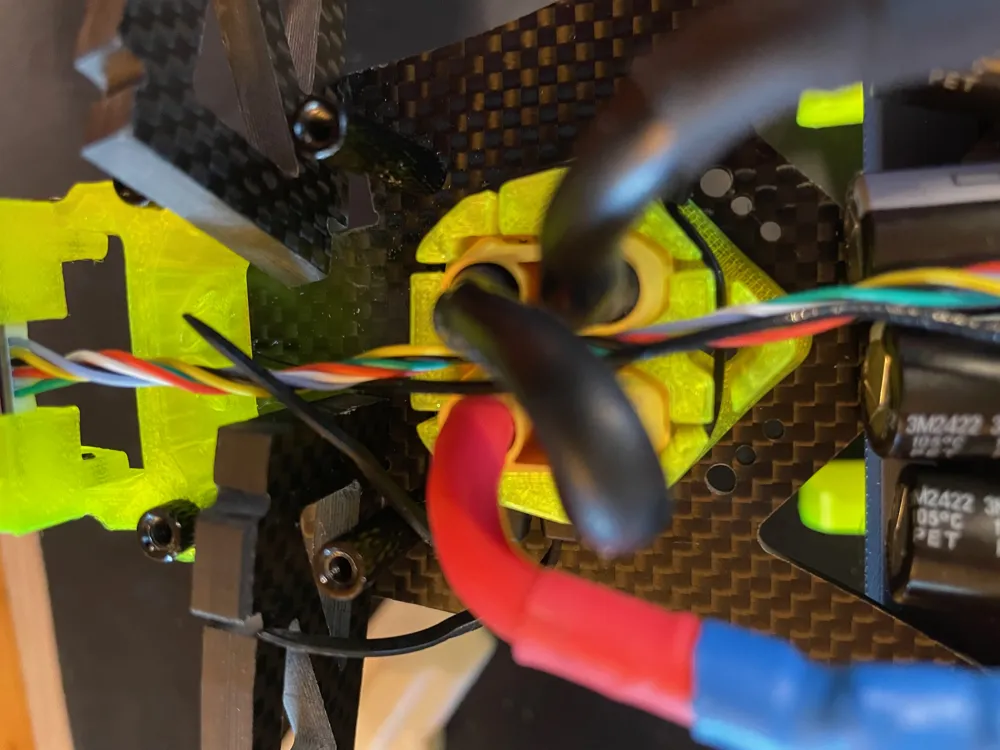

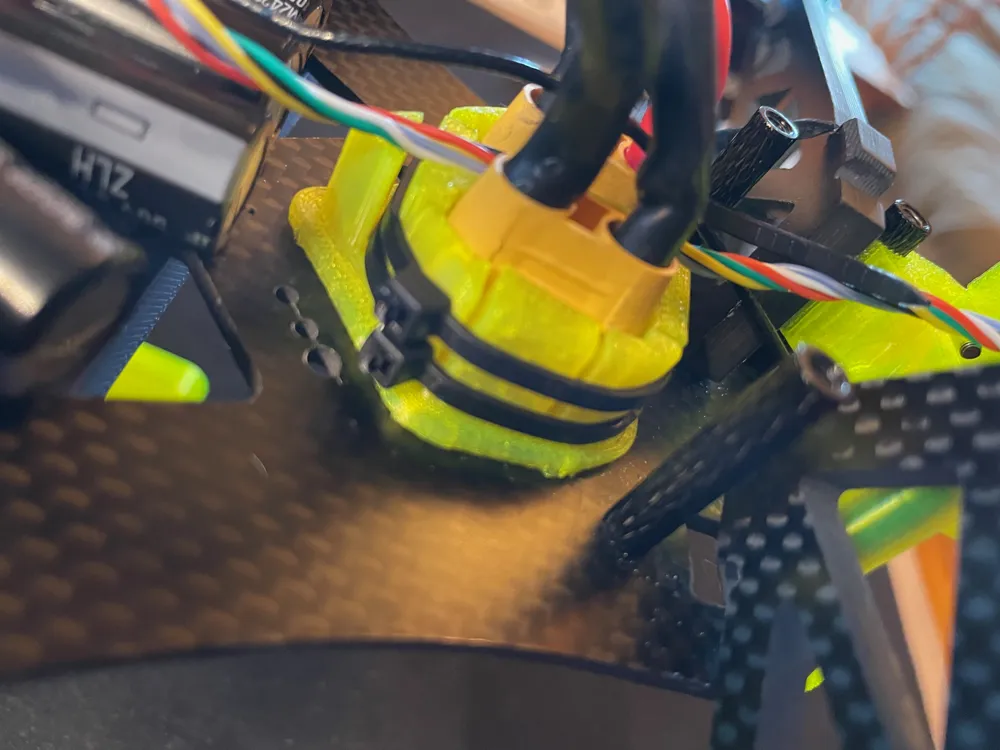

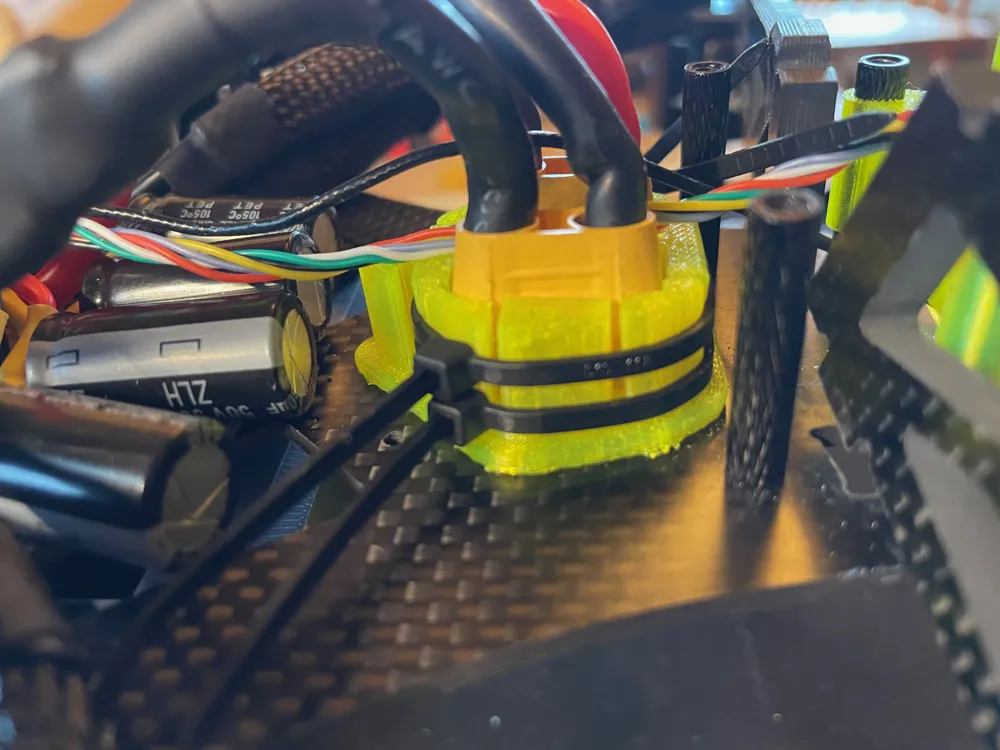

- Integrated zip-tie channels allow quick and reliable connector locking — zip ties compress the XT90 housings into recessed grip channels, ensuring excellent retention even under heavy loads.
- Underside frame mounting keeps connectors clear of prop wash, camera equipment, and top-mounted payloads.
- Optimized XT90 spacing for a minimal-length series bridge cable, reducing voltage drop and electrical noise.
