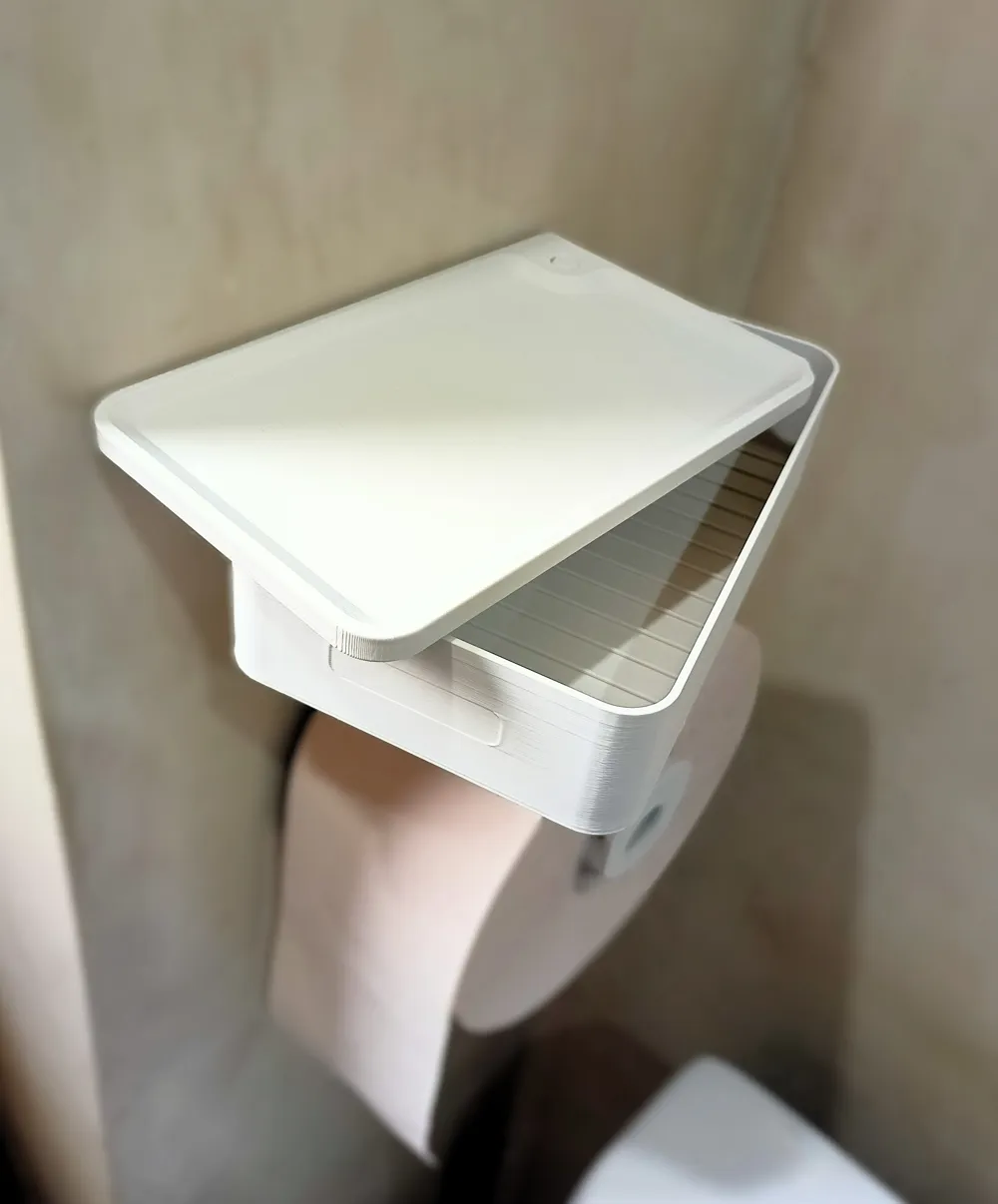

Large toilet paper holder with drawer

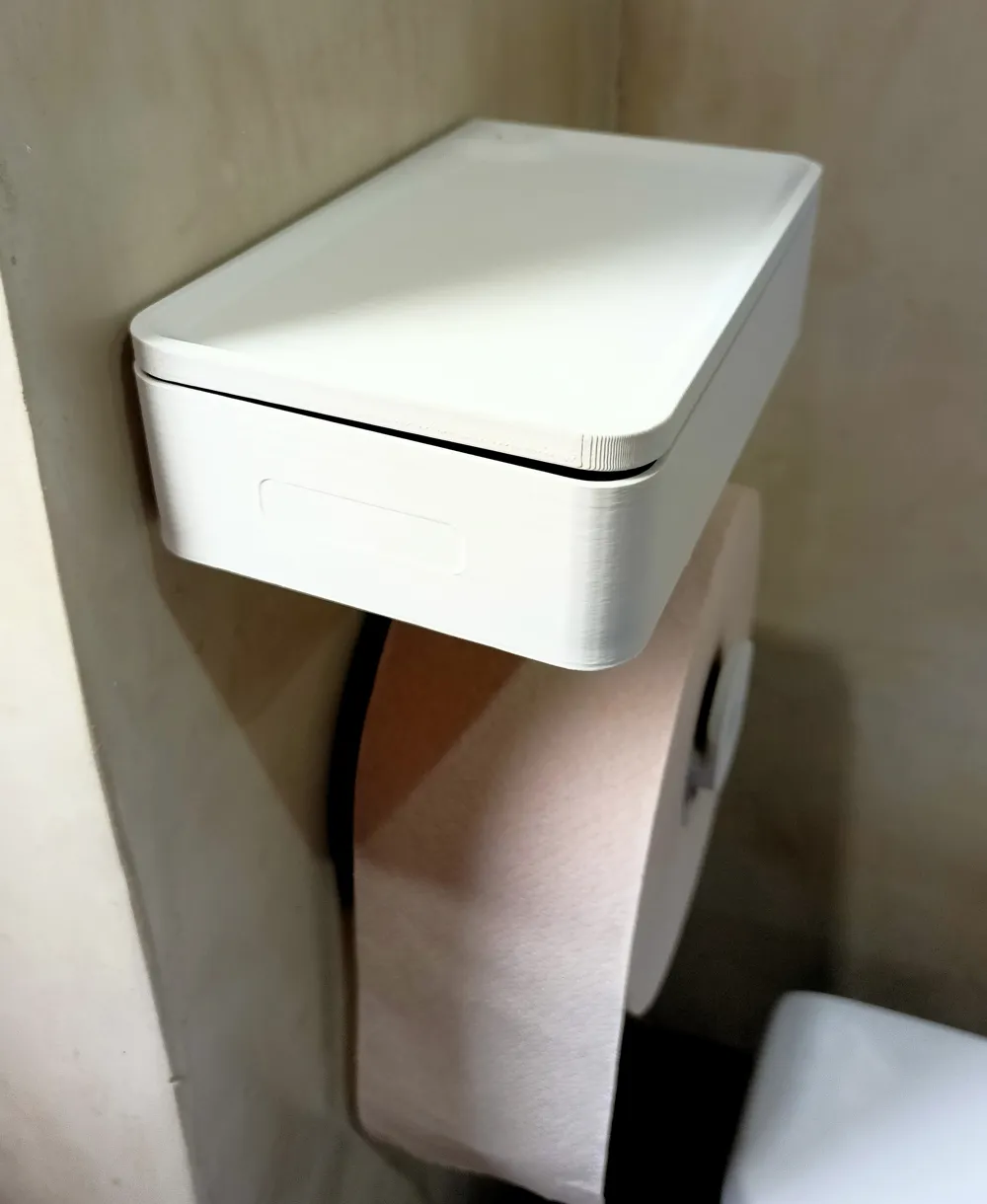

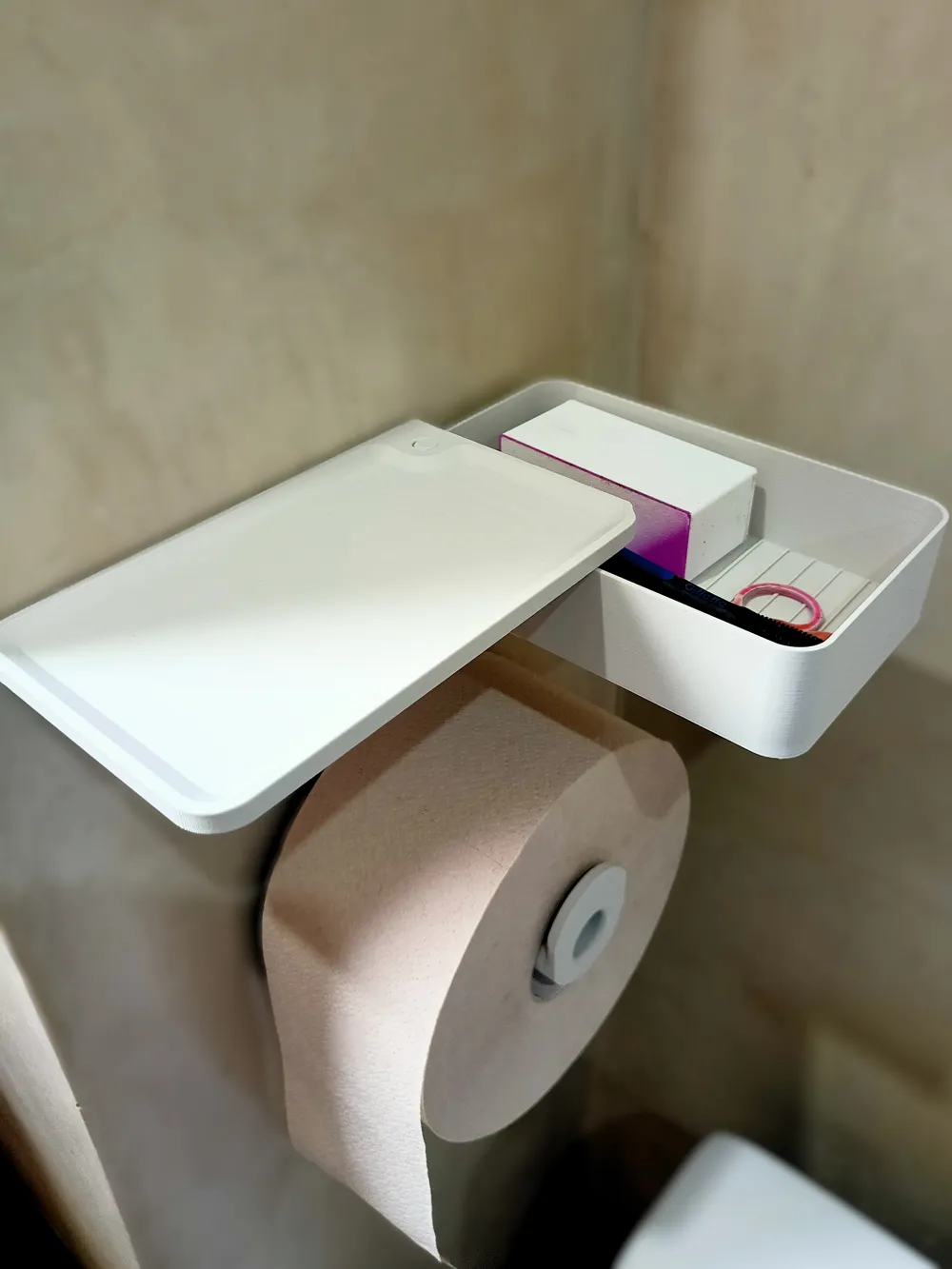

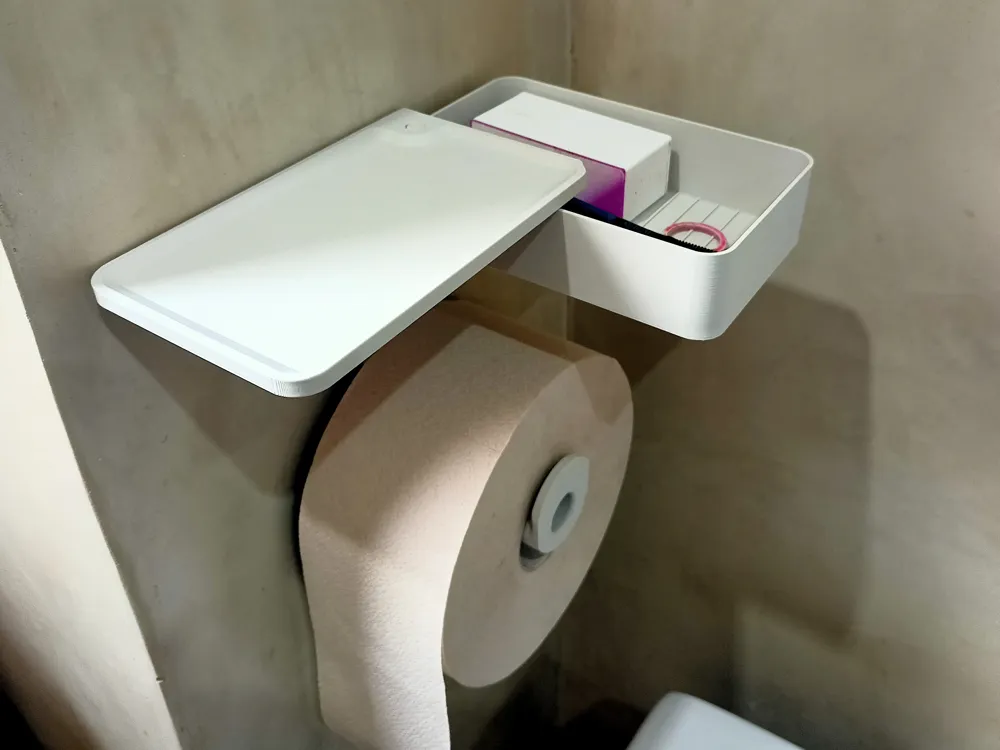

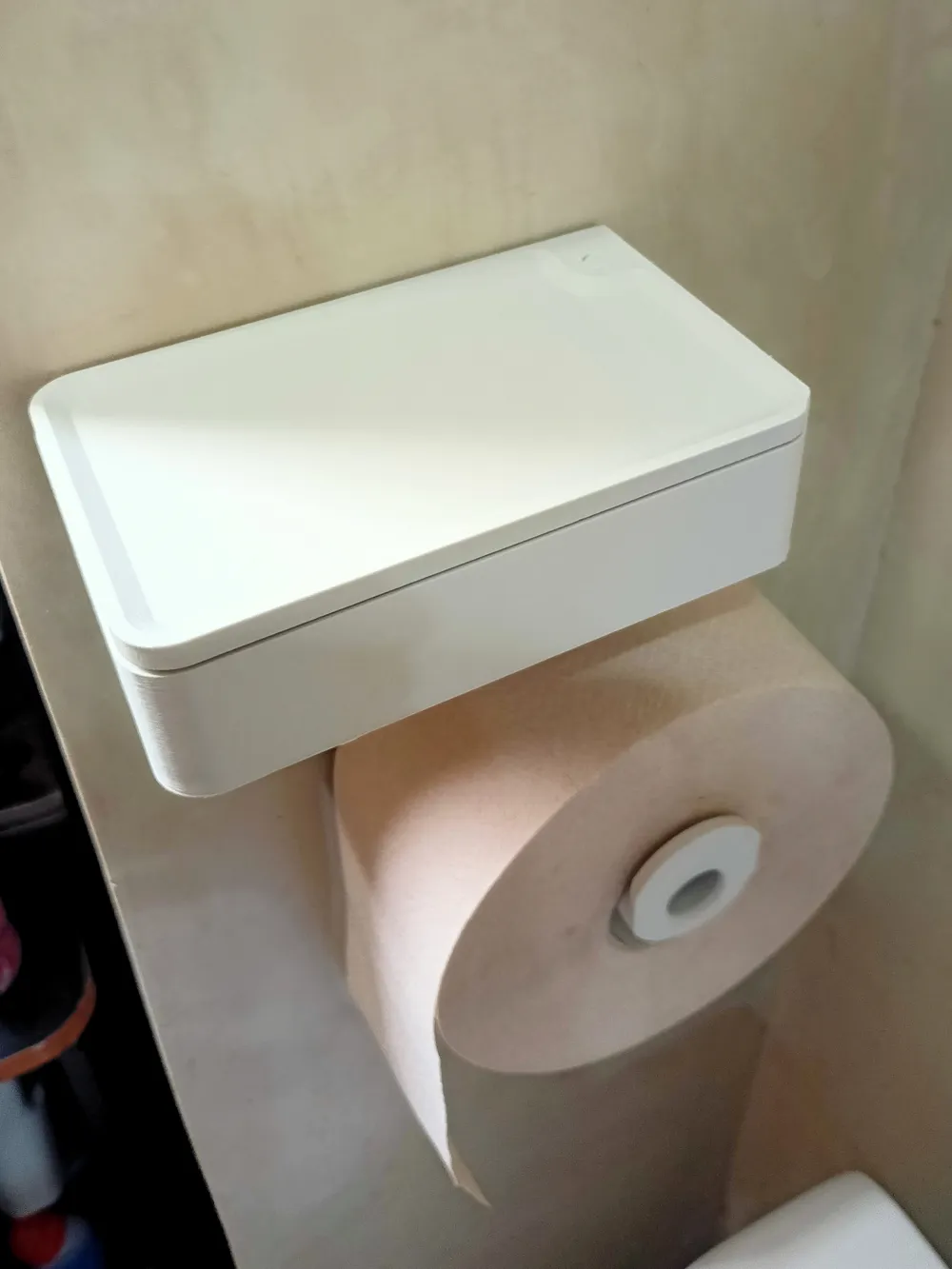

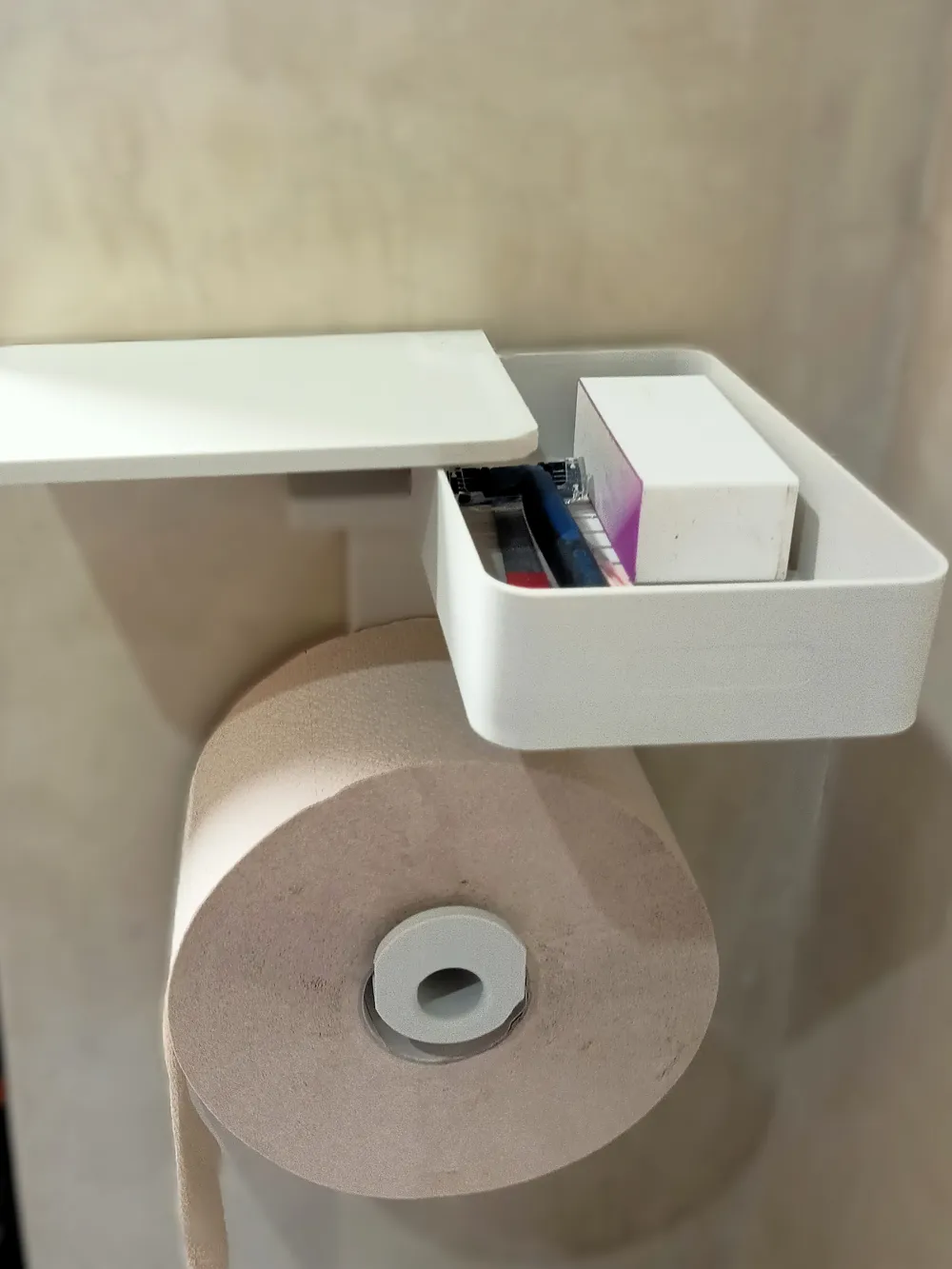

Large Toilet Paper Holder with Drawer and Multi-purpose Base

Today I present to you the combination of several ideas and needs I had when creating this design

As we all know, necessity gives rise to great ideas

In my case, the need to use a jumbo or large toilet paper roll and the complete lack of holders for this type of toilet paper prompted me to design a solution combining several needs into one, yielding several versions that were adequate but didn't meet my expectations Nevertheless, I arrived at the best version I could design, and today I bring it to you

Features:

• Elegant and discreet design
• Storage Versions:

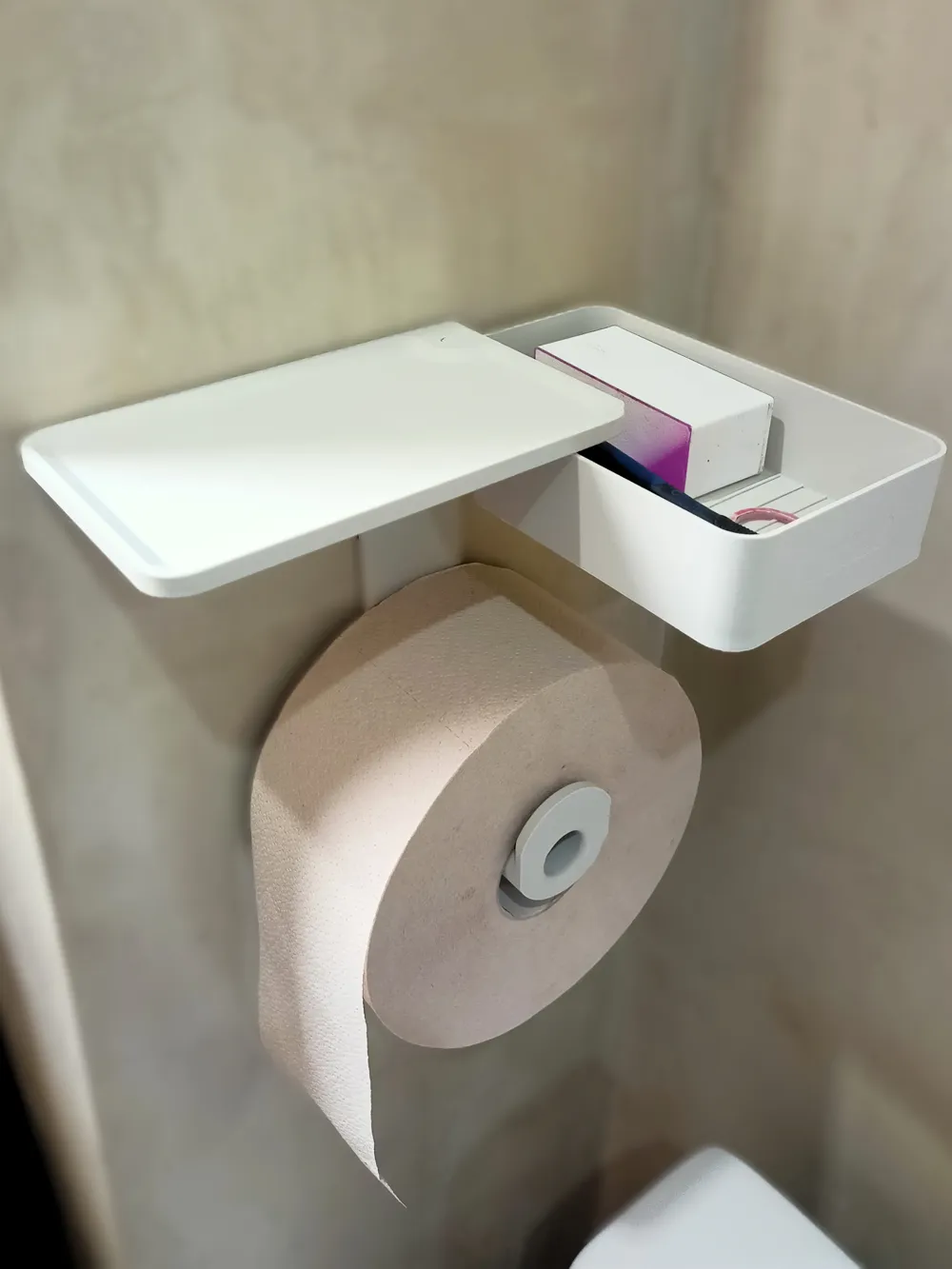

  • Large Toilet Paper Version:
    • outer paper diameter: 25cm.
    • inner diameter (attachment hole): 50mm.
    • Model size: 200mmx160mm and height 100mm.

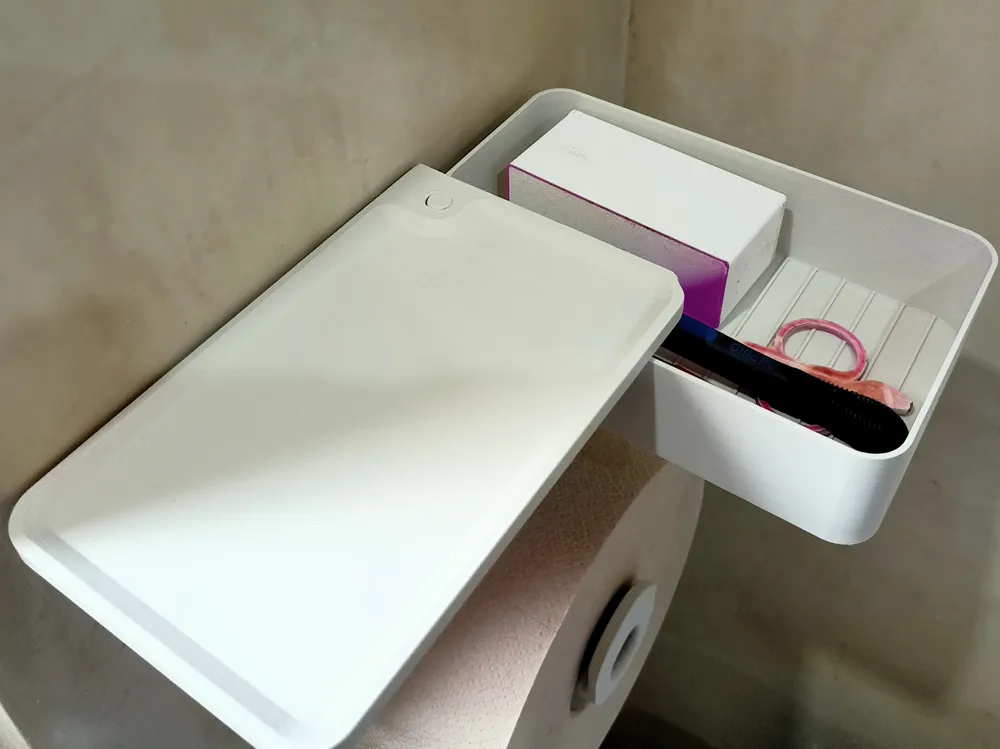

    • Drawer size: 160mmx100mm and height 37mm.

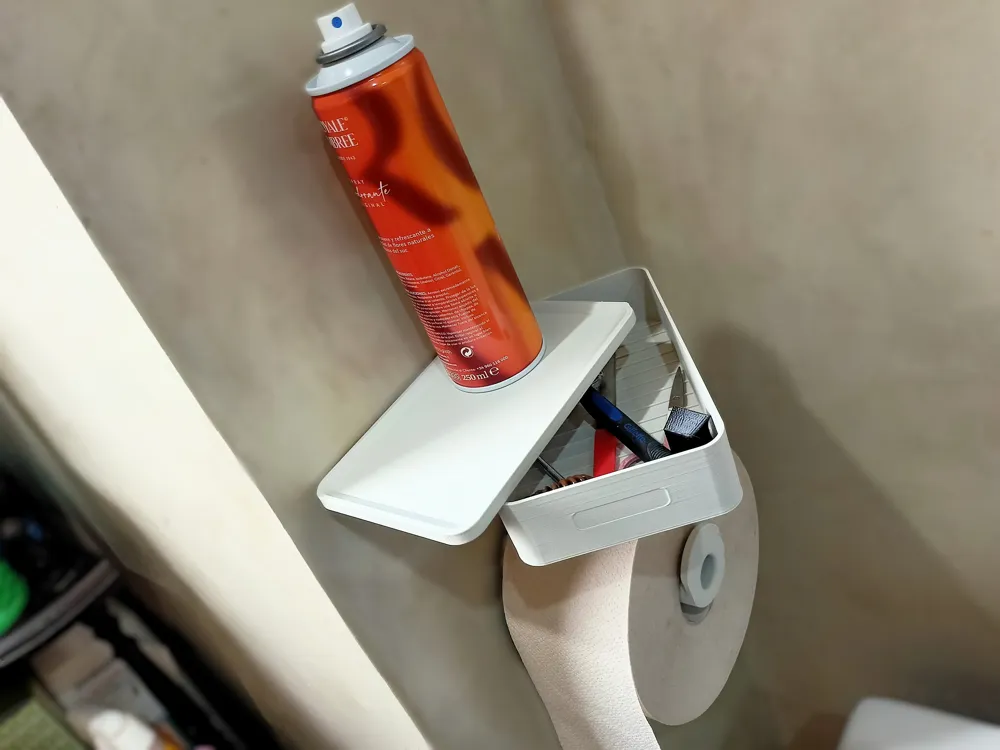

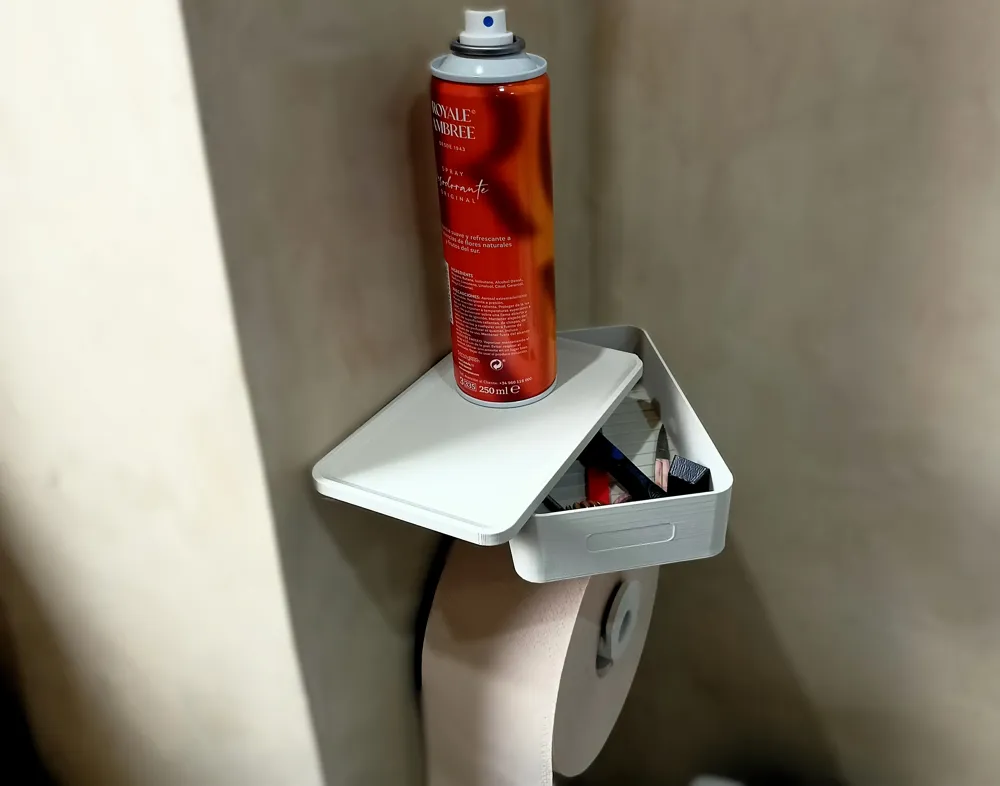

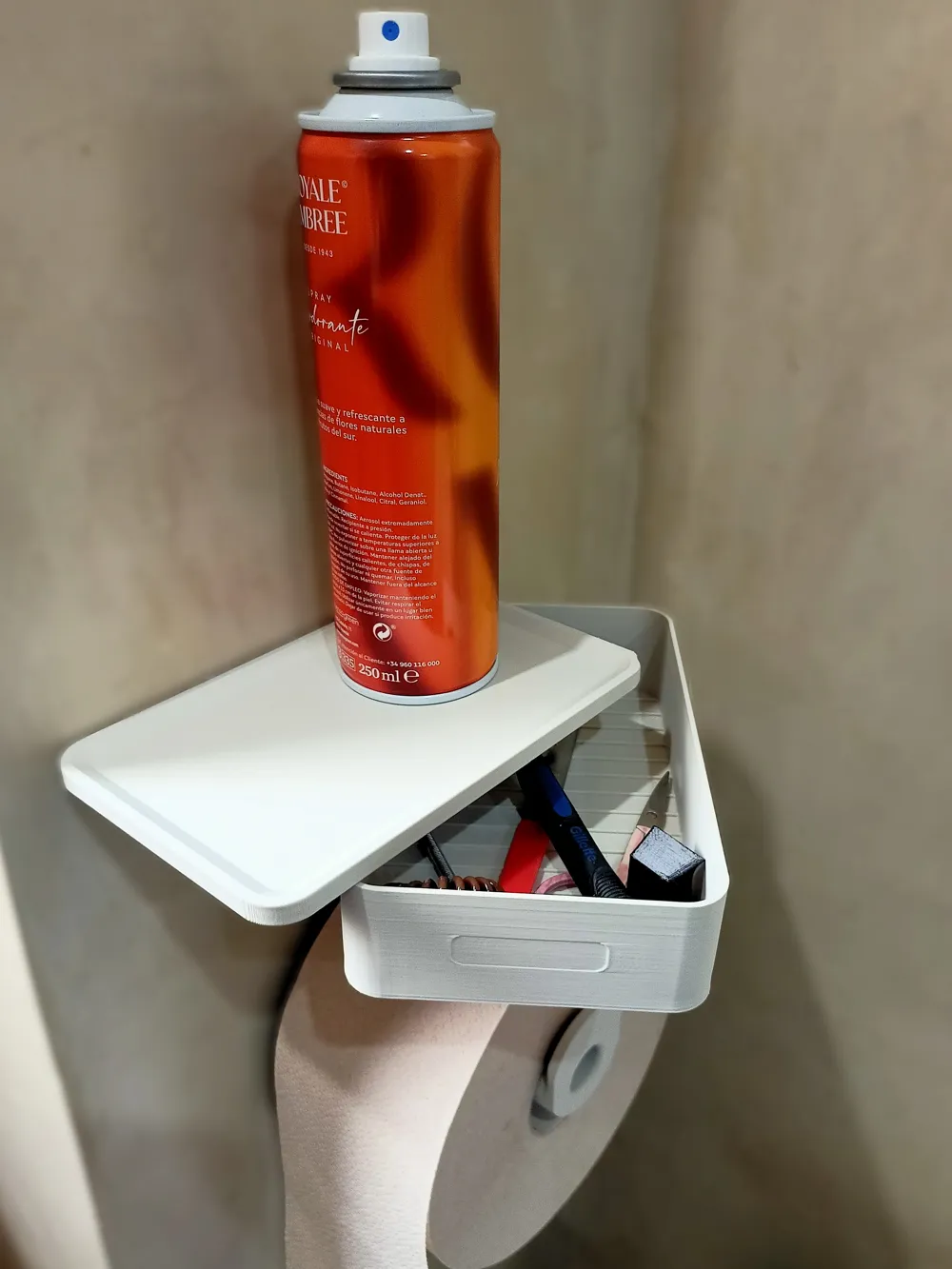

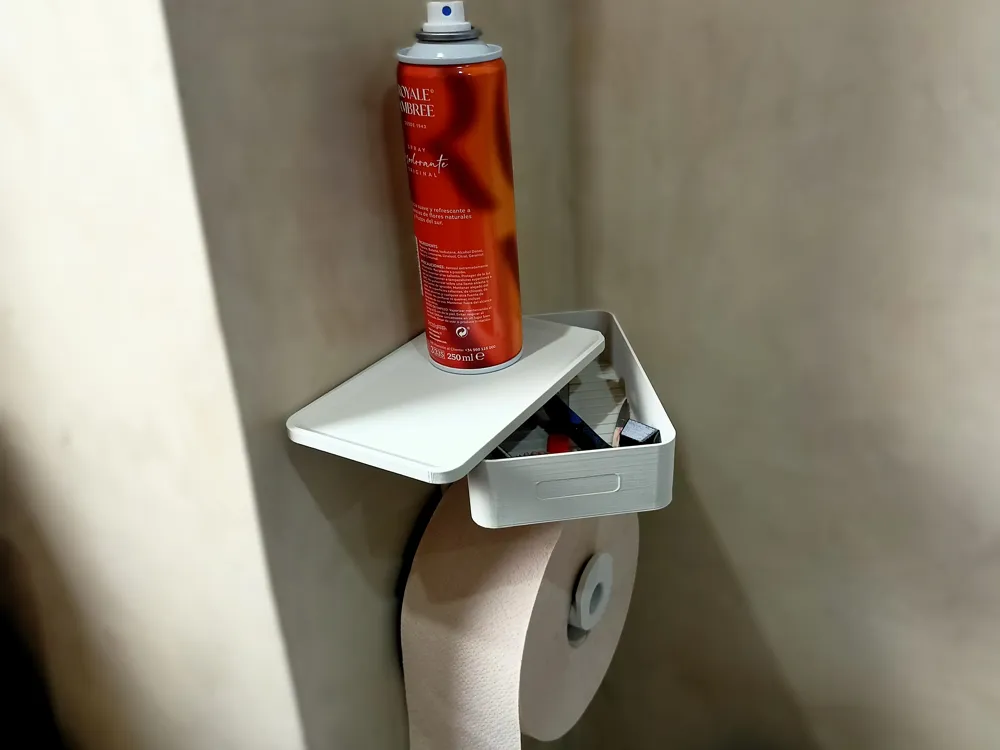

    • Multi-purpose surface size: 160mmx100mm.
  •
  • Standard Toilet Paper Version:
    • outer paper diameter: 13cm.
    • inner diameter (attachment hole): 50mm.
    • Model size: 170mmx160mm and height 100mm.
    • Drawer size: 160mmx100mm and height 37mm.
    • Multi-purpose surface size: 160mmx100mm.
  •
  • Standard Toilet Paper Version:
    • outer paper diameter: 13cm.
    • inner diameter (attachment hole): 43mm.
    • Model size: 170mmx160mm and height 100mm.
    • Drawer size: 160mmx100mm and height 37mm.
    • Multi-purpose surface size: 160mmx100mm.

Print Features:

• Recommended Filament: PLA or PETG
• Layer height: 0.2mm
• 15% Infill
• Supports: Yes (only on the model body)
• Walls: 3
• Tolerance: 0.2mm

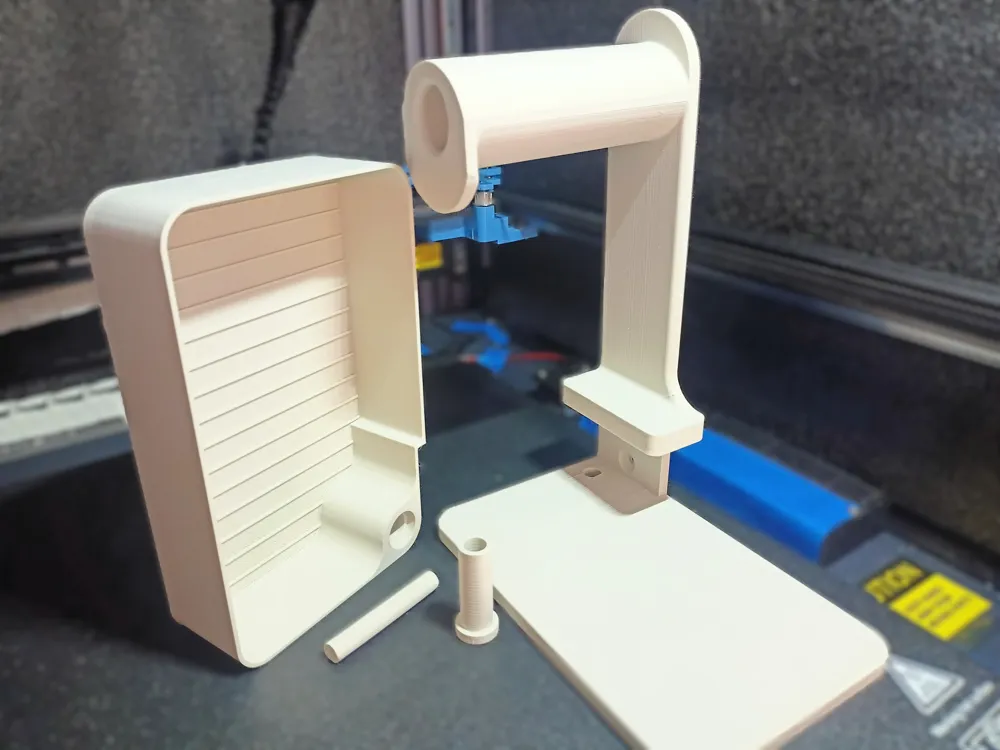

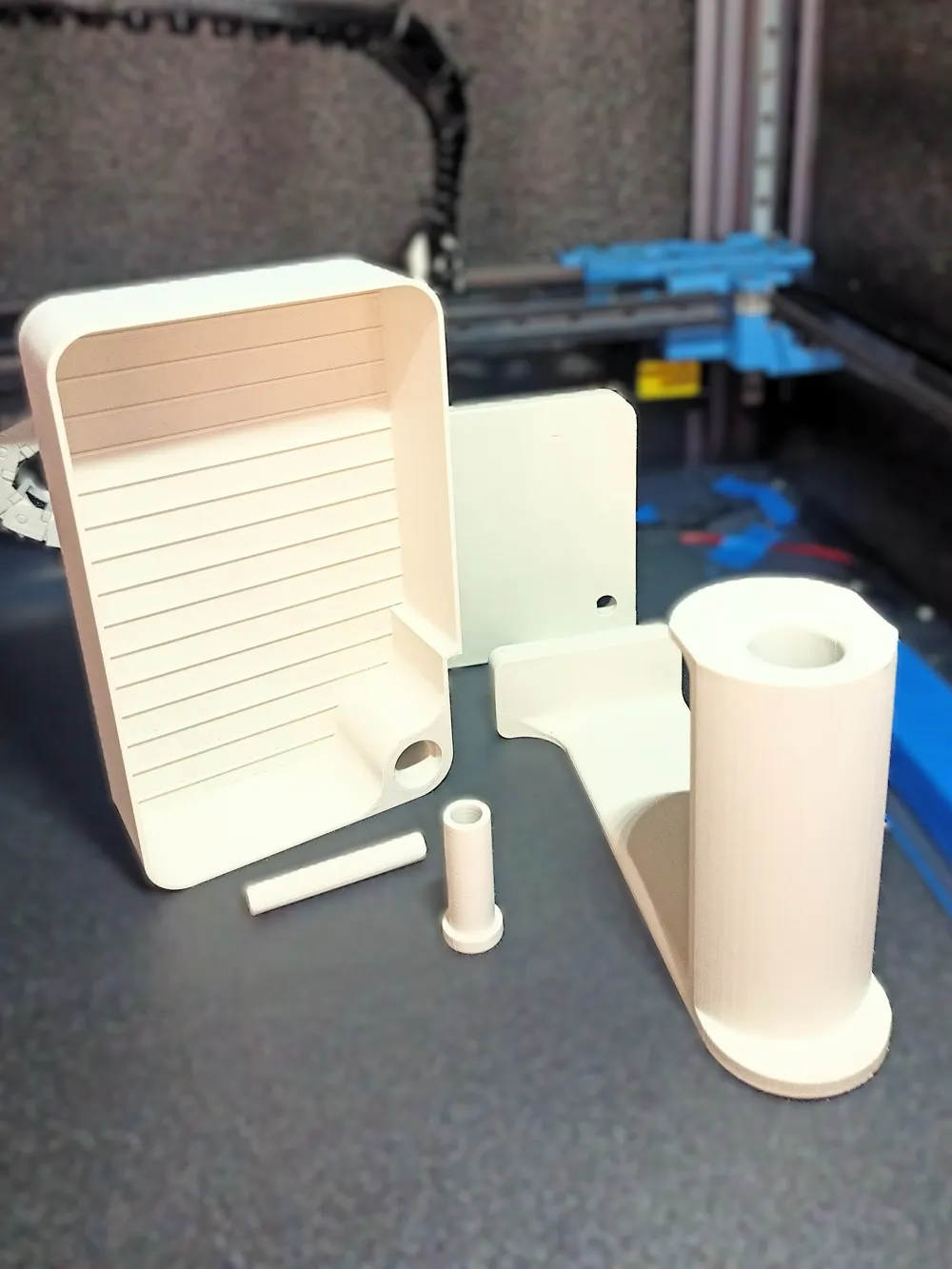

ASSEMBLY:

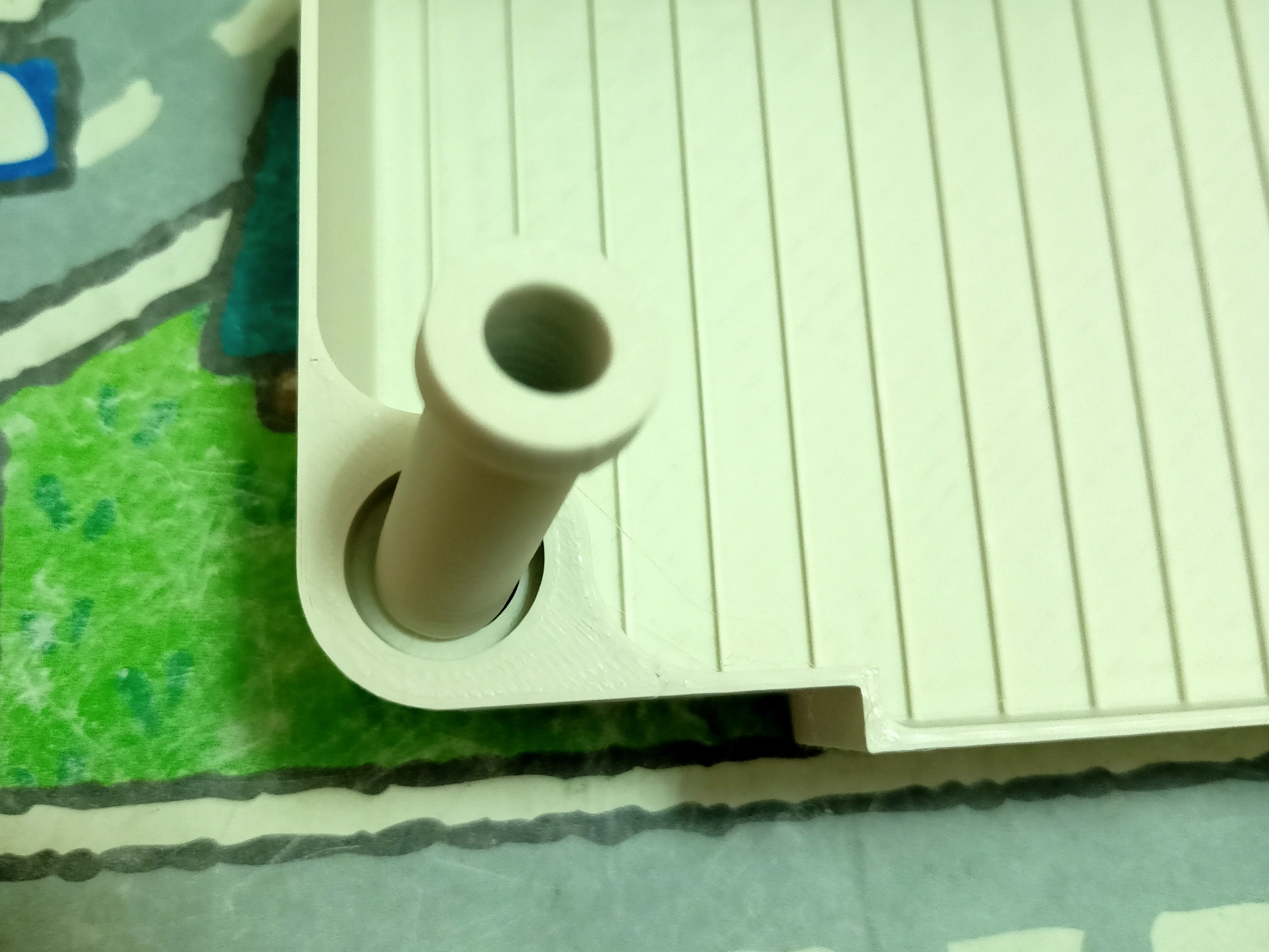

1) First, place the drawer axle into it. This will reduce friction between the components and allow for quick replacement in the future

2) Place the pin between the toilet paper holder base and the drawer; it has a flat notch to prevent movement

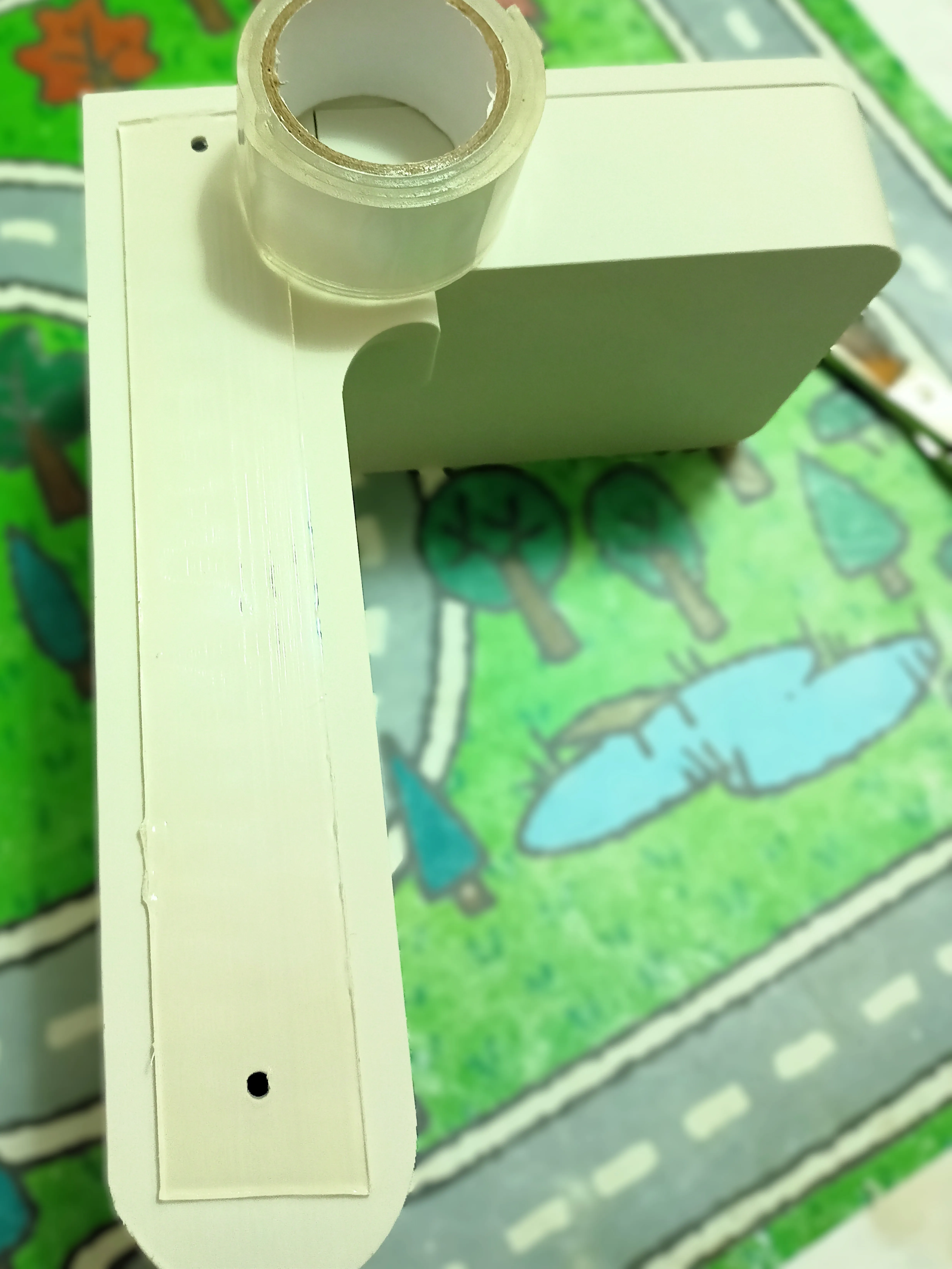

3) When installing in the bathroom, you have two options: the first is to use double-sided tape; I recommend using nano tape

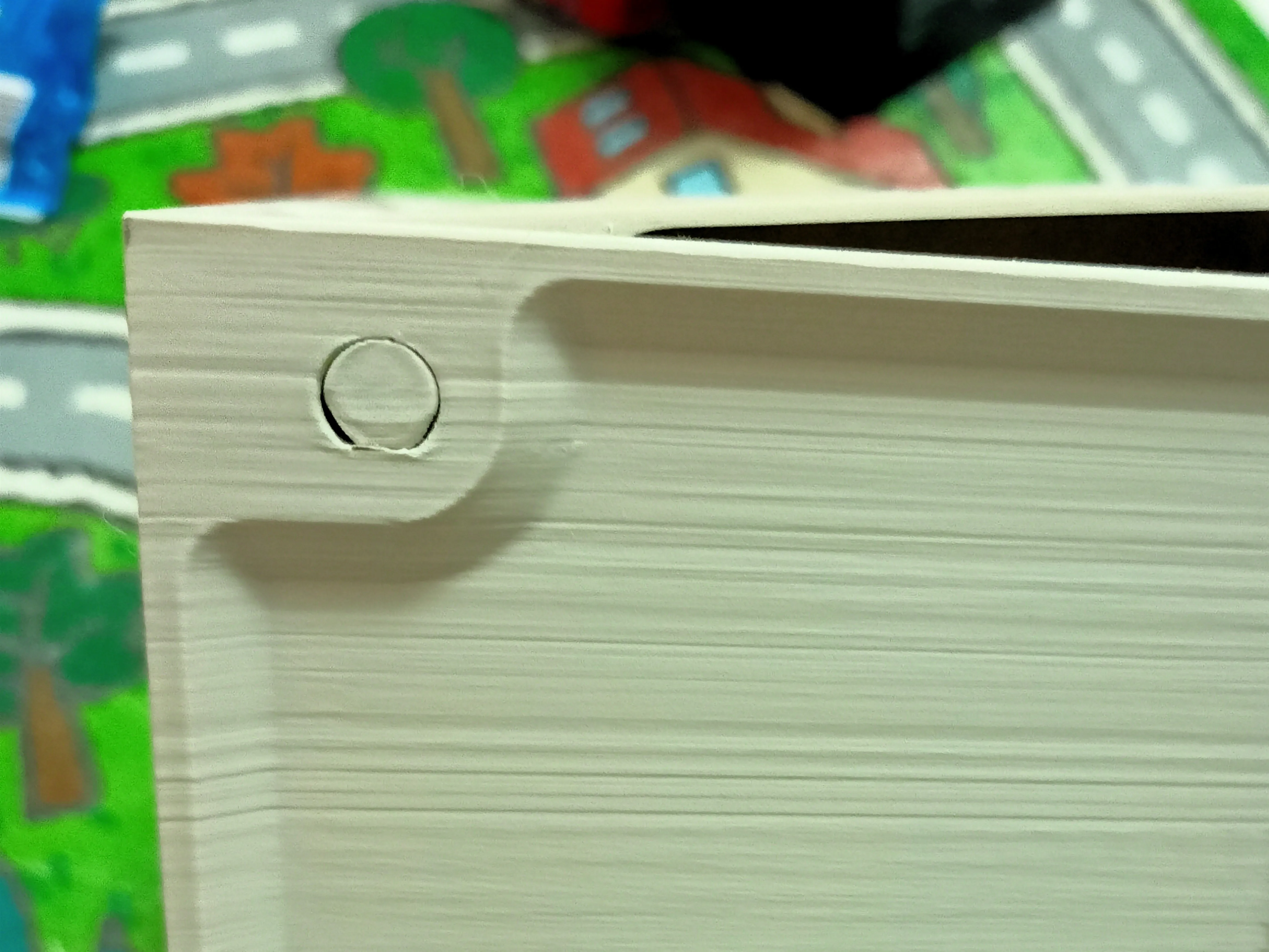

The other has M3 holes for anchoring to the surface
