UCS Jango Fett Firespray Starship 75409 Wall Mount

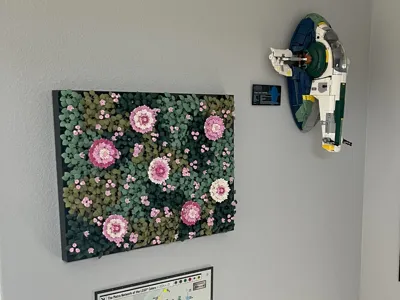

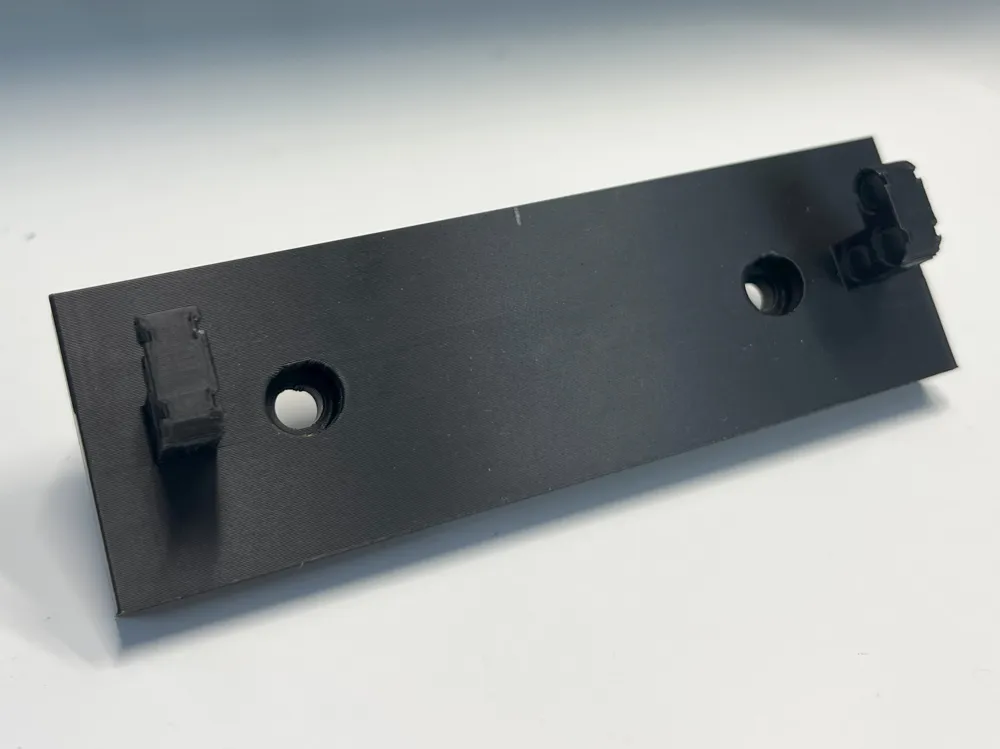

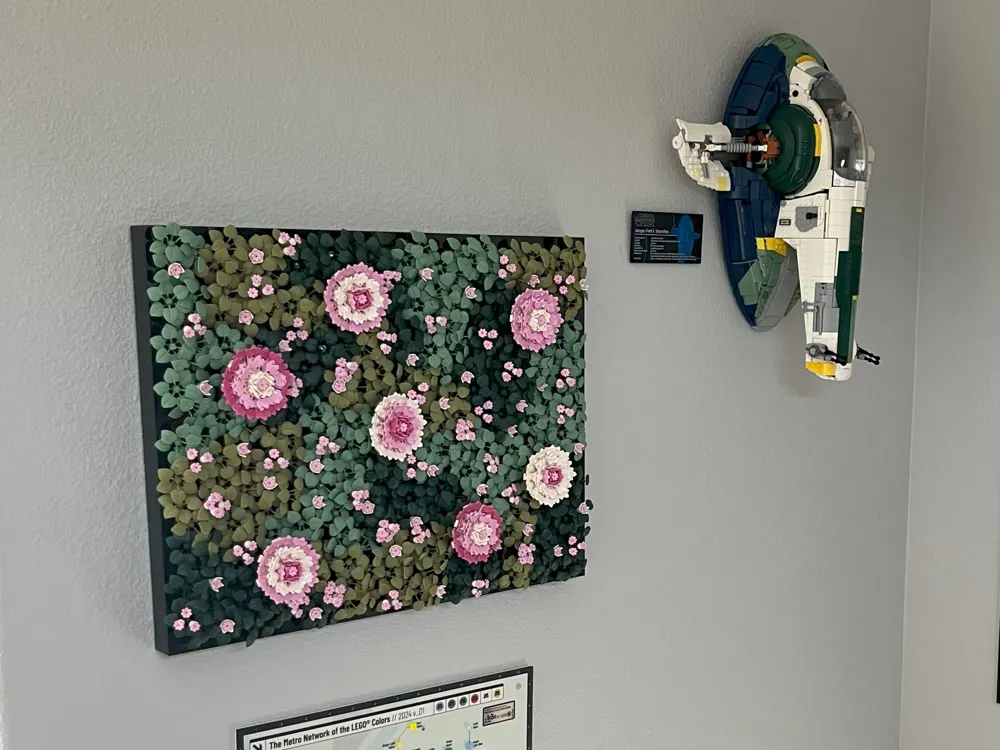

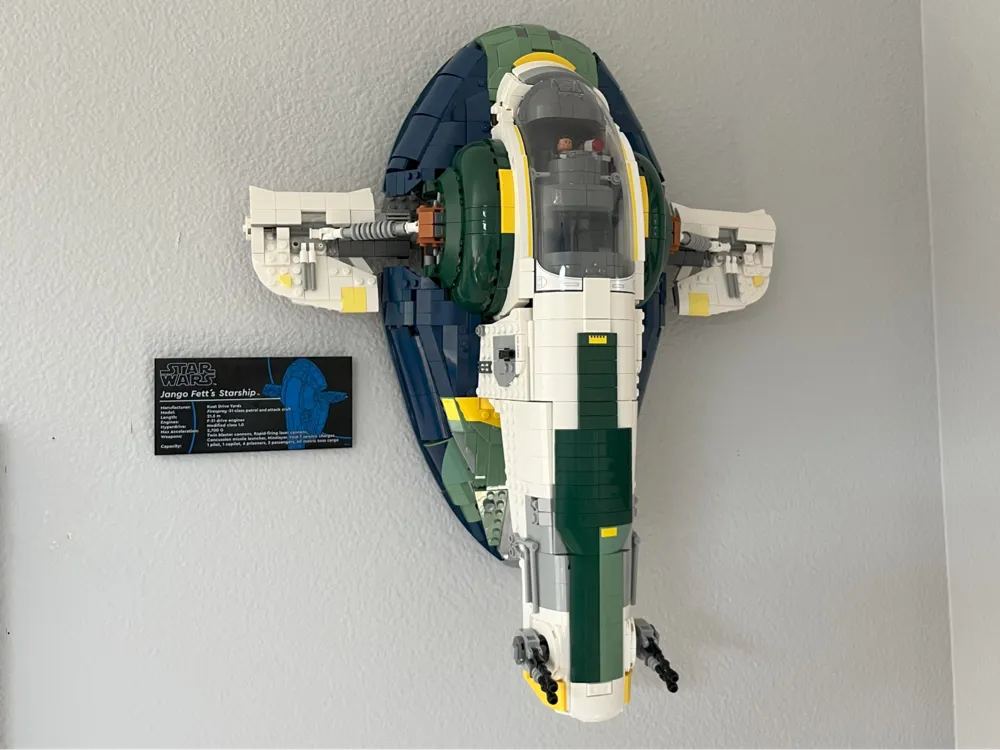

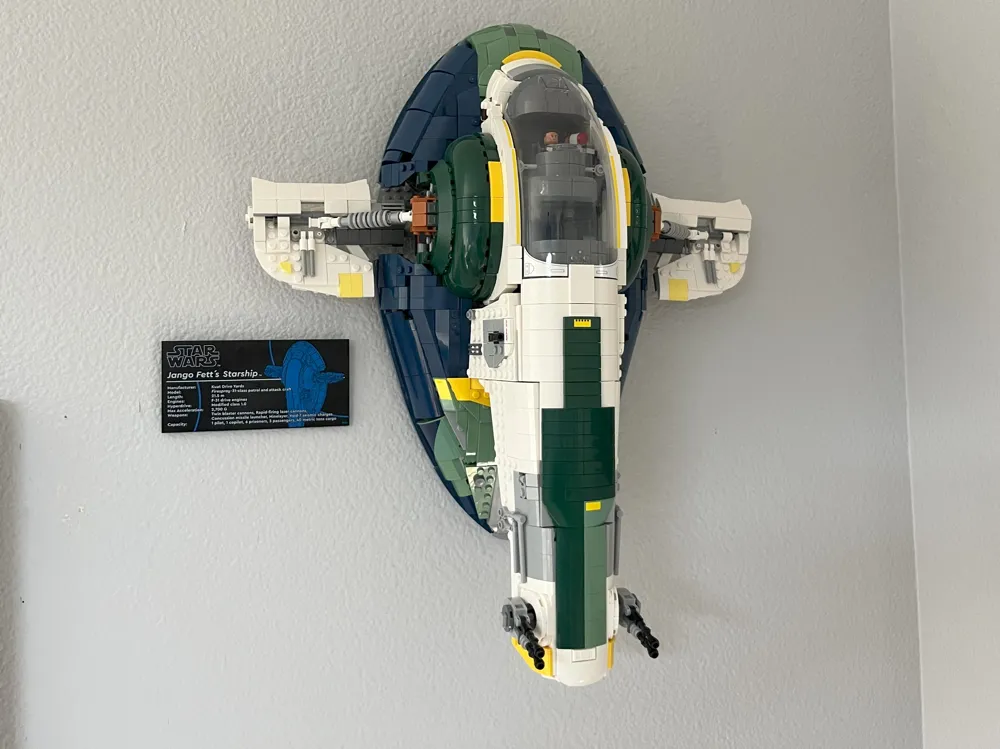

This is a simplistic wall mount that is compatible with the Danish building blocks 75409 UCS Jango Fett's Firespray-class Starship set. There is a wall mount for the ship, and a separate piece to mount the plaque. You will not need the original black technic stand to use this, but it works in the same way. The ship is easily removed from the mount if you want to! The plaque mount connects only with genuine bricks, so it is removable and is unlikely to damage anything.

Printing:

 - Make sure to leave the wall mount in the original orientation so that the printing layers work in your favor.

 - If you rotate the wall mount, it is likely that the mounting arms will snap off and your build will fall. :(

 - The printing profile is strong enough in my experience, but feel free to print with more infill/walls if that makes you more confident!

 - There are two options, so you can pick if you would the mount arms to have the original technic holes or not.

 - I printed this in PLA and it seems to be holding up. ABS or other stronger materials would likely be better if you have them.

Required Hardware:

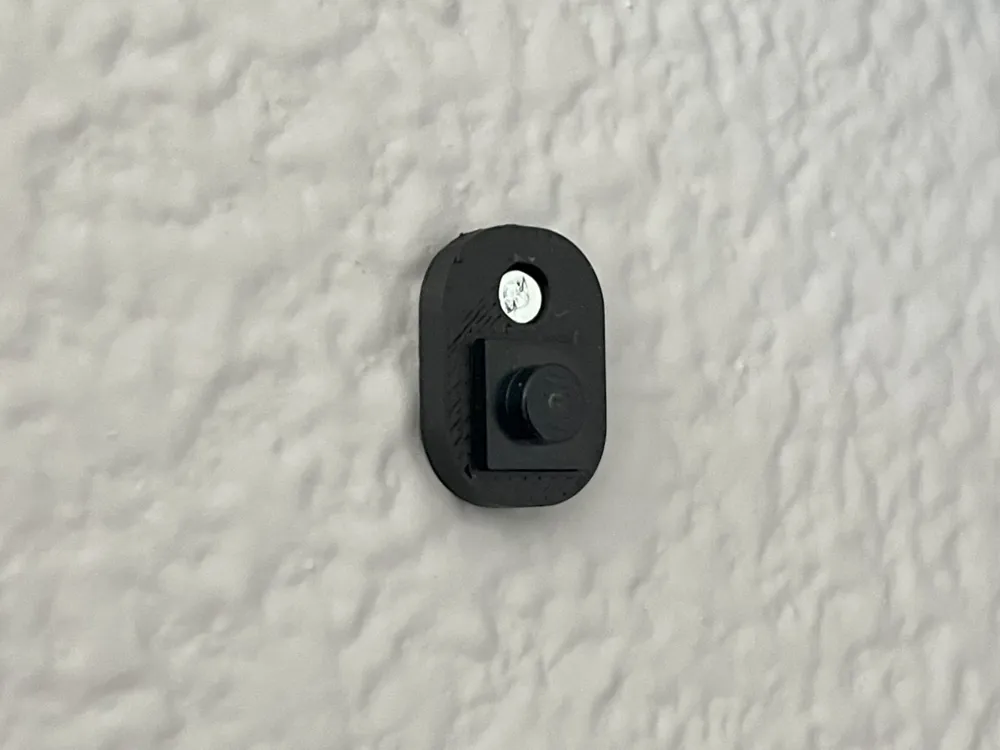

 - You will need a 1x1 plate to put into the plaque mount. This ensures that any printing errors/sizing errors do not result in any damage to pieces. The 1x1 plate should have enough friction to fit by itself, but feel free to glue this tiny piece permanently if you'd like.

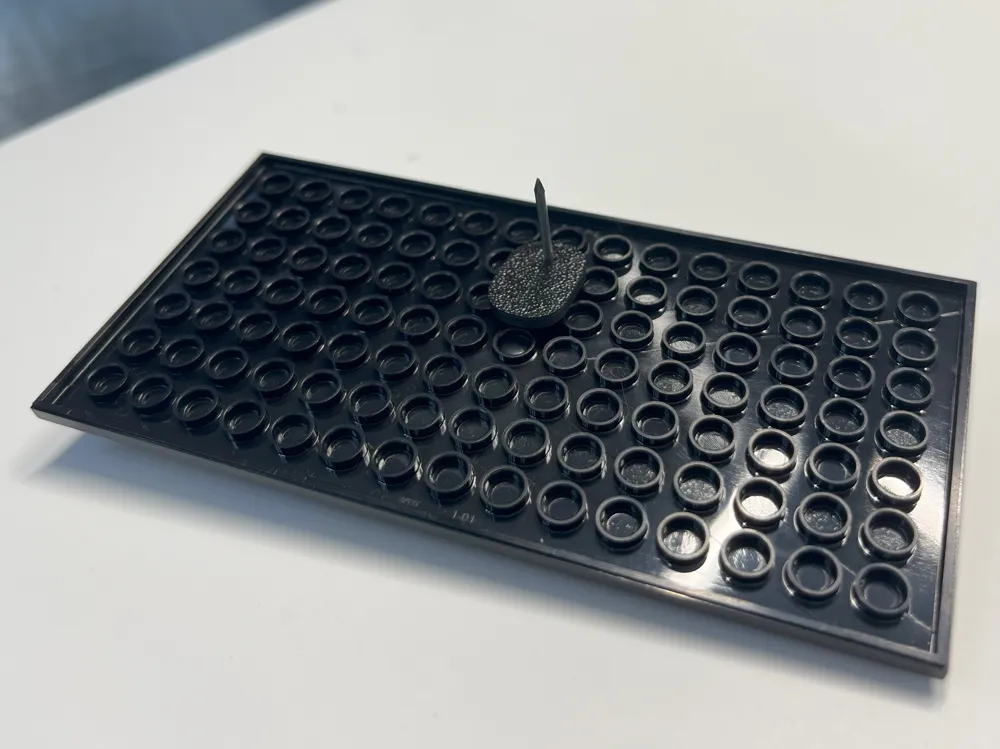

 - For the plaque mount, I used a 1" #17 wire nail. Anything similar should be fine, just make sure the head of the nail >2mm and <4mm diameter.

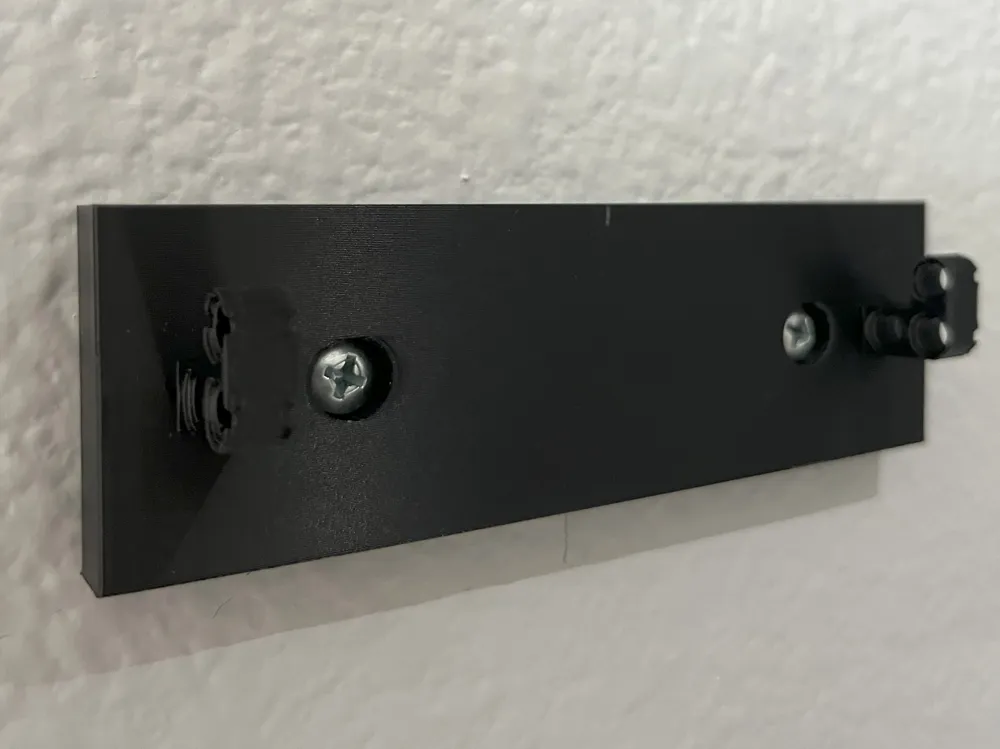

 - For the ship mount, I used two, #8 x 1.25" screws. Make sure you use drywall anchors as well if you are hanging this on drywall.

Please make sure that you use beefy enough hardware to hold up the ~9lbs ship!

Disclaimer: This wall mount design is an original fan-made accessory intended for personal use. It is not affiliated with, endorsed by, or licensed by any company or rights holder of the product it is designed to support. All product names, part numbers, and images are used for descriptive purposes only. If any relevant rights holder requests it, I will promptly remove this design.
