BMW M4 G82 — 1:10 Scale Model/RC Car
Print Profile(12)
Bill of Materials
Description

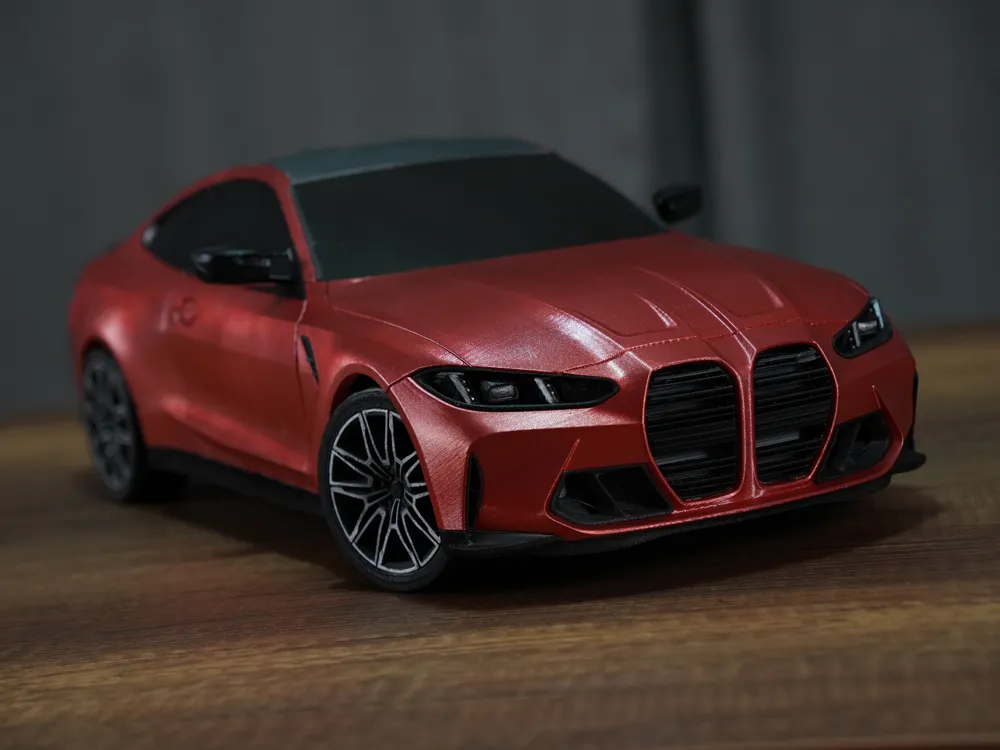

This is a 1:10 scale BMW M4 G82 Display Model / RC Car
Check below video for detail info and assembly instructions.

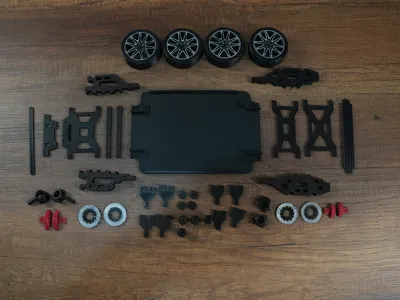

RC Chassis is a modified version of DKS-Basic.
For assembly instructions and the rest of the parts go to chassis page from Duke Doks. https://makerworld.com/en/models/1468804-chassis-1-10-adaptable-dks-basic

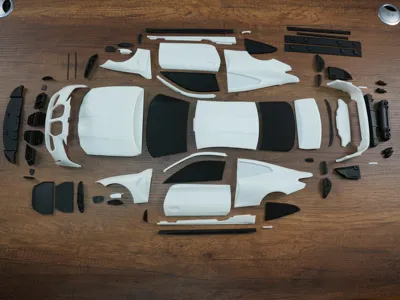

Important note: make sure to use the shorter front splitter when building the body, so it doesn’t clash with the chassis. It is included in the RC Chassis print profile.
Dimensions:
- Wheelbase : 285,7 mm
- Track Width : 187 mm
- Overall Lenght : 475 mm
- Overall Width : 206 mm
- Height : 144 mm
Hardware :
Display Chassis :
- 4x – M3 x 5
- 3x – M3 x 10
- 4x – M3 x 12
- 4x – M3 x 25
- 56x - M3 x 8
