Modular 3D Printed 3.5" HD Enclosure – Stackable & Customizable Storage

Looking for a 2.5" drive version? Check out my other model: https://makerworld.com/en/models/1657170-modular-stackable-2-5-hd-ssd-enclosure

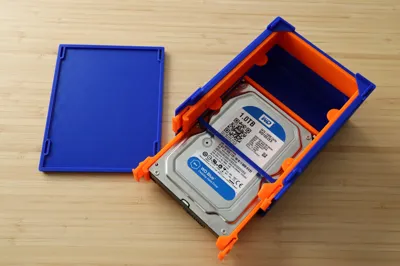

Manage your 3.5" drives with ease with modular HD Enclosure, designed specifically for 3.5-inch hard drives (up to 25mm in height). Whether you're organizing your archive, building a RAID array, or just need something to hold your HD collection, this enclosure offers a flexible solution.

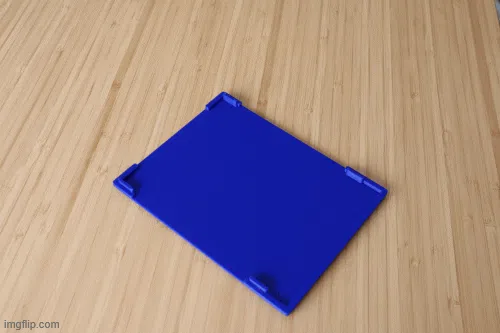

Print one top, one bottom, and as many middle levels you need!

Key Features:

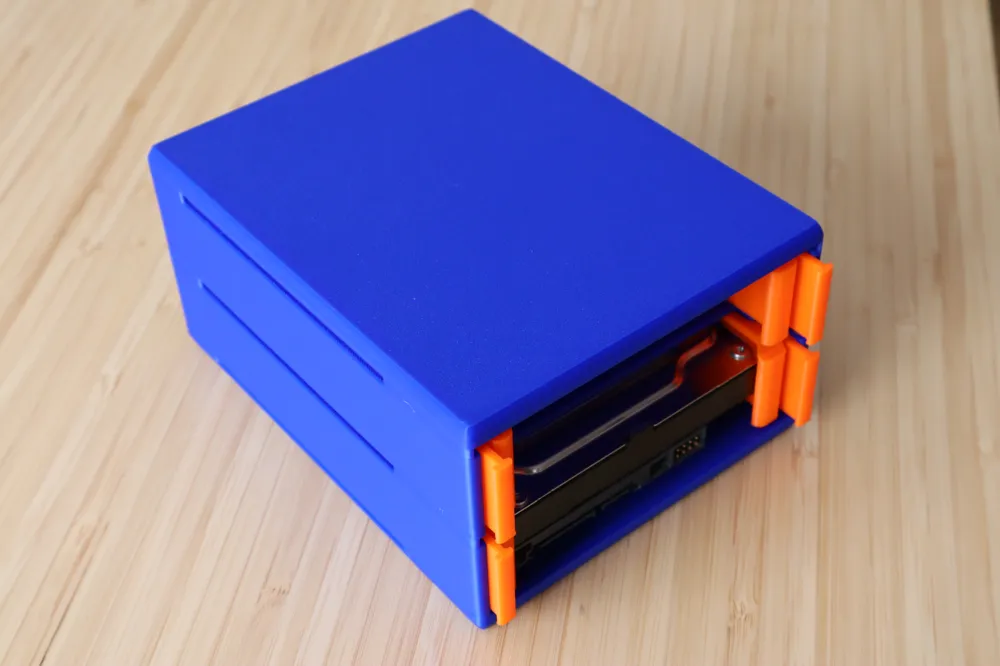

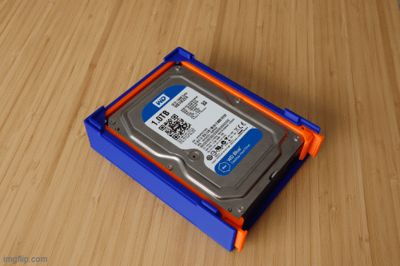

Modular Design – Print as many levels as you need. Each tray is an independent module that easily stacks with others, so your enclosure can grow with your storage needs. You can use glue to fix the levels together.

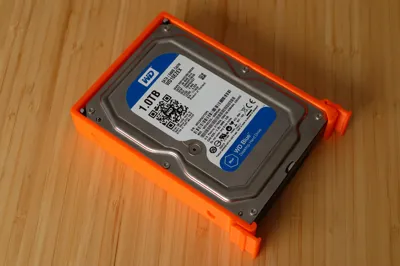

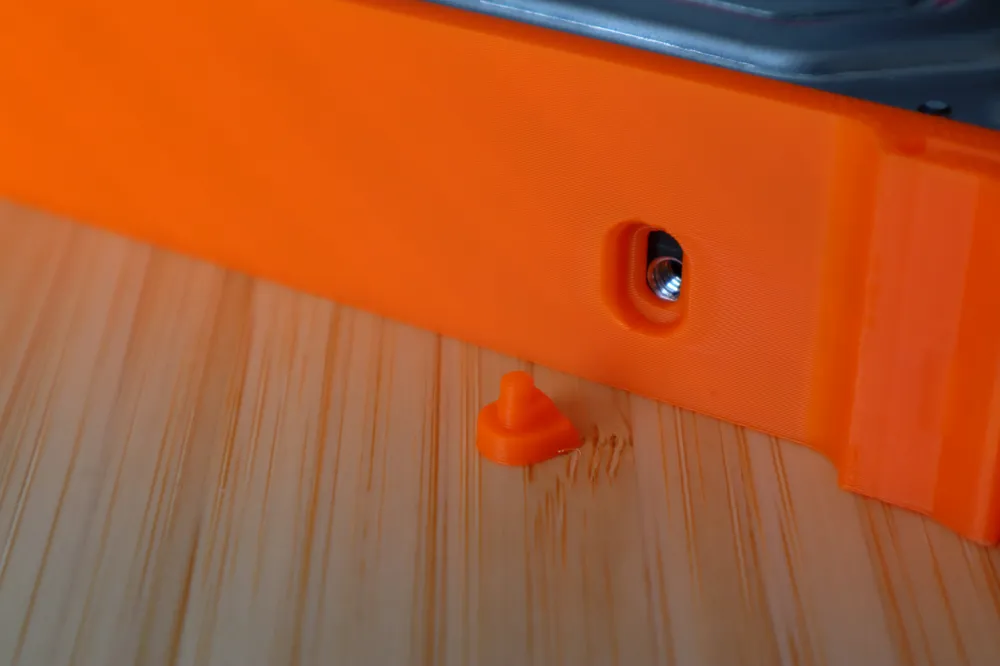

Versatile Drive Mounting – Secure your hard drives using standard screws (recommended) or the included quick-fit pins for tool-free installation. Warning: Due to higher vibration in 3.5" drives, I recommend that you use regular screws instead of pins to secure the drive in the tray.

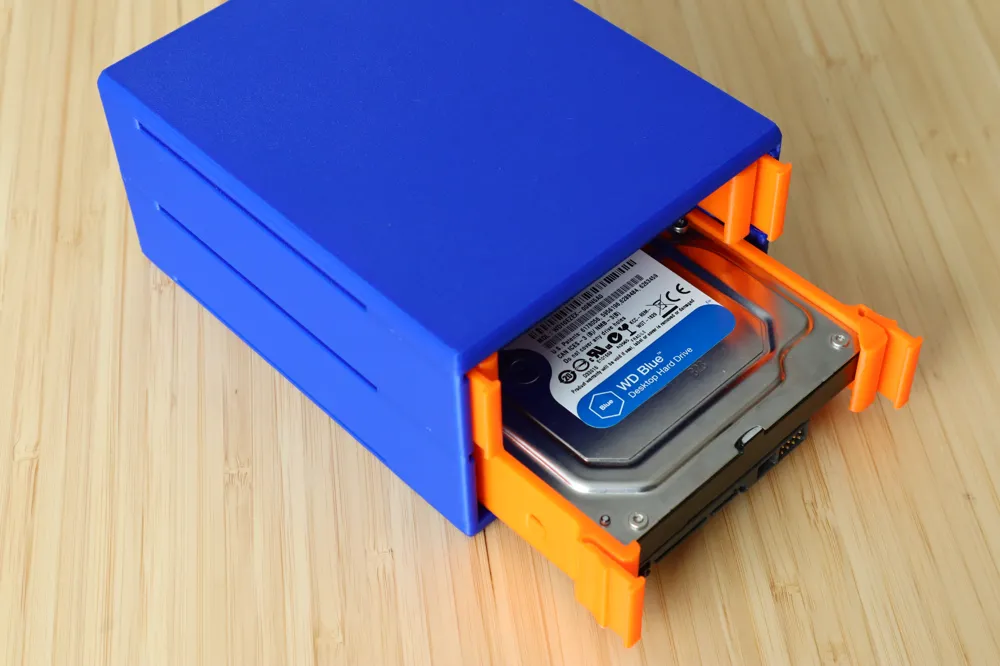

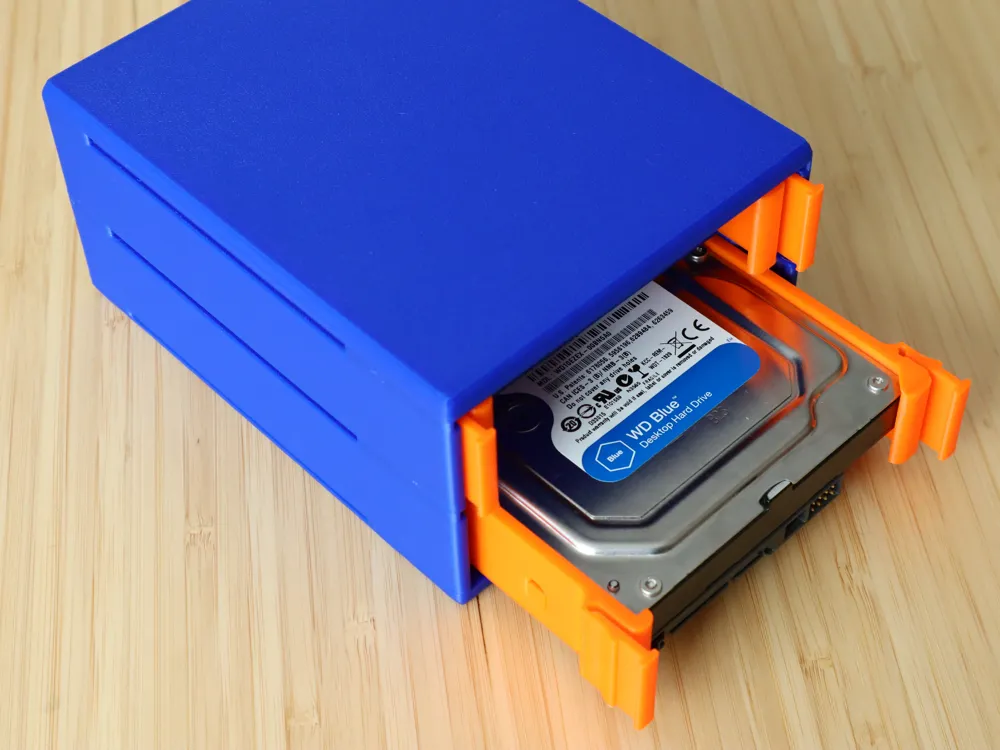

Click-In Tray Mechanism – Each tray is held by a click-lock system, ensuring easy removal and sturdy operation.
Optimized Airflow – Each drive is spaced for ventilation, with venting gaps on all sides to promote effective airflow and help keep temperatures down.

Also check out my SATA cable curved guide to keep your cables organized and optimize airflow: https://makerworld.com/en/models/1784779-sata-cables-curved-guides#profileId-1901529
