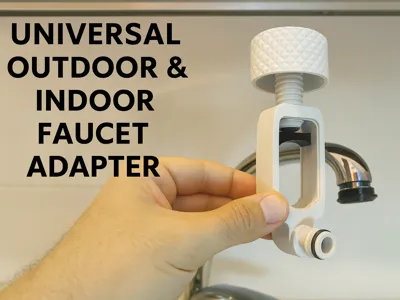

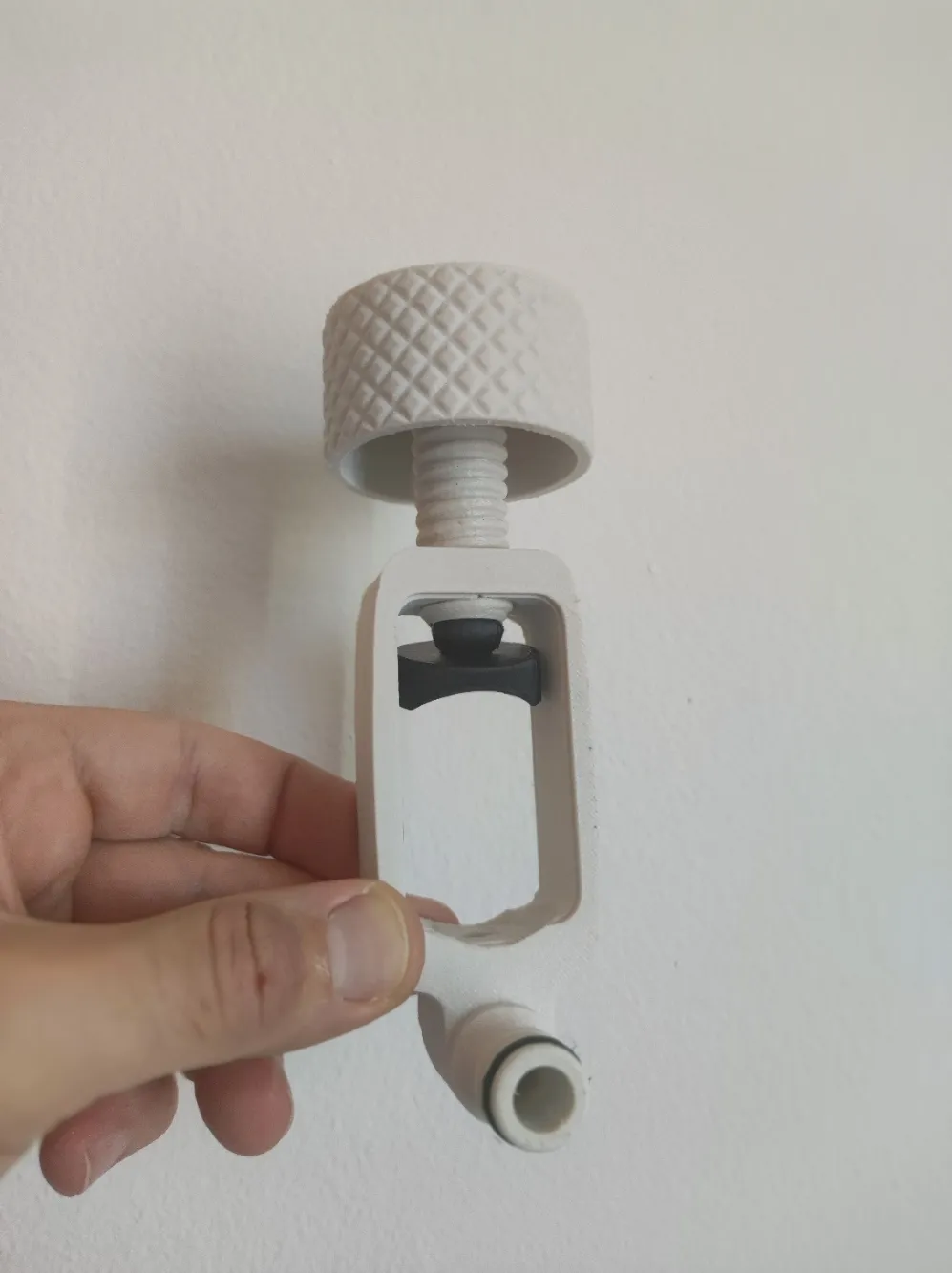

Universal Outdoor & Indoor Faucet Adapter

This is a universal indoor faucet adapter for garden hoses and improved to better suit European standards, enhance durability, and optimize usability.


Modifications and Improvements

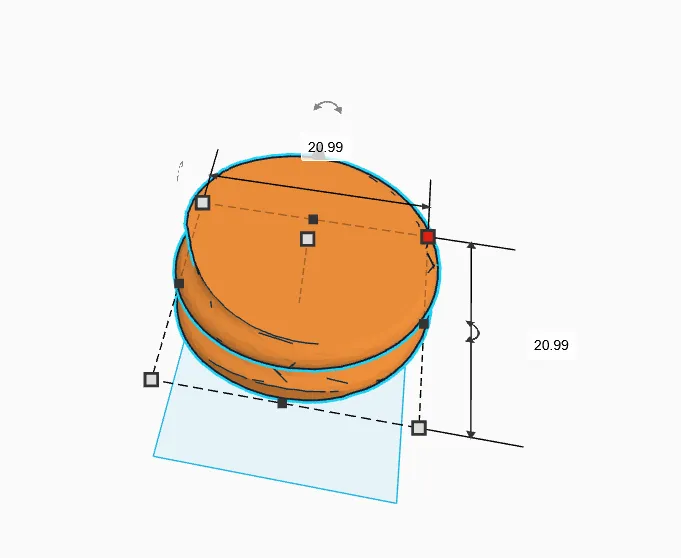

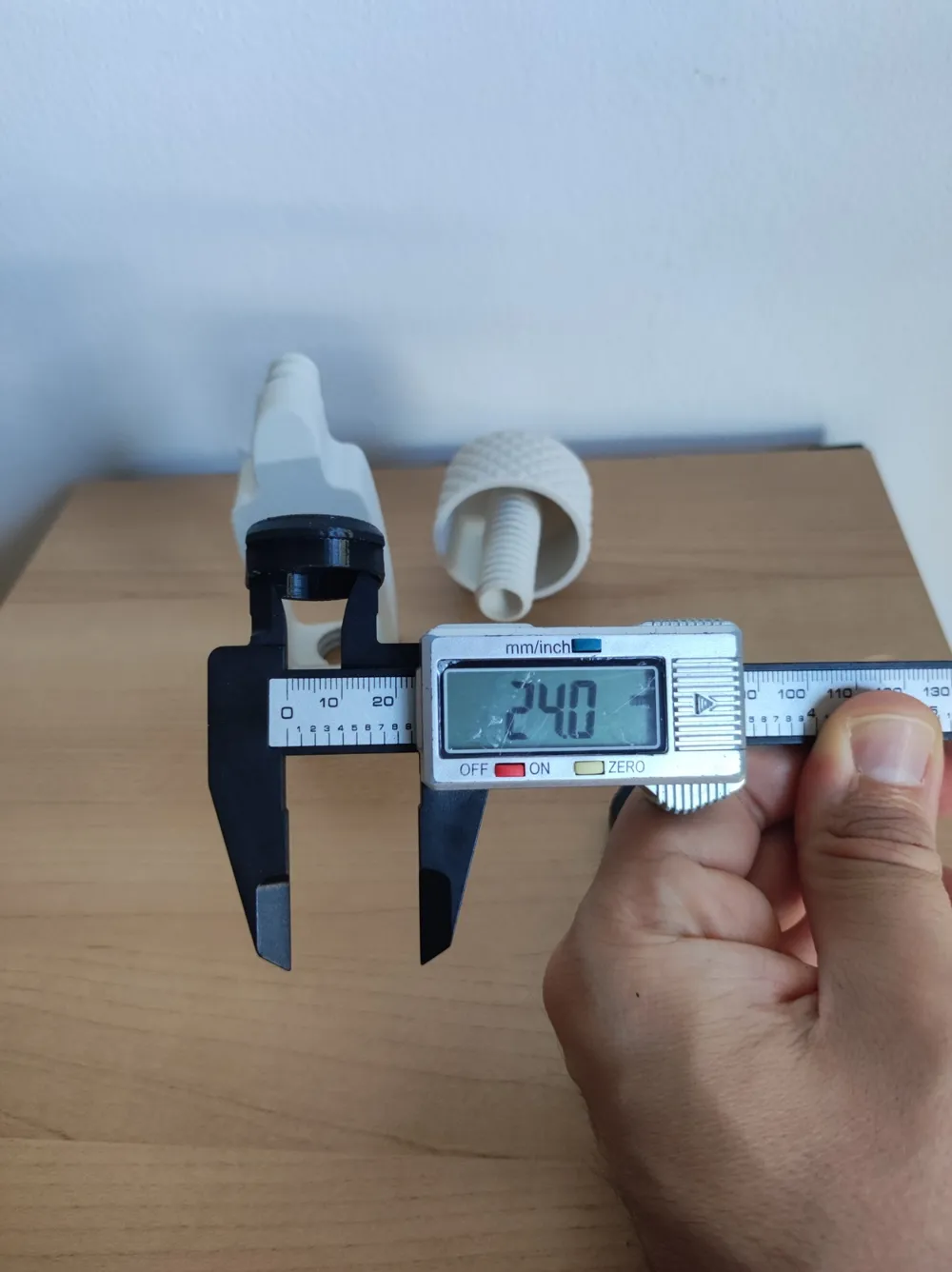

• Cap diameter increased to 24 mm
  The cap was redesigned with a 24 mm diameter, making it compatible indoor faucets

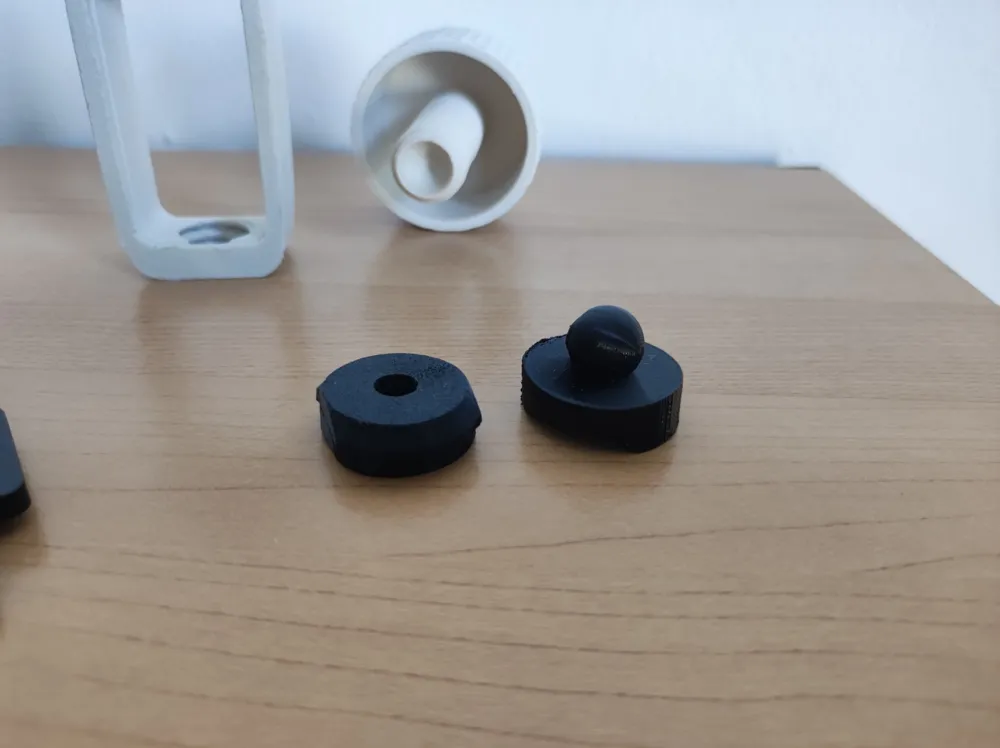

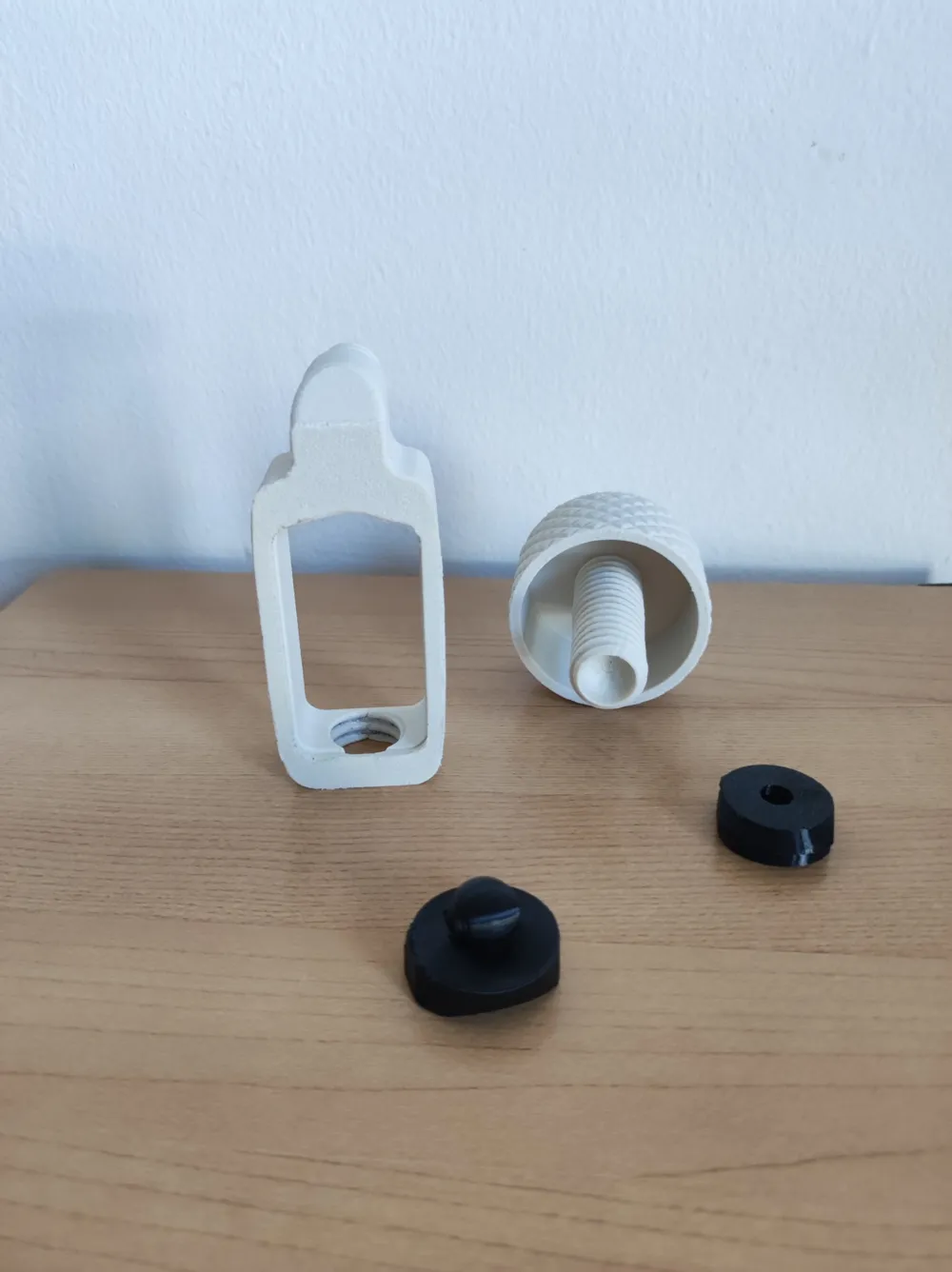

• Ball joint-style adaptive screw mount
  A circular arc recess and a ball on the top were added in order to change angle, better adapt to the upper surface of the tap and increase grip

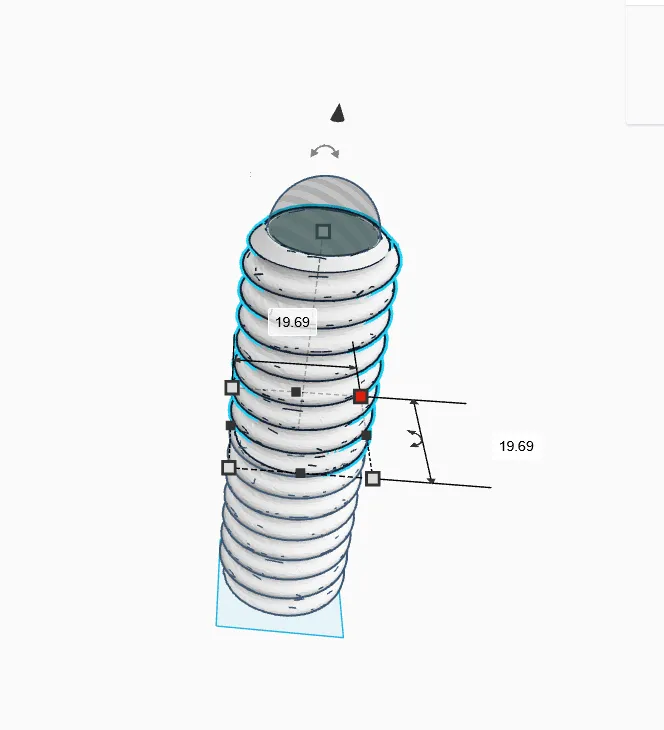

• The screw mount was completely redesigned

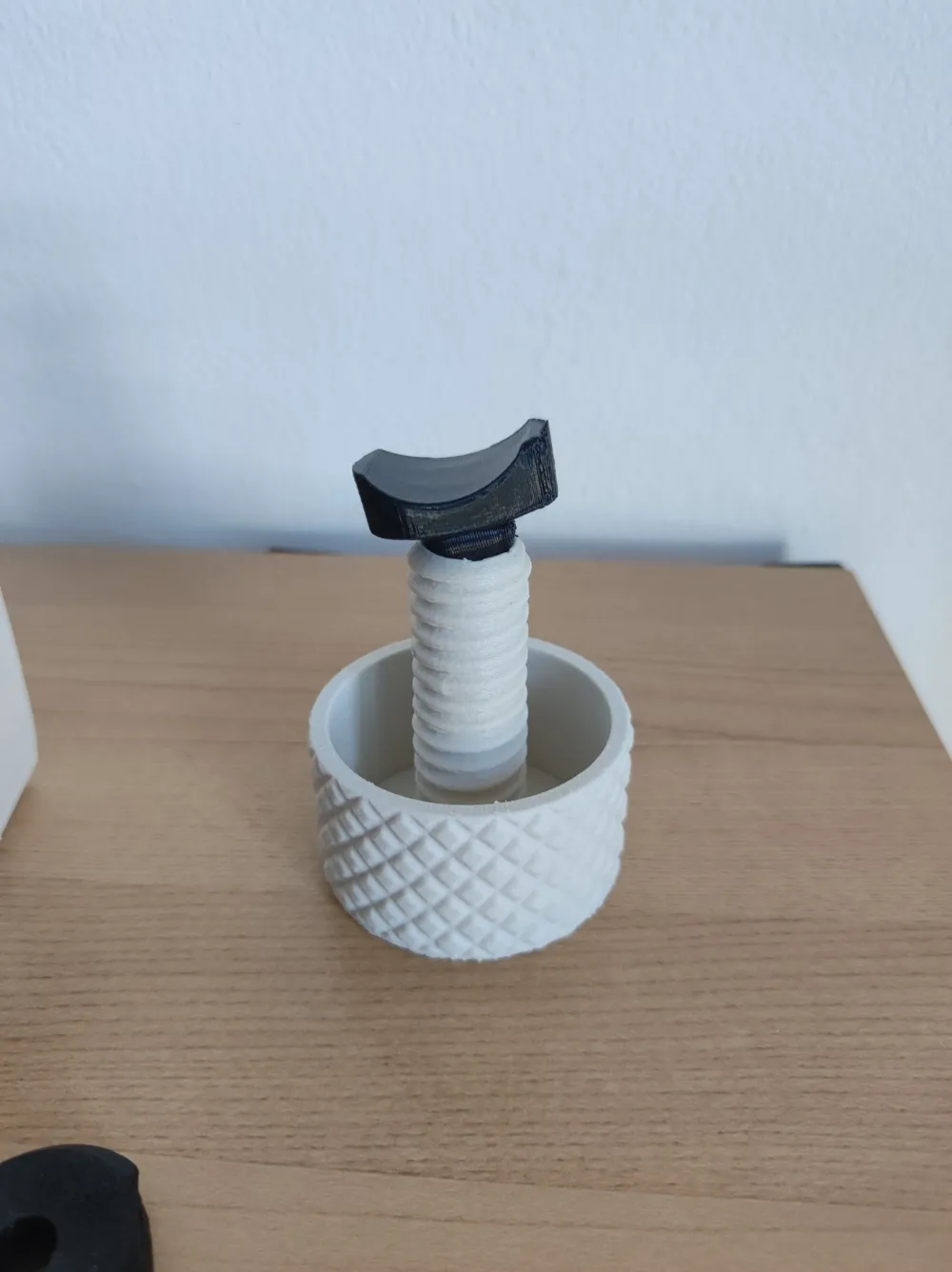

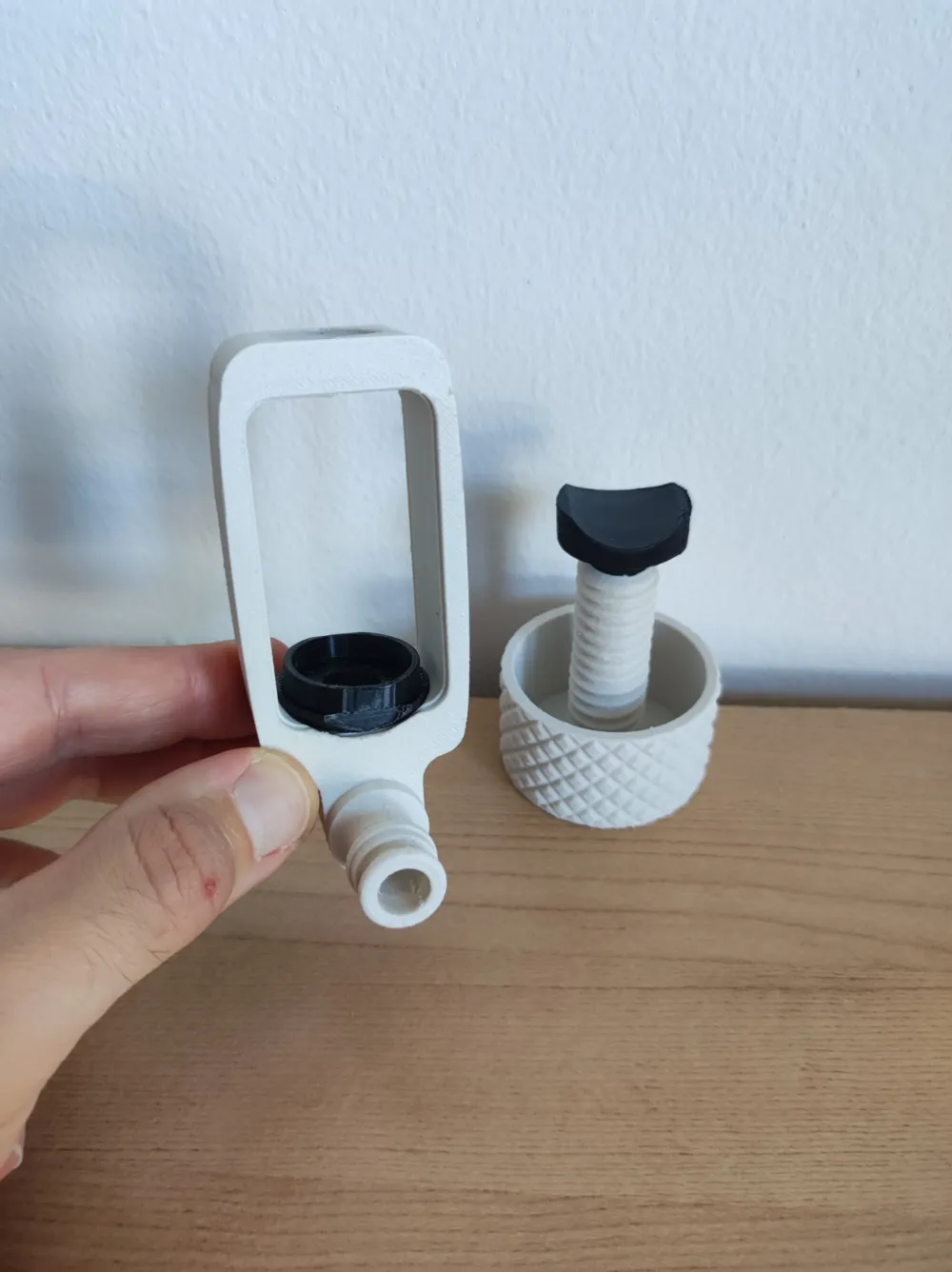

  A spherical ball was engraved on top of the screw in order to adjust better the TPU adapter to the faucet’s angle and surface, improving fit and stability.
  Plus : The thread diameter is slightly smaller to make it easier for older people to screw on this universal tap adapter without any effort.


        If you want a tighter thread, increase the screw size slightly by scaling it up ( ± 0.5mm)

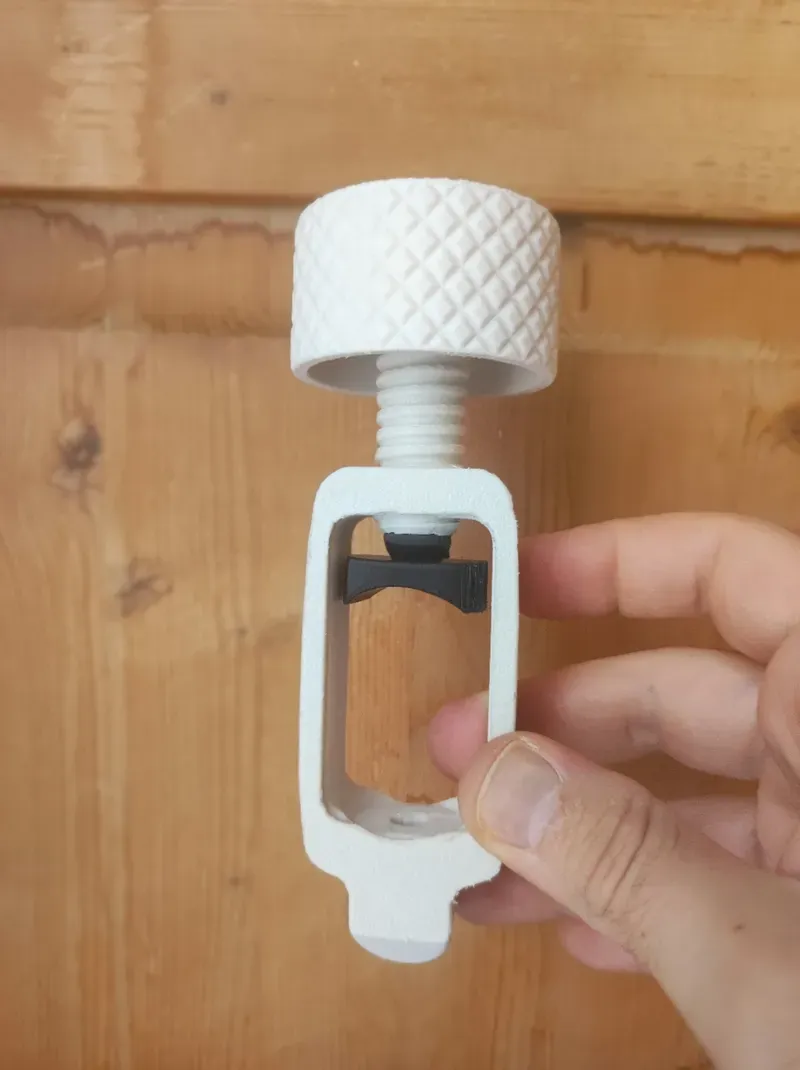

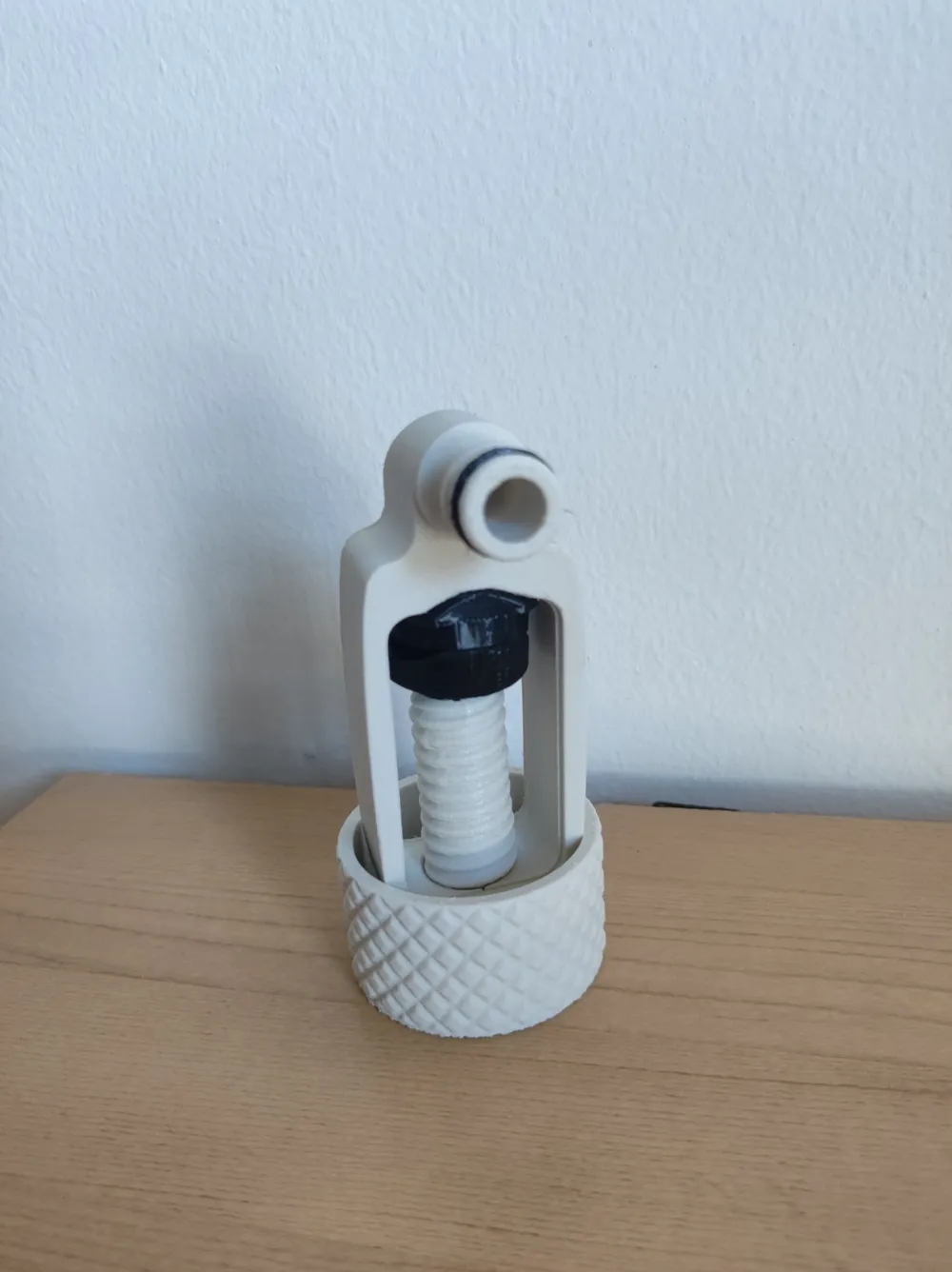

• Diamond knurling grip and Screw length extended to 60 mm:
  The outer grip texture was changed to diamond knurling for improved grip, even with wet hands or gloves.

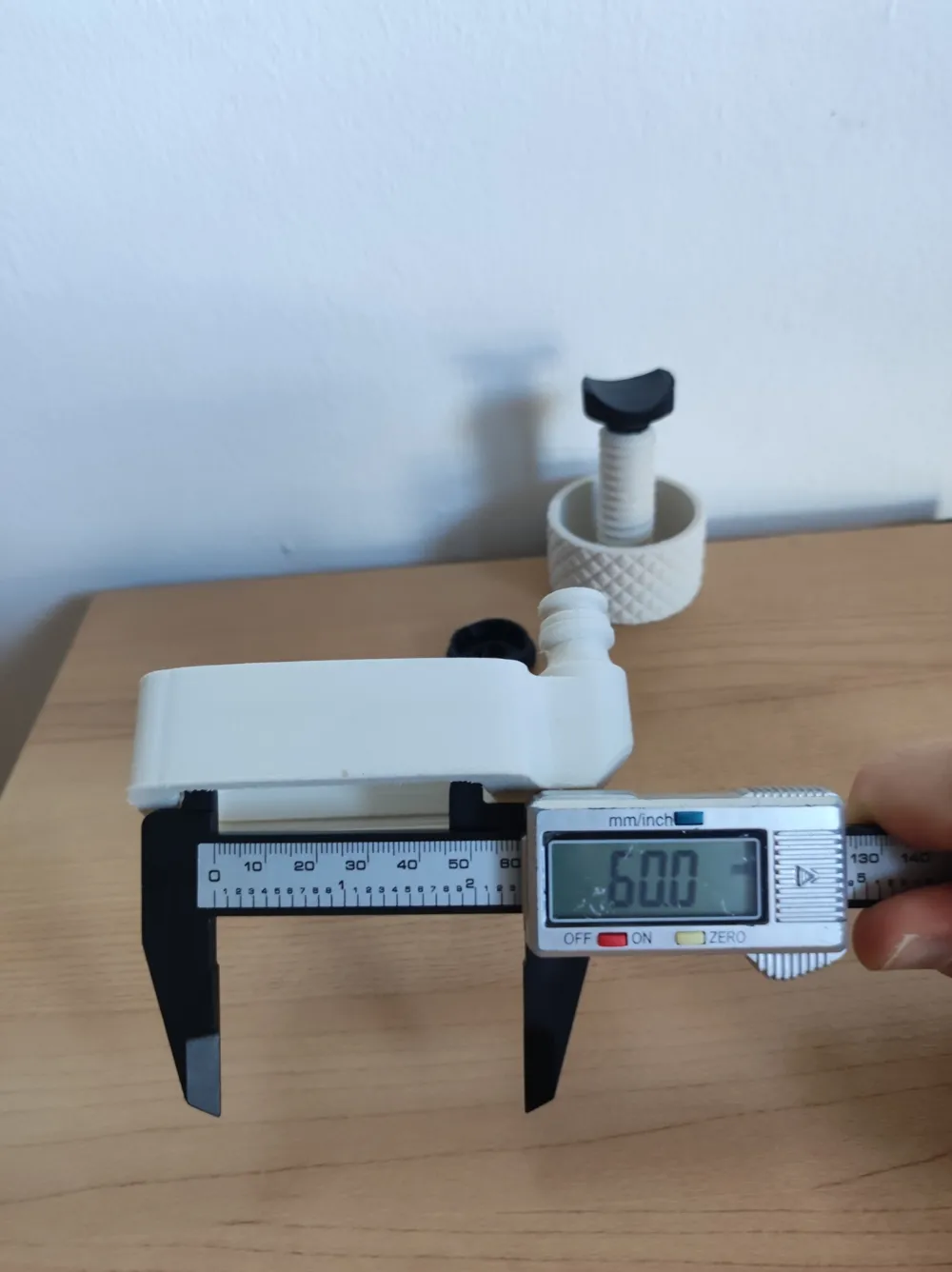

  The screw was lengthened to 60 mm, ensuring compatibility with deeper or thicker faucet heads.

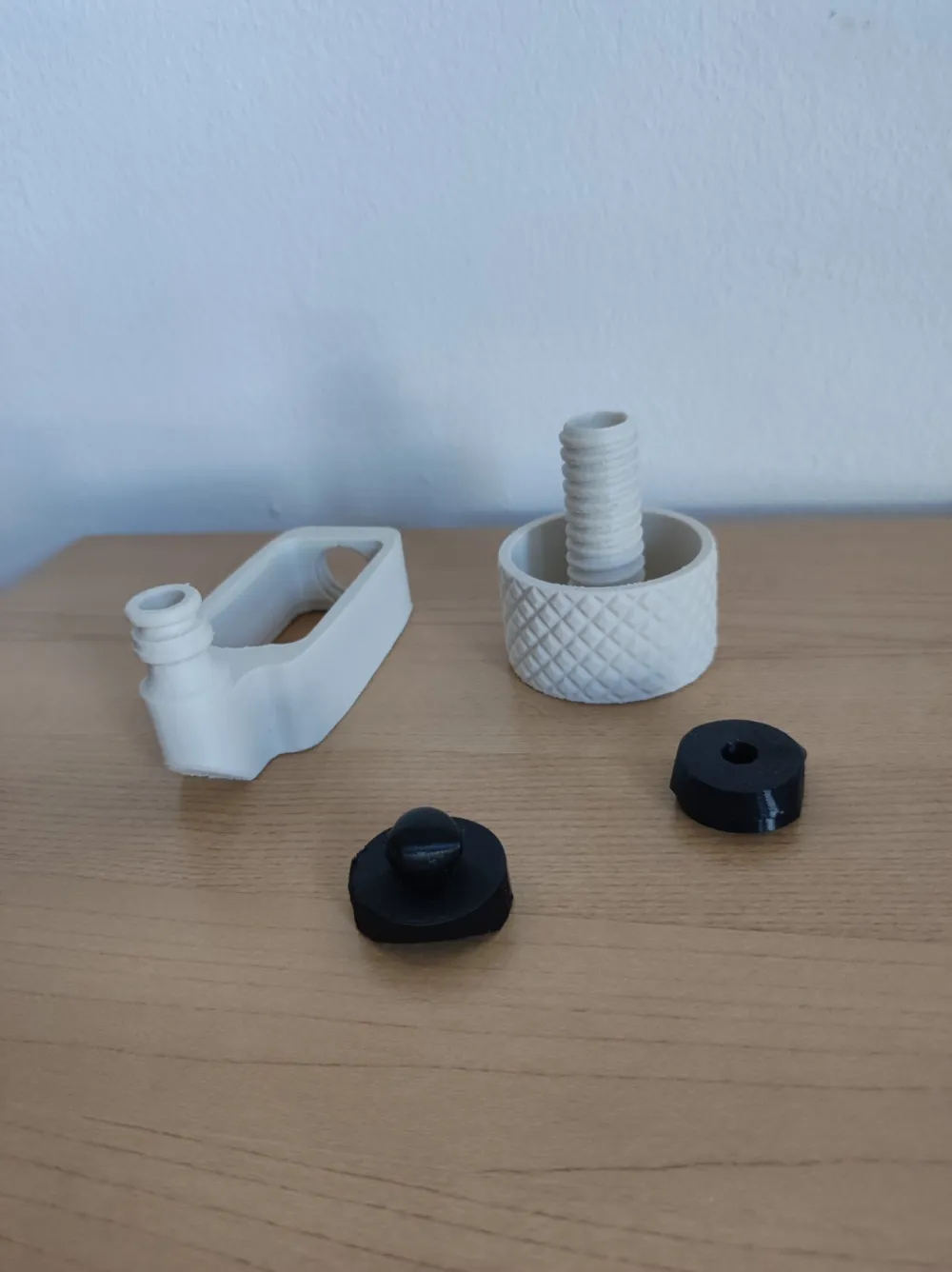

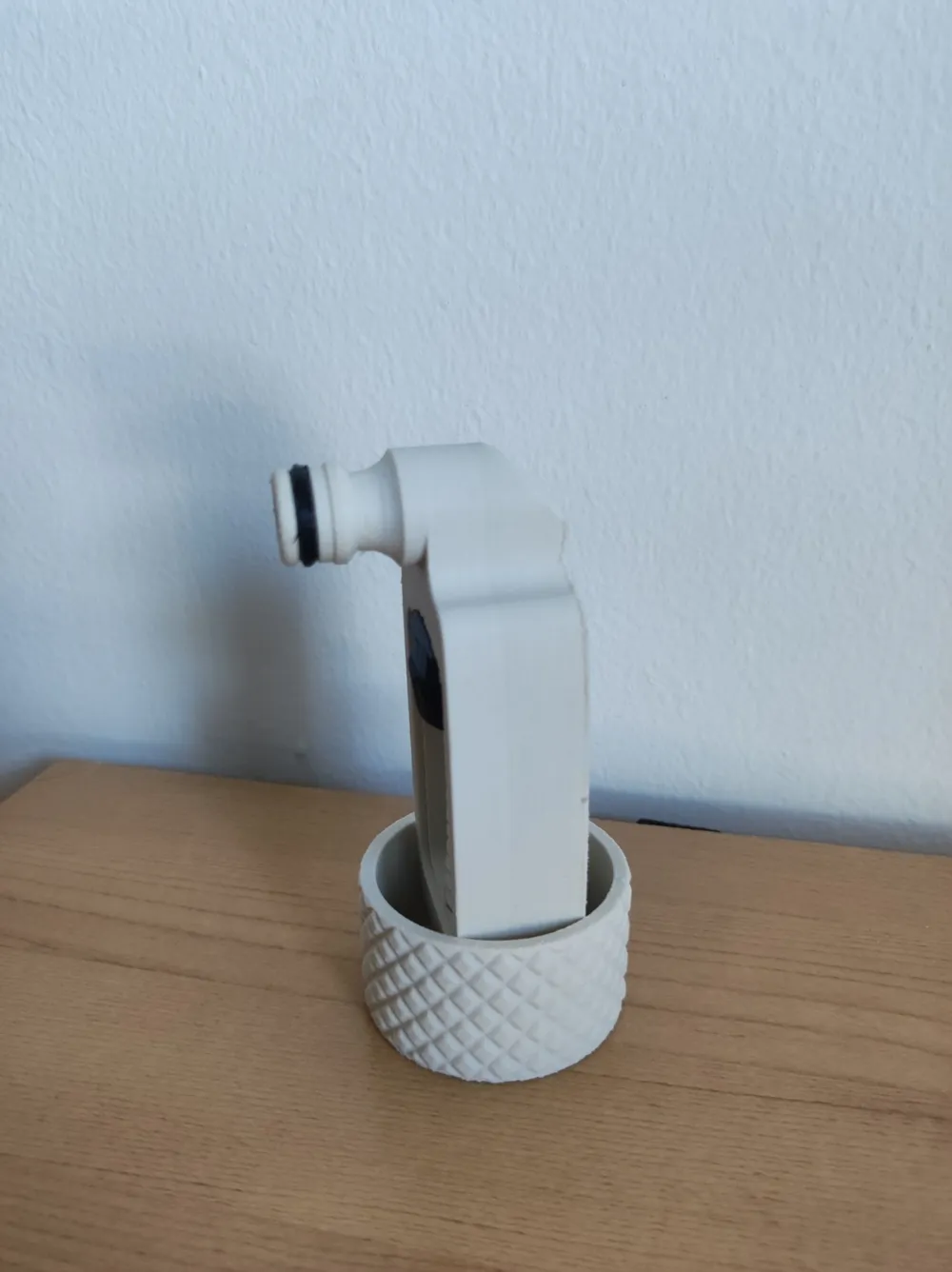

• Reinforced and extended bracket and flat bottom surface
  The faucet mount was internally extended to accommodate larger and longer faucets.
  The wall thickness of the adapter support was increased for enhanced strength and durability.
  Better adhesion to the print bed, Faster print times and more accurate dimensions




I used BAMBU LAB PA6-GF and TPU 95A HF for this model , you can print with : PLA / PETG / ASA / ABS
