Creality SpacePi Space Pi x4 Dessicant Holder

Dessicant Holder for Creality SpacePi x4 Filament Dryer

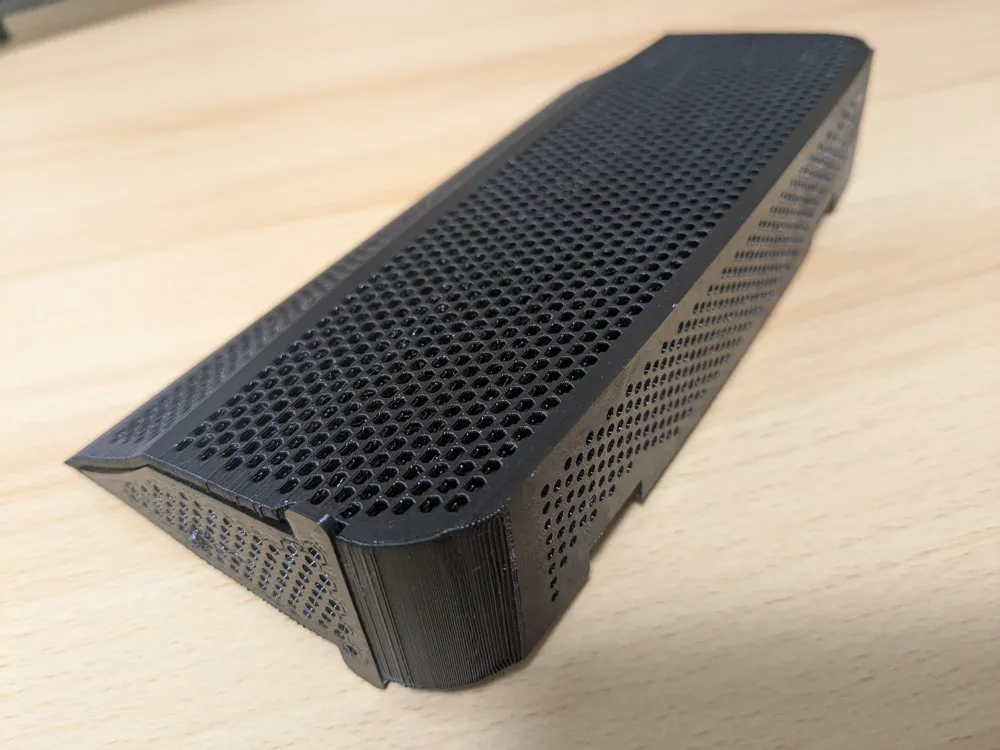

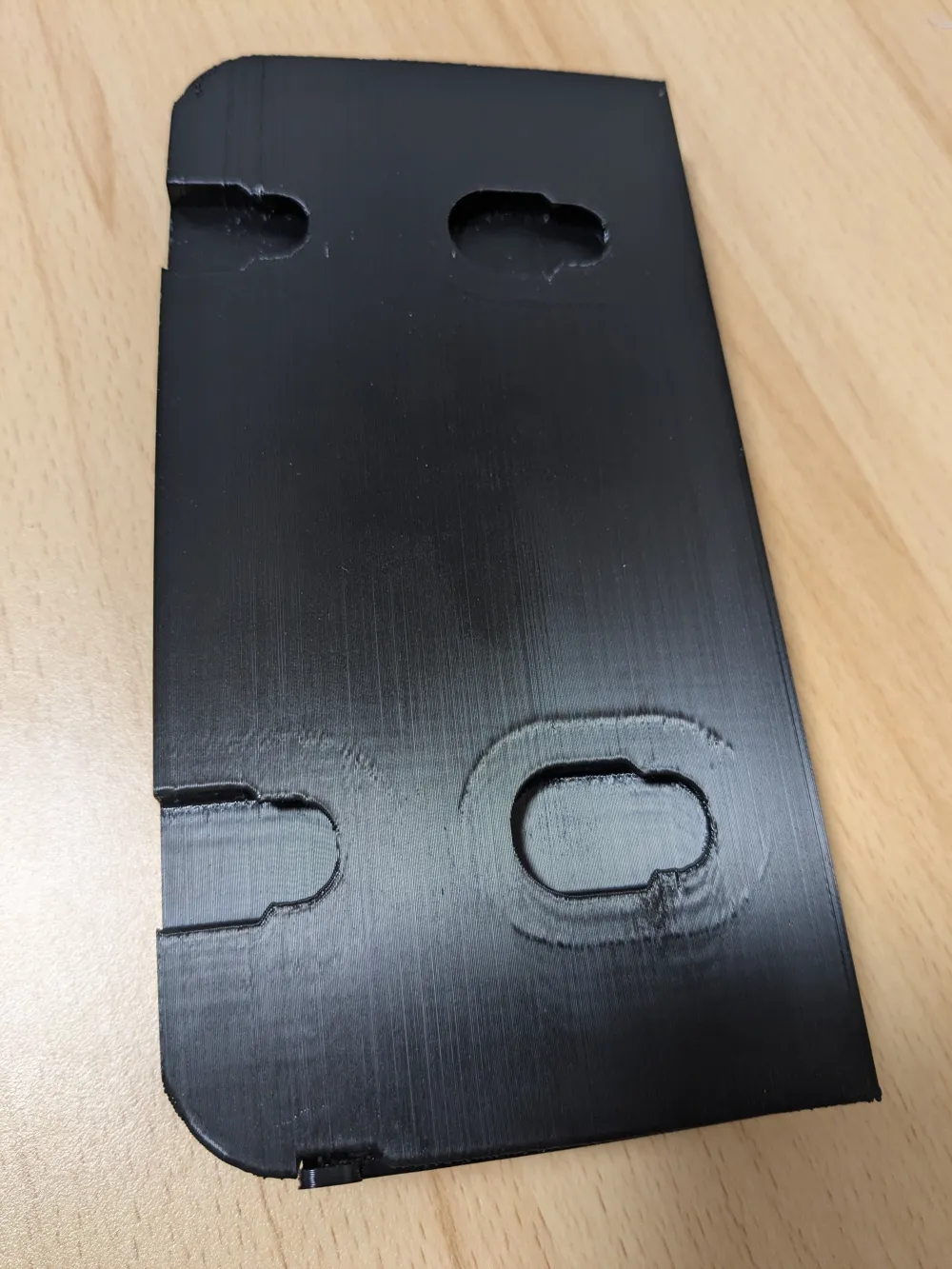

Easily removable dessicant holder for the Creality SpacePi x4 filament dryer.  There is very little extra space in the dryer to add a dessicant holder.  This design makes use of the space above the spools.  It took several prototypes to be able to maximize the available space without interfering with the spool or the path of the filament.

Installation instructions:

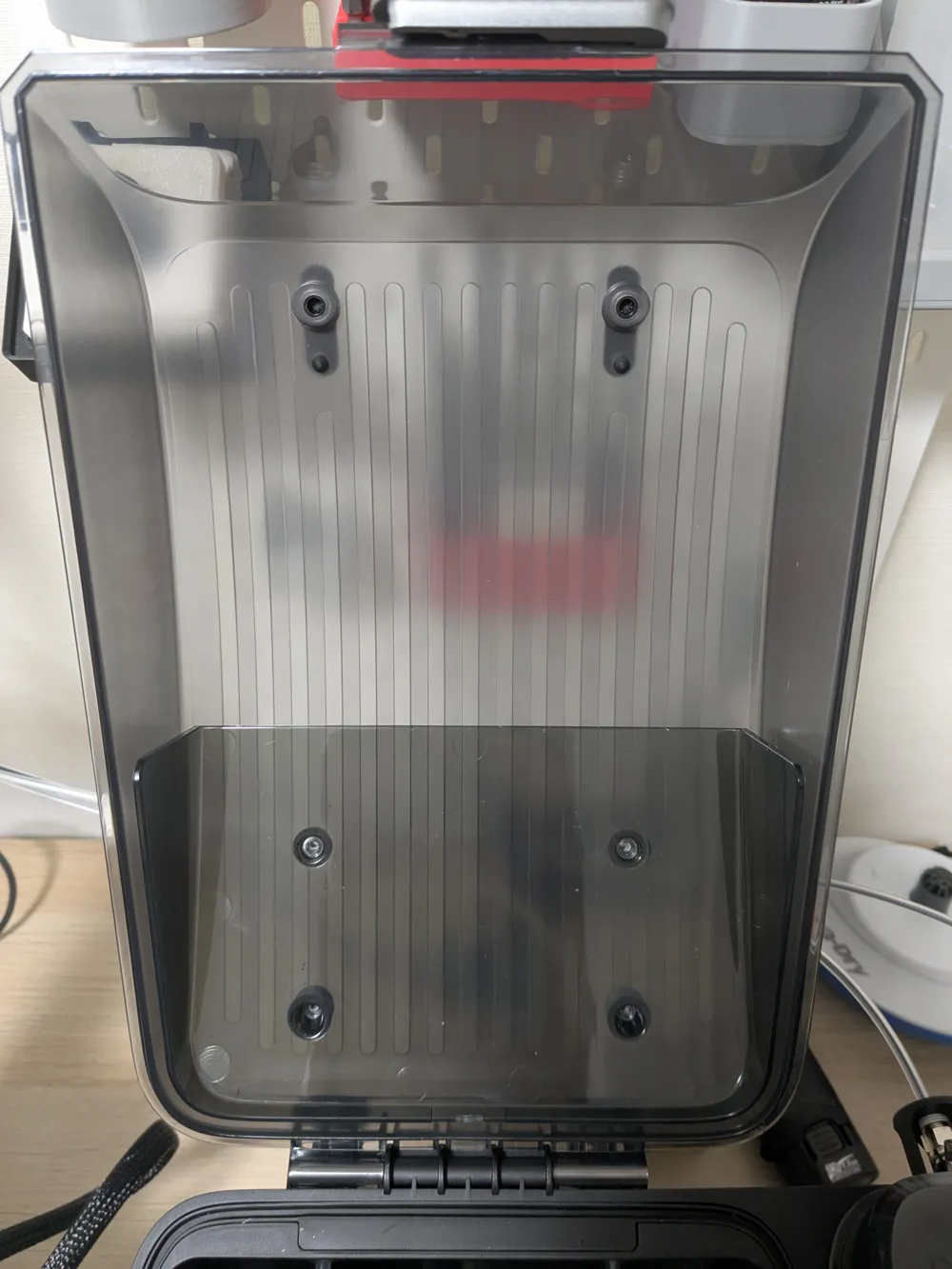

• Remove the existing stock spool shield in the cover by unscrewing the Qty4 T8 drive torx screws.

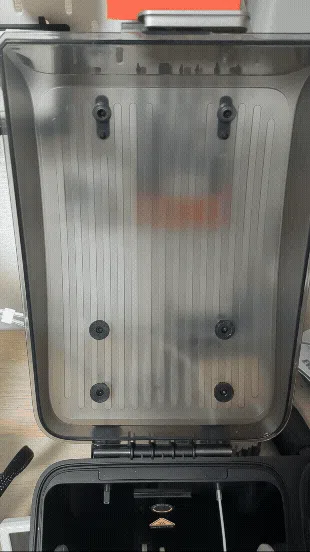

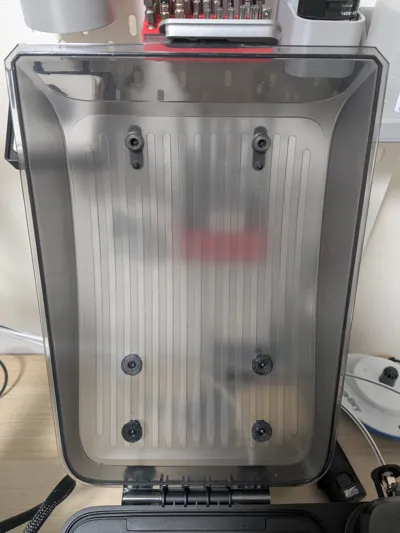

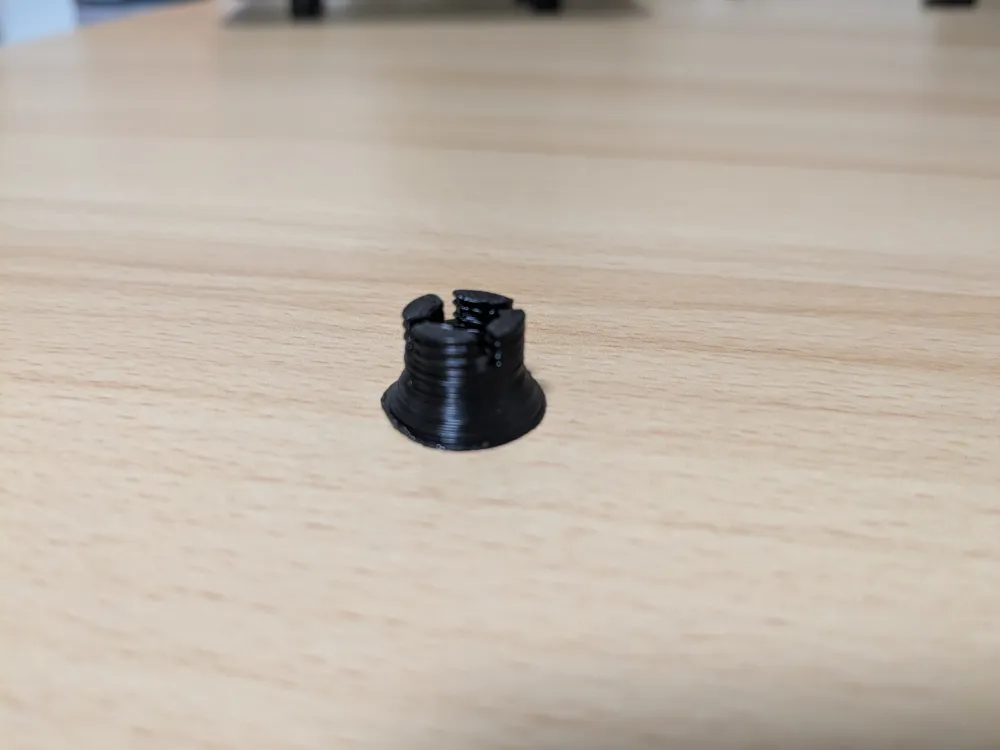

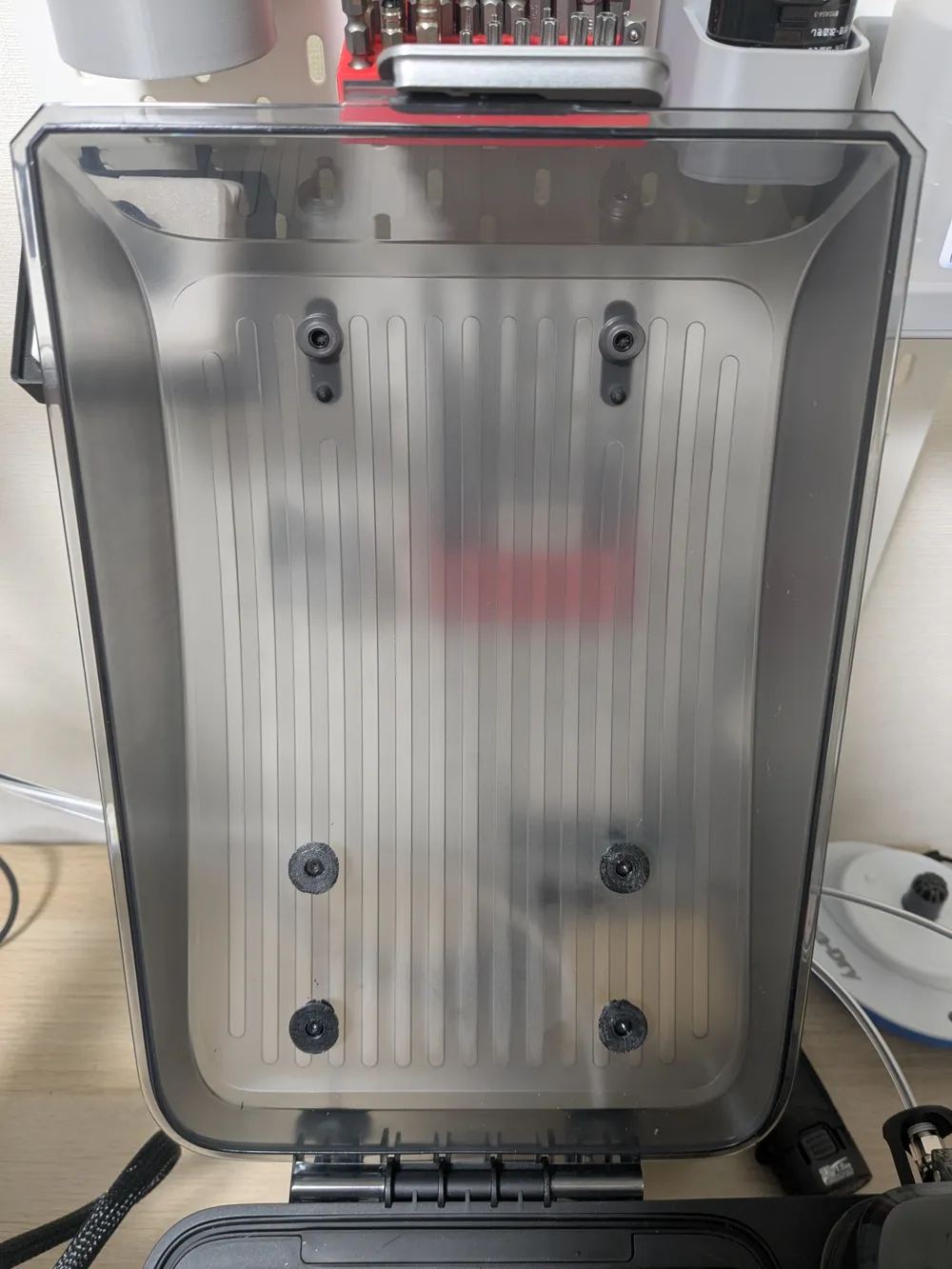

• Use the existing torx screws and install the Qty4 dessicant mounts (ensure mounts are aligned with the “cross” support structure on cover).

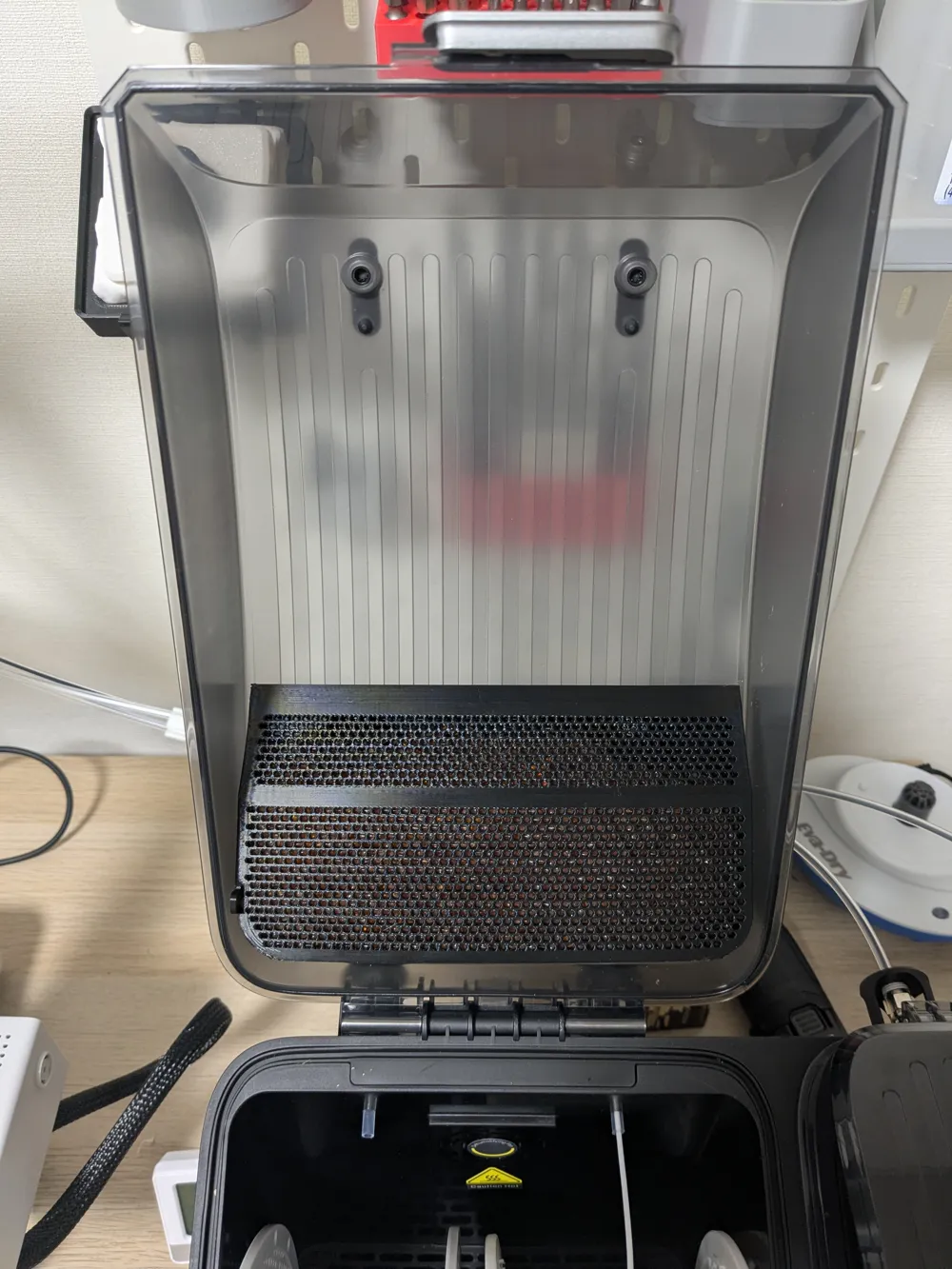

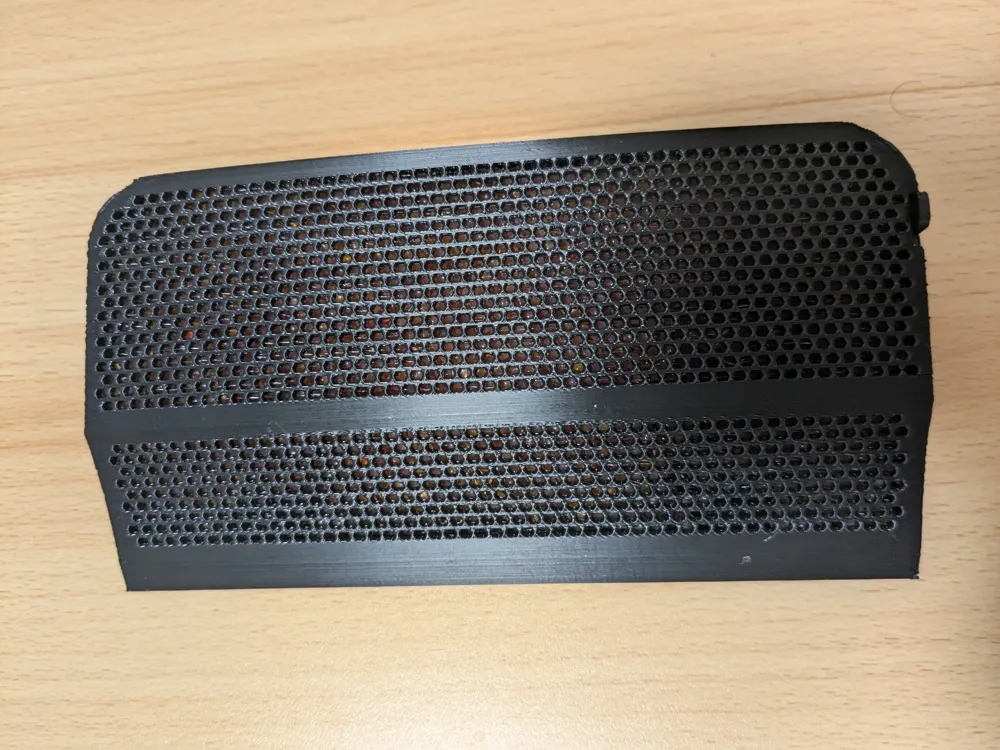

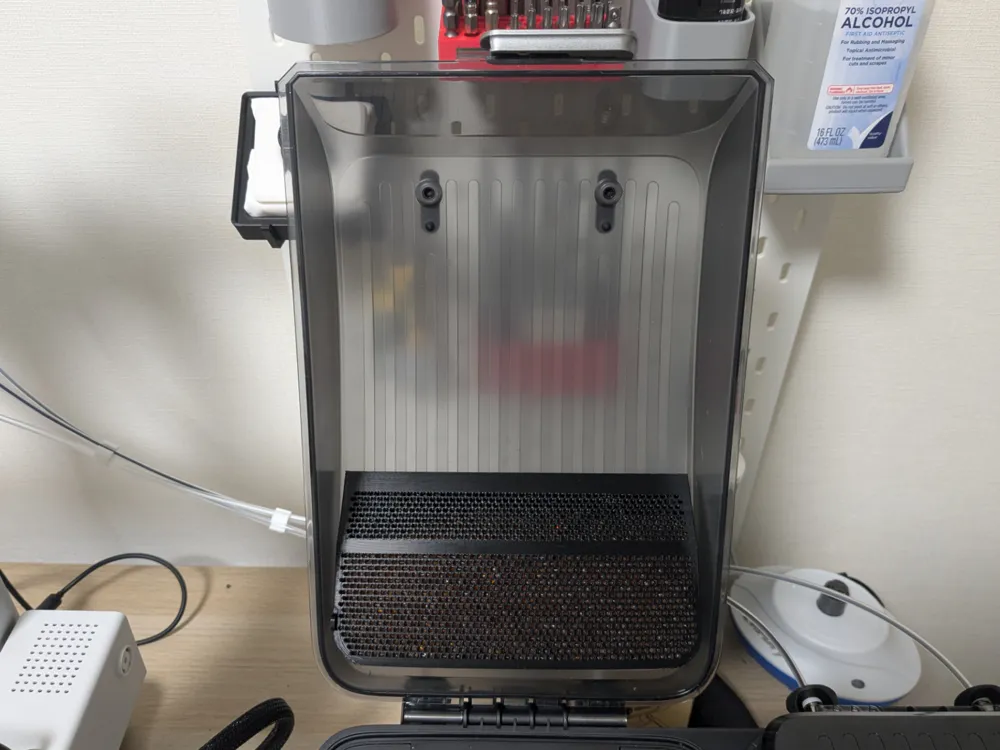

• Slide on dessicant holder
