Beanstalk (NO supports) - Grow a Garden - Roblox
Print Profile(2)
Bill of Materials
- 16 Acrylic Plastic Cement x 1: High-strength solvent cement for bonding acrylic Fast setting with a working time of 5 - 6 minutes Low VOC content Bonds rigid PVC, ABS, styrene, butyrate, polycarbonate to themselves and each other, as well as other plastics and porous surfaces
- Gorilla Super Glue Gel x 1: Gorilla Super Glue Gel is a thicker and more controlled formula*, developed for long-lasting repairs in an instant while drying within 10-45 seconds. This formula works on a variety of materials, including plastic**, metal, stone, ceramic, paper, rubber and more!
Description

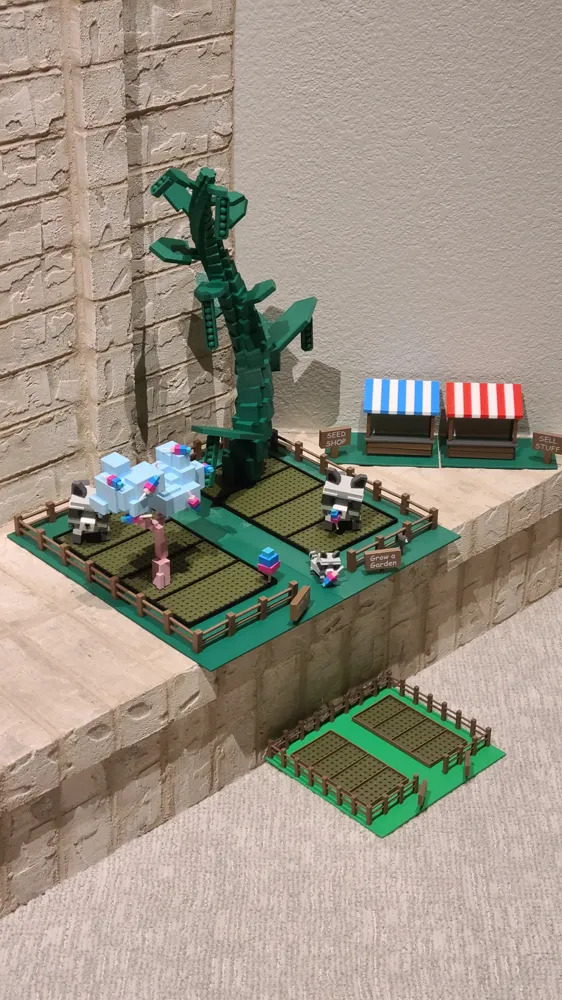

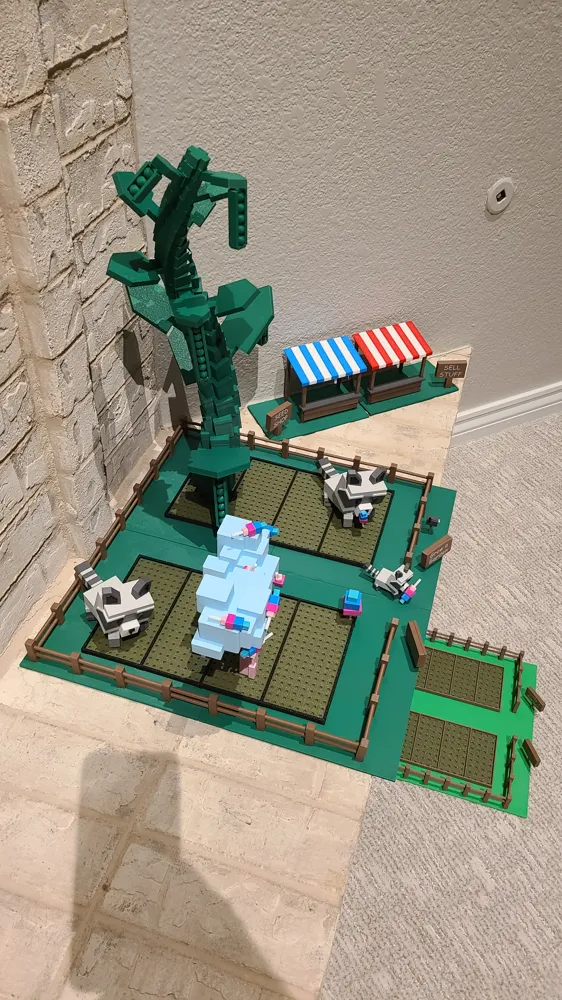

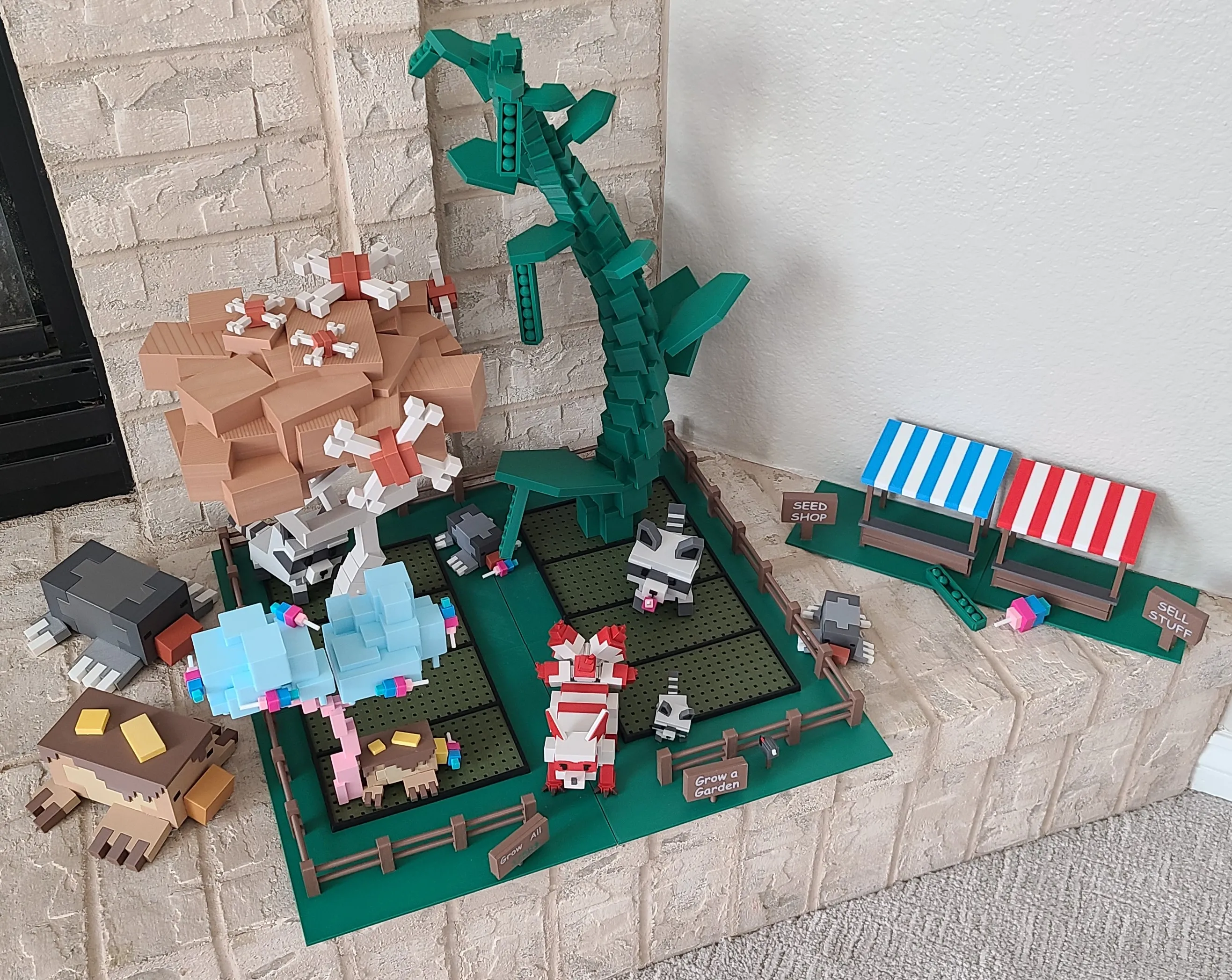

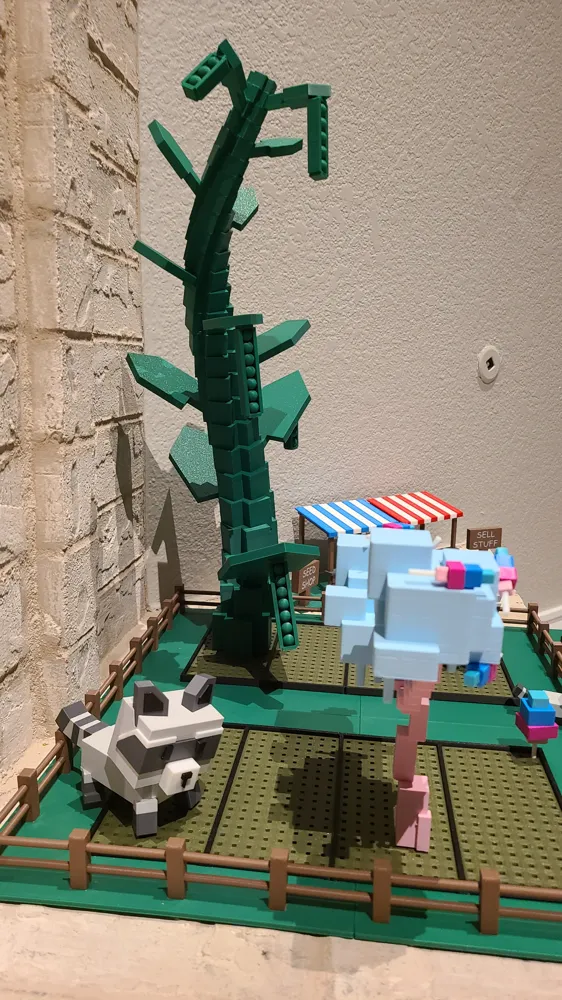

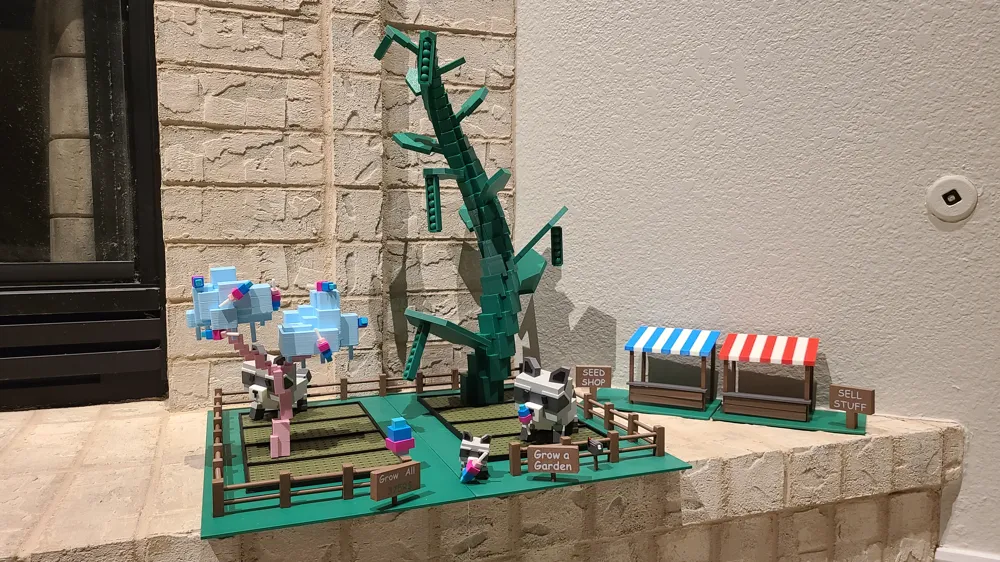

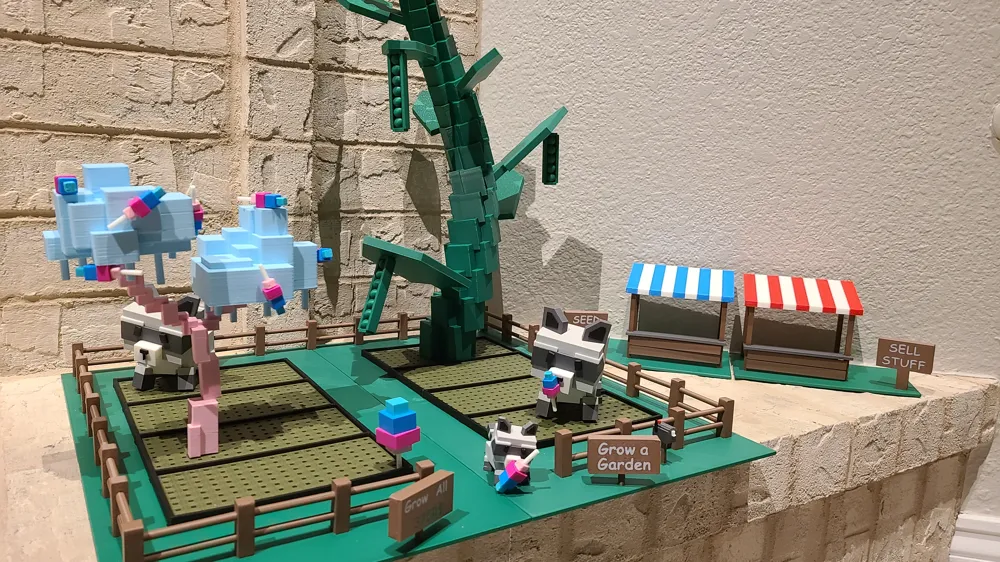

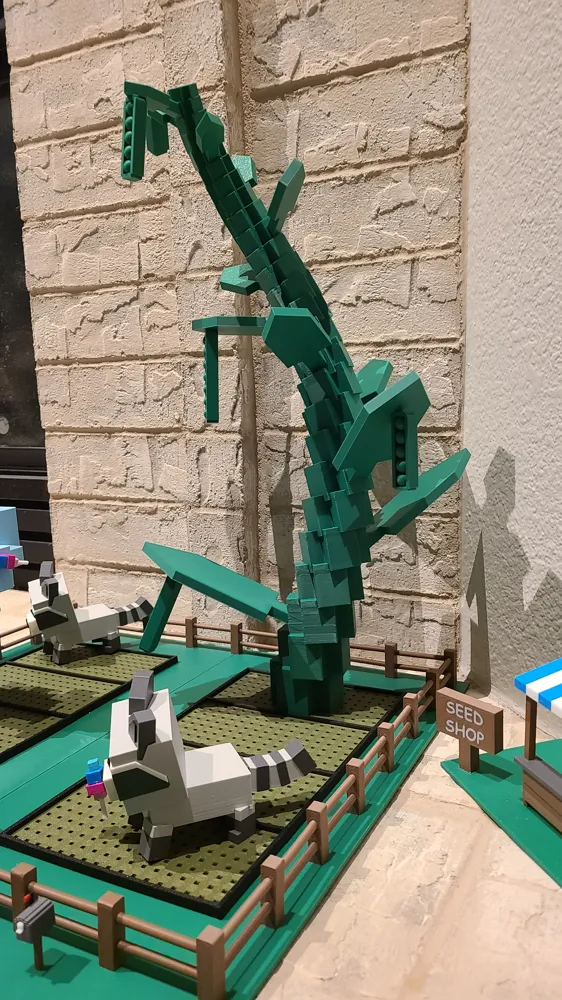

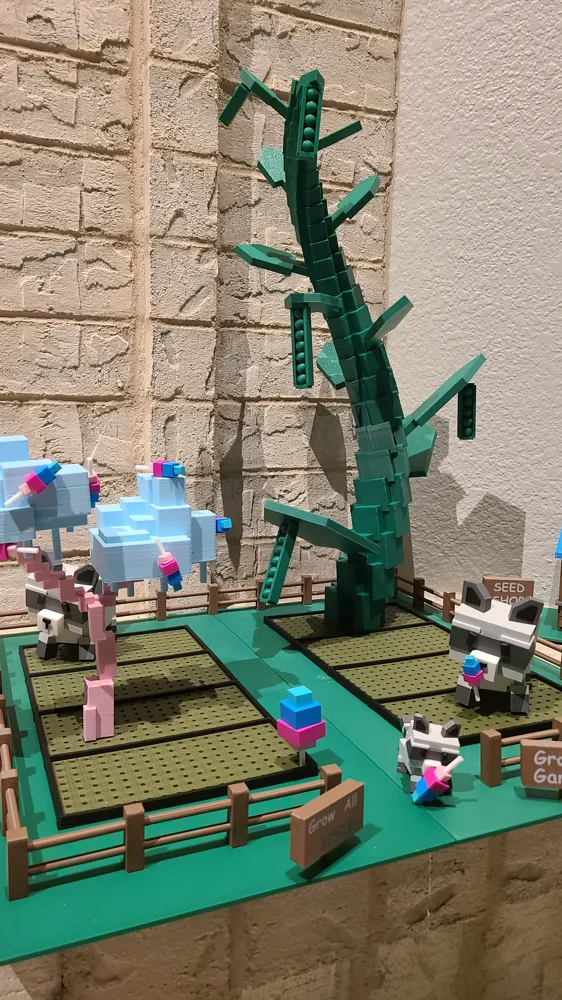

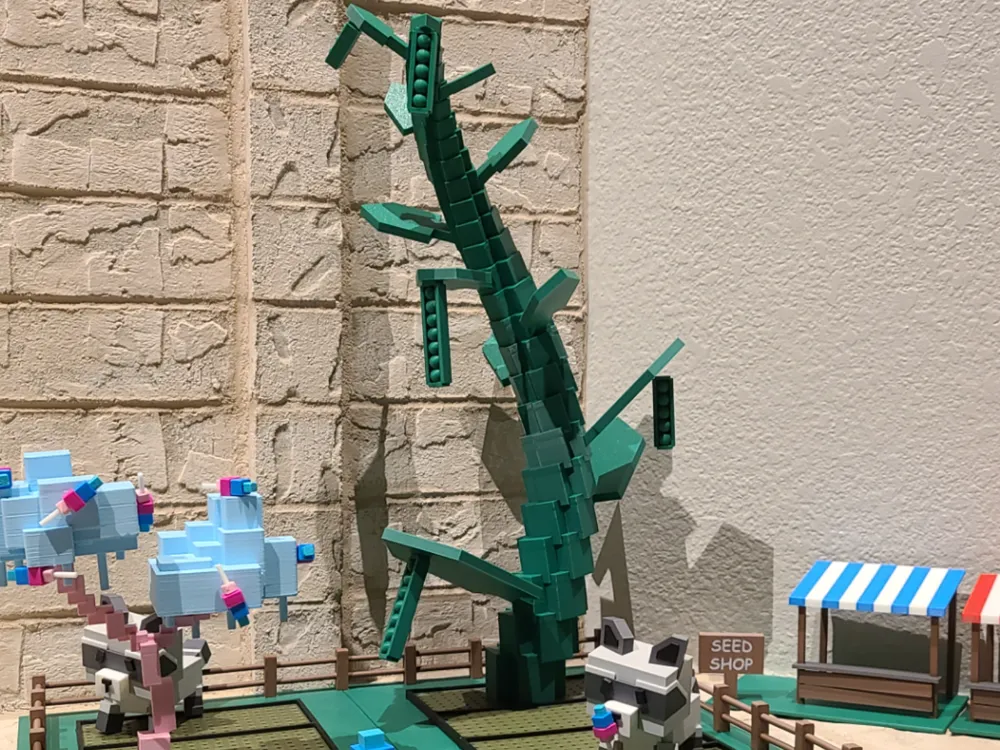

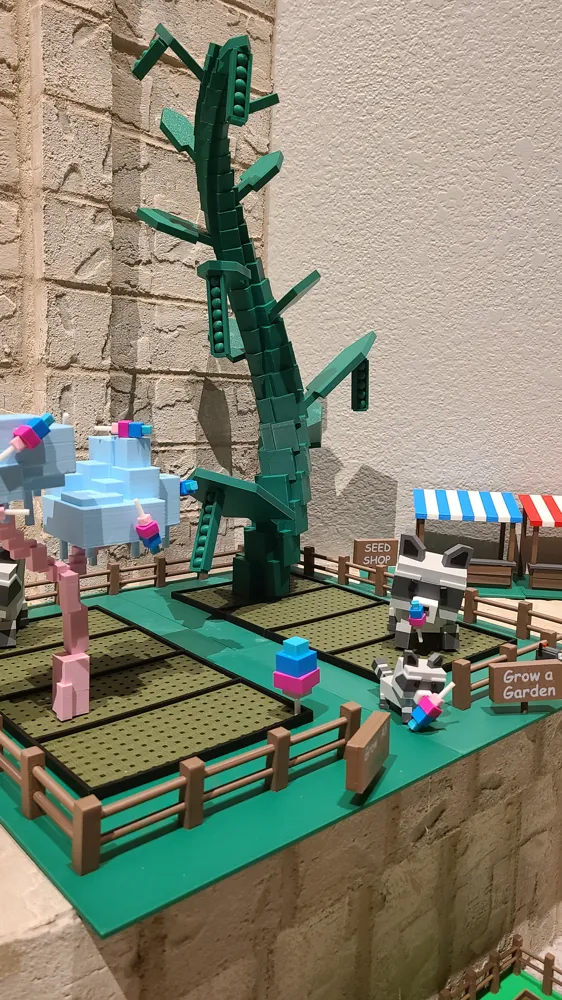

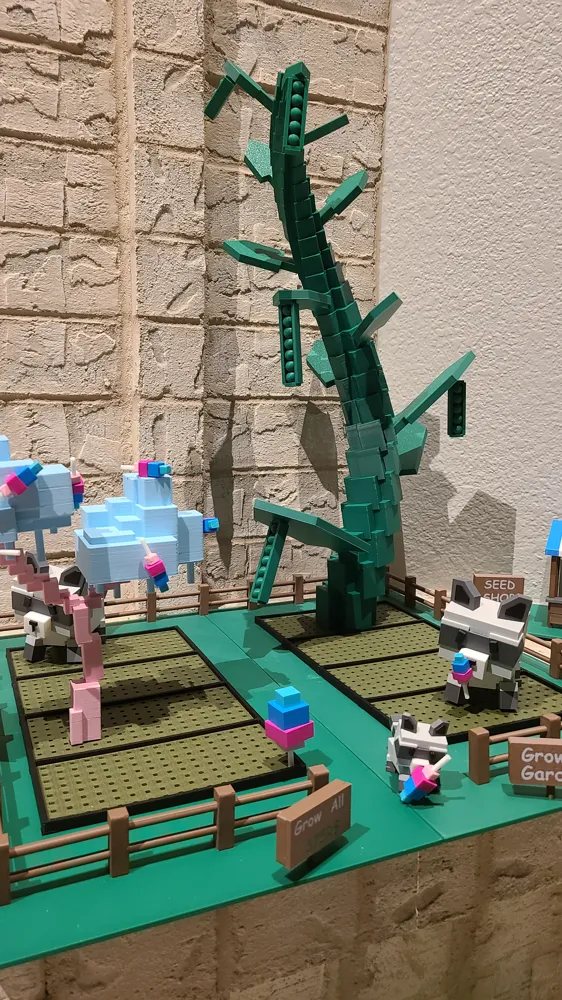

Grow a Garden - Beanstalk - 19.685" tall
NO SUPPORTS NEEDED. Assembly and glueing is required.

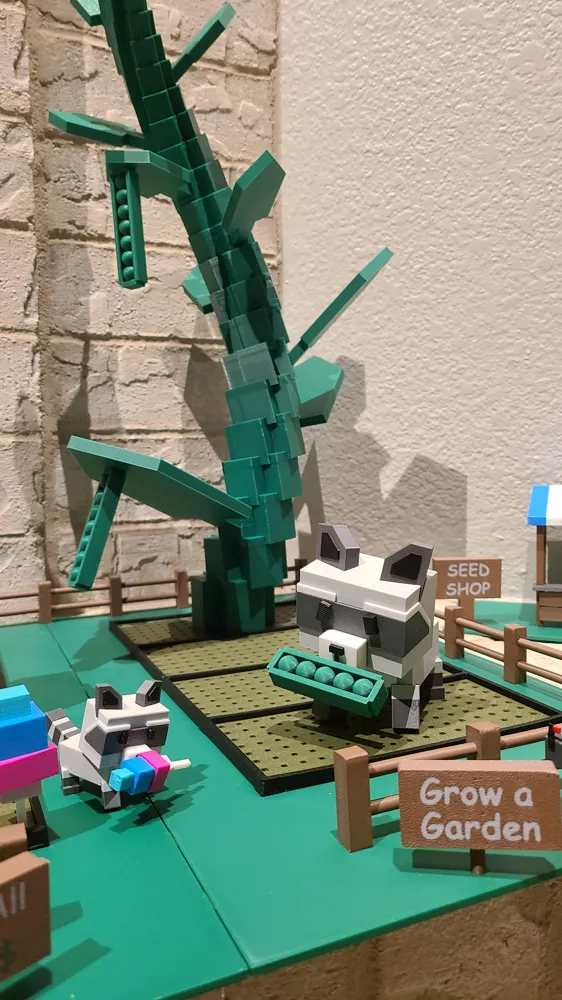

One of Grow a Garden's tallest items. Print with magnets and the peas can hang from the leaves and be carried by the Raccoon.
Printing:
2 different options:
Option 1: Print the entire Beanstalk in 3 pieces (supports required) on 3 plates (211mm is tallest plate)
Option 2: Print 26 individual pieces and assemble.
Plate One - DO NOT PRINT. This is only to show you what the completed Beanstalk looks like.
Plate Two - Beanstalk - Base lower section. Supports required.
Plate Three - Beanstalk - Base middle section. Supports required.
Plate Four - Beanstalk - Base upper section. Supports required
Plate Five - Small Leaves - Includes pauses for magnets (8mm dia. x 2mm tall). 1 per leaf, 8 total. I like to use a dab of Gorilla Super Glue Gel to hold the magnets in place.
Plate Six - Large Leaves - Includes pauses for magnets (8mm dia. x 2mm tall). 1 per leaf, 4 total. I like to use a dab of Gorilla Super Glue Gel to hold the magnets in place.
Plate Seven - Beanstalk - Sections 1-12. No Supports required. There are some very small pieces on the top of each block, try not to break them off, but don't worry if they do.
Plate Eight - Beanstalk - Sections 13-26. No Supports required. There are some very small pieces on the top of each block, try not to break them off, but don't worry if they do.
Plate Nine - Fidget Peas - Requested by my daughter. These take a little effort to break off the connection to the base inside. Once you do they will roll around inside the container.
Plate Ten - Peas - 3 different sizes. Includes pauses for magnets (6mm dia. x 2mm tall). 2 per Pea Container, 12 total. I like to use a dab of Gorilla Super Glue Gel to hold the magnets in place.
Plate Eleven - Small Leaves - No magnets
Plate Twelve - Large Leaves - No magnets
Plate Thirteen - Peas - 3 different sizes - No magnets
Assembly:
Beanstalk pieces are numbered starting with 1 for the base. Make sure you line them up correctly to each other before glueing. I believe all each subsequent number should only be slightly rotated from the piece below, but I'm not 100% sure. It should be a very smooth and uniform twist all the way from start to finish. I like to use 16 Acrylic Plastic Cement to bond PLA together.
Leaves will just push in, start with either the largest on the bottom and work your way up or at the top with the smallest and work your way down. Each piece will fit snugly. There are 8 different sizes, they are all 8mm high, but vary in width (8mm, 10mm, 12.5mm, 15mm, 17.5mm, 20mm, 22.5mm, and 25mm) at the stem.
Other related models to print and use with your Beanstalk:
Large Garden Plot that requires 4 base plates:
Roblox - Grow a Garden - NO AMS - 18.75" x 17.625":
Small Garden Plot that requires 1 base plate:
ROBLOX - Grow a Garden - Garden Plot - Version 2.0
Roblox - Grow a Garden - Mailbox (10x16x12mm):
https://makerworld.com/en/models/1627648-roblox-grow-a-garden-mailbox-10x16x12mm#profileId-1718656
Candy Blossom Tree with magnetic candy Blossoms:
https://makerworld.com/en/models/1585752-roblox-grow-a-garden-candy-blossom-tree#profileId-1669491
Candy Blossom without magnets:
https://makerworld.com/en/models/1531969-roblox-grow-a-garden-candy-blossom-no-ams#profileId-1606632
Roblox - Grow a Garden - SEED SHOP
https://makerworld.com/en/models/1636673-roblox-grow-a-garden-seed-shop#profileId-1729081
Roblox - Grow a Garden - SELL SHOP
https://makerworld.com/en/models/1655459-roblox-grow-a-garden-sell-shop#profileId-1750822
Grow a Garden - Raccoon (NO AMS) with magnetic mouth to carry stolen things.
Grow a Garden - Mole (NO AMS) - Roblox
https://makerworld.com/en/models/1698546-grow-a-garden-mole-no-ams-roblox#profileId-1801057
Grow a Garden - Pancake Mole (NO AMS) - Roblox
https://makerworld.com/en/models/1746171-grow-a-garden-pancake-mole-no-ams-roblox#profileId-1856073
Bone Blossom Tree - Grow a Garden - Roblox
https://makerworld.com/en/models/1748656-bone-blossom-tree-grow-a-garden-roblox#profileId-1858811
Grow a Garden - Kitsune (NO AMS) - Roblox
https://makerworld.com/en/models/1777851-grow-a-garden-kitsune-no-ams-roblox#profileId-1893540
Please rate and include a photo of your completed Beanstalk.
Boost Me (for free)
Want more great Grow a Garden fruits and animals, then help out with a boost for all the filament needed to test print the models before publishing. THANKS!!!!
Interested in finding out when I post a new Grow a Garden model, then please “Follow” my Grow a Garden - Roblox Collection.
https://makerworld.com/collections/8142138
