Description
Content has been automatically translated.

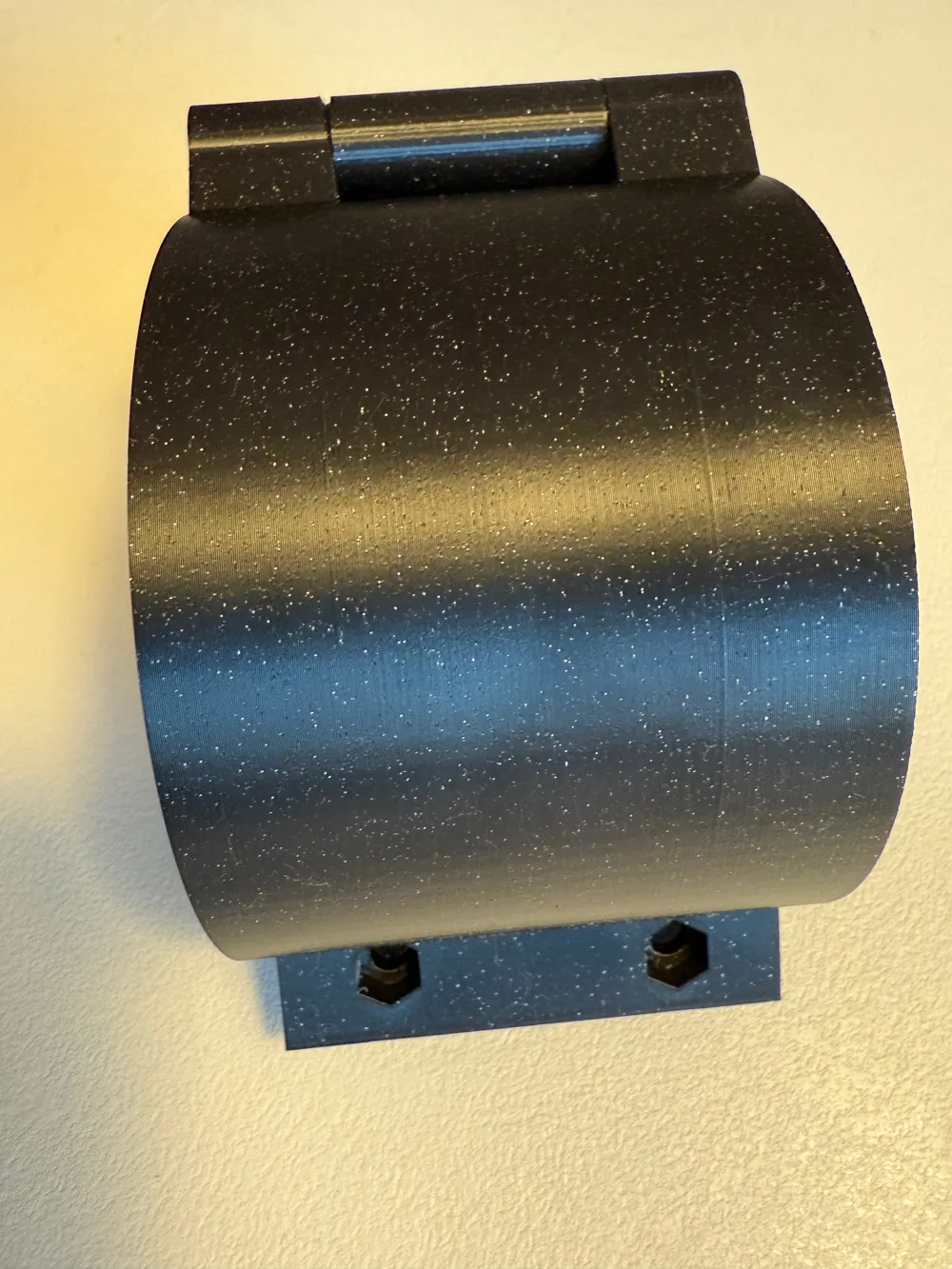

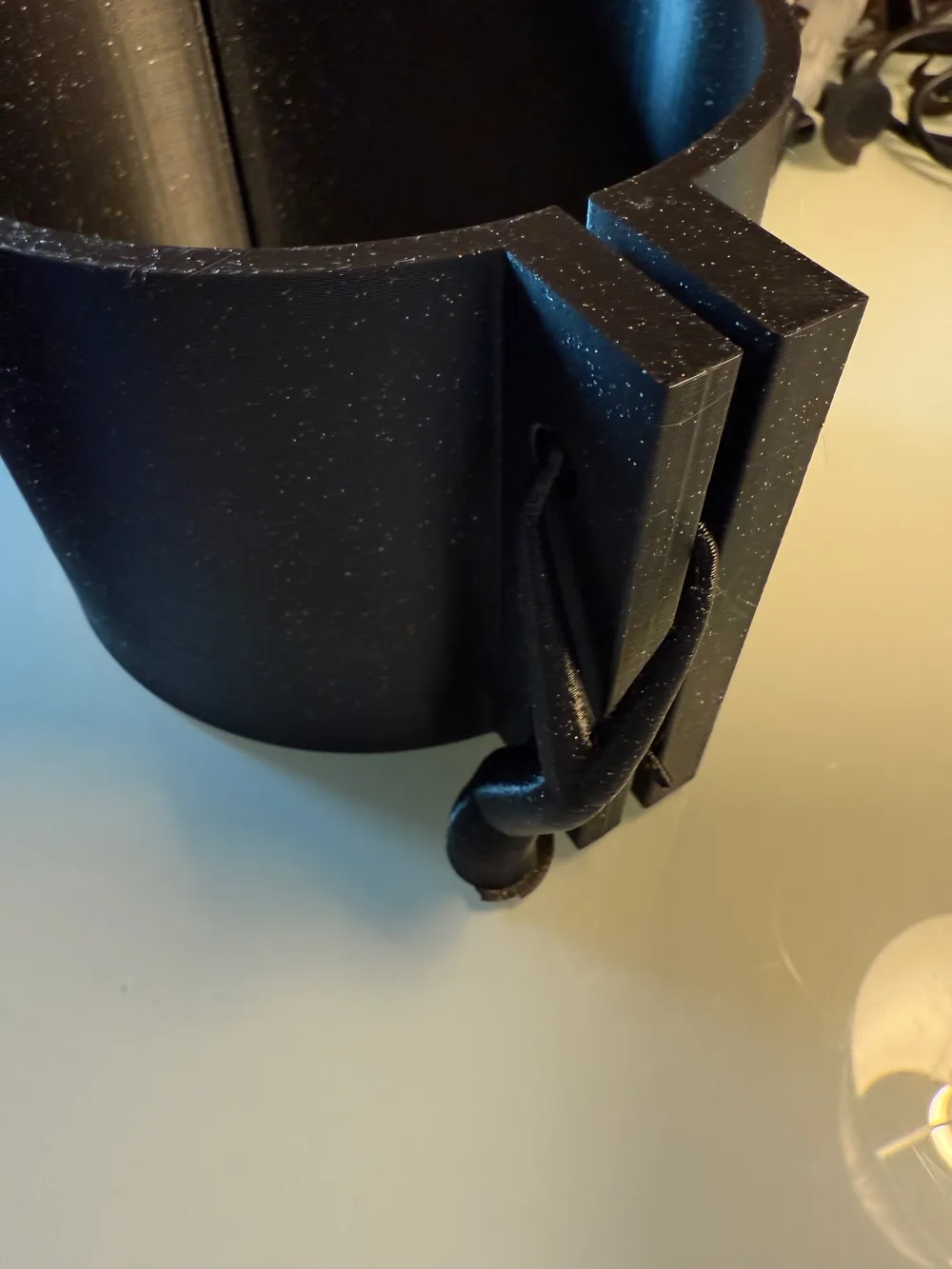

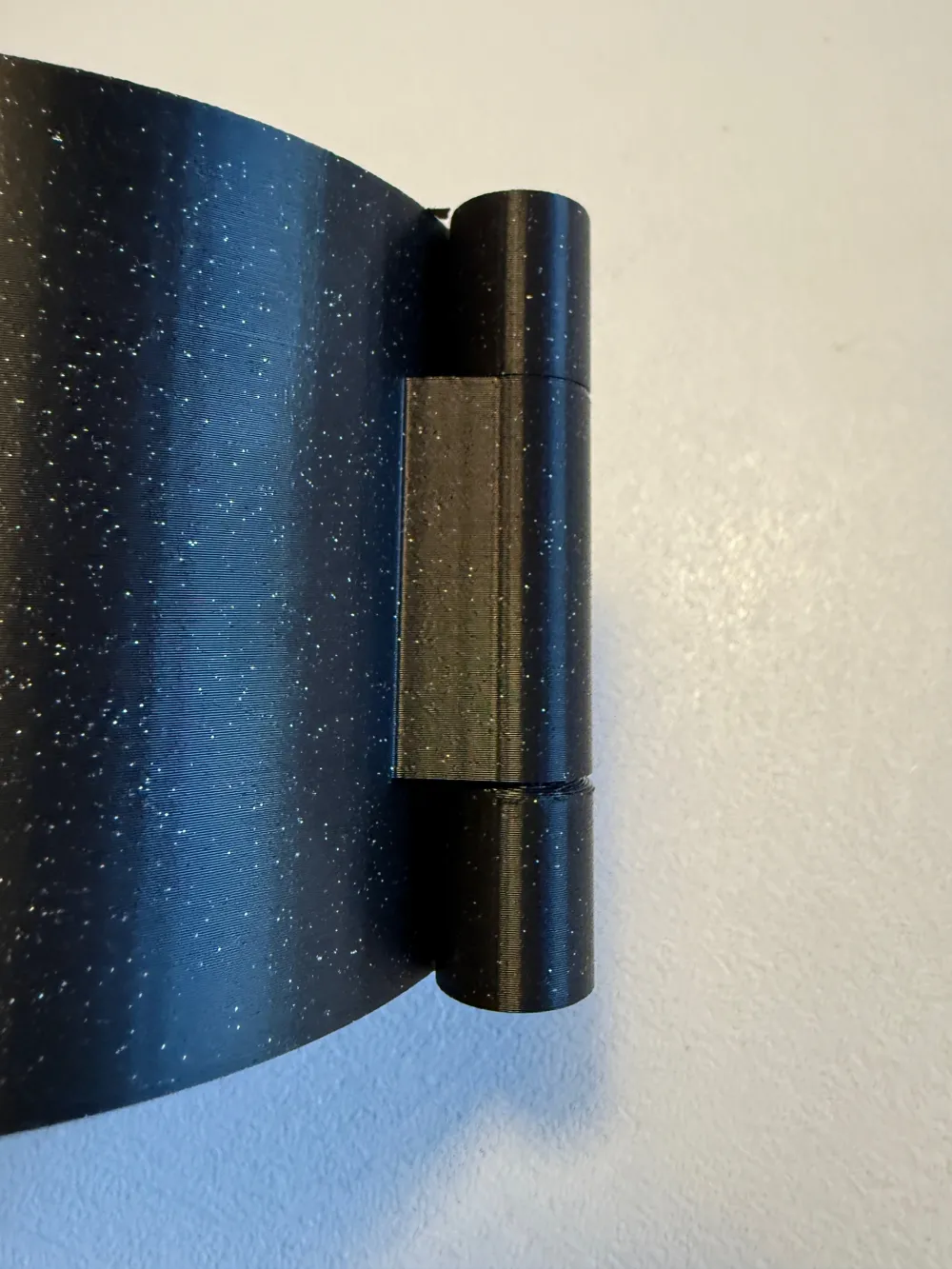

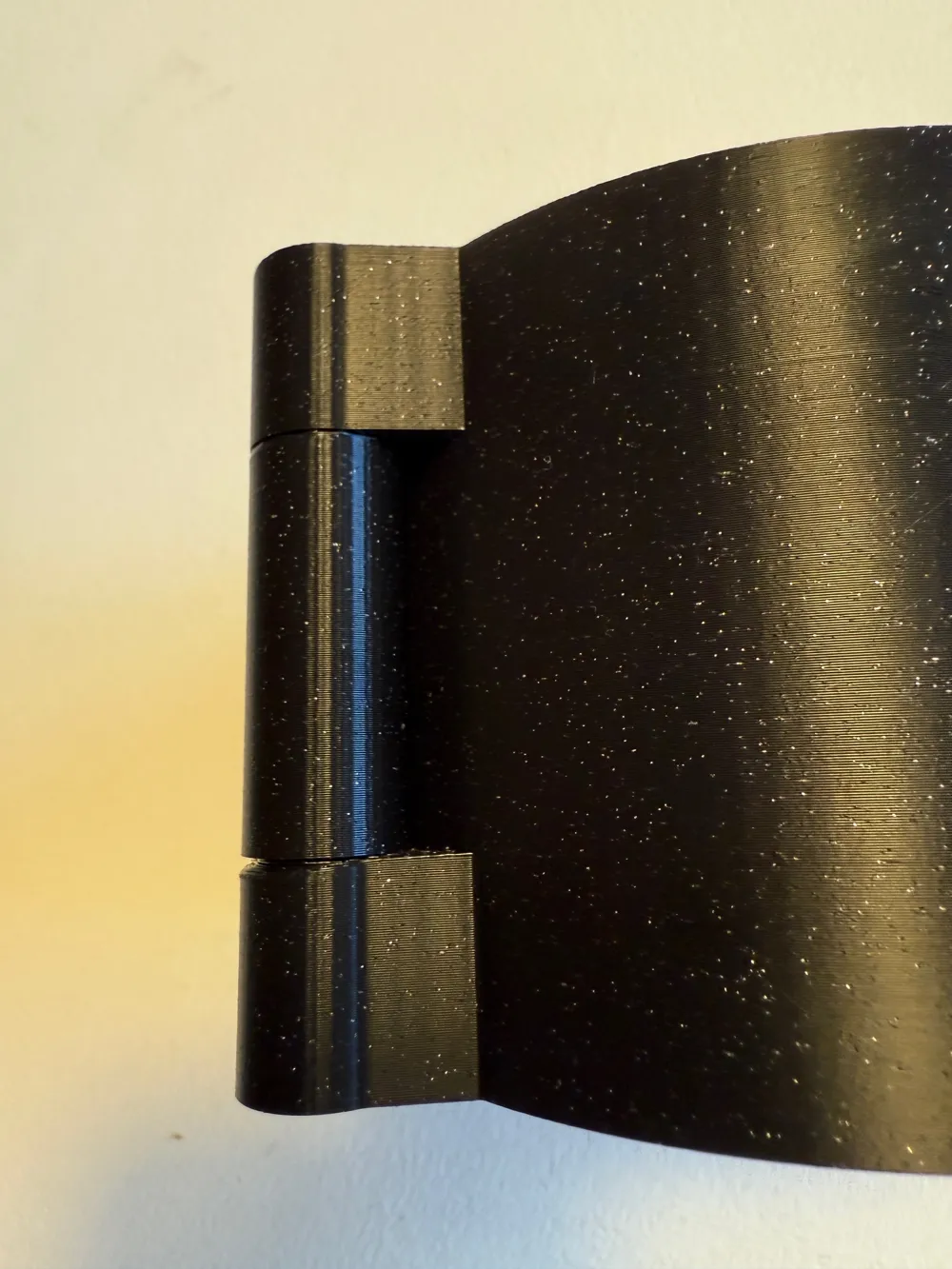

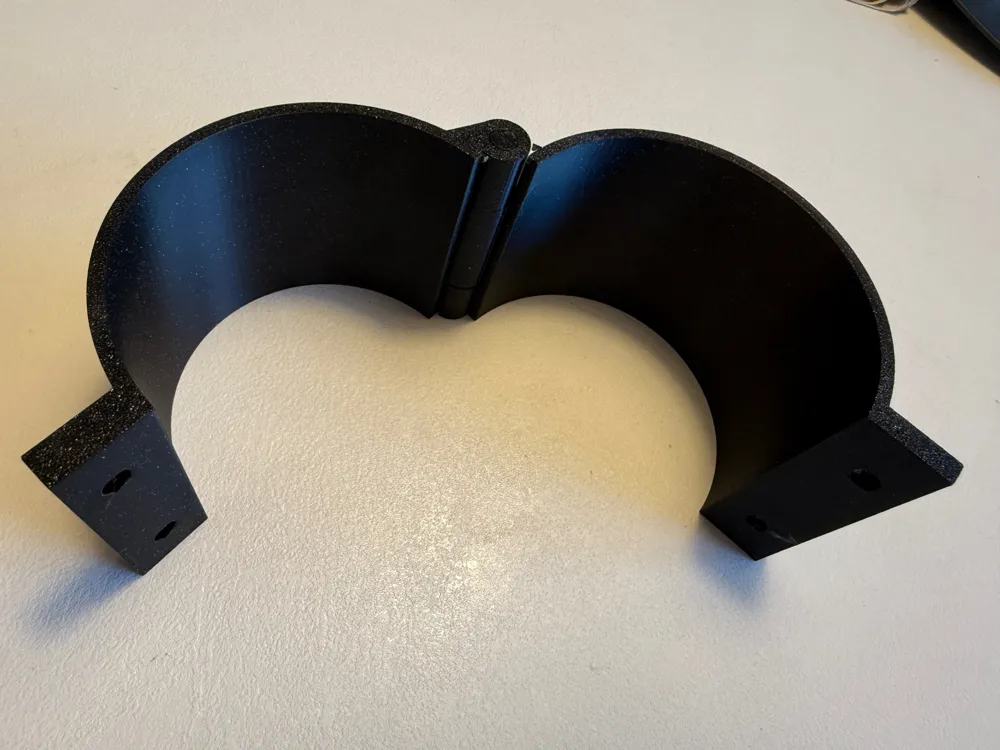

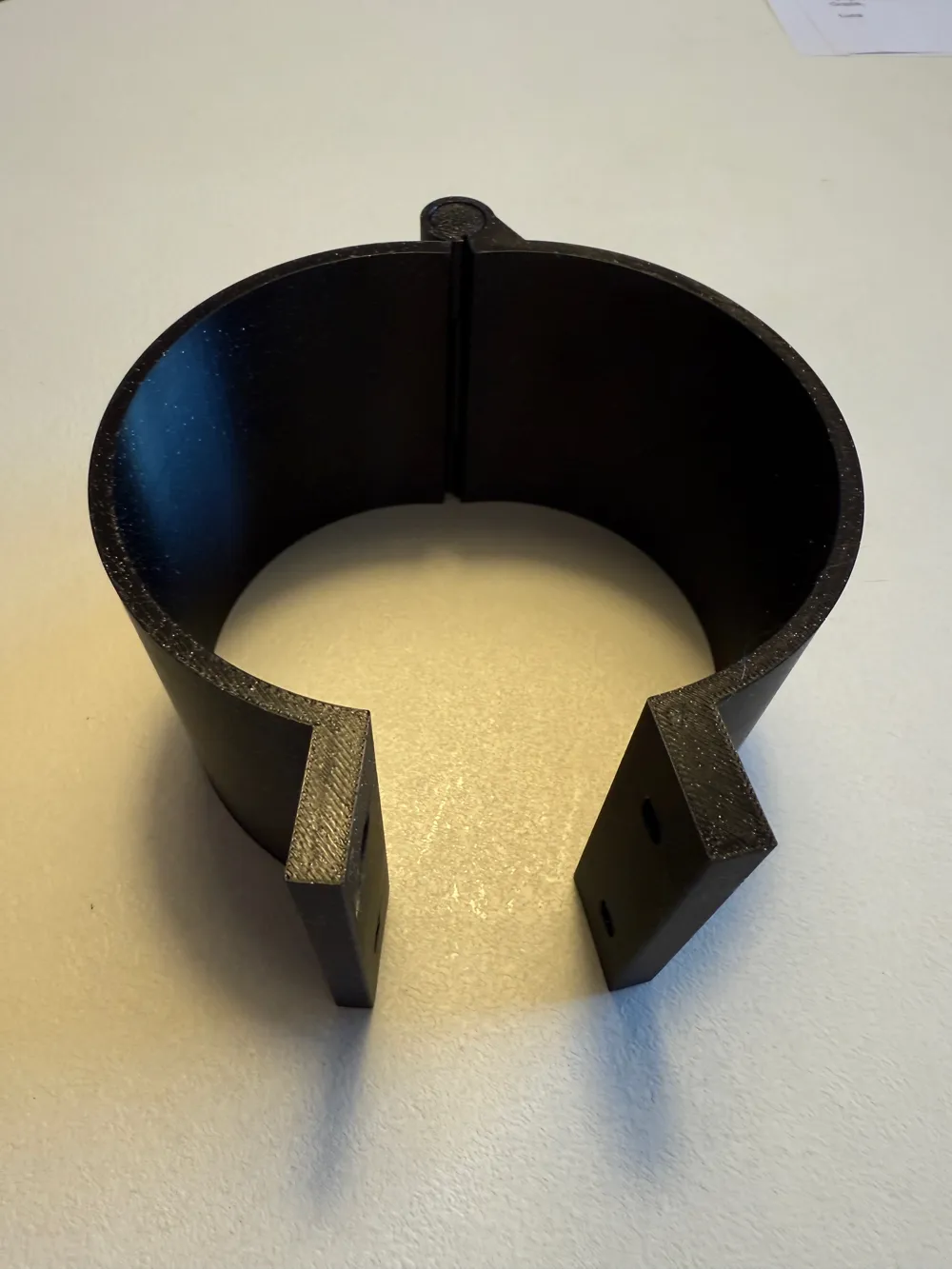

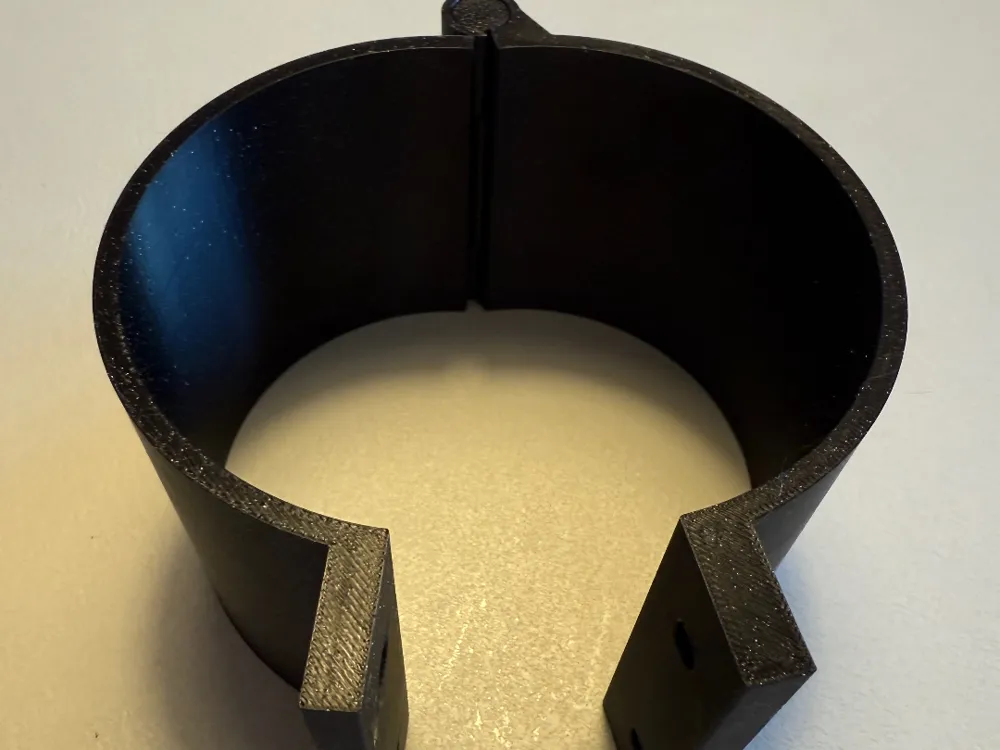

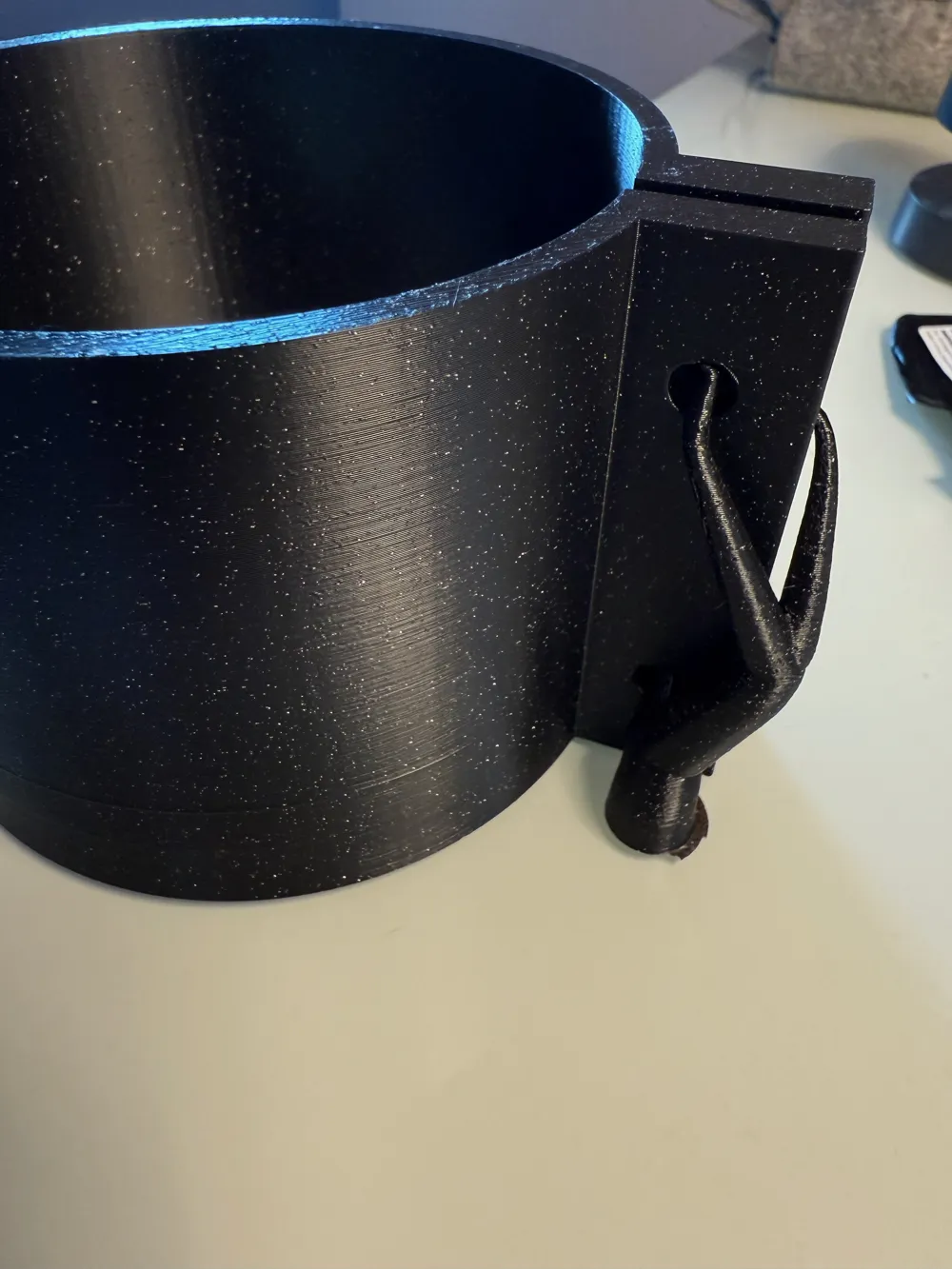

This is a pipe clamp or sealing clamp
It has an inner diameter of 102mm
The clamp has a width of 80mm
The wall thickness is 4mm
I printed the clamp with 60% infill, 4 walls, and a brim, as well as with ASA
In my case I had to seal a hole in a downpipe
The downpipe has a 10cm diameter
I glued a part of the clamp with 2-3mm soft sealing rubber

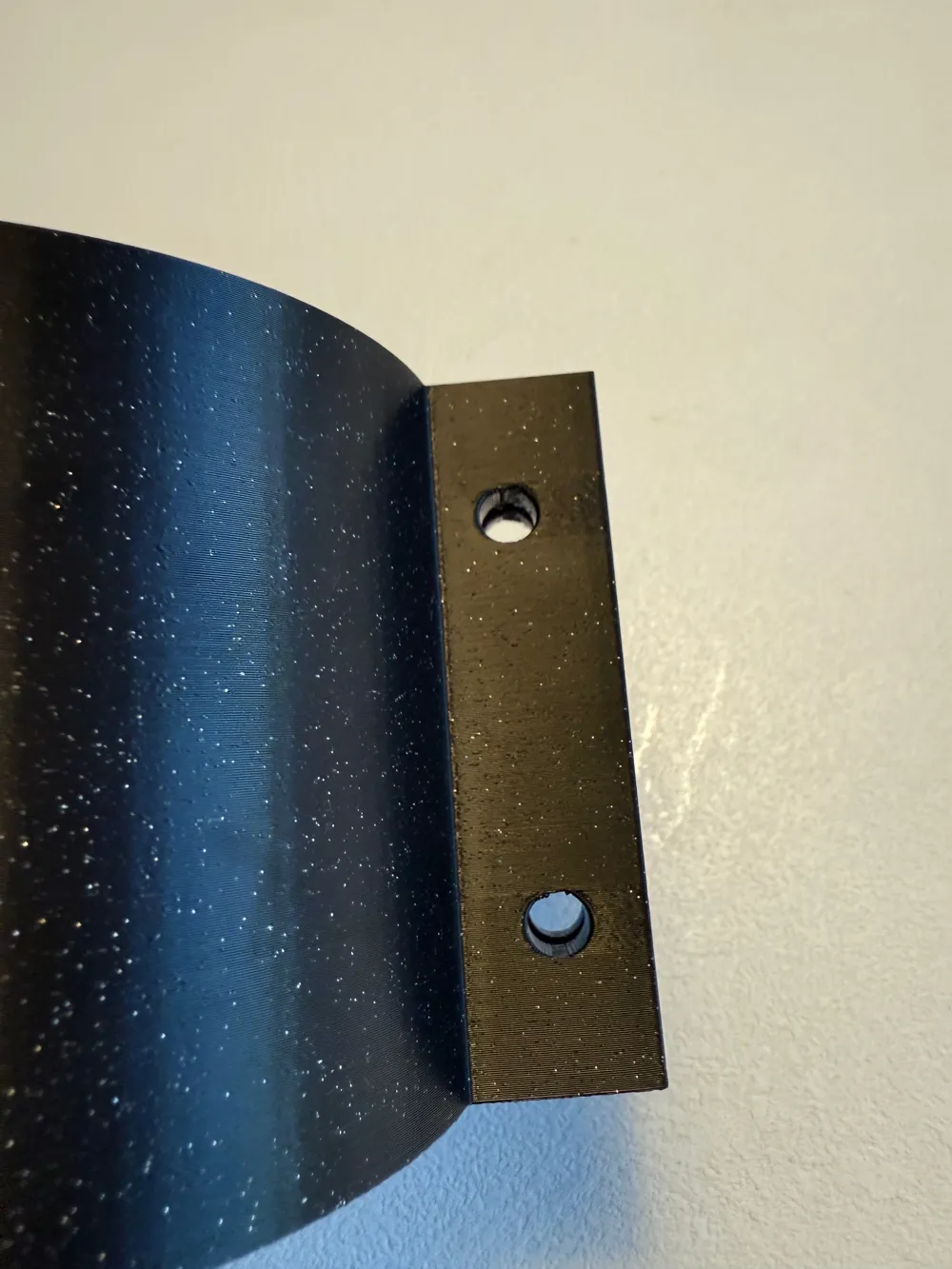

The clamp is designed for M6 screws and M10 nuts
The opening that is bolted was designed with 4mm
