Customizable Automotive Hole Caps/Plugs
Print Profile(1)
Bill of Materials
Description

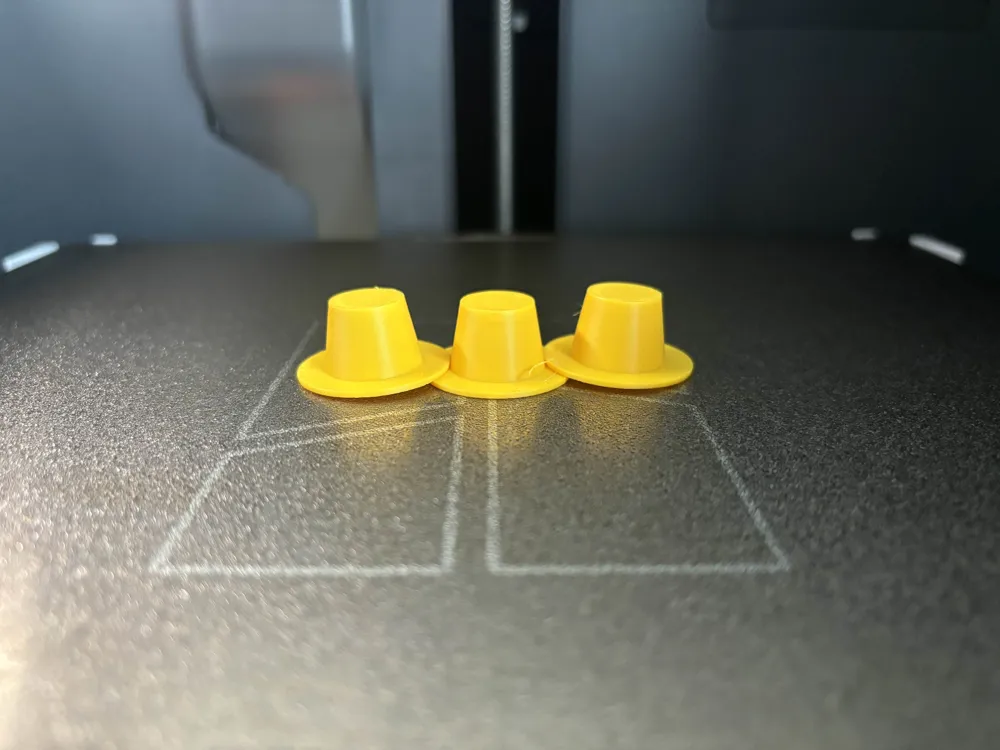

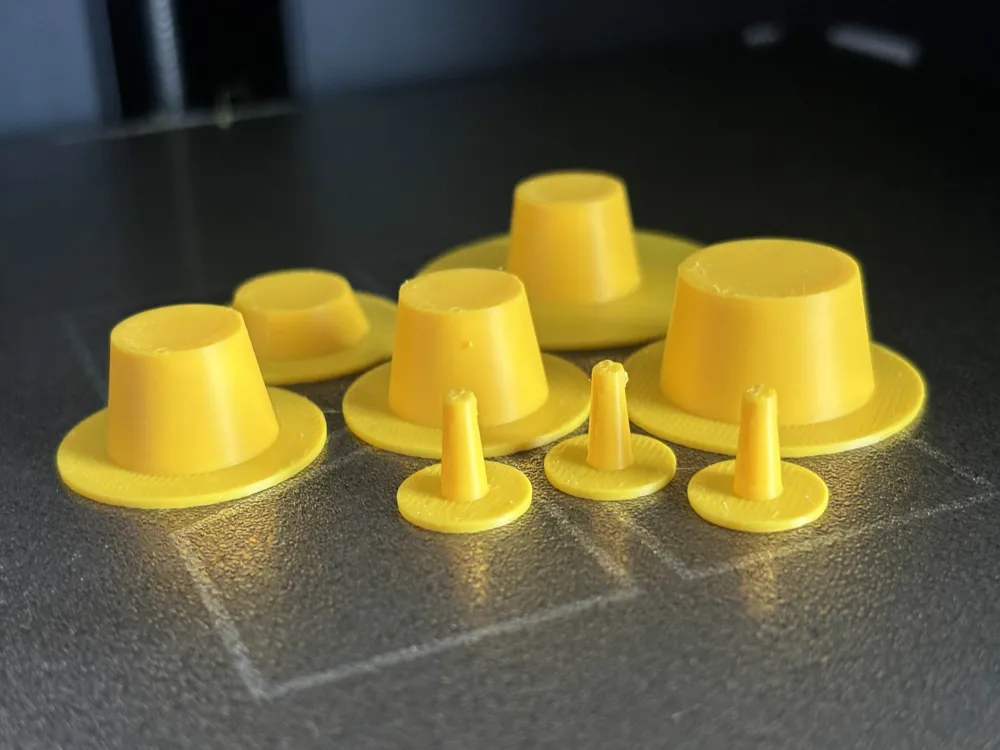

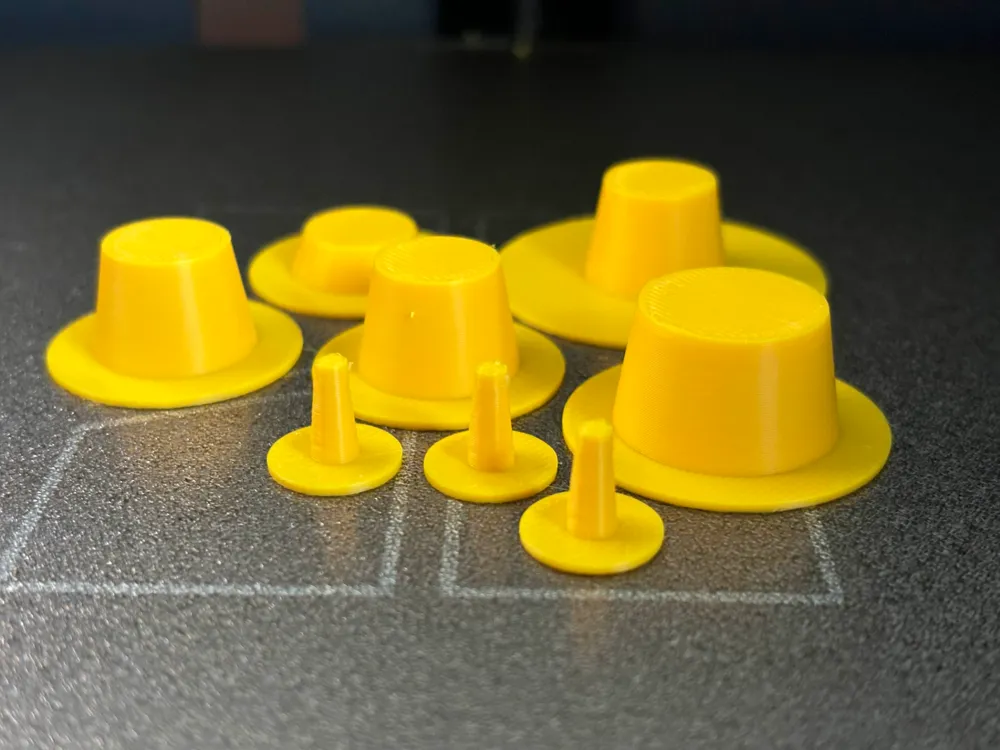

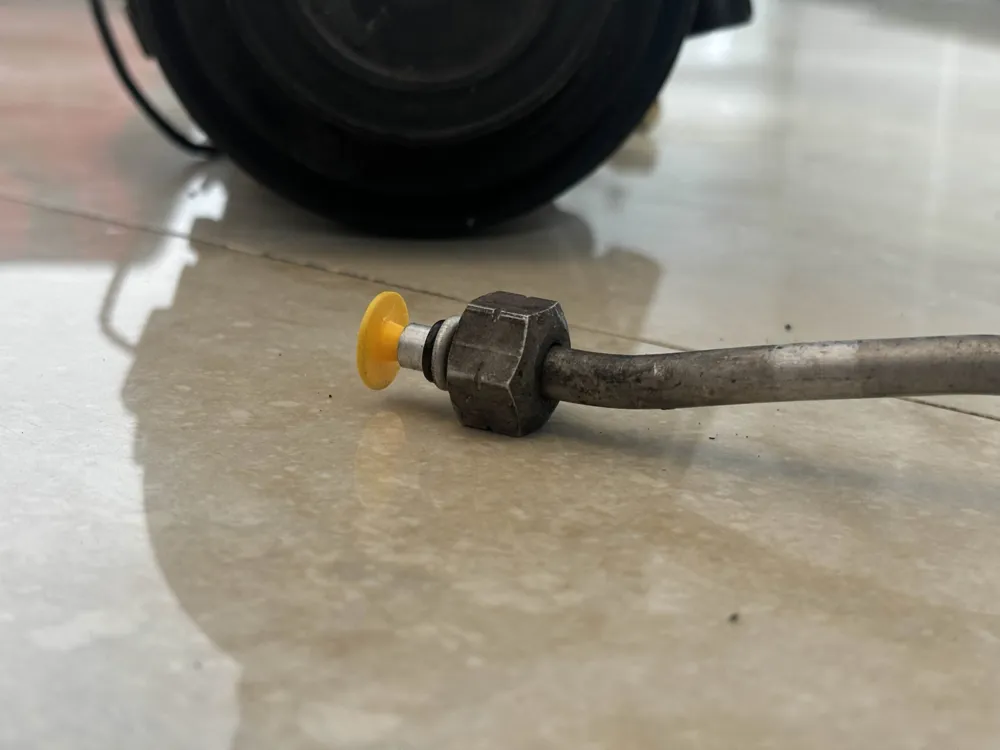

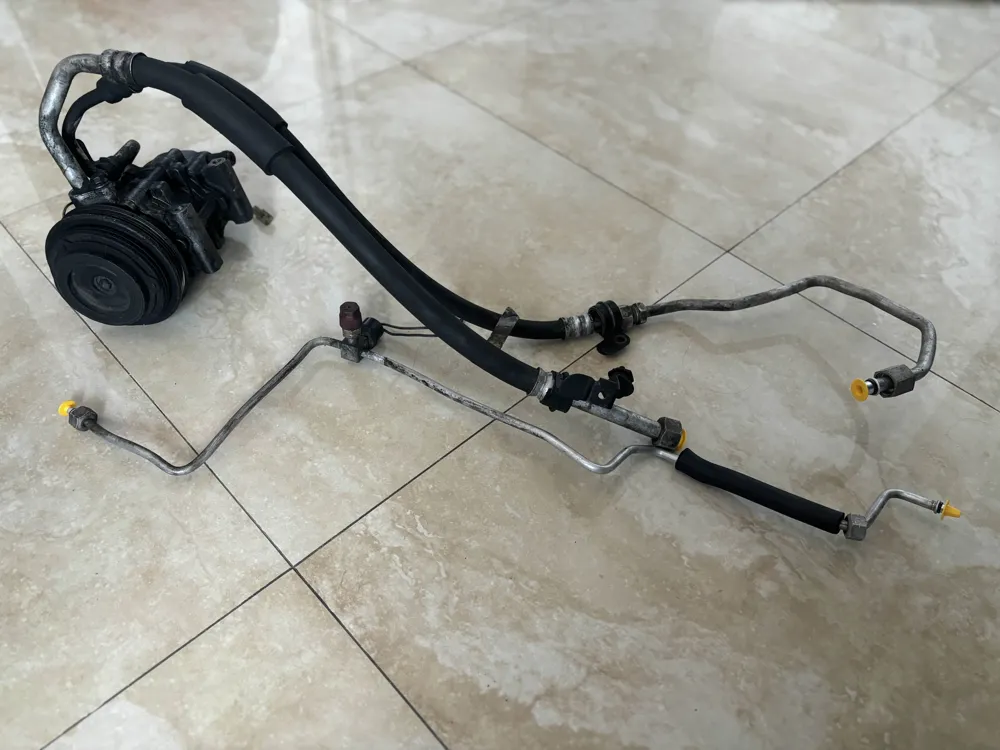

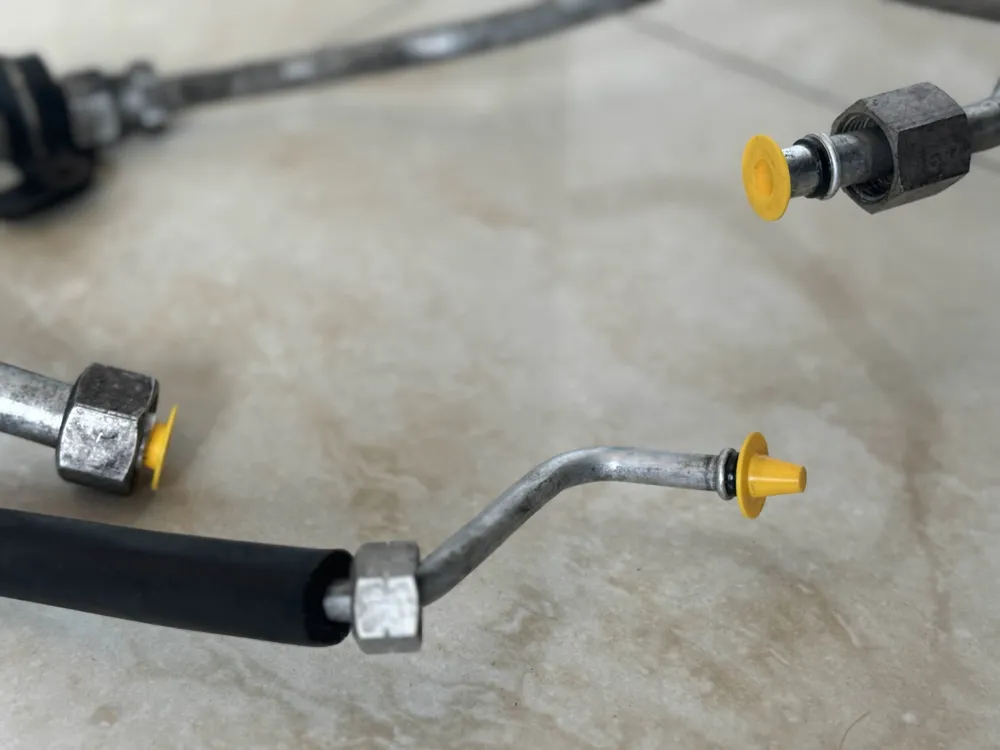

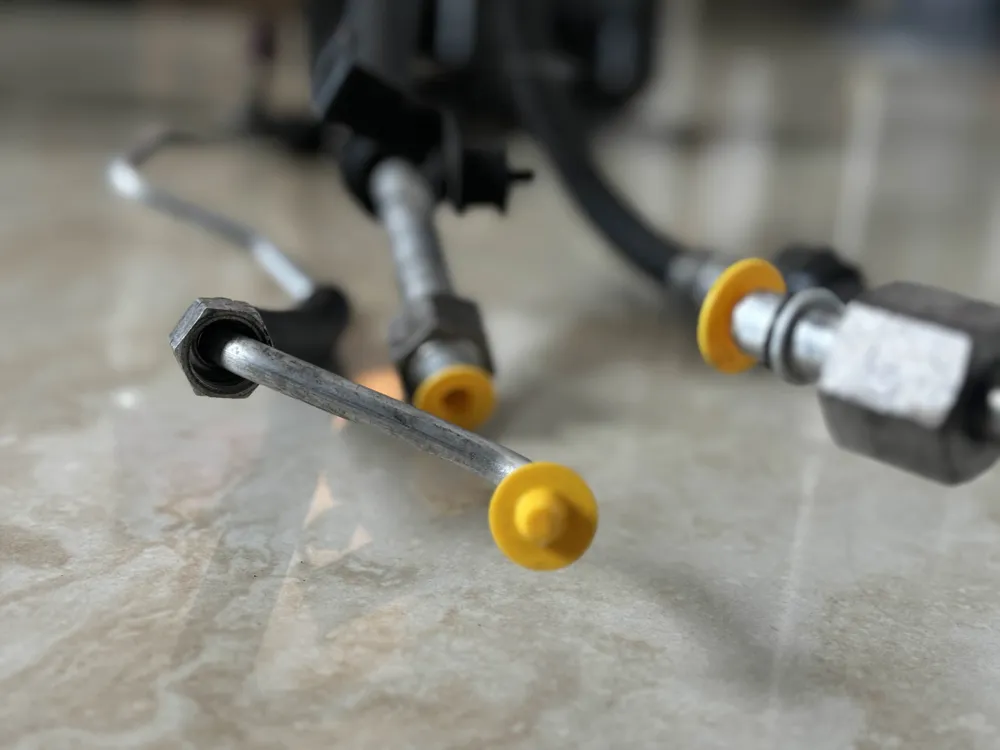

Caps/Plugs for holes as small as 3 mm to as large as 202 mm. Made these to plug ac lines to stop dust and debris from getting in. I based them off of the caps that come with a bunch of different car parts.

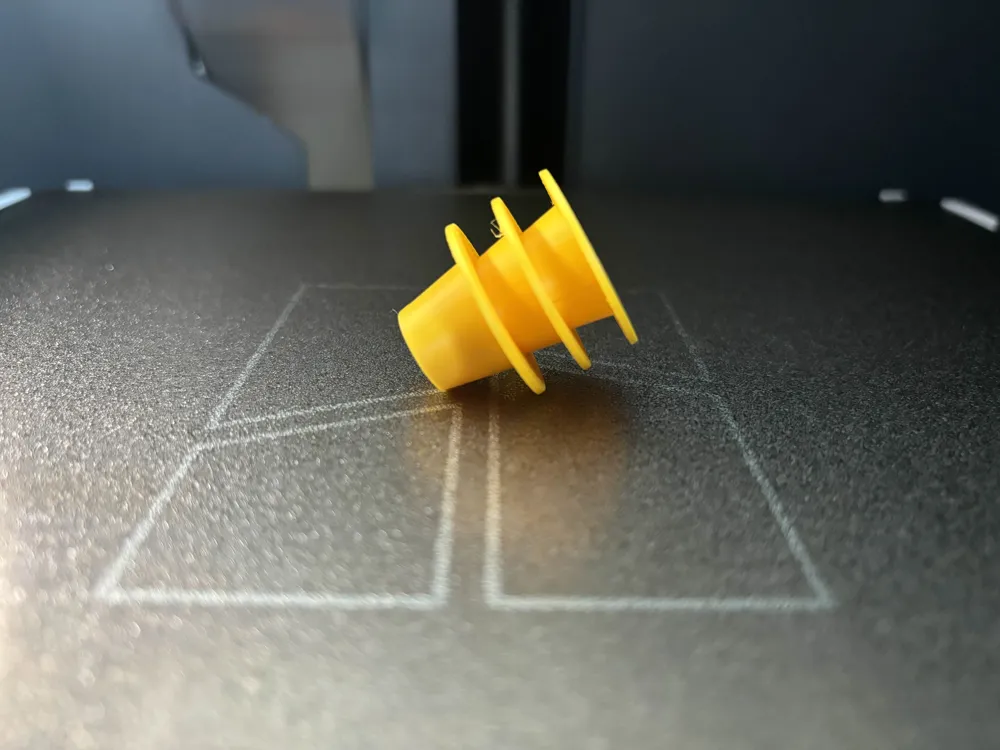

STACKABLE!!! FULLY CUSTOMIZABLE!!!
Simply enter the hole size and it'll make a cap that fits holes +-2mm of the given size.
Need a longer or shorter cap?
You can set custom heights for the cap. Same goes for the diameter of the base.
Need a 200mm base for some reason on a 5 mm cap?
Go ahead, you can do that.
Just note that the minimum base diameter will always be 1mm more than the largest diameter of a cap.
So a 5mm cap has a 7mm max → 8mm base diameter minimum
You can also use it inverted by setting hole size to 1mm more than the external diameter.
If you need a better fit I would recommend printing them out of TPU, but PLA works just fine for keeping debris out.
