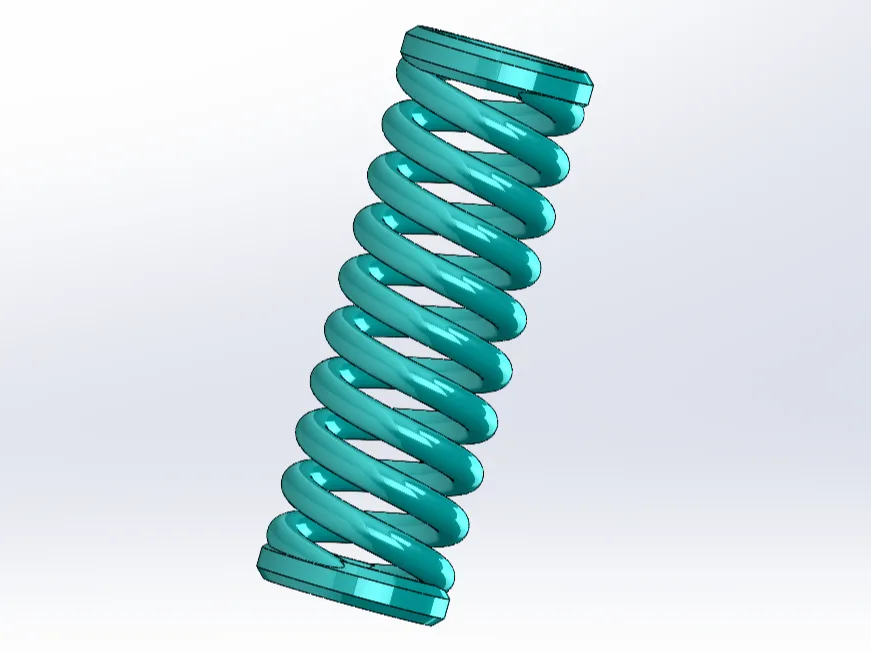

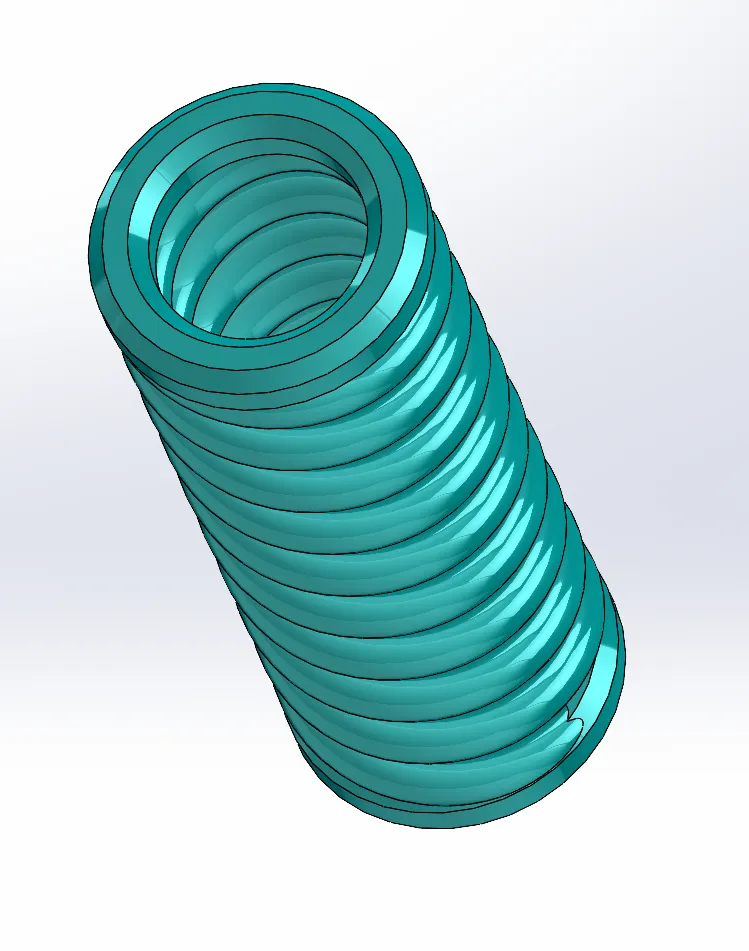

Technical Compression Spring PETG with k = 1 N/mm
Print Profile(2)
Description
🔷 Material

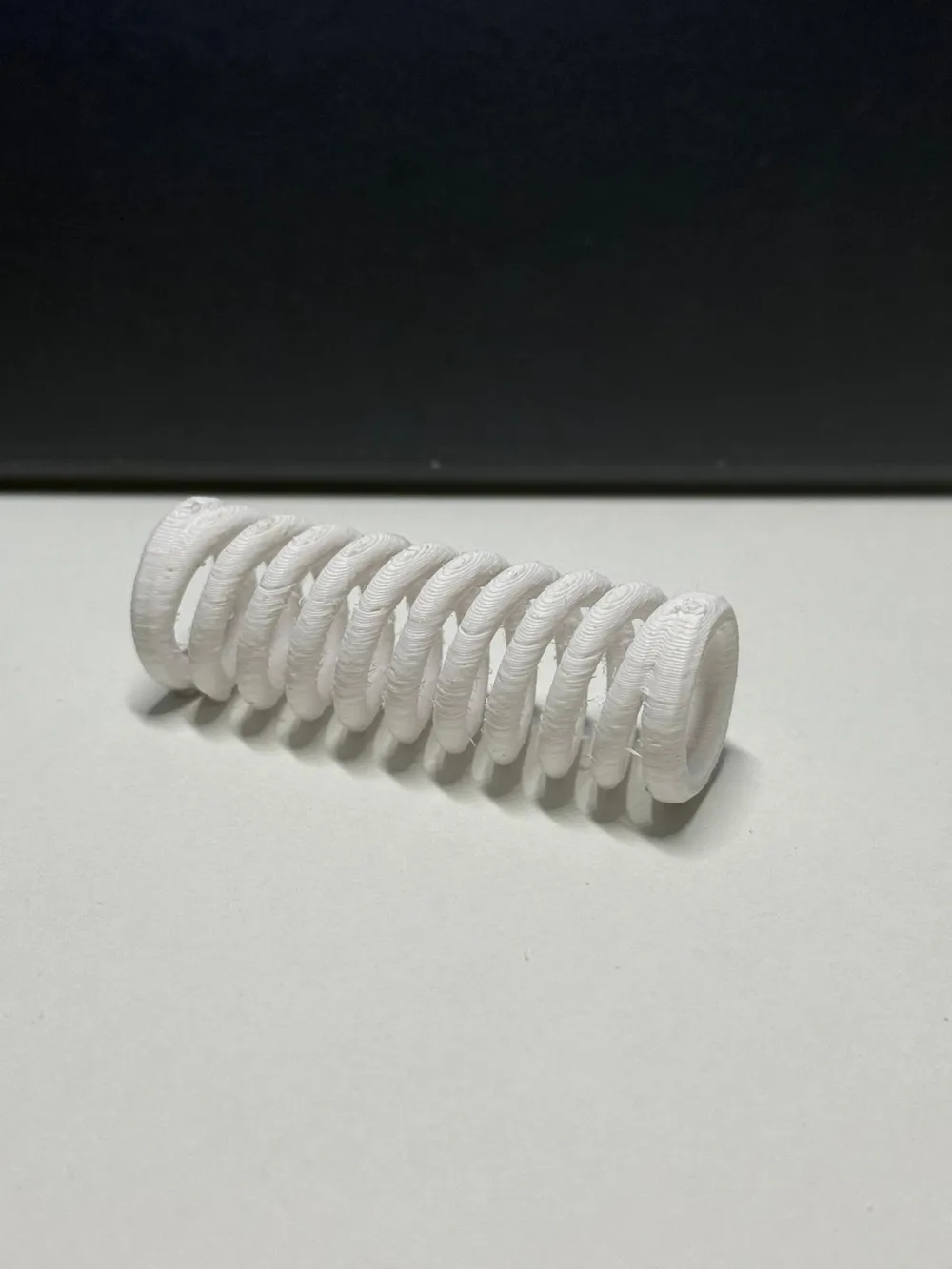

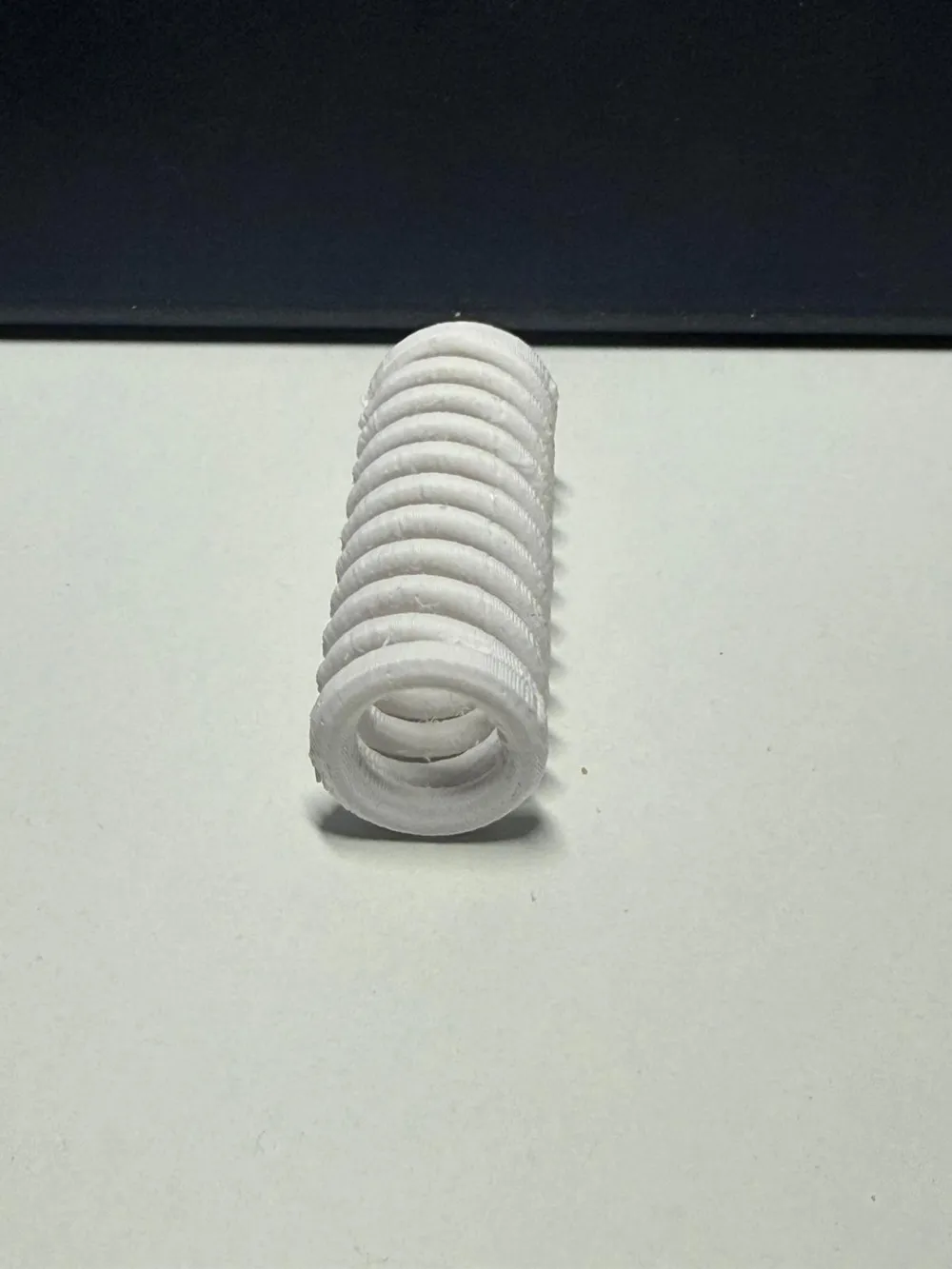

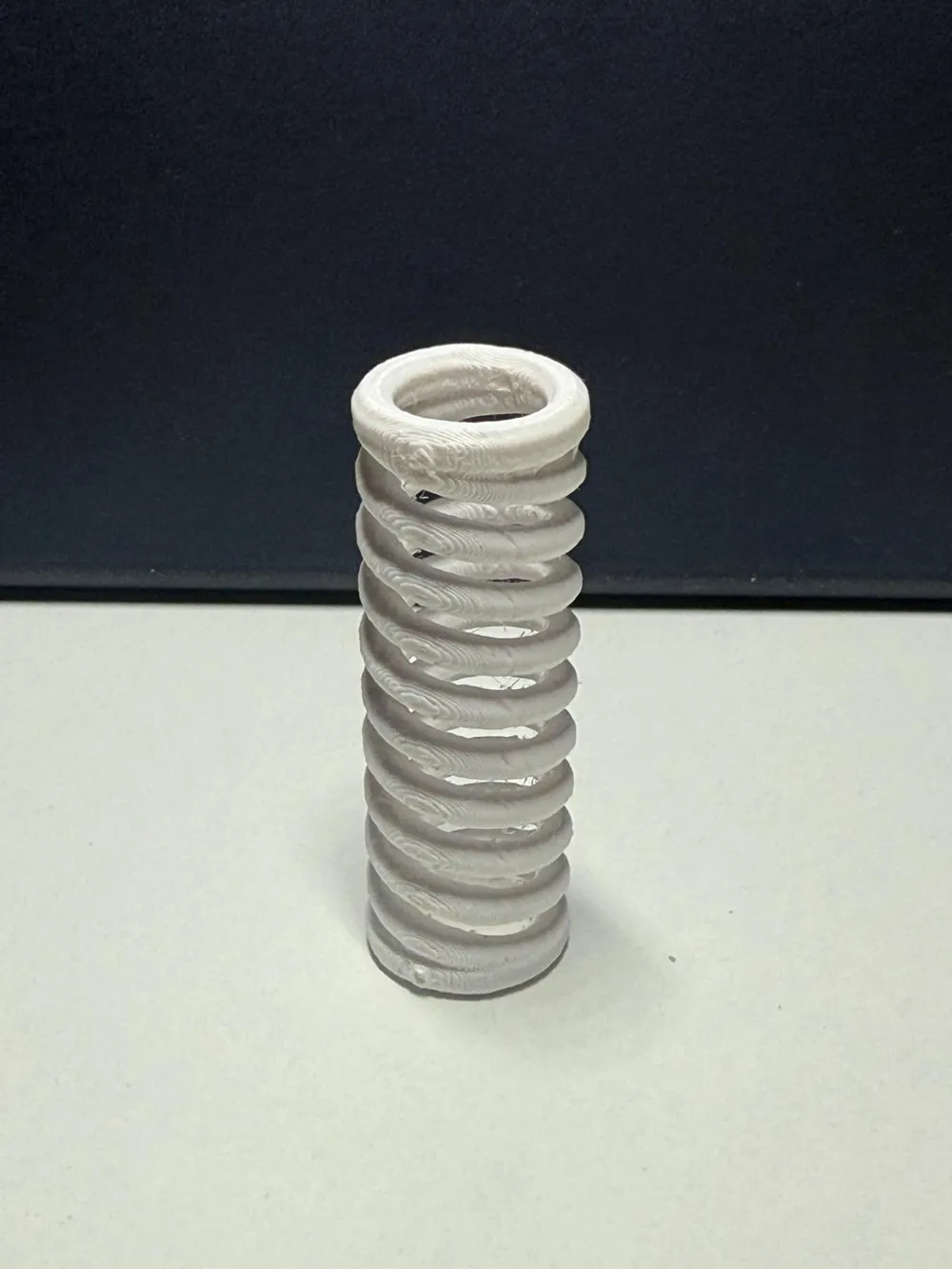

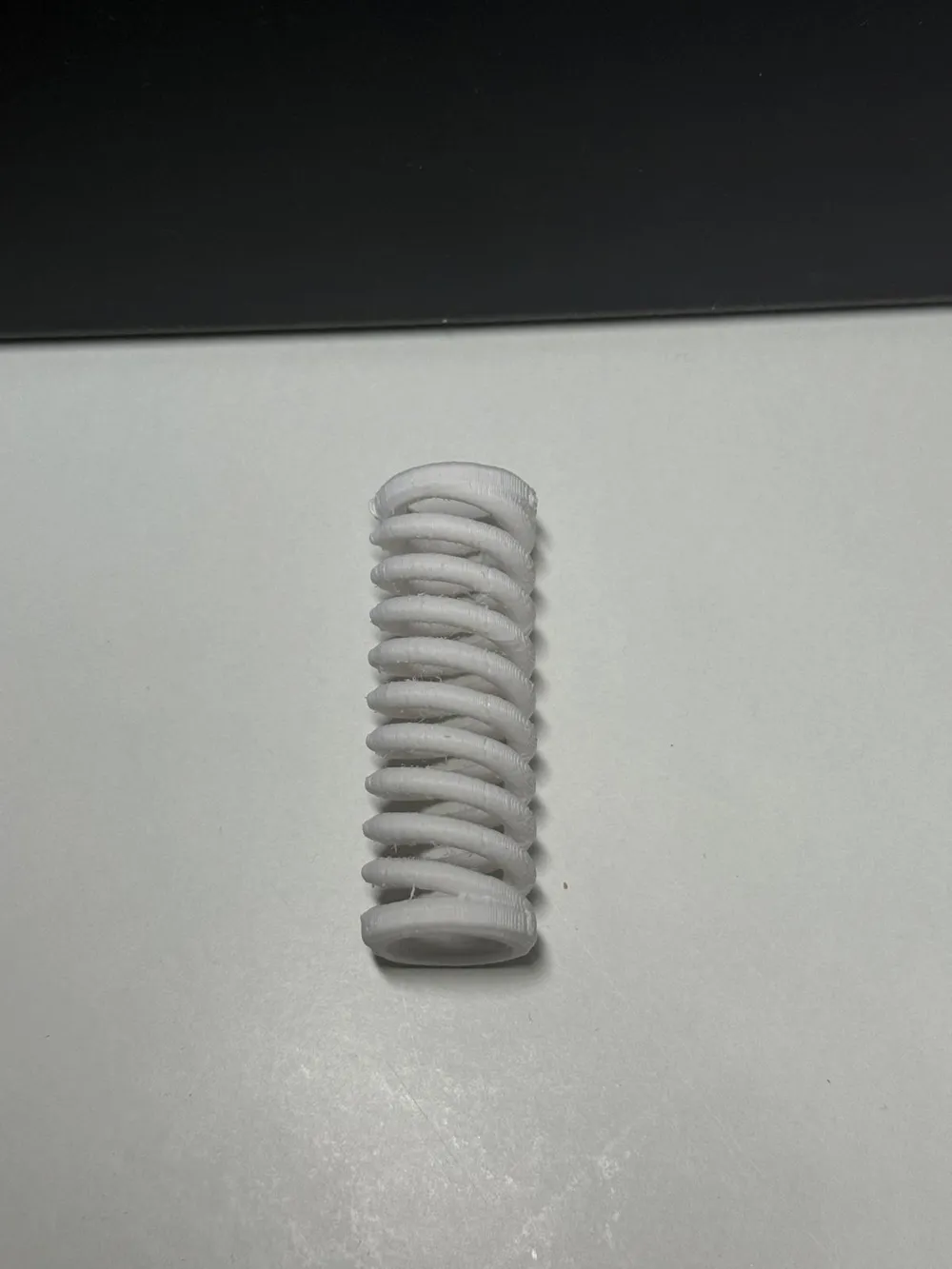

→ 3D-printed from PETG, spring constant calculated based on material properties.
🔷 Dimensions
→ Length: 56 mm
→ Outer diameter: 19 mm
→ Wire diameter: 3.25 mm
🔷 Performance
→ Spring constant k = 1 N/mm
→ Maximum allowed deflection: 15 mm
🔷 Applications
→ Suitable for technical purposes and creative projects.
→ Can be used for static and dynamic loads – however, no fatigue strength for dynamic use due to PETG material properties.
🔷 Note
The spring was simulated using FEM analysis. All given values are theoretical and may differ from actual measured performance
depending on print quality, material batch, and use conditions.
