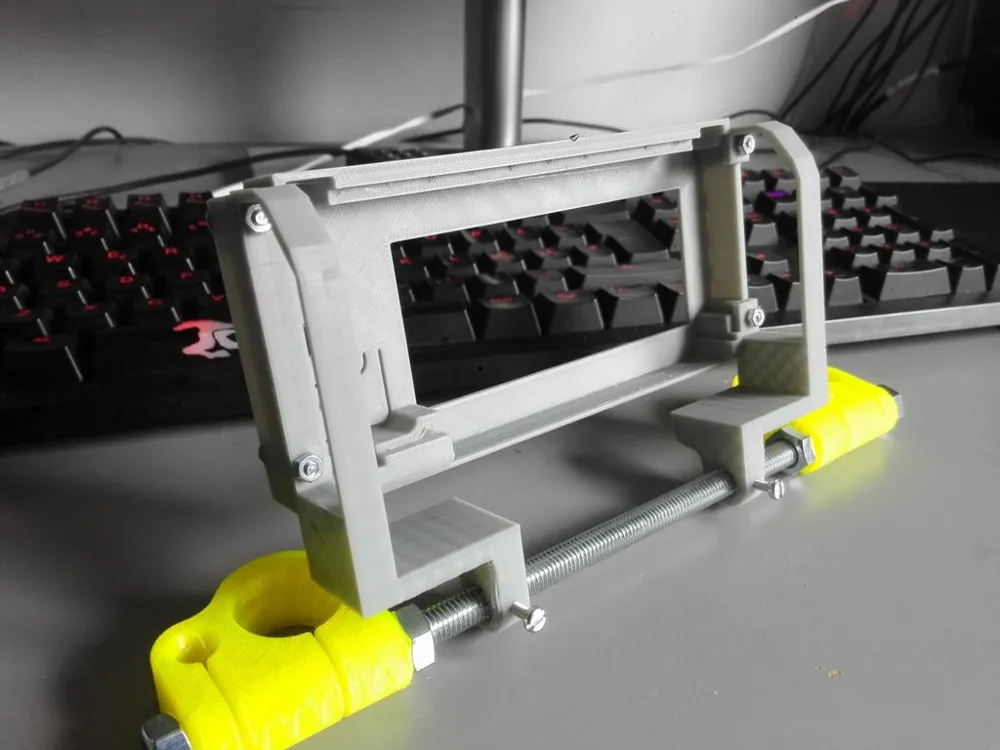

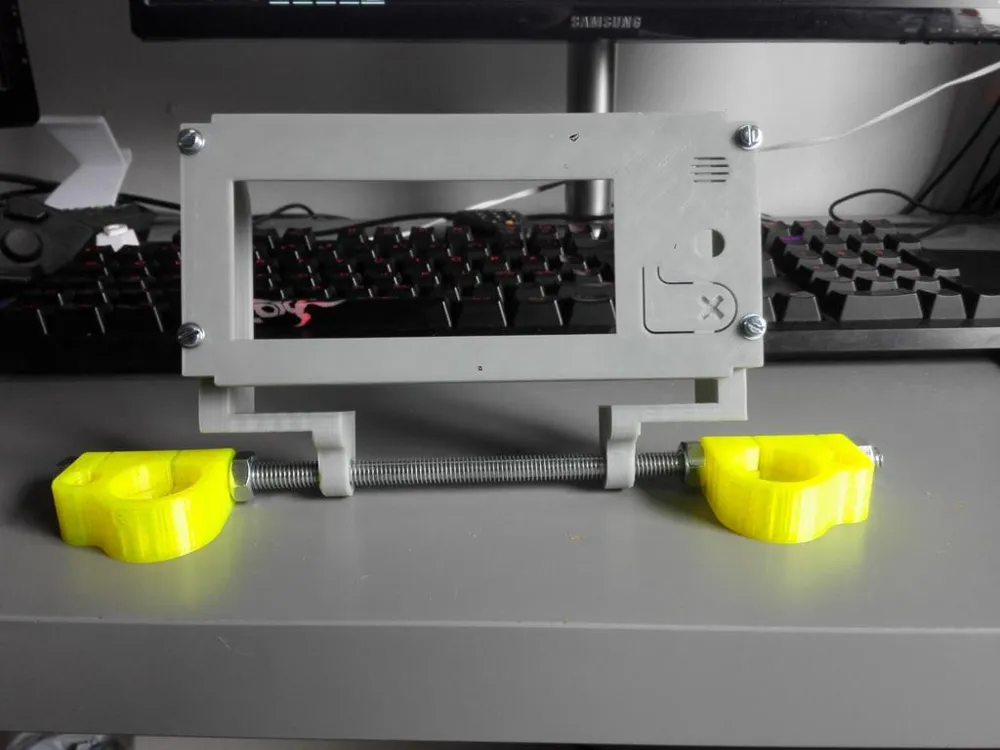

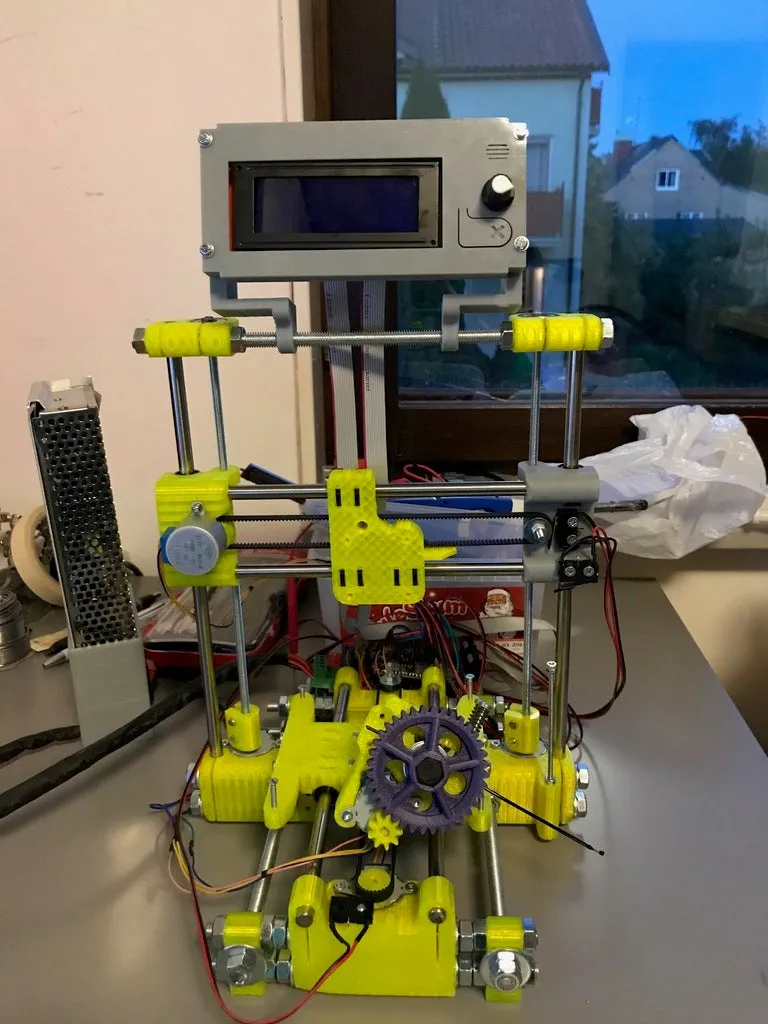

In the making of an ToyRep i didn't find a good mounting for the lcd2004.
So i found this lcdfront https://www.thingiverse.com/thing:1104999 by APineda and

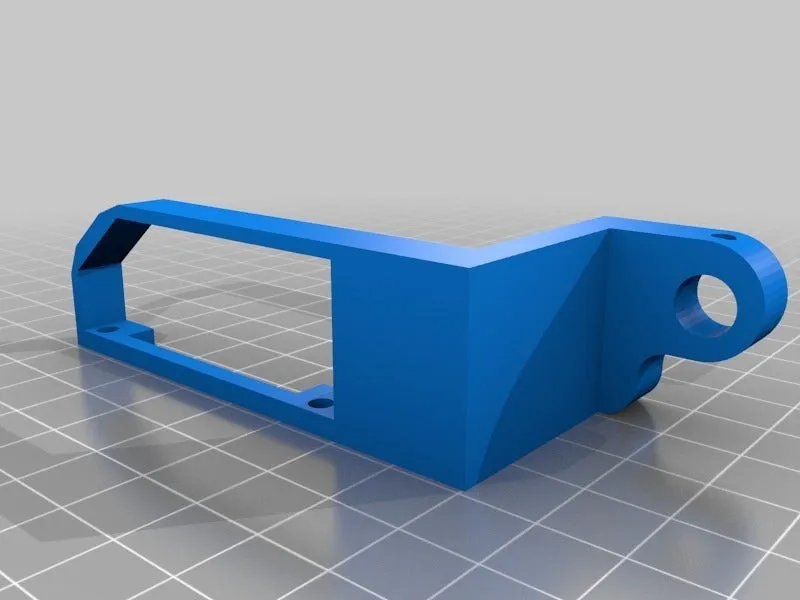

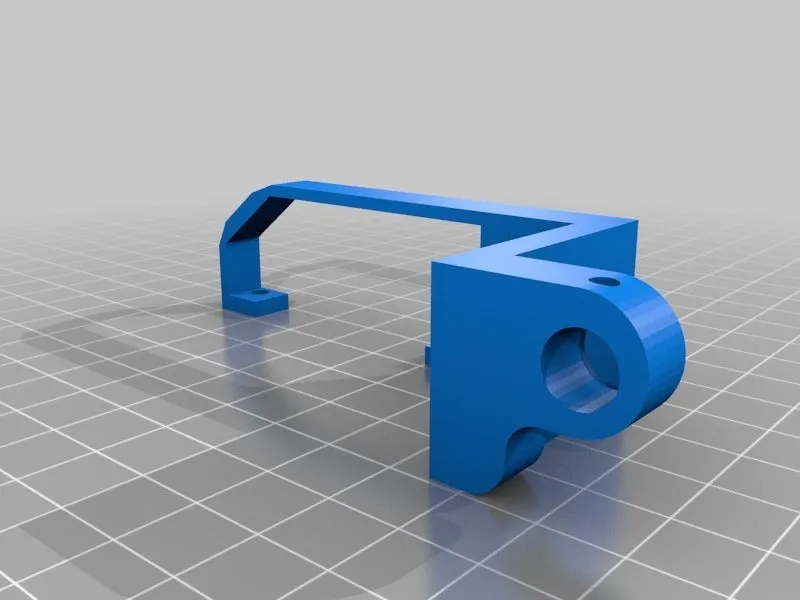

made som arms for the top threaded rod.
Waiting for Ali to send the rest of my parts so i can test it out fully. But i think it can work.
Update 18/07/2017
Some edits to the right arm
Print Settings
Printer:
Geeetech i3x
Rafts:
No
Yes
Notes:
Printed in Cura and "Tocuhing bed" Support.
Rotate the modells so the 8mm hole is pointing up.License
