Description:

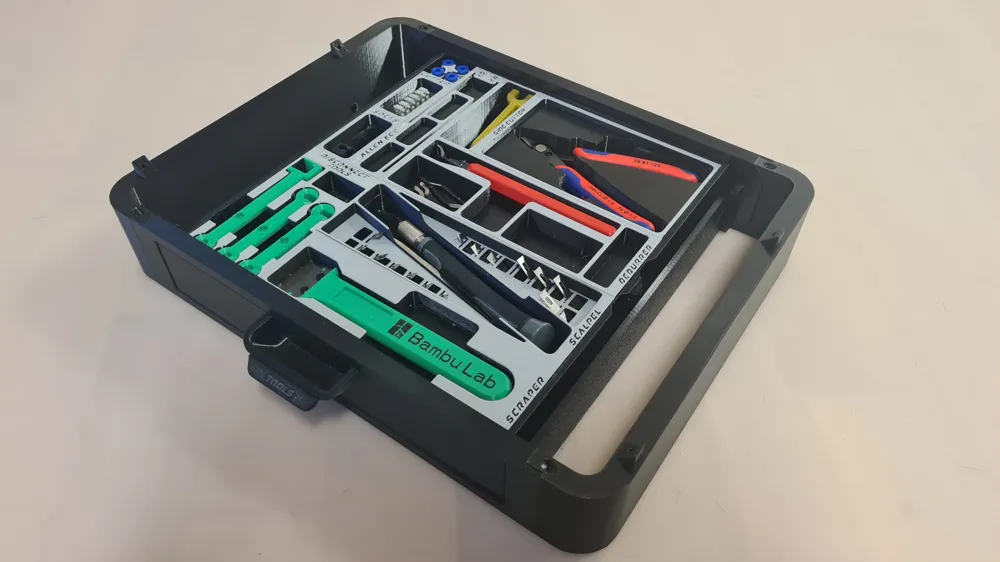

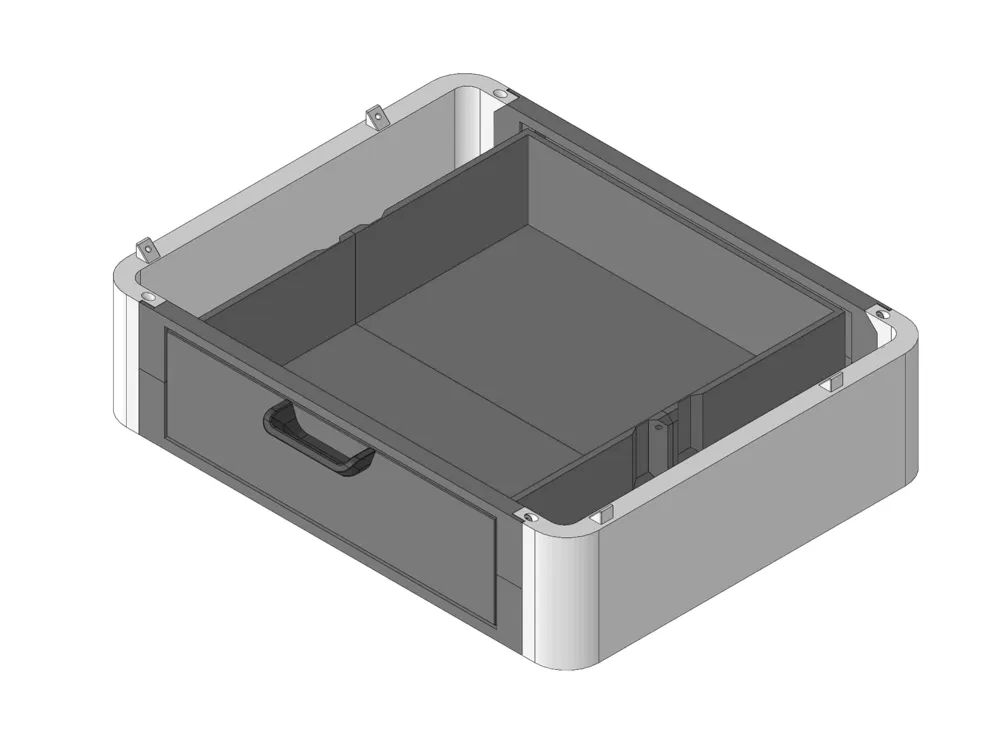

This is the [BaBo duo] mono drawer module 60. It is a large drawer with space for 9x8 inserts.
It is only compatible with the [BaBo duo] modules and not with the [BaBo] modules. But you can use the [BaBo] inserts.
The usable dimensions of the drawer are 270x240x60.
The drawer has space for 9x8 inserts.
The inserts have a grid of 30x30mm, this means a 1x2 insert has the dimensions 30x60mm.
BaBo organizer is a stationary, very flexible system to store your tools, spare parts and even printing plates. The design is based on the iconic look of the Bambu Lab X1 printer. The entire system uses only 1 type of screw, M3x8 countersunk screws.
Update:
(16/08/24)
- guides changed to reduce noise when pulling out
- front look changed
(29/11/24)
- drawer was reinforced
(06/10/25)
- changed handle
Printing:
Layer height: 0.2
Supports: No
Brim: No
Material: all
Assembly:

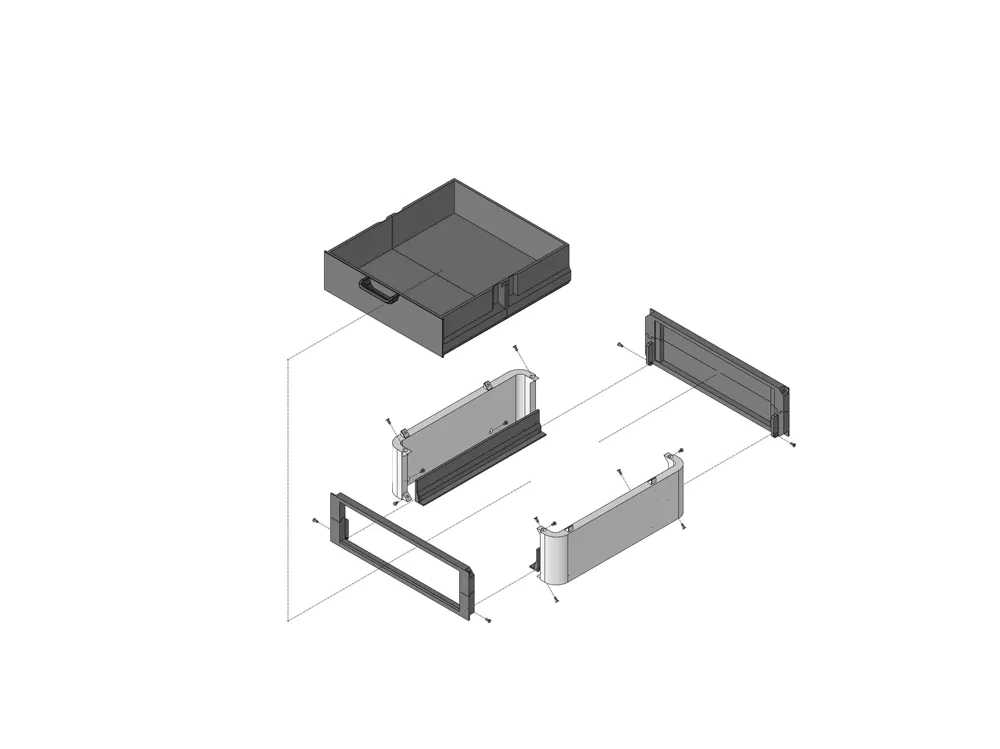

Follow the instructions in the picture.
- printed parts
- 20 x M3x8 countersunk screws.
